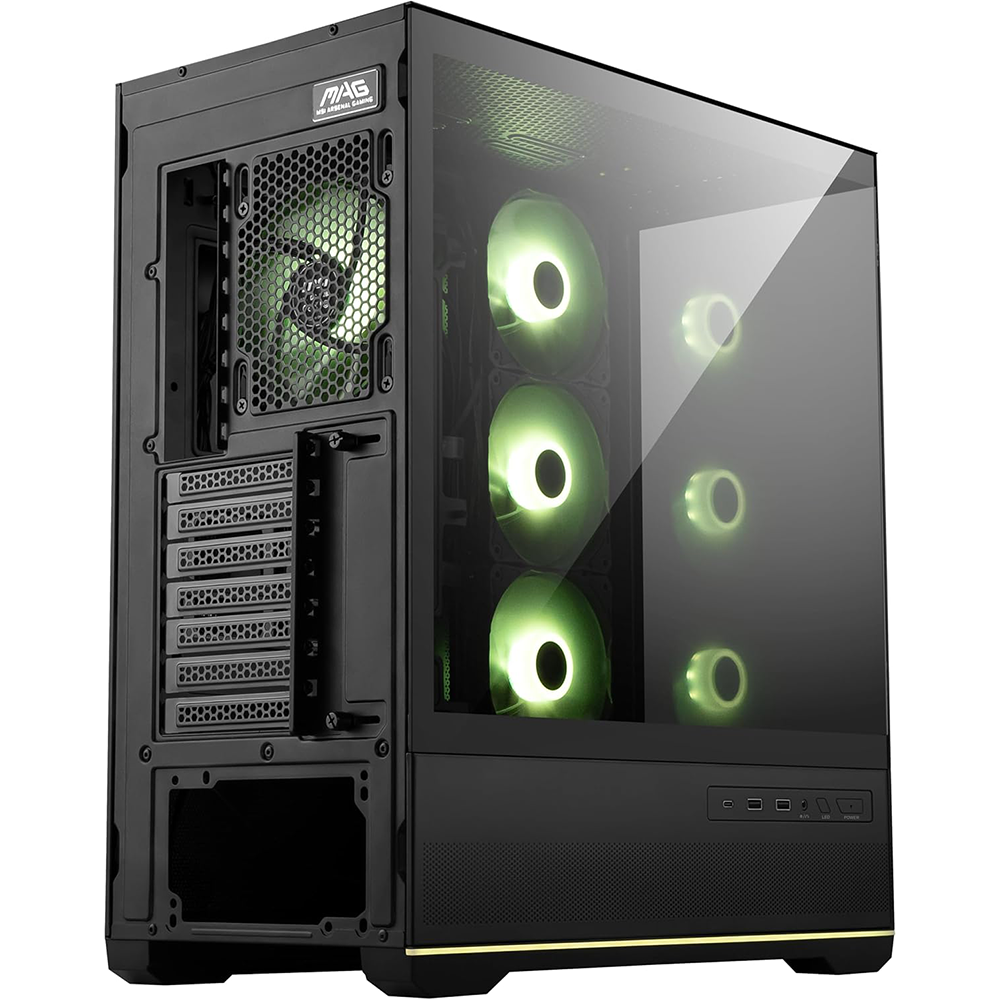

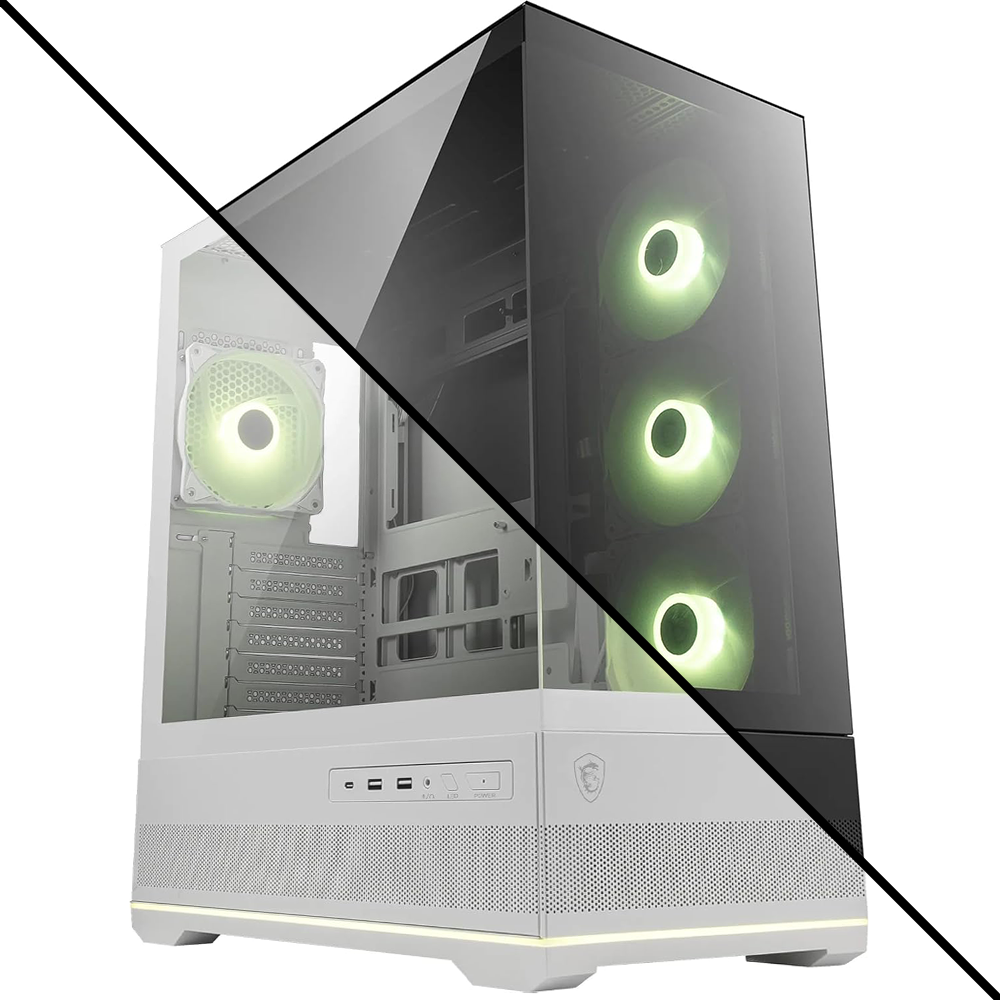

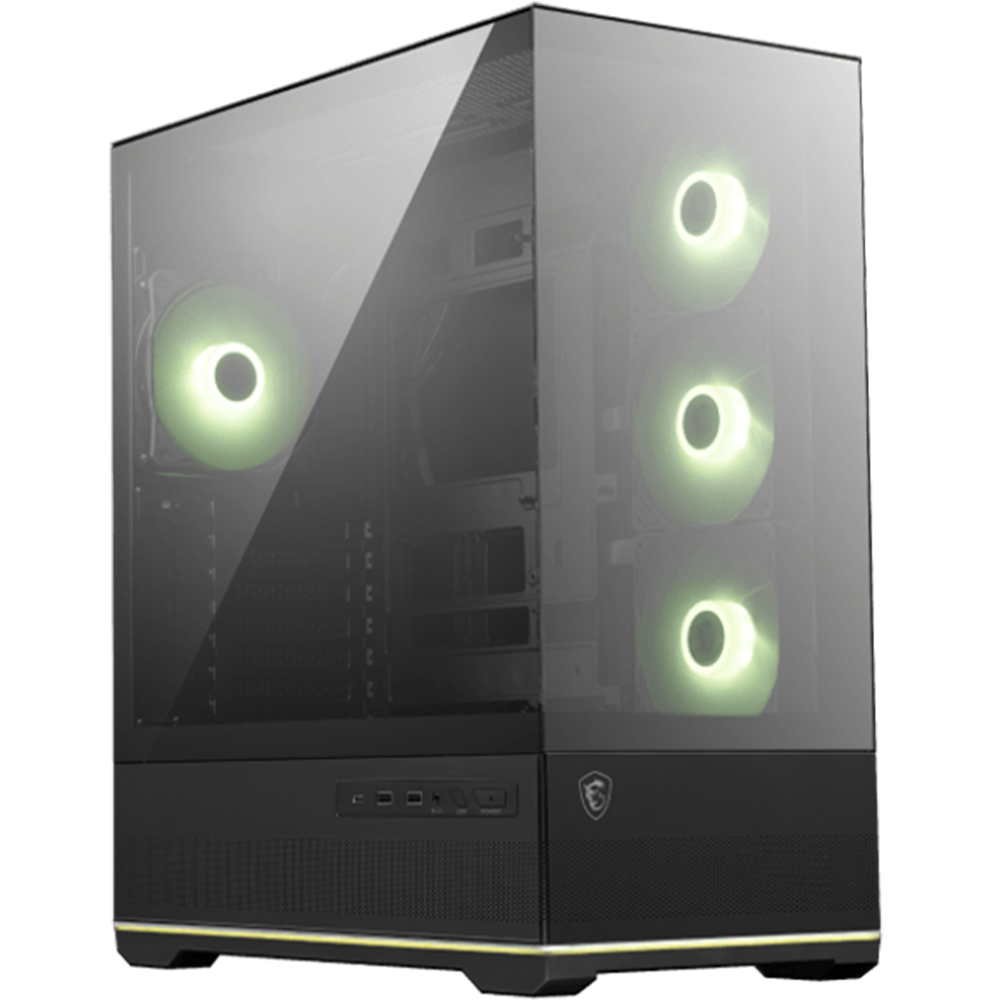

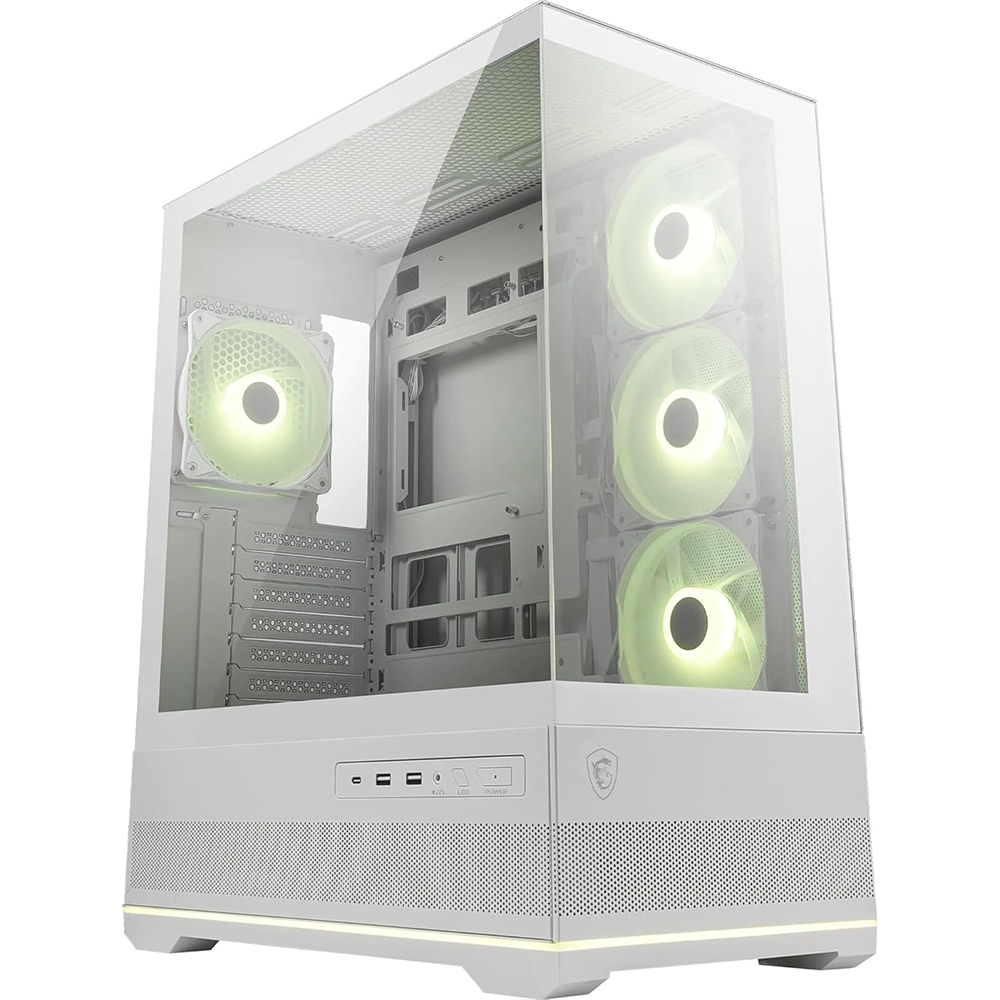

- 270-Degree Display: The chassis features a 270-degree panoramic design with tempered glass, providing an expansive view to showcase detailed components.
- Measurements: Supports multiple motherboard sizes, including regular ATX, Micro-ATX, Mini-ITX and back-connect ATX and Micro-ATX, allowing users to customize their PC setup.

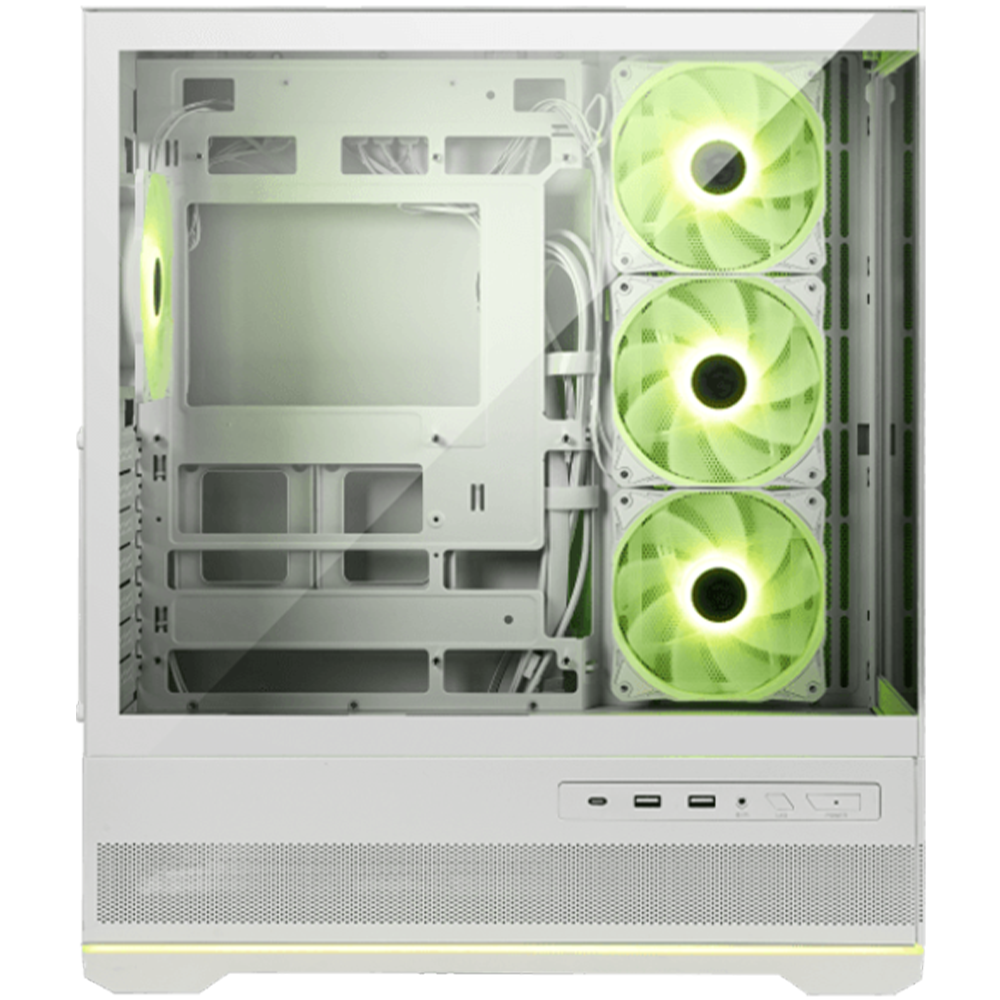

- Pre-build with Reverse Blades Fan: Pre-installed reverse blade fans on the side ensure an unobstructed display of the ARGB fan’s lighting effects, free from interference by fan frames.
- ARGB-Fan Control Board: The 1-to-5 ARGB fan control board supports up to 5 ARGB fans, allowing users to adjust 18 ARGB lighting effects with a single LED switch button

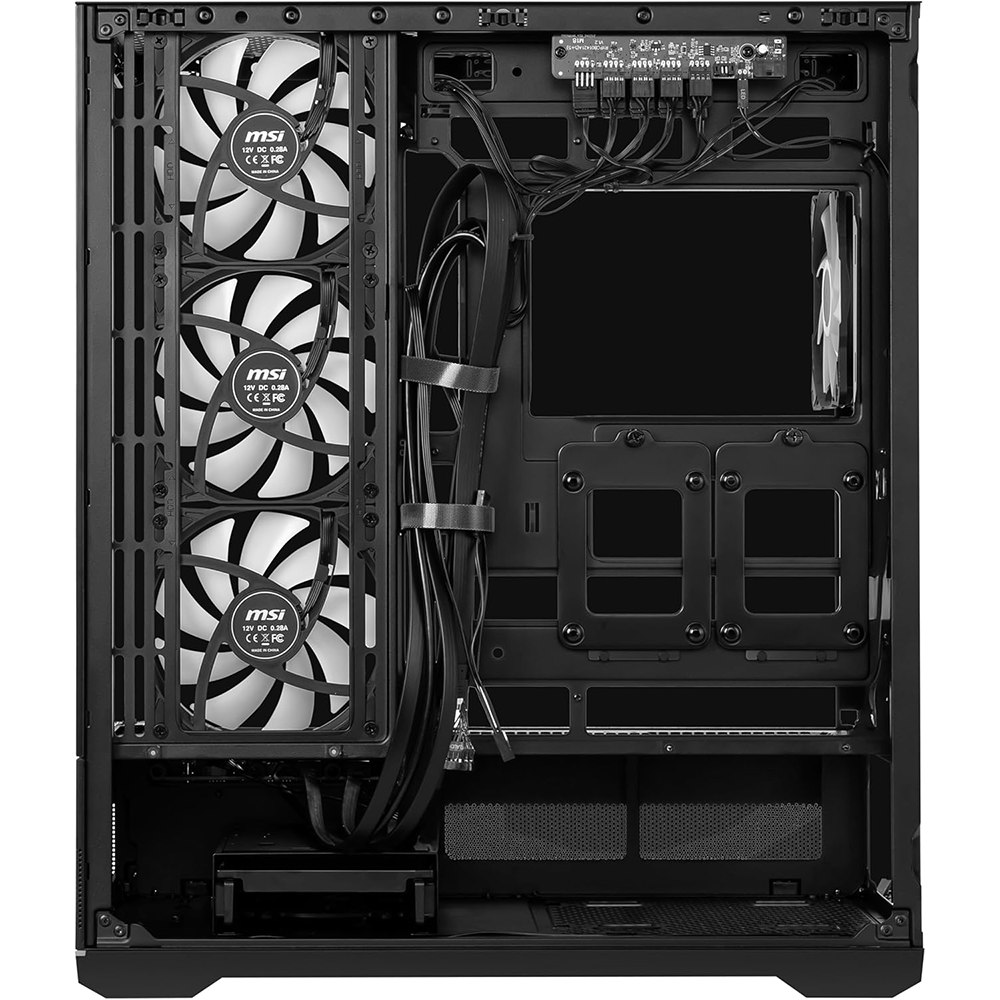

- Upgrade Airflow Layout: Supports up to 10 fans, a 360mm radiator on top and a 120mm radiator at rear. The lower chamber, surrounded by vents, further enhances heat dissipation for optimal performance.
Product Details:
Product Name:
- MAG PANO 110R PZ
Form Factor:
- Mid Tower
Motherboard Support:
- Regular: ATX / Micro-ATX / Mini-ITX
- Back-connect: ATX / Micro-ATX
I/O Ports:
- 1 x USB 20Gbps Type-C
- 2 x USB 5Gbps Type-A
- 1 x Audio-Out / Mic-in
- 1 x LED Switch Button
- 1 x Power Button
Drive Mount Support:
- 2 x 2.5“
- 2 x 3.5“
- 2 x 2.5"/3.5" combo
Expansion Slots:
- 7
Maximum GPU Length:
- 400 mm
Maximum CPU Cooler Height:
- 160 mm
Power Supply Support:
- ATX
Maximum PSU Length:
- 200 mm
Fan Size Support:
- Top: 3 x 120 mm / 2 x 140 mm
- Front: NA
- Rear: 1 x 120 mm
- Side: 3 x 120 mm / 2 x 140 mm
- Bottom: 3 x 120 mm
Pre-installed Fan Size:
- Side: 3 x 120 mm
- Rear: 1 x 120 mm
Pre-installed Fan Type:
- Side: 3 x ARGB Reverse-blade
- Rear: 1 x ARGB
Radiator Size Support:
- Top: 120 / 140 / 240 / 280 / 360 mm
- Front: NA
- Rear: 120 mm
- Side: NA
- Bottom: NA
Dimensions (D x W x H):
- 420 x 225 x 485 mm
Part Number:
- Black: 306-7G28R21-JA4
- White: 306-7G28W14-JA4
