- The MasterBox NR200P uses features normally found in stylish, high-end ATX cases and cleverly utilizes space-saving measures to create a chassis taking up less than half the volume. Every feature is thoughtfully laid out in an 18-liter space to maximize component compatibility, thermal efficiency, and ease of assembly.
Product Features :

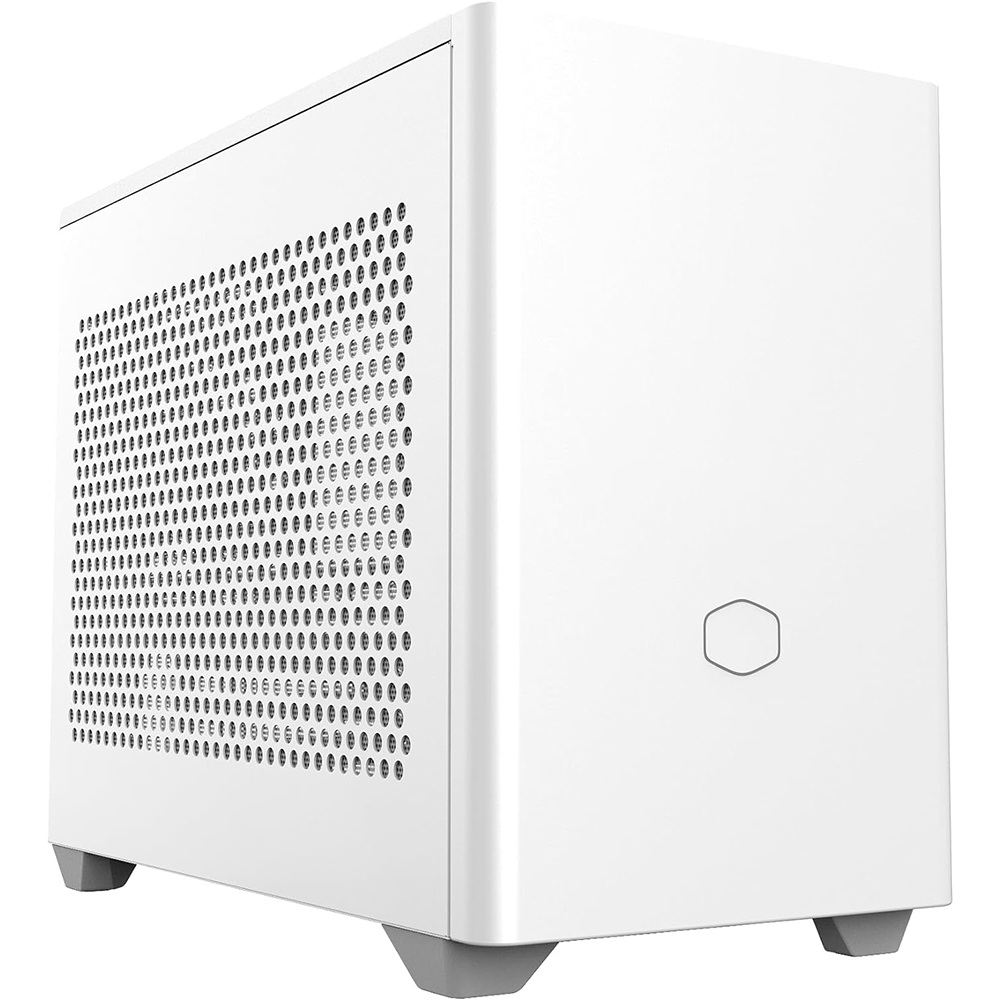

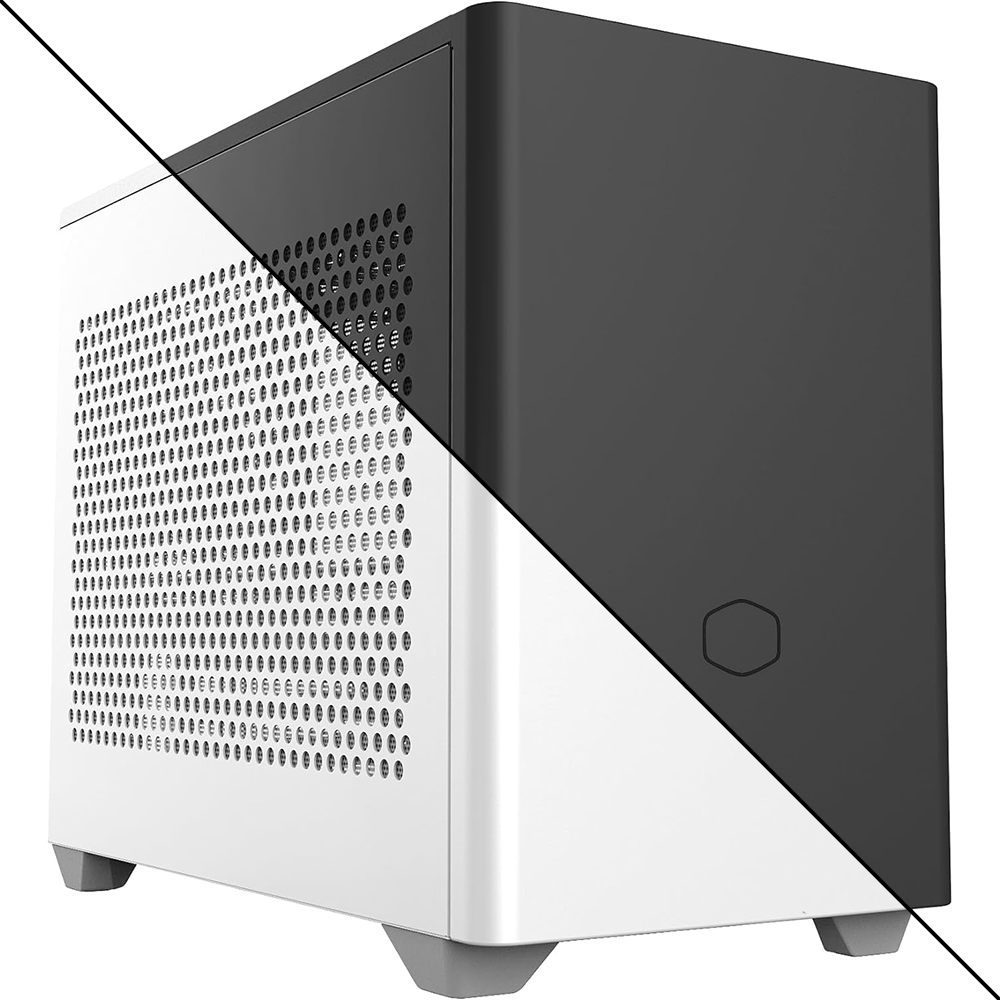

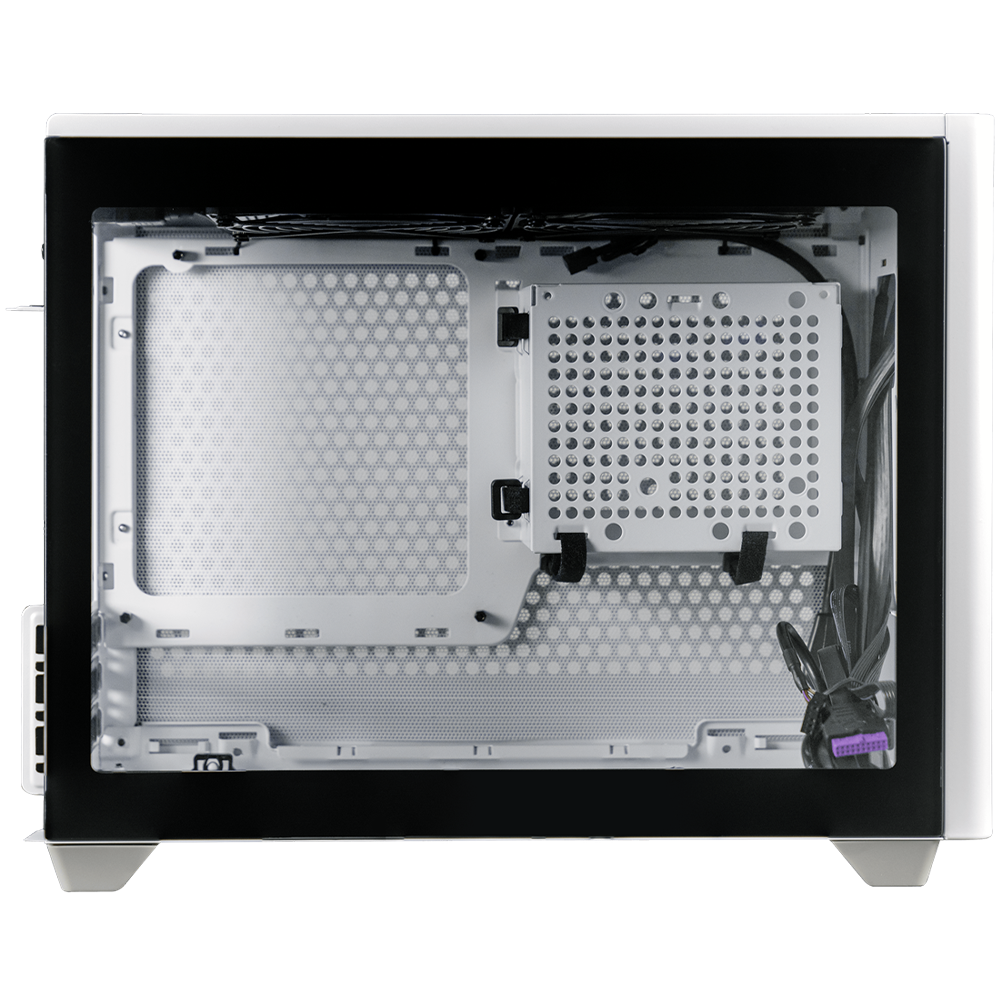

- The NR200P includes many features found in larger ATX chassis while retaining a space-efficient form factor. The NR200P comes with the choice of a vented steel side panel for unrestricted airflow, or a crystal-clear tempered glass side panel to reveal the beauty of a computing beast. A PCI Riser is included for vertical GPU installation to better showcase it against the glass, or to feed it fresh air from the side with the vented panel.
- The NR200P can house up to 7 fans in total for every cooling configuration imaginable. Two 120mm Sickleflow fan are included. The compact structure can efficiently house CPU coolers up to 155mm in height and radiators up to 280mm in length, so even the hottest running hardware can’t be held back.
- Triple slot GPUs are supported with a maximum length of 330mm and maximum width of 156mm allowing the fitment of large high-end graphics cards. A custom-sized riser cable is included to mount a graphics card vertically to showcase it, or allow radiator mounting at the bottom of the chassis to keep the system running as cool as it looks.

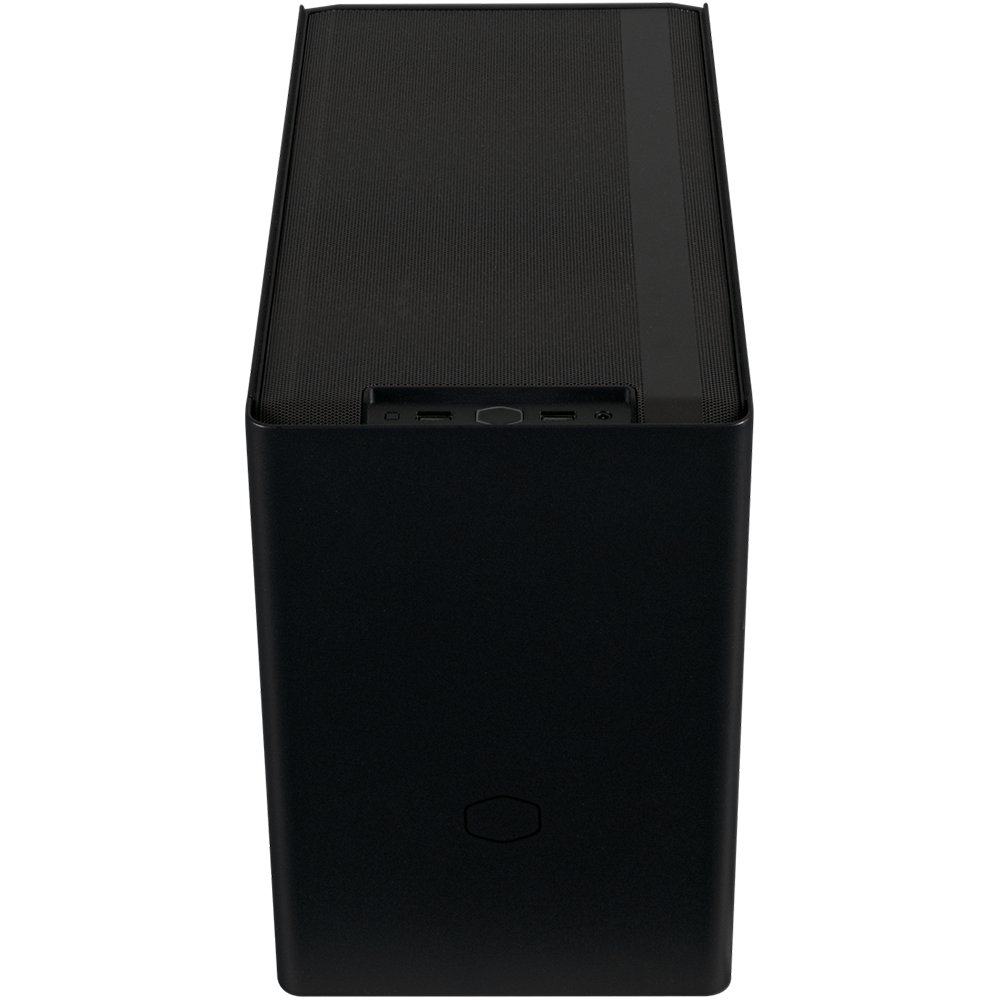

- All external panels, including the tempered glass and top mounted fans are secured with pins for easy removal, facilitating quick access to the internals without the use of tools.

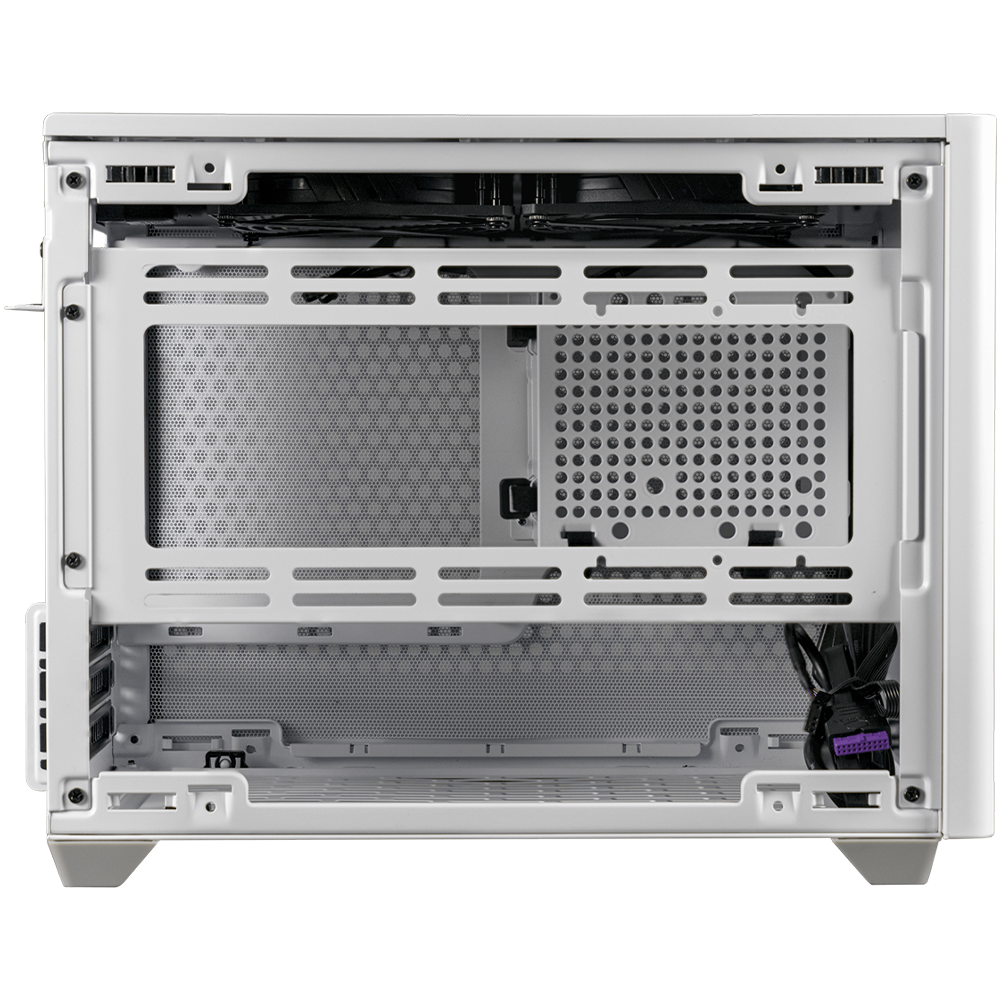

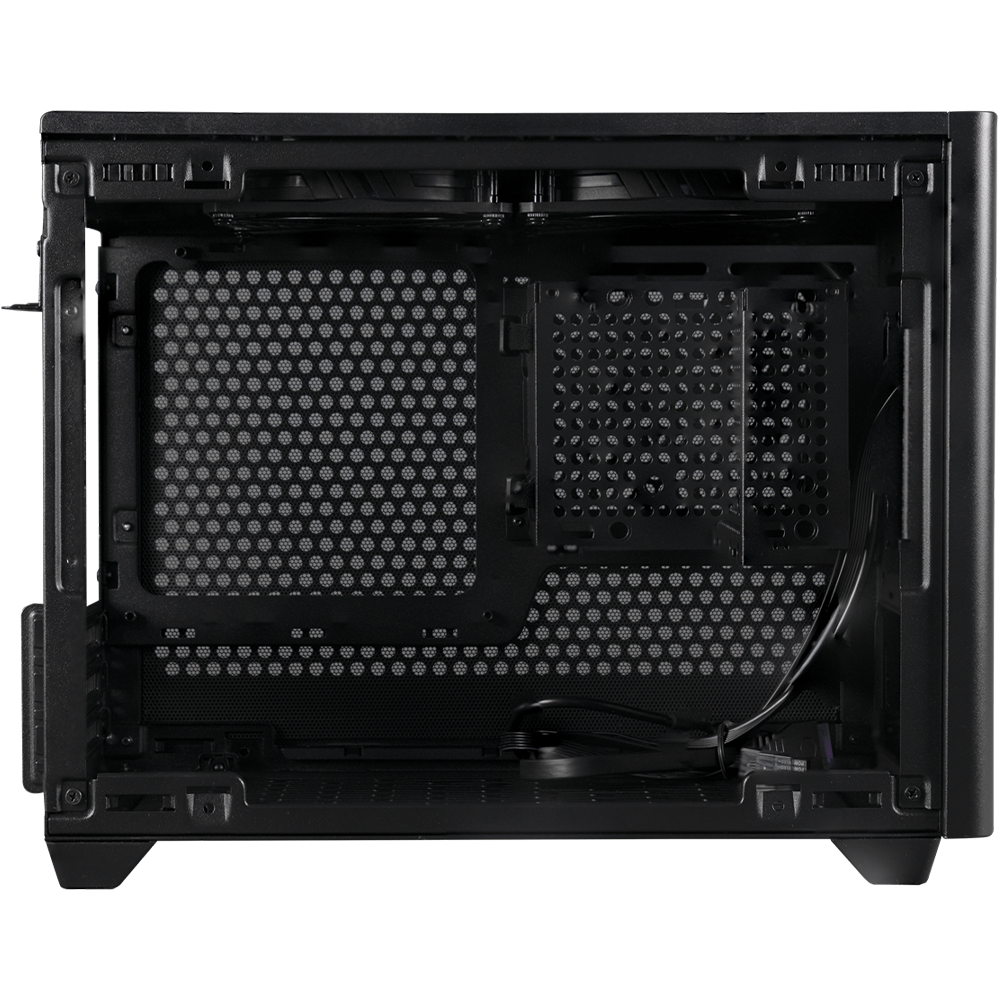

- Every panel and frame part of the NR200P can be dismantled. Screws are used to secure the frame parts to allow advanced disassembly and multiple angles to easily work inside of the chassis.
- Thick, powder coated SGCC steel keeps the fit and finish of the chassis clean and durable even with harsh traveling conditions
- Compatible with Mini-ITX and Mini DTX. The PSU can be front-mounted for extra motherboard clearance with a maximum space of 244 x 226 mm.
Product details:
- Model Number : MCB-NR200P-KGNN-S00 / MCB-NR200P-WGNN-S00
- Size : MINI-ITX
- Dimensions (L x W x H): 376 x 185 x 292 mm
- Motherboard Support: Mini-ITX | Mini-DTX
- Expansion slots: 3
- Hard disk (HDD) support: 1
- Card Support (SSD) : 2 (MAX. 3)
- I/O Panel : 2 x USB 3.2 Gen 1 (USB 3.0), 1x 3.5mm Audio Jack (Audio+Mic)
- Pre-installed fans : 2x 120mm (SicleFlow PWM Fan)
- Fan Support - Top: 2x 120mm
- Fan Support - Side: 2x 120mm, 2x 140mm
- Fan Support - Rear: 1x 92mm
- Fan Support - Bottom : 2x 120m (Recomendedslim fans for GPUs wider than 2.5 PCI slots)
- Radiator Support - Top : N/A
- Radiator Support - Side : 120mm, 140mm, 240mm, 280mm
- Radiator support Bottom: 120mm, 140mm
- Maximum height of CPU cooler: 76mm (GPU in vertical position), 153mm (tempered glass side panel), 155mm (vented steel side panel)
- Power Supply Support (PSU): SFX, SFX-L. 130mm
- Graphics card support: L: 330mm (incl. power connector), H: 156mm (incl. power connector), W: 60mm (triple slot)
