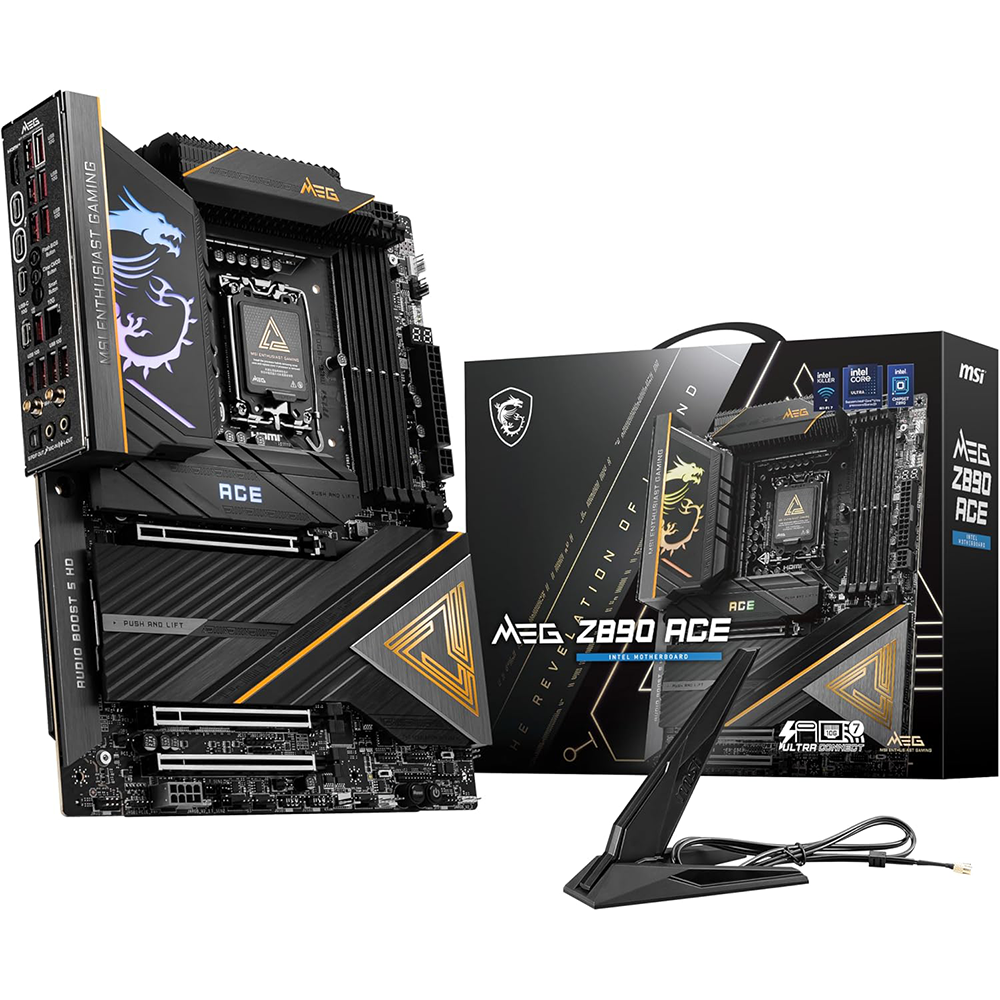

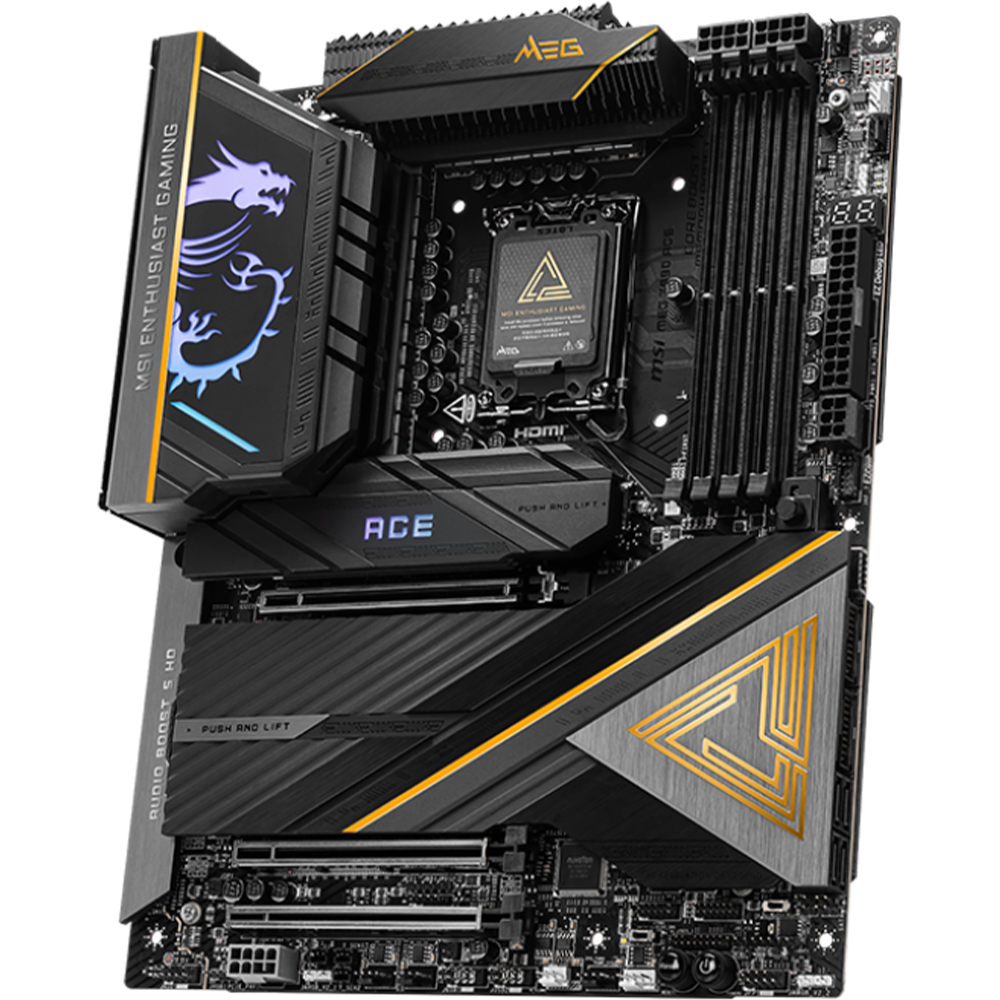

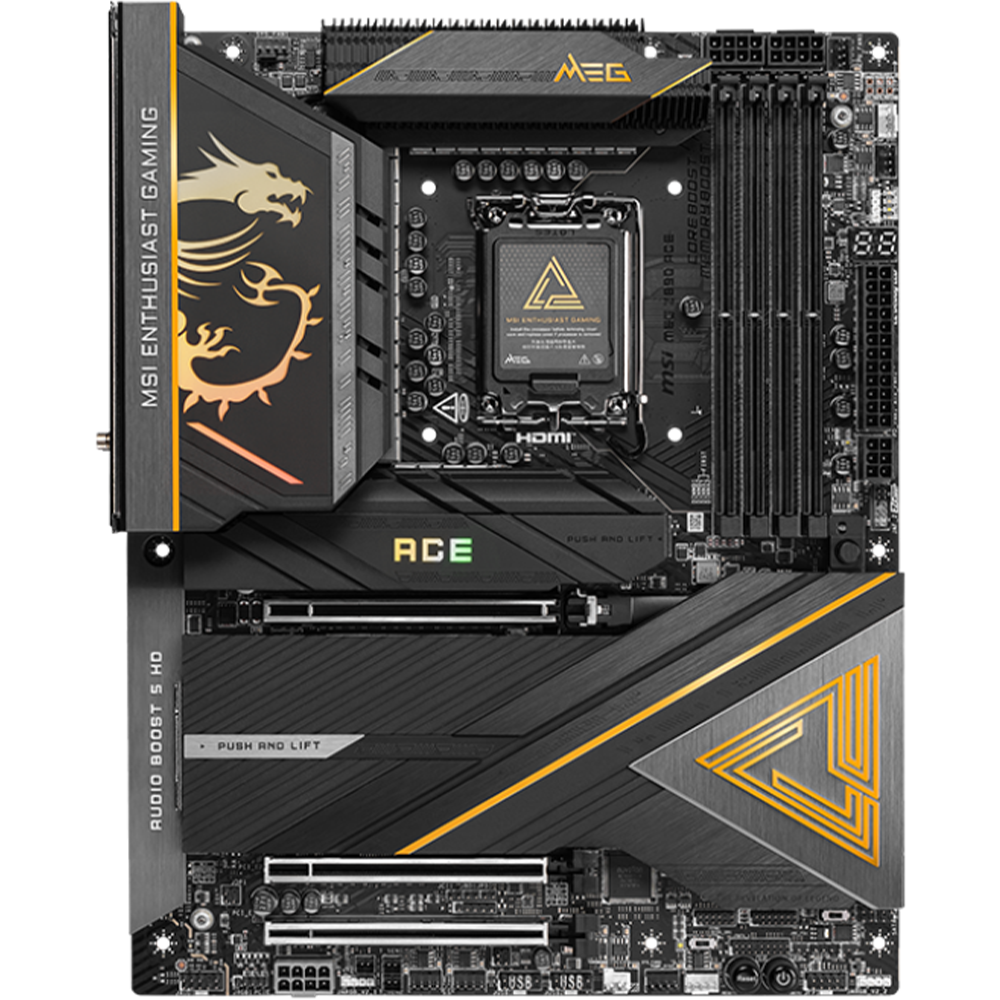

- Furnished premium aesthetics with its dark black finish and pale gold embellishes. Developed to unlock the full gaming potential of the Intel Core Ultra processor by combining elite hardware system support and premium durability, the MEG Z890 ACE is an outstanding ATX of Z890 platform for extreme settings in terms of overclocking the processor, DDR5 memory, and graphics card at the highest level.
Product Features:
- Ultra Power +: The ultimate power solution with 24+2+1+1 DRPS, 110A SPS, and OC Engine unleashes maximum CPU performance.

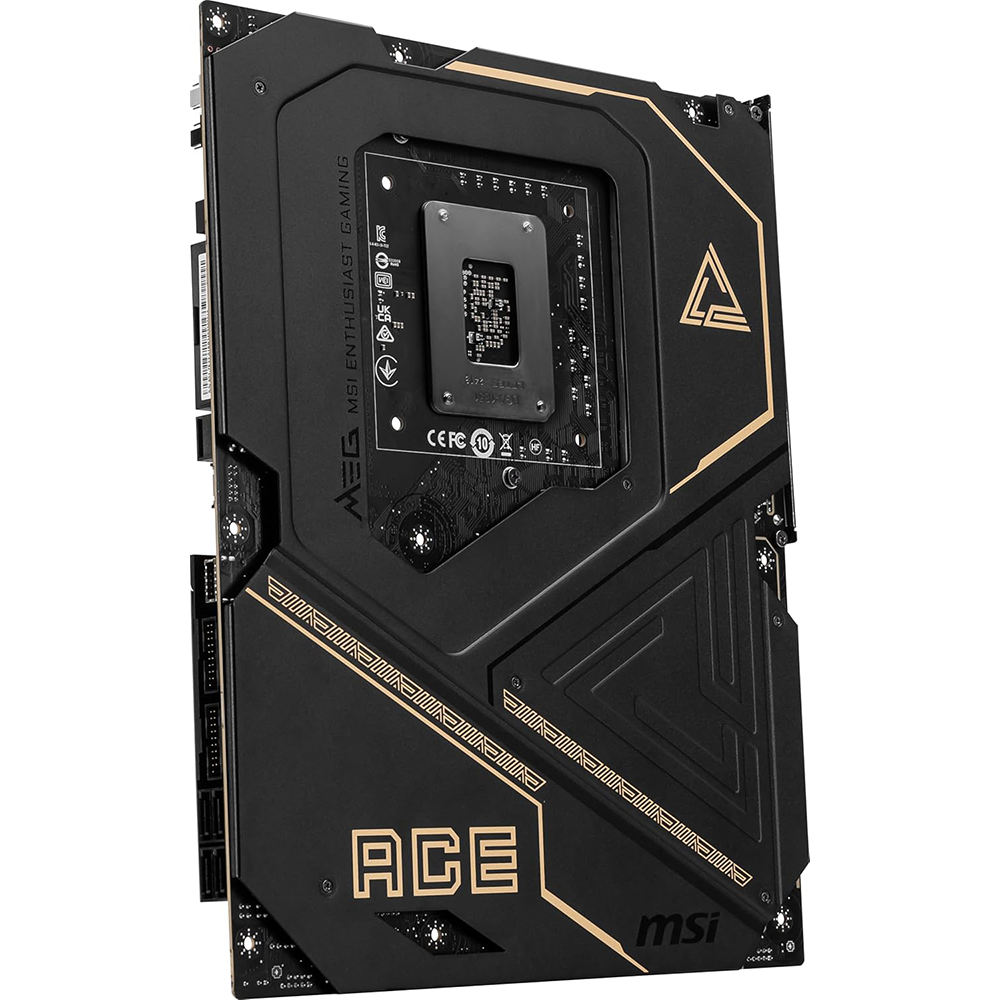

- Frozr Design: Wavy Fin Design, Direct Touch Cross Heat-pipe, Aluminum Cover, Double-sided M.2 Shield Frozr, Metal Backplate and Frozr AI software ensure the utmost performance with low temp.
- Dual Thunderbolt 4 ports: Thunderbolt 4 brings Thunderbolt to USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chain, Multi-Port Accessory Architecture and USB 4.0 compliant.
- 10G Super LAN: Next level network speed, secure networking with fastest data throughput to improve efficiency.
- Wi-Fi 7: The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps, which is 2.4 times faster than Wi-Fi 6/6E.
- Quintuple M.2 Connectors: Onboard 5x M.2 connectors with one Lightning Gen 5 solution for the maximum storage performance.
- EZ Magnetic M.2 Shield Frozr II: The patented design enables true “wire-less” RGB function, while the screwless design provides the easiest way for M.2 installation.
- EZ PCIe Release: A simple press of a button to effortlessly lock or unlock the PCIe slot, simplifying the installation and removal of the graphics card.
- Lightning Gen 5: The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.
- Latest DDR5 Memory: A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
- Audio Boost 5 HD: Ultimate audio solution with premium audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience.
Product Details:
CPU:
- Supports Intel Core Ultra Processors (Series 2)
- LGA 1851
Memory:
- 4 × DDR5 UDIMM, Maximum Memory Capacity 256GB
- Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
- Supports Intel® POR Speed and JEDEC Speed
- Supports Memory Overclocking and Intel® XMP 3.0
- Supports Dual-Controller Dual-Channel mode
- Supports Non-ECC, Un-buffered memory
- Supports CUDIMM
Expansions Slots:
- 3x PCI-E x16 slot
- PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
- PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)
- PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Audio:
- Realtek ALC4082 Codec + ESS9219Q Combo DAC/HPA
- 7.1-Channel USB High-Performance Audio
- Supports S/PDIF output
- Storage:
- 5x M.2
- M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
- M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
- M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
- M.2_4 Source (From CPU+Chipset) supports up to PCIe 5.0 x4 + PCIe 4.0 x4 , supports 22110/2280/2260 devices
- M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280 devices
- 4x SATA 6G
USB:
- 4x USB 2.0 (Front)
- 4x USB 5Gbps Type A (Front)
- 11x USB 10Gbps Type A (Rear)
- 2x USB 10Gbps Type C (Rear)
- 1x USB 20Gbps Type C (Front)
- * To achieve USB PD 60W fast charging for JUSBC1, the PD_PWR1 connector needs to be connected to the power supply unit.
LAN:
- 1x Marvell AQC113CS 10Gbps LAN
WIRELESS LAN & BLUETOOTH:
- Intel Killer BE1750x Wi-Fi 7
- Supports Bluetooth 5.4

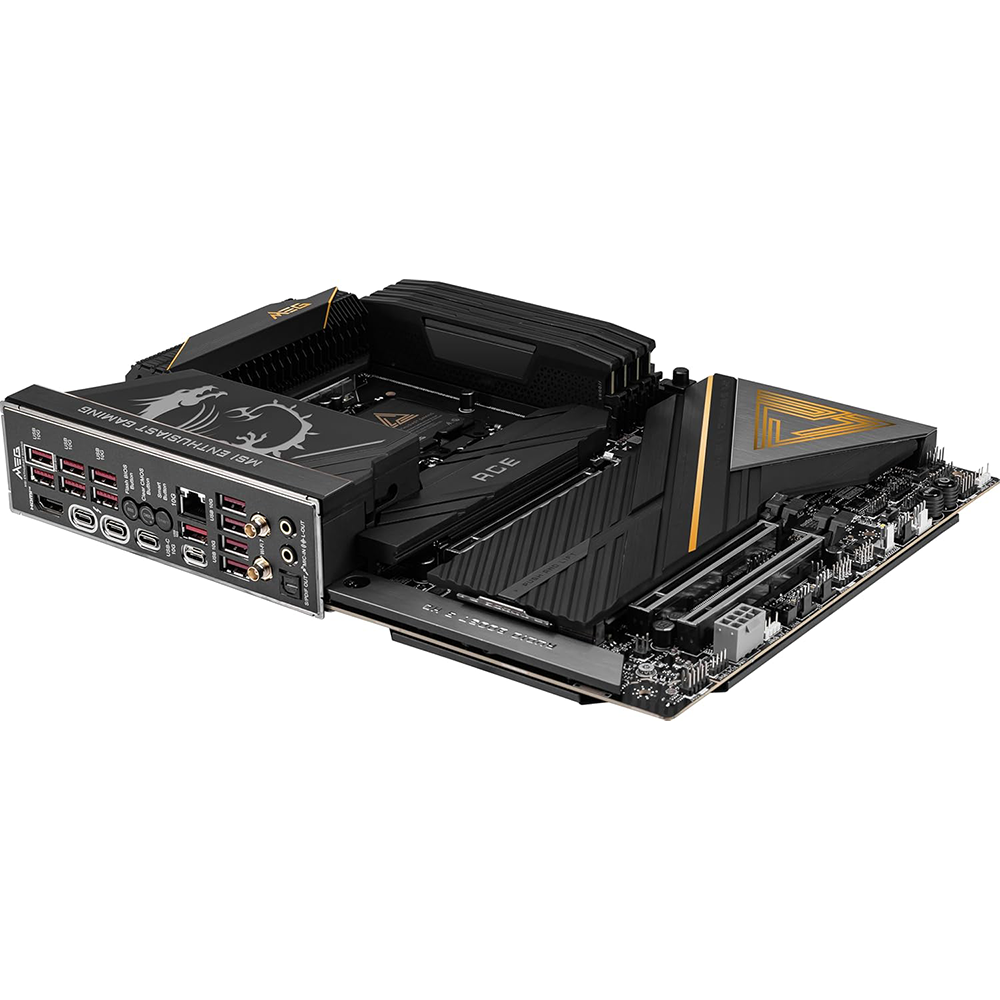

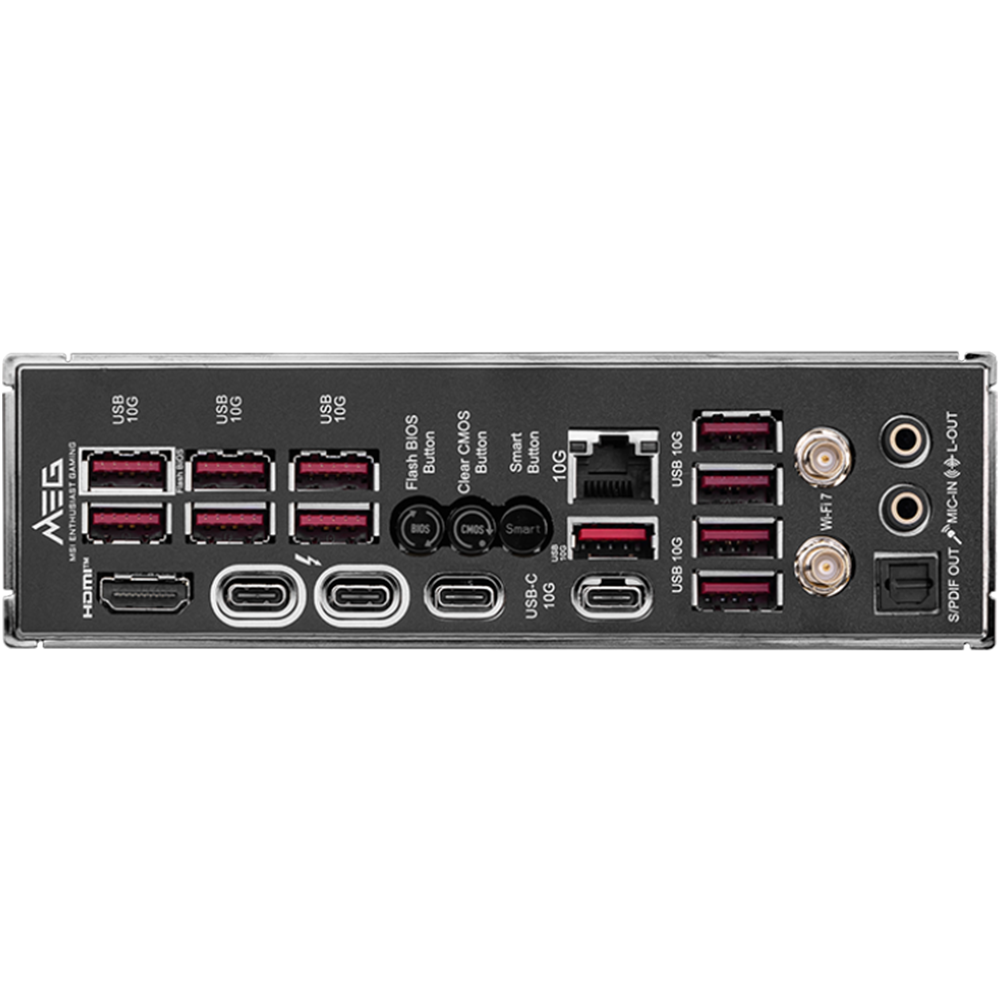

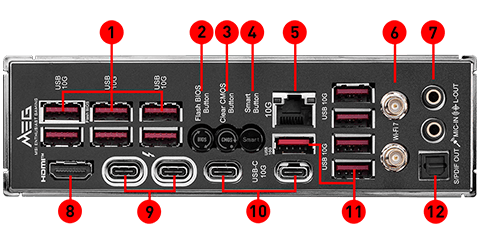

BACK PANEL PORTS:
- USB 10Gbps (Type-A)
- Flash BIOS Button
- Clear CMOS Button
- Smart Button
- 10G LAN
- Wi-Fi / Bluetooth
- HD Audio Connectors
- HDMI 2.1 Port
- Thunderbolt™ 4 40Gbps (Type-C)
- USB 10Gbps (Type-C)
- USB 10Gbps (Type-A)
- Optical S/PDIF-Out
Form Factor:
- ATX 243.84mm x 304.8mm
Part Number:
- 911-7E22-001
