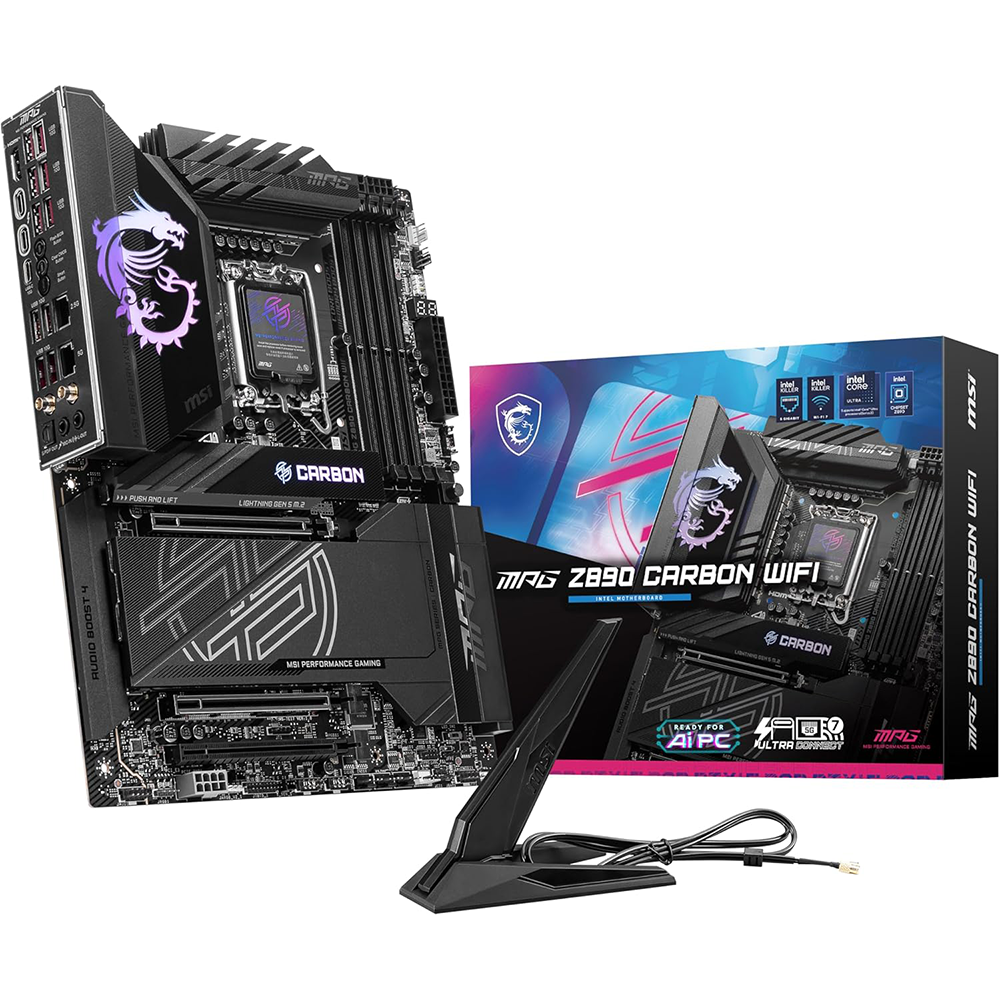

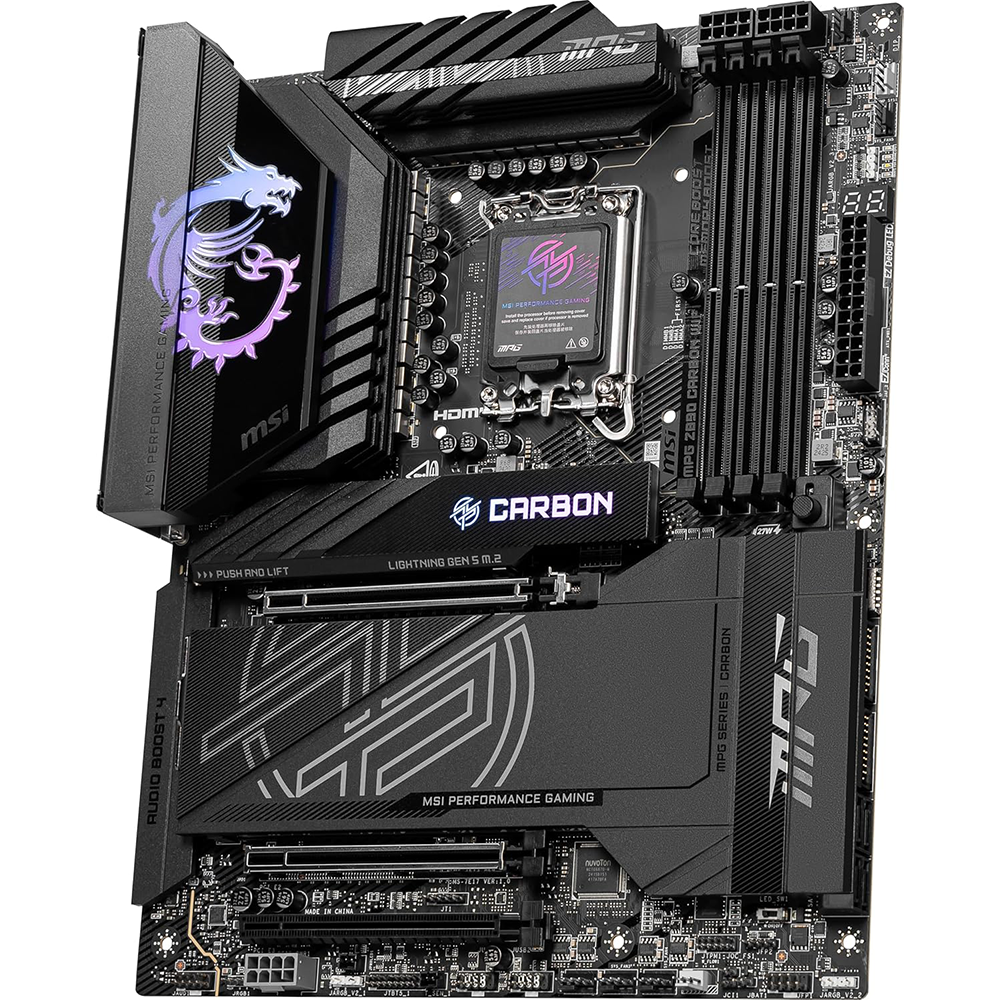

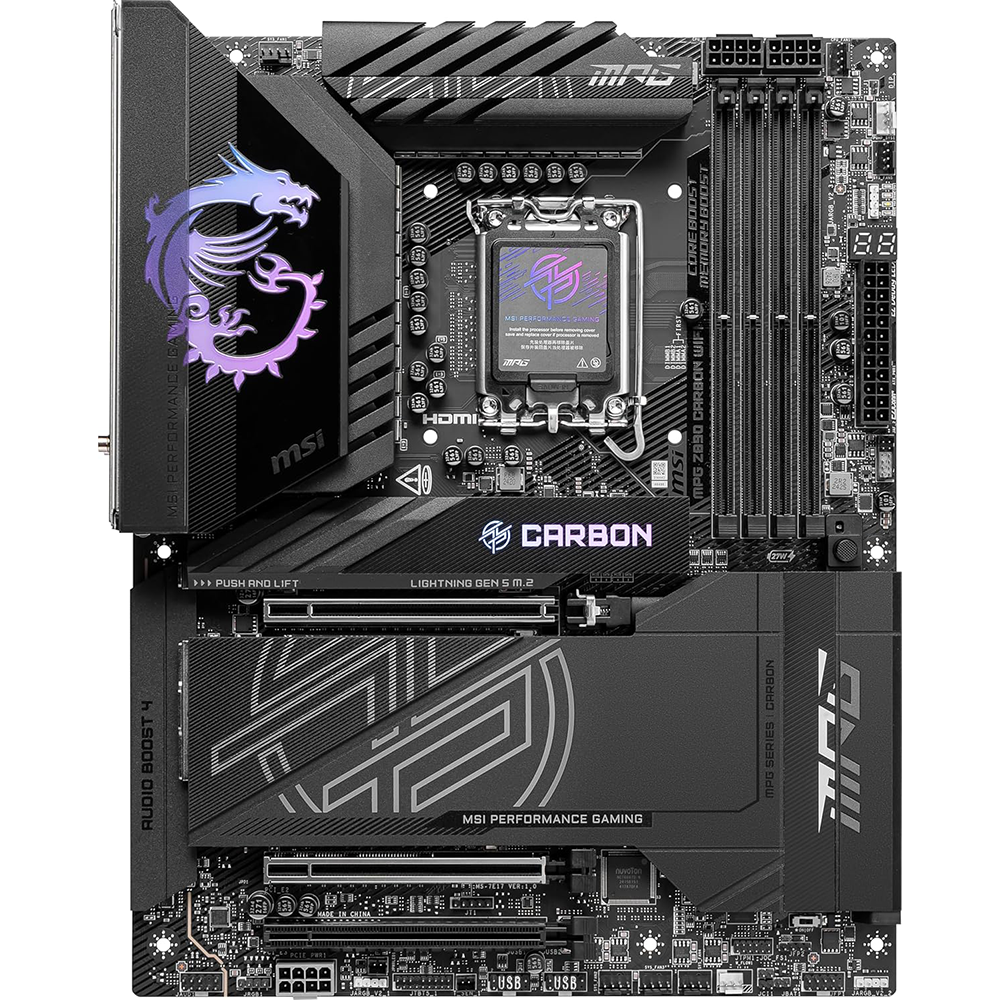

- MPG Z890 CARBON WIFI employs a carbon black color scheme and stylish pattern over Mystic light RGB lighting to show a different identity. It is also powerful inside by featuring Killer 5G LAN and Wi-Fi 7 solution, Thunderbolt 4, Supplemental PCIe Power and the effortless EZ DIY designs, making this motherboard definetly one of the best Z890 ATX motherboards for Intel Core Ultra processors.
Product Features:
- Premium Thermal Design: Heavy plated heatsink with heat-pipe / high quality 7W/mK MOSFET thermal pads / extra choke thermal pads / onboard M.2 Shield Frozr.
- EZ PCIe Release: A simple press of a button to effortlessly lock or unlock the PCIe slot, simplifying the installation and removal of the graphics card.
- EZ M.2 Shield Frozr II: The new tool-less design makes installing or removing your M.2 SSD and Shield Frozr much easier
- Lightning Gen 5: The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.
- Latest DDR5 Memory: A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
- Quintuple M.2 Connectors: Onboard 5x M.2 connectors with one Lightning Gen 5 solution for the maximum storage performance.
- Dual Thunderbolt 4 ports: Thunderbolt 4 brings Thunderbolt to USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chain, Multi-Port Accessory Architecture and USB 4.0 compliant.
- Dual LAN: Dual premium network solution for both Intranet and Internet, offering a smooth gaming experience for effective network connection
- Wi-Fi 7: The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps, which is 2.4 times faster than Wi-Fi 6/6E.
- Audio Boost 4: Isolated audio with a high quality audio processor for the most immersive gaming experience.
Product Details:
CPU:
- Supports Intel Core Ultra Processors (Series 2)
- LGA 1851
Memory:
- 4 ء DDR5 UDIMM, Maximum Memory Capacity 256GB
- Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
- Supports Intel® POR Speed and JEDEC Speed
- Supports Memory Overclocking and Intel® XMP 3.0
- Supports Dual-Controller Dual-Channel mode
- Supports Non-ECC, Un-buffered memory
- Supports CUDIMM
Expansions Slots:
- 3x PCI-E x16 slot
- PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
- PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)
- PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Audio:
- Realtek ALC1220P Codec
- 7.1-Channel USB High-Performance Audio
- Supports S/PDIF output
Storage:
- 5x M.2
- M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
- M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
- M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
- M.2_4 Source (From CPU+Chipset) supports up to PCIe 5.0 x4 + PCIe 4.0 x4 , supports 22110/2280/2260 devices
- M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280 devices
- 4x SATA 6G
USB:
- 4x USB 2.0 (Front)
- 4x USB 5Gbps Type A (Front)
- 10x USB 10Gbps Type A (Rear)
- 1x USB 10Gbps Type C (Rear)
- 1x USB 20Gbps Type C (Front)
- *USB 20Gbps Type-C (Front) support USB PD 27W fast charging for JUSBC1
LAN:
- 1x Intel Killer E5000B 5G LAN
- 1x Intel I226V 2.5G LAN
WIRELESS LAN & BLUETOOTH:
- Intel Killer BE1750x Wi-Fi 7
- Supports Bluetooth 5.4

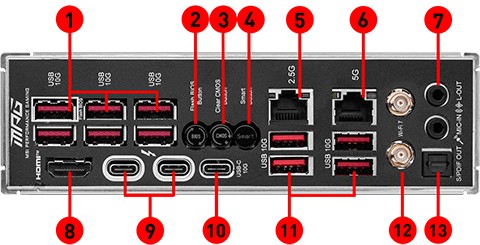

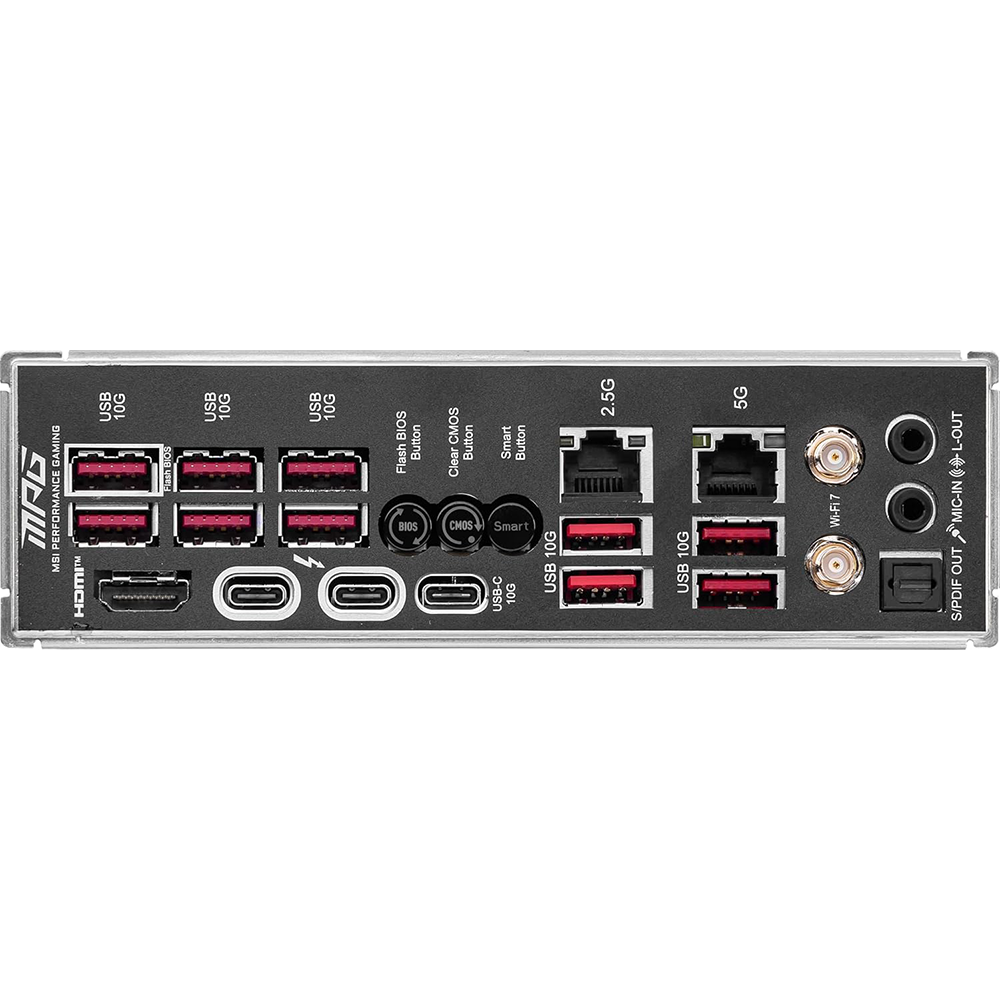

BACK PANEL PORTS:
- USB 10Gbps Type-A
- Flash BIOS Button
- Clear CMOS Button
- Smart Button
- 2.5G LAN
- 5G LAN
- Audio Connectors
- HDMI™
- Thunderbolt 4
- USB 10Gbps Type-C
- USB 10Gbps Type-A
- Wi-Fi / Bluetooth
- Optical S/PDIF Out
Form Factor:
- ATX 243.84mm x 304.8mm
Part Number:
- 911-7E17-001
