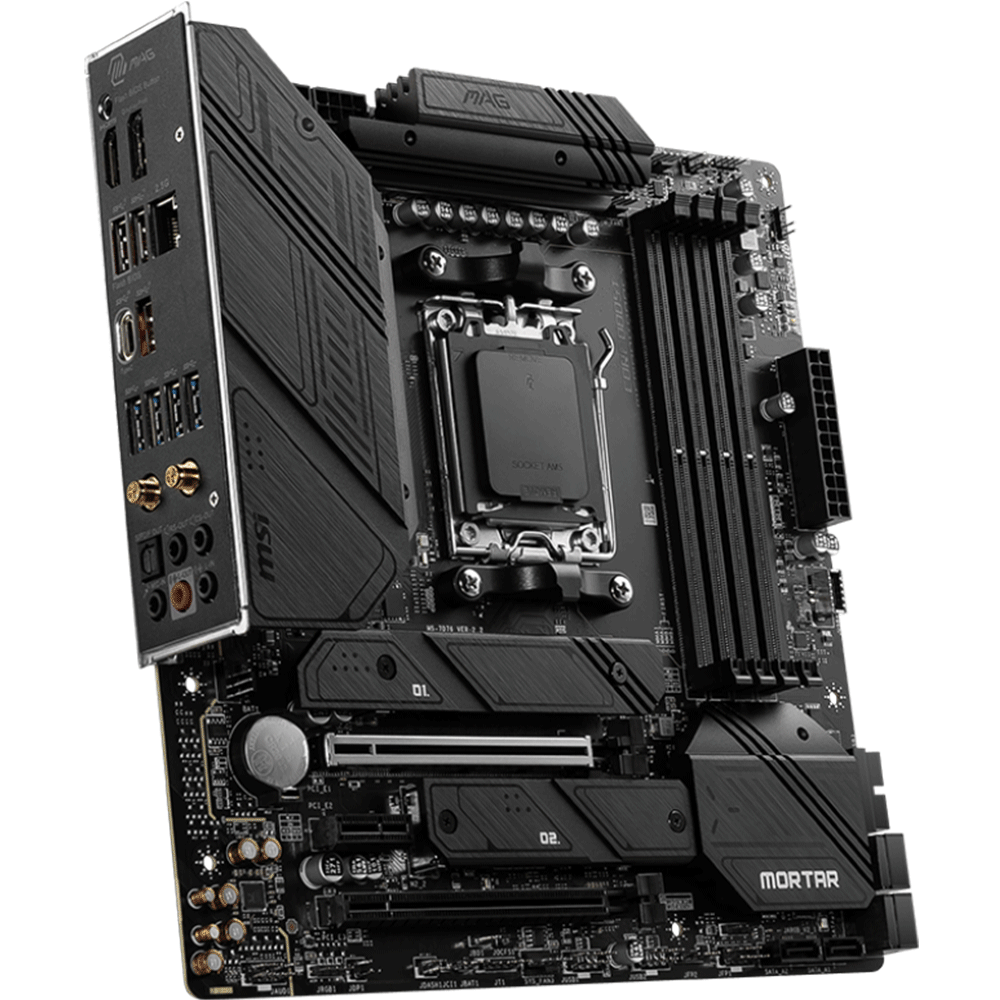

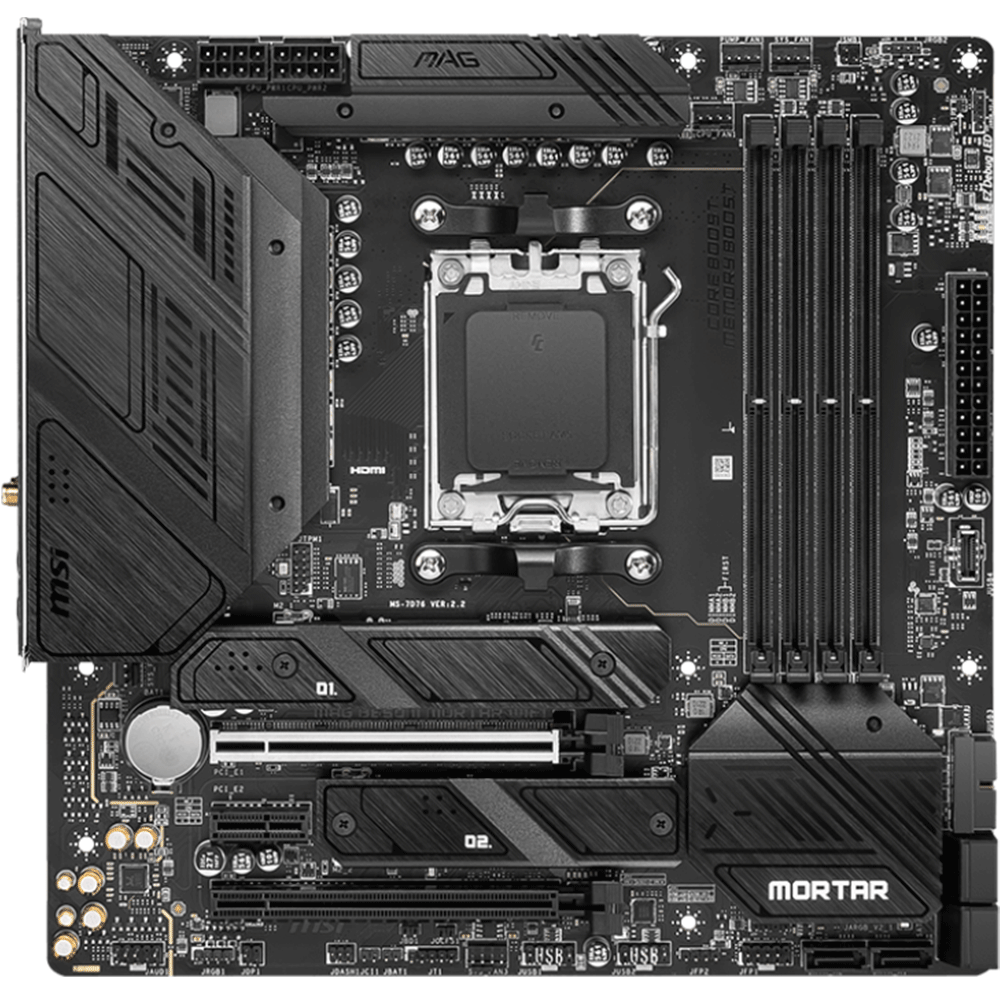

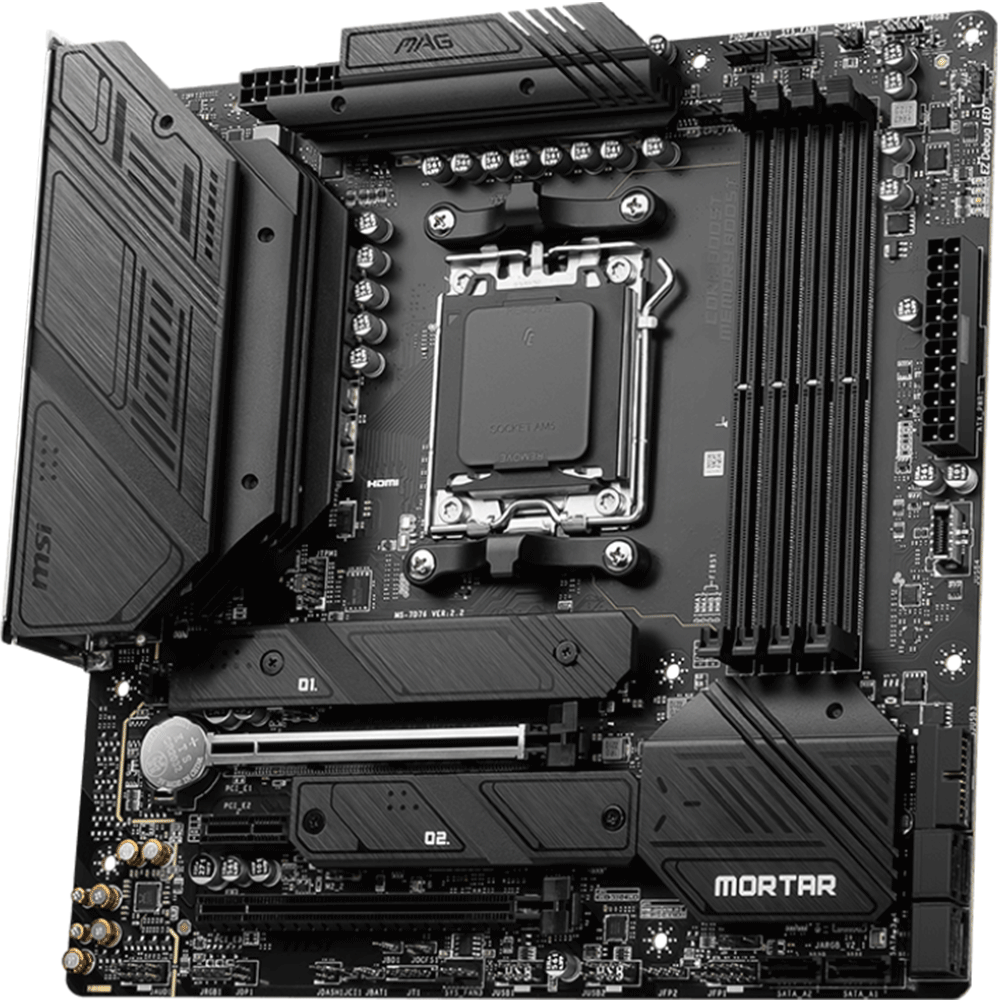

MSI MAG B650M MORTAR WIFI AM5 Socket For AMD CPUs DDR5 Motherboard

CPU :

• Supports AMD Ryzen 7000 Series Desktop Processors Socket AM5

Memory :

• 4 × DDR5 UDIMM, Maximum Memory Capacity 192GB

expansion Slot :

• 2x PCI-E 4.0 x16 slots
• 1x PCI-E 3.0 x1 slot

Storage :

• 2 x M.2 slots supporting PCIe Gen4 x4
• 6 x SATA 6G

USB :

• 4 × USB 2.0 (Front)
• 4 × USB 3.2 Gen1 Type A (Rear)
• 2 × USB 3.2 Gen1 Type A (Front)
• 3 × USB 3.2 Gen2 Type A (Rear)
• 1 × USB 3.2 Gen2 Type C (Front)
• 1 × USB 3.2 Gen2x2 Type C (Rear)

LAN :

• Realtek RTL8125B 2.5Gbps LAN

Wireless/Bluetooth :

• AMD Wi-Fi 6E
• Supports Bluetooth 5.3

Audio :

• Realtek ALC4080 Codec
• 7.1-Channel High Performance Audio
• Supports S/PDIF output

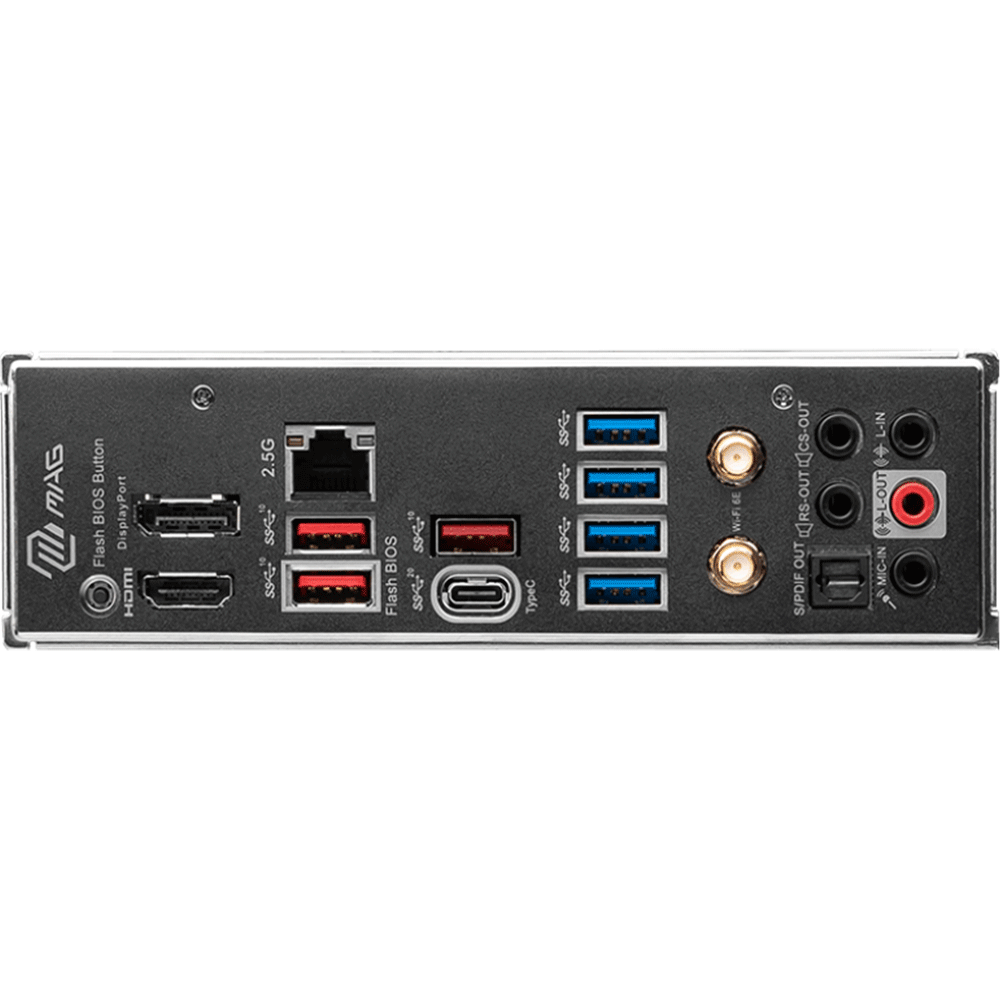

Back I/O Panel Ports :

1. DisplayPort 1.4
2. 2.5G LAN Port
3. USB 3.2 Gen 2 10Gbps Type-A
4. USB 3.2 Gen 1 5Gbps Type-A
5. Wi-Fi / Bluetooth Antenna
6. HD Audio Connectors
7. Flash BIOS Button
8. HDMI 2.1 Port
9. USB 3.2 Gen 2x2 20Gbps Type-C
10. Optical S/PDIF OUT

Motherboard Size :

• micro-ATX 243.84×243.84 mm

Product Number:

• 911-7D76-006

Box Content :
