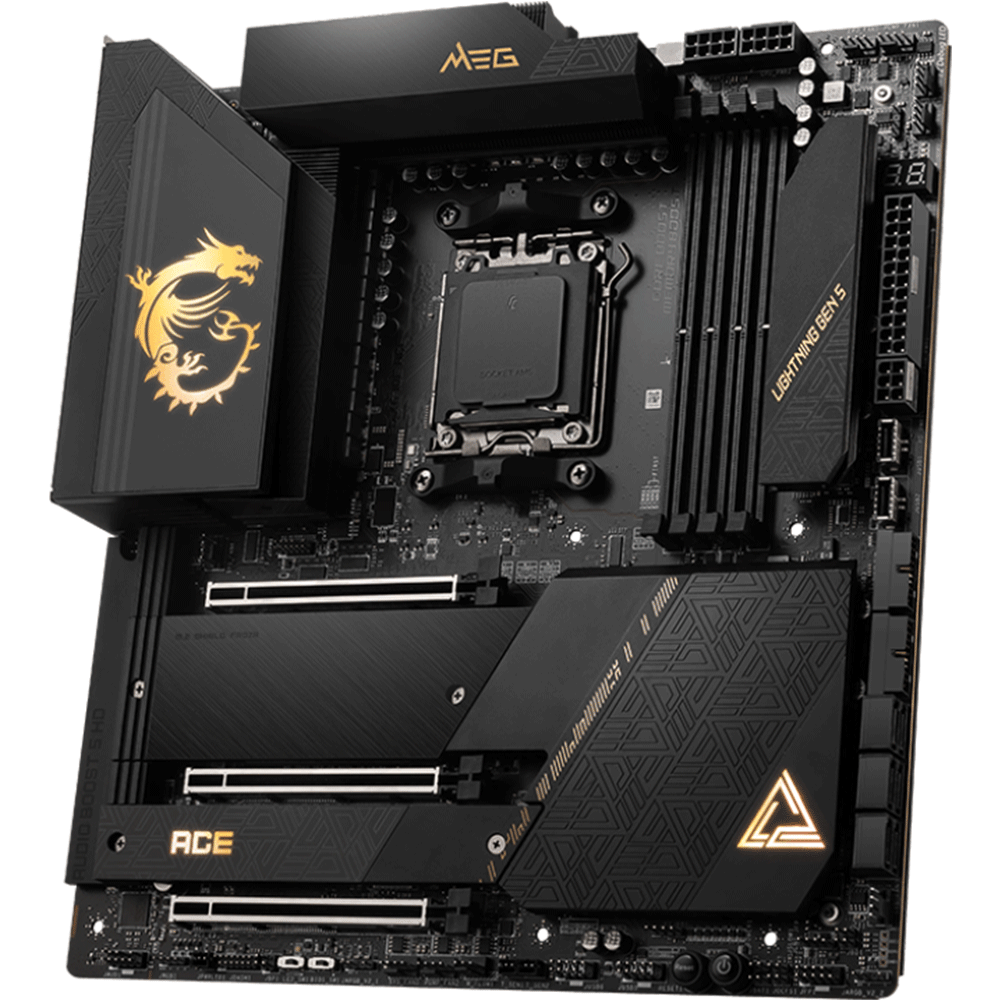

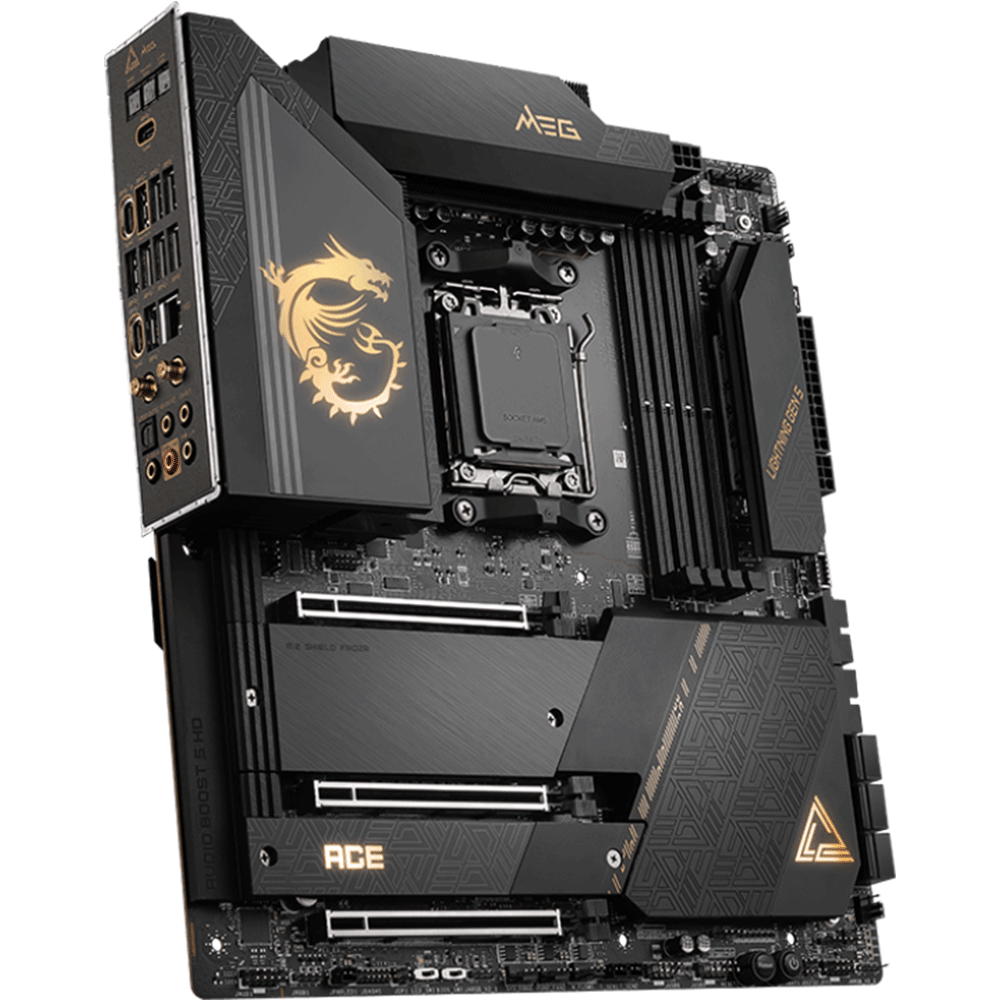

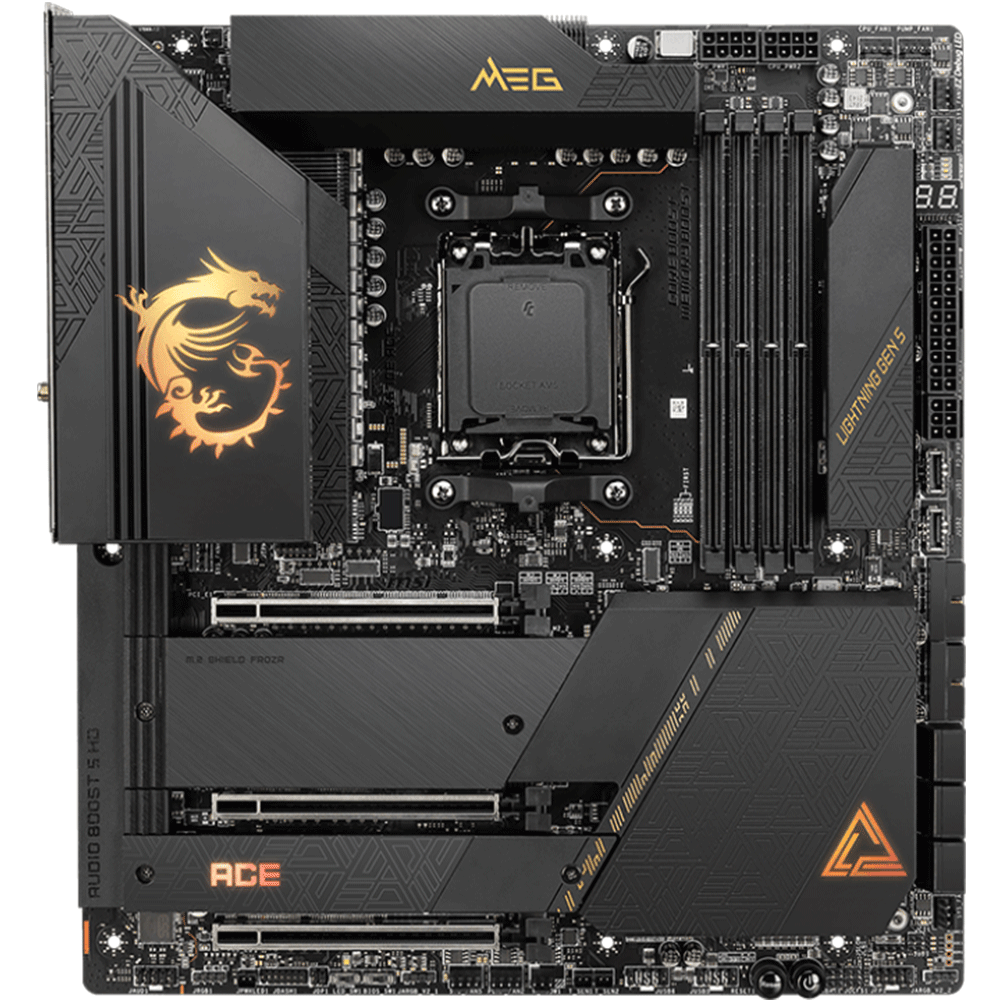

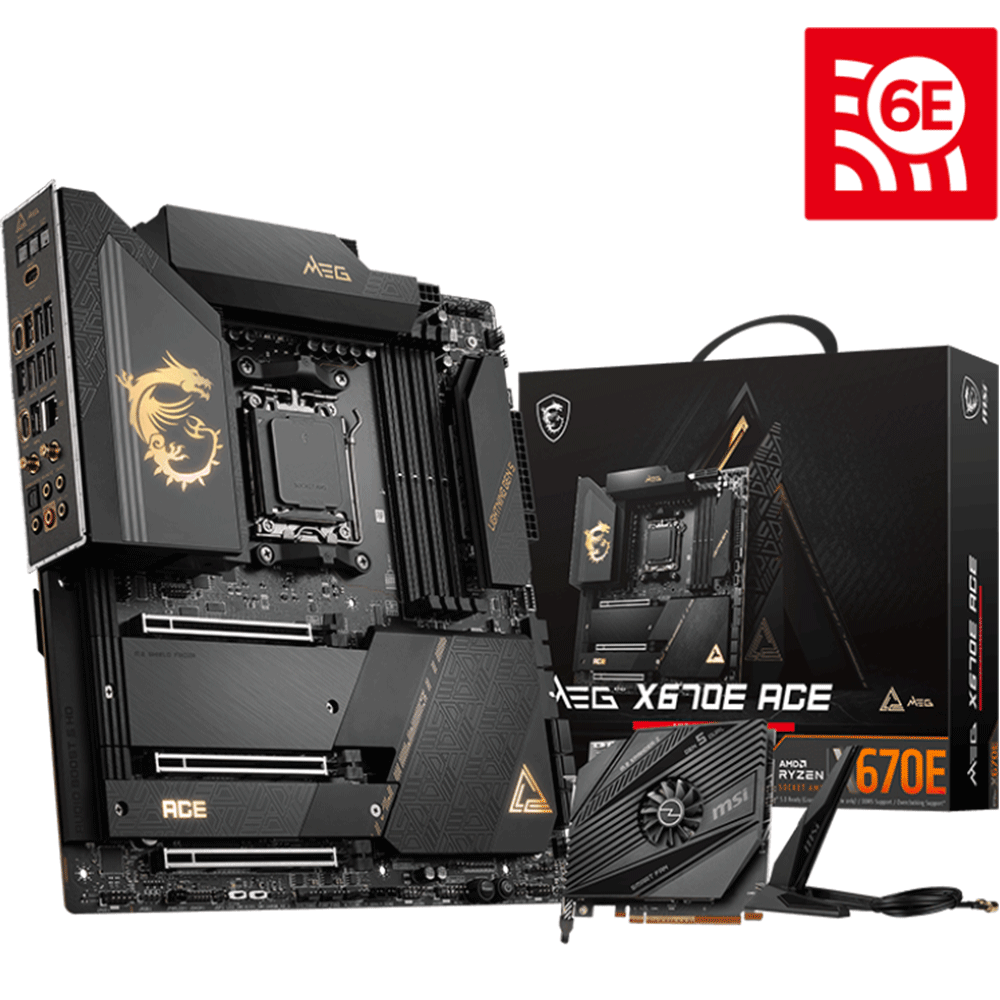

MSI MEG X670E ACE AM5 Socket For AMD Ryzen CPUs DDR5 Motherboard

Product Details :

CPU :

• Supports AMD Ryzen 7000 Series Desktop Processors Socket AM5

Memory :

• 4 × DDR5 UDIMM, Maximum Memory Capacity 192GB
• Supports AMD EXPO
• Supports Dual-Controller Dual-Channel mode

expansion Slot :

• 3x PCI-E 5.0 x16 slot

Storage :

• 1 x M..2 slot supports PCIe Gen5 x4
• 3 x M.2 slots supporting PCIe Gen4 x4
• 6 x SATA 6G

USB :

• 4 × USB 2.0 (Front)
• 4 × USB 3.2 Gen1 Type A (Front)
• 8 × USB 3.2 Gen2 Type A (Rear)
• 1 × USB 3.2 Gen2 Type C (Front)
• 2 × USB 3.2 Gen2x2 Type C (Rear)
• 1 × USB 3.2 Gen2x2 Type C (Front)

LAN :

• Marvell AQC113CS-B1-C 10Gbps LAN

Wireless/Bluetooth :

• AMD Wi-Fi 6E
• Supports Bluetooth 5.3

Audio :

• Realtek ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA
• 7.1-Channel USB High Performance Audio
• Supports S/PDIF output

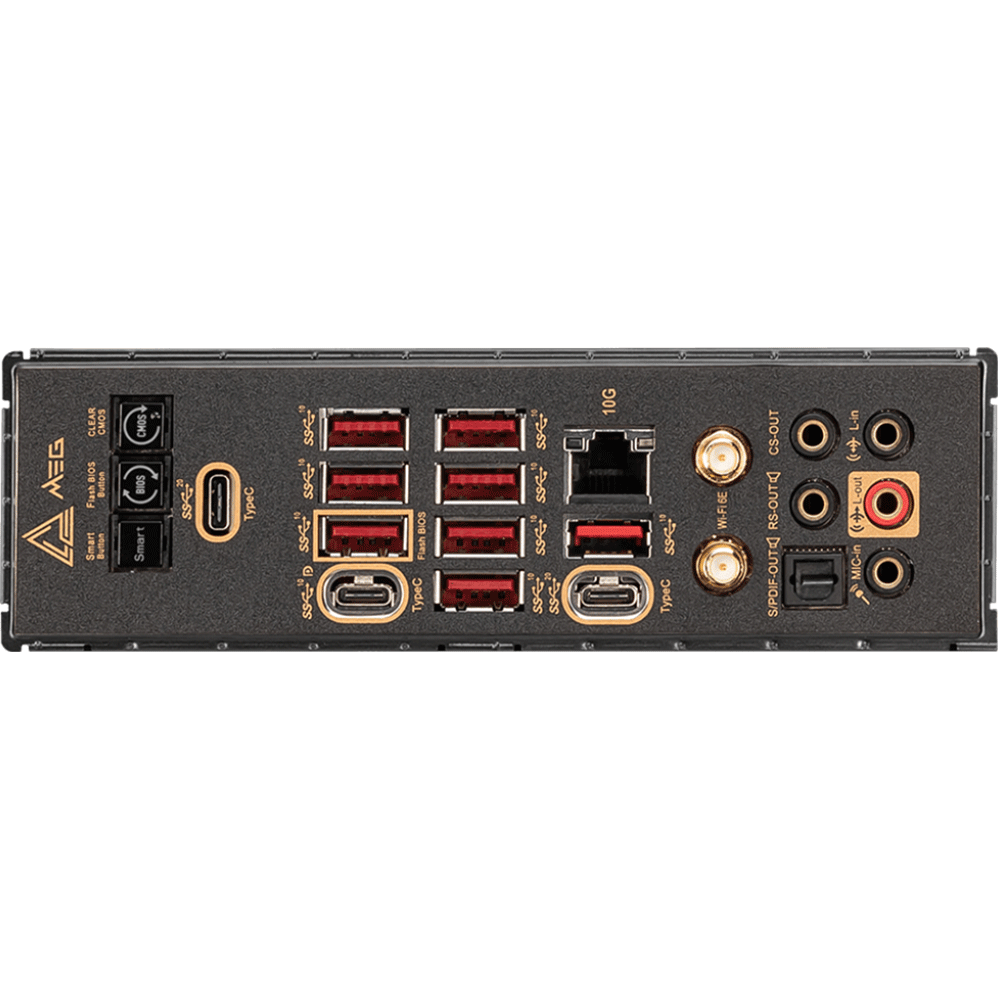

Back I/O Panel Ports :

1. Clear CMOS Button
2. Flash BIOS Button
3. USB 3.2 Gen 2 10Gbps (Type-A)
4. 10G Super LAN
5. Wi-Fi / Bluetooth
6. HD Audio Connectors
7. Smart Button
8. USB 3.2 Gen 2x2 20Gbps (Type-C)
9. USB 3.2 Gen 2 10Gbps (Type-C)
10. USB 3.2 Gen 2x2 20Gbps (Type-C)
11. Optical S/PDIF-Out

Motherboard Size :

• E-ATX 277×304.8 mm

Product Number:

• 911-7D69-006

Box Content :
