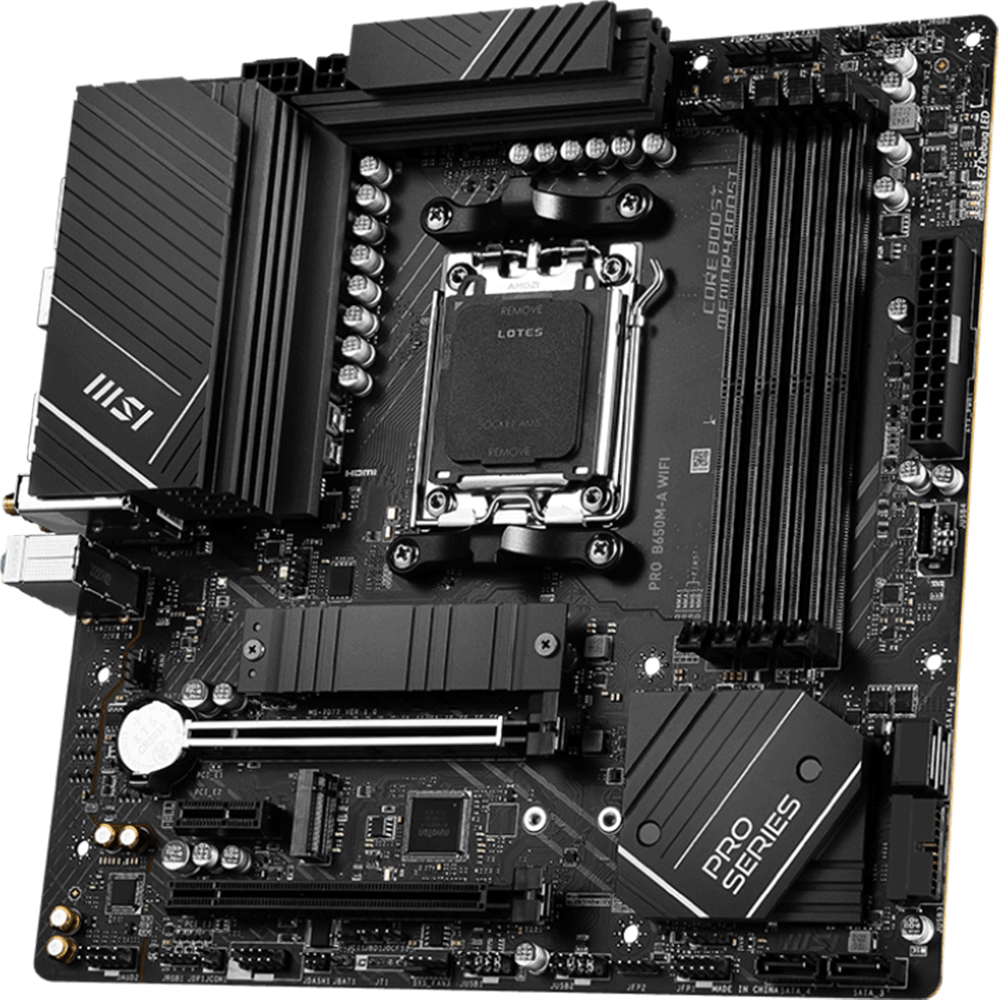

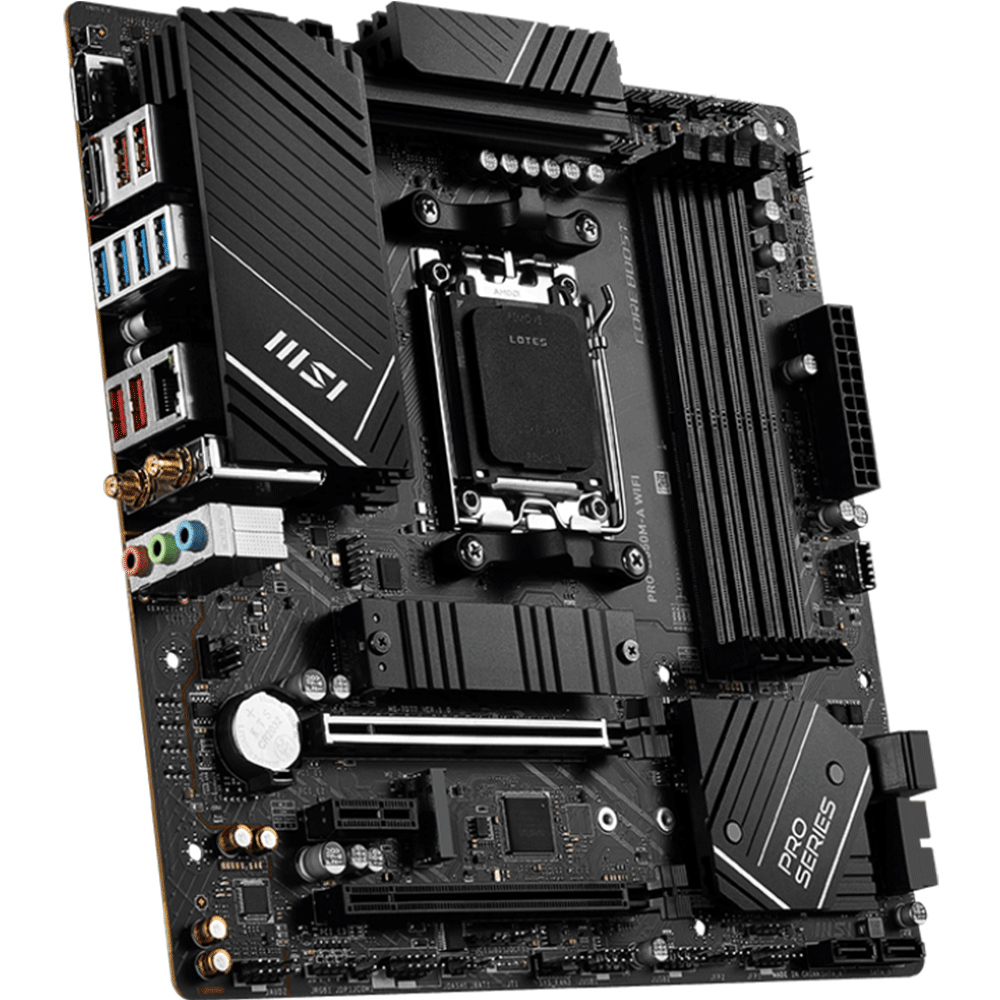

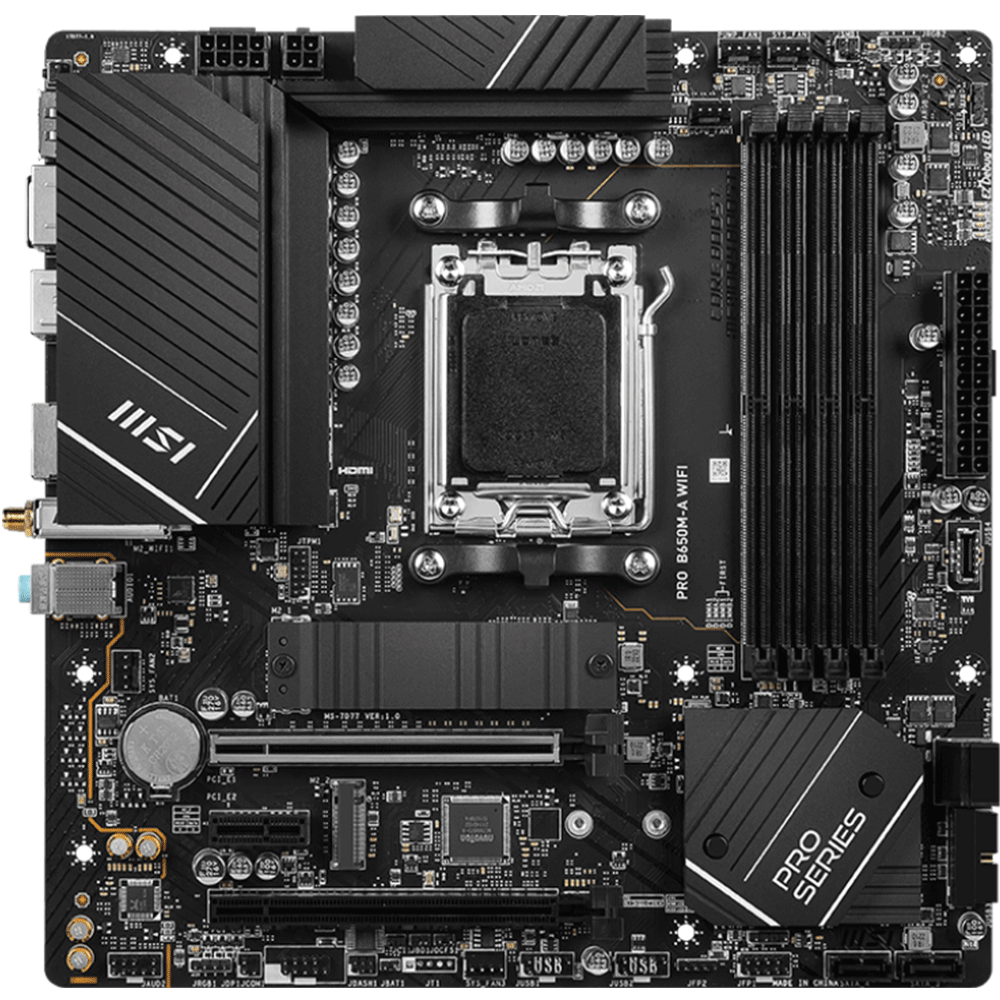

MSI PRO B650M-A WIFI AM5 Socket For AMD CPUs DDR5 Motherboard

CPU :

• Supports AMD Ryzen 7000 Series Desktop Processors Socket AM5

Memory :

• 4 × DDR5 UDIMM, Maximum Memory Capacity 192GB
• Supports Dual-Channel mode
• Supports AMD EXPO

expansion Slot :

• 2x PCI-E 4.0 x16 slots
• 1x PCI-E 3.0 x1 slot

Storage :

• 2 x M.2 slots supporting PCIe Gen4 x4
• 4 x SATA 6G

USB :

• 4 × USB 2.0 (Front)
• 4 × USB 3.2 Gen1 Type A (Rear)
• 2 × USB 3.2 Gen1 Type A (Front)
• 4 × USB 3.2 Gen2 Type A (Rear)
• 1 × USB 3.2 Gen2 Type C (Front)

LAN :

• Realtek RTL8125BG 2.5Gbps LAN

Wireless/Bluetooth :

• AMD Wi-Fi 6E
• Supports Bluetooth 5.3

Audio :

• Realtek ALC897 Codec
• 7.1-Channel High Performance Audio

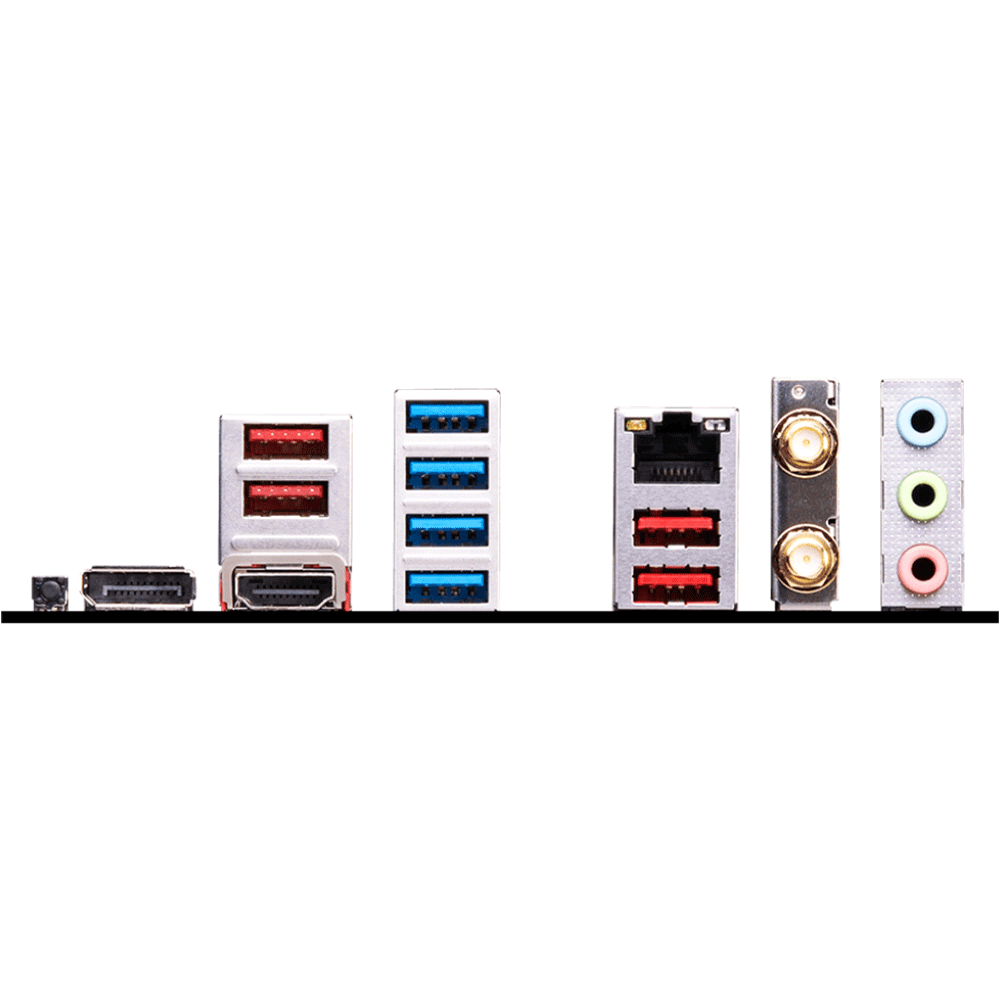

Back I/O Panel Ports :

1. USB 3.2 Gen 2 10Gbps (Type-A)
2. USB 3.2 Gen 1 5Gbps (Type-A)
3. 2.5G LAN
4. Wi-Fi / Bluetooth
5. Audio connectors
6. Flash BIOS Button
7. DisplayPort
8. HDMI™
9. USB 3.2 Gen 2 10Gbps (Type-A)

Motherboard Size :

• micro-ATX 243.84×243.84 mm

Product Number:

• 911-7D77-007

Box Content :
