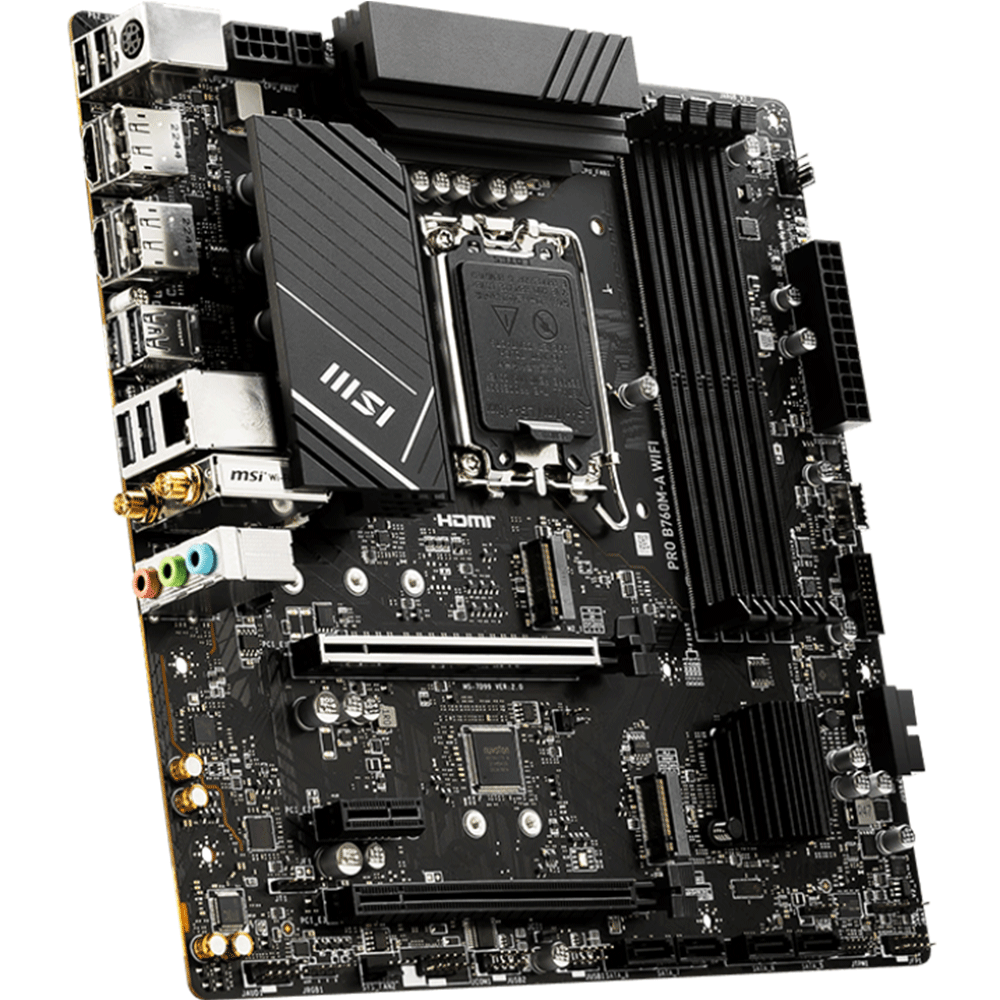

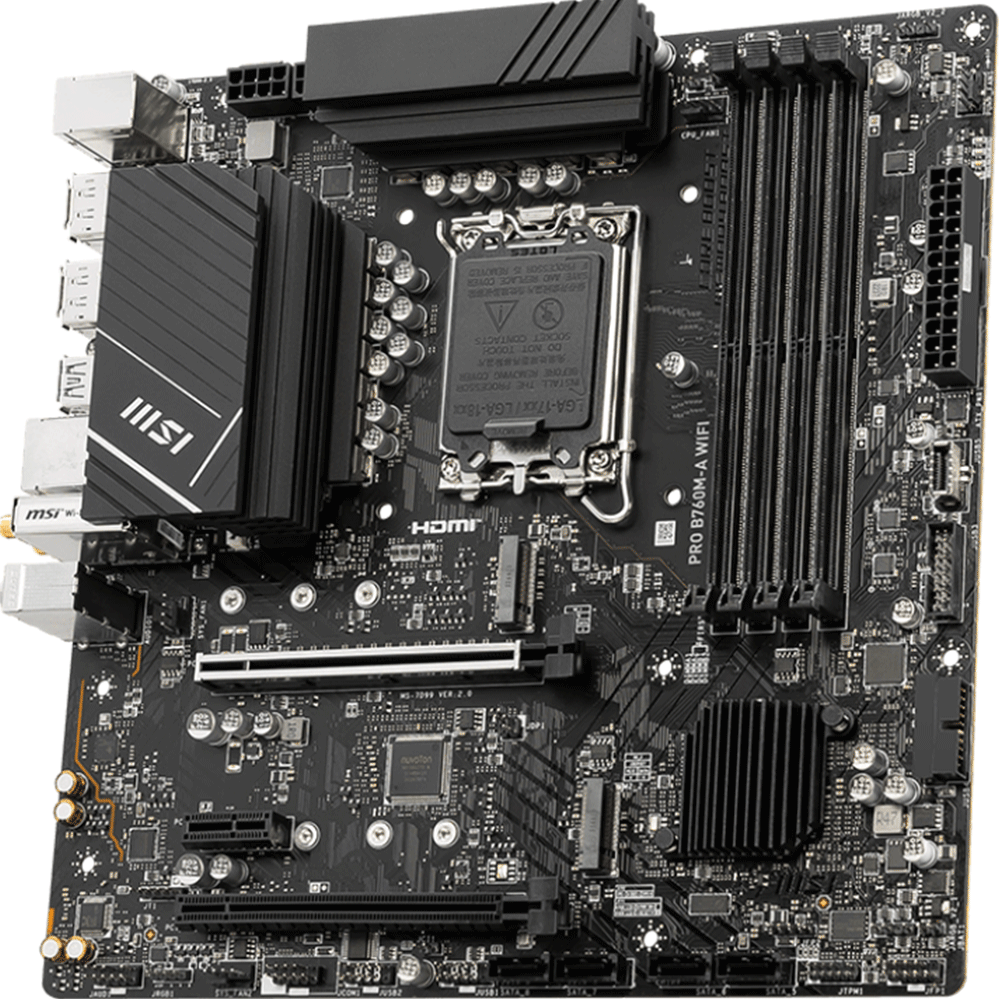

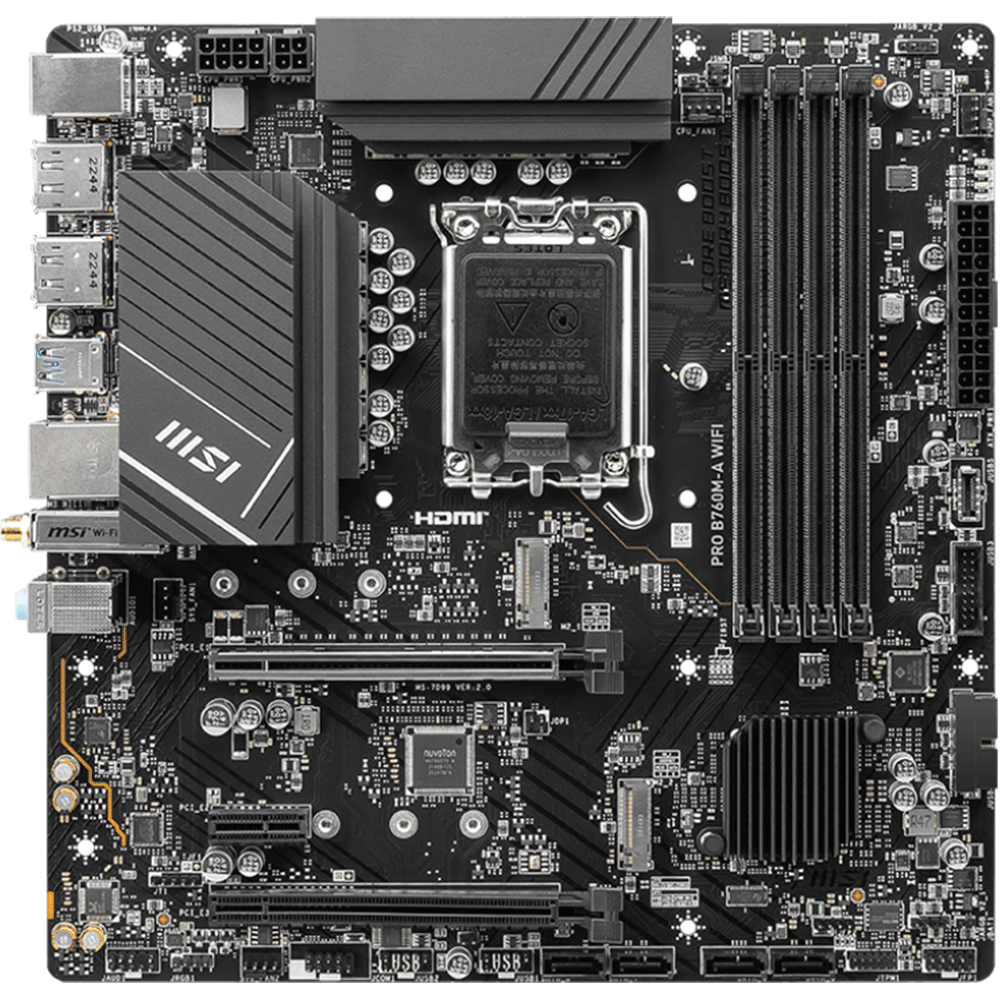

MSI PRO B760M-A WIFI LGA1700 Socket For intel CPUs DDR5 Motherboard

Product Details :

CPU :

• Supports 12th/13th/14th Gen Intel Core Processors, Pentium Gold and Celeron Processors (LGA1700)

Memory :

• 4 × DDR5 UDIMM, Maximum Memory Capacity 192GB
• Supports Intel XMP 3.0 OC
• Supports Dual-Controller Dual-Channel mode

expansion Slot :

• 2x PCI-E 4.0 x16 slots
• 1x PCI-E 3.0 x1 slots

Storage :

• 2 x M.2 slots supporting PCIe Gen4 x4
• 4 x SATA 6G

USB :

• 2 × USB 2.0 (Rear)
• 4 × USB 2.0 (Front)
• 2 × USB 3.2 Gen1 Type A (Rear)
• 4 × USB 3.2 Gen1 Type A (Front)
• 1 × USB 3.2 Gen1 Type C (Front)
• 2 × USB 3.2 Gen2 Type A (Rear)

LAN :

• Realtek TL8125BG 2.5G LAN

Wireless & Bluetooth :

• Intel Wi-Fi 6E
• Supports Bluetooth 5.3

Audio :

• Realtek ALC897 Codec
• 7.1-Channel High Definition Audio

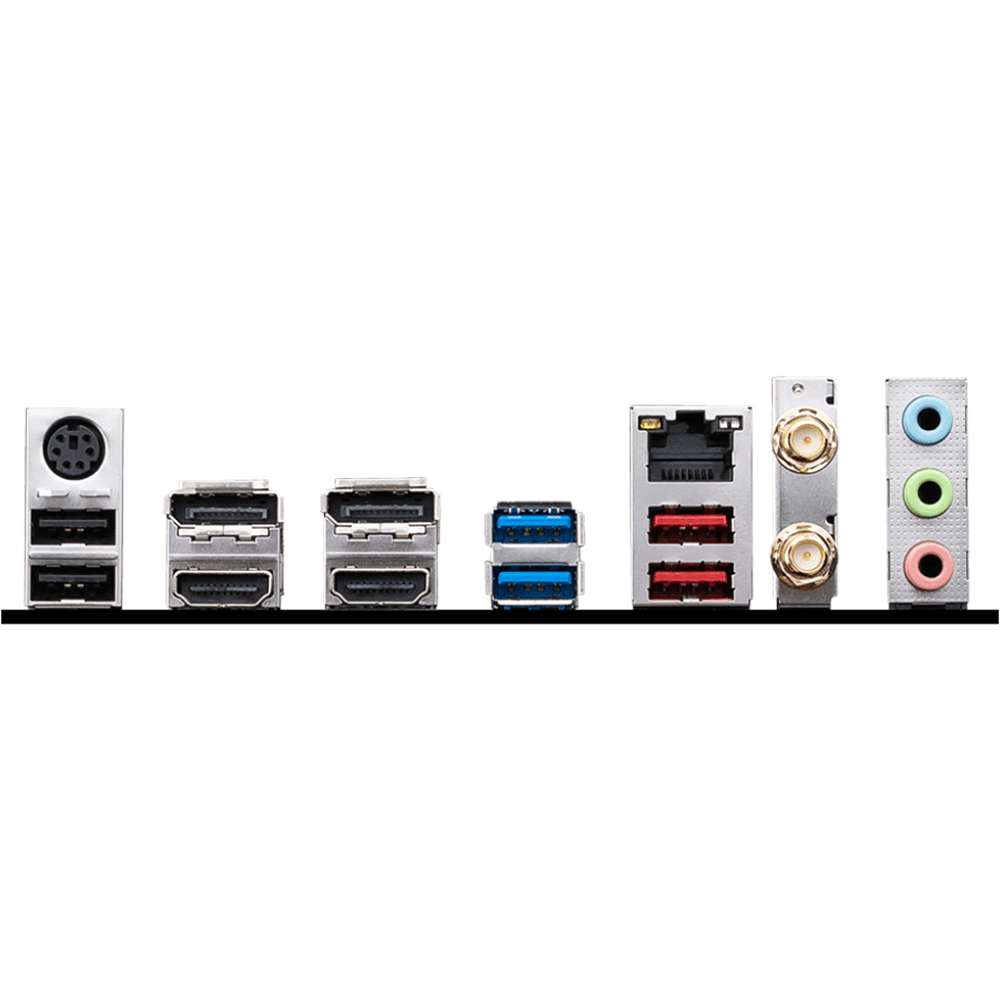

Back I/O Panel Ports :

1. Keyboard / Mouse
2. DisplayPort
3. USB 3.2 Gen 1 5Gbps (Type-A)
4. 2.5G LAN
5. Wi-Fi / Bluetooth
6. Audio Connectors
7. USB 2.0
8. HDMI
9. USB 3.2 Gen 2 10Gbps (Type-A)

Motherboard Size :

• micro-ATX 243.84×243.84 mm

Product Number:

• 911-7D99-030

Box Content :
