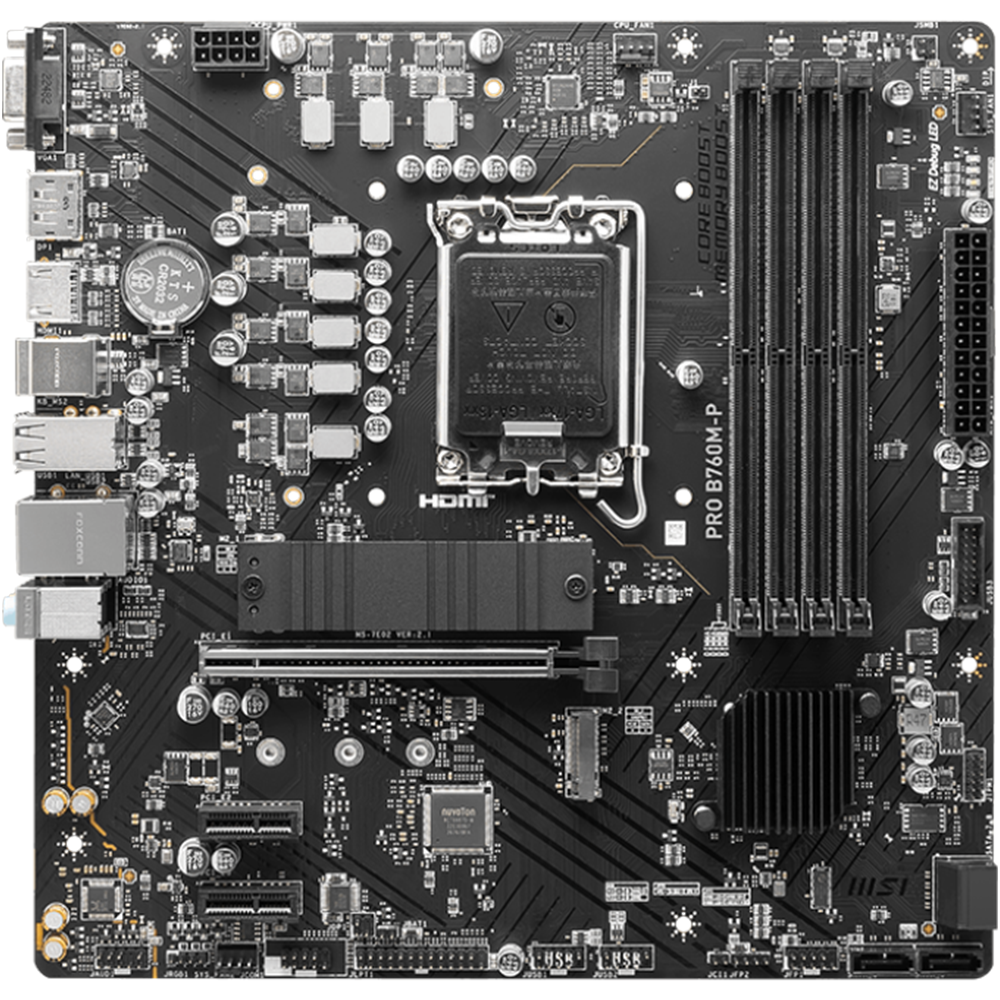

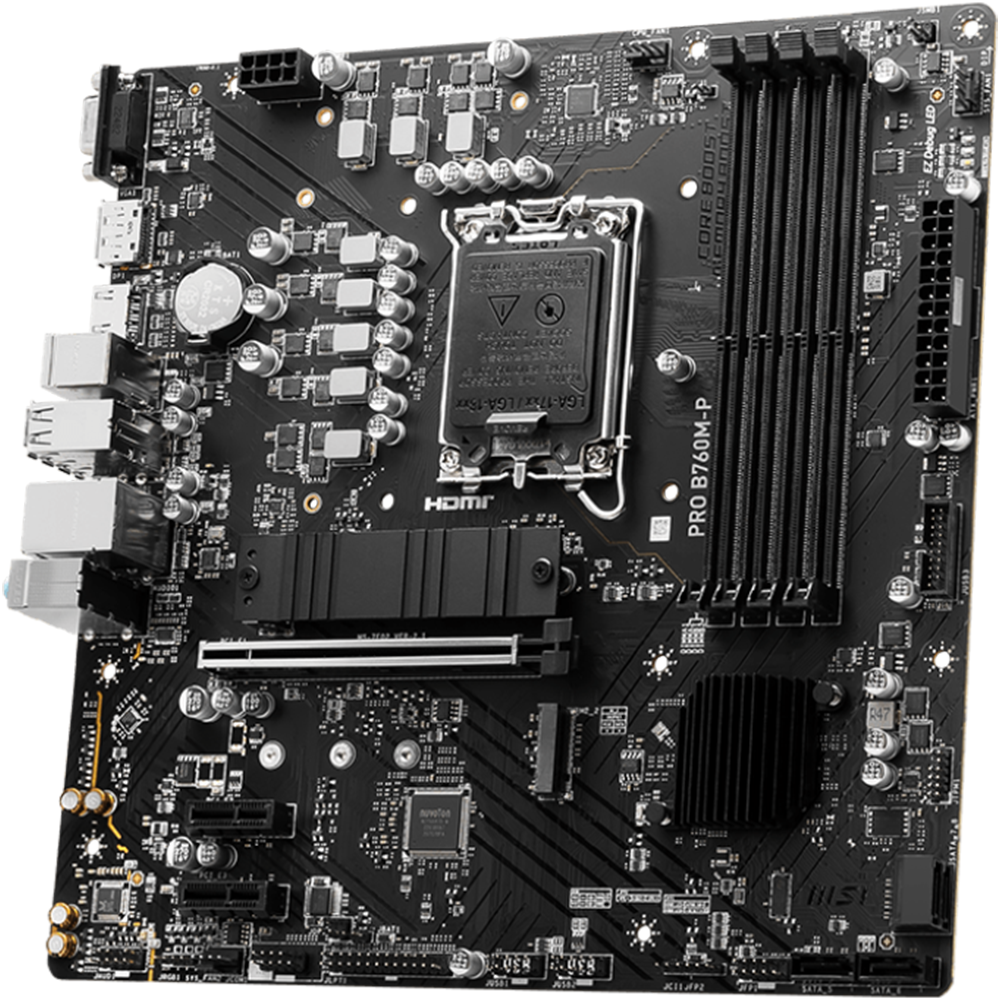

MSI PRO B760M-P LGA1700 Socket For intel CPU DDR5 Motherboard

• PRO B760M-P is designed with tons of flexible tools with DDR5 memory version.

Product Features :

• Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket
• Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
• Core Boost : With premium layout and digital power design to support more cores and provide better performance
• Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
• Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
• AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
• Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength

Product Details :

CPU :

• Supports 12th/13th/14th Gen Intel Core Processors, Pentium Gold and Celeron Processors (LGA1700)

Memory :

• 4 × DDR5 UDIMM, Maximum Memory Capacity 192GB
• Supports Intel XMP 3.0 OC
• Supports Dual-Controller Dual-Channel mode

expansion Slot :

• 1x PCI-E 4.0 x16 slots
• 2x PCI-E 4.0 x1 slots

Storage :

• 2 x M.2 slots supporting PCIe Gen4 x4
• 4 x SATA 6G

USB :

• 4 × USB 2.0 (Rear)
• 4 × USB 2.0 (Front)
• 1 × USB 3.2 Gen1 Type A (Rear)
• 2 × USB 3.2 Gen1 Type A (Front)
• 2 × USB 3.2 Gen2 Type A (Rear)

LAN :

• Realtek RTL8111H Gigabit LAN

Audio :

• Realtek ALC897 Codec
• 7.1-Channel High Definition Audio

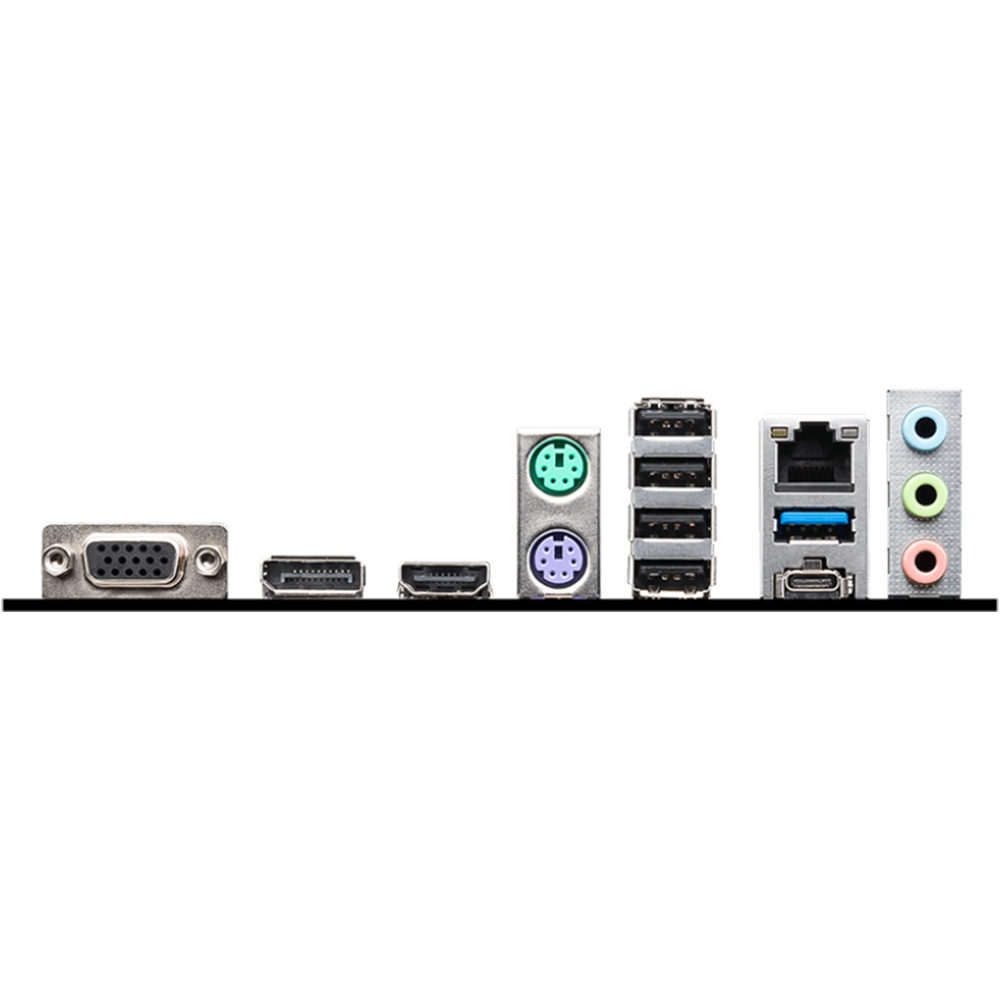

Back I/O Panel Ports :

1. VGA
2. DisplayPort
3. HDMI
4. Keyboard / Mouse
5. USB 2.0
6. LAN port
7. Audio Connectors
8. USB 3.2 Gen 1 5Gbps (Type-A)
9. USB 3.2 Gen 2 10Gbps (Type-C)

Motherboard Size :

• micro-ATX 243.84×243.84 mm

Product Number:

• 911-7E02-019

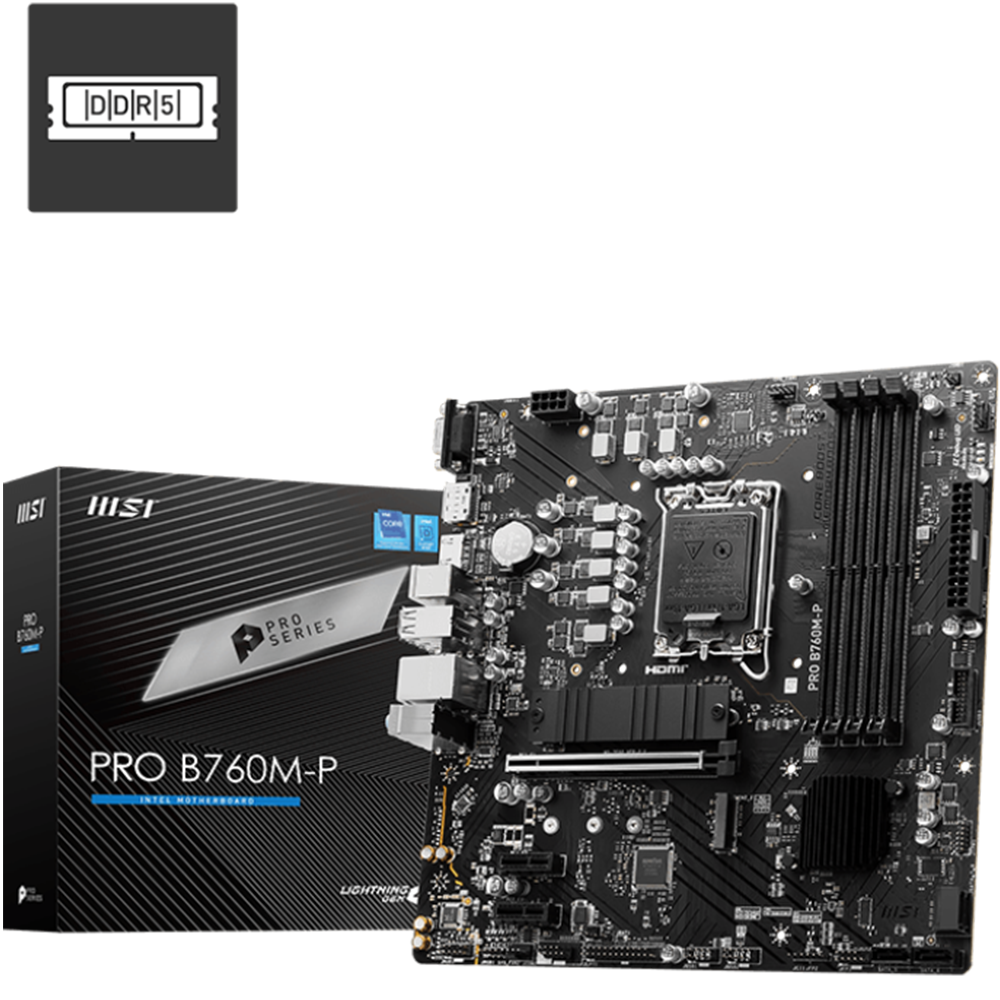

Box Content :
