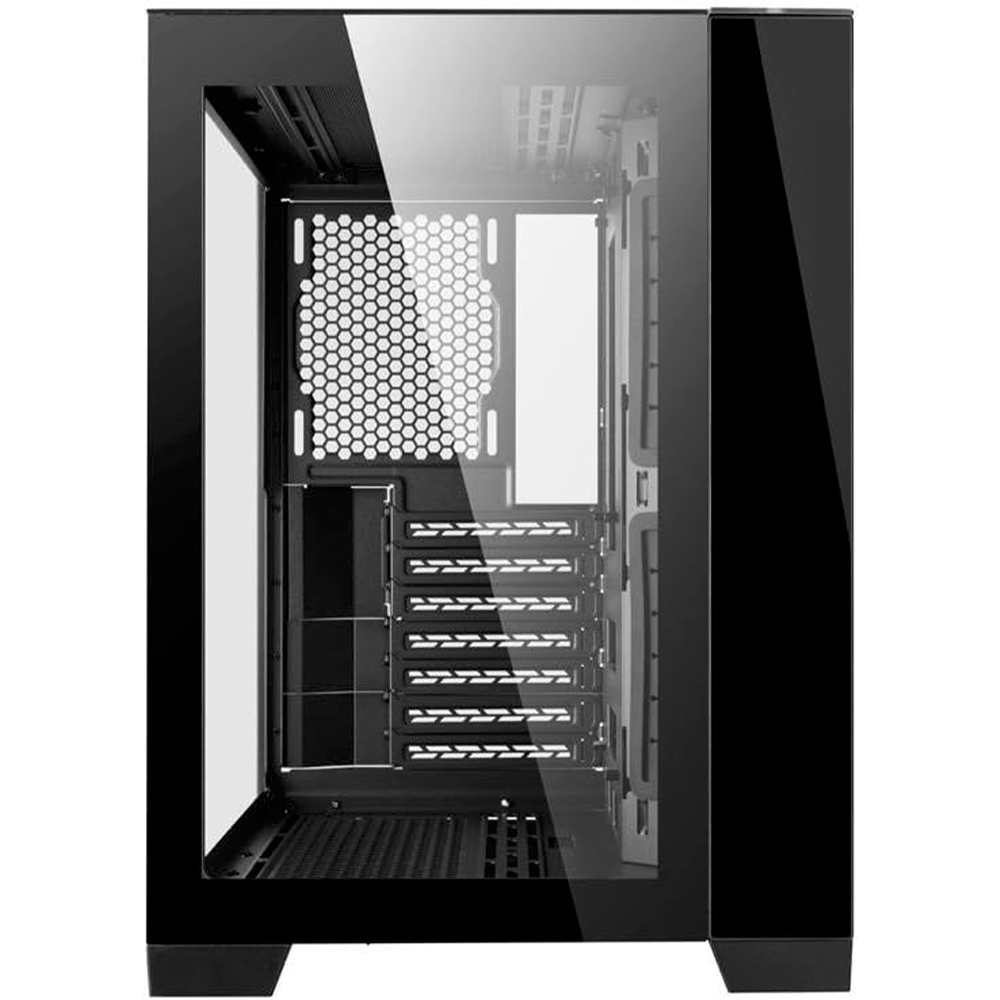

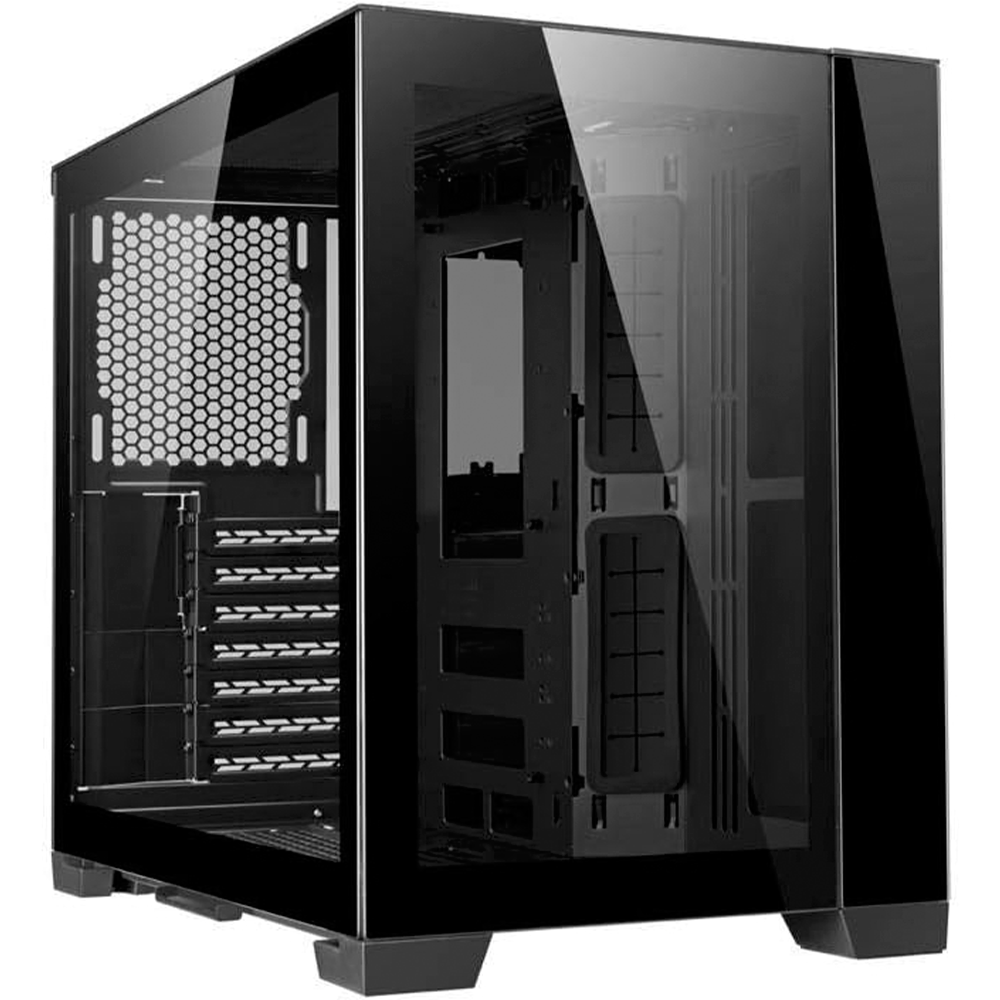

- O11D MINI adding to the O11 Dynamic series, the classic and mordern looking. A case that would accommodate the maximum number of water-cooling configurations without being oversized. With a modular back panel design, the user has the option to choose from 3 slots/ 5 slots/ 7 slots I/O shield to optimize the case to the configuration of user’s choice. Supports mini-ITX, micro-ATX, ATX, and E-ATX motherboard sizes. and up to 9 fans to cool the chassis.
Product Features :
- The 30mm space behind the side fan / radiator bracket allows users to mount fans, thus efficiently intake fresh air to directly cool the radiator and leaves enough space to install long GPUs in this compact case.
- Friendly to custom water cooling users, the three different pump stands included can accommodate different scenarios.
- With a blend of brushed aluminum and tempered glass, the O11D Mini not only looks classic and modern, but also has a high-quality feel and touch on the exterior.
- Carried from the design of the O11D series, cables quickly pass to the second chamber through rubber grommets. Multiple tie points and Velcro strap channels are provided to tidy up the cables while the SSD mounting bar helps keep the loose cables all snuggled up to ensure a clean look and prevent the right-side panel from not closing or bulging.
Product Details :
- Product Name : O11 Dynamic MINI
- MODEL : O11DMINI-X BLACK / O11DMINI-S Snow Edition
- COLOR : Black / Snow white

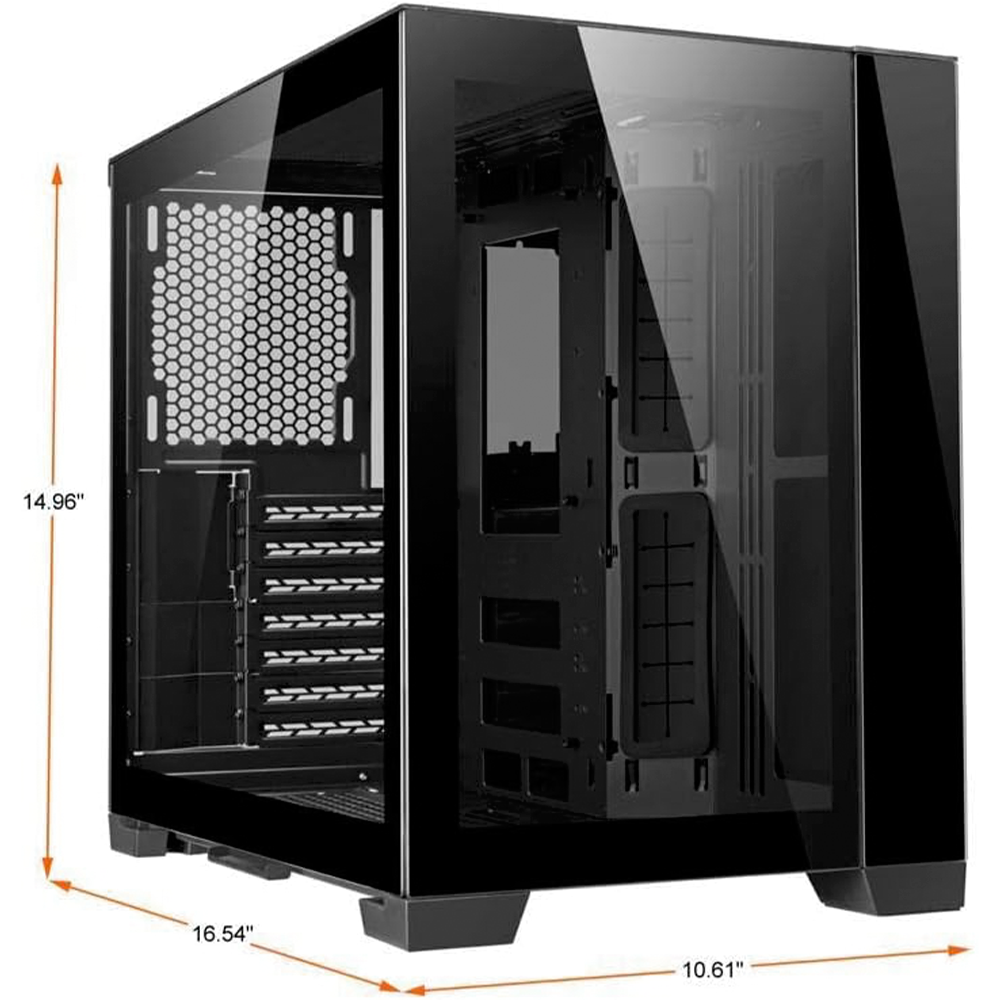

- DIMENSIONS : (D)420mm X (W)269.5mm X (H)380mm
- MOTHERBOARD : E-ATX (Max 280 mm wide)/ATX/ Micro-ATX/ Mini-ITX
- PSU : SFX/ SFX-L
FAN SUPPORT :
- Top: 3x 120mm or 2x 140mm
- Side: 2x 120mm or 2x 140mm
- Bottom: 3x 120mm or 2x 140mm
- Rear: 1x 120mm
RADIATOR SUPPORT :
- Top: 360mm or 280mm or 240mm or can’t mount
- Side : 240mm or 280mm radiator
- Bottom : 360 or 280mm or 240mm radiator
- GPU LENGTH CLEARANCE : 395mm
- CPU COOLER HEIGHT CLEARANCE : 170mm
- DRIVES : Right side 2 x 2.5″ SSD + back plate 2 x 3.5″ HDD (or SSD)
- EXPANSION SLOTS : 3 or 5 or 7 slots (depends on back panel)
- IO PORTS : 2 x USB 3.0, 1 x USB 3.1 TYPE-C, 1 x HD Audio, Power Button
Part Number:
- Black: O11DMini-X
- White: O11DMini-S
