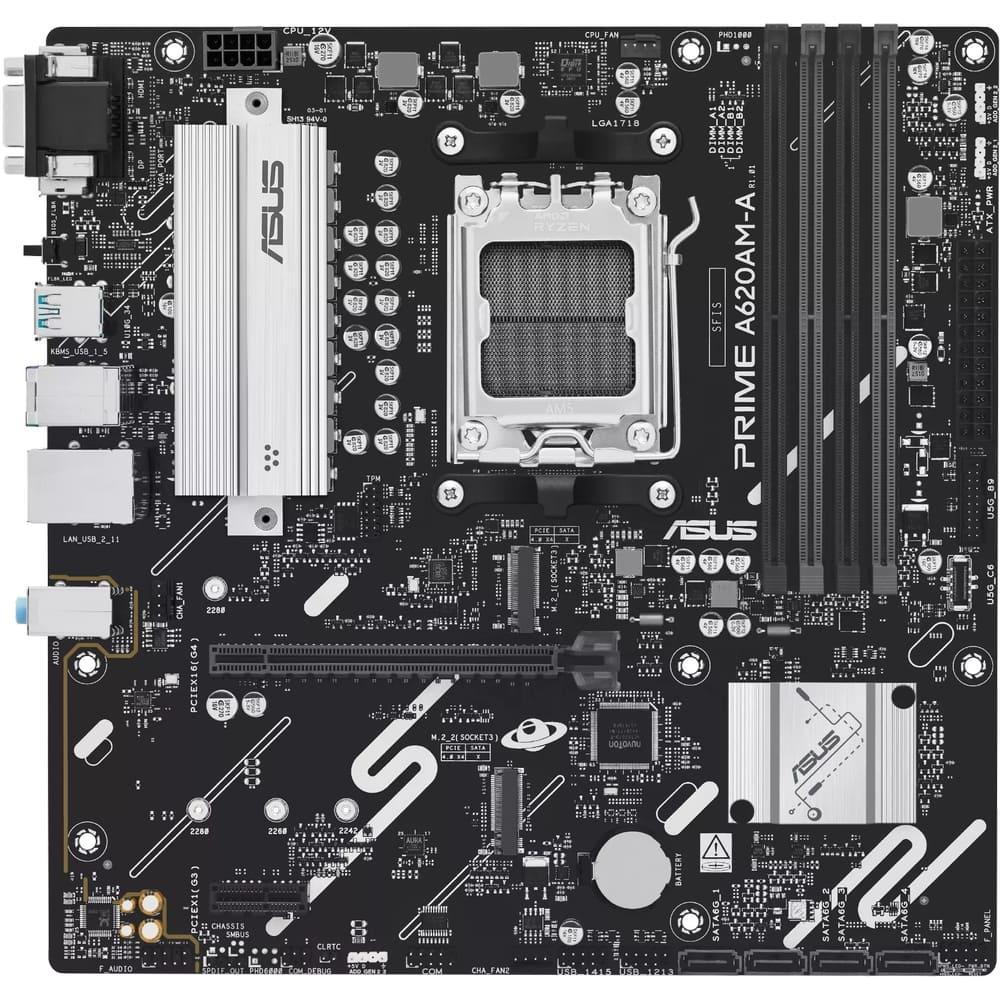

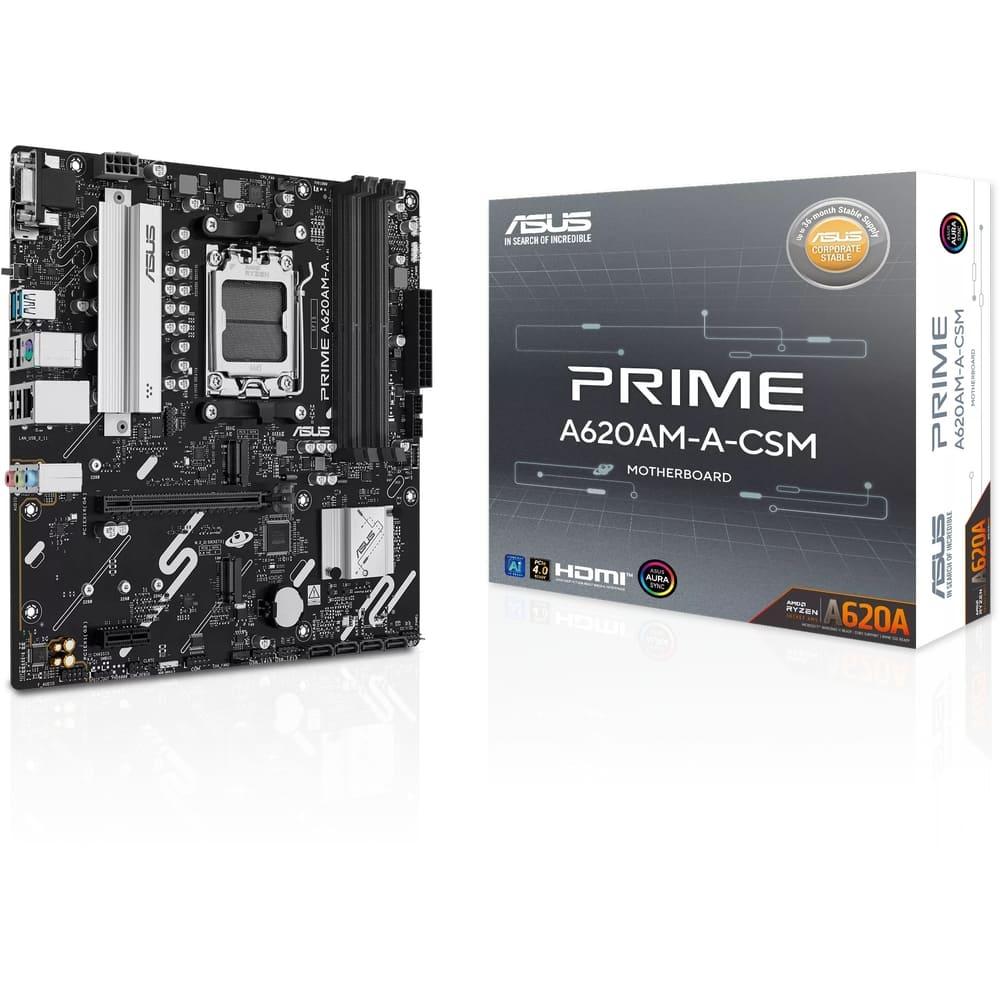

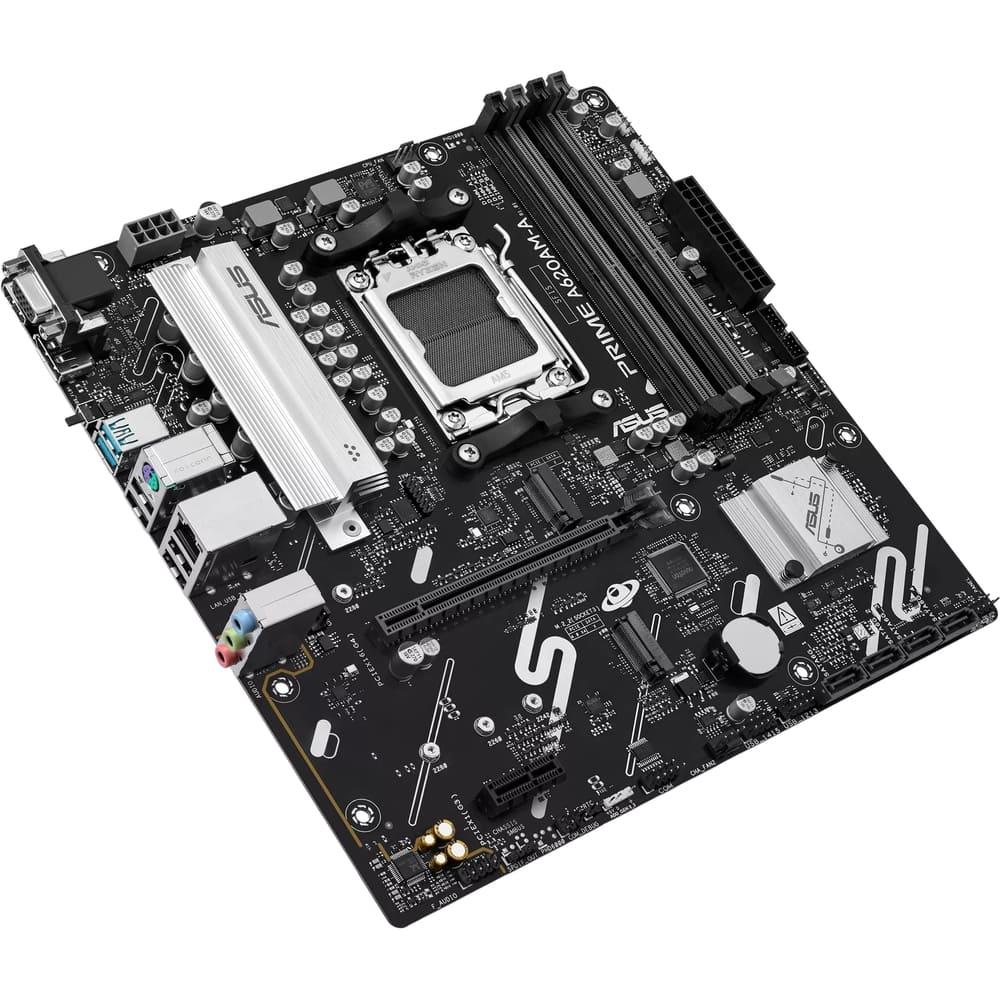

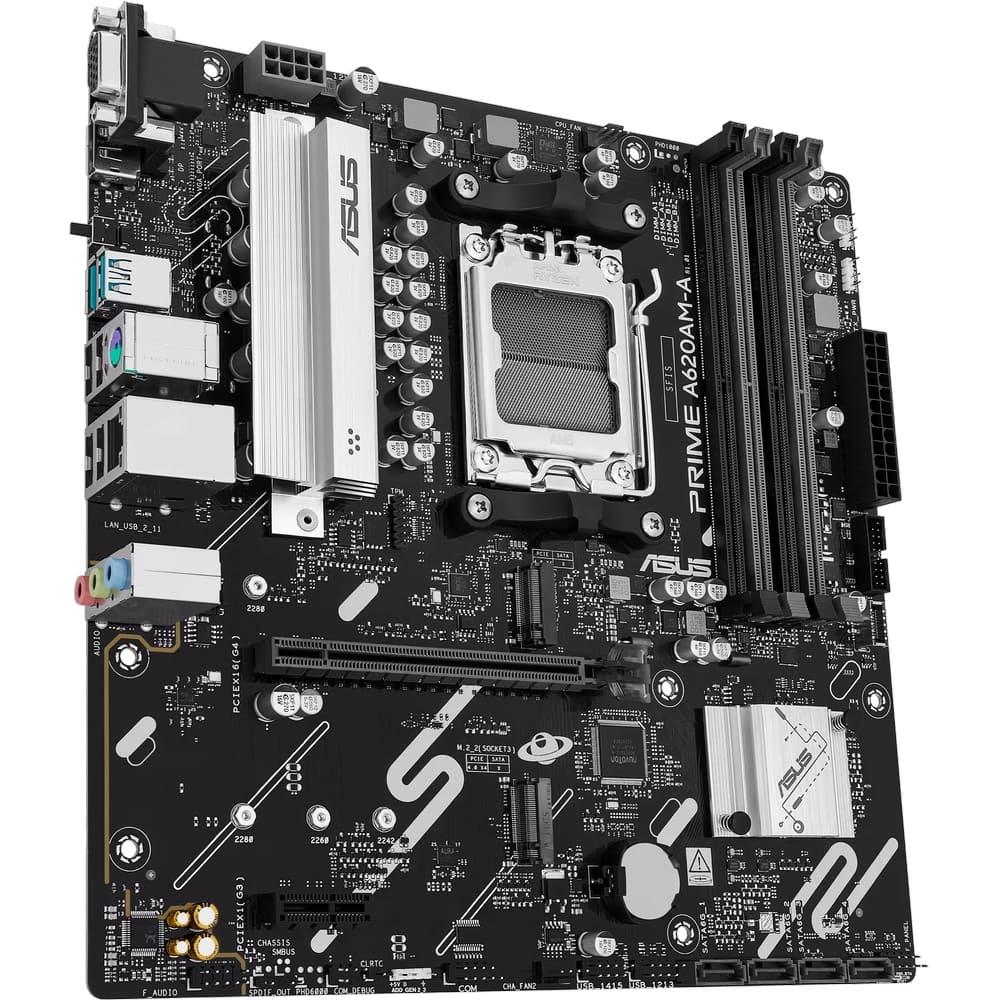

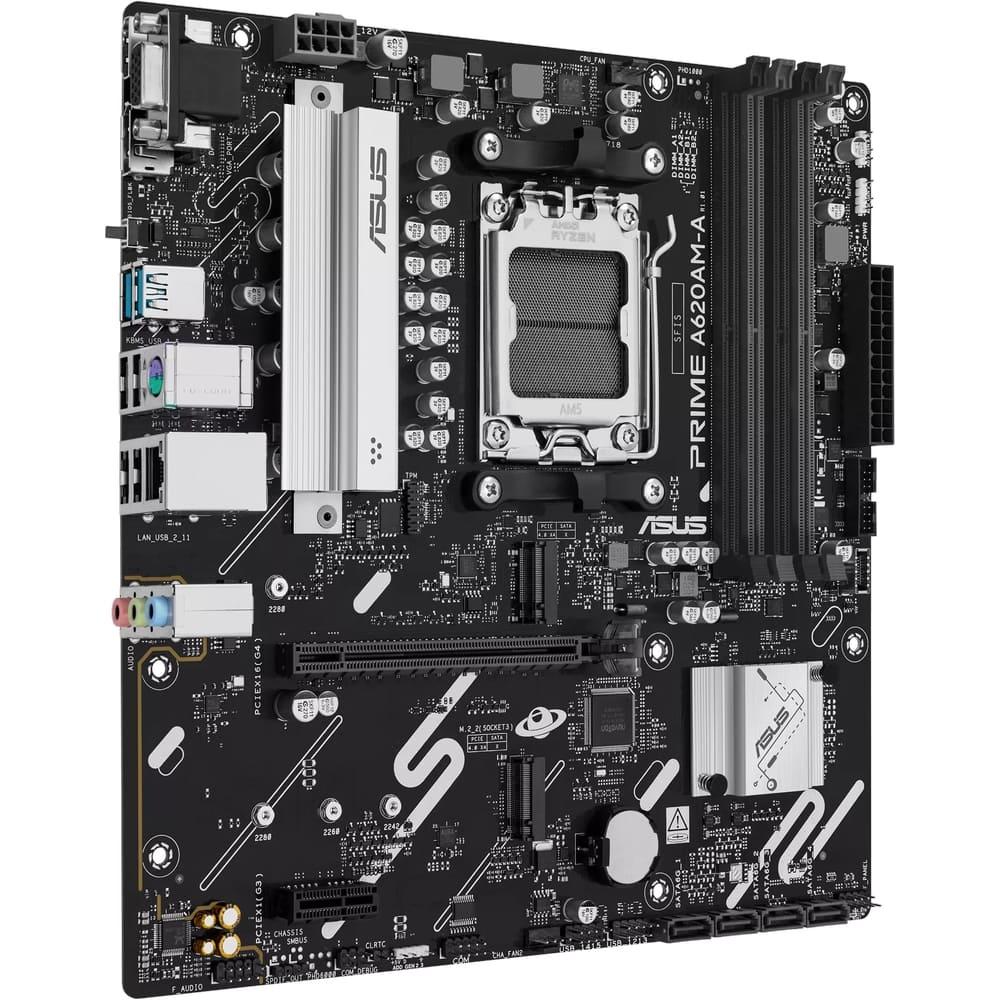

ASUS PRIME A620AM-A-CSM Motherboard AM5 Socket For Ryzen CPUs

• ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The PRIME A620AM-A-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

Product Details:

CPU:

• AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors

Memory:

• 4 × DIMM slots, max. 192GB, DDR5

Supports up to:

• 6400+MT/s(OC) with Ryzen™ 9000 Series Processors
• 6000+MT/s(OC) with Ryzen™ 8000 Series Processors
• 5600+MT/s(OC) with Ryzen™ 7000 Series Processors
• ECC and Non-ECC, Un-buffered DIMM
• Dual Channel Memory Architecture
• Supports AMD Extended Profiles for Overclocking (EXPO™)
• ASUS Enhanced Memory Profile (AEMP)
• Supported memory types and speeds vary depending on CPU configuration

Expansion Slots:

AMD Ryzen 9000 & 7000 Series Desktop Processors:

• 1 × PCIe 4.0 x16 slot
• 1 × PCIe 3.0 x1 slot
• Specifications vary by CPU types

Storage:

• Supports up to 2 × M.2 slots and 4 × SATA 6Gb/s ports

AMD Ryzen 9000 & 7000 Series Desktop Processors:

• M.2_1 slot (Key M), type 2242/2260/2280 Supports PCIe 4.0 x4 mode

AMD A620 Chipset:

• M.2_2 slot (Key M), type 2242/2260/2280 Supports PCIe 3.0 x4 mode
• 4 × SATA 6Gb/s ports

Ethernet:

• 1 × Realtek 1Gb Ethernet
• ASUS LANGuard

Wireless & Bluetooth:

• No onboard Wi-Fi support

USB:

Rear USB:

• 2 × USB 10Gbps ports (2 × Type-A)
• 2 × USB 5Gbps ports (2 × Type-A)
• 4 × USB 2.0 ports (4 × Type-A)

Front USB:

• 1 × USB 5Gbps header supports 2 additional USB 5Gbps ports
• 2 × USB 2.0 headers support 4 additional USB 2.0 ports

Audio:

• Realtek 7.1 Surround Sound High Definition Audio CODEC

Back Panel I/O Ports:

• 2 × USB 10Gbps ports (Type-A)
• 2 × USB 5Gbps ports (Type-A)
• 4 × USB 2.0 ports
• 1 × HDMI port
• 1 × VGA port
• 1 × Realtek 1Gb Ethernet port
• 3 × Audio jacks

Form Factor:

• Micro-ATX Form Factor
• 9.6 inch × 9.6 inch (24.4 cm × 24.4 cm)
