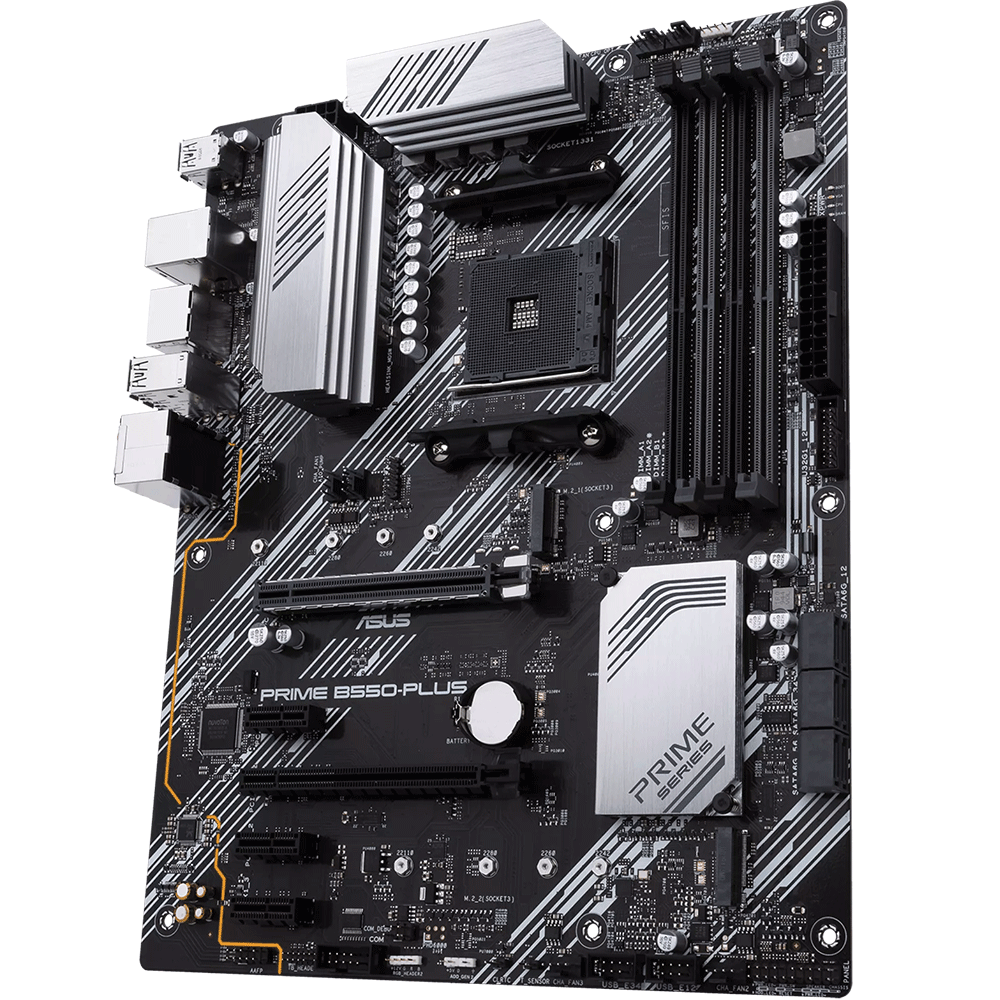

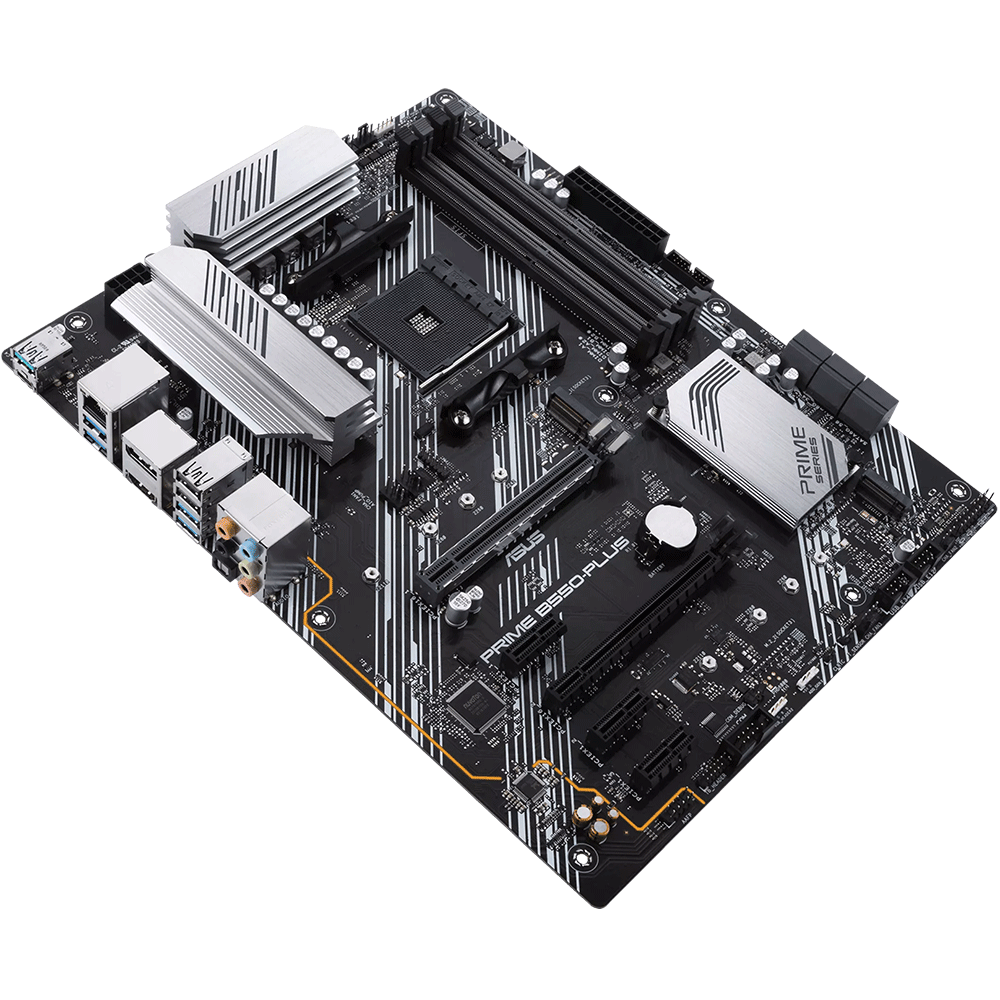

- AMD B550 (Ryzen AM4) ATX motherboard with dual M.2, PCIe 4.0, 1 Gb Ethernet, DisplayPort/HDMI, SATA 6 Gbps, USB 3.2 Gen 2 Type-A and Type-C, and Aura Sync RGB headers support
CPU
- AMD AM4 Socket for AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processor
Memory
- DDR4
- 4 x DIMM, Max. 128GB, DDR4
- Dual Channel Memory Architecture
Expansion Slots
- 1 x PCIe 4.0 x16 Slot
- 1 x PCIe 3.0 x16 Slot
- 3 x PCIe 3.0 x1
Storage :
- 4 x SATA 6Gb/s
- 1 x M.2 PCIe 4.0 x4
- 1 x M.2 PCIe 3.0 x4
Ethernet :
- Realtek RTL8111H 1Gb Ethernet
- ASUS LANGuard
Audio
- Realtek ALC887 7.1-Channel High Definition Audio CODEC
USB :
- Rear USB: Total 8 ports
- 2 x USB 3.2 Gen 2 ports (1x Type-A 1x USB Type-C)
- 4 x USB 3.2 Gen 1 ports (Type-A)
- 2 x USB 2.0 ports (Type-A)
- Front USB: Total 6 ports
- 2 x USB 3.2 Gen 1 ports Type-A
- 4 x USB 2.0 ports Type-A

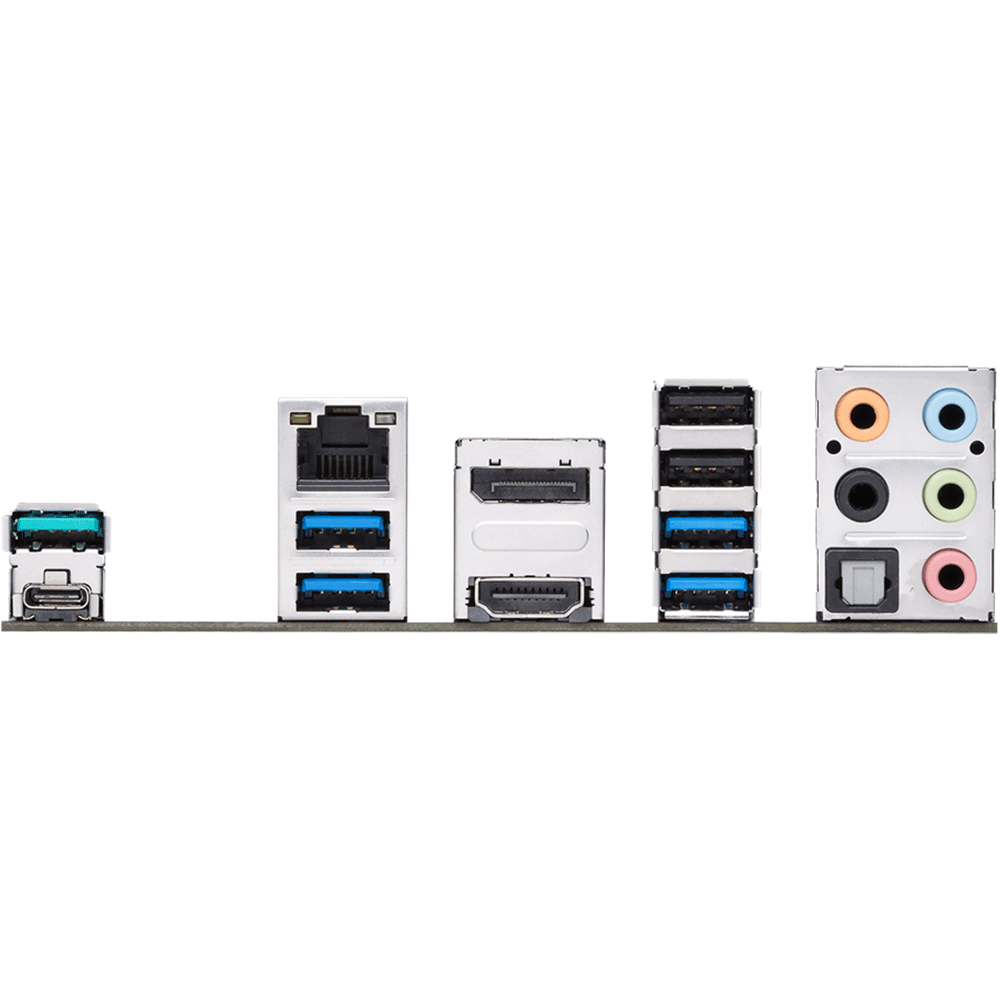

Back Panel I/O Ports
- 1 x DisplayPort
- 1 x HDMI
- 1 x LAN (RJ45) port
- 2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C)
- 4 x USB 3.2 Gen 1 (blue) Type-A
- 2 x USB 2.0
- 1 x Optical S/PDIF out
- 5 x Audio jack(s)

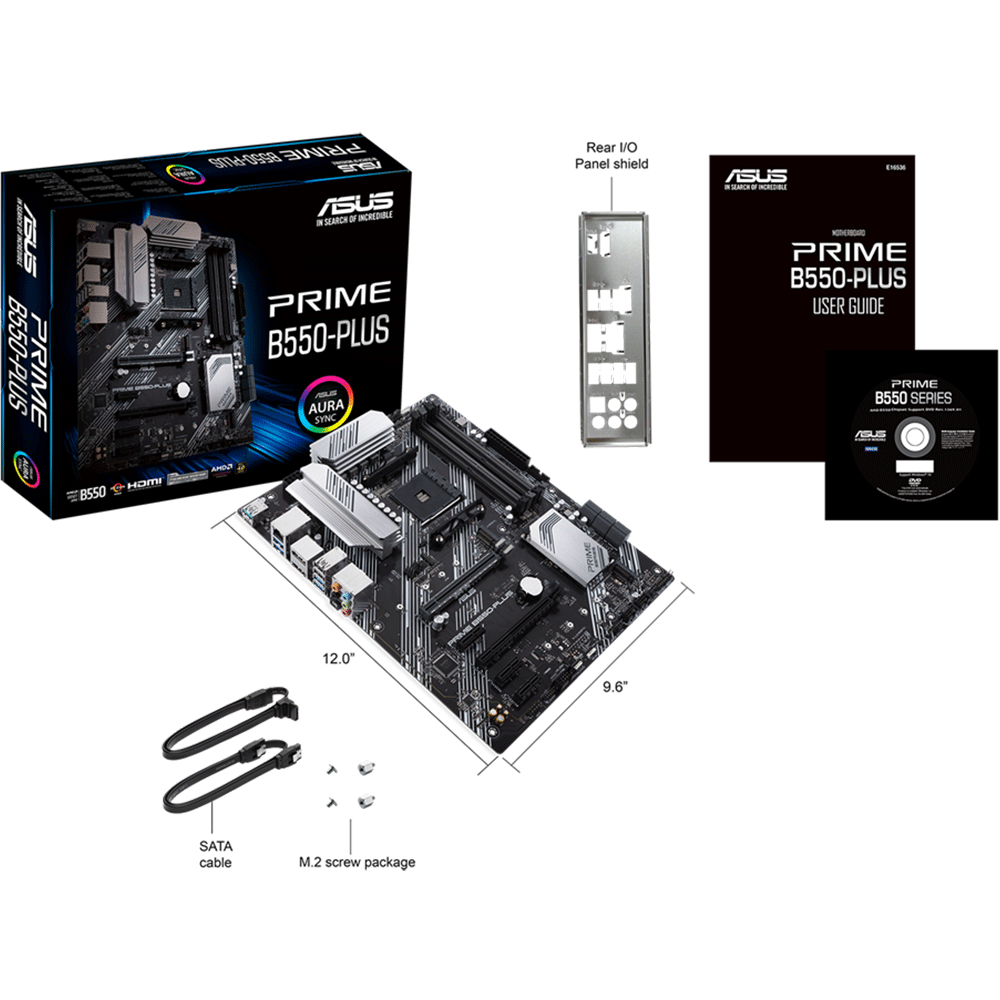

Accessories
- User´s manual
- I/O Shield
- 2 x SATA 6Gb/s cables
- 1 x Supporting DVD
- 1 x M.2 SSD screw package
Form Factor :
- ATX ( 30.5 cm x 24.4 cm )
Part Number:
- 90MB14U0-M0EAY0
