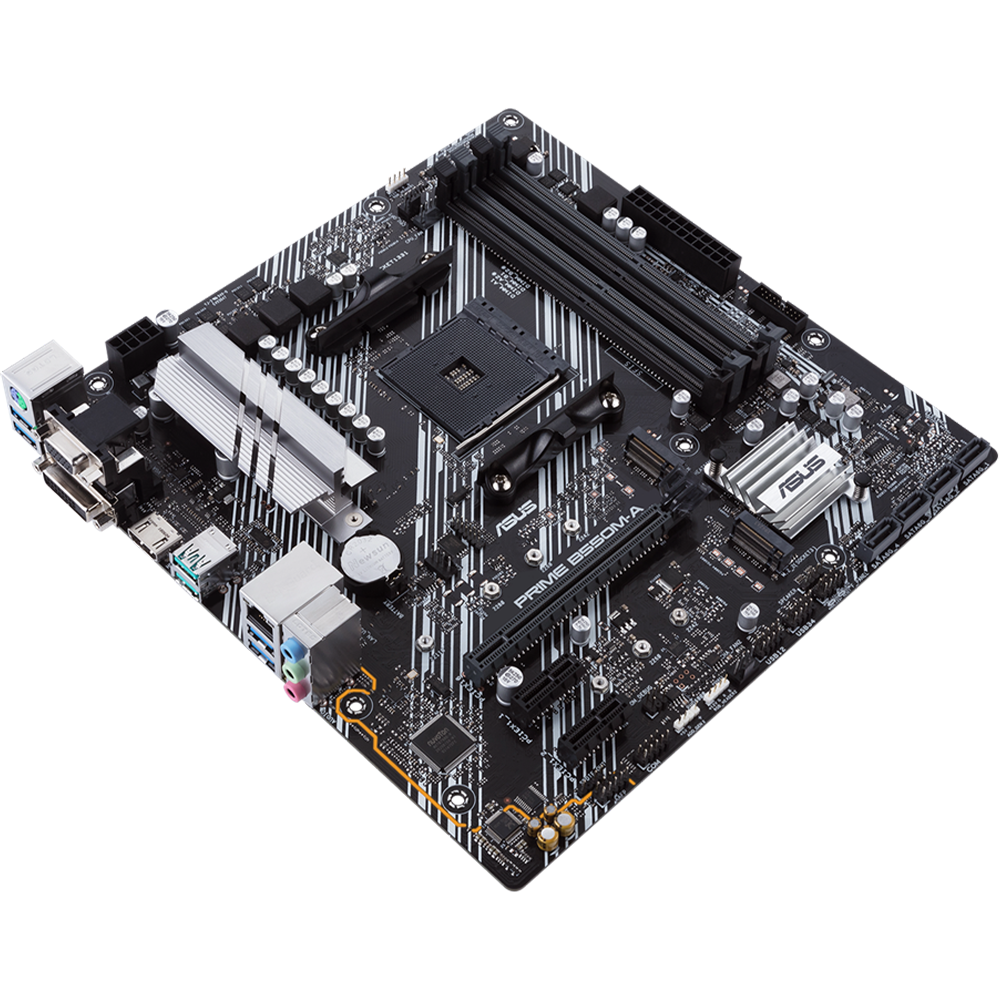

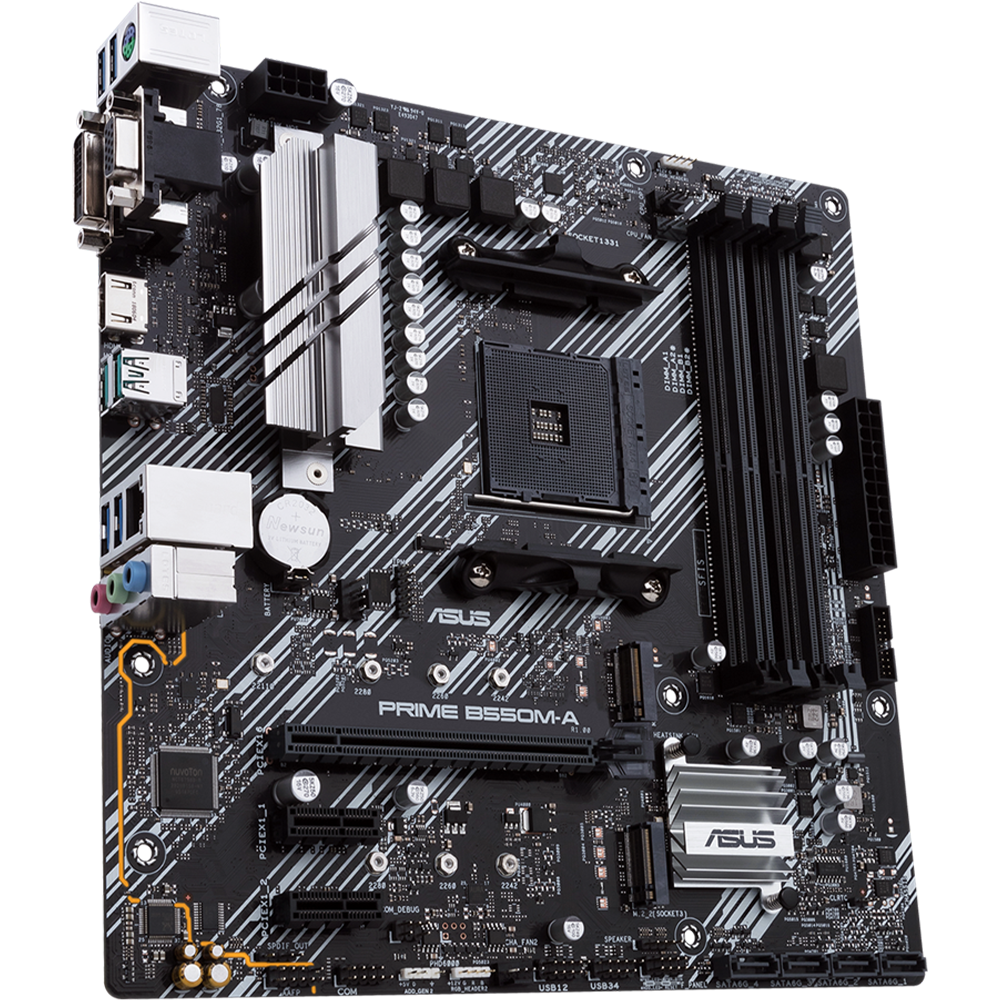

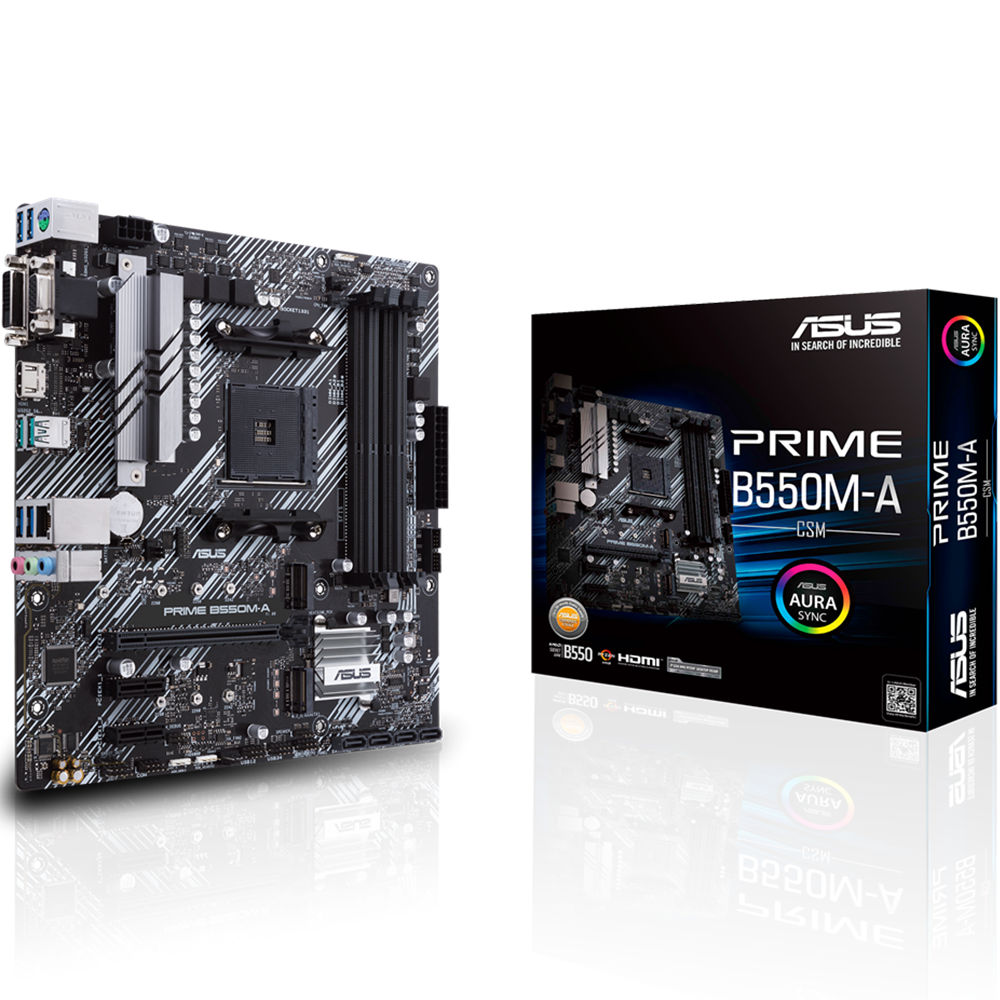

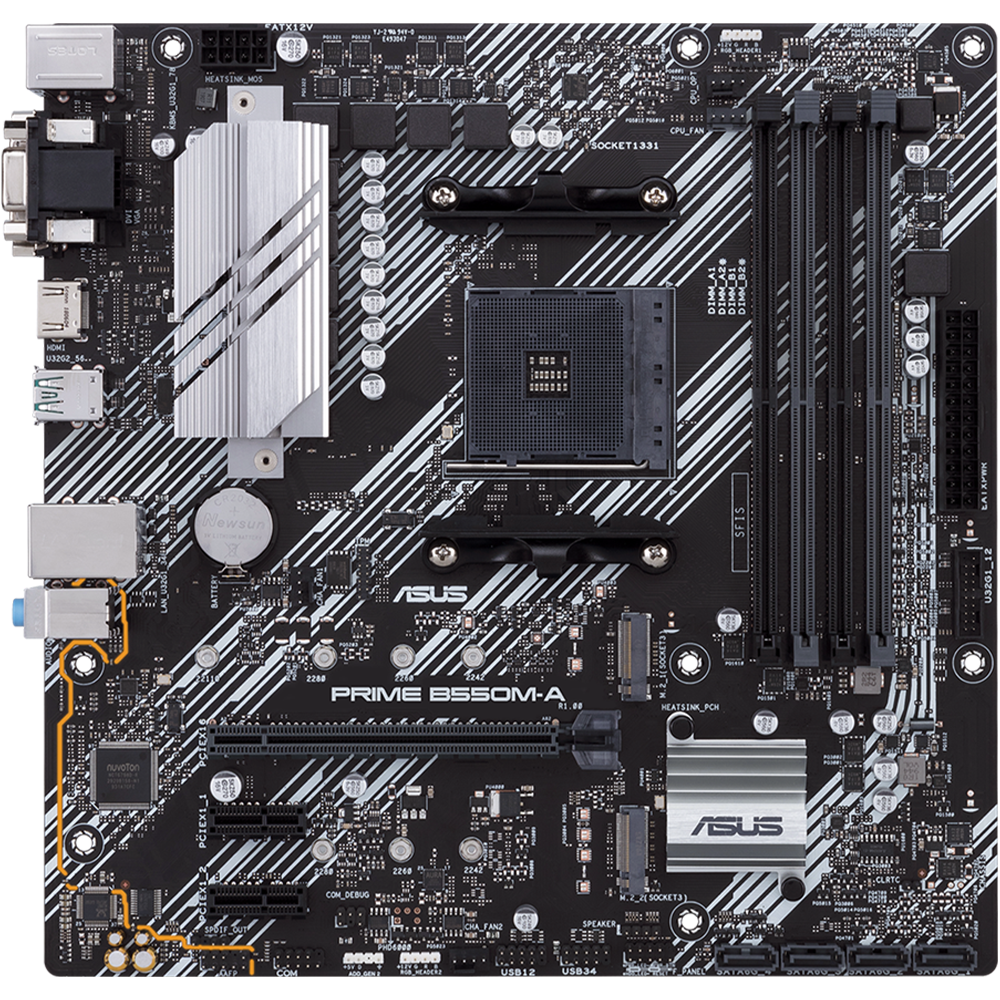

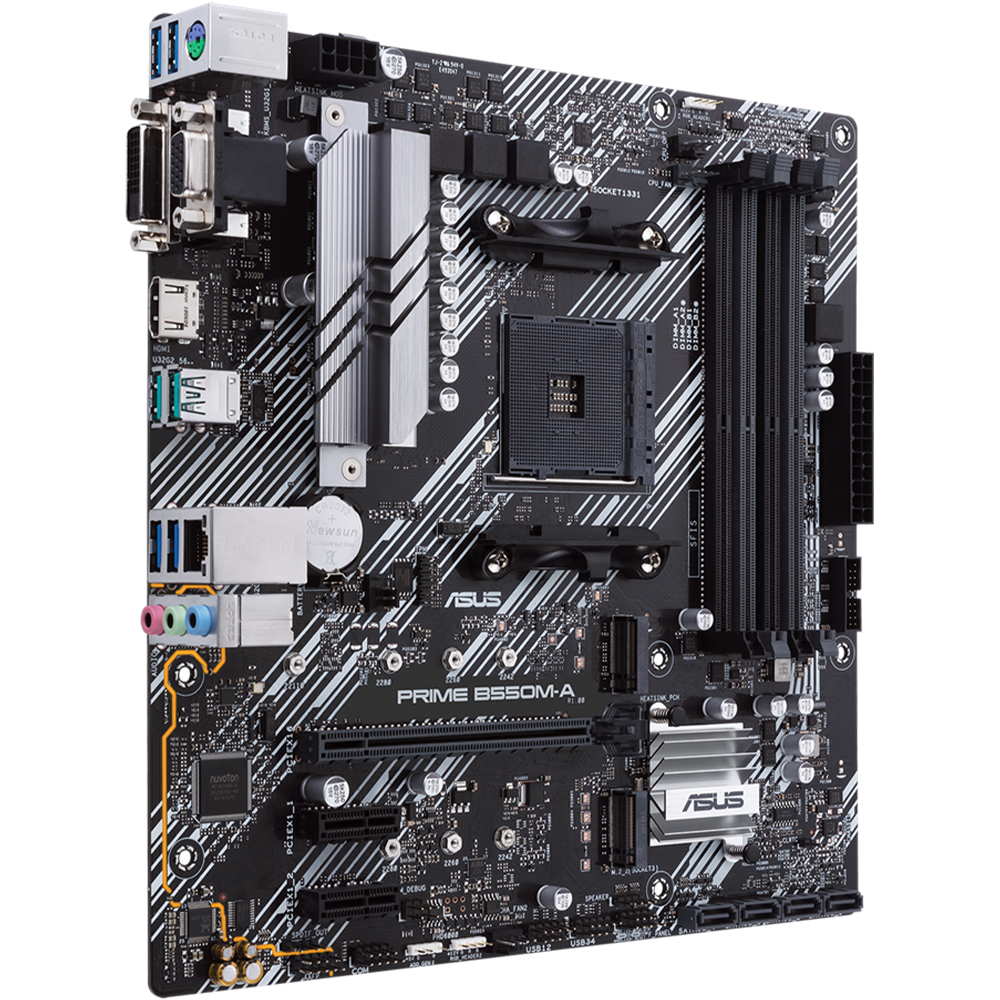

- AMD B550 (Ryzen AM4) micro ATX motherboard with dual M.2, PCIe 4.0, 1 Gb Ethernet, HDMI/D-Sub/DVI, SATA 6 Gbps, USB 3.2 Gen 2 Type-A, and Aura Sync RGB headers support
CPU
- AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Desktop Processor
Memory
- DDR4
- 4 x DIMM, Max. 128GB, DDR4
- Dual Channel Memory Architecture
Expansion Slots
- 1 x PCIe 4.0 x16 Slot
- 2 x PCIe 3.0 x1 Slots
Storage :
- 4 x SATA 6Gb/s
- 2 x M.2 PCIe 3.0 x4
Ethernet :
- Realtek RTL8111H 1Gb Ethernet
Audio
- Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC
USB :
- Rear USB Port ( Total 6 )
- 2 x USB 3.2 Gen 2 ports (Type-A)
- 4 x USB 3.2 Gen 1 ports (Type-A)
- Front USB Port ( Total 6 )
- 2 x USB 3.2 Gen 1 ports (Type-A)
- 4 x USB 2.0 ports (Type-A)

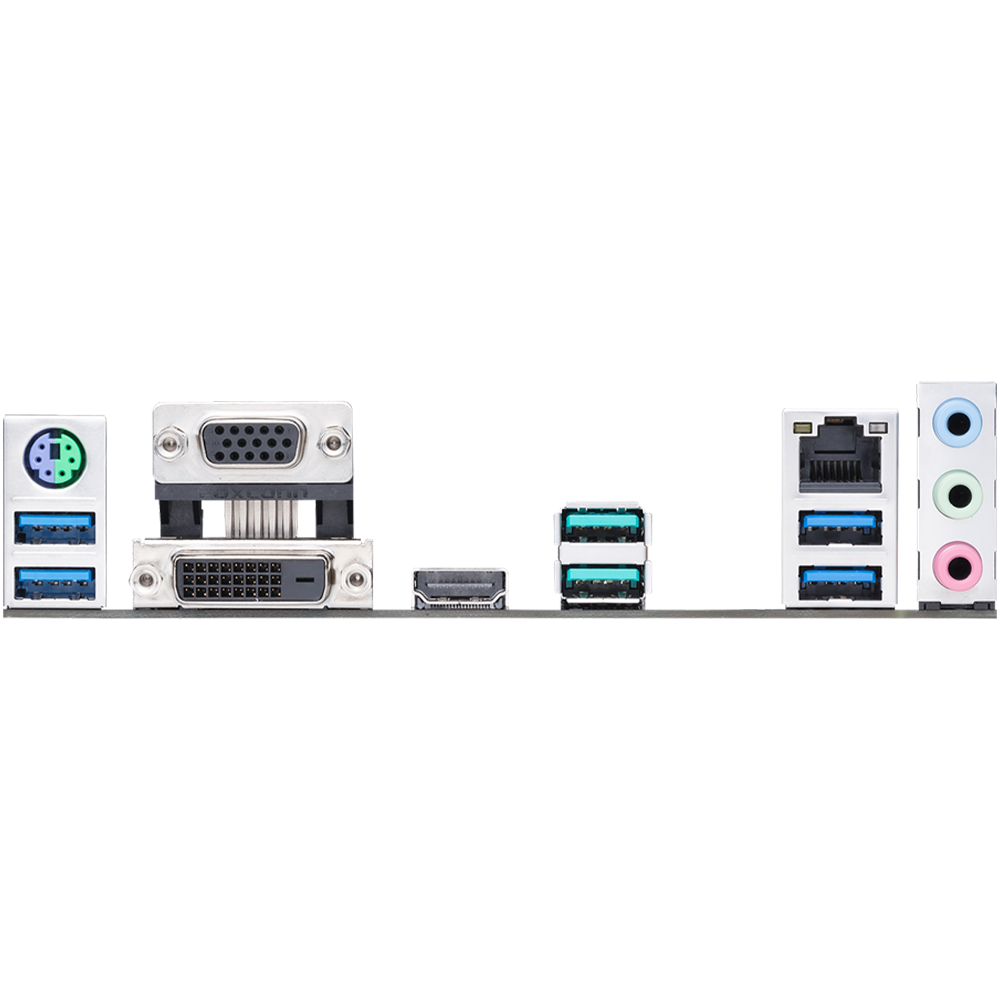

Back Panel I/O Ports
- 1 x PS/2 keyboard/mouse combo port
- 1 x DVI-D
- 1 x D-Sub
- 1 x HDMI
- 1 x LAN (RJ45) port
- 2 x USB 3.2 Gen 2 (teal blue) (Type-A)
- 4 x USB 3.2 Gen 1 (blue) Type-A
- 3 x Audio jack(s)
Accessories
- User´s manual
- I/O Shield
- 2 x SATA 6Gb/s cable(s)
- 1 x Supporting DVD
- 1 x M.2 SSD screw package(s)
Form Factor :
- M-ATX ( 24.4 cm x 24.4 cm )
Part Number:
- 90MB14I0-M0EAYC
