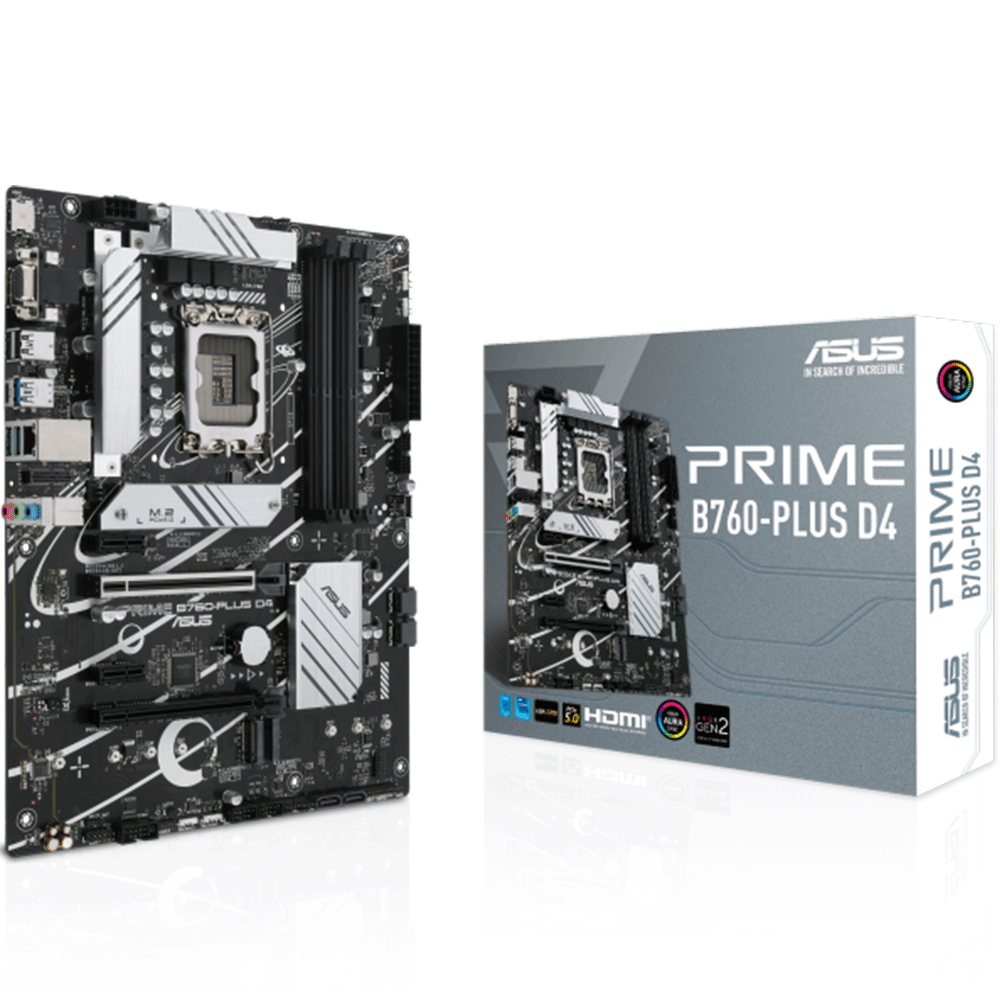

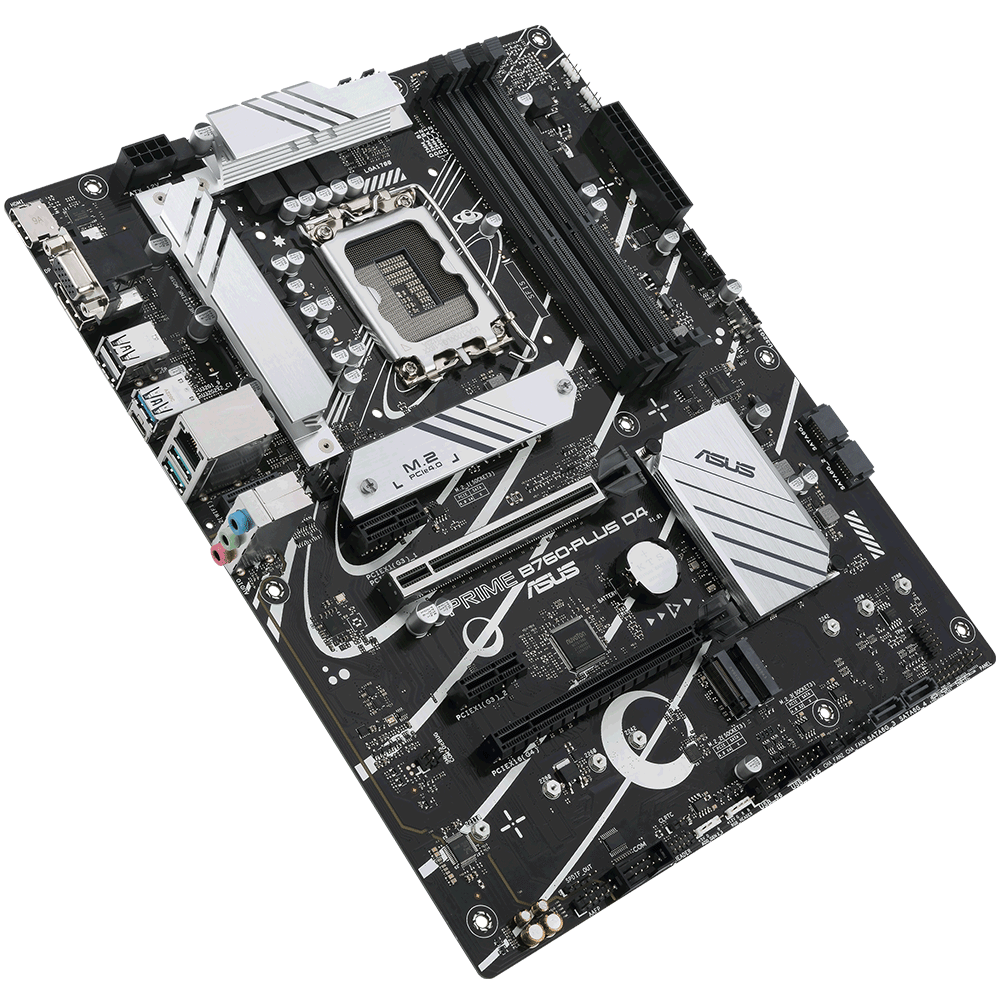

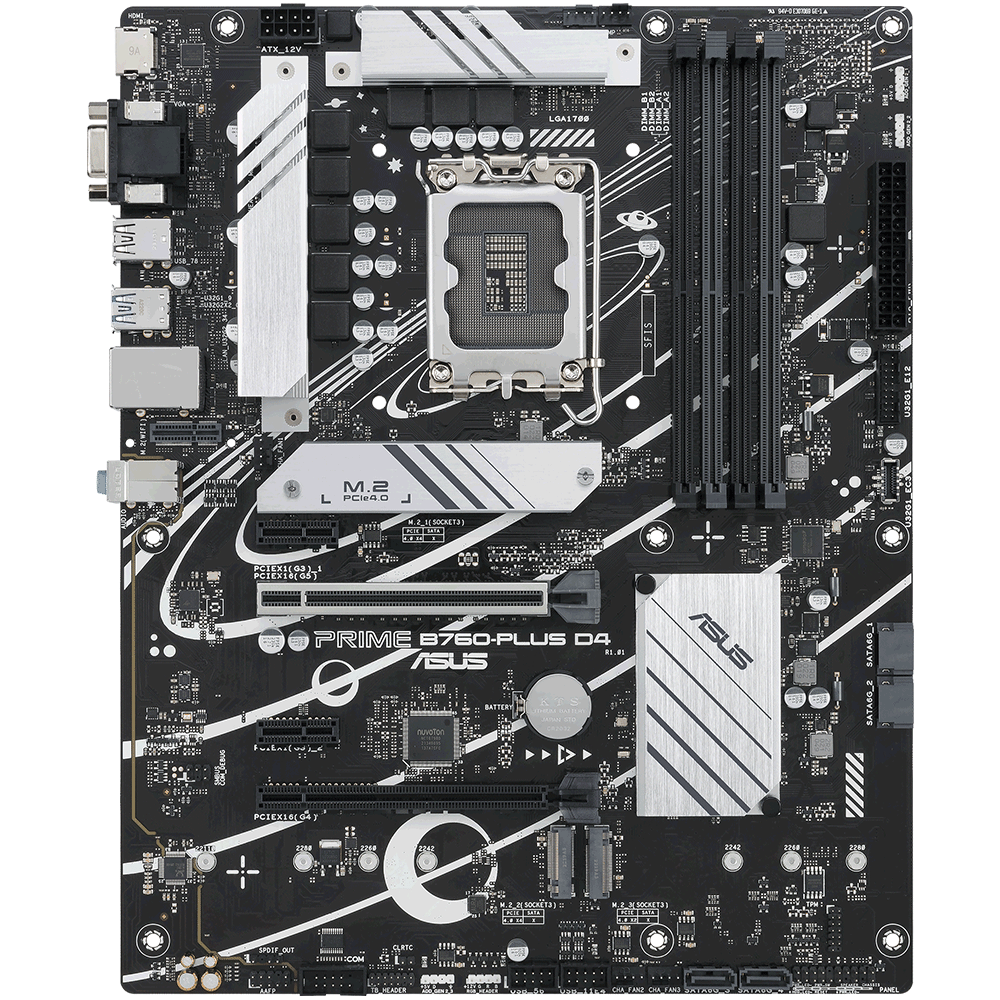

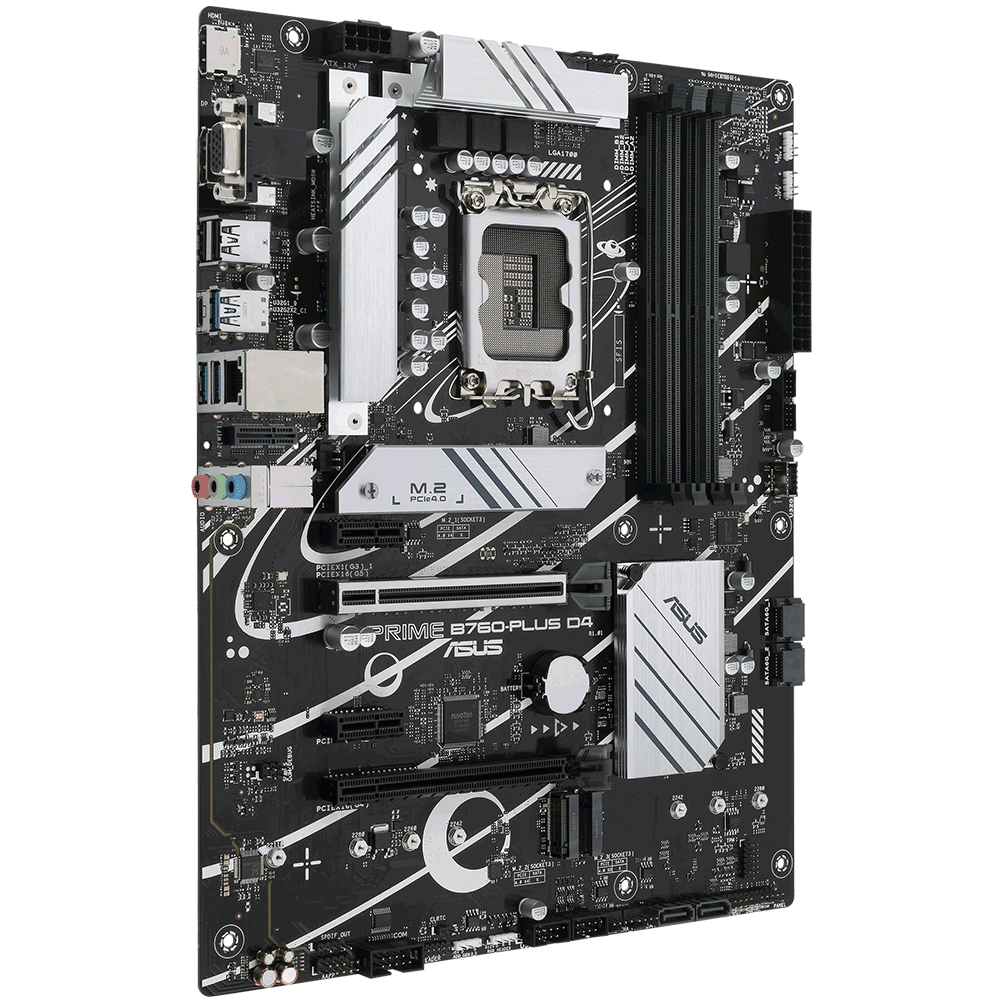

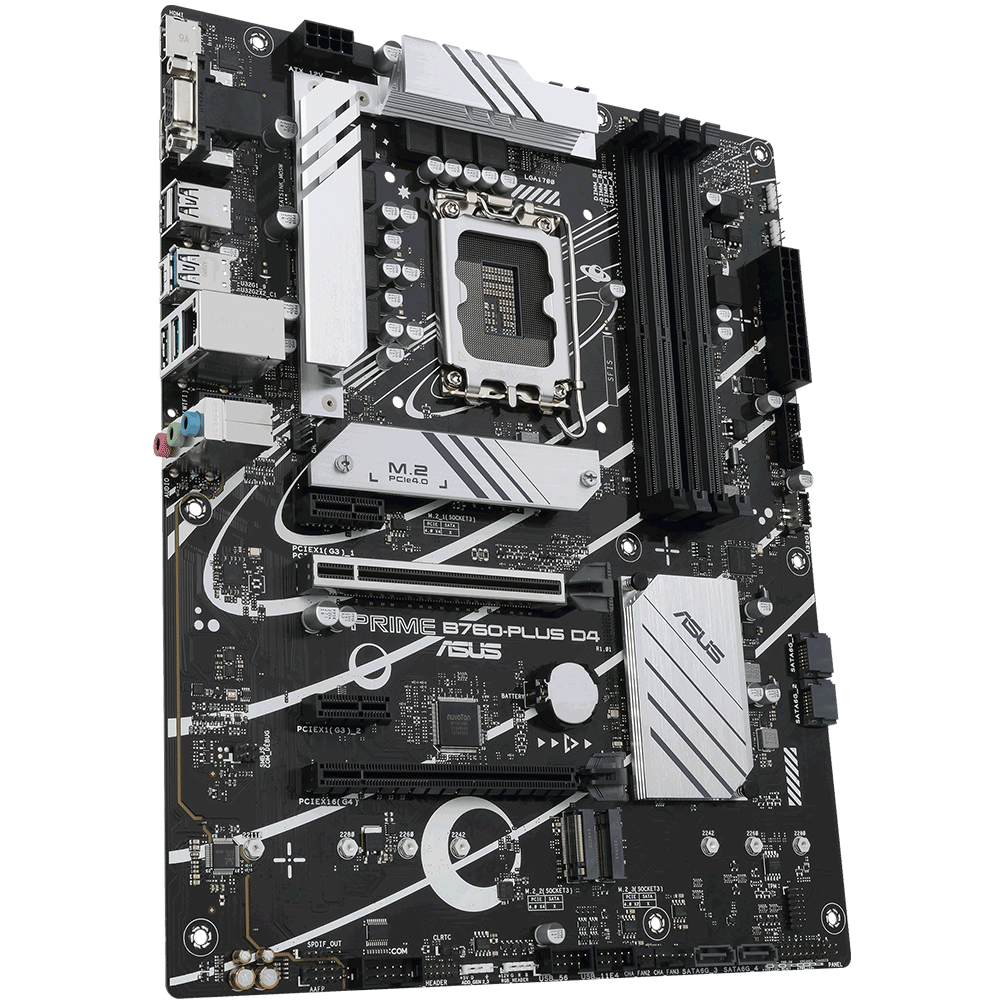

ASUS PRIME B760-PLUS D4 LGA1700 Socket For intel CPUs Motherboard

• ASUS Prime B760-PLUS D4, an Intel B760 LGA 1700 ATX motherboard with PCIe 5.0, three PCIe 4.0 M.2 slots, DDR4, Realtek 2.5Gb Ethernet, DisplayPort, VGA, HDMI, SATA 6 Gbps, USB 3.2 Gen 2x2 Type-C, front USB 3.2 Gen 1 Type-C, Thunderbolt4 support, Aura Sync

CPU

• Intel Socket LGA1700 for 14th and 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors
• Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Memory

• DDR4
• 4 x DIMM, Max. 128GB, DDR4 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC
• Dual Channel Memory Architecture
• Supports Intel Extreme Memory Profile (XMP)
• OptiMem

Expansion Slots

• 1 x PCIe 5.0 x16 slot
• 1x PCIe 4.0 x16 slot
• 2 x PCIe 3.0 x1 slots

Storage :

• 4 x SATA 6Gb/s
• 3 x M.2 PCIe 4.0 x4

Ethernet :

• 1 x Realtek 2.5Gb Ethernet

USB

• Rear USB (Total 6 ports)
• 1 x USB 3.2 Gen 2x2 port (USB Type-C)
• 2x USB 3.2 Gen 2 ports (Type-A)
• 1 x USB 3.2 Gen 1 ports (Type-A)
• 2 x USB 2.0 (Type-A)
• Front USB: Total 7 ports
• 1 x USB 3.2 Gen 2 connector (support USB Type-C)
• 1 x USB 3.2 Gen 1 header support additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 header support additional 4 USB 2.0 ports

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC

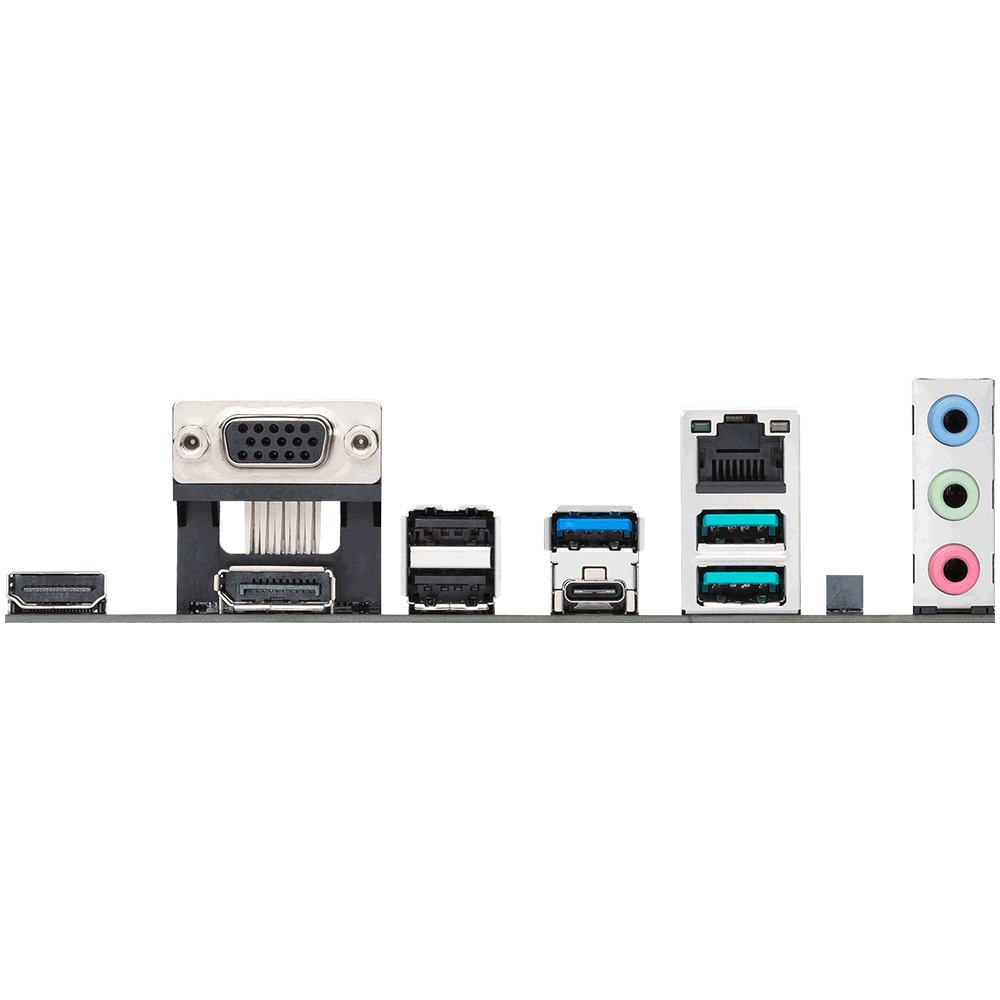

Back Panel I/O Ports

• 1 x USB 3.2 Gen 2x2 port (USB Type-C)
• 2x USB 3.2 Gen 2 ports (Type-A)
• 1 x USB 3.2 Gen 1 ports (Type-A)
• 2 x USB 2.0 (Type-A)
• 1 x DisplayPort
• VGA port
• 1 x HDMI port
• 1 x Vertical M.2 slot (Key E)
• 1 x Realtek 2.5Gb Ethernet Port
• 3 x Audio jacks

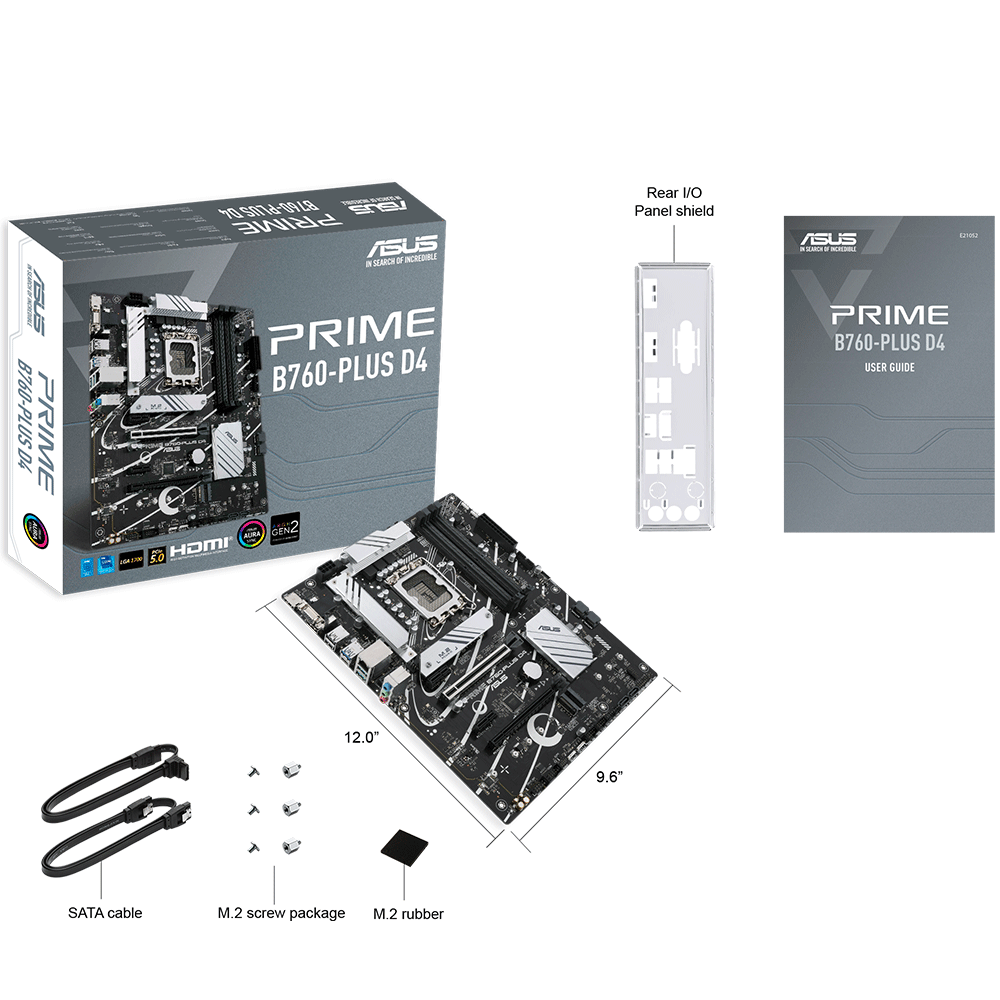

Accessories

• 2 x SATA 6Gb/s cables
• I/O Shield
• 1 x M.2 Rubber Packages
• 2 x Screw package for M.2 SSD
• 1 x User guide

Form Factor :

• ATX ( 30.5 cm x 24.4 cm )

Part Number:

• 90MB1CW0-M1EAY0
