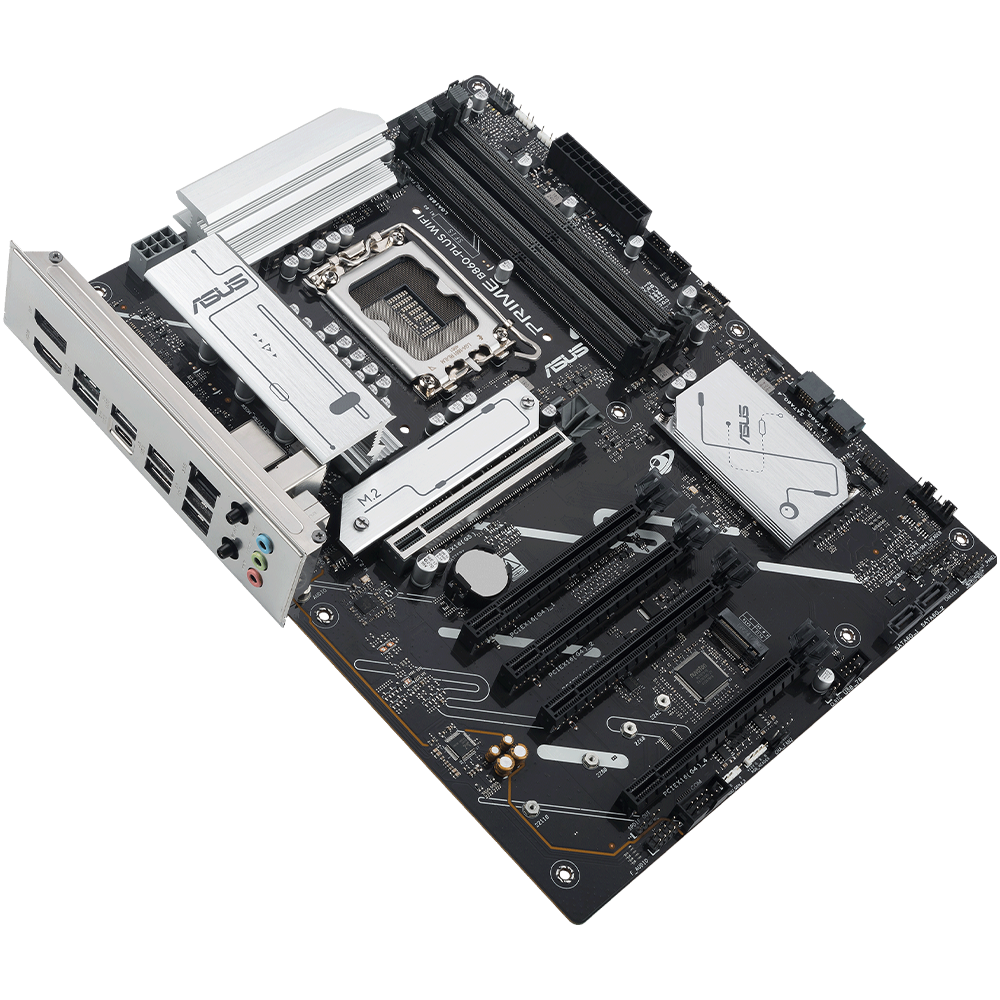

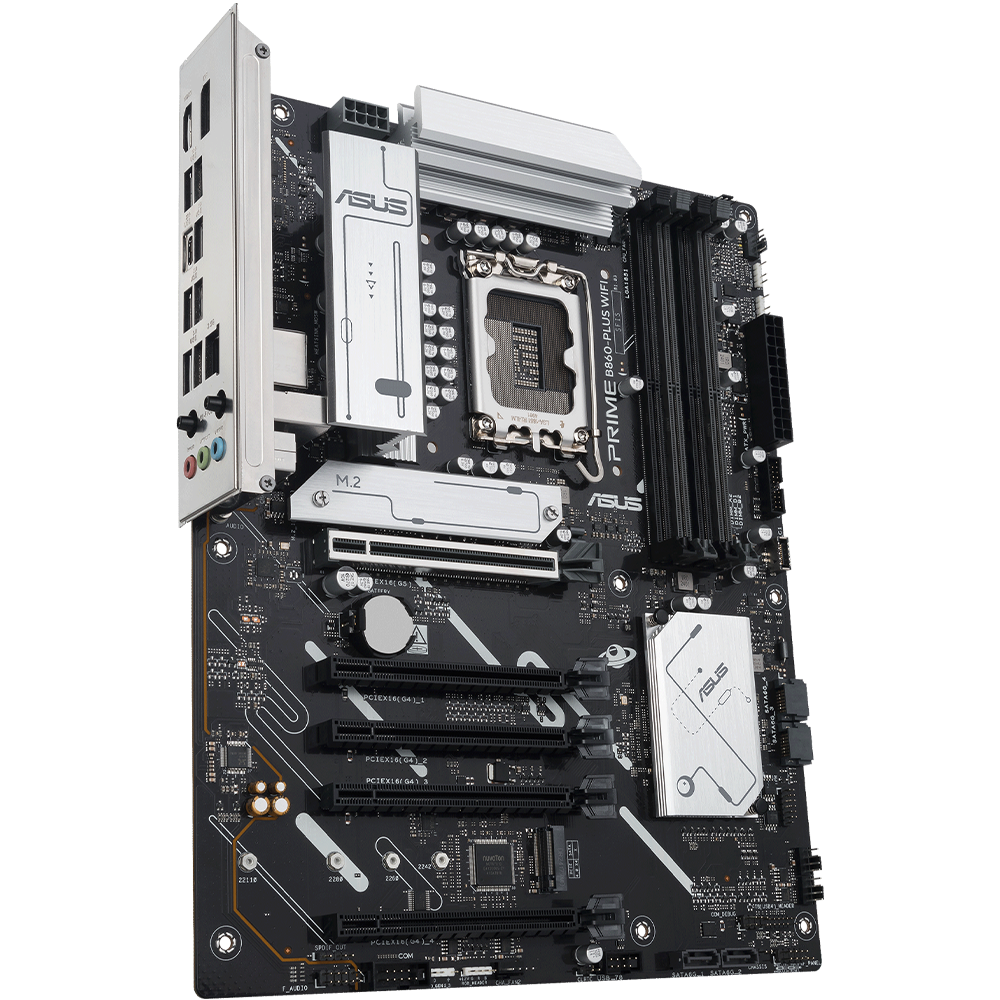

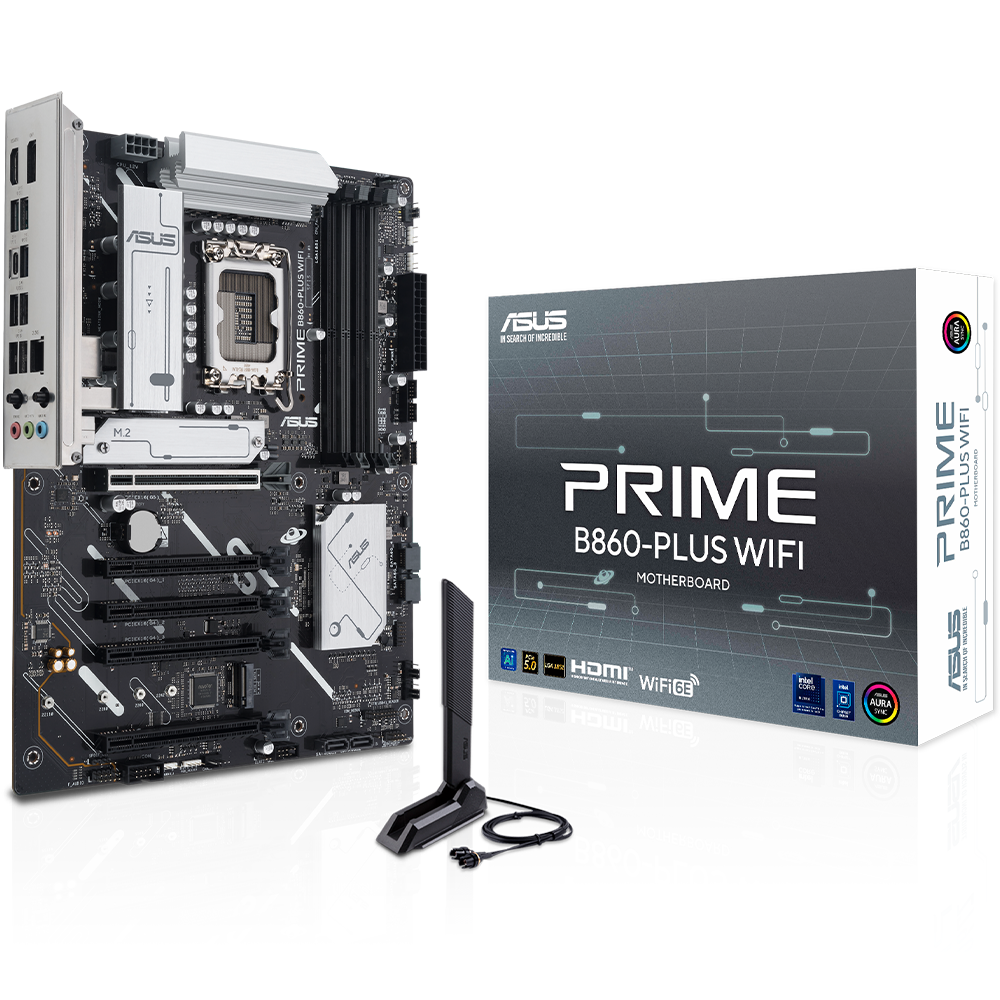

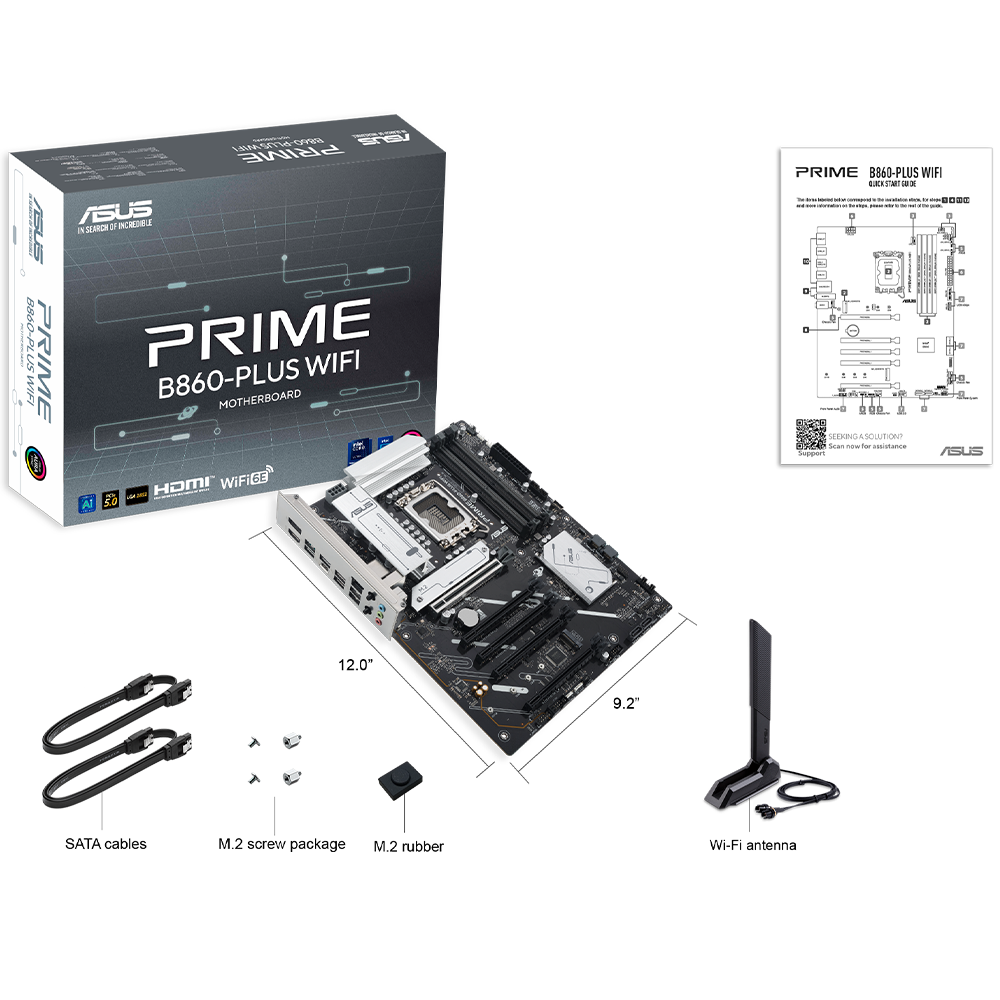

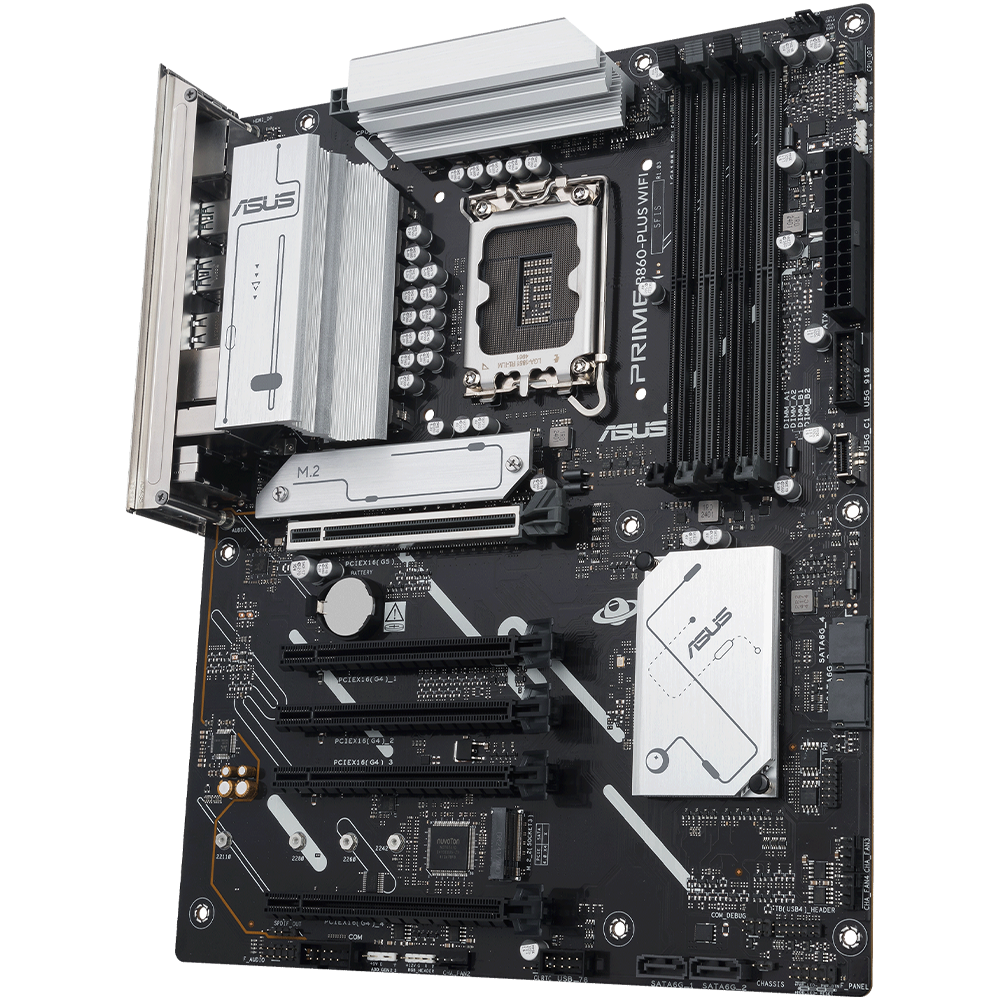

ASUS PRIME B860-PLUS WIFI LGA 1851 Socket ATX Motherboard

• ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel Core Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME B860-PLUS WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

Product Details:

Model:

• PRIME B860-PLUS WIFI

CPU:

• Support Intel Core Ultra Processors (Series 2) LGA1851
• Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Memory:

• 4 x DIMM slots, max. 256GB, DDR5
• Supports up to 8666+MT/s (OC), Non-ECC Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
• Dual channel memory architecture
• DIMM Fit
• Supports Intel® Extreme Memory Profile
• (XMP) memory module
• ASUS Enhanced Memory Profile III (AEMP III)
• * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration

Expansion Slots:

Intel Core Ultra Processors (Series 2):

• 1 x PCIe 5.0 x16 slot (PCIEX16(G5))

Intel B860 Chipset:

• 1 x PCIe 4.0 x16 slot (PCIEX16(G4)_3) (supports x4 mode)
• 3 x PCIe 4.0 x16 slots (PCIEX16(G4)_1/2/4) (support x1 mode)

Storage:

• Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports

Intel Core Ultra Processors (Series 2):

• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

Intel B860 Chipset:

• M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
• 4 x SATA 6Gb/s ports

Ethernet:

• 1 × Realtek 2.5Gb Ethernet
• ASUS LANGuard

Wireless & Bluetooth:

• Wi-Fi 6E
• Bluetooth v5.3

USB:

Rear USB (Total 8 ports):

• 1 x USB 20Gbps port (Type-C)
• 2 x USB 10Gbps ports (Type-A)
• 1 x USB 5Gbps ports (Type-A)
• 4 x USB 2.0 ports (Type-A)

Front USB (Total 5 ports):

• 1 x USB 5Gbps Port (USB Type-C)
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 1 x USB 2.0 headers support 2 additional USB 2.0 ports

Audio:

• Realtek 7.1 Surround Sound High Definition Audio CODEC

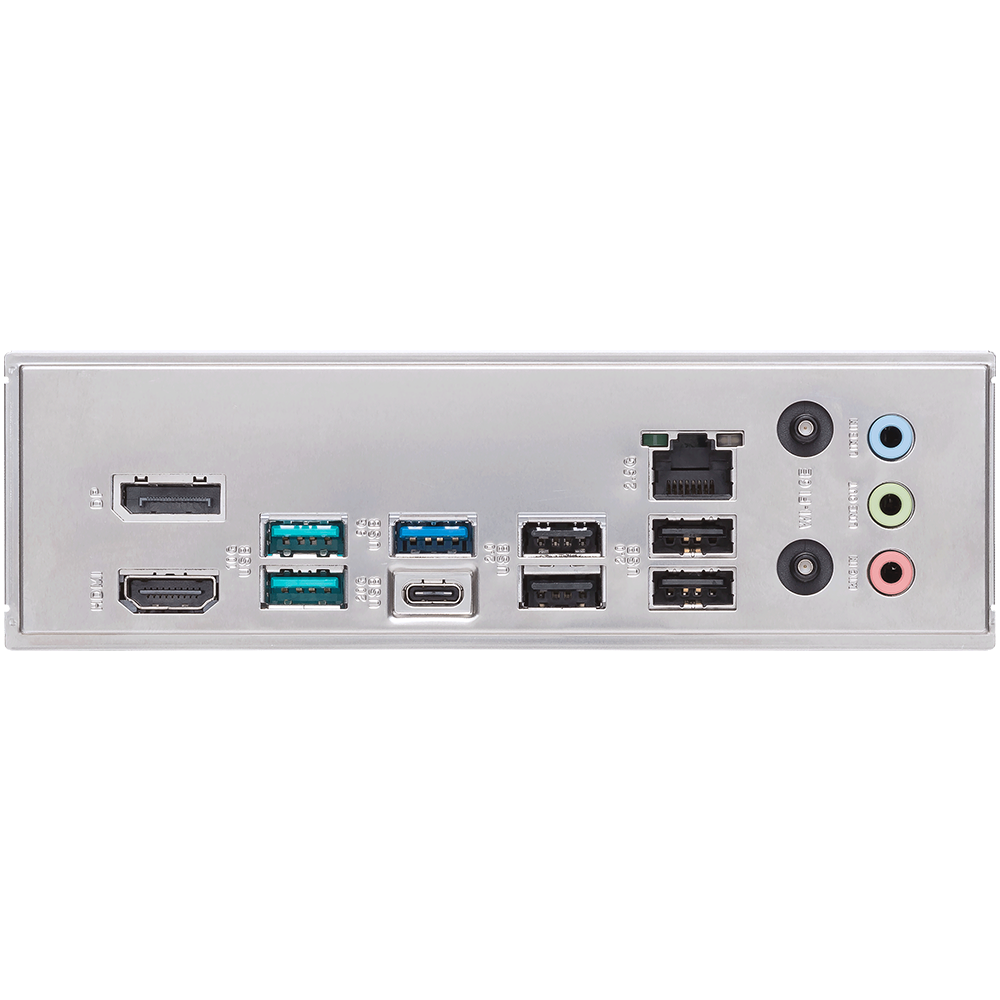

Back Panel I/O Ports

• 1 x USB 20Gbps port (Type-C)
• 2 x USB 10Gbps ports (Type-A)
• 1 x USB 5Gbps ports (Type-A)
• 4 x USB 2.0 ports (Type-A)
• 1 x DisplayPort
• 1 x HDMI port
• 1 x Wi-Fi module
• 1 x Realtek 2.5Gb Ethernet port
• 3 x Audio jacks

Form Factor:

• ATX Form Factor
• 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Part Number:

• 90MB1K50-M0EAY0
