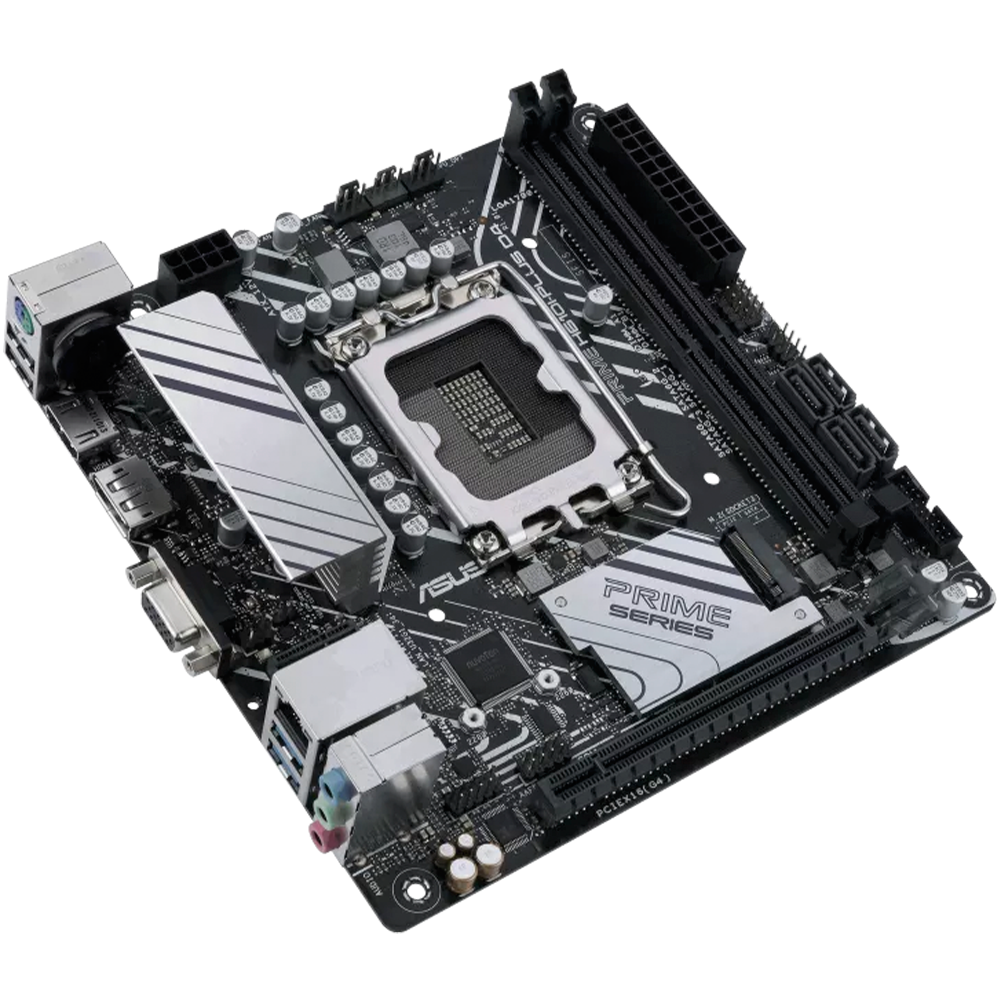

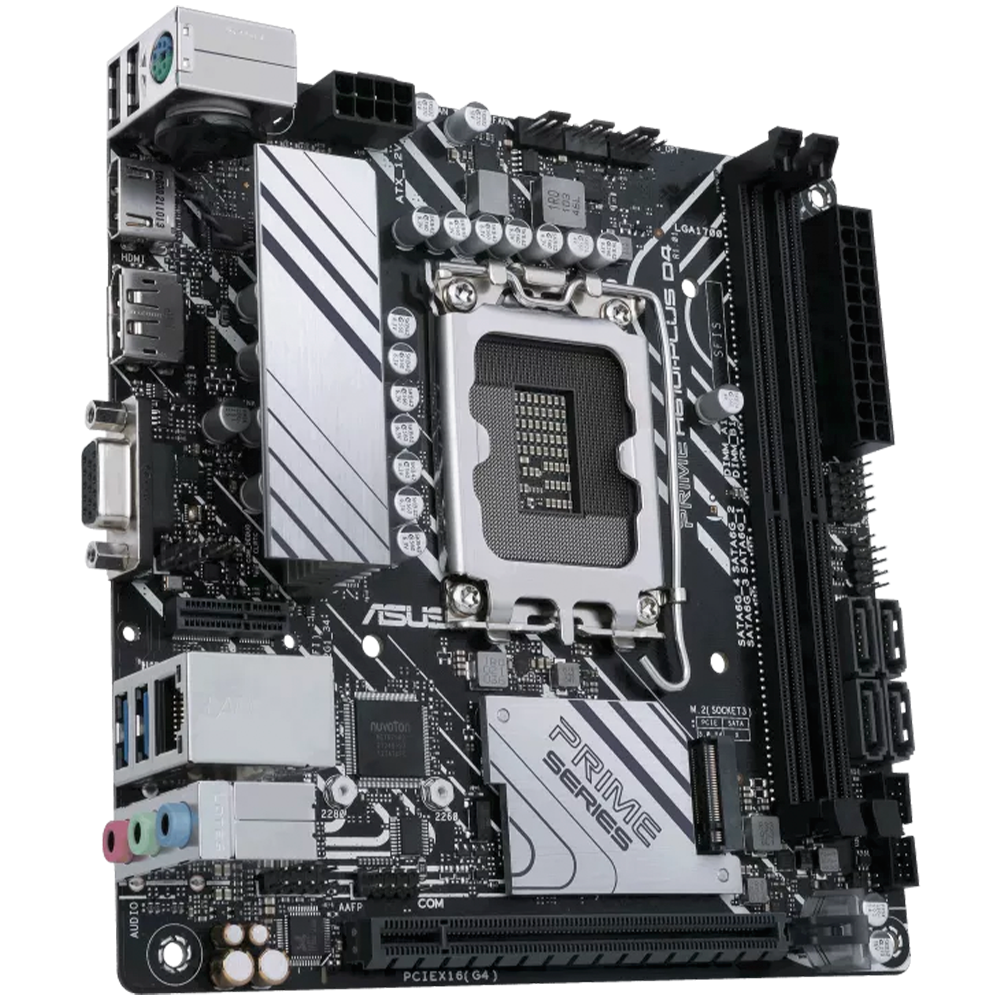

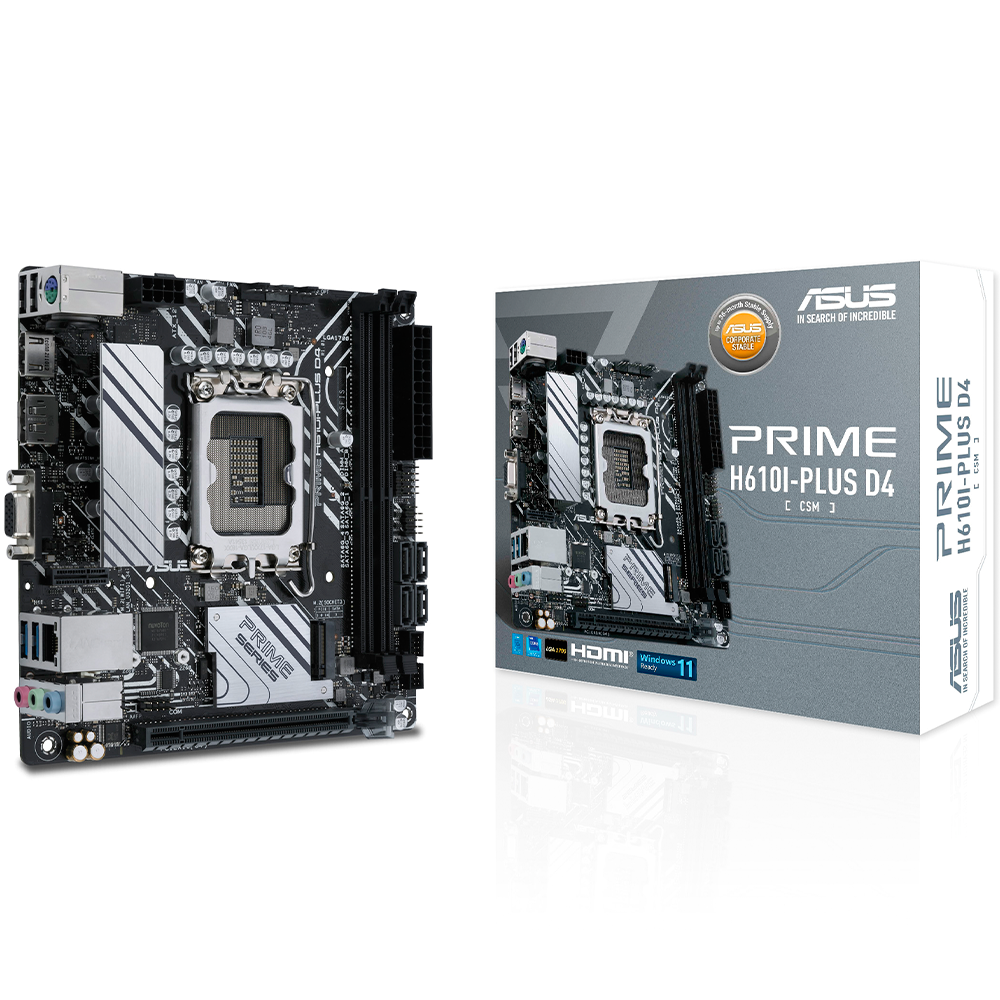

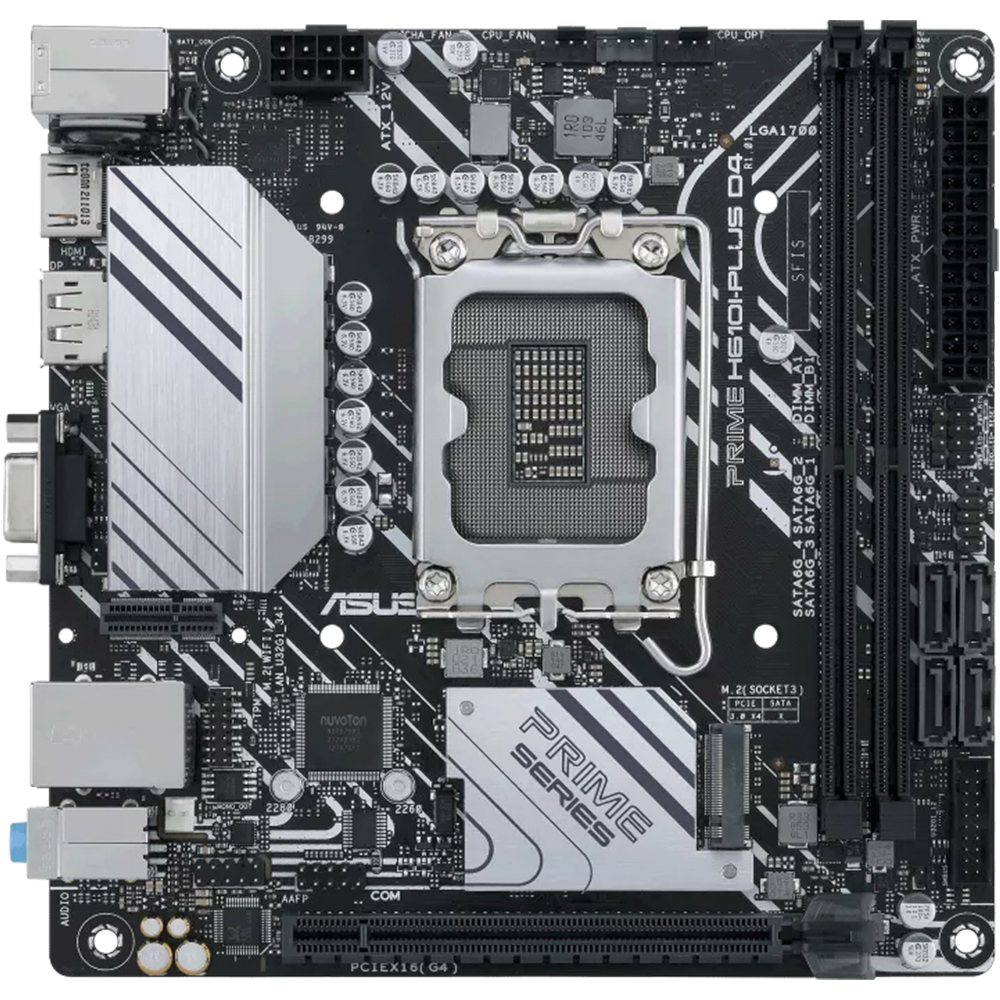

ASUS PRIME H610I-PLUS D4-CSM LGA1700 Socket For intel CPUs Motherboard

• Intel H610 (LGA 1700) Mini-ITX motherboard with DDR4 3200, PCIe 4.0, M.2 slot, Realtek 1 Gb Ethernet, DisplayPort, HDMI, D-Sub, USB 3.2 Gen 1 ports, SATA 6 Gbps, COM header, Mono-out header with Amp IC

CPU

• Intel Socket LGA1700 for 14th and 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors
• Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Memory

• DDR4
• 2 x DIMM, Max. 64GB, DDR4
• Dual Channel Memory Architecture
• Supports Intel Extreme Memory Profile (XMP)

Expansion Slots

• 1 x PCIe 4.0 x16 slot

Storage :

• 4 x SATA 6Gb/s
• 1 x M.2 PCIe 3.0 x4 slot

Ethernet :

• 1 x intel 1Gb Ethernet

USB

• Rear USB (Total 4 ports)
• 2 x USB 3.2 Gen 2 ports (Type-A)
• 2 x USB 2.0 (Type-A)
• Front USB: Total 4 ports
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 1 x USB 2.0 header supports additional 2 USB 2.0 ports

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC

Back Panel I/O Ports

• 2 x USB 3.2 Gen 2 ports (Type-A)
• 2 x USB 2.0 (Type-A)
• 1 x DisplayPort
• 1 x HDMI port
• 1 x D-Sub Port
• 1 x V-M.2 slot (Key E)
• 1 x intel 1Gb Ethernet Port
• 3 x Audio jacks
• 1 x PS/2 Keyboard/Mouse

Accessories

• 2 x SATA 6Gb/s cables
• I/O Shield
• 1 x M.2 SSD screw package
• 1 x Vertical M.2 Key E bracket set
• 1 x Support DVD
• 1 x User guide

Form Factor :

• Mini-ITX ( 17.02 cm x 17.02 cm )

Part Number:

• 90MB1B20-M0EAYC
