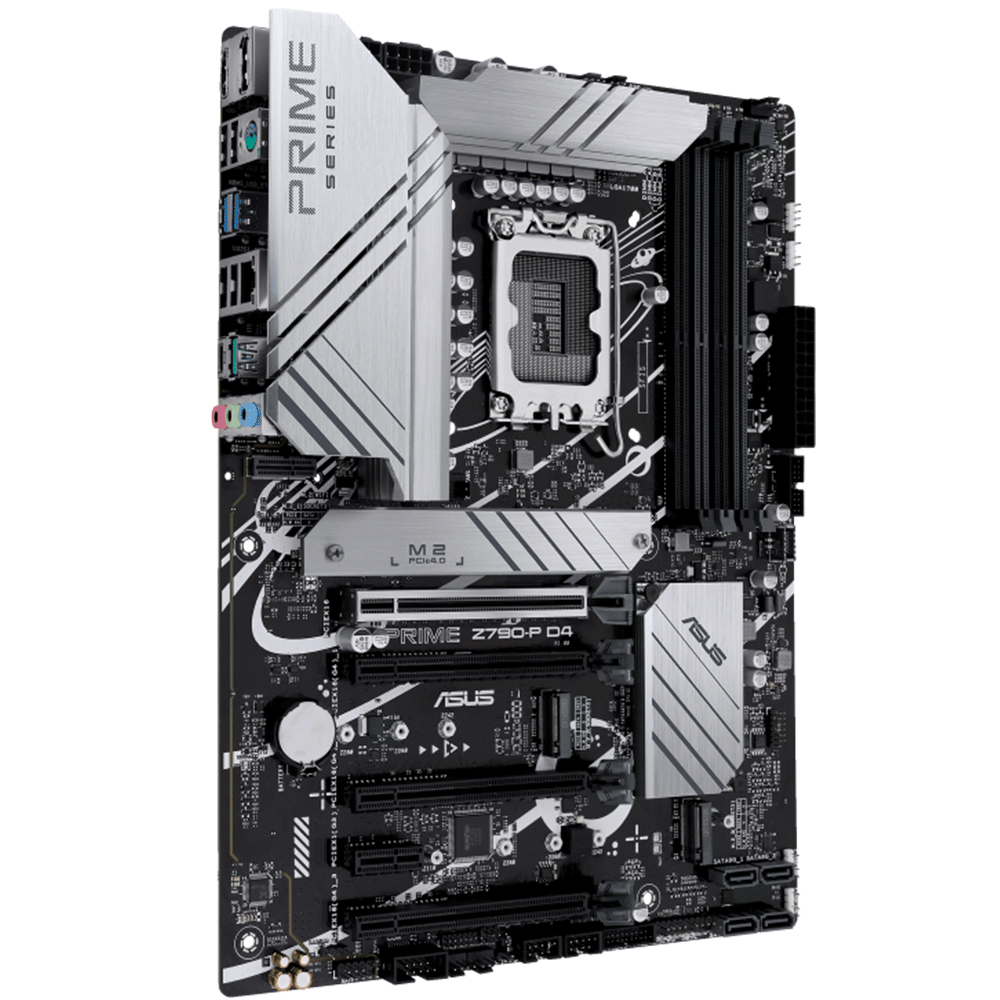

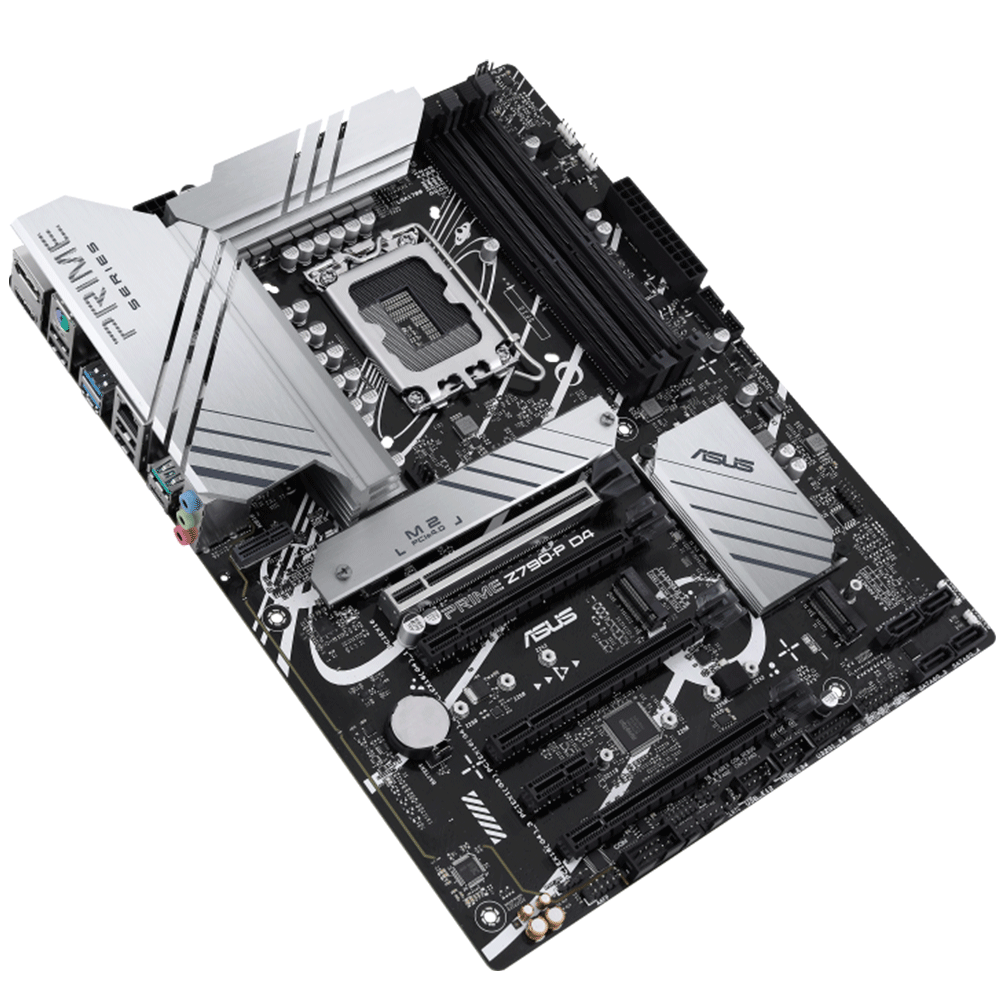

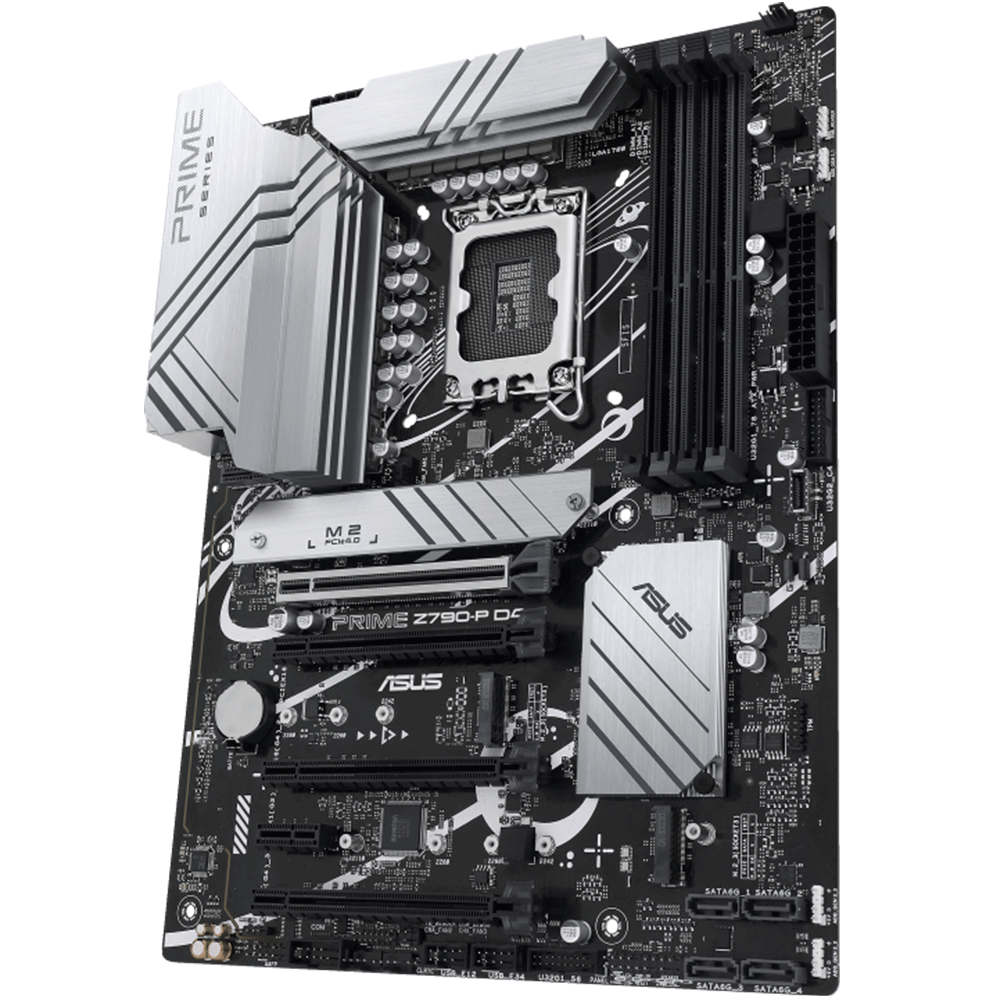

ASUS PRIME Z790-P D4 LGA1700 Socket For intel CPUs Motherboard

• ASUS Prime series motherboards are expertly engineered to unleash the full potential of 14th Gen Intel Core Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME Z790-P D4 provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. This platform delivers the power and connectivity that advanced AI PC applications demand.

CPU

• Intel Socket LGA1700 for 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors
• Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Memory

• DDR4
• 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5133(OC)/5066(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC
• Dual Channel Memory Architecture
• Supports Intel Extreme Memory Profile (XMP)
• OptiMem II
• * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration

Expansion Slots

• 1 x PCIe 5.0 x16 slot
• 3 x PCIe 4.0 x16 slots
• 1 x PCIe 4.0 x1 slot

Storage :

• 4 x SATA 6Gb/s
• 3 x M.2 PCIe 4.0 x4

Ethernet :

• 1 x Realtek 2.5Gb Ethernet

USB

• Rear USB (Total 8 ports)
• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
• 1x USB 3.2 Gen 2 ports (1 x Type-A)
• 2 x USB 3.2 Gen 1 ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• Front USB: Total 9 ports
• 1 x USB 3.2 Gen 2 connector (support USB Type-C)
• 2 x USB 3.2 Gen 1 header support additional 4 USB 3.2 Gen 1 ports
• 2 x USB 2.0 header support additional 4 USB 2.0 ports

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC

Back Panel I/O Ports

• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
• 1 x USB 3.2 Gen 2 port (1 x Type-A)
• 2 x USB 3.2 Gen 1 ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x DisplayPort
• 1 x HDMI® port
• 1 x Vertical M.2 slot (Key E)
• 1 x Realtek 2.5Gb Ethernet port
• 3 x Audio jacks
• 1 x PS/2 Keyboard/Mouse combo port

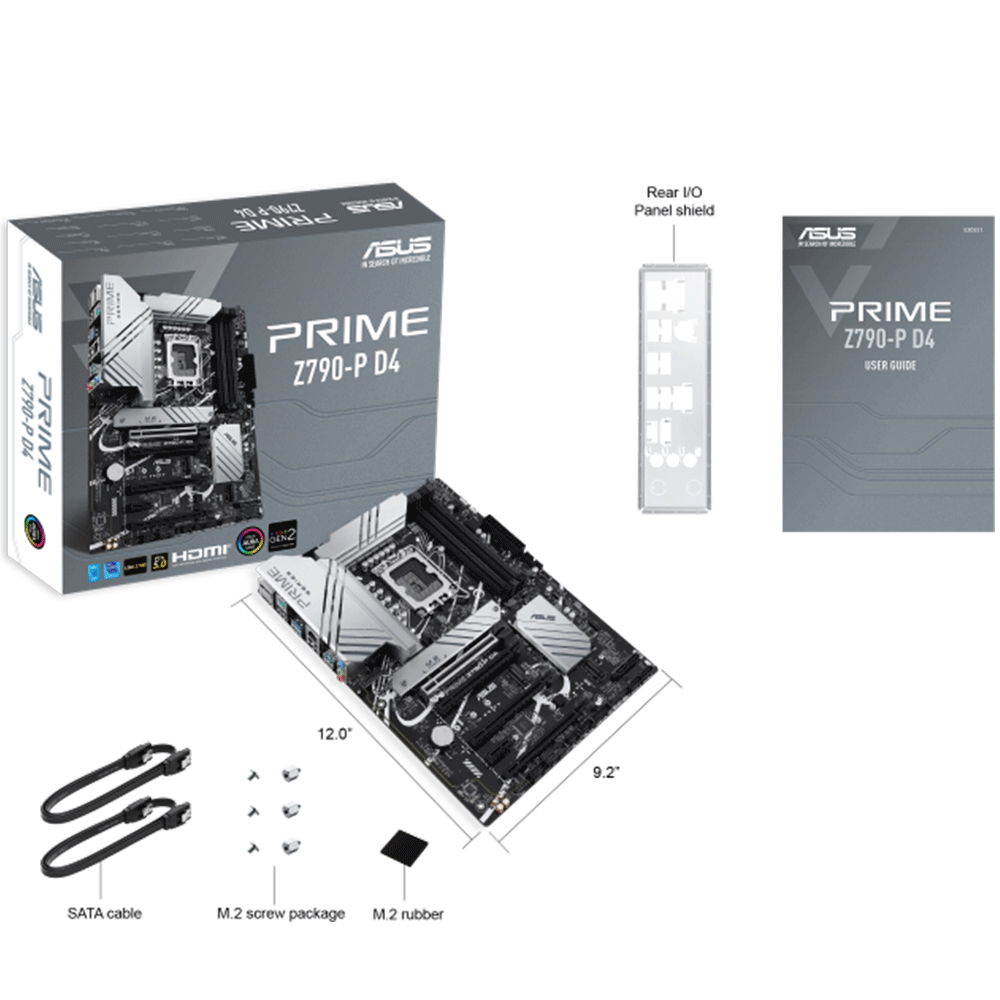

Accessories

• 2 x SATA 6Gb/s cables
• 1 × I / O Shield
• 1 x M.2 SSD screw package
• 1 x M.2 Rubber Package
• 1 x User guide

Form Factor :

• ATX ( 30.5 cm x 24.4 cm )

Part Number:

• 90MB1CV0-M0EAY0
