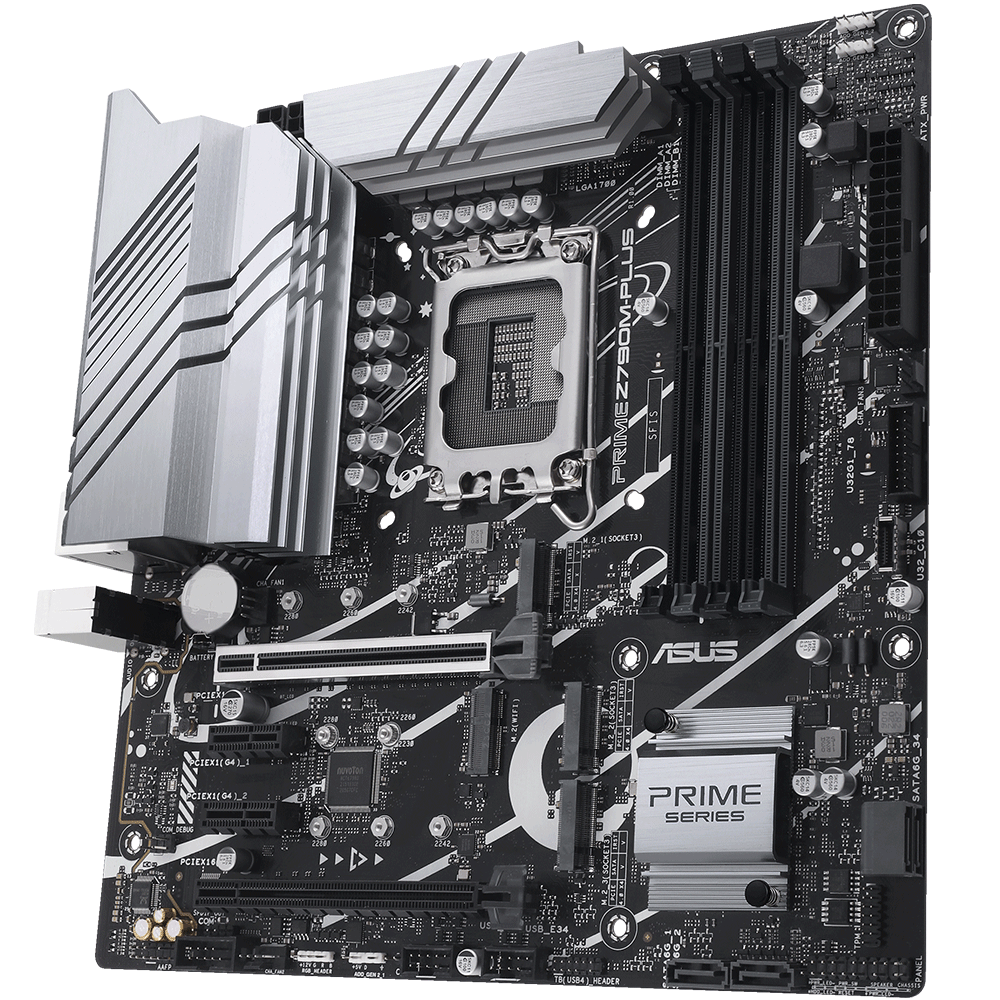

- ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME Z790M-PLUS provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
CPU
- Intel Socket LGA1700 for 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors
- Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Memory
- DDR5
- 4 x DIMM, Max. 128GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC
- Dual Channel Memory Architecture
- Supports Intel Extreme Memory Profile (XMP)
- OptiMem II
- * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration
Expansion Slots
- 1 x PCIe 5.0 x16 slot
- 1 x PCIe 4.0 x16 slot
- 2 x PCIe 4.0 x1 slots
Storage :
- 4 x SATA 6Gb/s
- 3 x M.2 PCIe 4.0 x4
Ethernet :
- 1 x Intel® 1Gb Ethernet
- ASUS LANGuard
USB
- Rear USB (Total 8 ports)
- 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
- 1x USB 3.2 Gen 2 ports (1 x Type-A)
- 4 x USB 3.2 Gen 1 ports (4 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
- Front USB: Total 7 ports
- 1 x USB 3.2 Gen 2 connector (support USB Type-C)
- 1 x USB 3.2 Gen 1 header support additional 2 USB 3.2 Gen 1 ports
- 2 x USB 2.0 header support additional 4 USB 2.0 ports
Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC
Back Panel I/O Ports
- 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
- 1 x USB 3.2 Gen 2 ports (1 x Type-A)
- 4 x USB 3.2 Gen 1 ports (4 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
- 1 x DisplayPort
- 1 x HDMI® port
- 1 x Intel® 1Gb Ethernet port
- 3 x Audio jacks

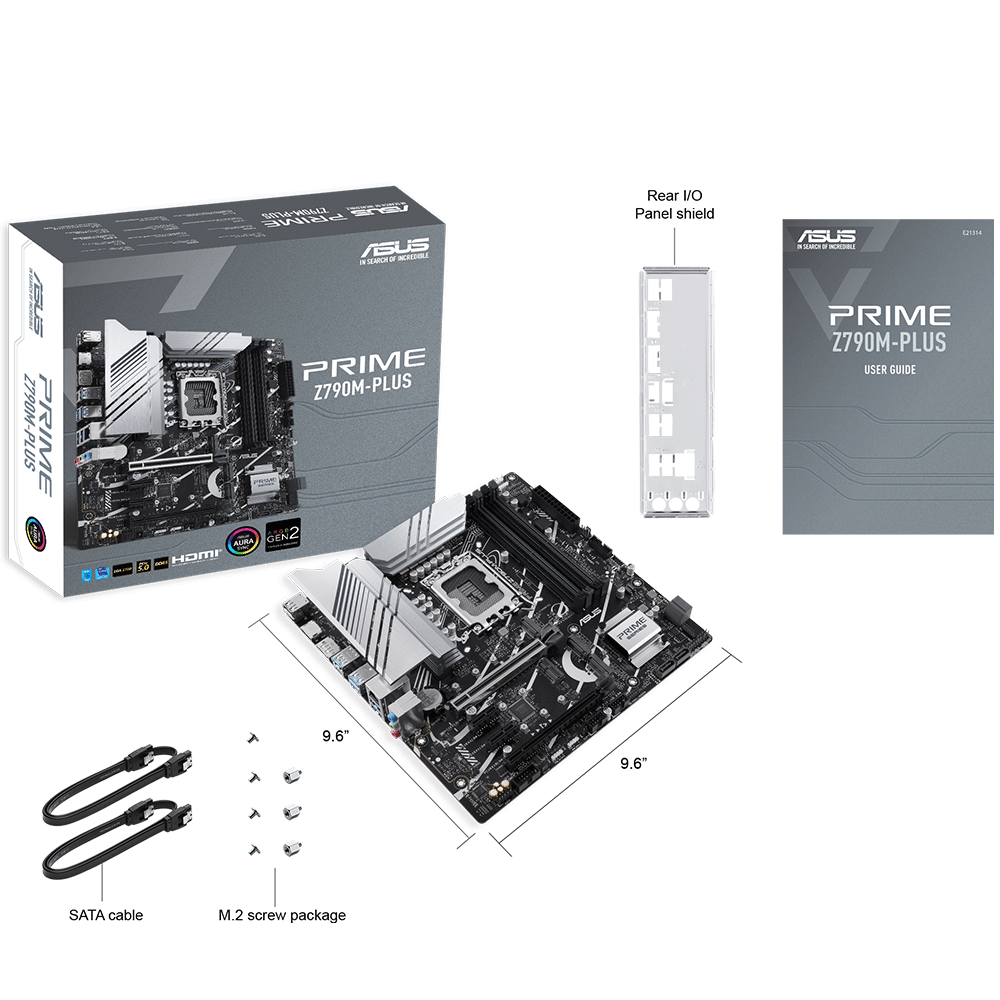

Accessories
- 2 x SATA 6Gb/s cables
- 1 × I / O Shield
- 1 x M.2 SSD screw package
- 1 x User guide
Form Factor :
- micro-ATX ( 24.4 cm x 24.4 cm )
Part Number:
- 90MB1E70-M1EAY0
