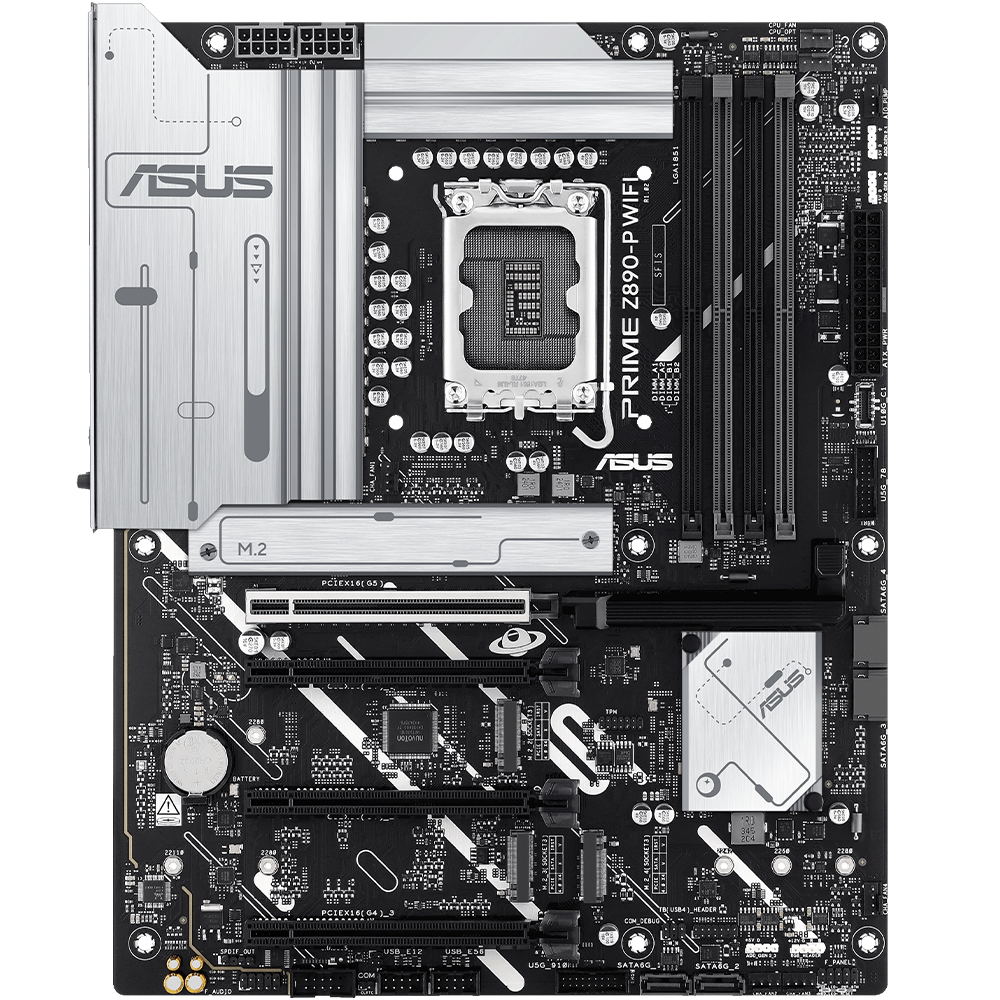

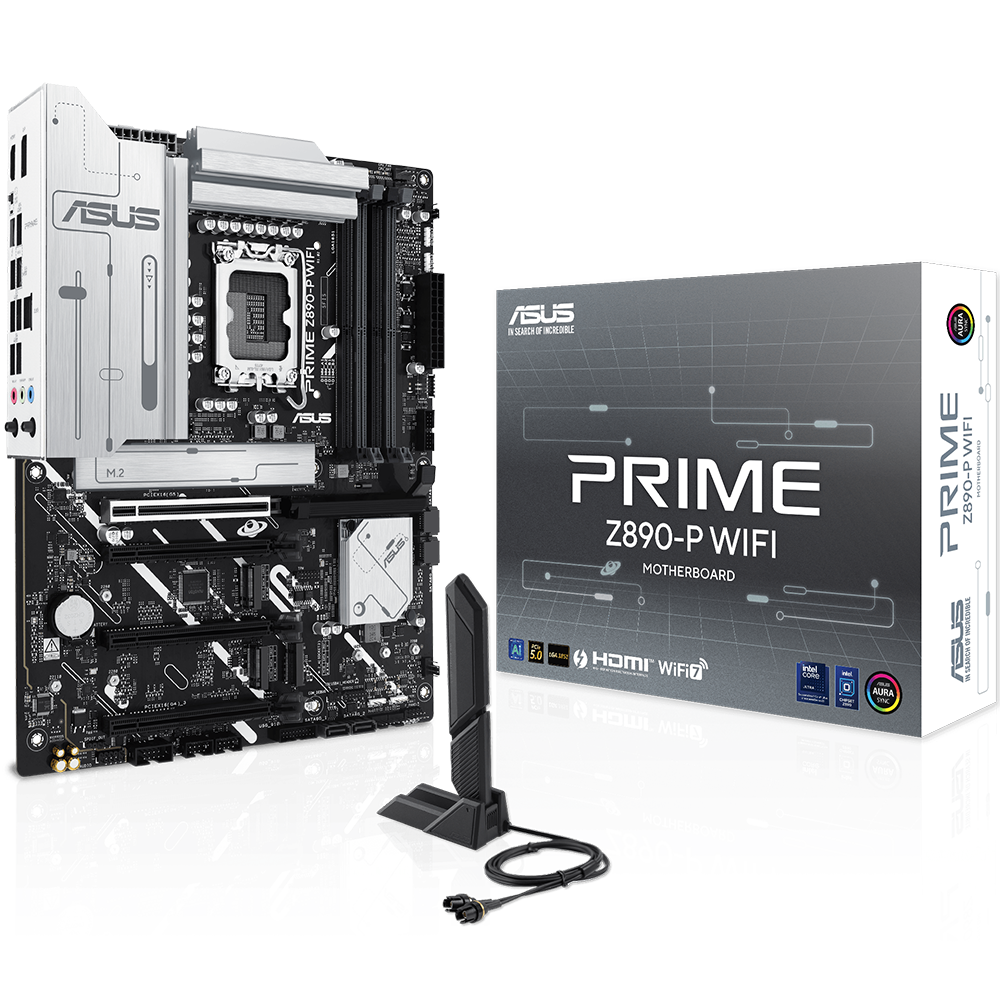

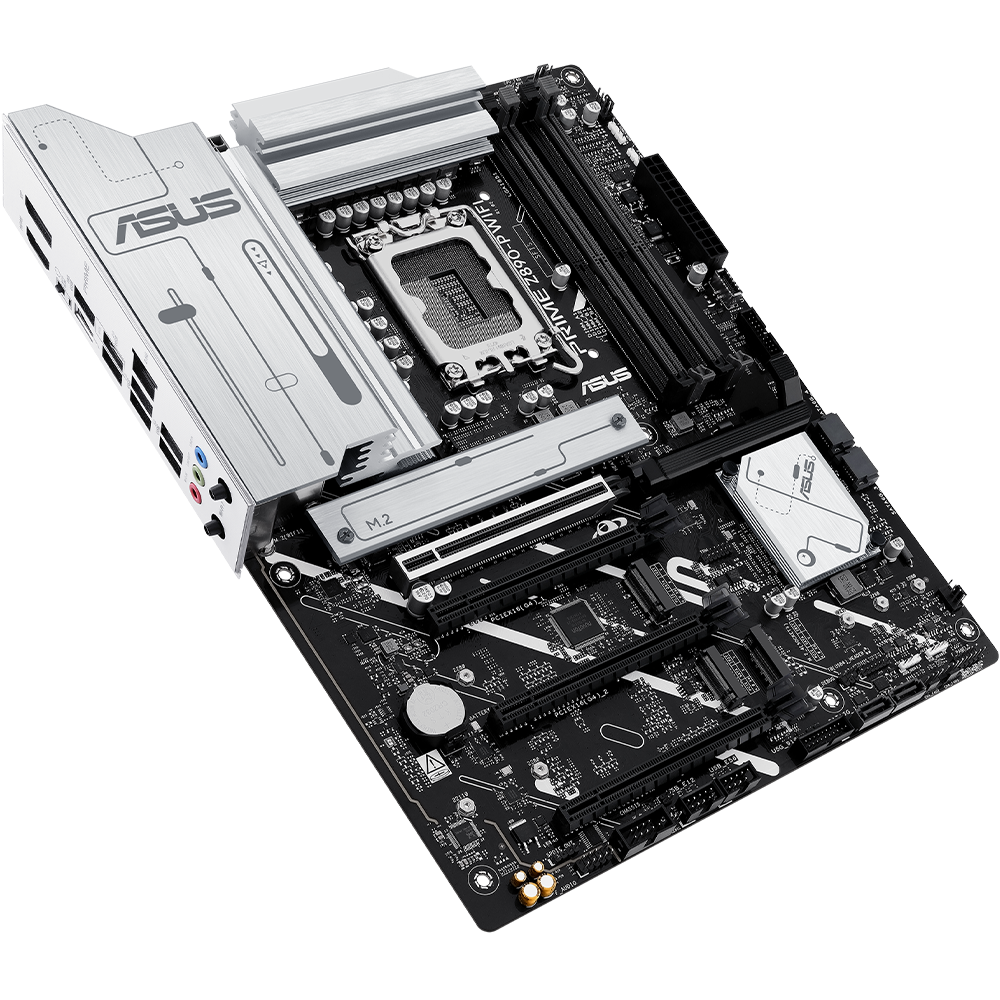

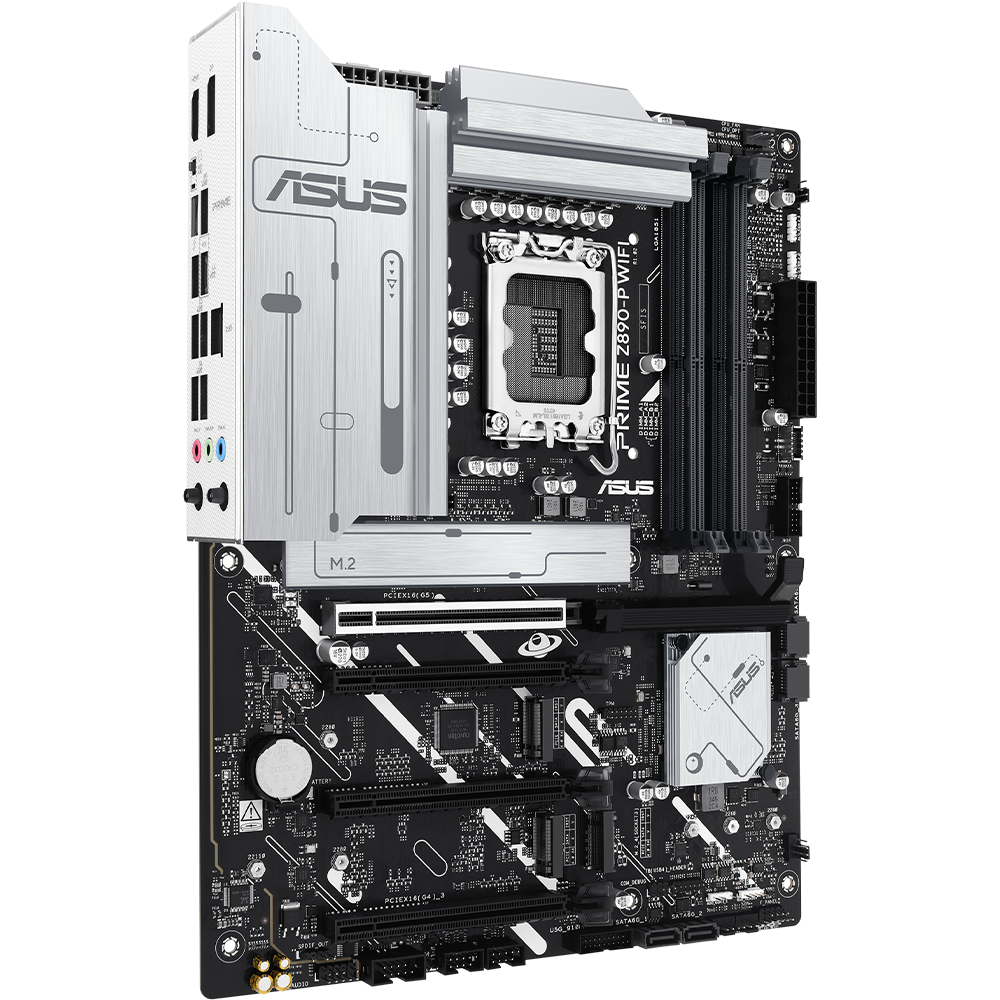

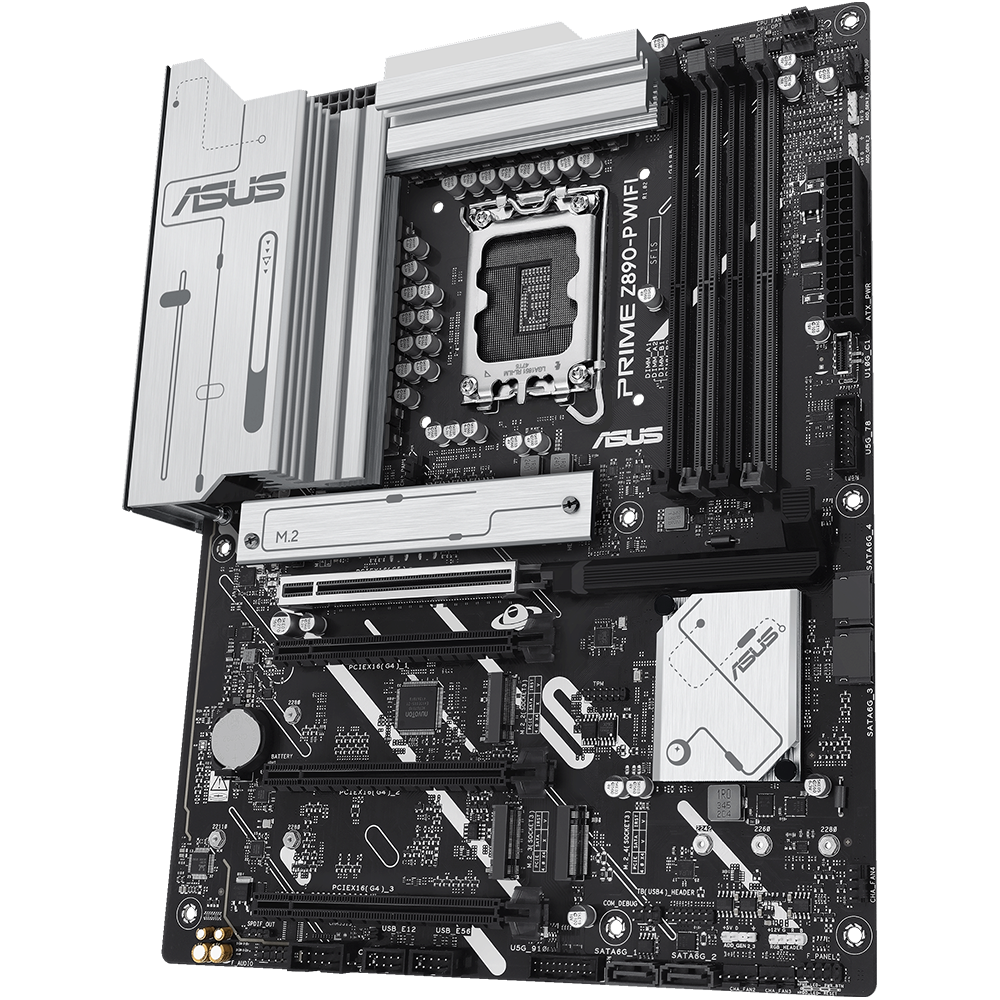

ASUS PRIME Z890-P WIFI LGA 1851 Socket For Intel CPUs Motherboard

• ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel Core Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME Z890-P WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

Product Details:

CPU:

• Support Intel Core Ultra Processors (Series 2) , LGA1851
• Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0*
• ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset:

• Intel Z890 Chipset

Memory:

• 4 x DIMM slots, max. 192GB, DDR5
• Support up to 8666+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)
• Dual Channel Memory Architecture
• Supports Intel Extreme Memory Profile (XMP) memory module
• ASUS Enhanced Memory Profile III (AEMP III)

Expansion Slots:

 Intel Core Ultra Processors(Series 2):

• 1 x PCIe 5.0 x16 slot

Intel Z890 Chipset:

• 2 x PCIe 4.0 x16 slots (support x4 mode)
• 1 x PCIe 4.0 x16 slot (supports x1 mode)

Storage:

• Supports up to 4 x M.2 slots and 4 x SATA 6Gb/s ports:

Intel Core Ultra Processors(Series 2):

• M.2_1 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

Intel Z890 Chipset:

• M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
• M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
• 4 x SATA 6Gb/s ports

Ethernet:

• 1 × Realtek 2.5Gb Ethernet
• ASUS LANGuard

Wireless & Bluetooth:

• Wi-Fi 7
• 2x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band
• Bluetooth® v5.4

USB:

Rear USB (Total 8 ports):

• 1 x Thunderbolt 4 port (USB Type-C)
• 1 x USB 10Gbps port (Type-A)
• 2 x USB 5Gbps ports (Type-A)
• 4 x USB 2.0 ports (Type-A)**

Front USB (Total 9 ports):

• 1 x USB 10Gbps connector (supports USB Type-C)
• 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports**
• * USB Type-C power delivery output: max. 5V/3A
• ** USB_E1 port, USB_E2 port, USB_E3 port and USB_E 4 port share the bandwidth.
• ** USB_E5 port, USB_E6 port and USB_E7 port share the bandwidth.

Audio:

• Realtek 7.1 Surround Sound High Definition Audio CODEC

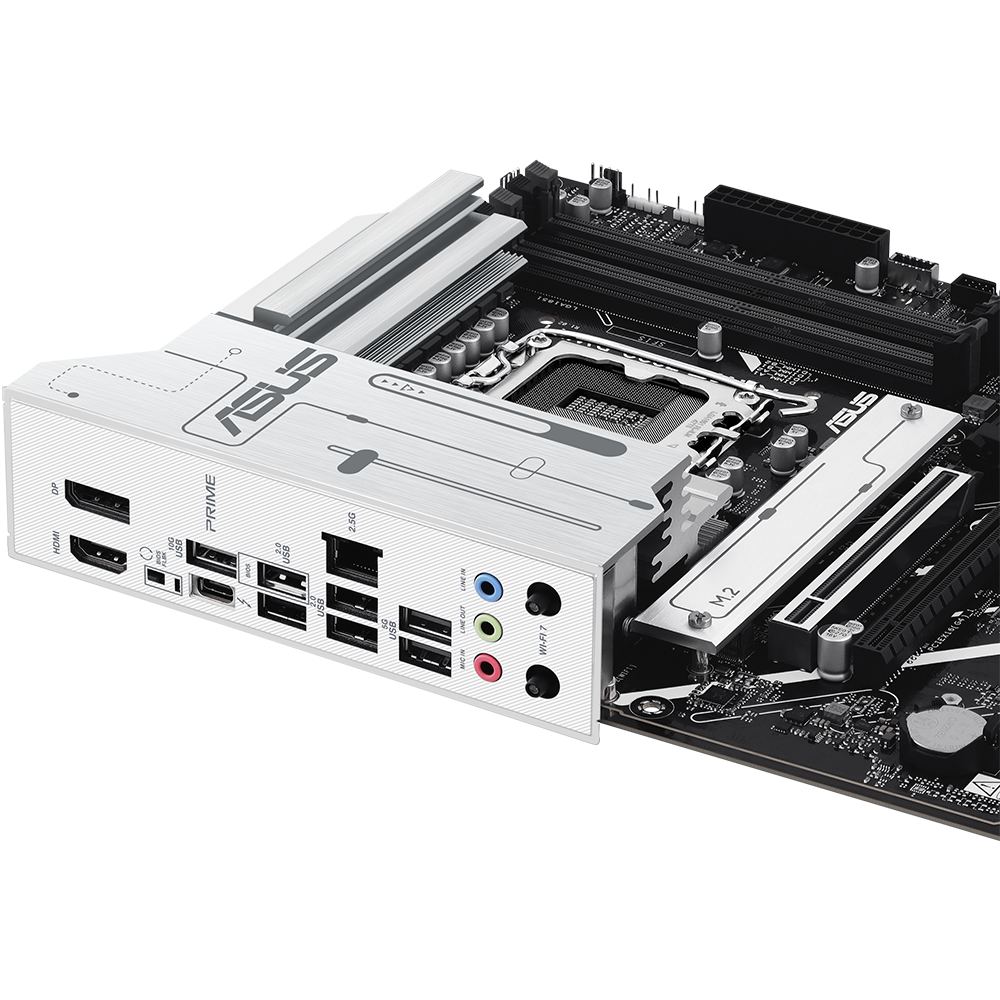

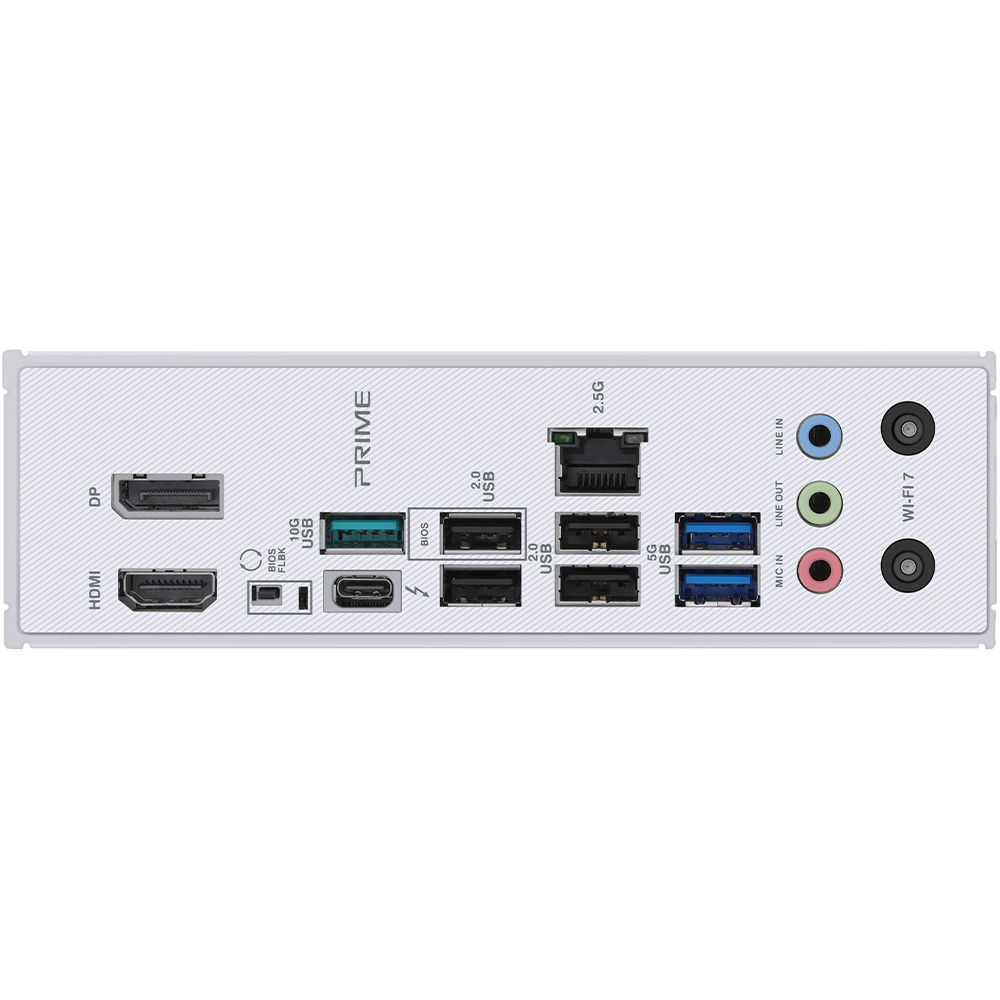

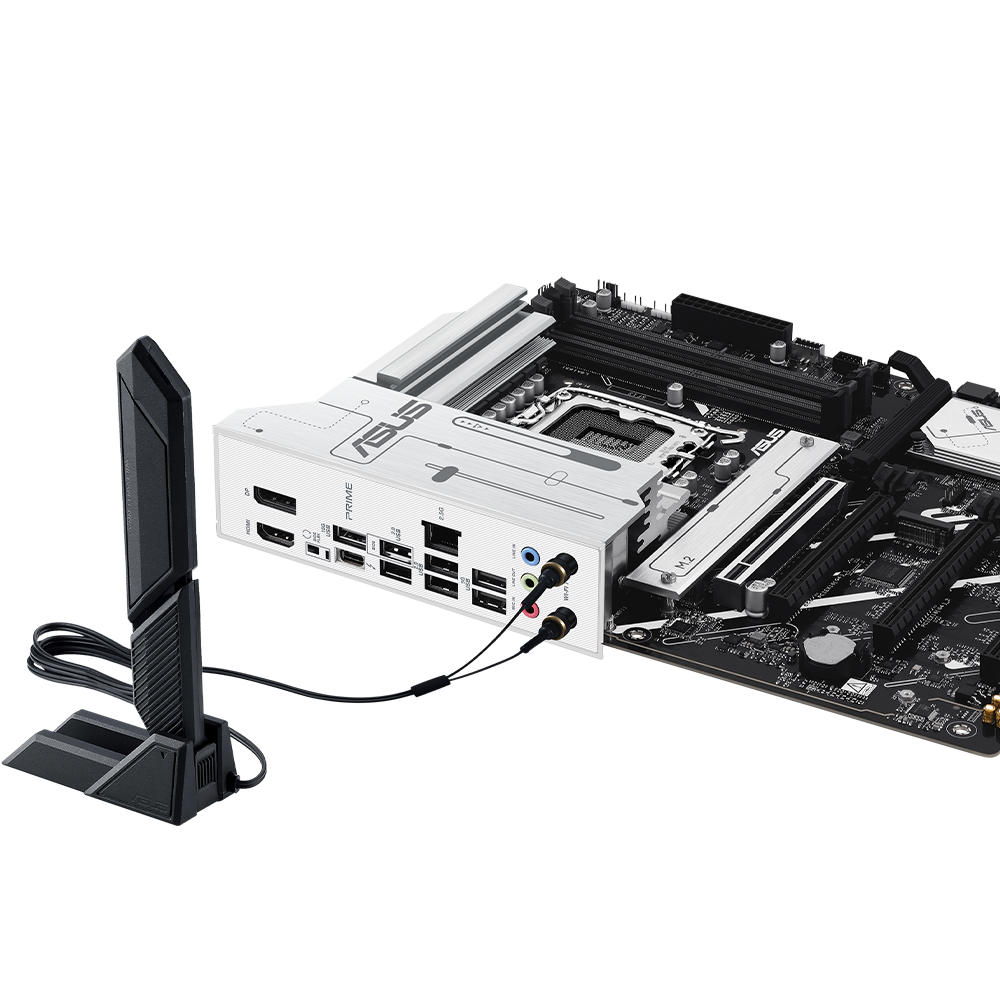

Back Panel I/O Ports:

• 1 x Thunderbolt 4 port (USB Type-C)
• 1 x USB 10Gbps port (Type-A)
• 2 x USB 5Gbps ports (Type-A)
• 4 x USB 2.0 ports (Type-A)
• 1 x DisplayPort
• 1 x HDMI port
• 1 x Wi-Fi module
• 1 x Realtek 2.5Gb Ethernet port
• 3 x Audio jacks
• 1 x BIOS FlashBack button

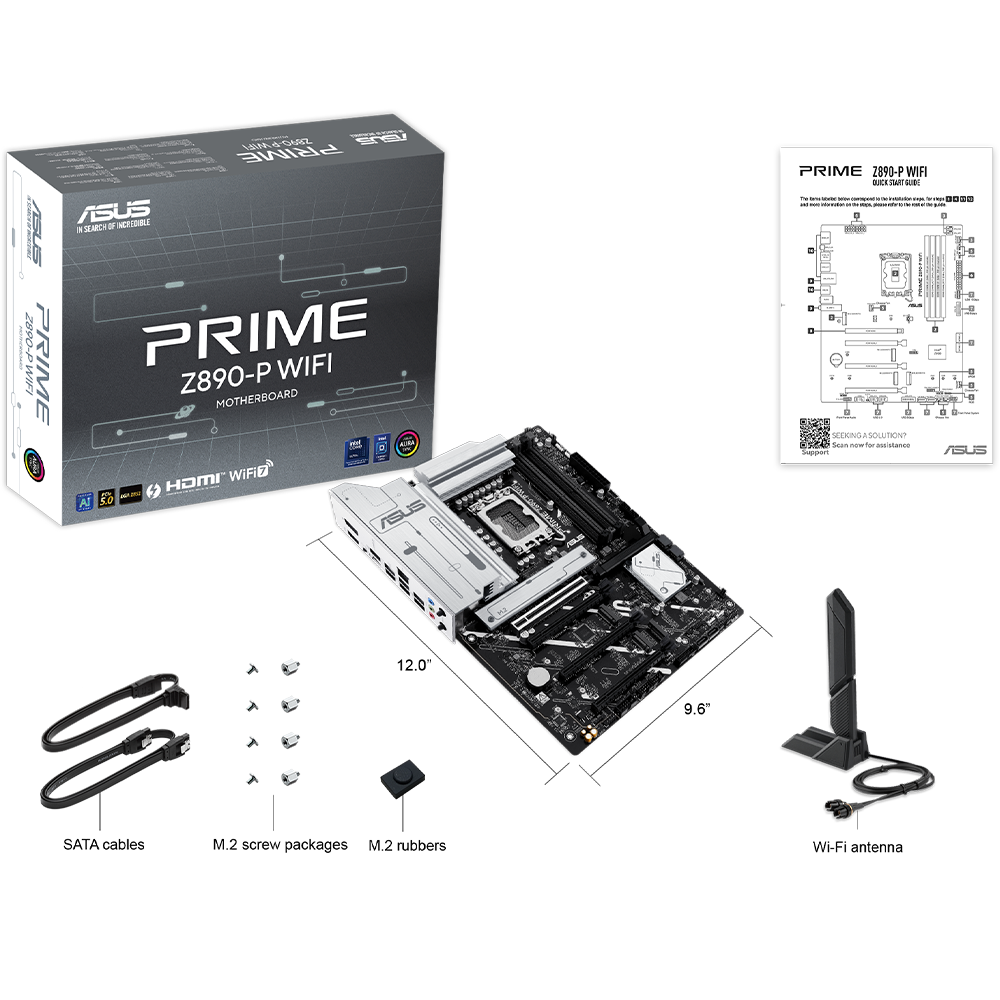

Form Factor:

• ATX Form Factor
• 12 inch x 9.6 inch (30.5 cm x 24.4 cm)

Part Number:

• 90MB1I70-M0EAY0
