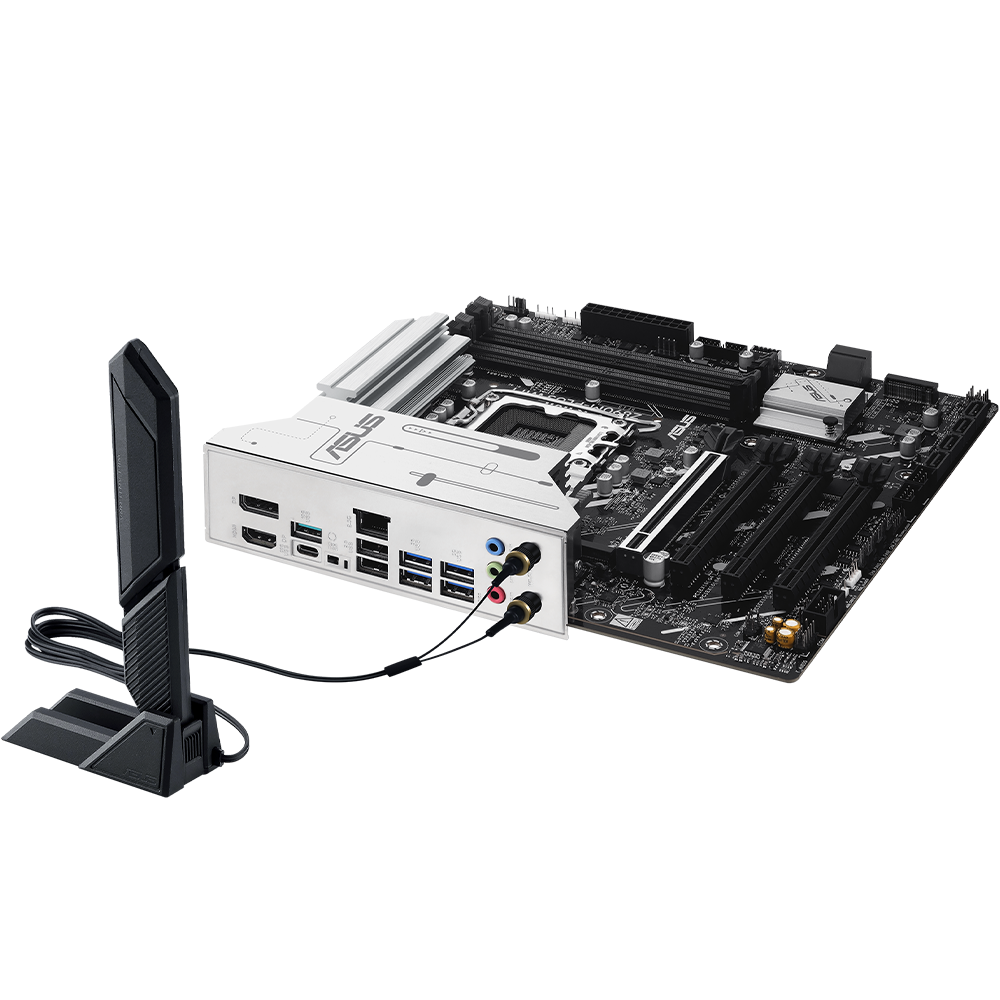

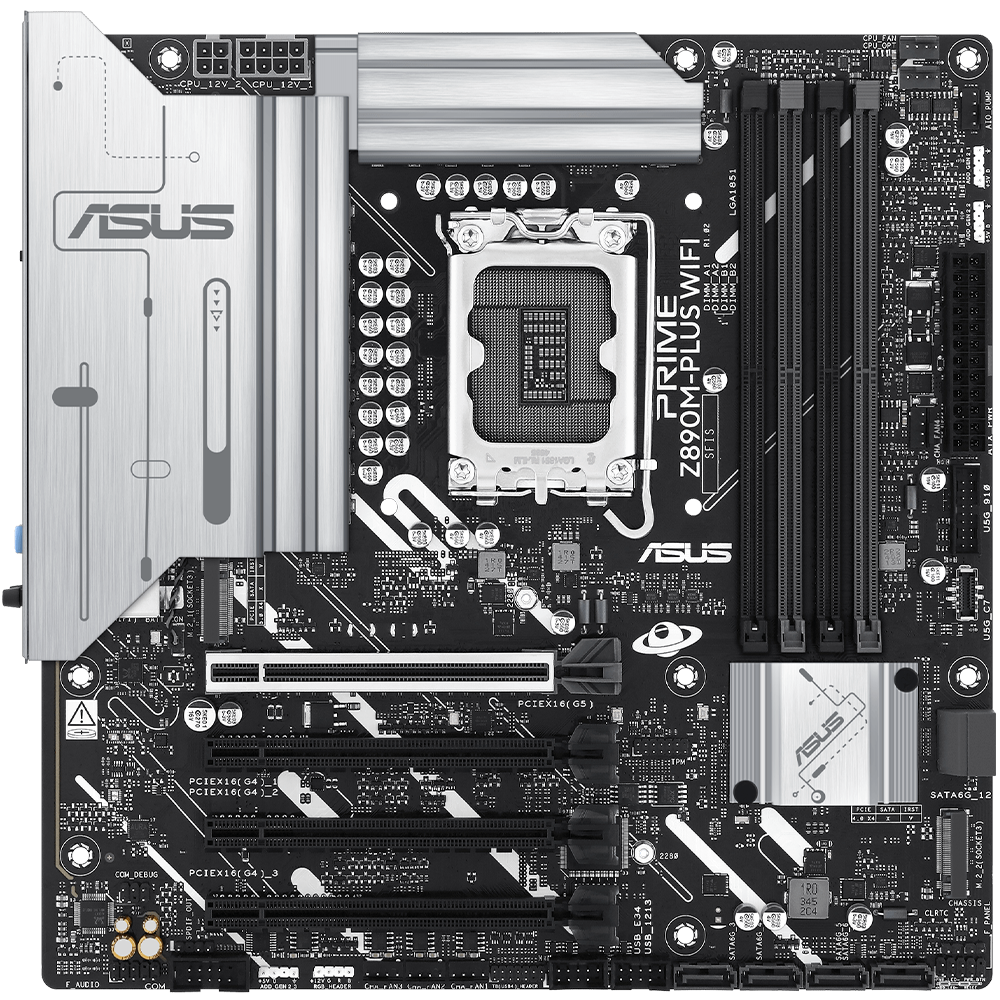

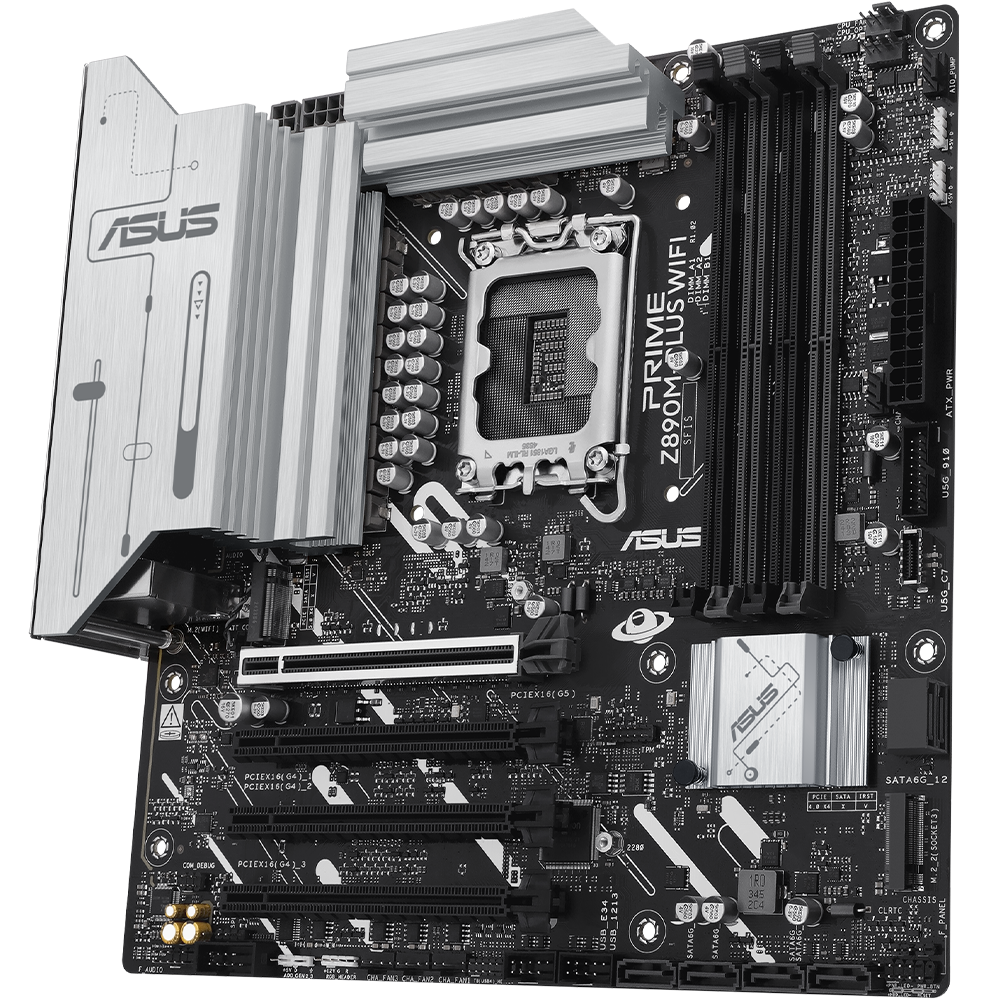

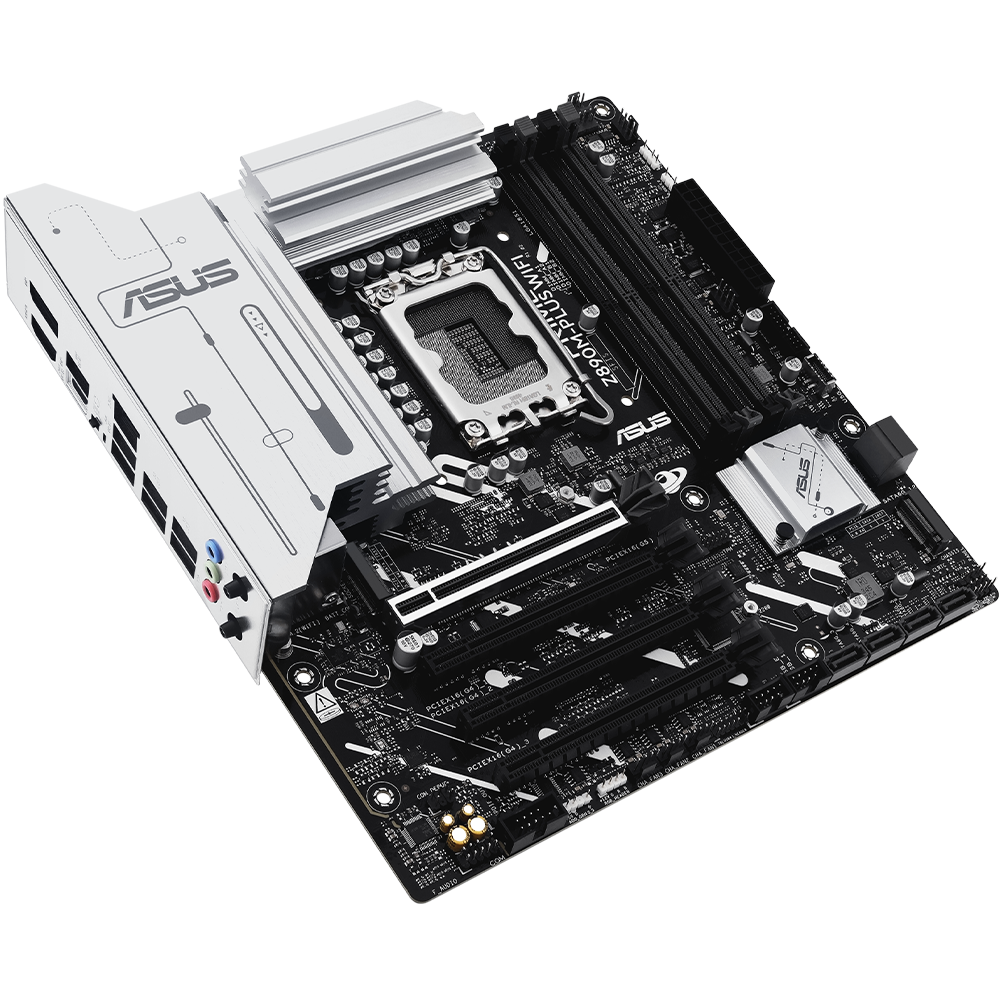

- ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel Core Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME Z890M-PLUS WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Product Details:
CPU:
- Support Intel Core Ultra Processors (Series 2) , LGA1851
- Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0*
- ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset:
Memory:
- 4 x DIMM slots, max. 192GB, DDR5
- Support up to 8666+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)
- Dual Channel Memory Architecture
- Supports Intel Extreme Memory Profile (XMP) memory module
- ASUS Enhanced Memory Profile III (AEMP III)
Expansion Slots:
Intel Core Ultra Processors(Series 2):
Intel Z890 Chipset:
- 1 x PCIe 4.0 x16 slot (supports x4 mode)
- 2 x PCIe 4.0 x16 slots (support x1 mode)
Storage:
- Supports up to 3 x M.2 slots and 6 x SATA 6Gb/s ports:
Intel Core Ultra Processors(Series 2):
- M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
Intel Z890 Chipset:
- M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
- M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
- 6 x SATA 6Gb/s ports
Ethernet:
- 1 × Realtek 2.5Gb Ethernet
- ASUS LANGuard
Wireless & Bluetooth:
- Wi-Fi 7
- 2x2 Wi-Fi 7 (802.11be)
- Supports 2.4/5/6GHz frequency band
- Bluetooth® v5.4
USB:
Rear USB (Total 8 ports):
- 1 x USB 20Gbps port (USB Type-C with DP Alt mode)
- 1x USB 10Gbps port (Type-A)
- 4 x USB 5Gbps ports (Type-A)
- 2 x USB 2.0 ports (Type-A) **
Front USB (Total 7 ports):
- 1 x USB 5Gbps connector (supports USB Type-C)
- 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports**
- * USB Type-C power delivery output: max. 5V/3A
- ** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
Audio:
- Realtek 7.1 Surround Sound High Definition Audio CODEC

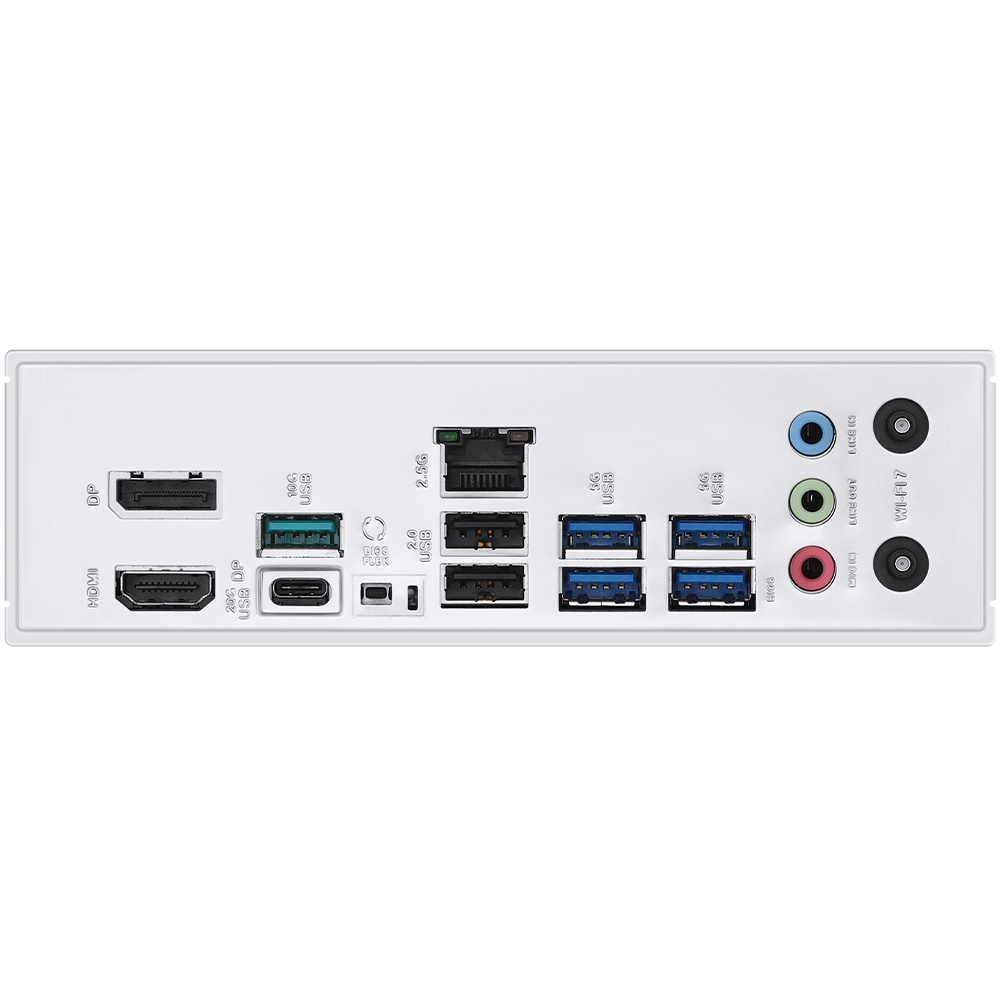

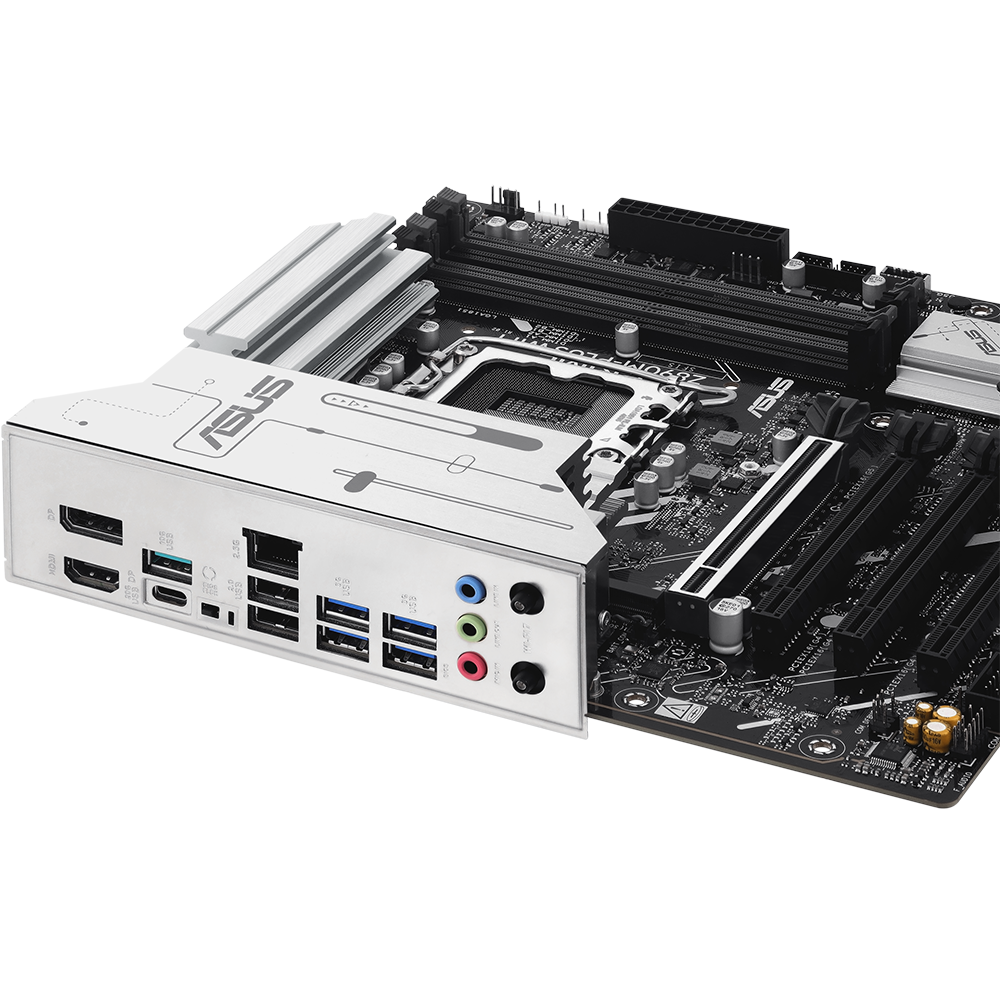

Back Panel I/O Ports:
- 1 x USB 20Gbps port (USB Type-C with DP Alt mode)
- 1x USB 10Gbps port (Type-A)
- 4 x USB 5Gbps ports (Type-A)
- 2 x USB 2.0 ports (Type-A)
- 1 x DisplayPort
- 1 x HDMI port
- 1 x Wi-Fi module
- 1 x Realtek 2.5Gb Ethernet port
- 3 x Audio jacks
- 1 x BIOS FlashBack button
Form Factor:
- mATX Form Factor

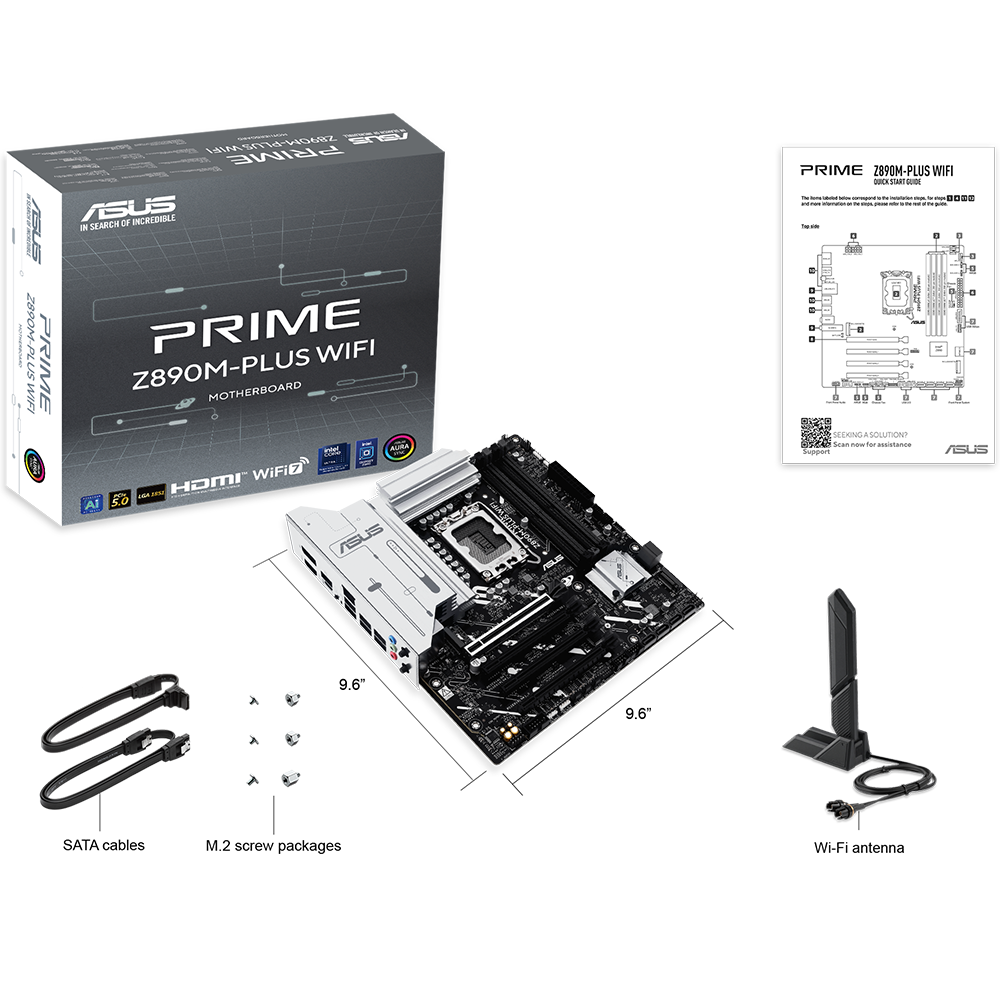

- 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Part Number:
