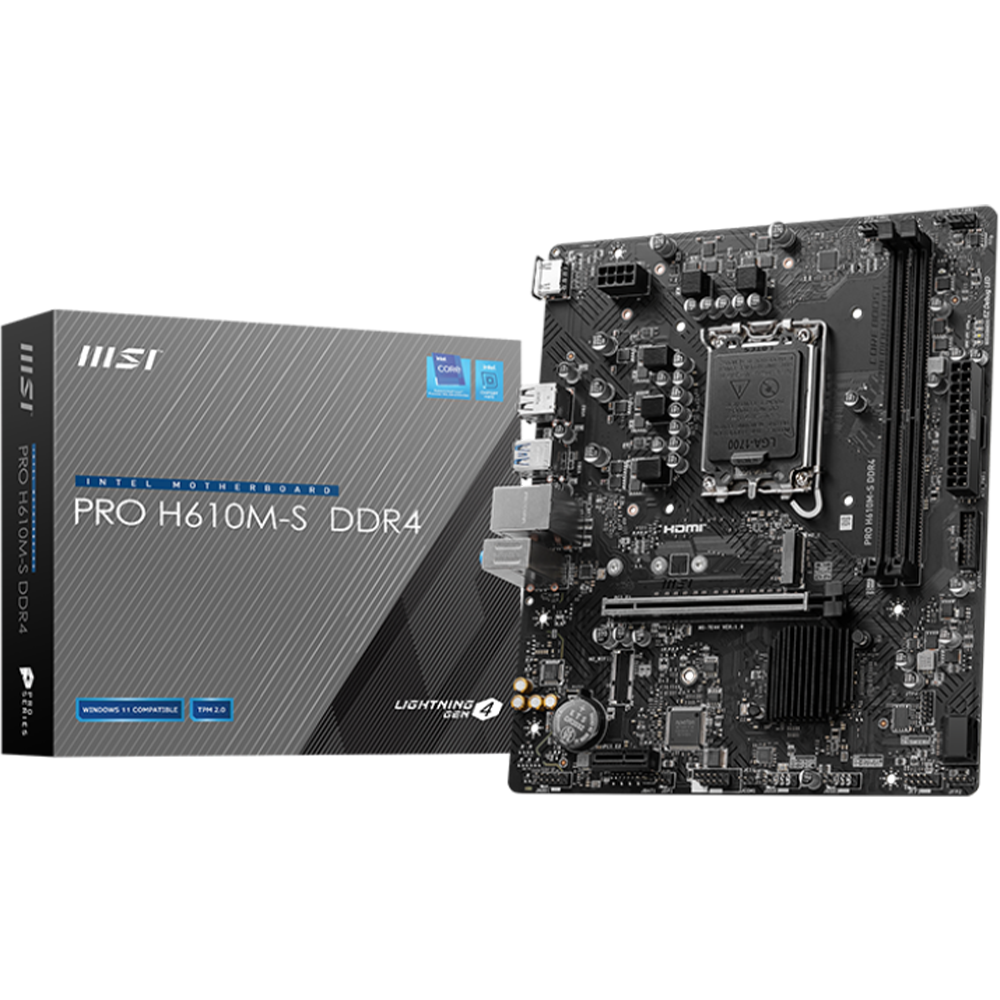

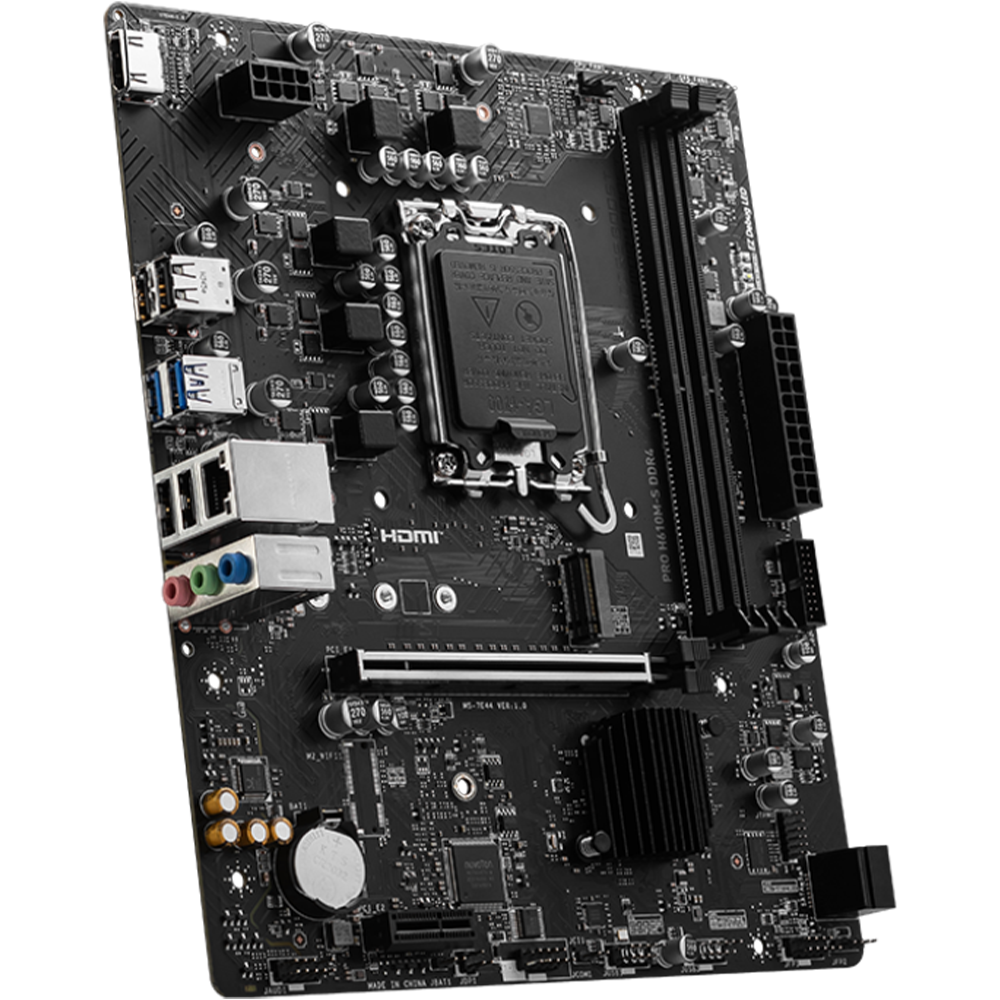

- PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
Product Features:
- Lightning Gen4 Solution: The Gen4 PCI-E solution with up to 64GB/s bandwidth for maximum transfer speed.
- Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility.
- PCI-E Steel Armor: Protecting VGA cards against bending and EMI.
- EZ Debug LED: Easiest way to troubleshoot.
- Frozr AI Cooling: Detect CPU & GPU temperatures and automatically adjust system fan duty to a proper value.
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive audio experience.
Product Details:
CPU:
- Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
- LGA 1700
Memory:
- 2 x DDR4, Maximum Memory Capacity 64GB
- Memory Support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
- Supports Dual-Channel mode
- Supports non-ECC, un-buffered memory
Expansions Slots:
- 1 x PCI-E x16 slot
- 1 x PCI-E x1 slot
- PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
- PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Audio:
- Realtek ALC897 Codec
- 7.1-Channel High Definition Audio
Storage:
- 1 x M.2
- M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices
- 2 x SATA 6G
USB:
- 4 x USB 2.0 (Rear)
- 4 x USB 2.0 (Front)
- 2 x USB 5Gbps Type A (Rear)
- 2 x USB 5Gbps Type A (Front)
LAN:
- Realtek RTL8111H Gigabit LAN

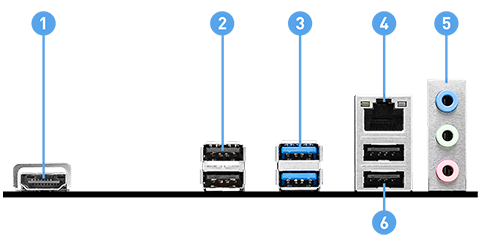

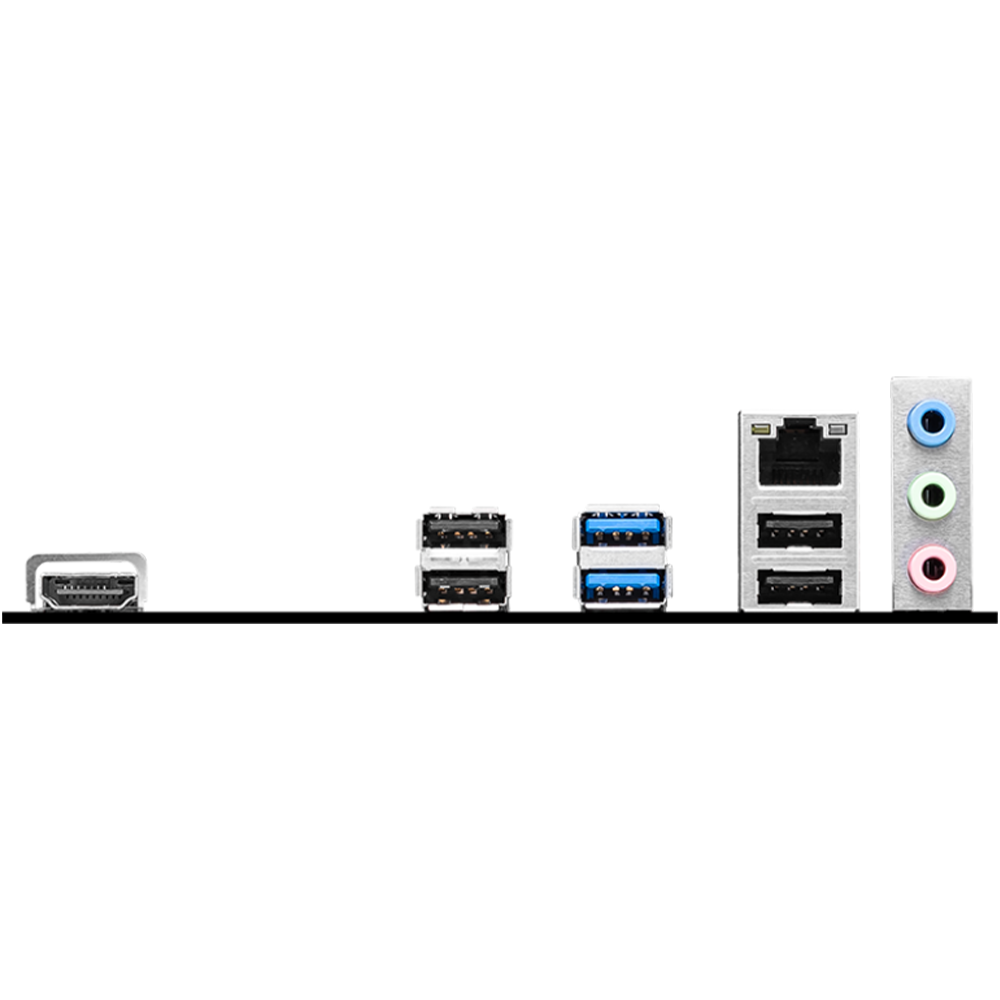

BACK PANEL PORTS:
- HDMI
- USB 3.2 Gen 1 5Gbps (Type-A)
- USB 2.0
- LAN port
- Audio Connectors
- USB 2.0
Form Factor:
- 200mm x 236.16mm
Part Number:
- 911-7E44-013
