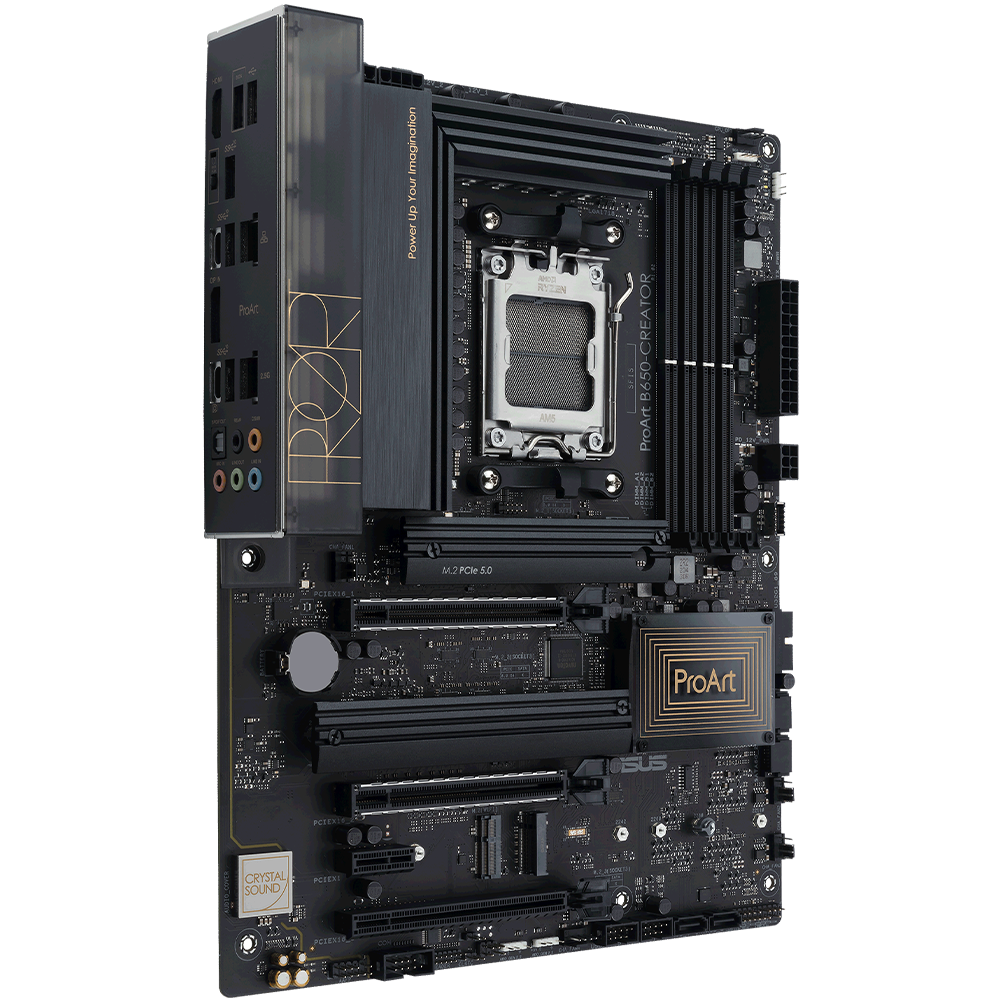

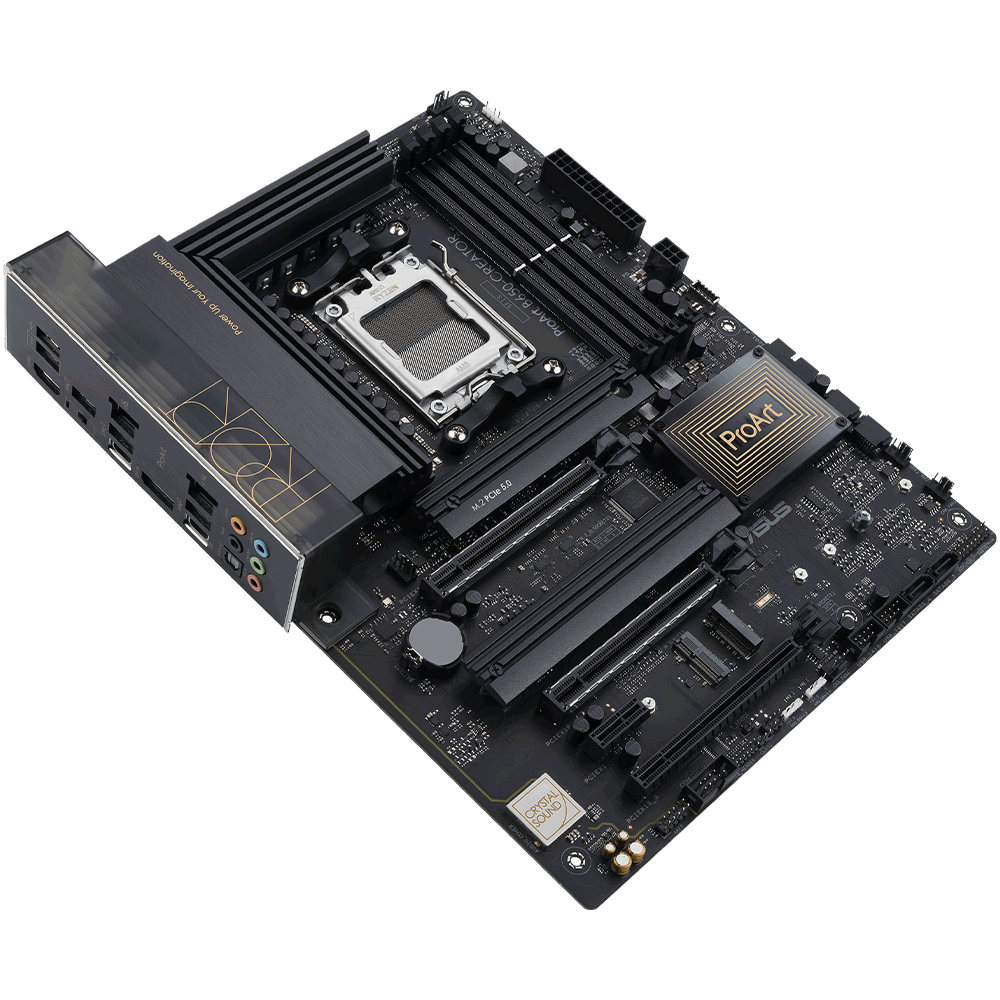

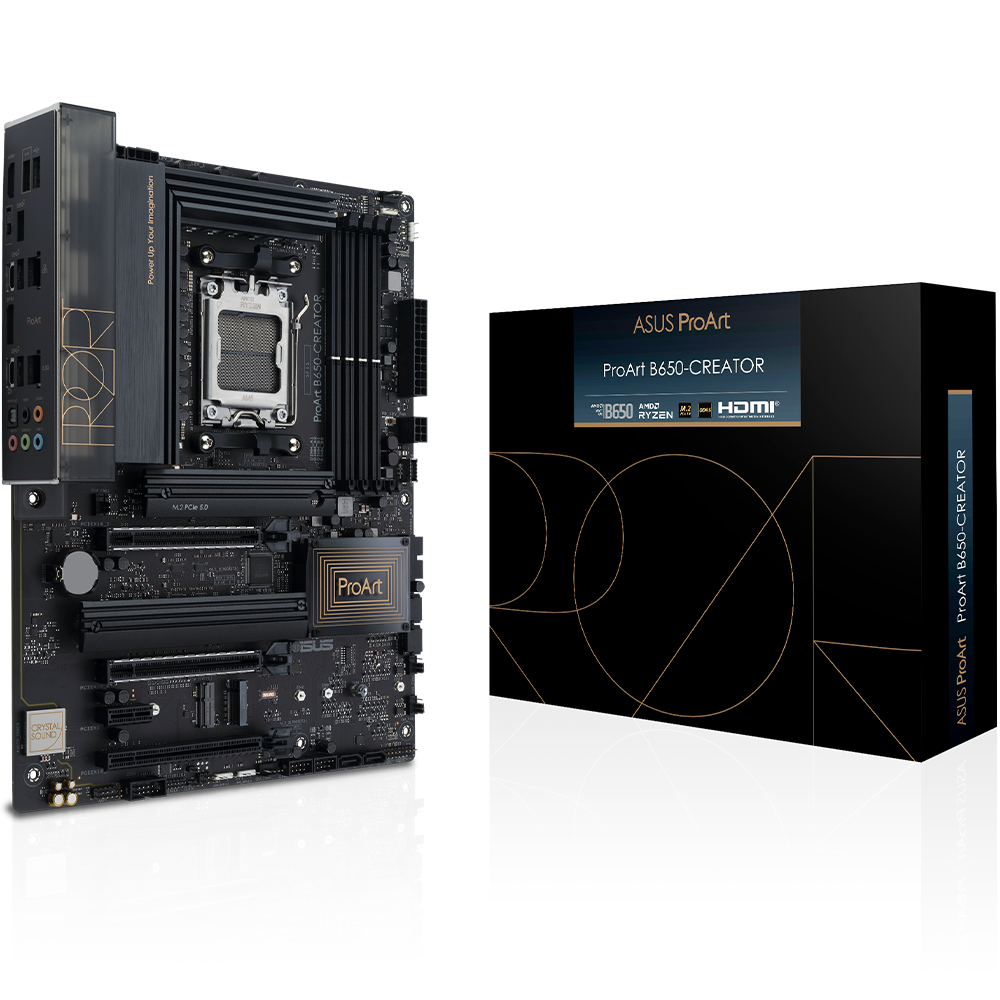

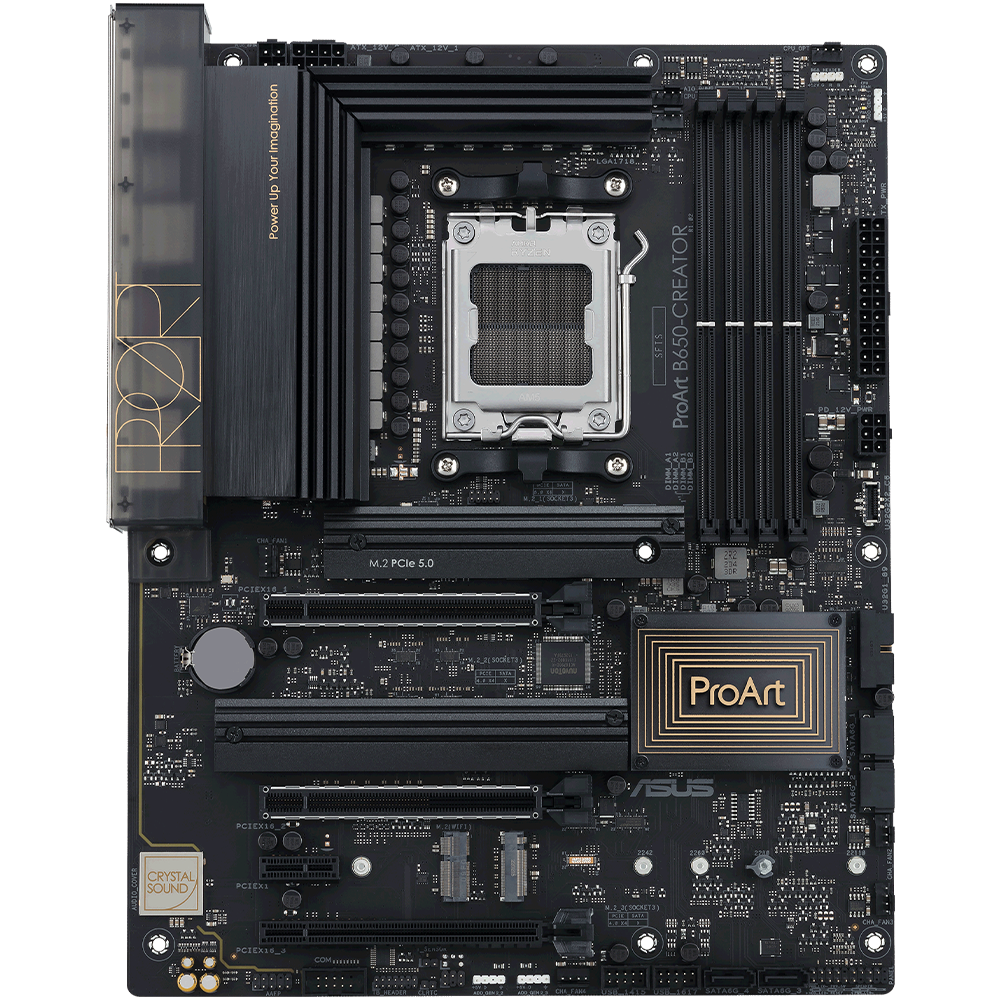

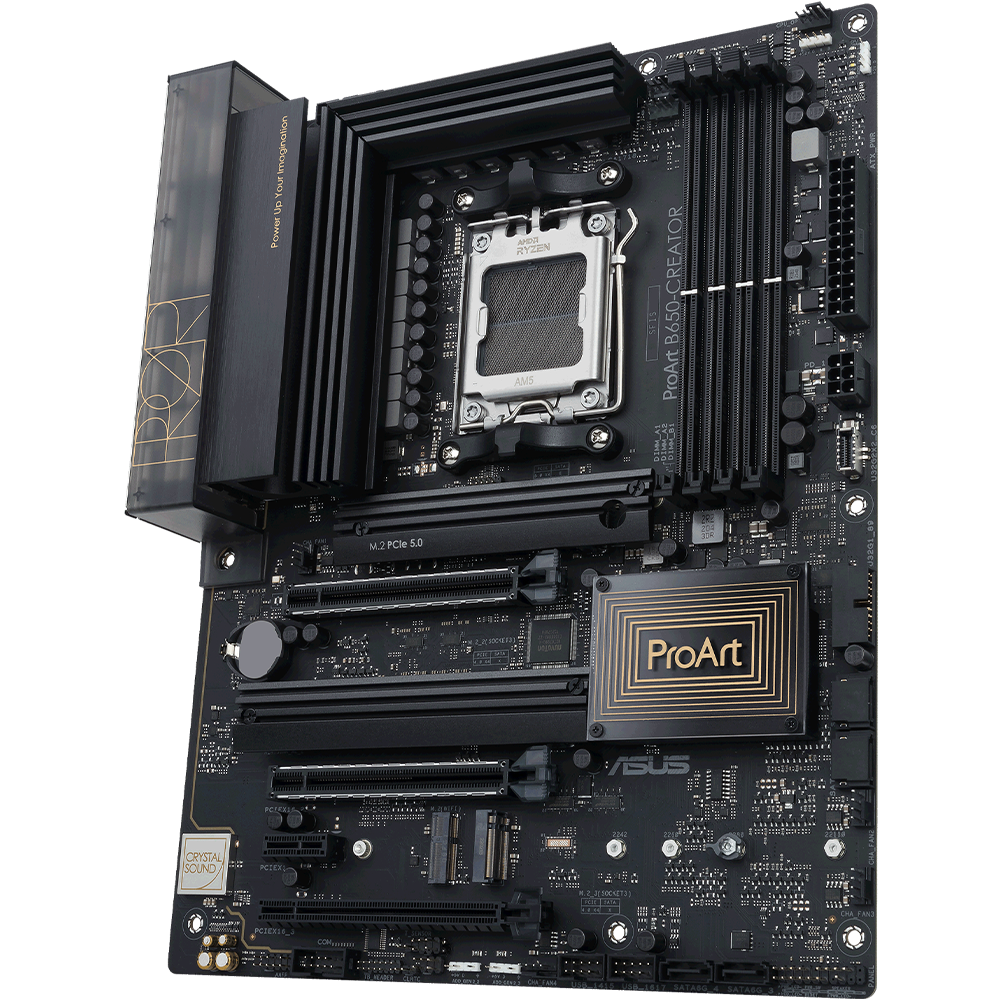

- ProArt B650-Creator is an advanced motherboard designed for intensive content-creation workloads like virtual production, 3D rendering and 4K/8K video editing. It unleashes the performance of AMD Ryzen Desktop Processors through robust power delivery and cooling design, and its comprehensive connectivity includes onboard 2.5 Gb and 1 Gb Ethernet, a USB 3.2 Gen 2x2 Type-C front-panel connector with Quick Charge 4+, and DisplayPort via USB-C. This platform delivers the power and connectivity that advanced AI PC applications demand.
Product Details:
CPU
- AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Memory
- DDR5
- 4 x DIMM, Max. 192GB, DDR5
- Dual Channel Memory Architecture
- Supports AMD Extended Profiles for Overclocking (EXPO™)
- OptiMem II
- * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration
Expansion Slots
AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors:
- 2 x PCIe 4.0 x16 slots (support x16 or x8/x8 modes)
AMD B650 Chipset:
- 1 x PCIe 4.0 x16 slot (supports x4 mode)**
- 1 x PCIe 4.0 x1 slot
- ** PCIEX16_3 shares bandwidth with M.2_3 slot. When M.2_3 runs at PCIe x4 mode, PCIEX16_3 will be disabled.
Storage :
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*:
- AMD Ryzen 9000 & 7000 Series Desktop Processors:
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
- M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
AMD Ryzen 8000 Series Desktop Processors:
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4/x2 mode)**
AMD B650 Chipset:
- M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)***
- 4 x SATA 6Gb/s ports
- *AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
- ** Specifications vary by CPU types.
- *** M.2_3 slot shares bandwidth with PCIEX16_3. When PCIEX16_3 runs at PCIe x4 mode, M.2_3 will be disabled.
Ethernet :
- 1 x Realtek 2.5Gb Ethernet
- 1 x Realtek 1Gb Ethernet
- ASUS LANGuard
Wireless & Bluetooth :
- M.2 slot only (Key E, PCIe)*
- *Wi-Fi module is sold separately.
USB
Rear USB (Total 7 ports):
- 1 x USB 3.2 Gen 2 port (USB Type-C, shared with DisplayPort graphic output )
- 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C)
- 2 x USB 2.0 ports (Type-A)
Front USB (Total 7 ports):
- 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C with up to 60W PD/QC4+)
- 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC

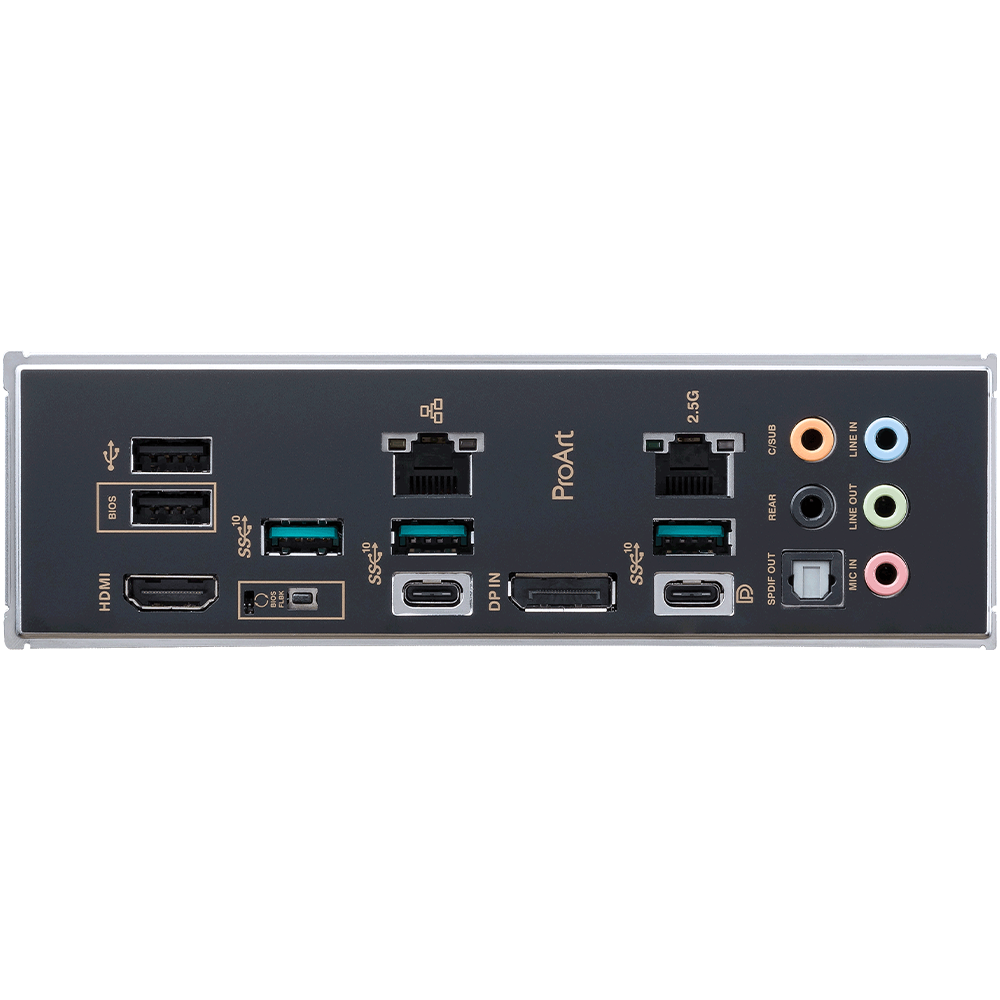

Back Panel I/O Ports
- 1 x USB 3.2 Gen 2 port (USB Type-C, shared with DisplayPort graphic output )
- 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C)
- 2 x USB 2.0 ports (Type-A)
- 1 x DisplayPort (Input only)
- 1 x HDMI port
- 1 x Realtek 2.5Gb Ethernet
- 1 x Realtek 1Gb Ethernet
- 5 x Audio jacks
- 1 x Optical S/PDIF out port
- 1 x BIOS FlashBack button

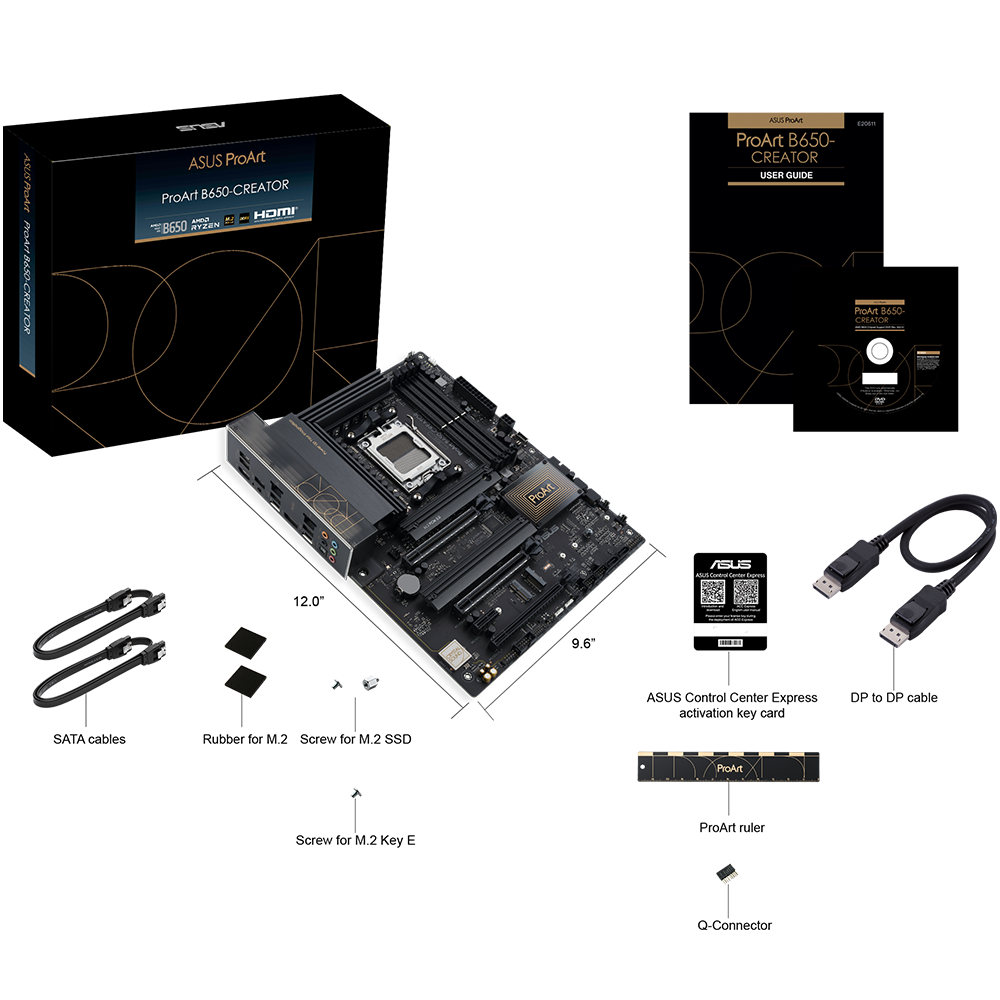

Accessories
- 1 x DisplayPort cable
- 2 x SATA 6Gb/s cables
- 1 x Q-connector
- 1 x Rubber Packages for M.2
- 1 x Screw packages for M.2 SSD
- 1 x Screw package for M.2 Key E
- 1 x ProArt ruler
- 1 x ACC Express Activation Key Card
- 1 x User guide
Form Factor :
- ATX ( 30.5 cm x 24.4 cm )
Part Number:
- 90MB1C40-M0EAY0
