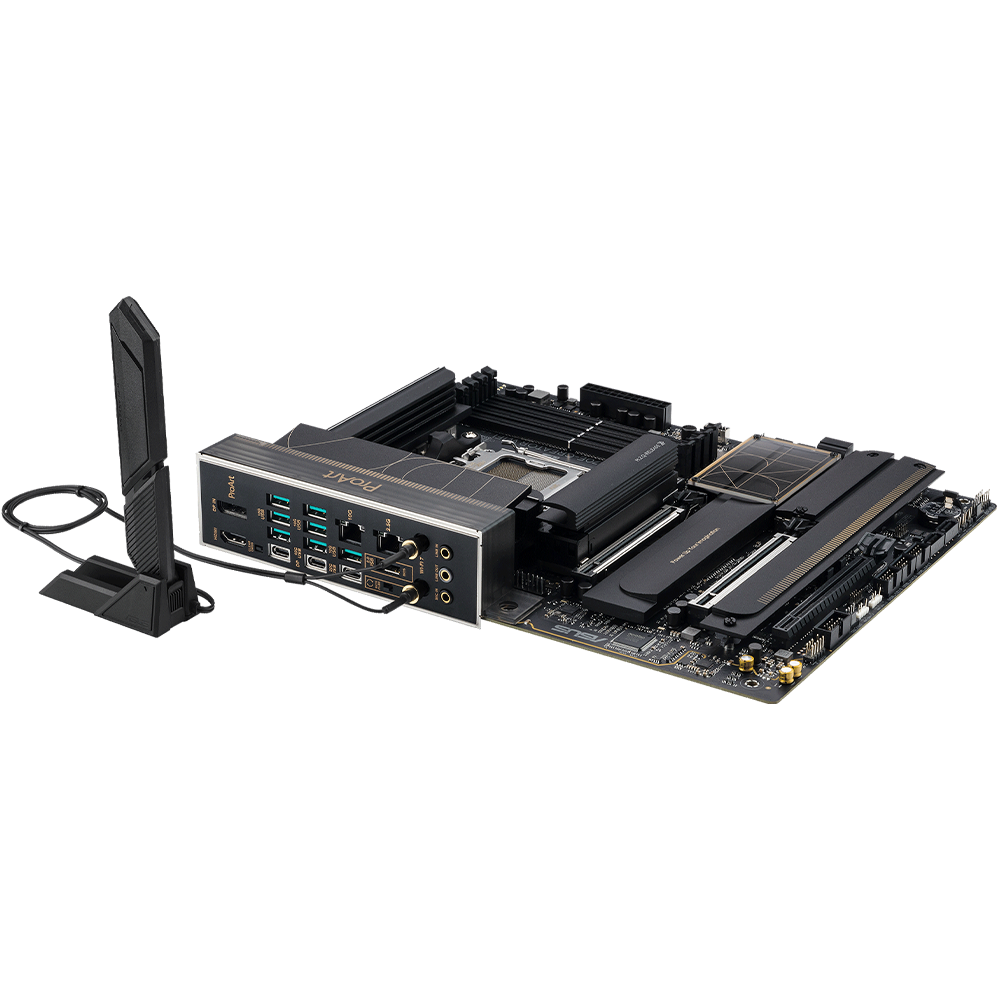

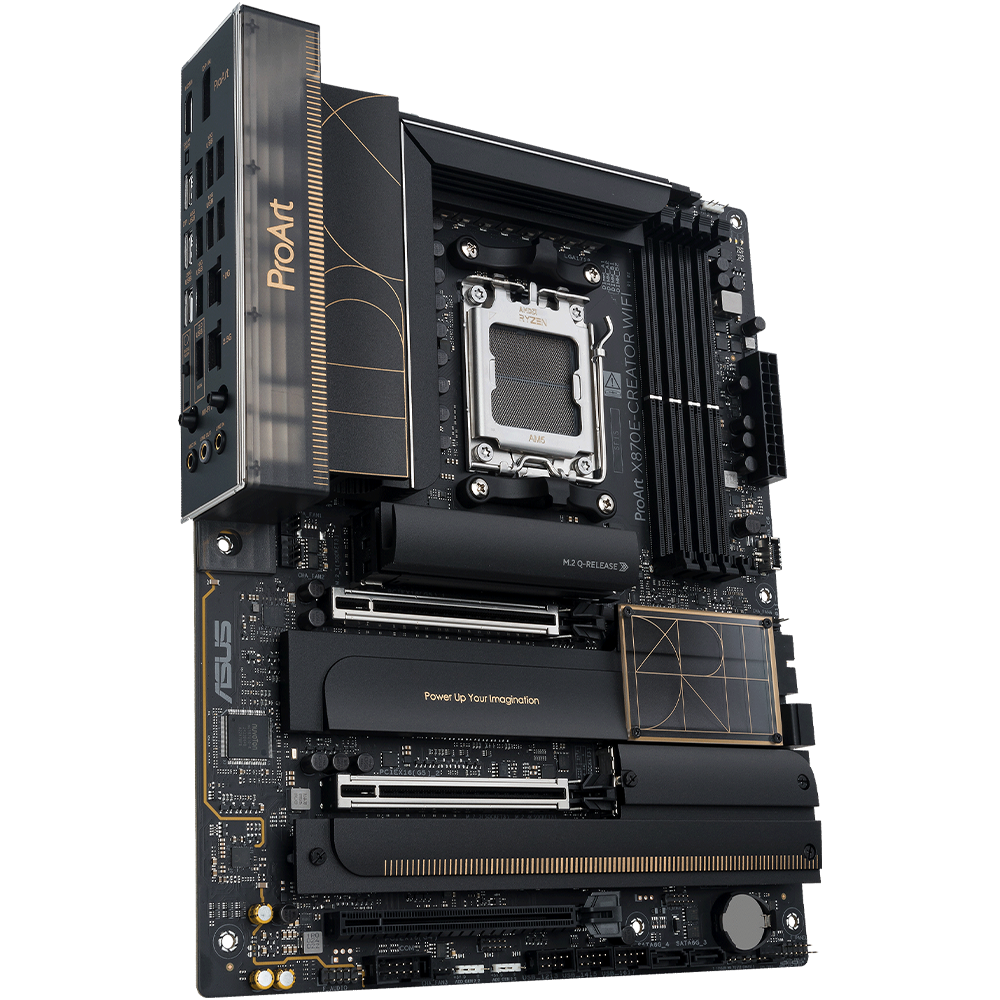

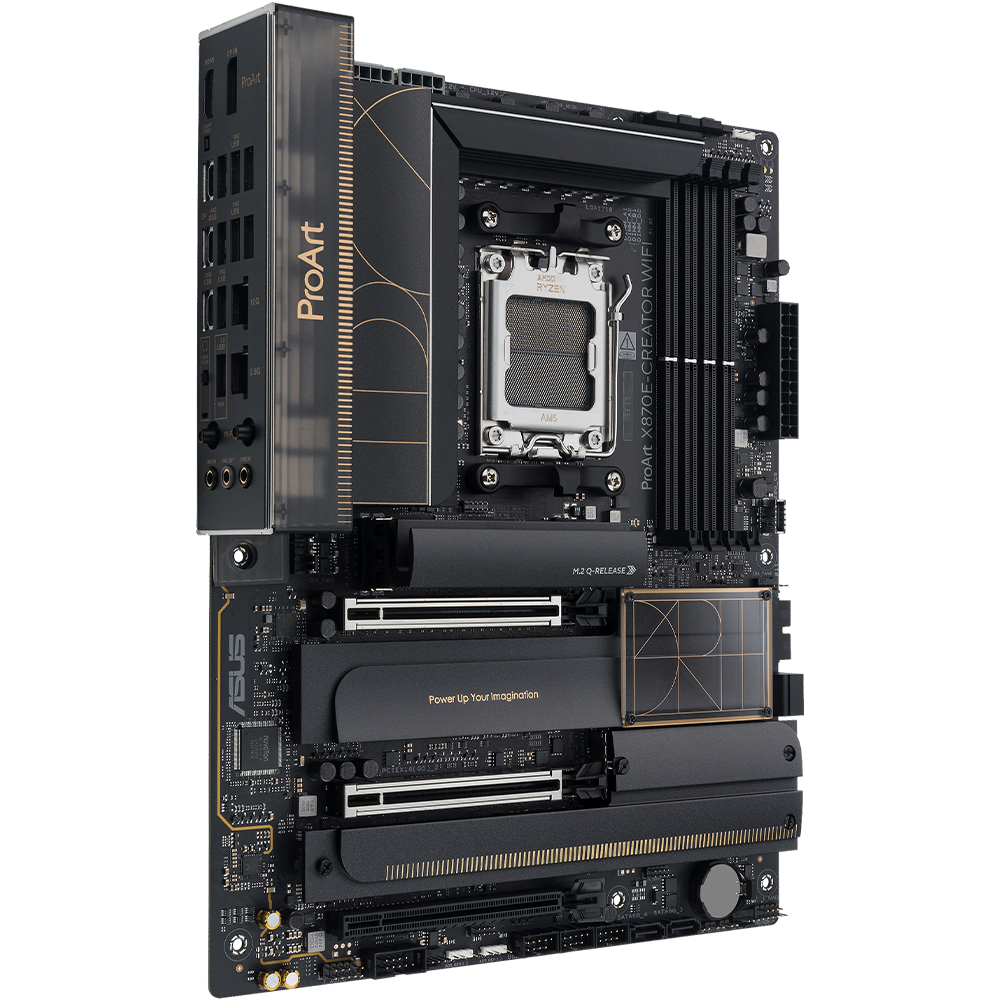

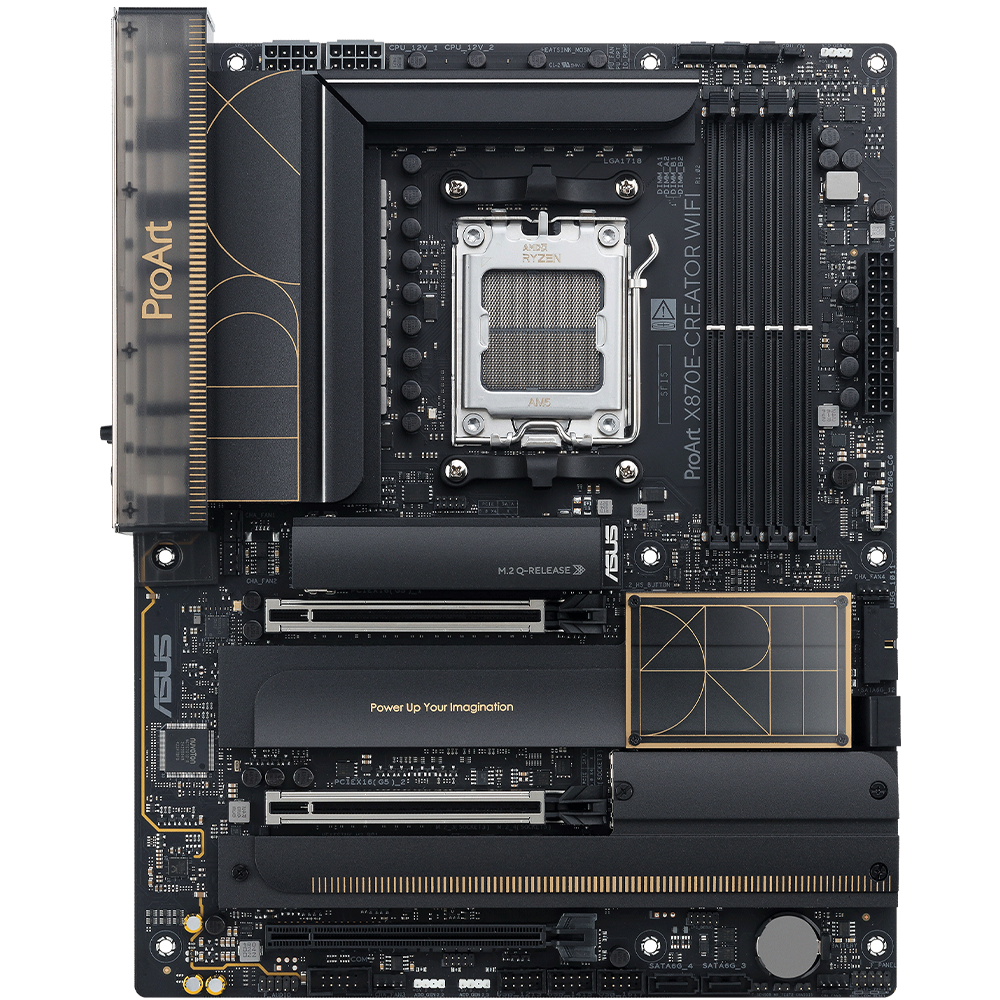

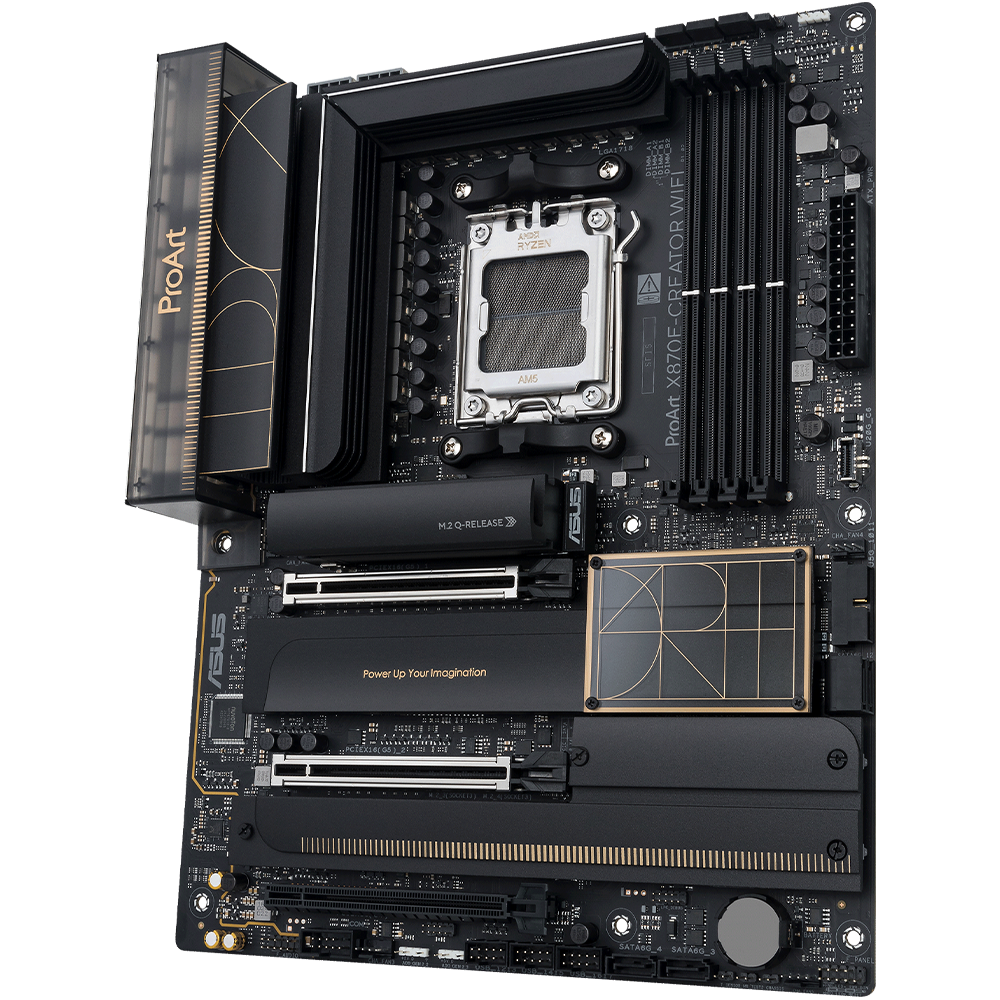

- The ProArt X870E-Creator WiFi empowers creators of all levels by maximizing the performance of the latest AMD Ryzen 9000, 8000 and 7000 Series processors with 16+2+2 team power stages, DDR5 slots, PCIe® 5.0 and lightning-fast connectivity including dual USB4®, 10G and 2.5G Ethernet, and WiFi 7.
- This motherboard manifests a professional, elegant and precise vision for content creators of all kinds, with a style elevated by tone-on-tone layers of black infused with metallic gold touches. A translucent I/O cover also gives users a stylish peek at the premium connectors within.
Product Details:
CPU:
- AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Memory:
- 4 x DIMM slots, max.192GB, DDR5
- Supports up to
- 8000+MT/s(OC) with Ryzen 9000 Series Processors
- 8000+MT/s(OC) with Ryzen 8000 Series Processors
- 8000+MT/s(OC) with Ryzen 7000 Series Processors
- ECC and Non-ECC, Un-buffered Memory
- Dual channel memory architecture
- Supports AMD Extended Profiles for Overclocking (EXPO)
- ASUS Enhanced Memory Profile (AEMP)
Expansion Slots:
AMD Ryzen 9000 & 7000 Series Desktop Processors:
- 2 x PCIe 5.0 x16 slots with Q-Release Slim
AMD Ryzen 8700 & 8600 & 8400 Series Desktop Processors:
- 1 x PCIe 4.0 x16 slots with Q-Release Slim
AMD Ryzen™ 8500 & 8300 Series Desktop Processors
- 1 x PCIe 4.0 x16 slots with Q-Release Slim
AMD X870E Chipset:
- 1 x PCIe 4.0 x16 slot (supports x4 mode)
Storage:
Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports:
AMD Ryzen 9000 & 7000 Series Desktop Processors:
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
AMD Ryzen 8000 Series Desktop Processors:
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- M.2_2 slot is not supported
AMD X870E Chipset:
- M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
- 4 x SATA 6Gb/s ports
Ethernet:
- 1 x Marvell AQtion 10Gb Ethernet
- 1 x Intel 2.5Gb Ethernet
- ASUS LANGuard
Wireless & Bluetooth:
- Wi-Fi 7
- Supports 2.4/5/6GHz frequency band
- Bluetooth® v5.4
USB:
Rear USB (Total 11 ports):
- 2 x USB4 (40Gbps) port(s) (USB Type-C)
- 1 x USB 20Gbps port(s) (USB Type-C)
- 7 x USB 10Gbps port(s) (Type-A)
- 1 x USB 2.0 port (Type-A)
Front USB (Total 9 ports):
- 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD/QC4+)
- 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
- 3 x USB 2.0 headers support 6 additional USB 2.0 ports
Audio:
- Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC

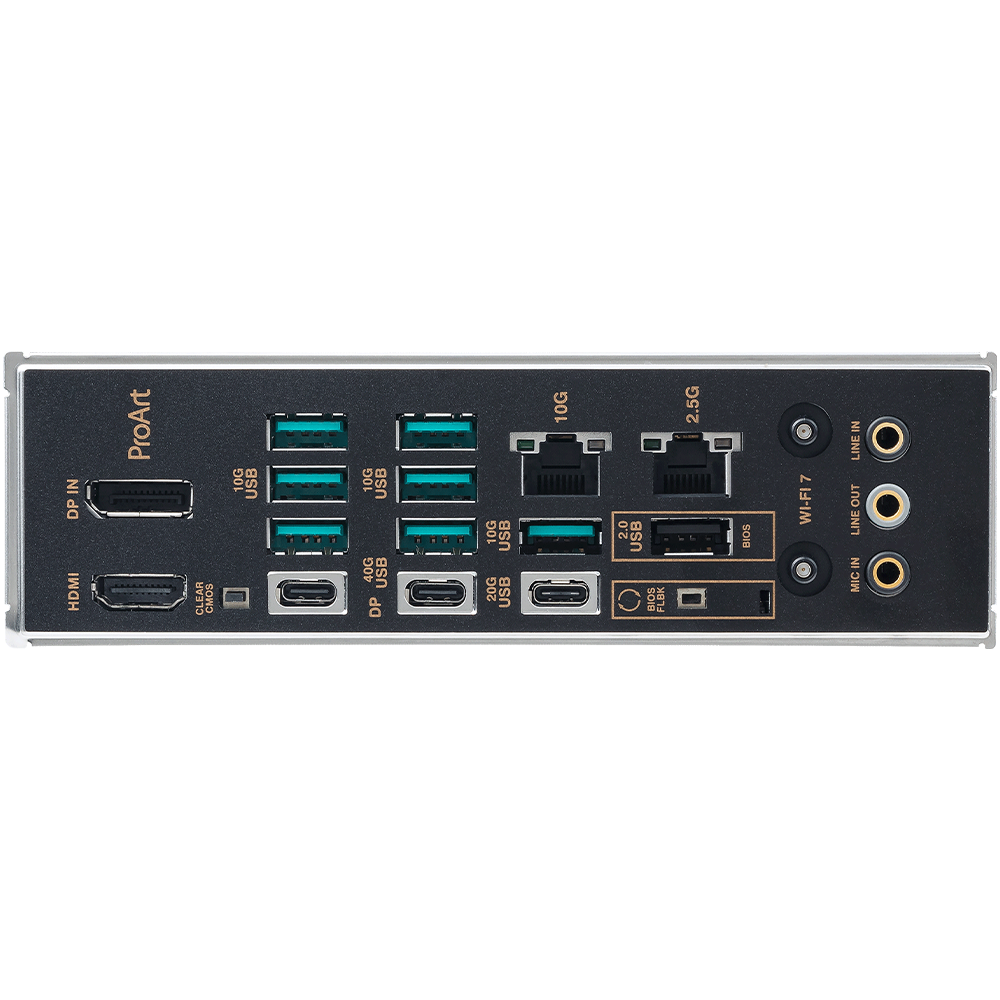

Back Panel I/O Ports:
- 2 x USB4 (40Gbps) port(s) (USB Type-C)
- 1 x USB 20Gbps port(s) (USB Type-C)
- 7 x USB 10Gbps port(s) (Type-A)
- 1 x USB 2.0 port (Type-A)
- 1 x DisplayPort (Input only)
- 1 x HDMI port
- 1 x Wi-Fi Module
- 1 x Marvell® AQtion 10Gb Ethernet
- 1 x Intel® 2.5Gb Ethernet
- 3 x Audio jacks
- 1 x BIOS FlashBack™ button
- 1 x Clear CMOS button
Form Factor:
- ATX Form Factor
- 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Part Number:
- 90MB1IG0-M0EAY0
