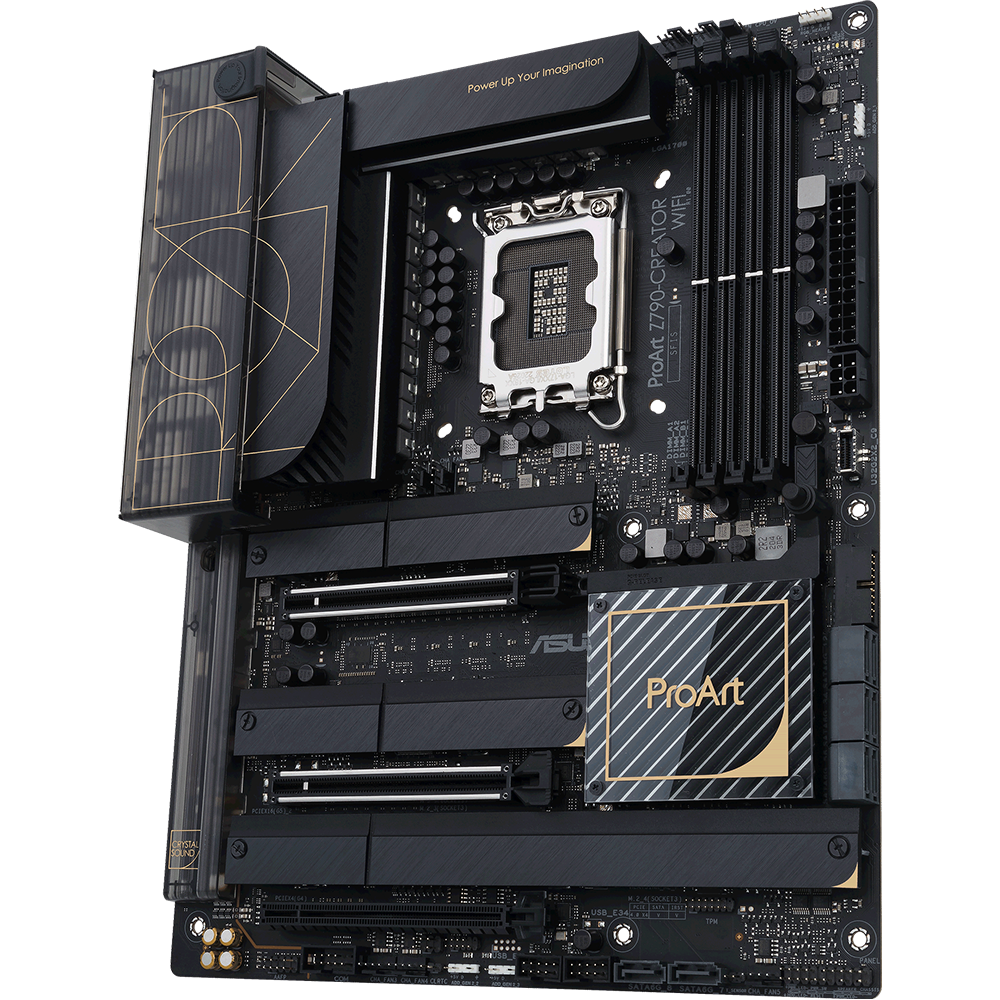

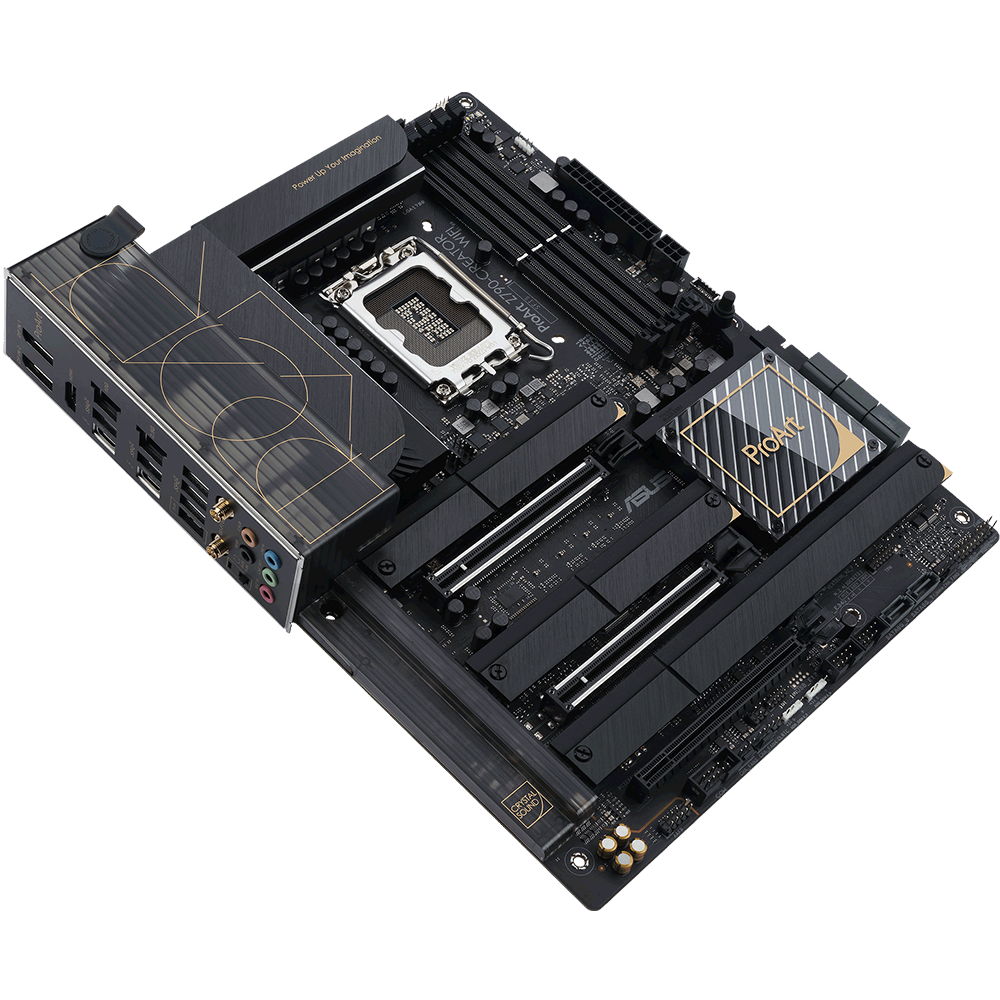

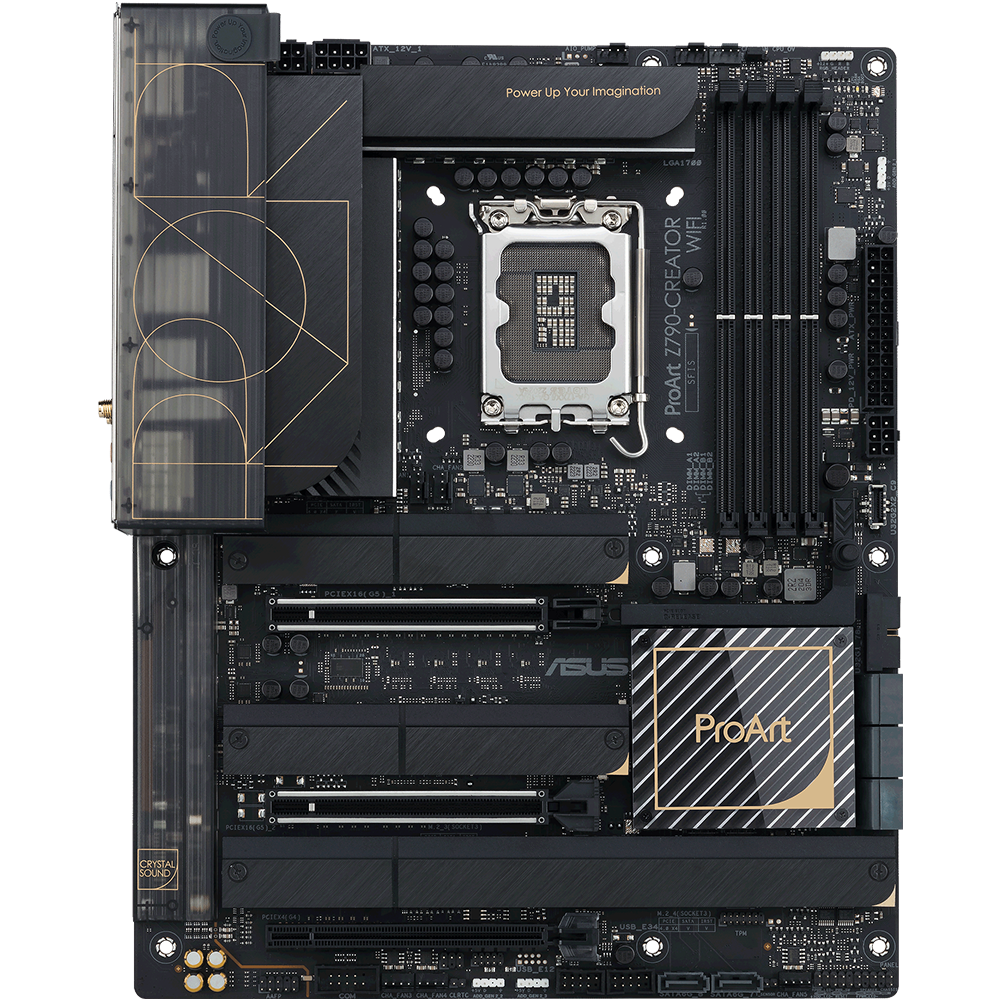

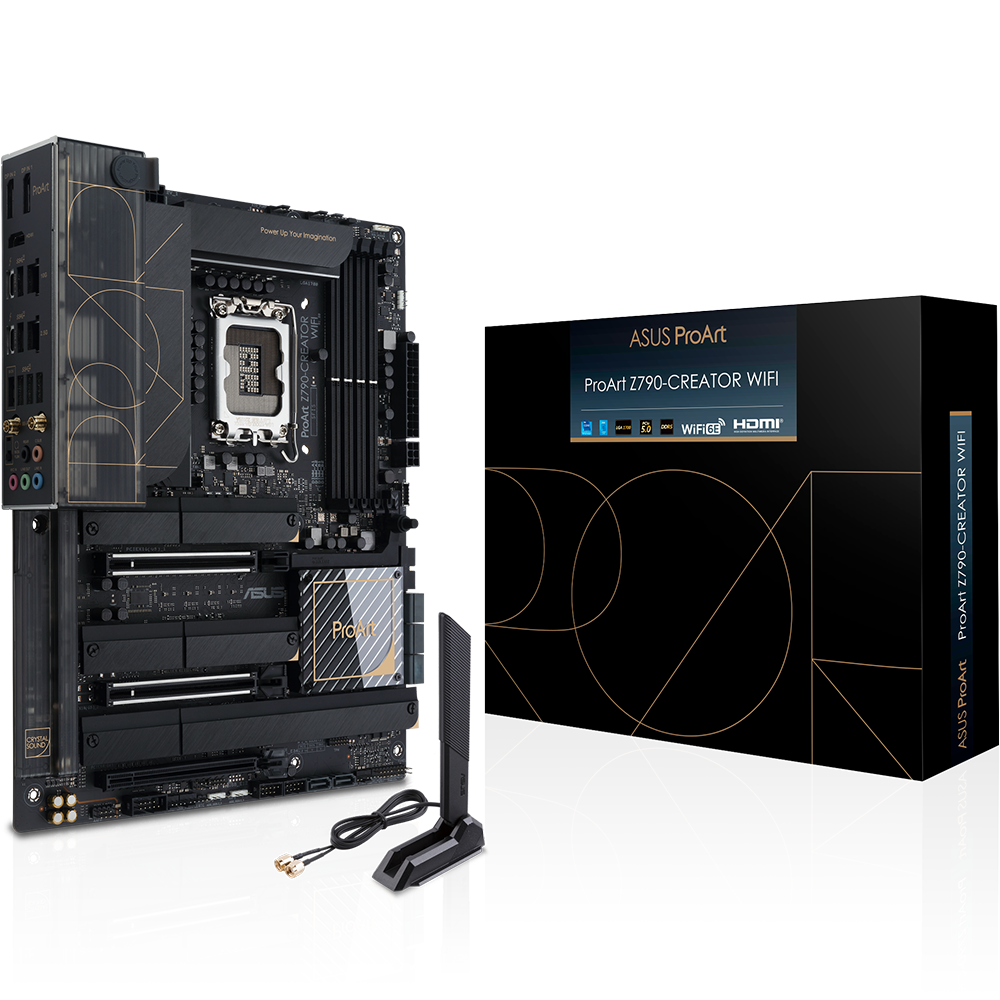

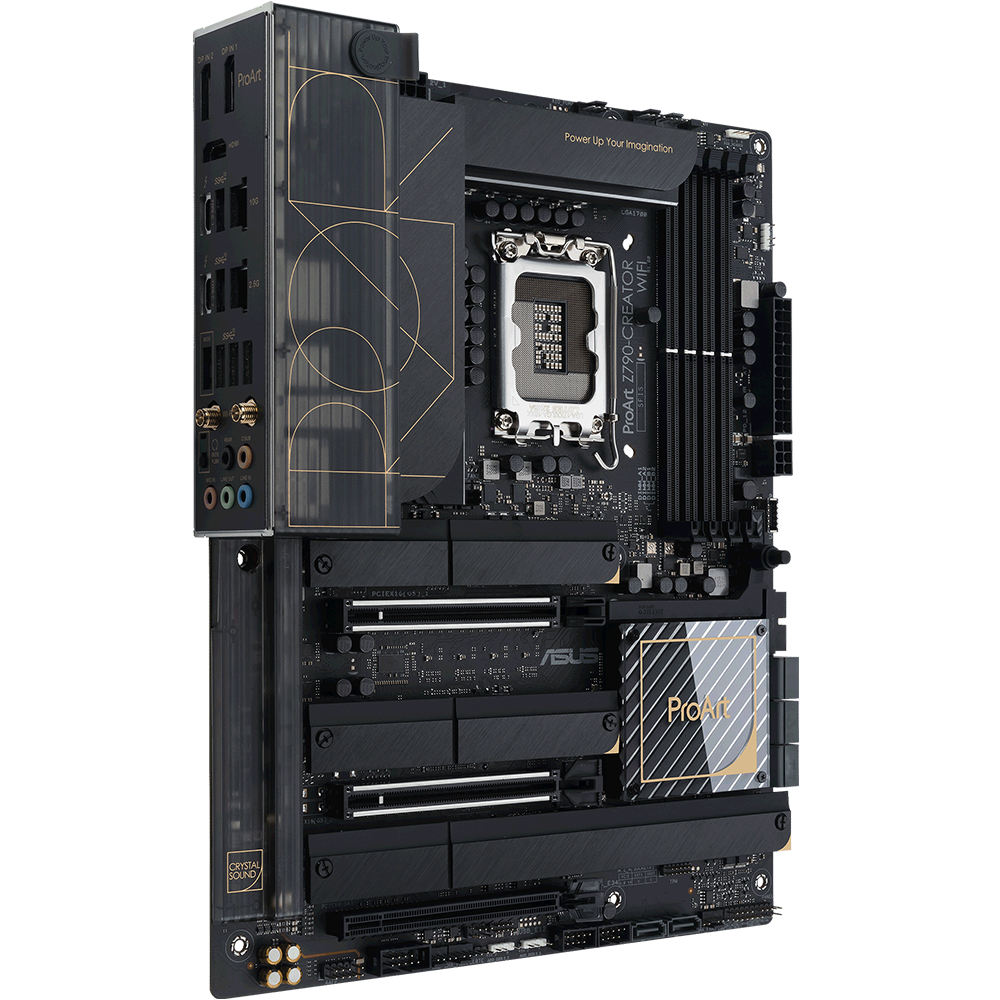

ASUS ProArt Z790-CREATOR WIFI LGA1700 Socket For intel CPUs Motherboard

• The ProArt Z790-Creator WiFi empowers creators of all levels by maximizing the performance of 13th & 12th Gen Intel Core processors with 16+1 teamed power stages, DDR5 and PCIe 5.0 and lightning-fast connectivity including Thunderbolt 4 (USB4 compliant), 10 Gb and 2.5 Gb Ethernet, plus WiFi 6E.

CPU

• Intel Socket LGA1700 for 14th and 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors
• Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Memory

• DDR5
• 4 x DIMM, Max. 192GB, DDR5
• Dual Channel Memory Architecture
• OptiMem II
• Supports Intel Extreme Memory Profile (XMP)
• * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration

Expansion Slots

• 2 x PCIe 5.0 x16 slot
• 1 x PCIe 4.0 x16 slot

Storage :

• 8 x SATA 6Gb/s
• 4 x M.2 PCIe 4.0 x4

Ethernet :

• 1 x Marvell® AQtion 10Gb Ethernet
• 1 x Intel 2.5Gb Ethernet
• ASUS LANGuard

Wireless & Bluetooth

• Wi-Fi 6E Supports 2.4/5/6GHz frequency band*
• Bluetooth v5.3 hardware ready**
• * WiFi 6E 6GHz regulatory may vary between countries.
• ** Bluetooth v5.2 function will be ready in Windows 11 or later.

USB

• Rear USB (Total 8 ports)
• 2 x Thunderbolt 4 ports (USB Type-C)
• 6 x USB 3.2 Gen 2 ports (Type-A)
• Front USB: Total 7 ports
• 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C with up to 60W PD/QC4+)
• 1 x USB 3.2 Gen 1 headers additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio

• Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC

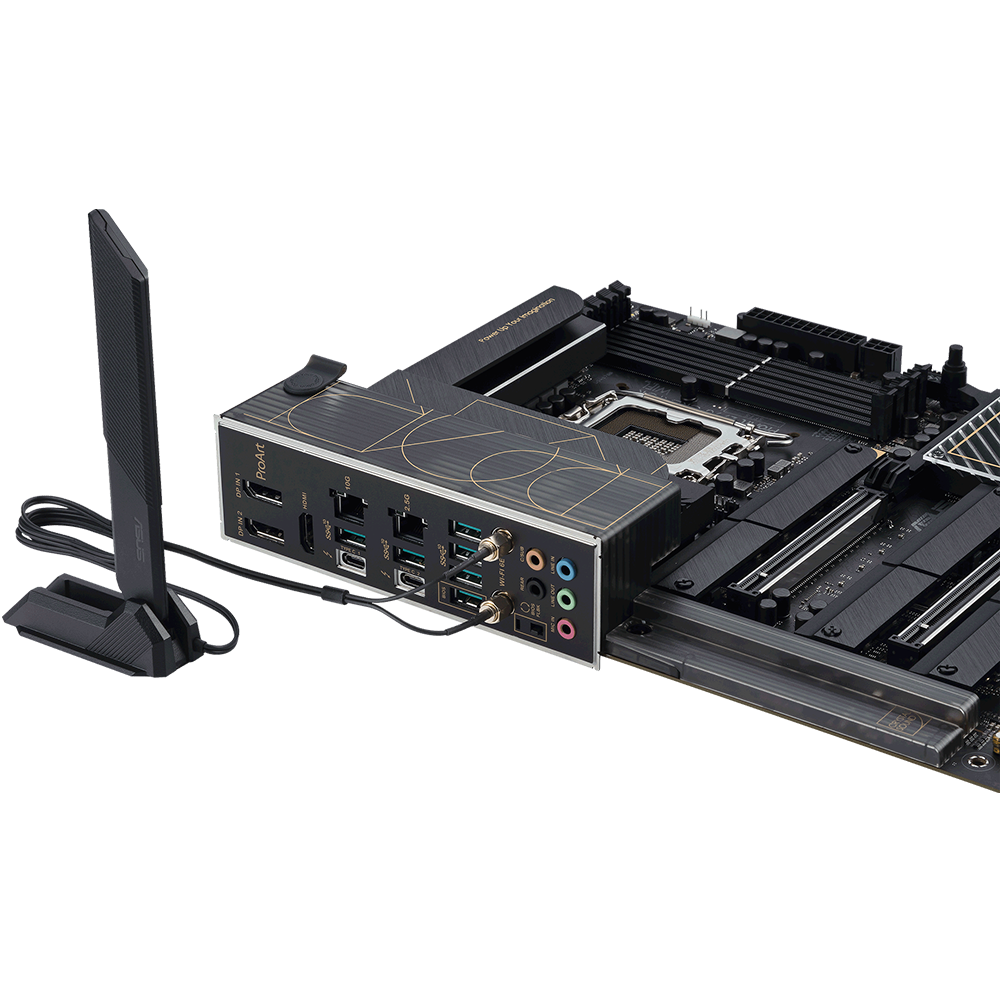

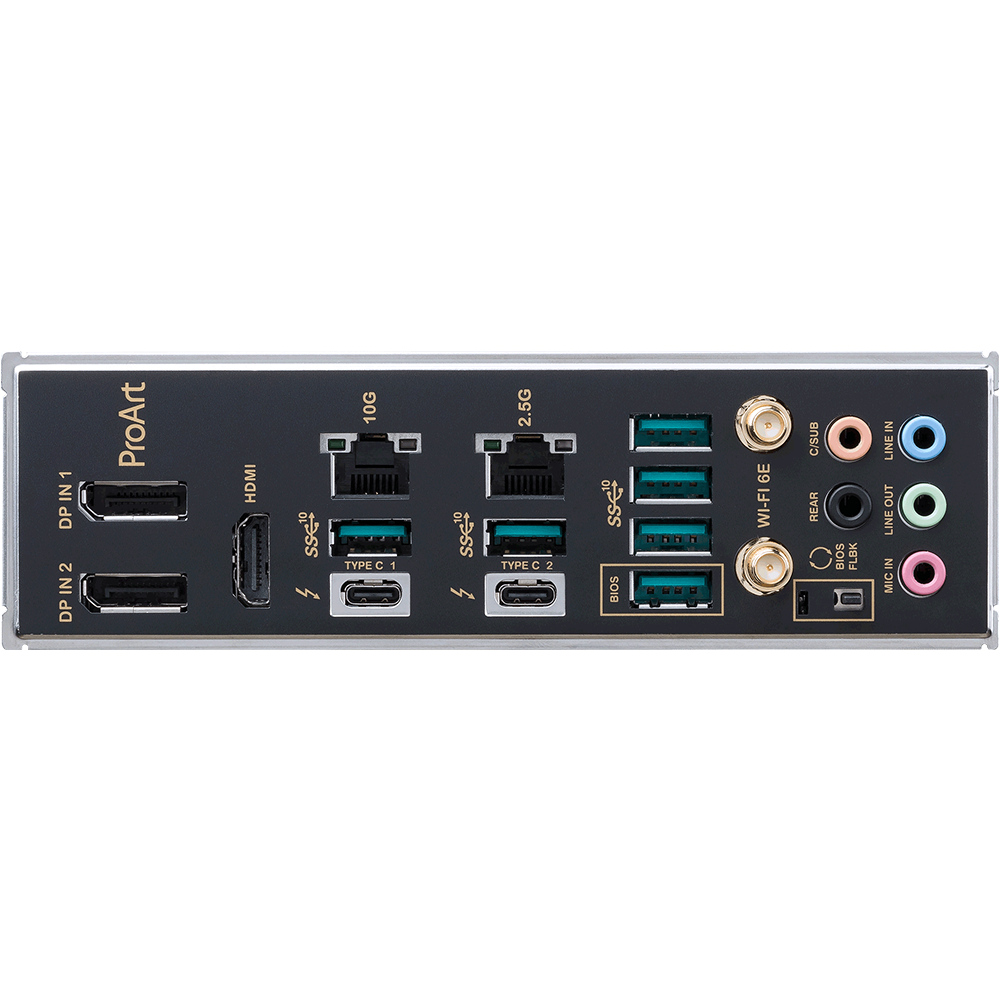

Back Panel I/O Ports

• 2 x Thunderbolt 4 USB Type-C ports
• 6 x USB 3.2 Gen 2 ports (Type-A)
• 2 x DisplayPort
• 1 x HDMI port
• 1 x ASUS Wi-Fi Module
• 1 x Marvell AQtion 10Gb Ethernet port
• 1 x Intel 2.5Gb Ethernet port
• 5 x Audio jacks
• 1 x BIOS FlashBack button

Form Factor :

• ATX ( 30.5 cm x 24.4 cm )

Part Number:

• 90MB1DV0-M0EAY0
