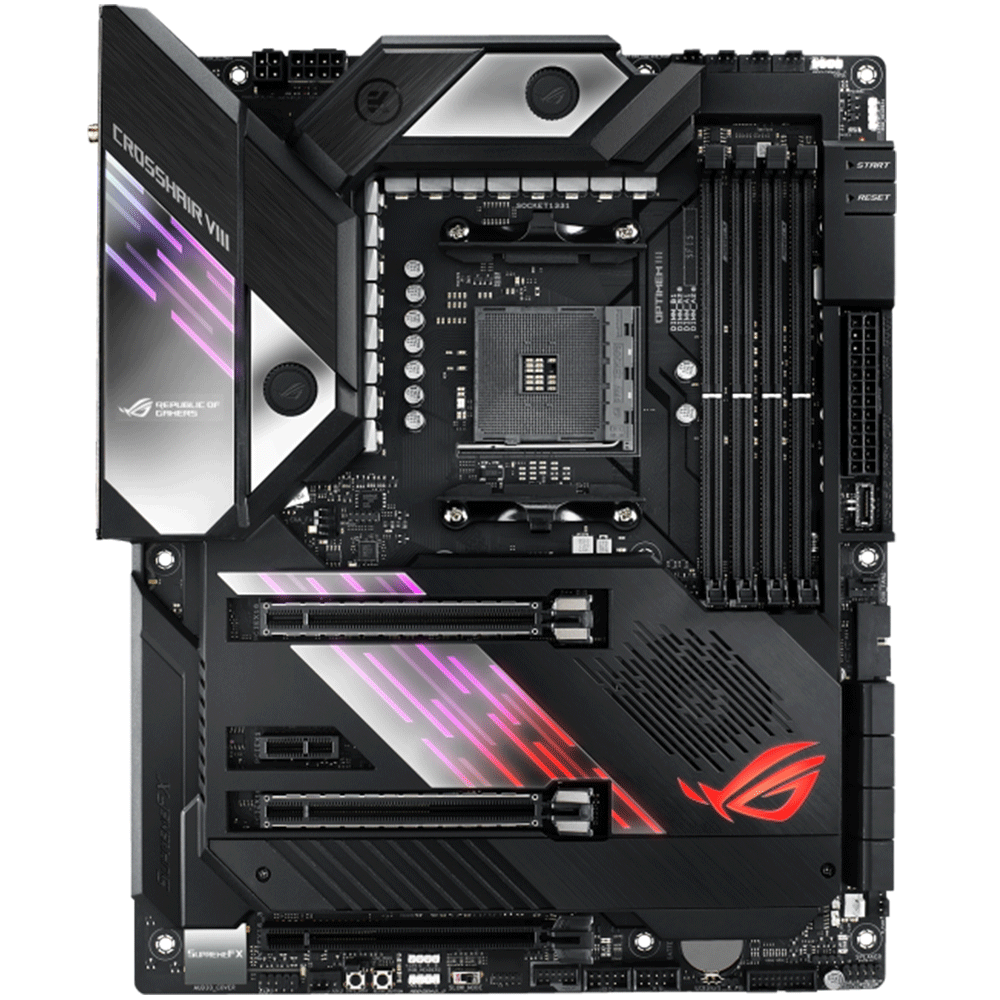

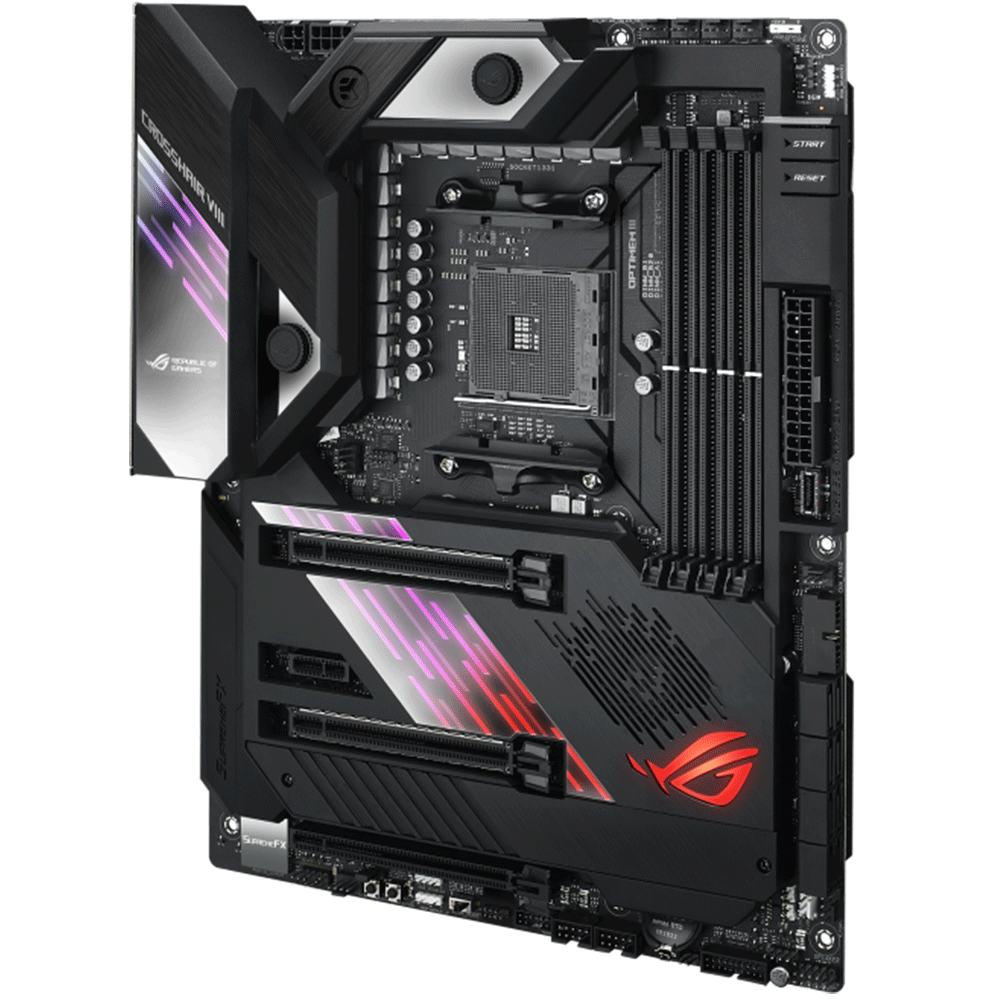

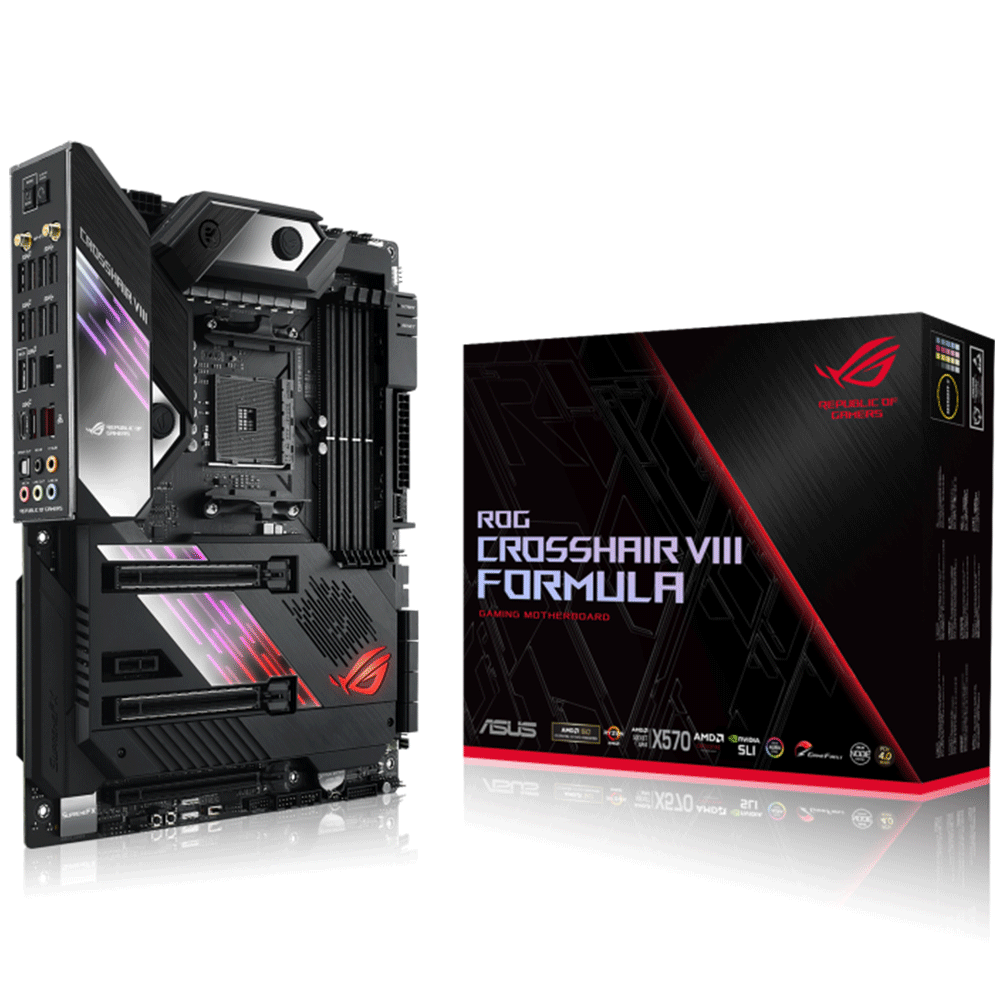

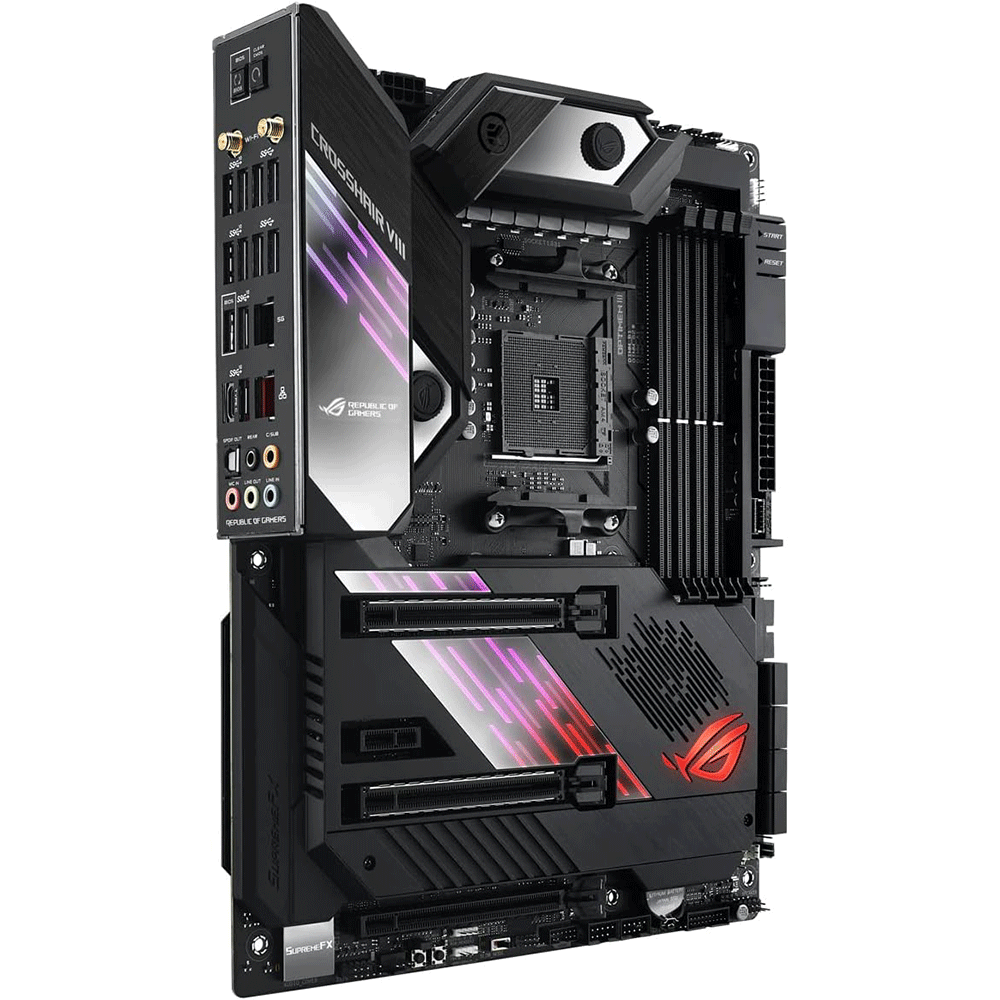

ASUS ROG Crosshair VIII Formula X570, AM4 Socket For AMD CPUs Motherboard

• AMD X570 ATX gaming motherboard with PCIe 4.0, 16 power stages , OptiMem III, on-board Wi-Fi 6 (802.11ax), 5 Gbps LAN, USB 3.2, SATA, M.2, ASUS NODE and Aura Sync RGB lighting

CPU

• AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processor

Memory

• DDR4
• 4 x DIMM, Max. 128GB, DDR4
• Dual Channel Memory Architecture

Expansion Slots

• 3 x PCIe x16 slots
• 1 x PCIe 3.0 x1 Slot

Storage :

• 8 x SATA 6Gb/s
• 1 x M.2 PCIe 4.0 x4

Ethernet :

• Aquantia AQC111C 5G LAN
• ASUS LAN Guard

Wireless & Bluetooth

• Wi-Fi 6
• Supports 2.4/5GHz
• Bluetooth v5.0

Audio

• ROG SupremeFX8-Channel High Definition Audio CODEC S1220

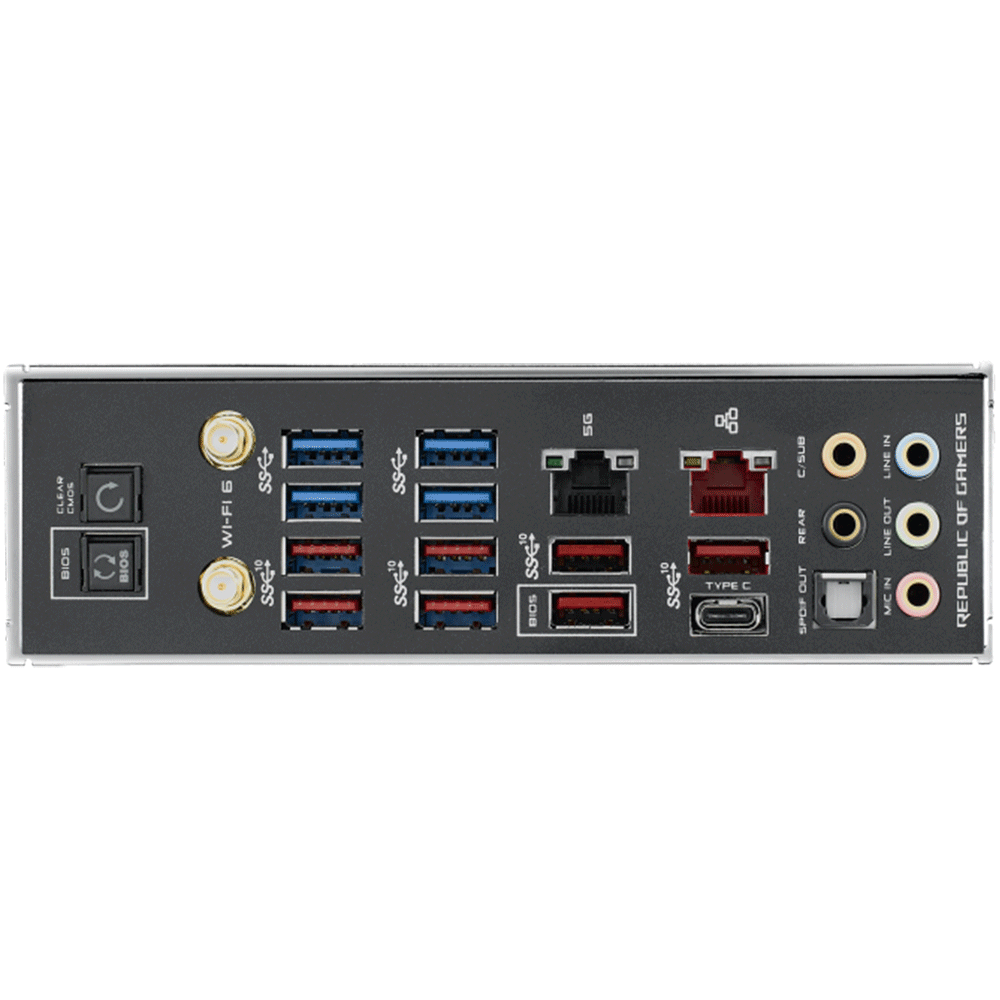

Back Panel I/O Ports

• 1 x USB BIOS FlashBack™ Button(s)
• 1 x Optical S/PDIF out
• 1 x Clear CMOS button(s)
• 1 x ASUS Wi-Fi Module
• 1 x Gold-plated audio jacks
• 4 x USB 3.2 Gen 1 (up to 5Gbps) ports
• 8 x USB 3.2 Gen 2 (up to 10Gbps) ports
• Anti-surge LAN (RJ45) port
• 1 x AQC-111C 5G LAN port

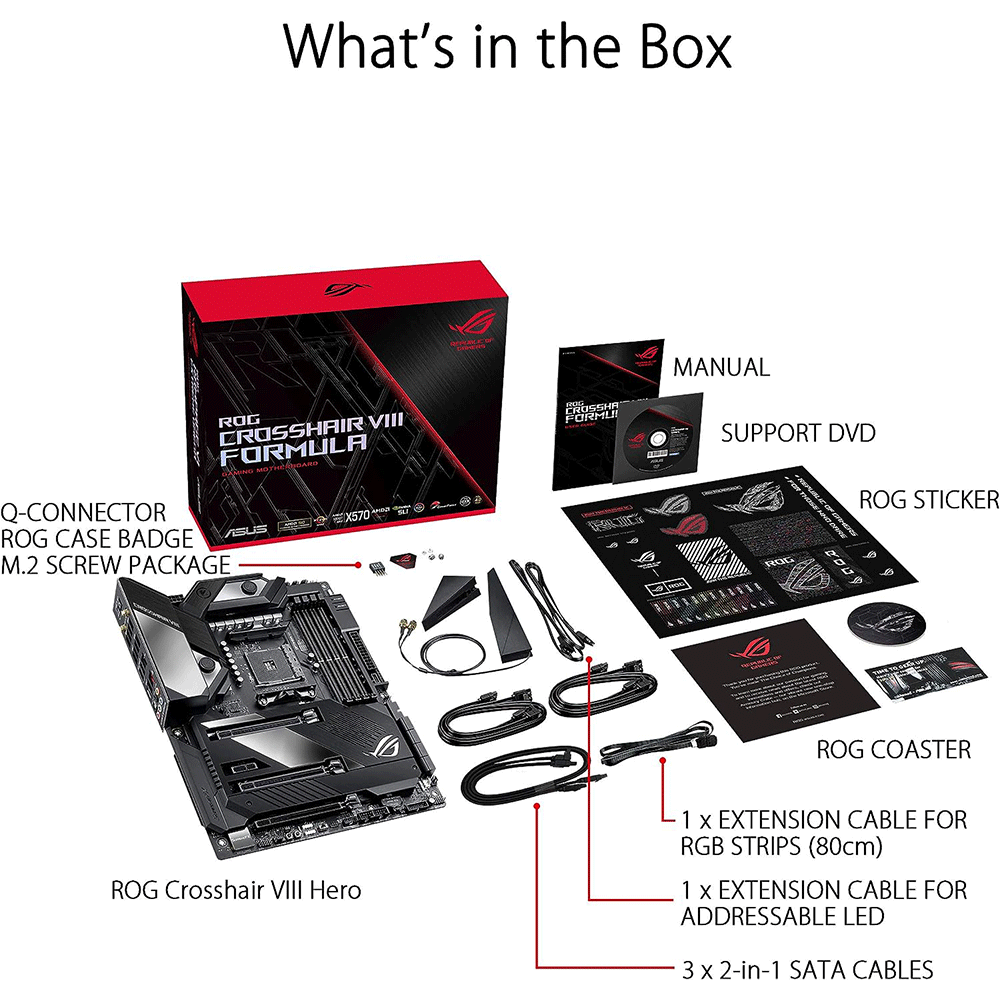

Accessories

• 1 x ROG logo plate sticker
• 4 x SATA power cable
• 1 x M.2 Screw Package
• 1 x Supporting DVD
• 1 x ROG big sticker
• 1 x Q-Connector

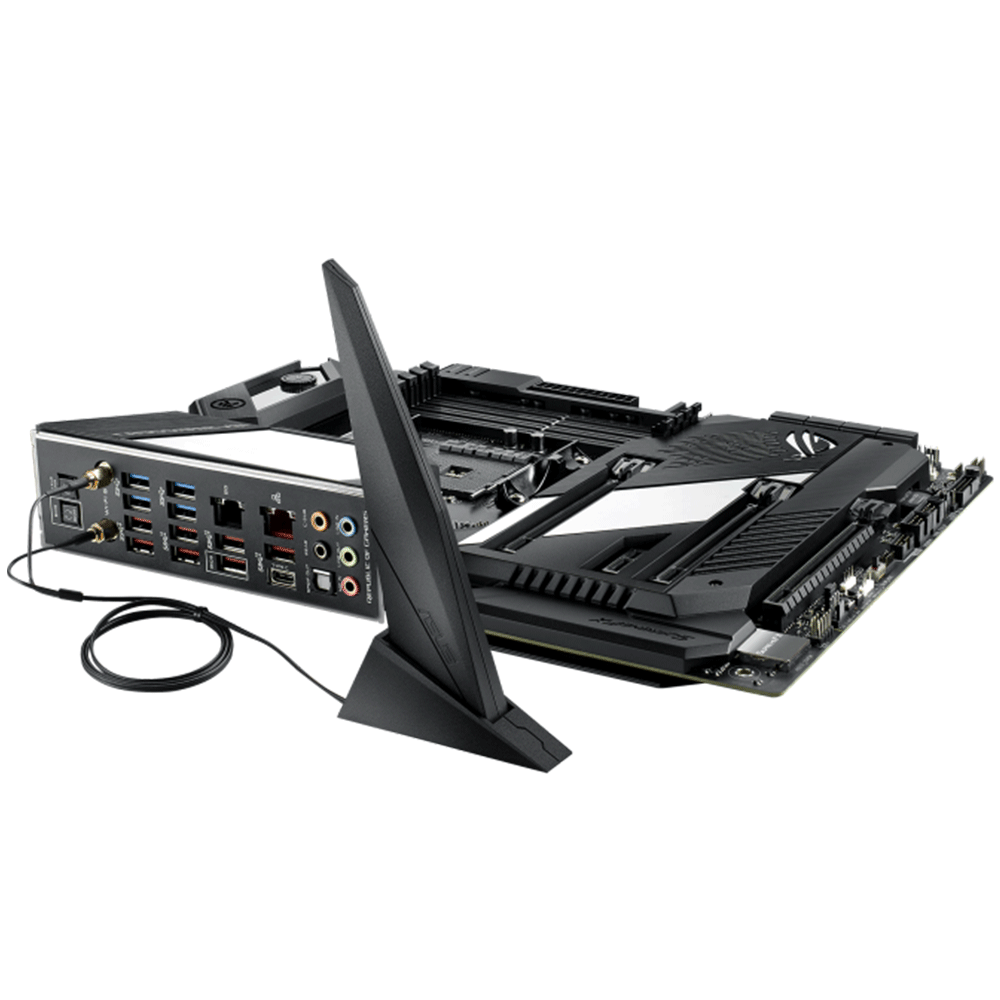

• 1 x Wi-Fi Antenna(s)
• 1 x Extension Cable for RGB strips (80 cm)
• 1 x Extension cable for Addressable LED
• 1 x ROG coaster(s)
• 2 x ROG weave SATA 6G cable
• 1 x ROG Thank you card
• 1 x User guide

Form Factor :

• ATX ( 30.5 cm x 24.4 cm )

Part Number:

• 90MB10Z0-M0EAY0
