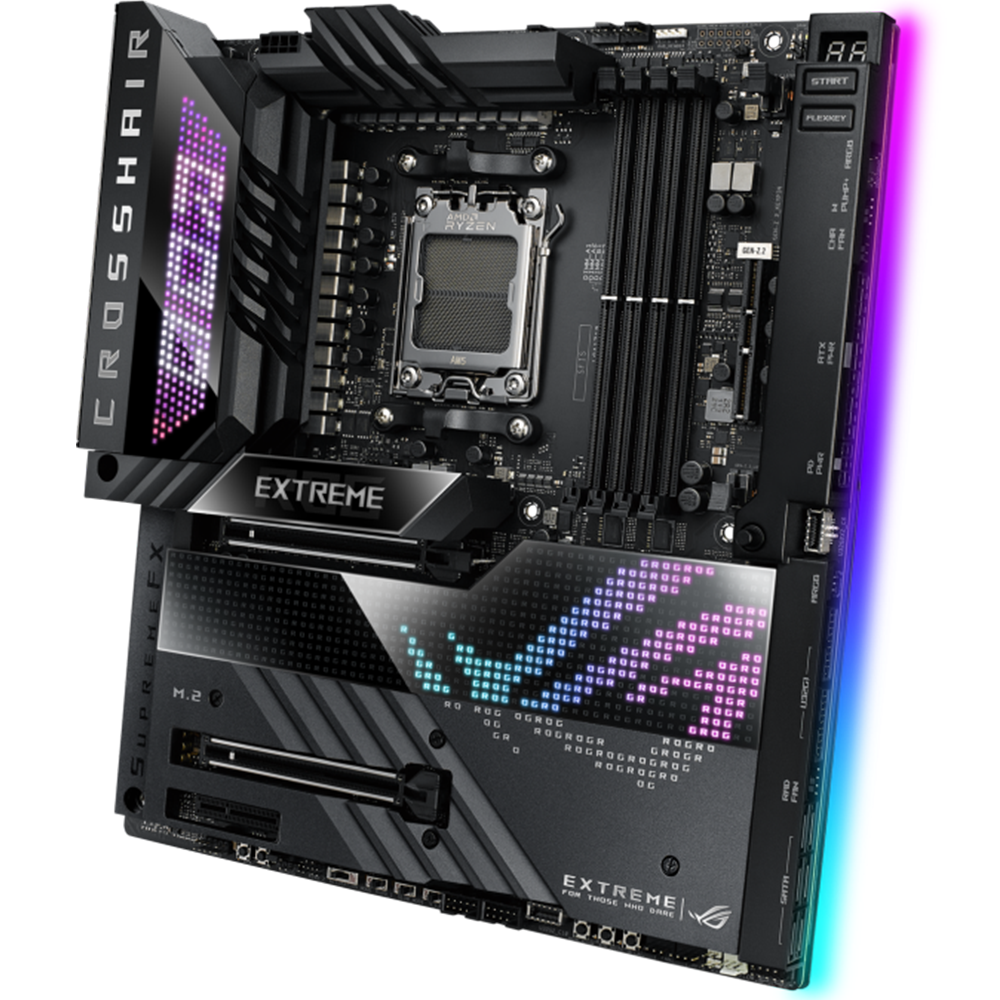

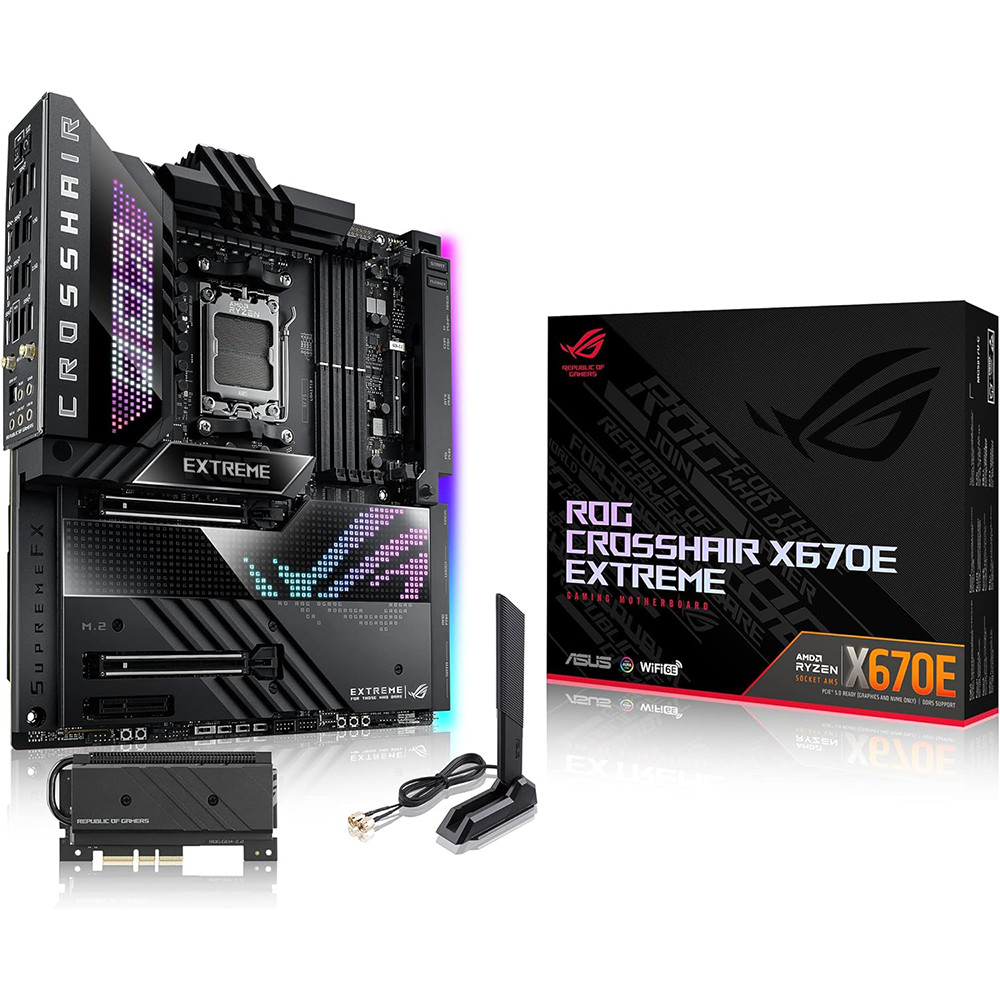

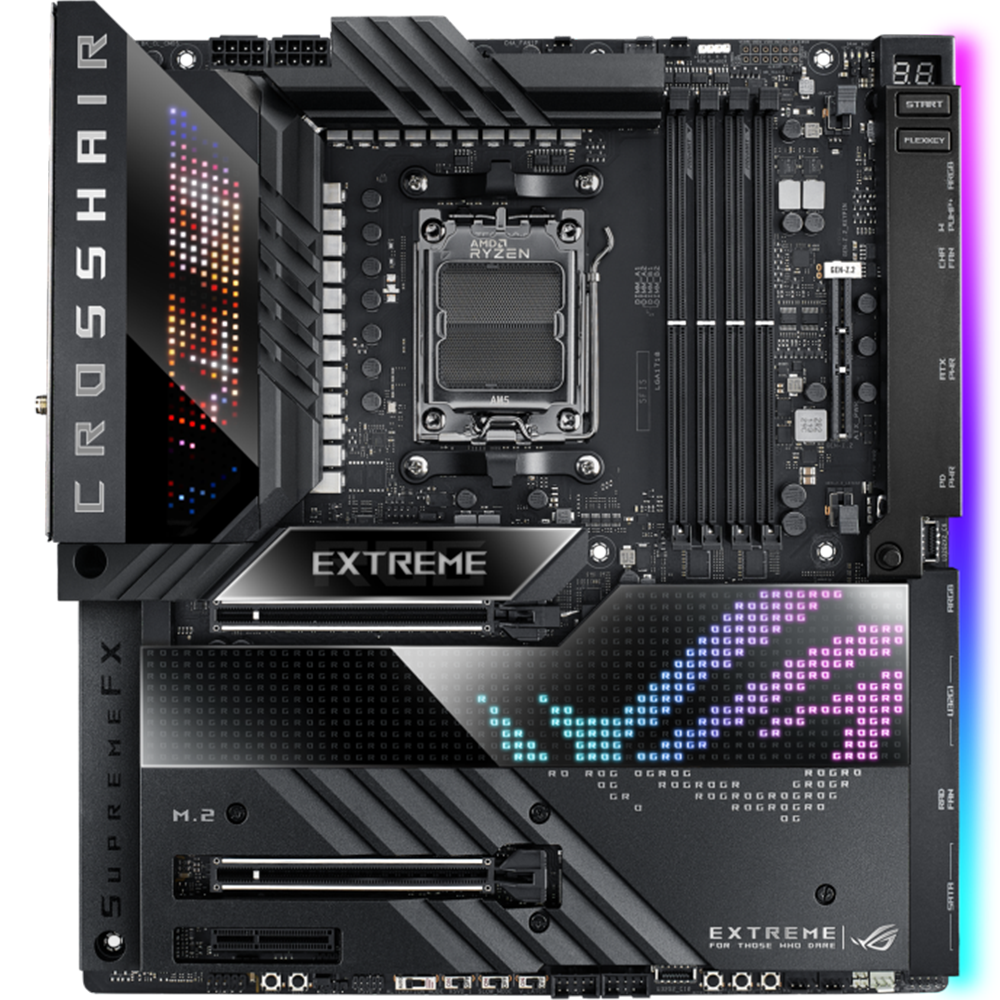

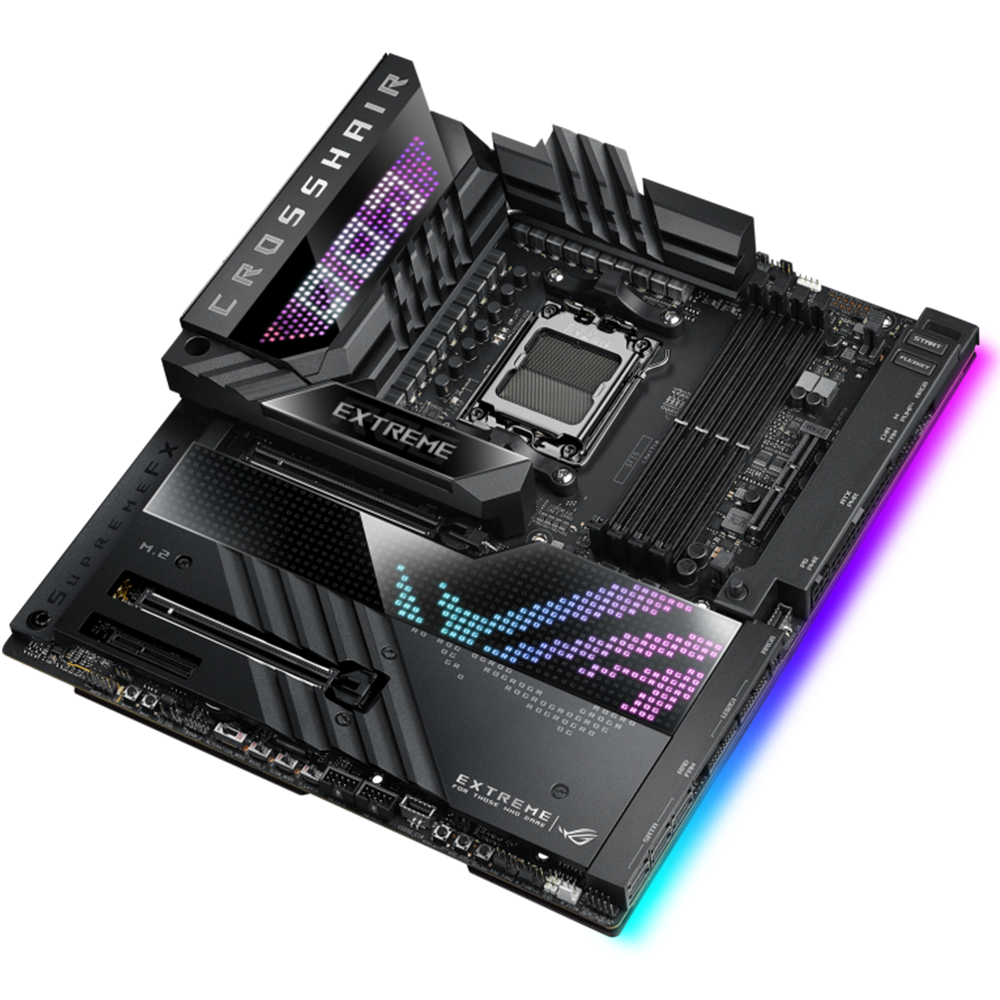

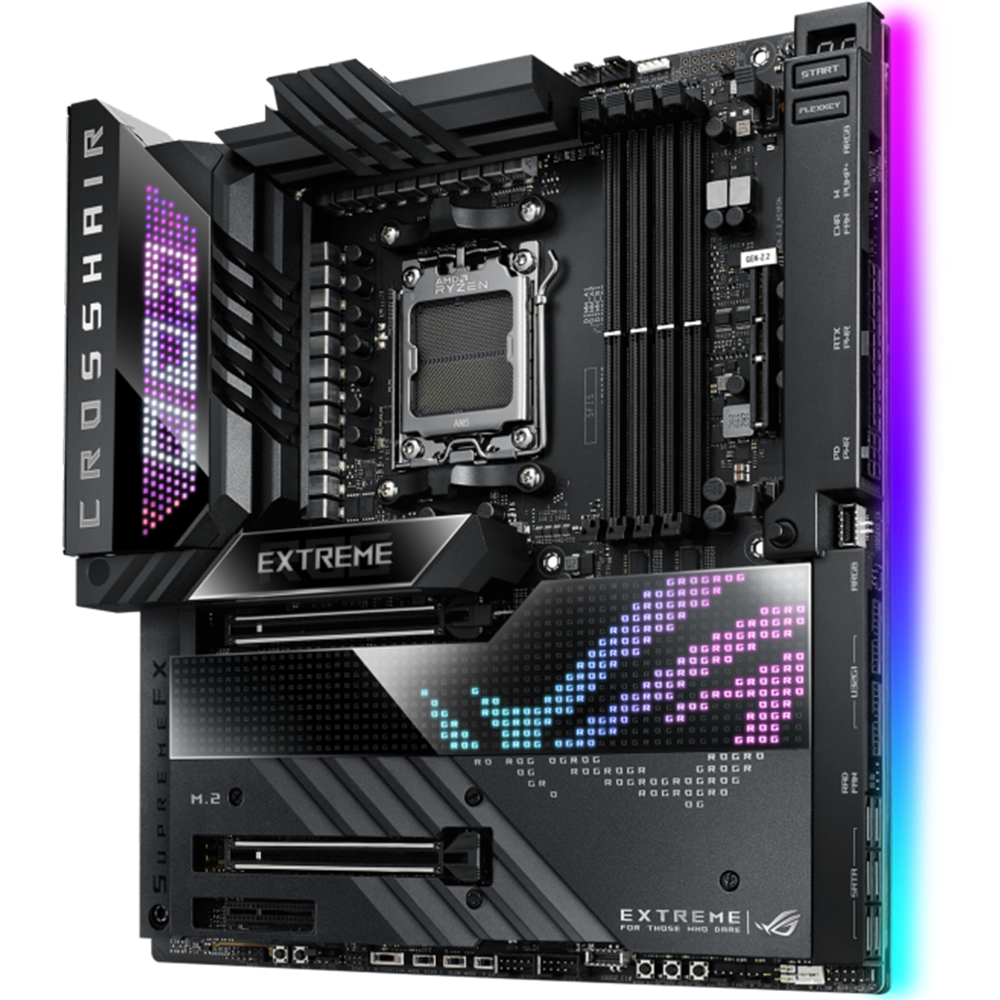

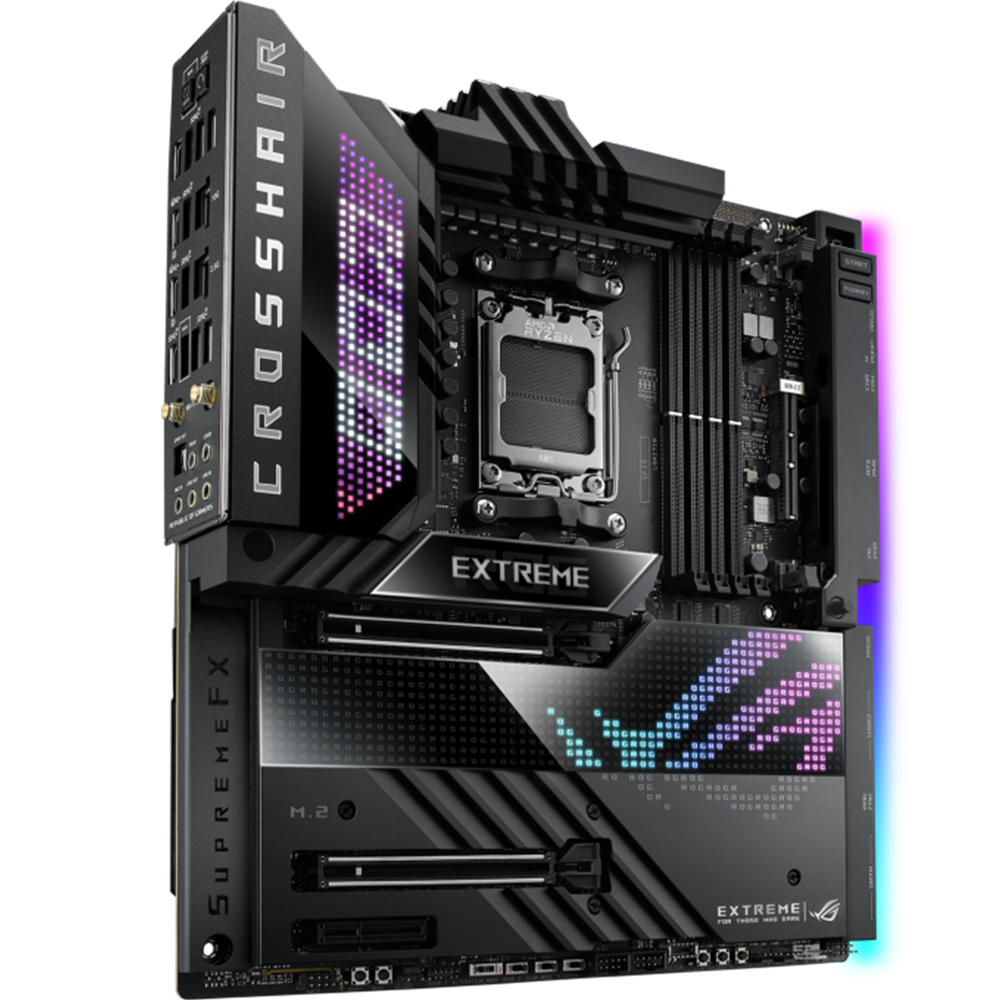

ASUS ROG CROSSHAIR X670E Extreme AM5 Socket For AMD CPUs Motherboard

• Bringing a legacy of ROG greatness along with a flurry of the latest tech for fully loaded builds, the ROG Crosshair X670E comfortably eases AMD Ryzen 7000 Series processors through the toughest workloads. Embrace the AM5 era with the indomitable kingpin of the ROG stack. This platform delivers the power and connectivity that advanced AI PC applications demand.

CPU

• AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors

Memory

• 4 x DIMM, Max. 192GB
• Dual Channel Memory Architecture
• Supports AMD Extended Profiles for Overclocking (EXPO)
• OptiMem II
• * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration

Expansion Slots

• 2 x PCIe 5.0 x16 slots
• 1 x PCIe 4.0 x4 slot

Storage :

• 6 x SATA 6Gb/s
• 4 x M.2 PCIe 5.0 x4
• 1 x M.2 PCIe 4.0 x4

Ethernet :

• 1 x Intel 2.5Gb Ethernet
• 1 x Marvell® AQtion 10Gb Ethernet
• ASUS LANGuard

Wireless & Bluetooth

• Wi-Fi 6E
• Supports 2.4/5/6GHz frequency band*
• Bluetooth v5.3
• * WiFi 6E 6GHz regulatory may vary between countries.

USB

• Rear USB (Total 12 ports)
• 2 x USB4 ports with Intel® JHL8540 USB4® controller (2 x USB Type-C®)
• 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)
• 9 x USB 3.2 Gen 2 port(s) (8 x Type-A + 1 x USB Type-C®)
• Front USB (Total 10 ports)
• 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® with up to 60W PD/QC4+)*
• 1 x USB 3.2 Gen 2 connector (supports USB Type-C)
• 2 x USB 3.2 Gen 1 headers) support additional 4 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• *To support 60W, please install the power cable to the 6-pin PCIe Graphics Card connector or else only 27W can be supported.

Audio

• ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082

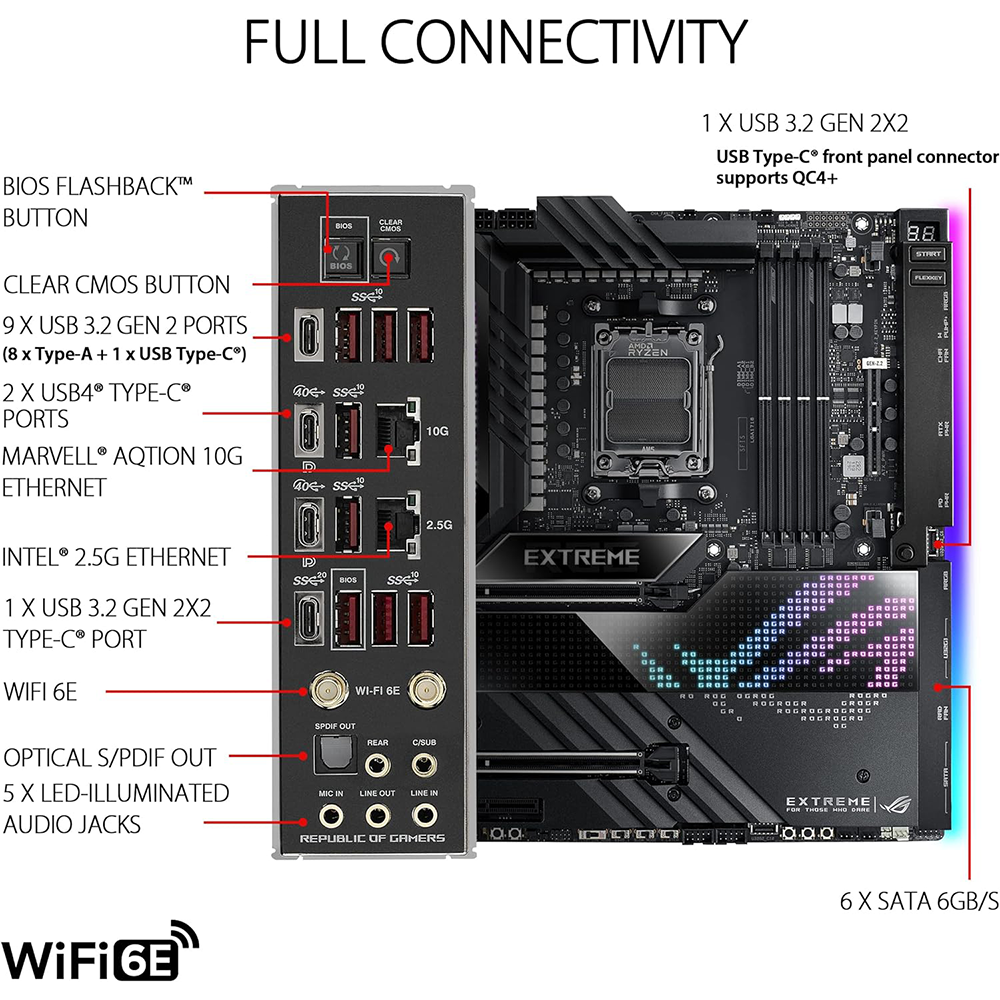

Back Panel I/O Ports

• 2 x USB4® ports with Intel® JHL8540 USB4® controller (2 x USB Type-C®)
• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
• 9 x USB 3.2 Gen 2 ports(8 x Type-A + 1 x Type-C®)
• 1 x Wi-Fi Module
• 1 x Intel® 2.5Gb Ethernet
• 1 x Marvell® AQtion 10Gb Ethernet port
• 5 x LED audio jacks*
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack™ button
• 1 x Clear CMOS button
• *The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.

Form Factor :

• E-ATX ( 30.5 cm x 27.7 cm )

Part Number:

• 90MB1B10-M0AAY0
