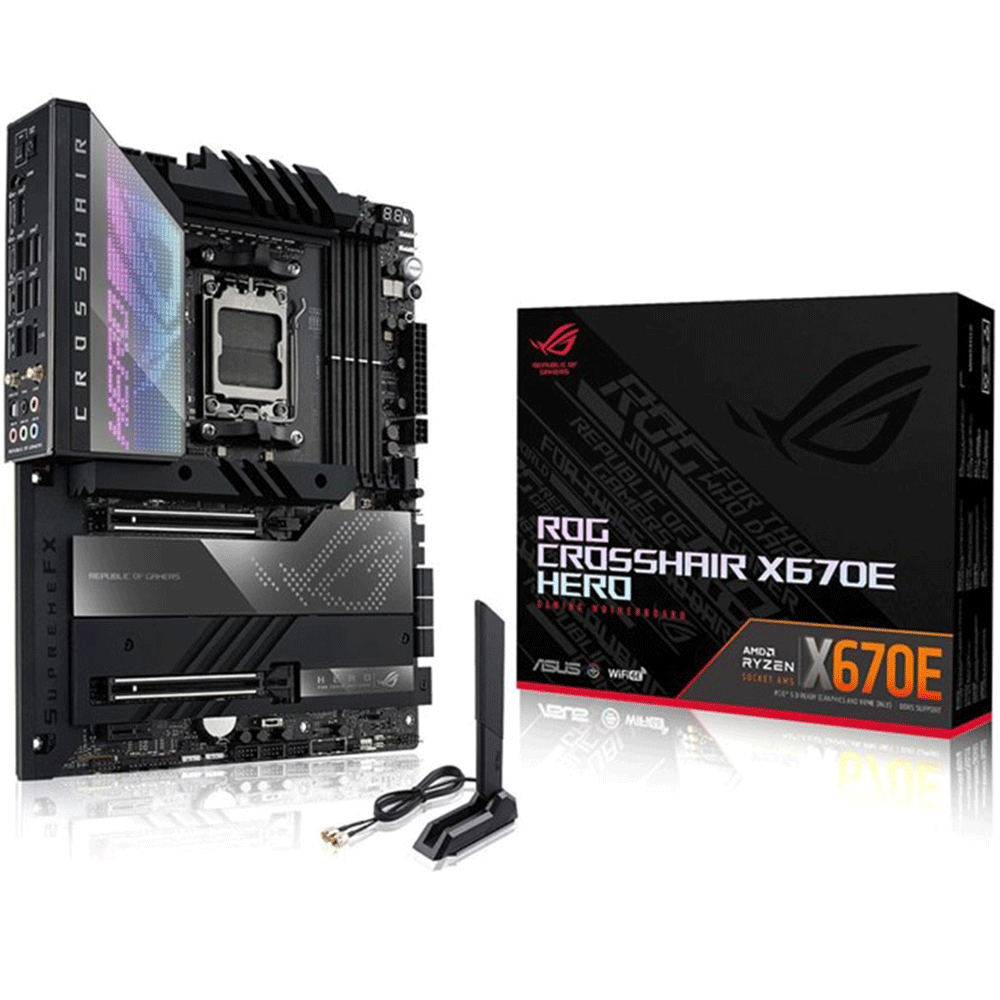

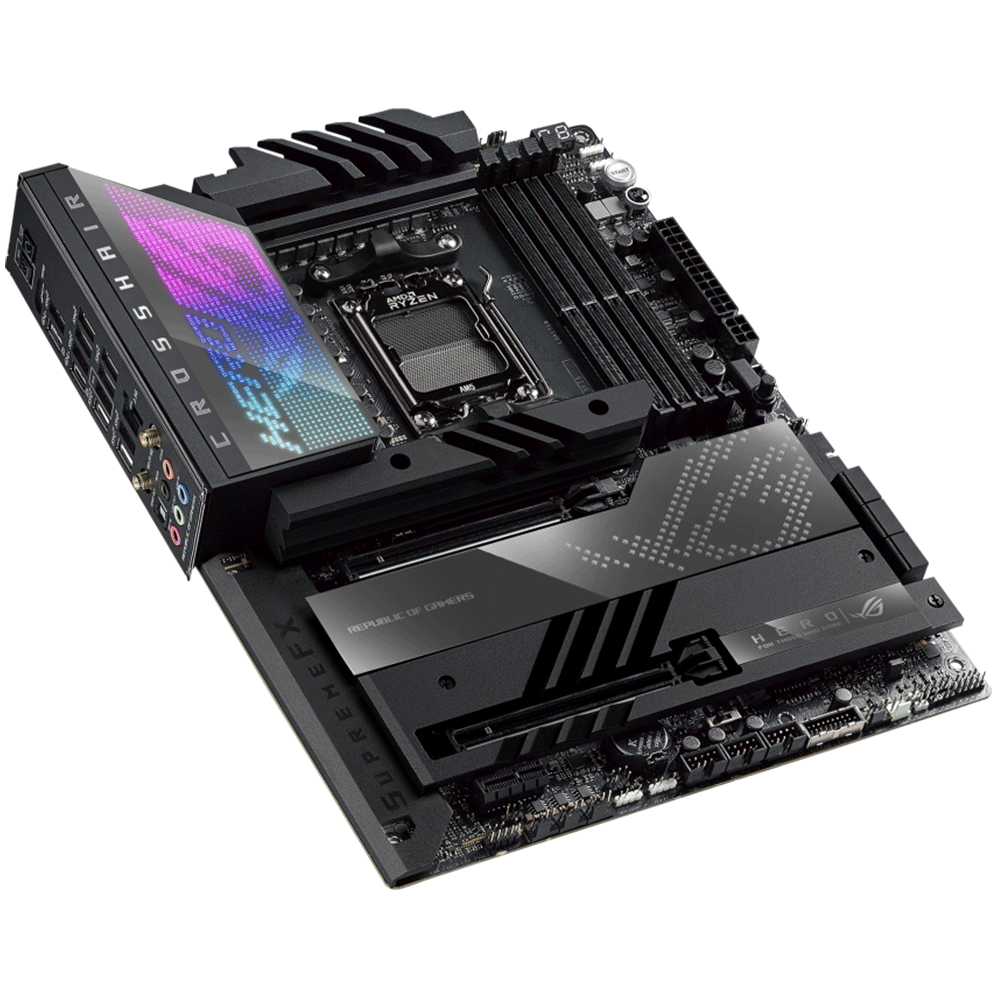

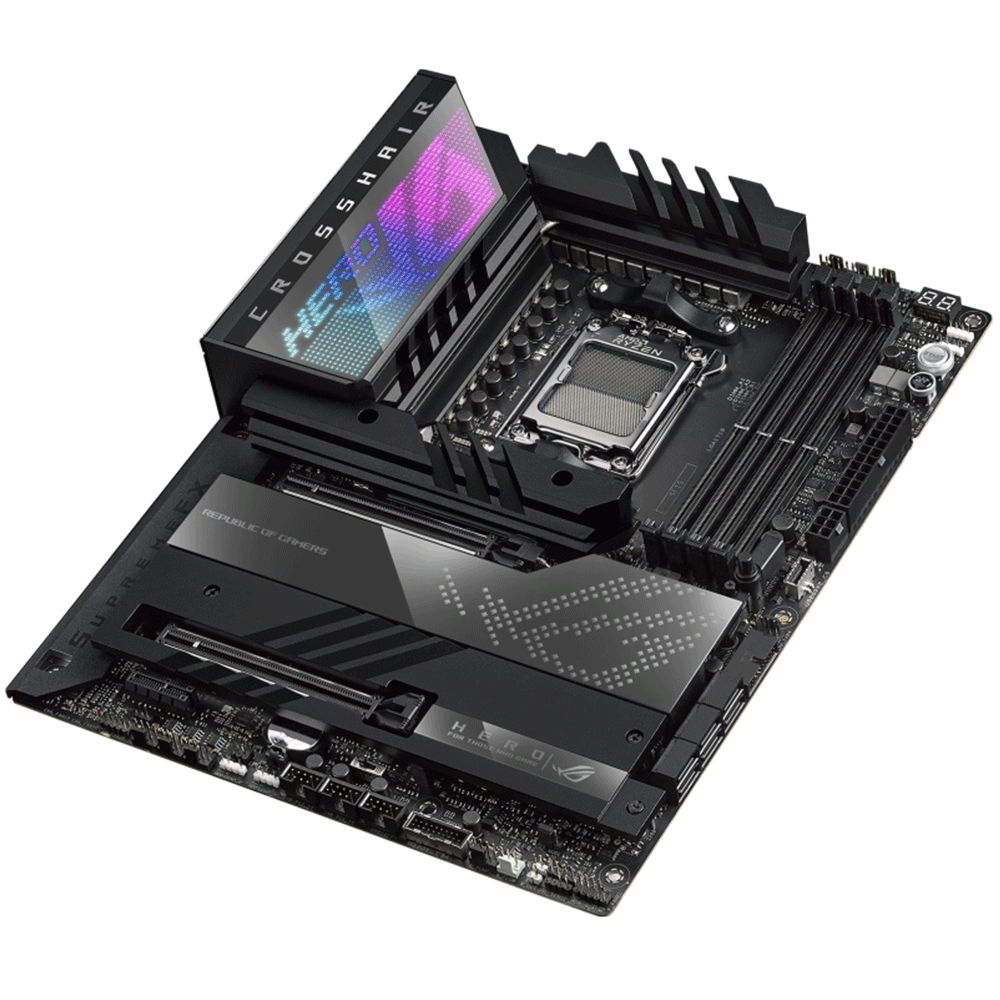

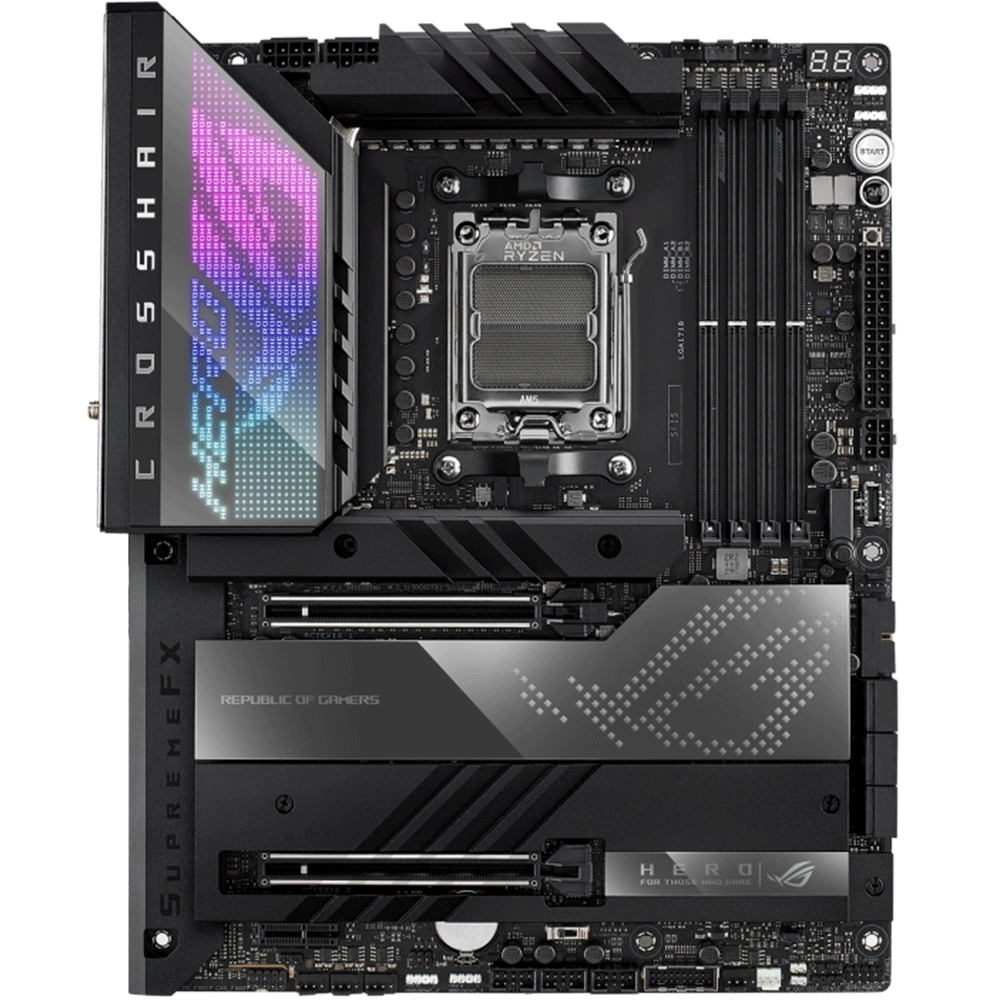

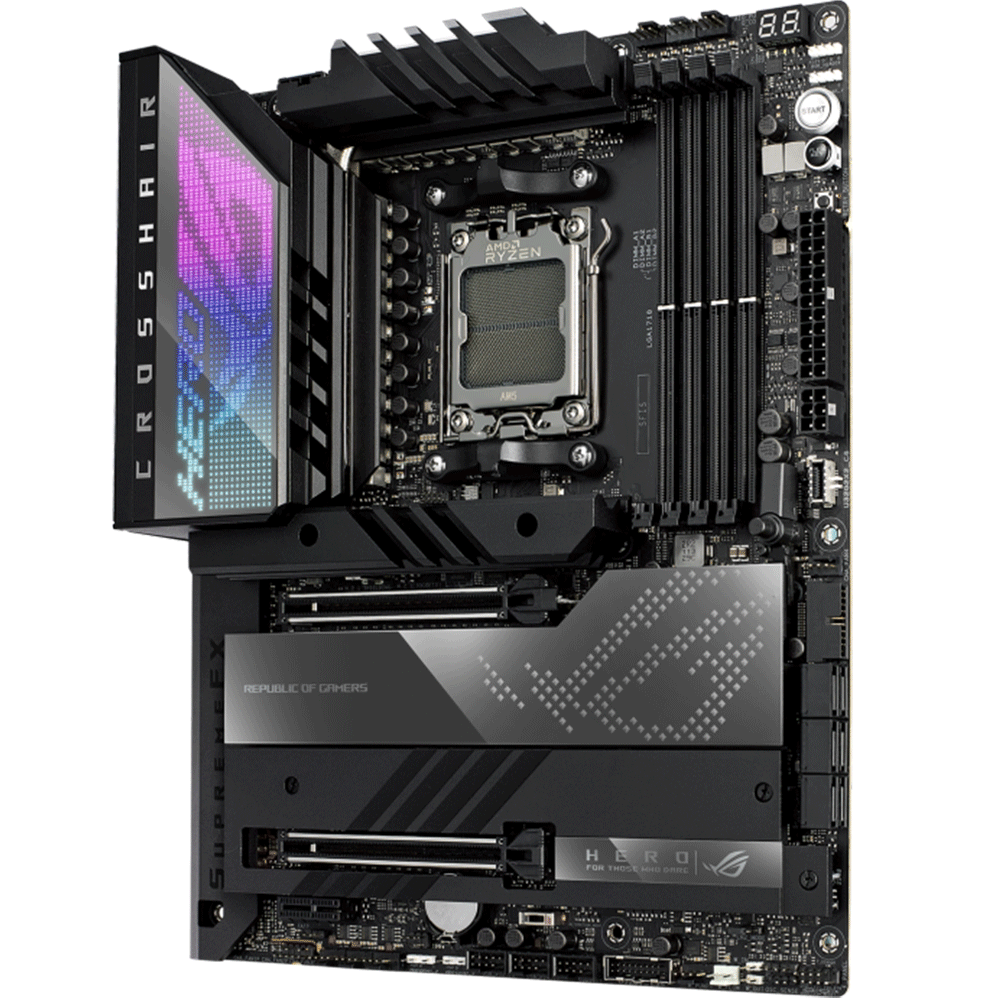

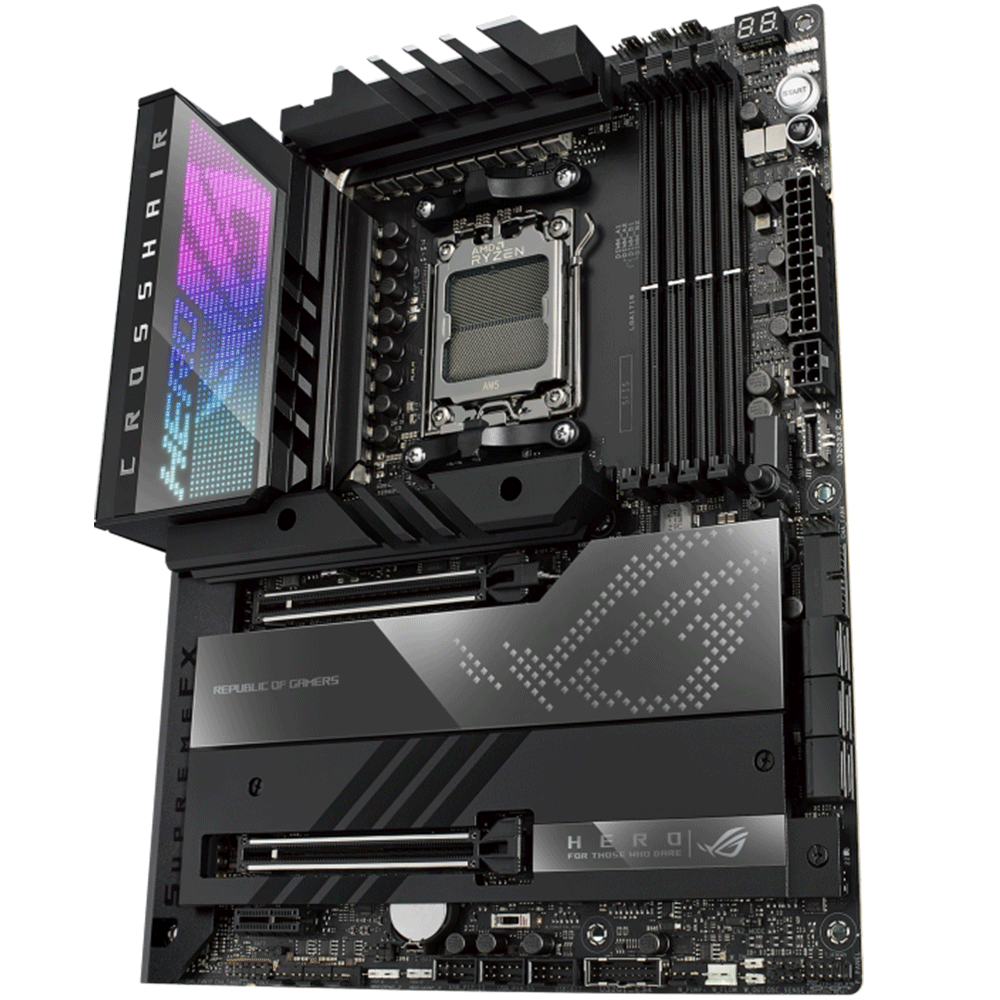

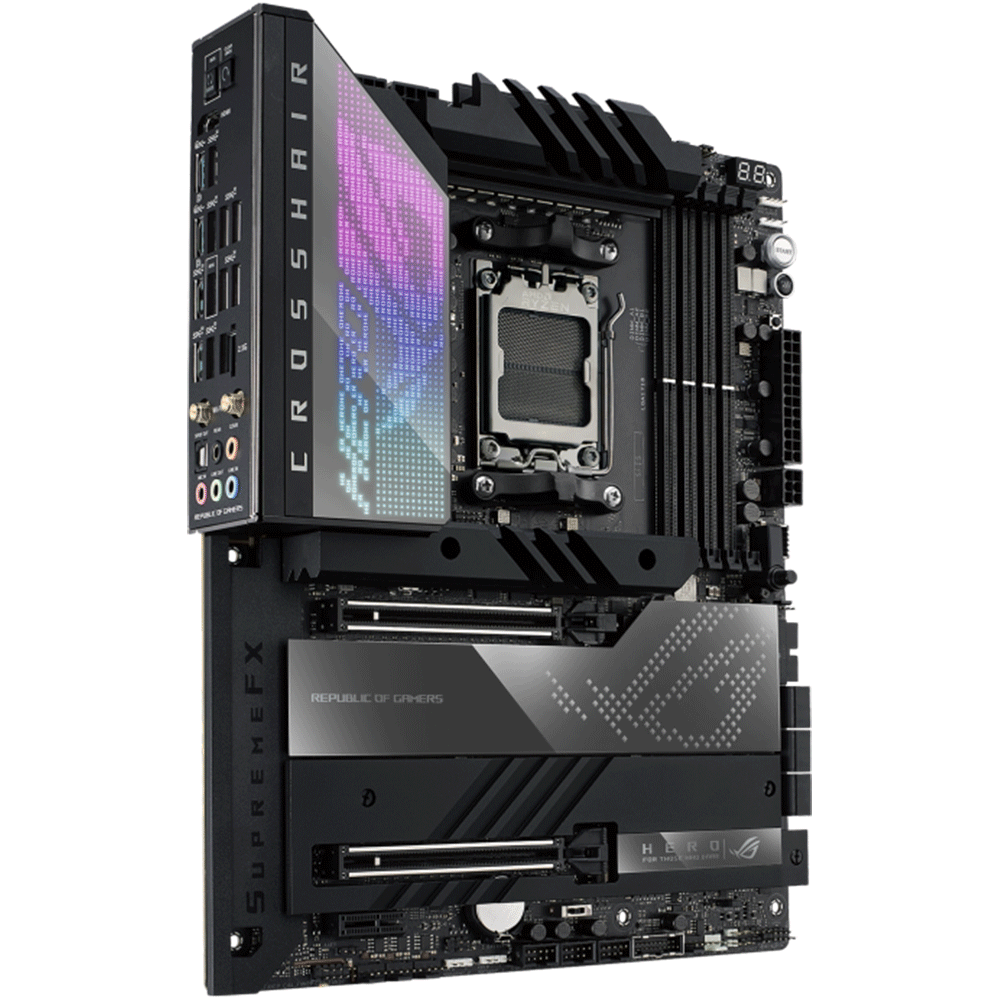

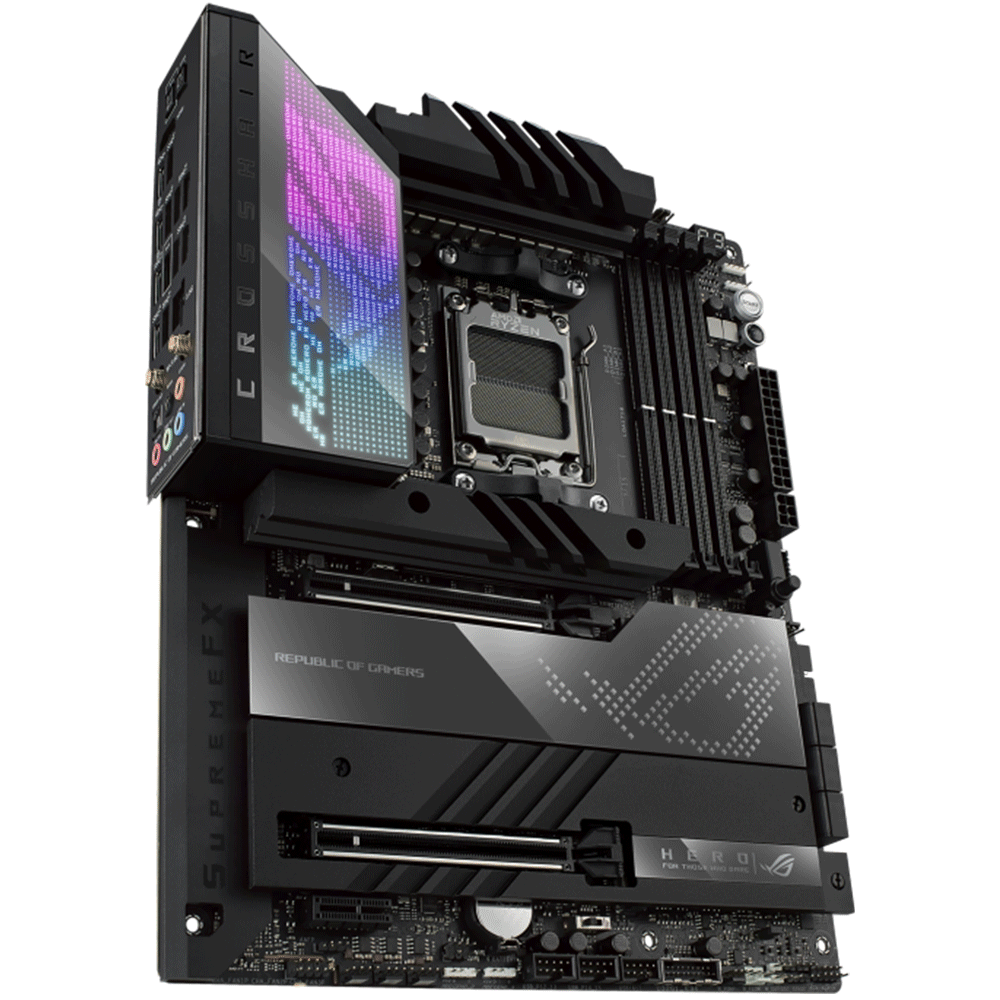

ASUS ROG CROSSHAIR X670E HERO AM5 Socket For AMD CPUs Motherboard

• Unyielding power delivery and robust thermal management form the indelible tenets of its creed. Hyperspeed connectivity, comprehensive PCIE 5.0 and DDR5 support, and Polymo lighting add potent layers of build personalization on top. And the finishing touches are added by exclusive utilities and overclocking controls that allow you to uniquely flex the performance of Ryzen 7000 Series processors. Define your AM5 build with the ROG Crosshair X670E Hero. This platform delivers the power and connectivity that advanced AI PC applications demand.

CPU

• AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors

Memory

• 4 x DIMM, Max. 192GB, DDR5
• Dual Channel Memory Architecture
• Supports AMD Extended Profiles for Overclocking (EXPO™)
• OptiMem II
• * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration

Expansion Slots

• 2 x PCIe 5.0 x16 slots
• 1 x PCIe 4.0 x1 slot

Storage :

• 6 x SATA 6Gb/s
• 2 x M.2 PCIe 5.0 x4
• 2 x M.2 PCIe 4.0 x4

Ethernet :

• 1 x Intel® 2.5Gb Ethernet
• ASUS LANGuard

Wireless & Bluetooth

• Wi-Fi 6E
• Supports 2.4/5/6GHz frequency band*
• Bluetooth v5.3
• * WiFi 6E 6GHz regulatory may vary between countries.

USB

• Rear USB (Total 12 ports)
• 2 x USB4® ports with Intel® JHL8540 USB4® controller (2 x USB Type-C®)
• 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)
• 9 x USB 3.2 Gen 2 port(s) (8 x Type-A + 1 x USB Type-C®)
• Front USB (Total 11 ports)
• 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® with up to 60W PD/QC4+)*
• 2 x USB 3.2 Gen 1 headers) support additional 4 USB 3.2 Gen 1 ports
• 3 x USB 2.0 headers support additional 6 USB 2.0 ports
• *To support 60W, please install the power cable to the 6-pin PCIe Graphics Card connector or else only 27W can be supported.

Audio

• ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082

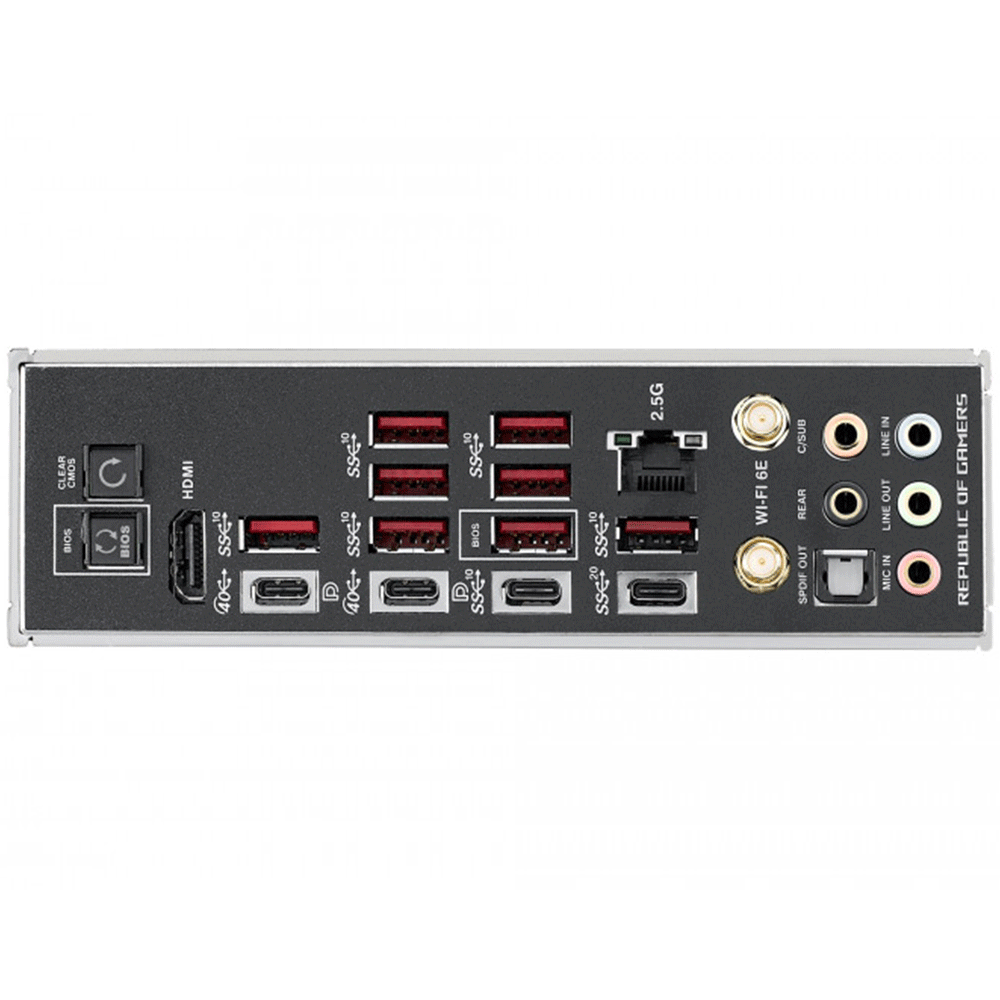

• Back Panel I/O Ports
• 2 x USB4® ports with Intel® JHL8540 USB4®
• controller (2 x USB Type-C®)
• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
• 9 x USB 3.2 Gen 2 ports(8 x Type-A + 1 x Type-C®)
• 1 x HDMI® port
• 1 x Wi-Fi Module
• 1 x Intel® 2.5Gb Ethernet
• 5 x Gold-plated audio jacks*
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack™ button
• 1 x Clear CMOS button
• *The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.

Accessories

• 1 x ARGB RGB extension cable
• 1 x RGB extension cable
• 4 x SATA 6Gb/s cables

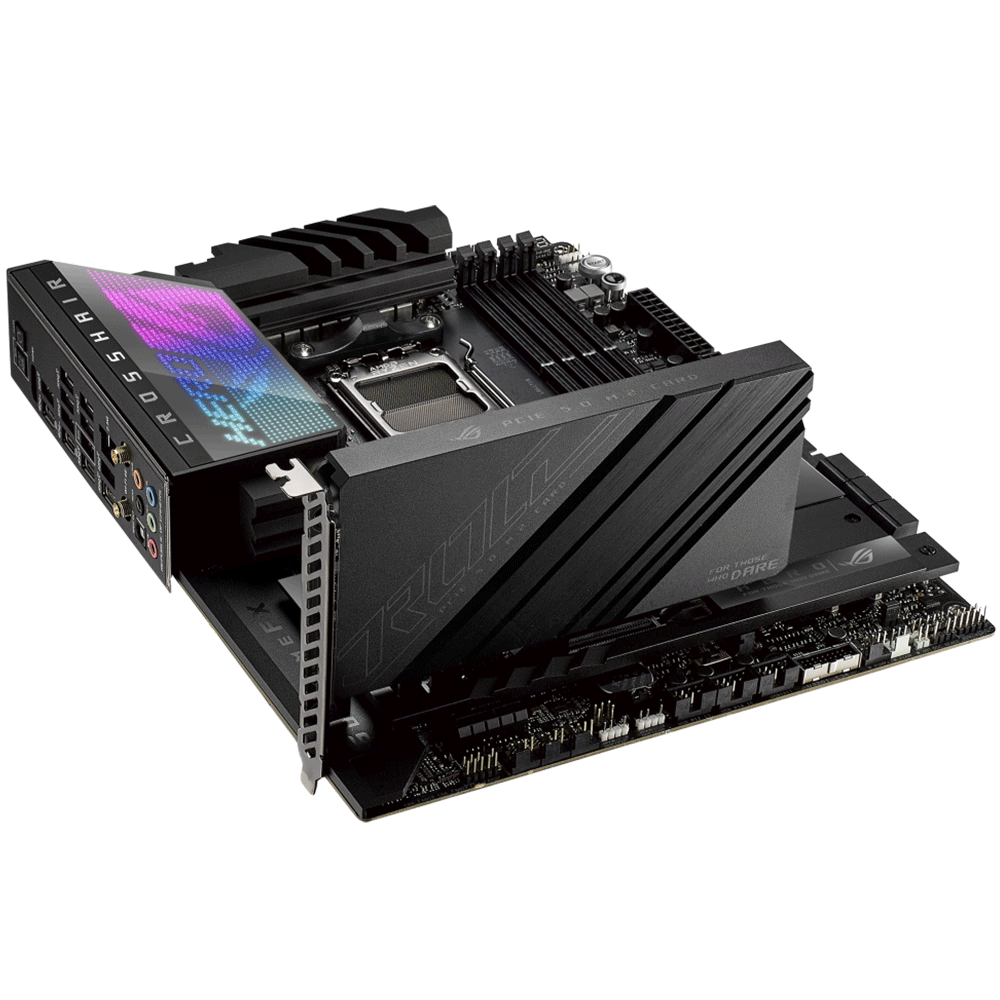

• 1 x PCIe 5.0 M.2 Card with heatsink
• 1 x M.2 screw package for PCIe 5.0 M.2 Card
• 1 x Thermal pad for M.2
• 1 x ASUS Wi-Fi moving antennas
• 3 x Rubber Packages for M.2 backplate
• 1 x Q-connector
• 1 x M.2 Q-Latch package
• 3 x M.2 Q-Latch packages for M.2 backplate
• 1 x ROG Graphics card holder
• 1 x ROG key chain
• 1 x ROG stickers
• 1 x ROG thank you card
• 1 x USB drive with utilities and drivers
• 1 x User guide

Form Factor :

• ATX ( 30.5 cm x 24.4 cm )

Part Number:

• 90MB1BC0-M0EAY0
