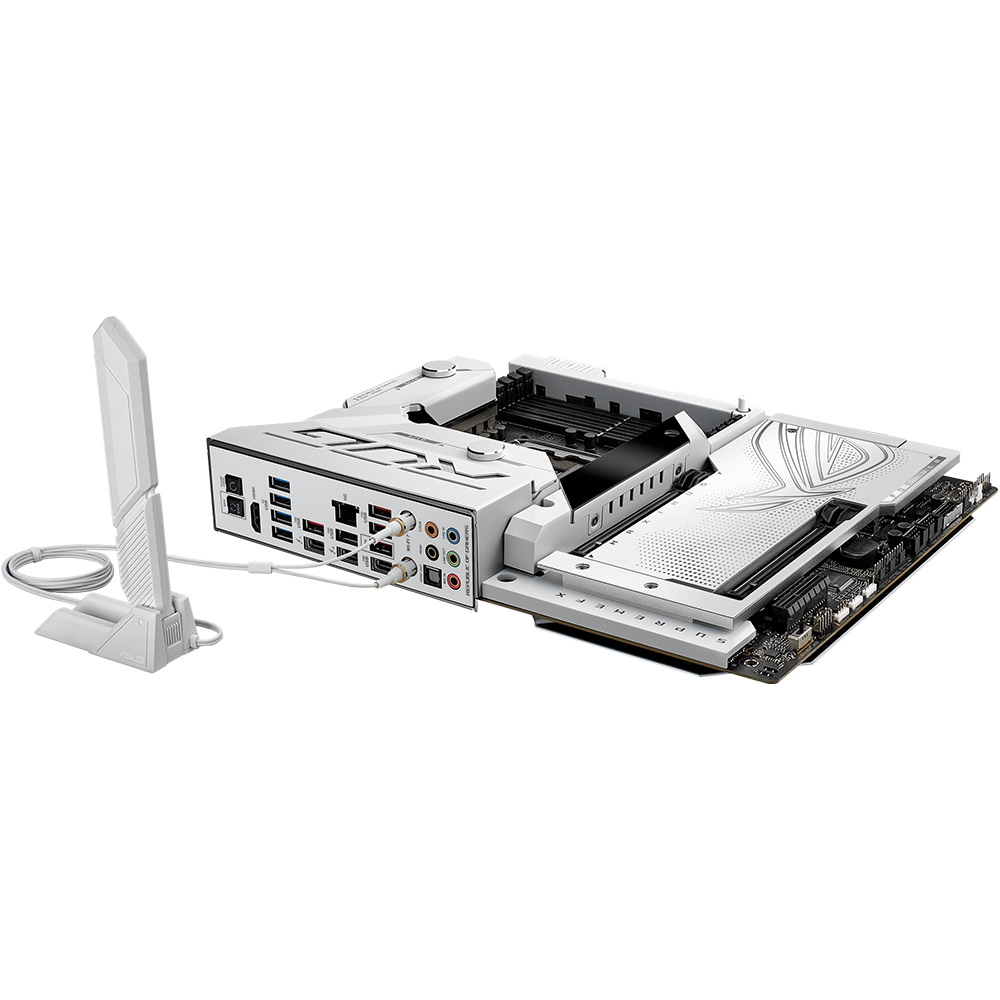

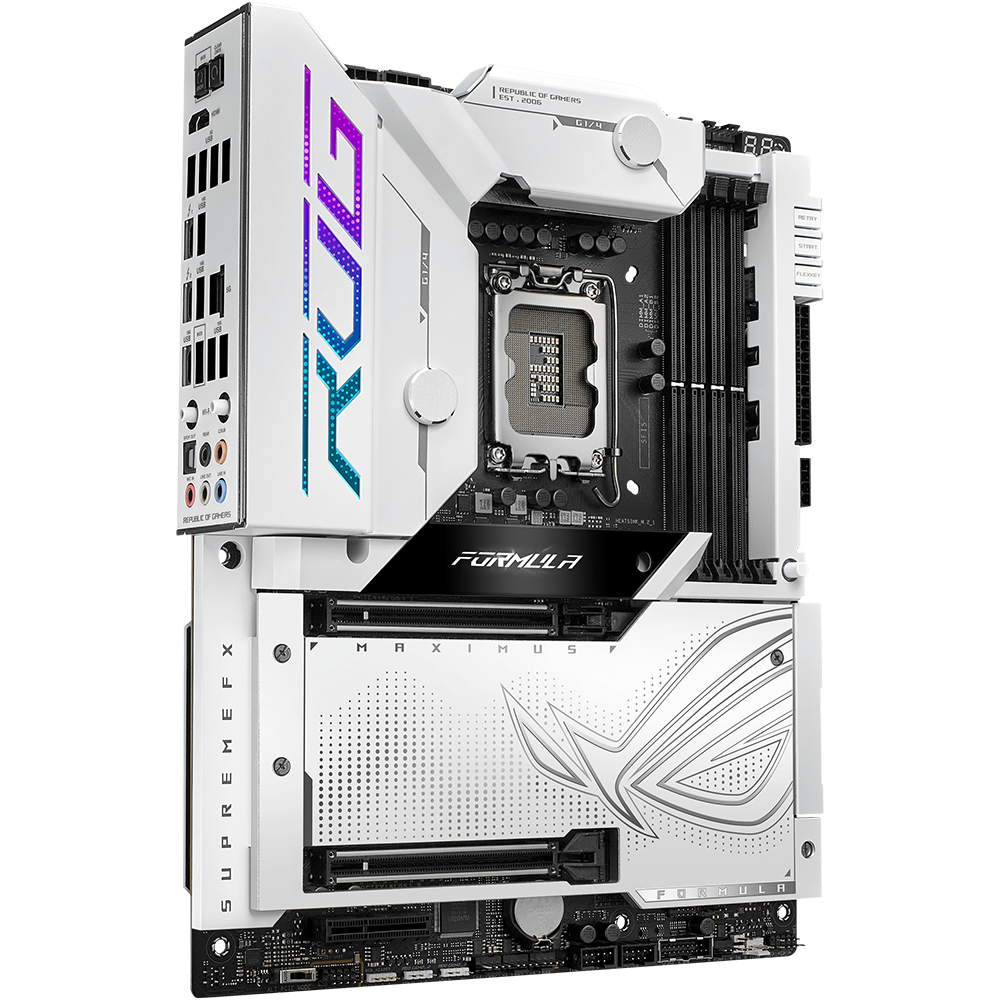

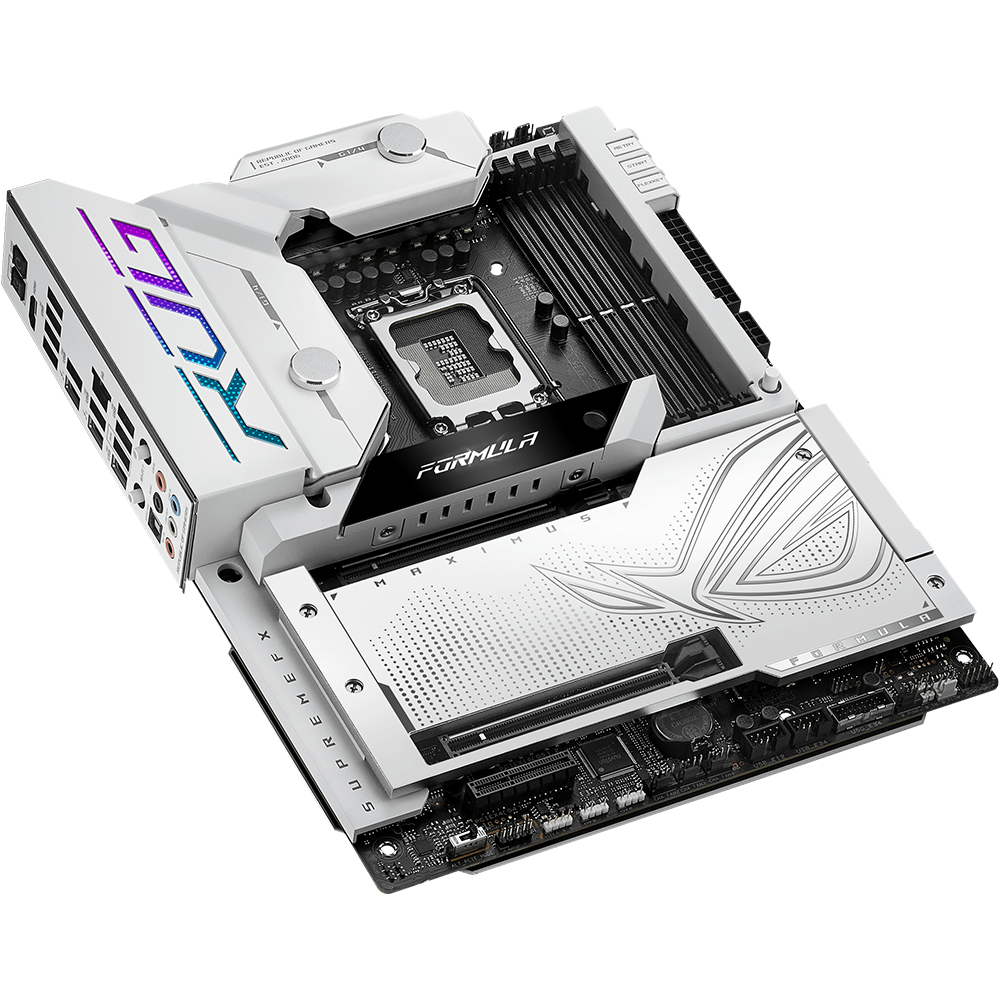

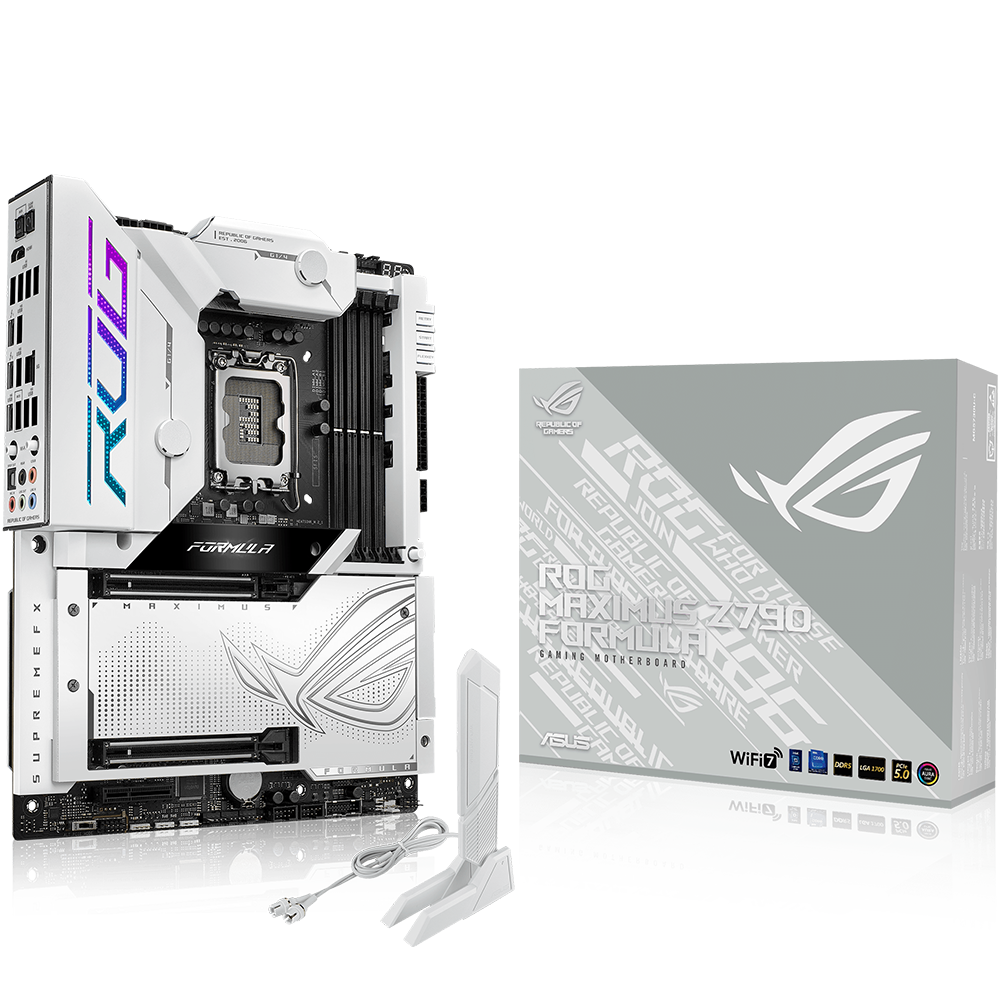

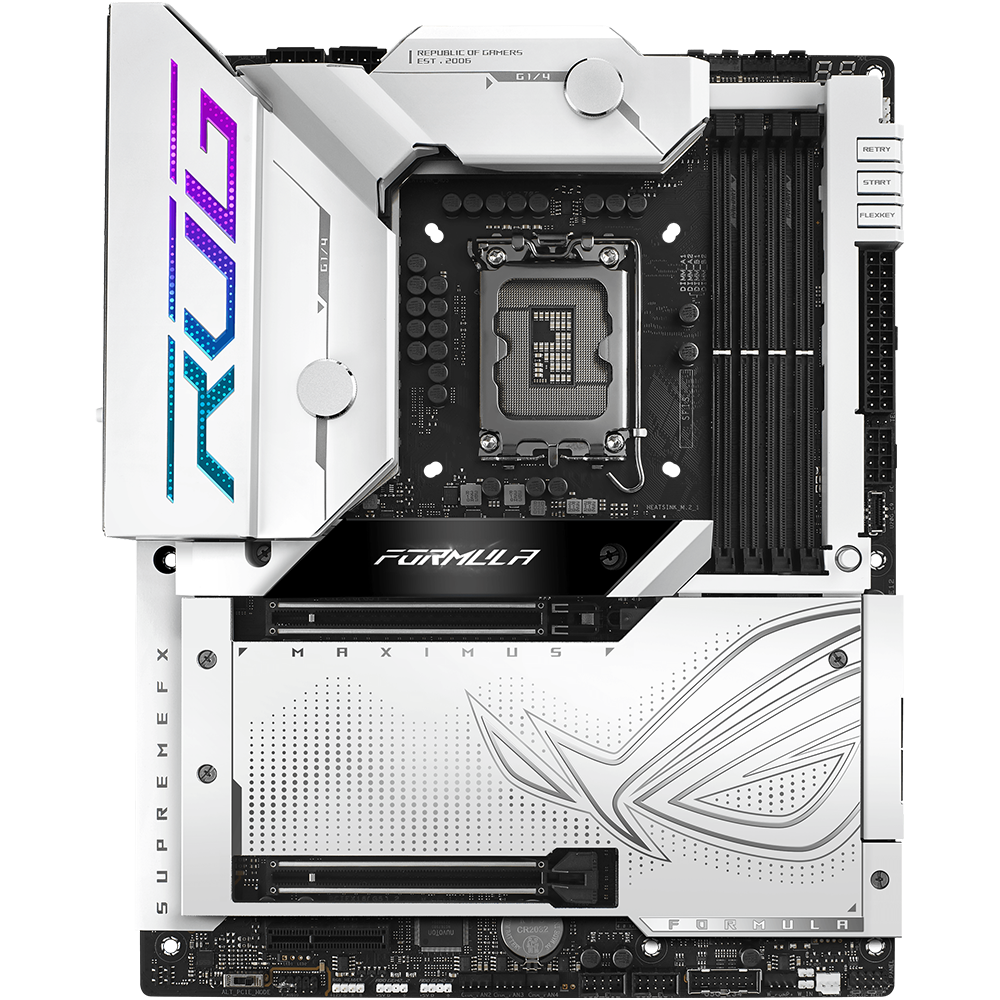

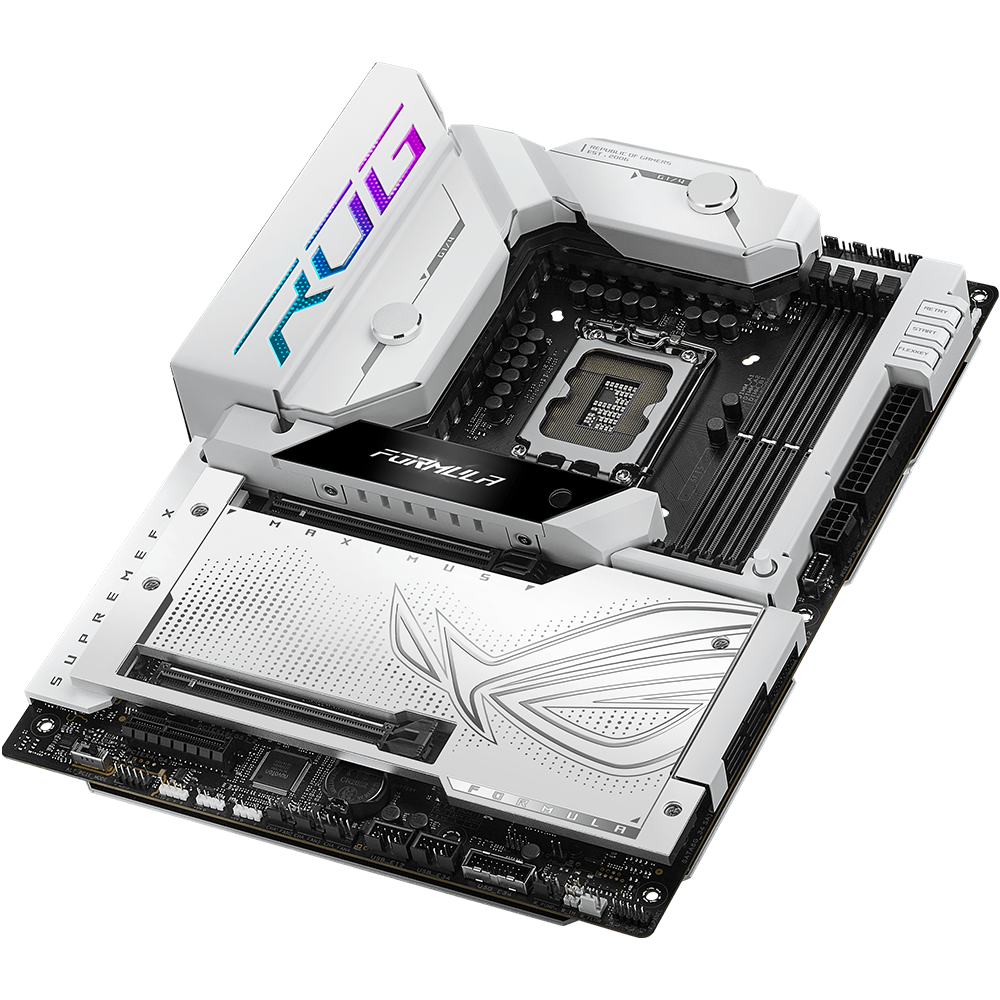

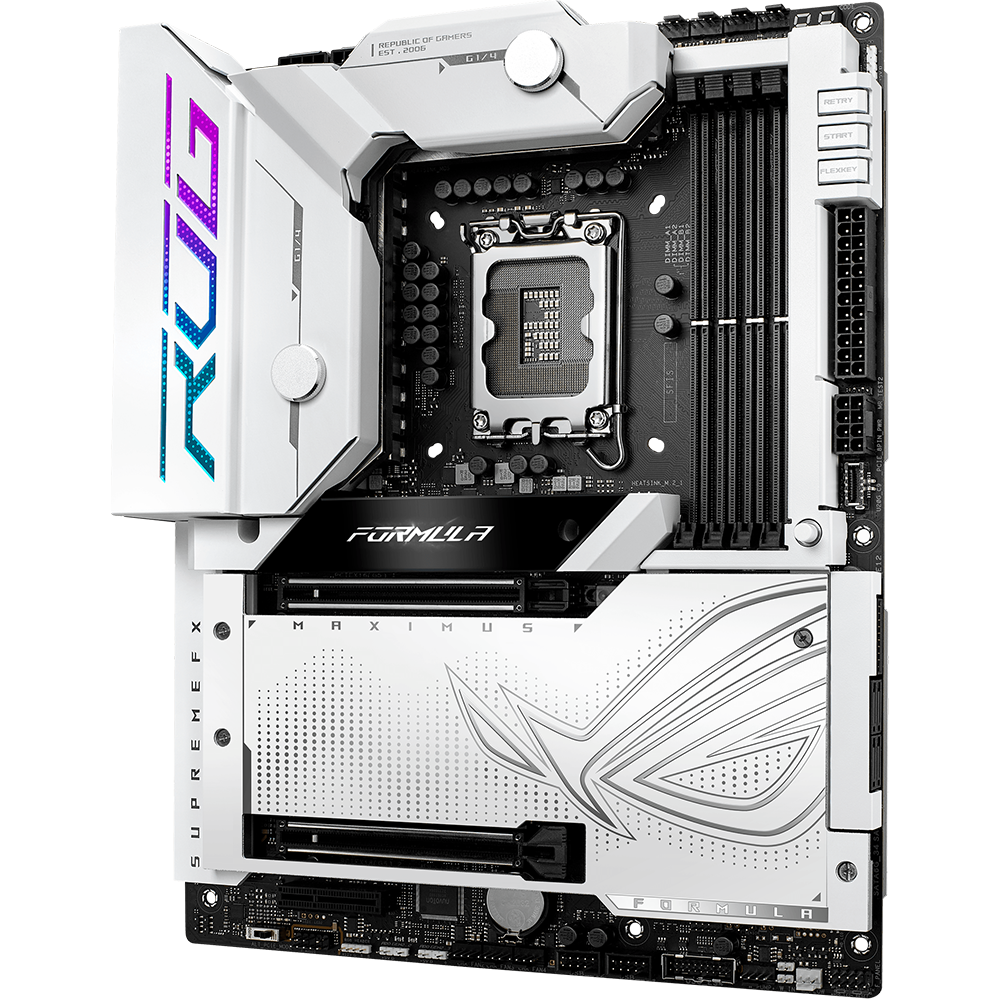

ASUS ROG MAXIMUS Z790 FORMULA LGA1700 Socket Motherboard

• Intel Z790 LGA 1700 ATX motherboard with 20+1+2 power stages, DDR5 support with AEMP II and DIMM Flex, Intel Wi-Fi 7 with ASUS WiFi Q-Antenna, five M.2 slots, PCIe 5.0 NVMe SSD slot onboard, PCIe 5.0 x16 SafeSlots with PCIe Slot Q-Release, two Thunderbolt™ 4 ports, USB 20Gbps Type-C front-panel connector with Quick Charge 4+ up to 60W, AI Overclocking, AI Cooling II, AI Networking, Two-way AI Noise Cancelation, and Aura Sync RGB lighting.

CPU

• Intel Socket LGA1700 for 14th and 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors
• Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Memory

• DDR5
• 4 x DIMM, Max. 192GB, DDR5
• Dual Channel Memory Architecture
• Supports Intel Extreme Memory Profile (XMP)
• ASUS Enhanced Memory Profile II (AEMP II)
• * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration

Expansion Slots

• 2 x PCIe 5.0 x16 slots
• 1 x PCIe 4.0 x4 slot

Storage :

• 4 x SATA 6Gb/s
• 1 x M.2 PCIe 5.0 x4

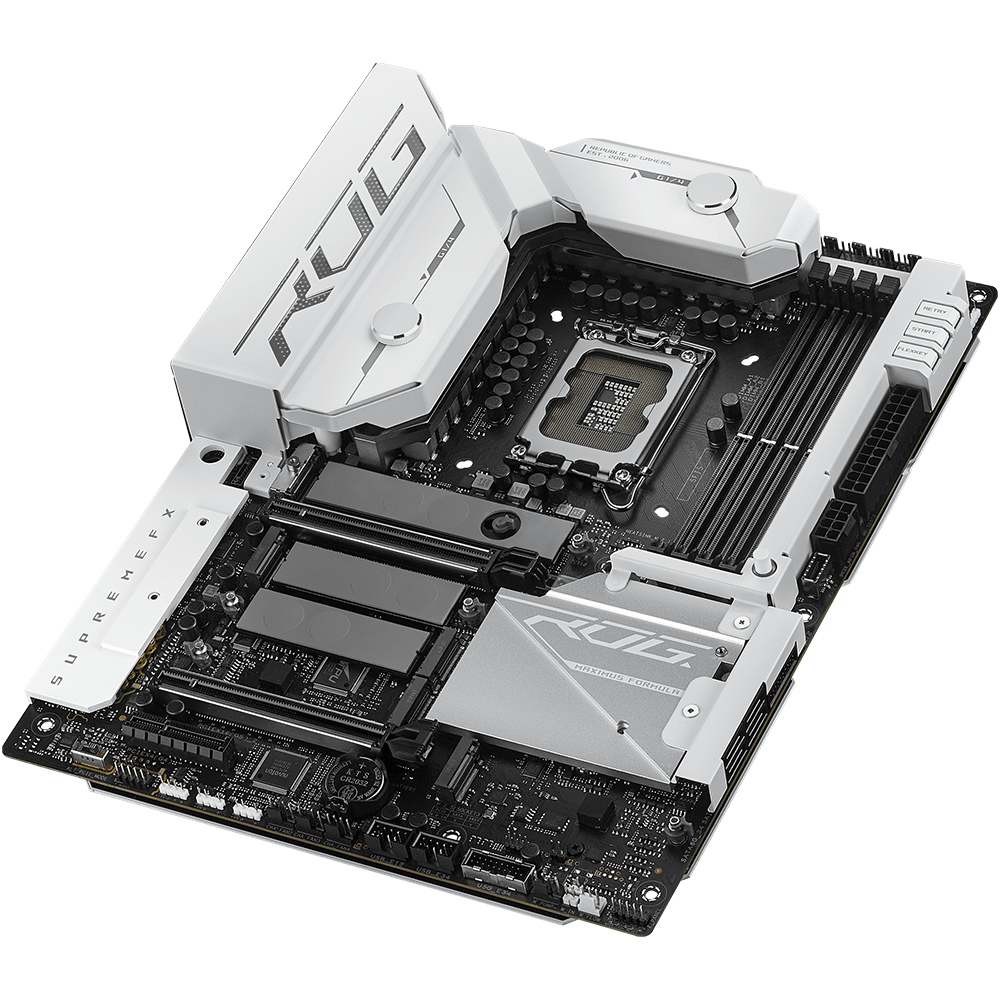

• 5 x M.2 PCIe 4.0 x4

Ethernet :

• 1 x Realtek 5Gb Ethernet
• ASUS LANGuard

Wireless & Bluetooth :

• Intel Wi-Fi 7 Supports 2.4/5/6GHz frequency band
• Bluetooth v5.4

USB:

• Rear USB (Total 12 ports)
• 2 x Thunderbolt4 ports (USB Type-C)
• 6 x USB 10Gbps ports (5x Type-A + 1x USB Type-C)
• 4 x USB 5Gbps ports (4x Type-A)
• Front USB: Total 9 ports
• 1 x USB 20Gbps connector (supports USB Type-C with up to 60W PD/QC4+)**
• 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• * USB Type-C power delivery output: max. 5V/3A
• ** USB Type-C power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A

Audio:

• ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082

Back Panel I/O Ports:

• 2 x Thunderbolt 4 USB Type-C ports
• 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C)
• 4 x USB 5Gbps ports (4 x Type-A)
• 1 x HDMI port
• 1 x Wi-Fi module
• 1 x Realtek 5Gb Ethernet port
• 5 x Gold-plated audio jacks
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack button
• 1 x Clear CMOS button

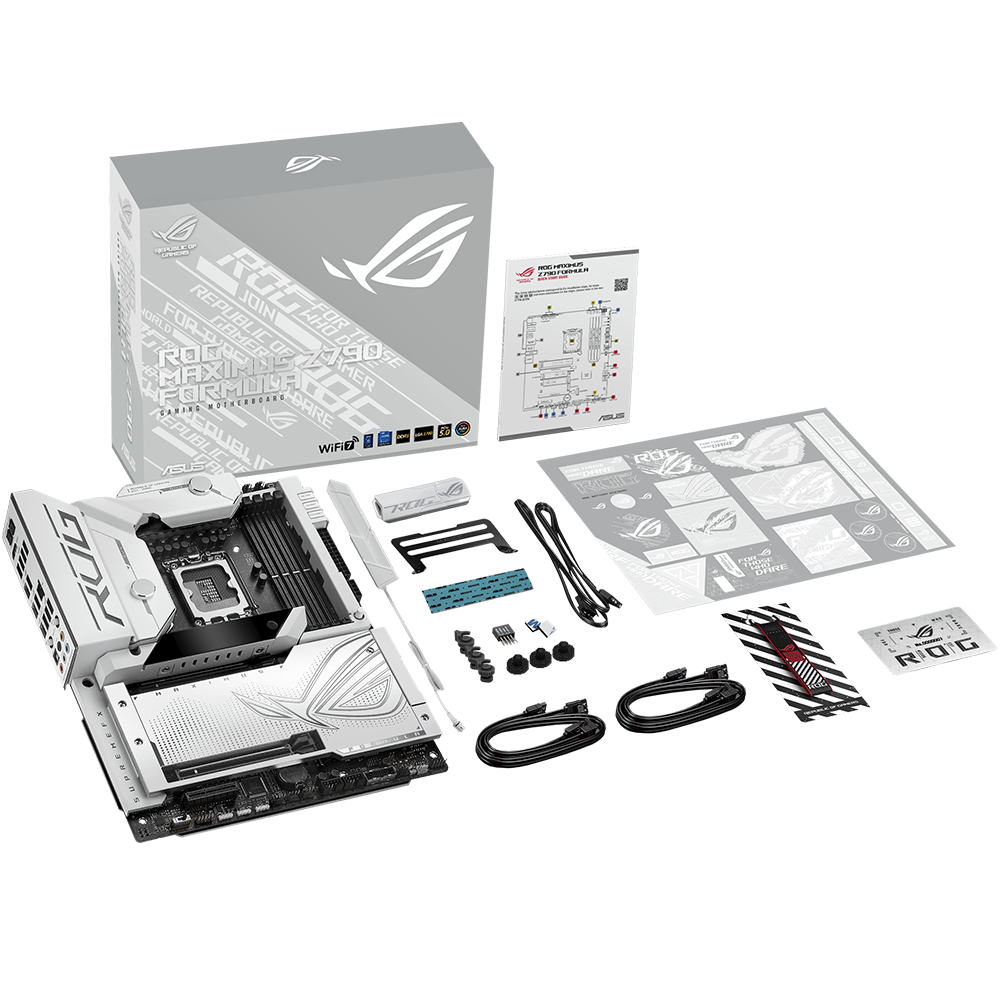

Accessories

• 1 x ARGB RGB extension cable
• 2 x ROG weave SATA 6G cables
• 2 x SATA 6Gb/s cables
• 1 x DDR5 fan holder
• 1 x Thermal pad for M.2
• 1 x ASUS WiFi Q-Antenna
• 1 x Q-connector
• 3 x M.2 backplate Q-Latch packages
• 1 x ROG key chain
• 1 x ROG stickers
• 1 x ROG VIP card
• 1 x M.2 rubber package
• 3 x M.2 backplate rubber packages
• 1 x USB drive with utilities and drivers
• 1 x Quick start guide

Form Factor :

• ATX ( 30.5 cm x 24.4 cm )

Part Number:

• 90MB1FS0-M0EAY0
