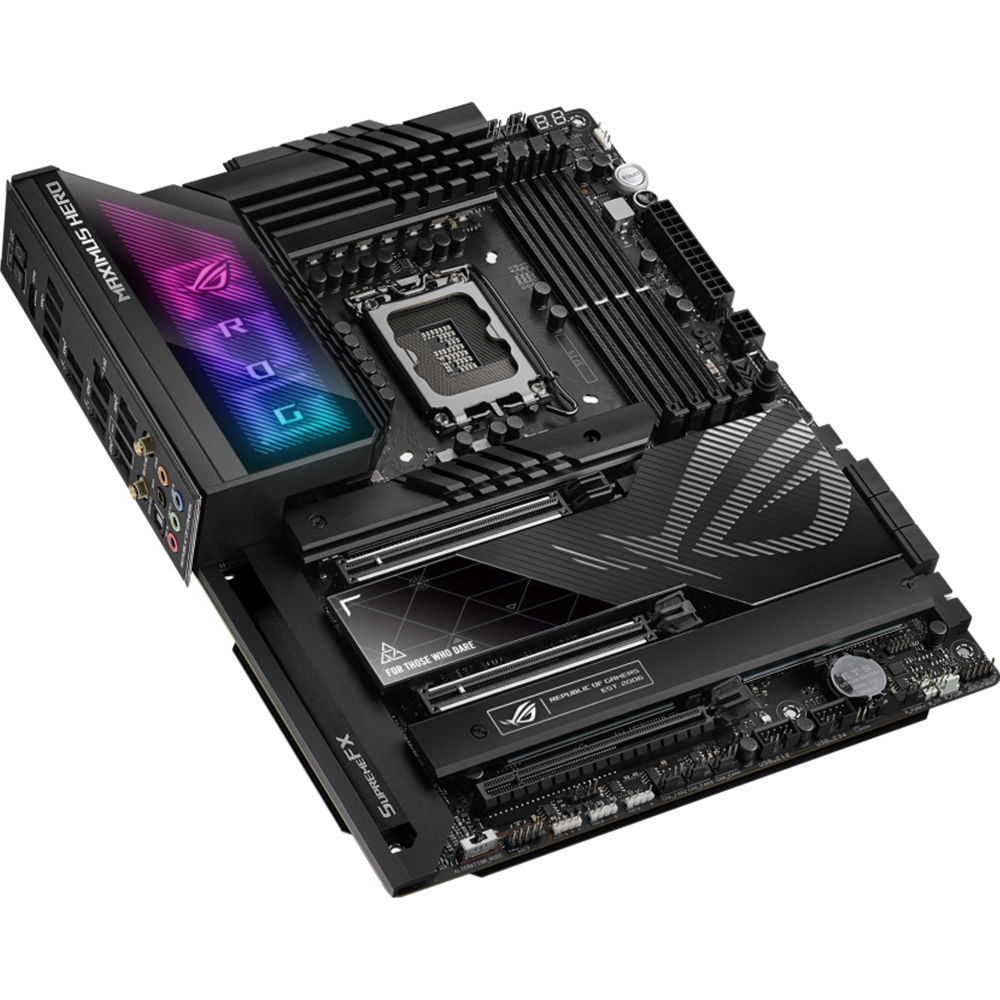

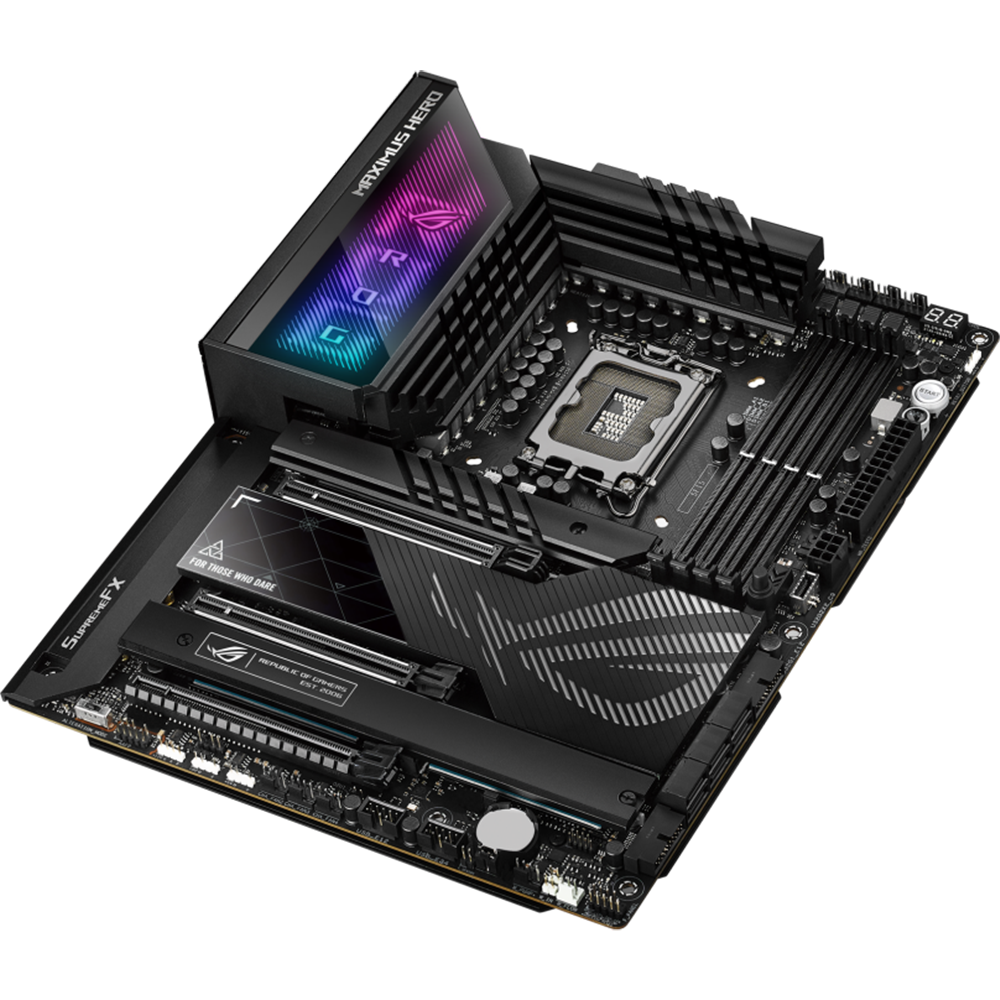

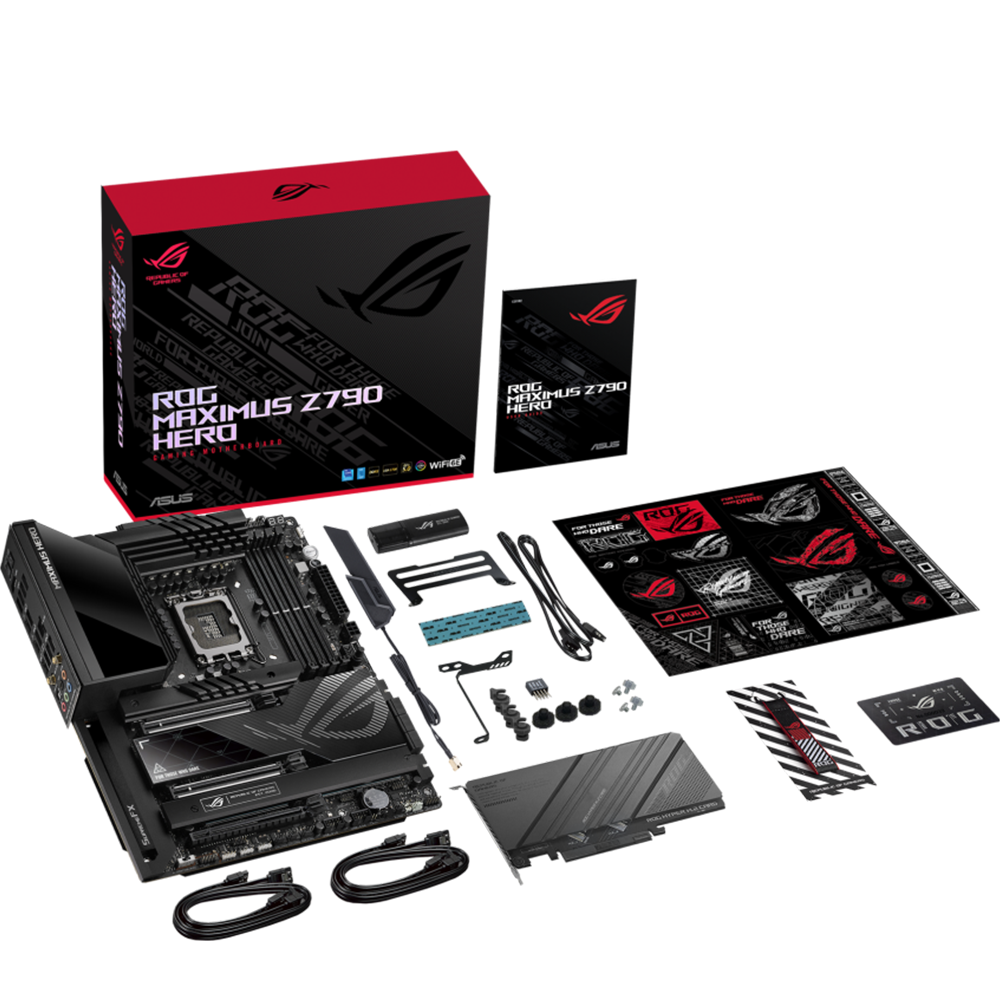

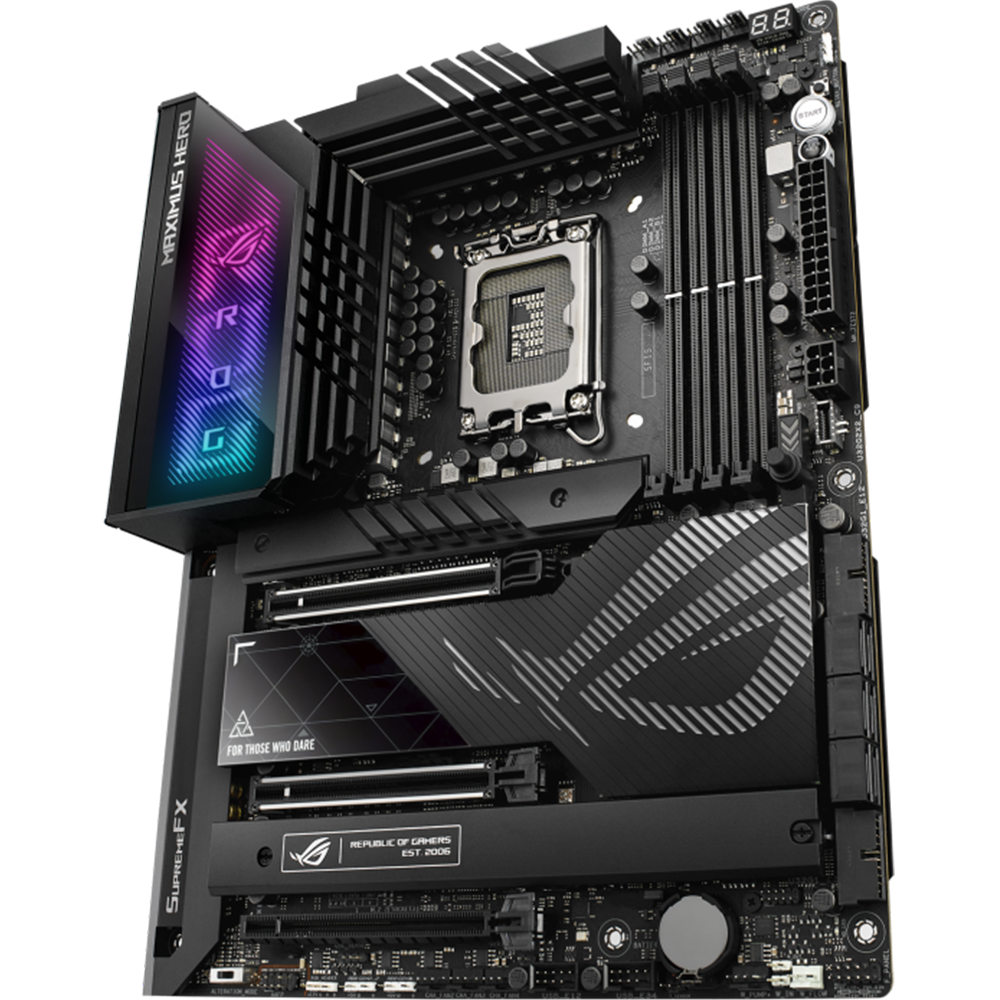

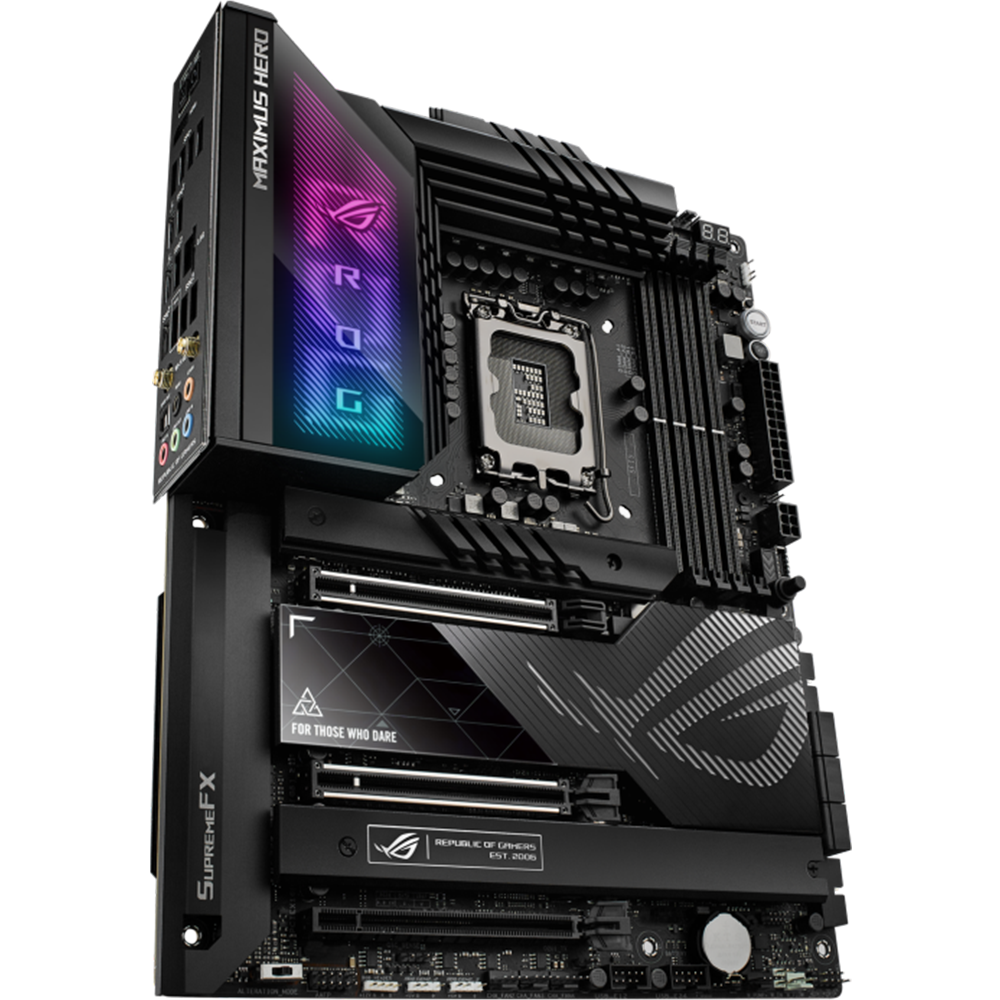

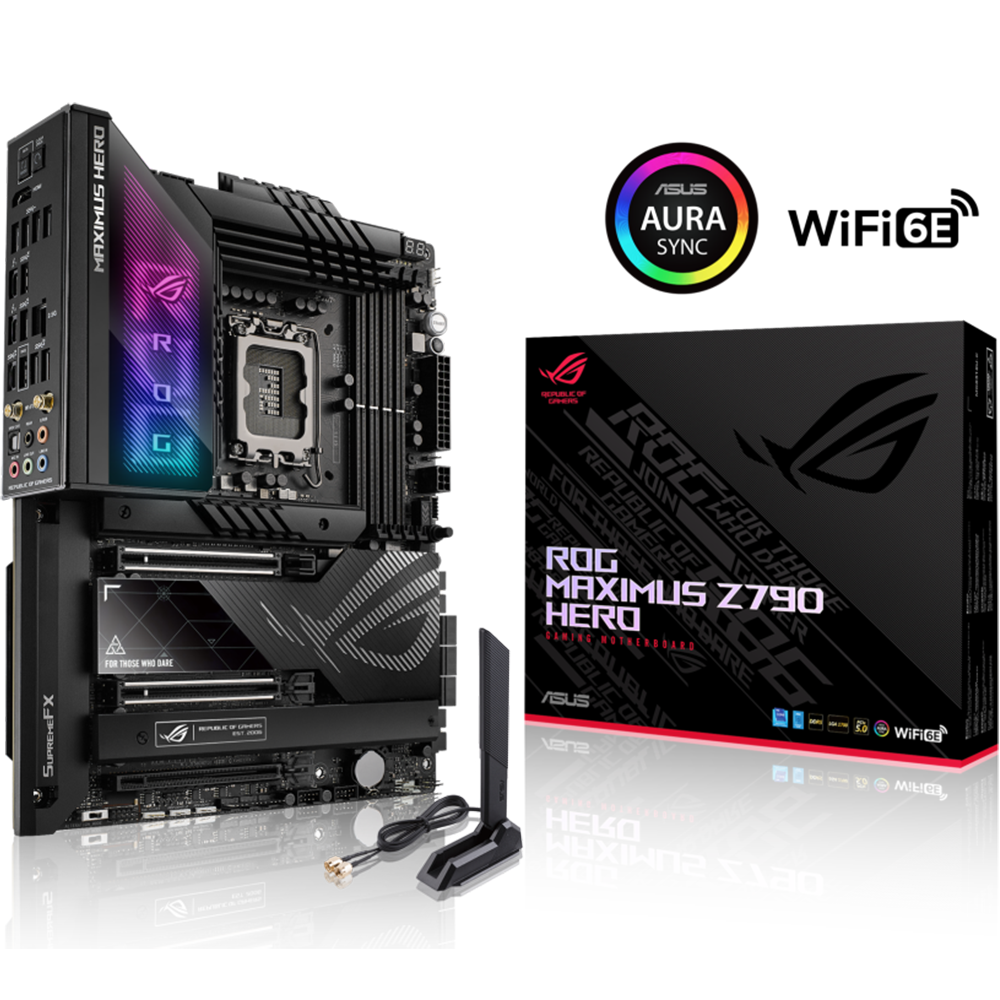

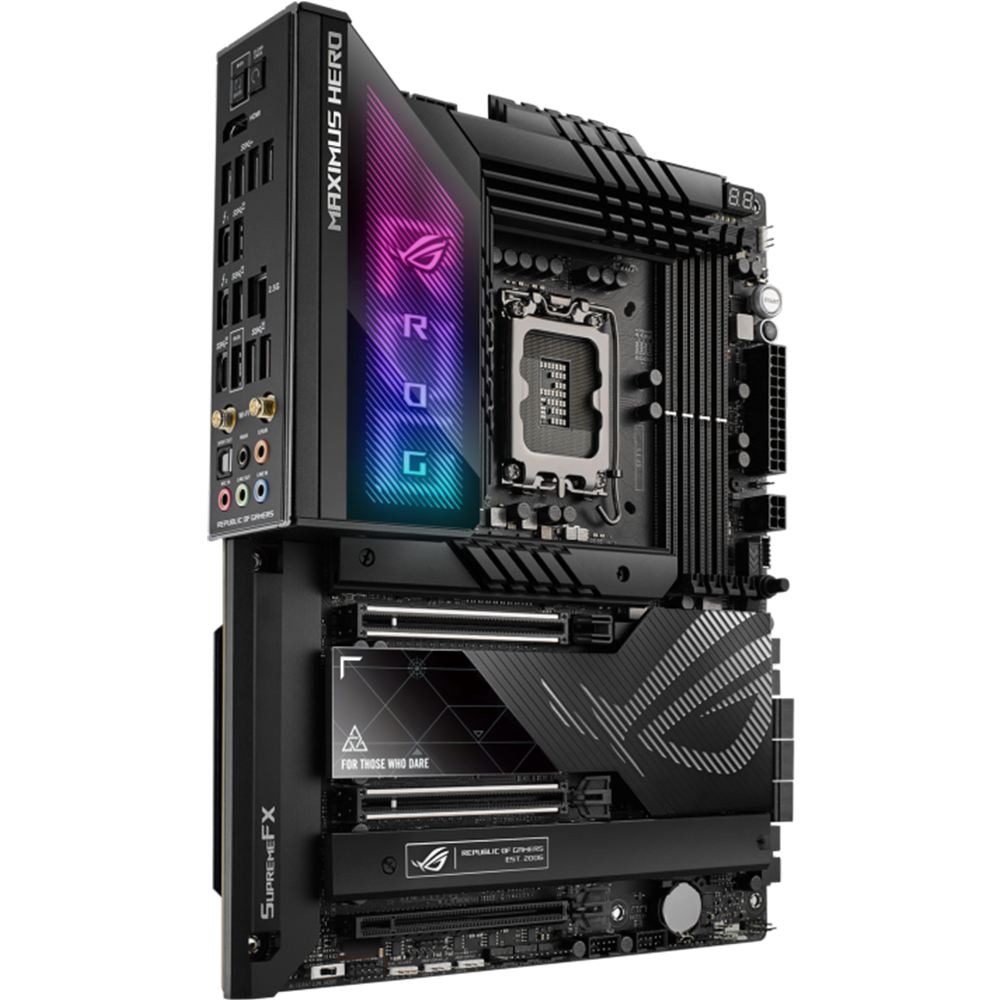

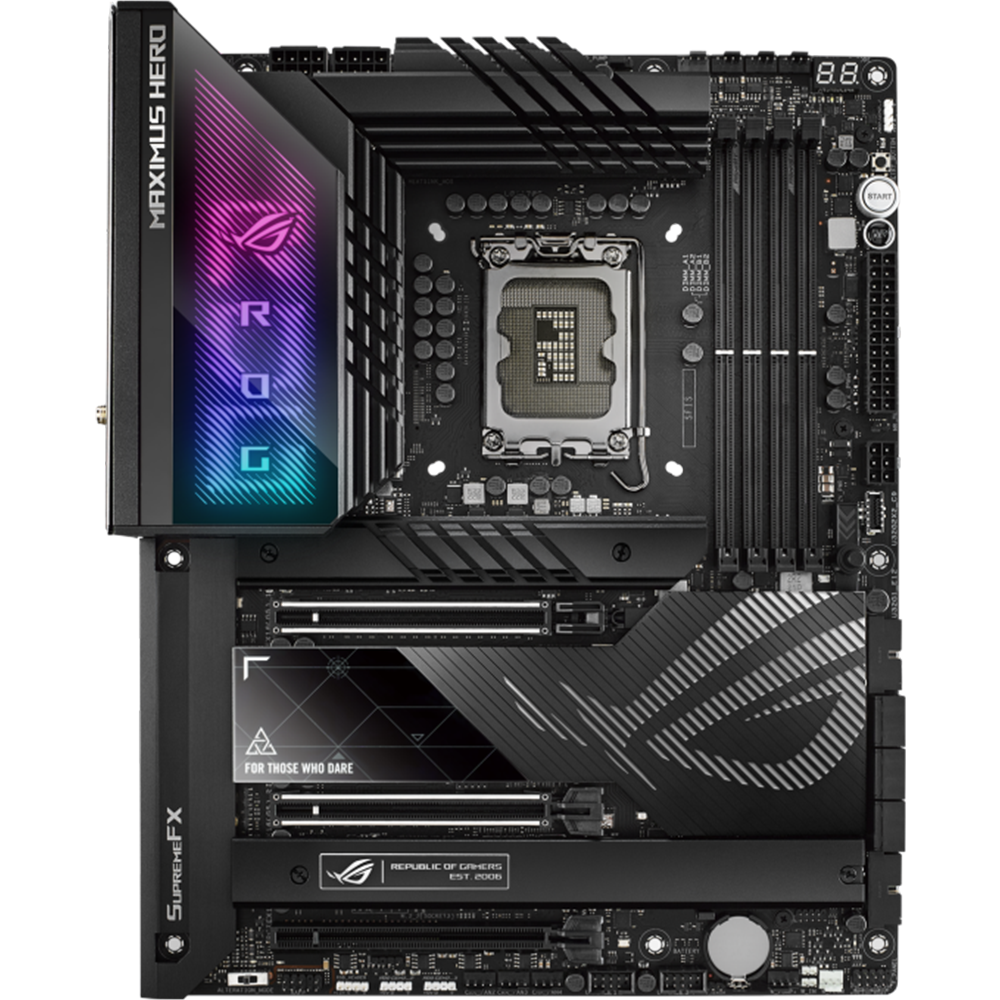

ASUS ROG MAXIMUS Z790 HERO LGA1700 Socket For intel CPUs Motherboard

• Buffed and ready with more power, robust cooling, and flexible I/O to scale up your rig at will. The ROG Maximus Z790 Hero puts it all at your disposal together with an arsenal of features and utilities to truly express the PC builder, overclocker, and gaming hero in you.

CPU

• Intel Socket LGA1700 for 14th and 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors
• Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Memory

• DDR5
• 4 x DIMM, Max. 192GB, DDR5
• Dual Channel Memory Architecture
• Supports Intel Extreme Memory Profile (XMP)
• * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration

Expansion Slots

• 2 x PCIe 5.0 x16 slot
• 1 x PCIe 4.0 x16 slot

Storage :

• 6 x SATA 6Gb/s
• 1 x M.2 PCIe 5.0 x4
• 4 x M.2 PCIe 4.0 x4

Ethernet :

• 1 x Intel 2.5Gb Ethernet
• ASUS LANGuard

Wireless & Bluetooth

• Wi-Fi 6E Supports 2.4/5/6GHz frequency band*
• Bluetooth v5.2 hardware ready**
• * WiFi 6E 6GHz regulatory may vary between countries.
• ** Bluetooth v5.2 function will be ready in Windows 11 or later.

USB

• Rear USB (Total 12 ports)
• 2 x Thunderbolt 4 ports (USB Type-C)
• 6 x USB 3.2 Gen 2 ports (5 x Type-A + 1 x USB Type-C)
• 4 x USB 3.2 Gen 1 ports (Type-A)
• Front USB: Total 7 ports
• 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C with up to 60W PD/QC4+)
• 2 x USB 3.2 Gen 1 headers additional 4 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio

• ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082

Back Panel I/O Ports

• 2 x Thunderbolt 4 USB Type-C ports
• 6 x USB 3.2 Gen 2 ports (5 x Type-A + 1 x USB Type-C)
• 4 x USB 3.2 Gen 1 ports (4 x Type-A)
• 1 x HDMI port
• 1 x Wi-Fi Module
• 1 x Intel 2.5Gb Ethernet port
• 5 x Gold-plated audio jacks
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack button
• 1 x Clear CMOS button

Form Factor :

• ATX ( 30.5 cm x 24.4 cm )

Part Number:

• 90MB1CI0-M0EAY00
