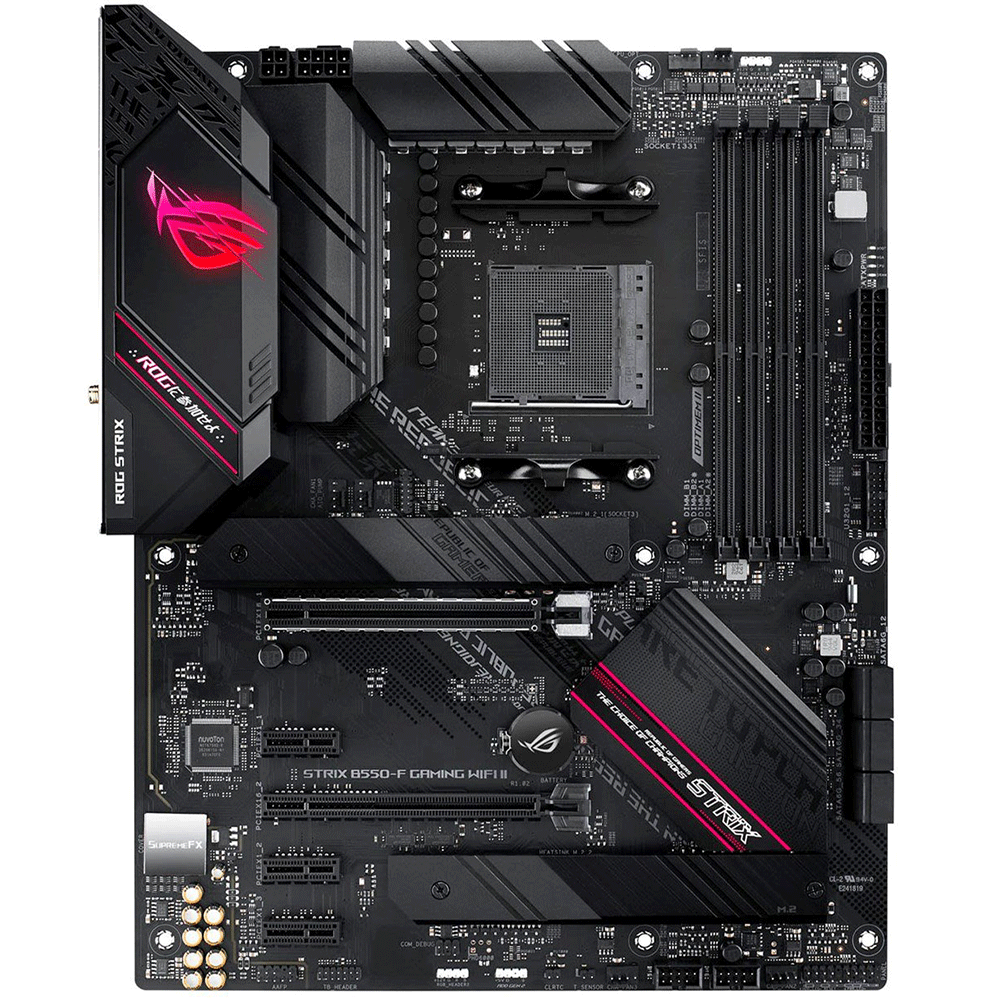

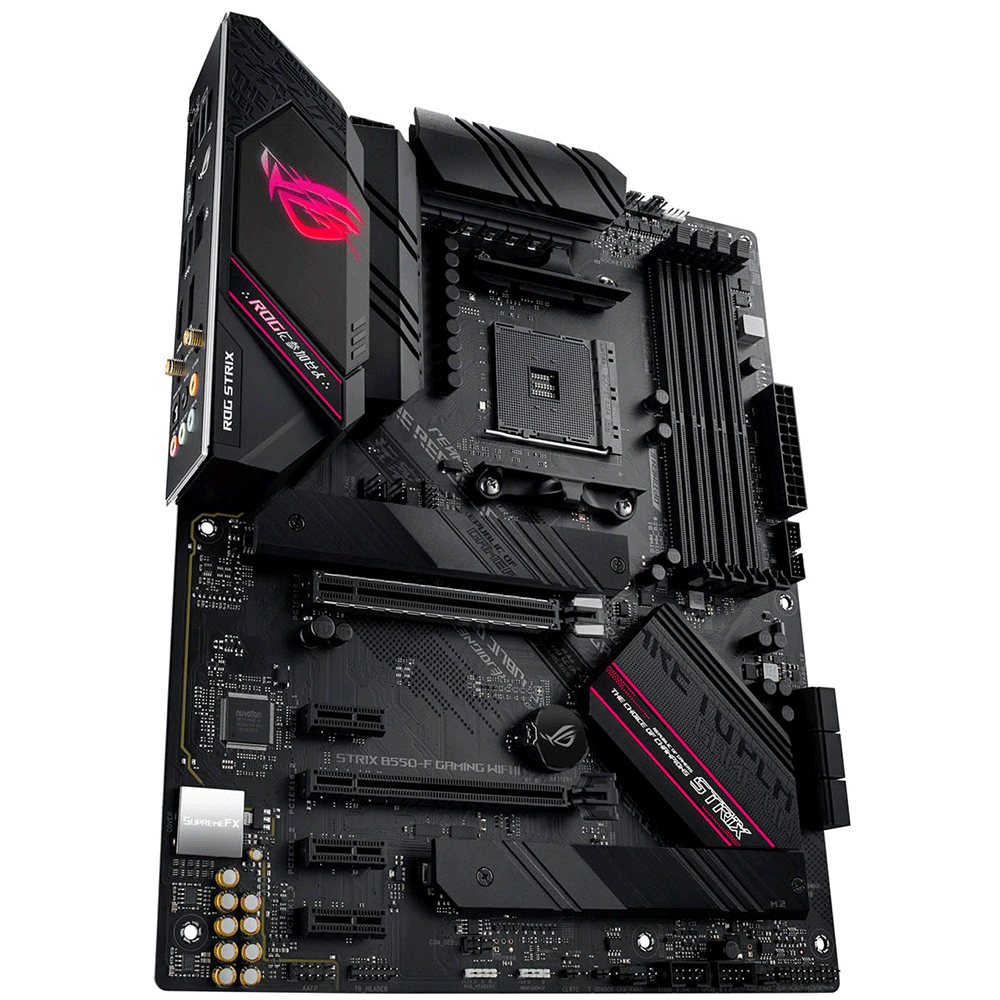

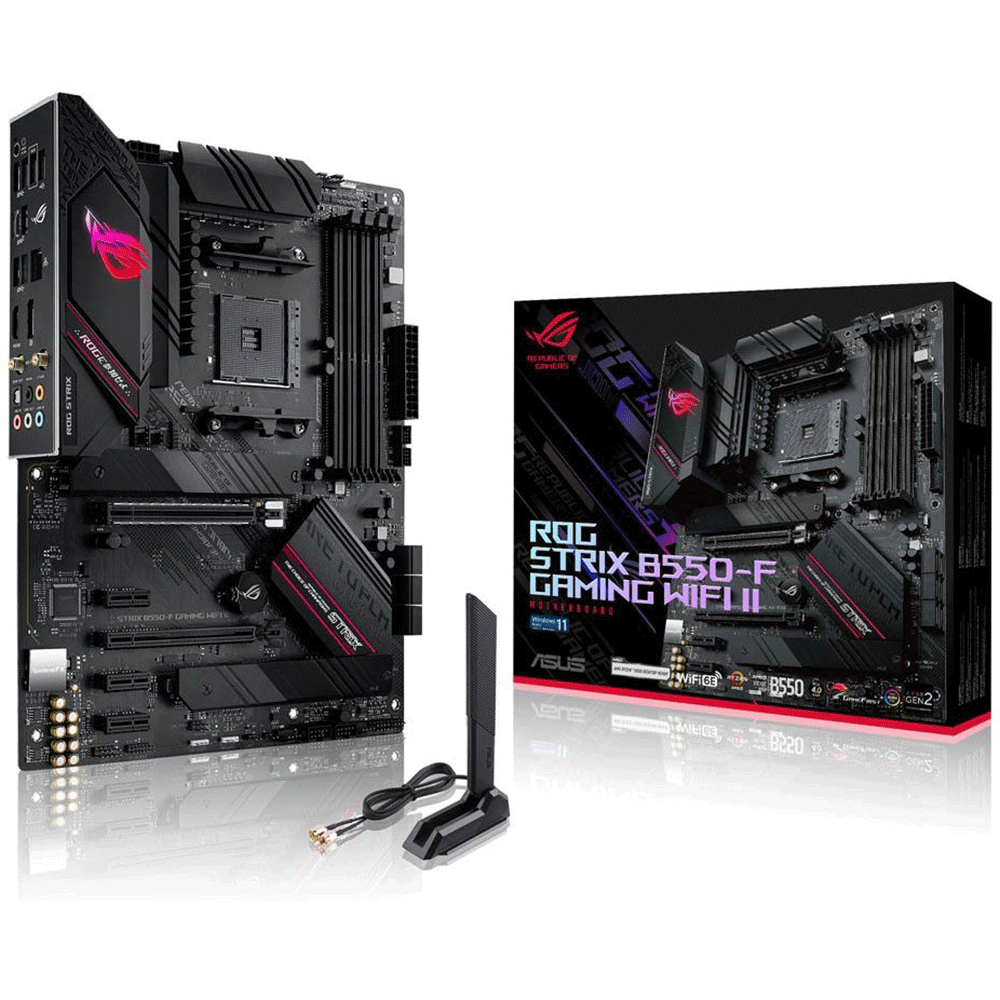

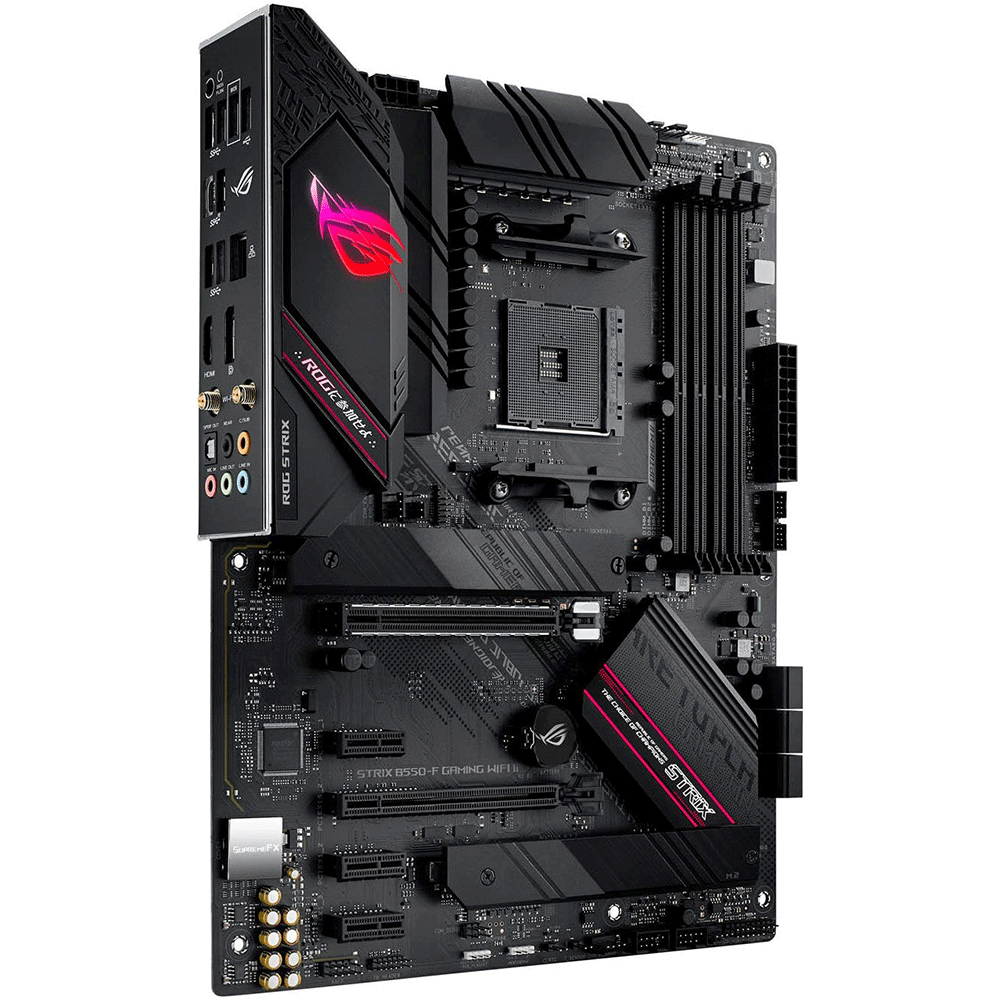

ASUS ROG STRIX B550-F GAMING WIFI II DDR4 AM4 Socket For AMD CPUs Motherboard

• AMD B550 Ryzen AM4 Gaming ATX motherboard with PCIe 4.0, 12+2 teamed power stages, Intel 2.5 Gb Ethernet, WiFi 6E, Two-Way AI Noise Cancelation, dual M.2 slots with heatsinks, SATA 6 Gbps, USB 3.2 Gen 2 and Aura Sync RGB lighting

CPU

• AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processor

Memory

• DDR4
• 4 x DIMM, Max. 128GB, DDR4
• Dual Channel Memory Architecture

Expansion Slots

• 1 x PCIe 4.0 x16 Slot
• 2 x PCIe 3.0 x1 Slots
• 3 x PCIe 3.0 x1 slots

Storage :

• 6 x SATA 6Gb/s
• 1 x M.2 PCIe 4.0 x4
• 1 x M.2 PCIe 3.0 x4

Ethernet :

• 1 x Intel 2.5Gb Ethernet
• 1 x Intel I225-V 2.5Gb Ethernet
• ASUS LANGuard

Wireless & Bluetooth :

• Wi-Fi 6E Supports 2.4/5/6GHz frequency band*
• Bluetooth v5.2
• * WiFi 6E 6GHz regulatory may vary between countries

Audio

• ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A

USB :

• Rear USB: Total 8 ports
• 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®)
• 4 x USB 3.2 Gen 1 ports (4 x Type-A)
• 2 x USB 2.0 ports
• Front USB: Total 6 ports
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports

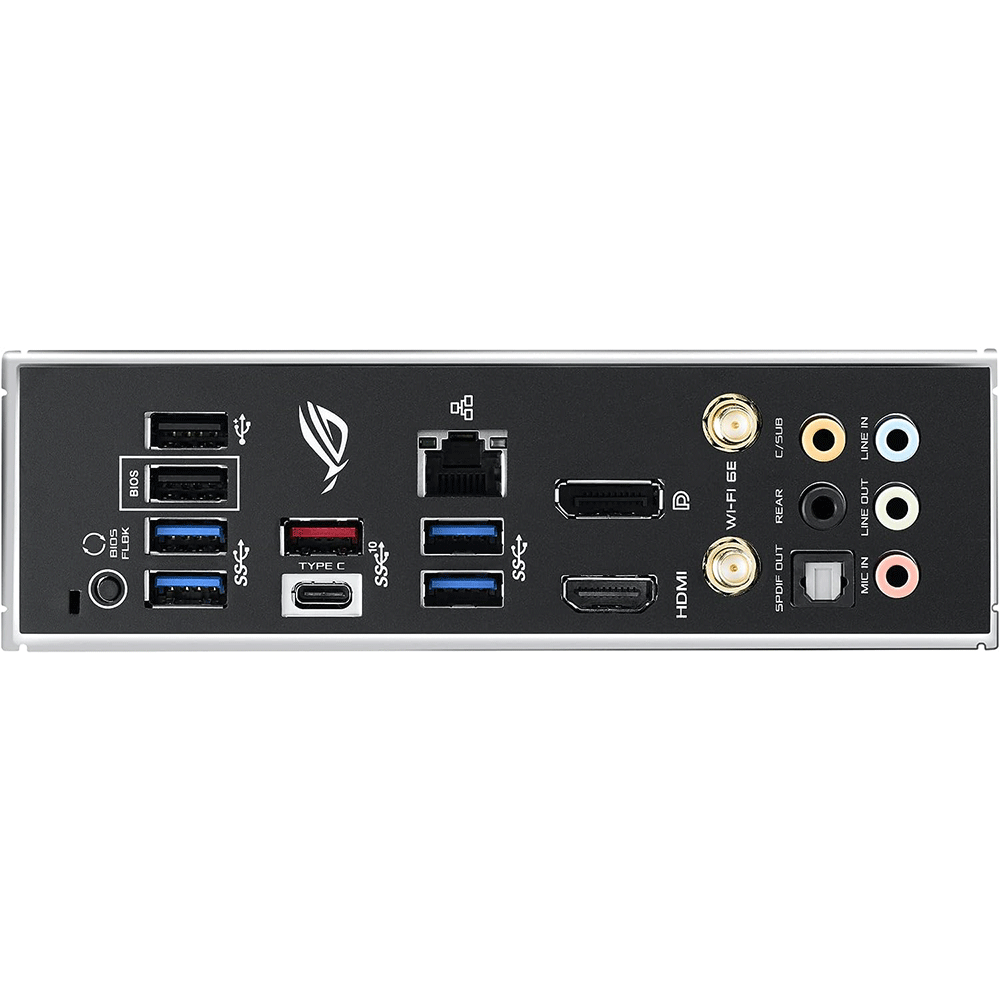

Back Panel I/O Ports

• 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C)
• 4 x USB 3.2 Gen 1 ports (4 x Type-A)
• 2 x USB 2.0 ports
• 1 x Wi-Fi Module
• 1 x DisplayPort
• 1 x HDMI® port
• 1 x Intel® I225-V 2.5G Ethernet
• 1 x Optical S/PDIF out
• 5 x Audio jacks
• 1 x BIOS FlashBackTM button

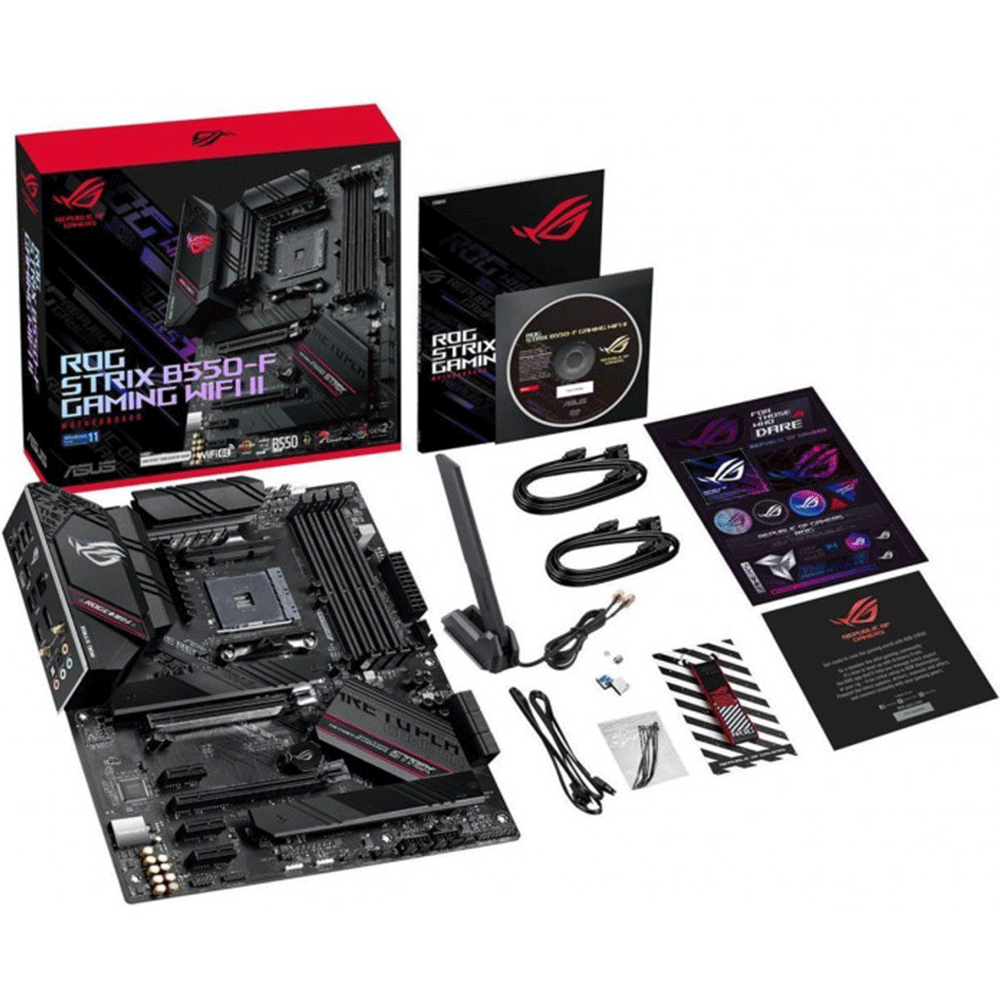

Accessories

• 1 x Addressable RGB extension cable
• 4 x SATA 6Gb/s cables
• 1 x ASUS Wi-Fi moving antennas
• 1 x Cable ties pack
• 1 x M.2 Rubber Package
• 1 x M.2 SSD screw package
• 1 x ROG key chain
• 1 x ROG Strix stickers
• 1 x ROG Strix thank you card
• 1 x Support DVD
• 1 x User manual

Form Factor :

• ATX ( 30.5 cm x 24.4 cm )

Part Number:

• 90MB19V0-M0EAY0
