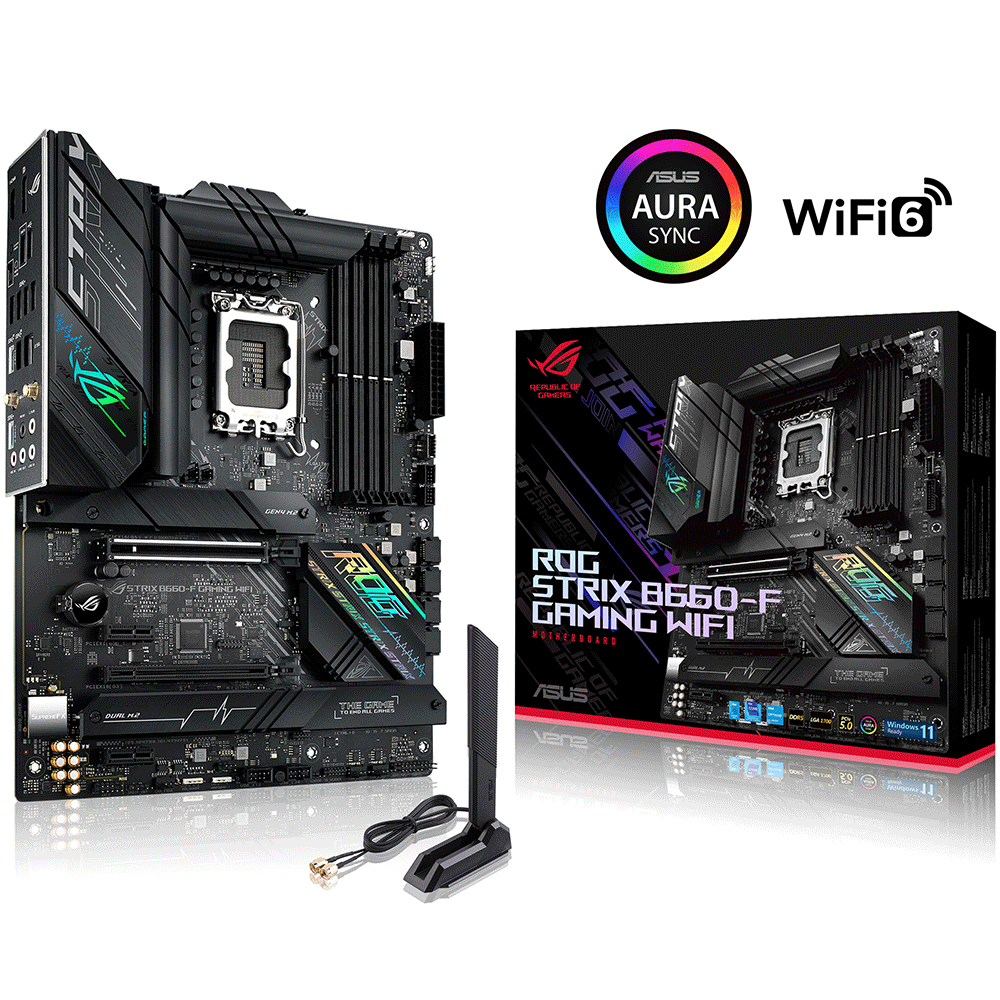

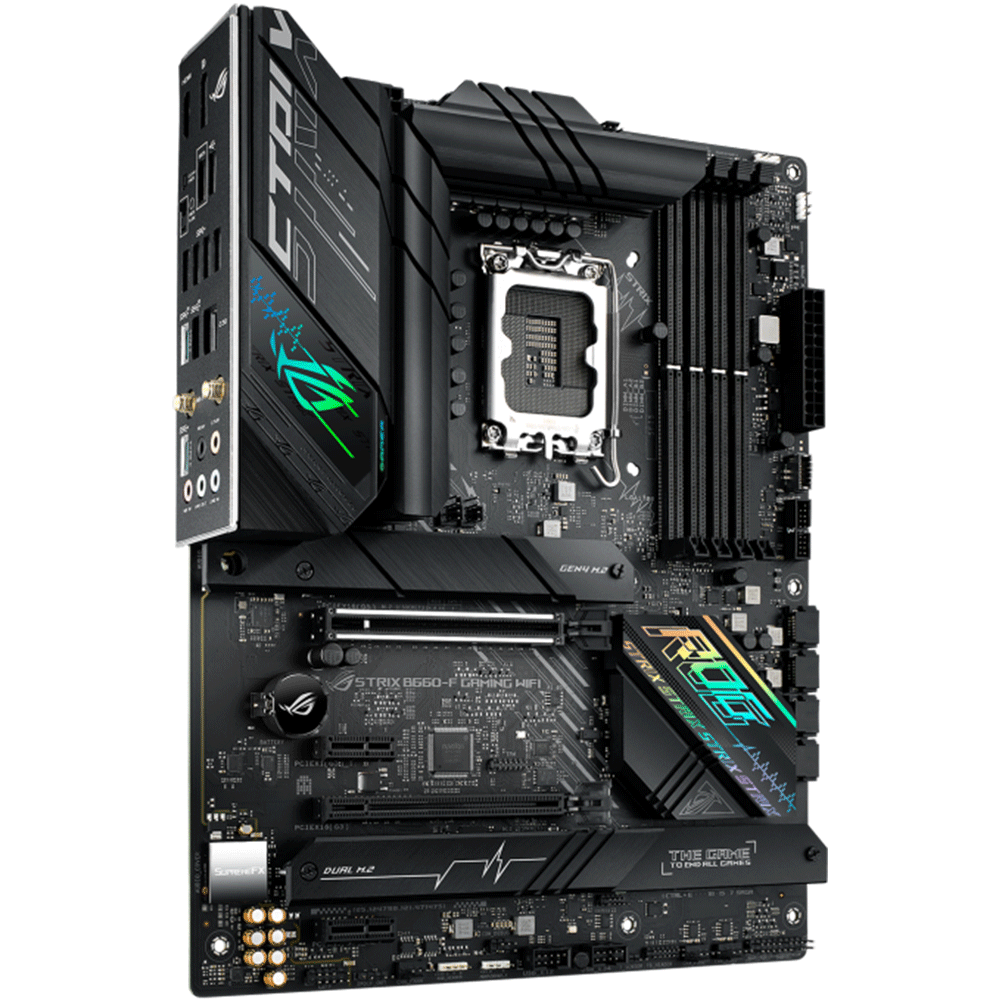

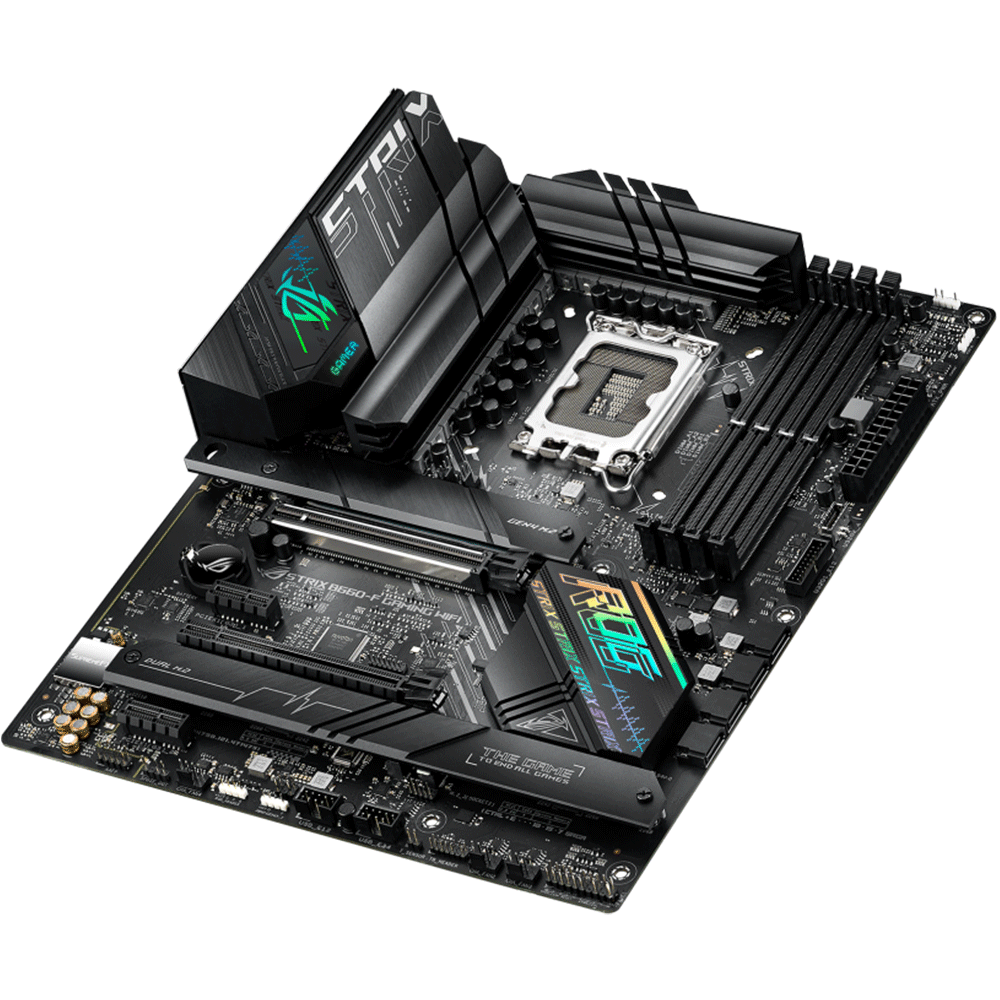

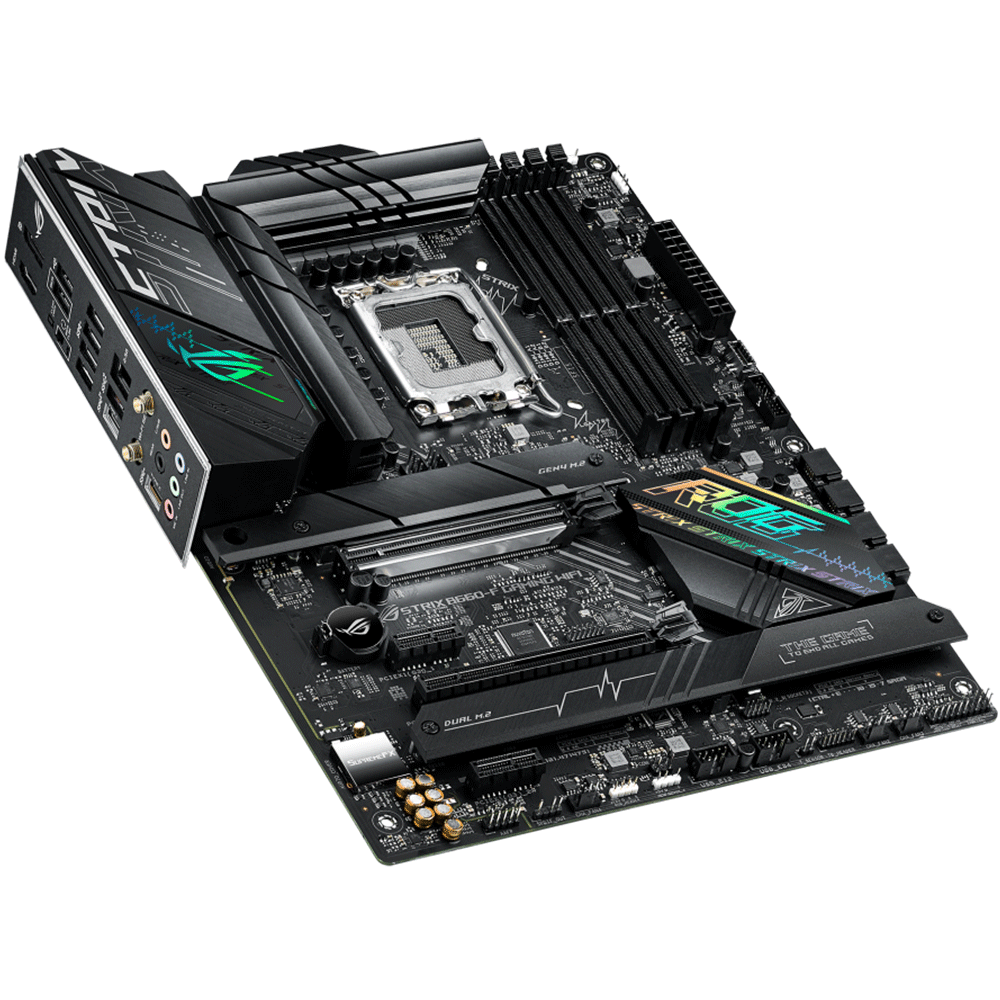

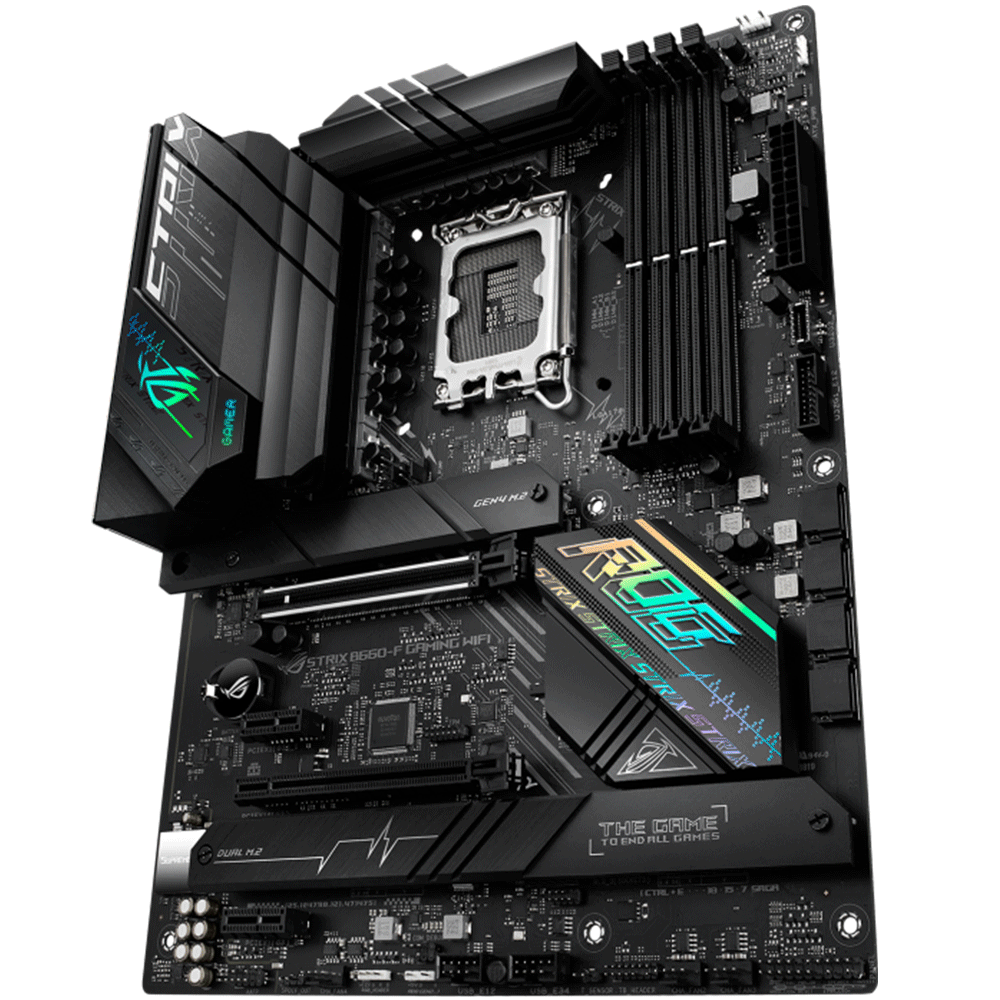

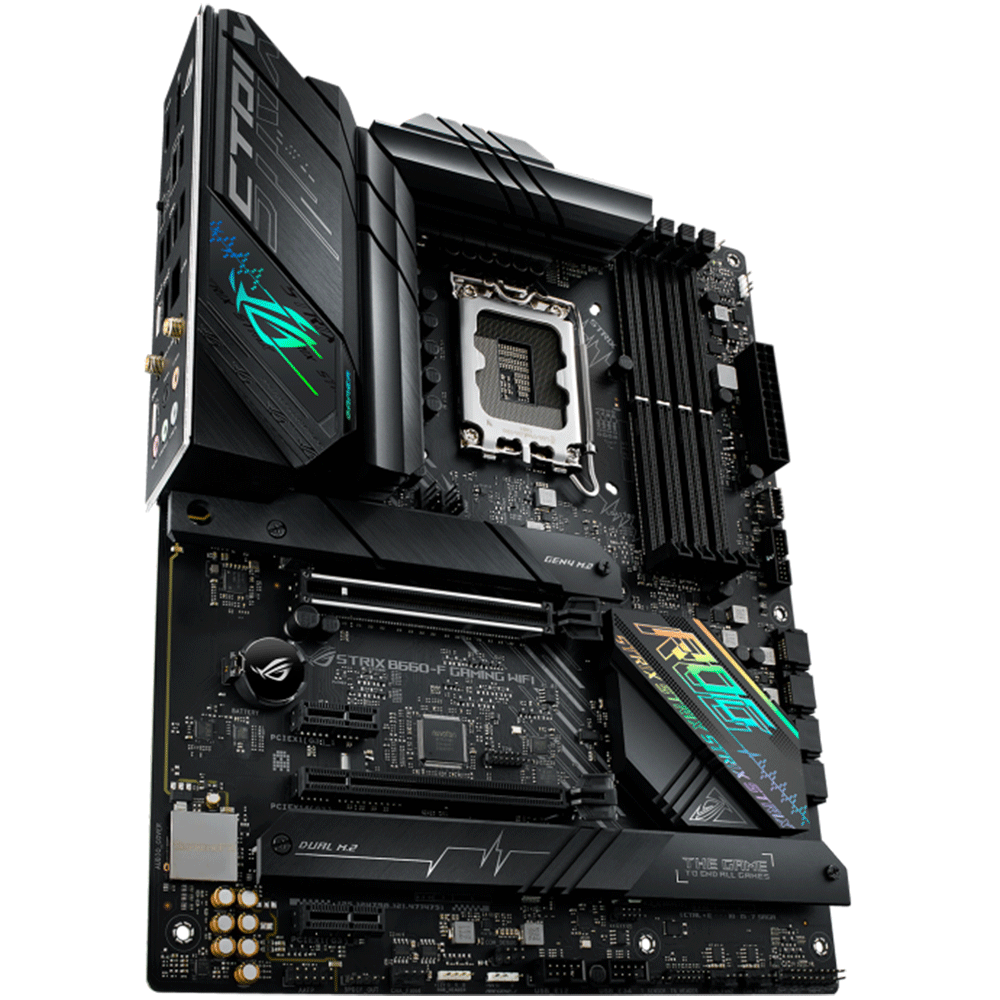

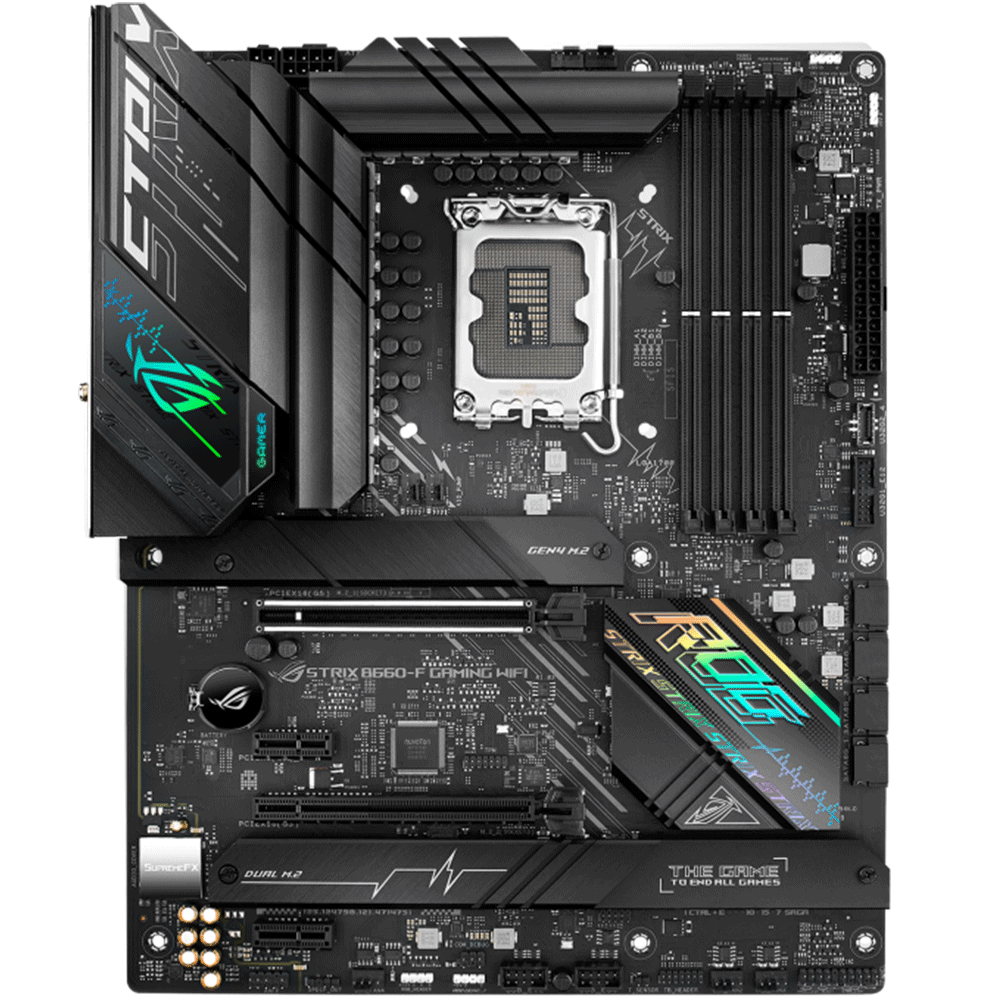

ASUS ROG STRIX B660-F GAMING WIFI LGA1700 Socket For intel CPUs Motherboard

• Intel B660 LGA 1700 ATX motherboard with PCIe 5.0, 16+1 power stages, DDR5 memory support, Two-Way AI Noise Cancelation, AI Cooling, AI Networking, WiFi 6 (802.11ax), Intel 2.5 Gb Ethernet, three M.2 slots with heatsinks, PCIe 4.0 NVMe SSD support, M.2 backplates, USB 3.2 Gen 2x2 Type-C, SATA and Aura Sync RGB lighting

CPU

• Intel Socket LGA1700 for 14th and 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors
• Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Memory

• DDR5
• 4 x DIMM, Max. 196GB, DDR5 6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800
• Dual Channel Memory Architecture
• Supports Intel Extreme Memory Profile (XMP)
• OptiMem II

Expansion Slots

• 1 x PCIe 5.0 x16 slot
• 1x PCIe 3.0 x16 slot
• 2 x PCIe 3.0 x1 slots

Storage :

• 4 x SATA 6Gb/s
• 2 x M.2 PCIe 4.0 x4
• 1 x M.2 PCIe 3.0 x4

Ethernet :

• 1 x Intel® 2.5Gb Ethernet
• ASUS LANGuard

Wireless & Bluetooth

• Wi-Fi 6 Supports 2.4/5GHz frequency band
• Bluetooth® v5.2

USB

• Rear USB (Total 9 ports)
• 1 x USB 3.2 Gen 2x2 port (USB Type-C)
• 1x USB 3.2 Gen 2 ports (Type-A)
• 5 x USB 3.2 Gen 1 ports (4x Type-A + 1x Type-C)
• 2 x USB 2.0 ports (Type-A)
• Front USB: Total 7 ports
• 1 x USB 3.2 Gen 2 connector (support USB Type-C)
• 1 x USB 3.2 Gen 1 header support additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 header support additional 4 USB 2.0 ports

Audio

• ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

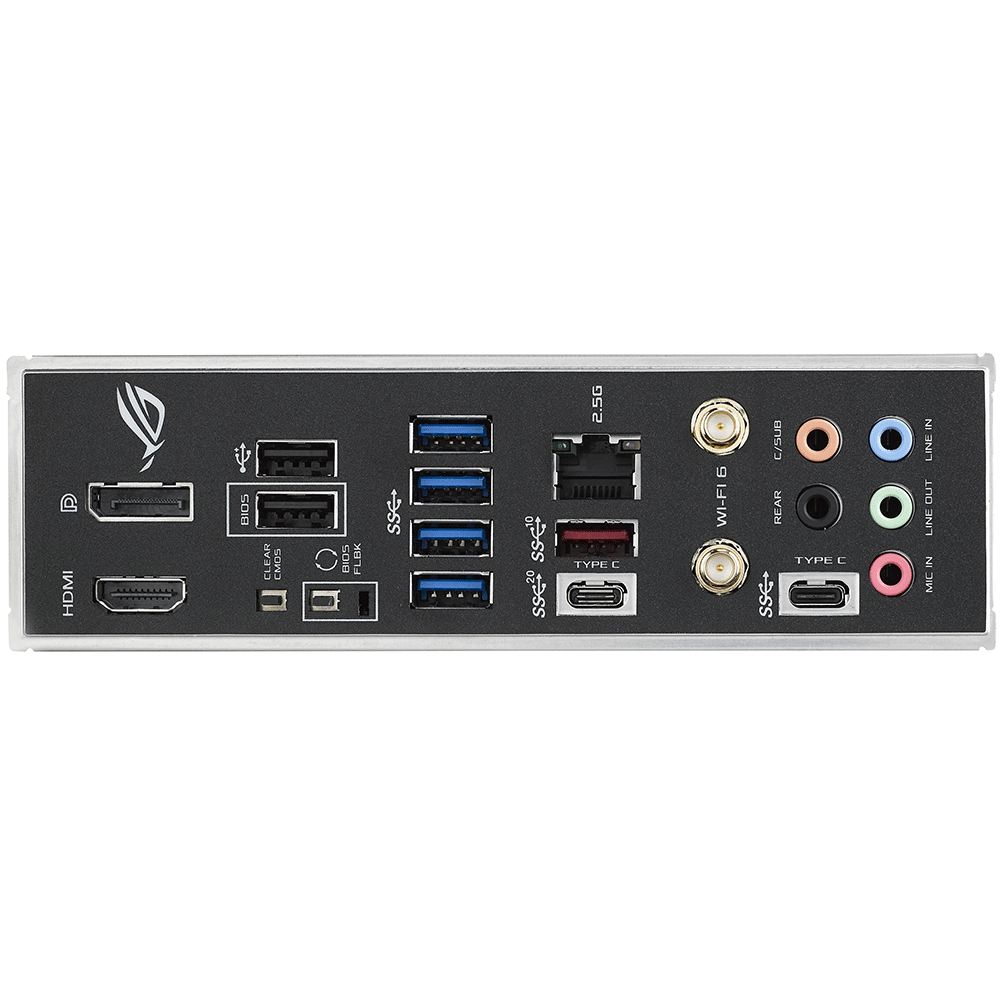

Back Panel I/O Ports

• 1 x USB 3.2 Gen 2x2 port (USB Type-C)
• 1 x USB 3.2 Gen 2 ports (Type-A)
• 5 x USB 3.2 Gen 1 ports (4x Type-A, 1x USB Type-C)
• 2 x USB 2.0 ports (Type-A)
• 1 x DisplayPort
• 1 x HDMI port
• 1 x Wi-Fi Module
• 1 x Intel® I225-V 2.5Gb Ethernet
• 5 x Audio jacks
• 1 x BIOS FlashBack button
• 1 x Clear CMOS button

Accessories

• 4 x SATA 6Gb/s cables
• 1 x ASUS Wi-Fi moving antennas
• 1 x Cable ties pack
• 1 x M.2 Rubber Package
• 1 x M.2 Q-Latch package
• 1 x M.2 Q-Latch package for M.2 backplate
• 1 x ROG key chain
• 1 x ROG Strix stickers
• 1 x ROG Strix thank you card
• 1 x Support DVD
• 1 x User guide

Form Factor :

• ATX ( 30.5 cm x 24.4 cm )

Part Number:

• 90MB18R0-M1EAY0
