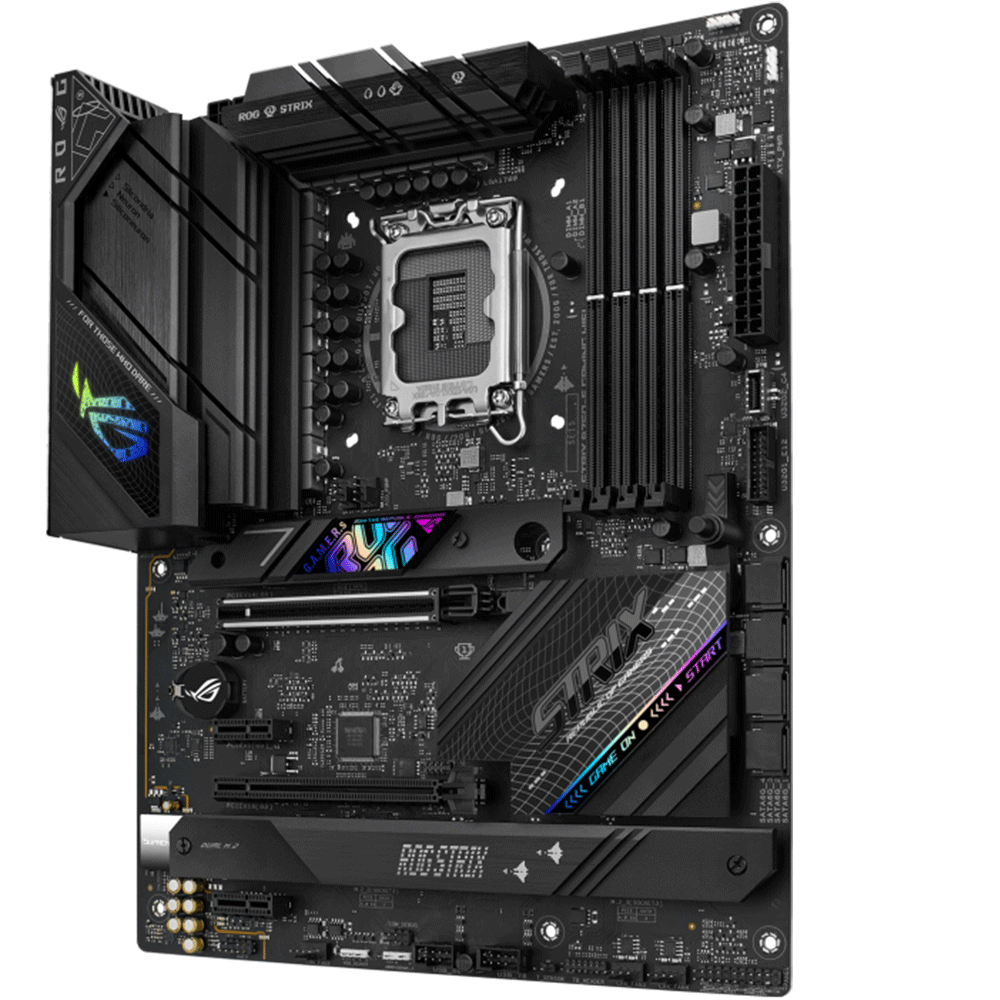

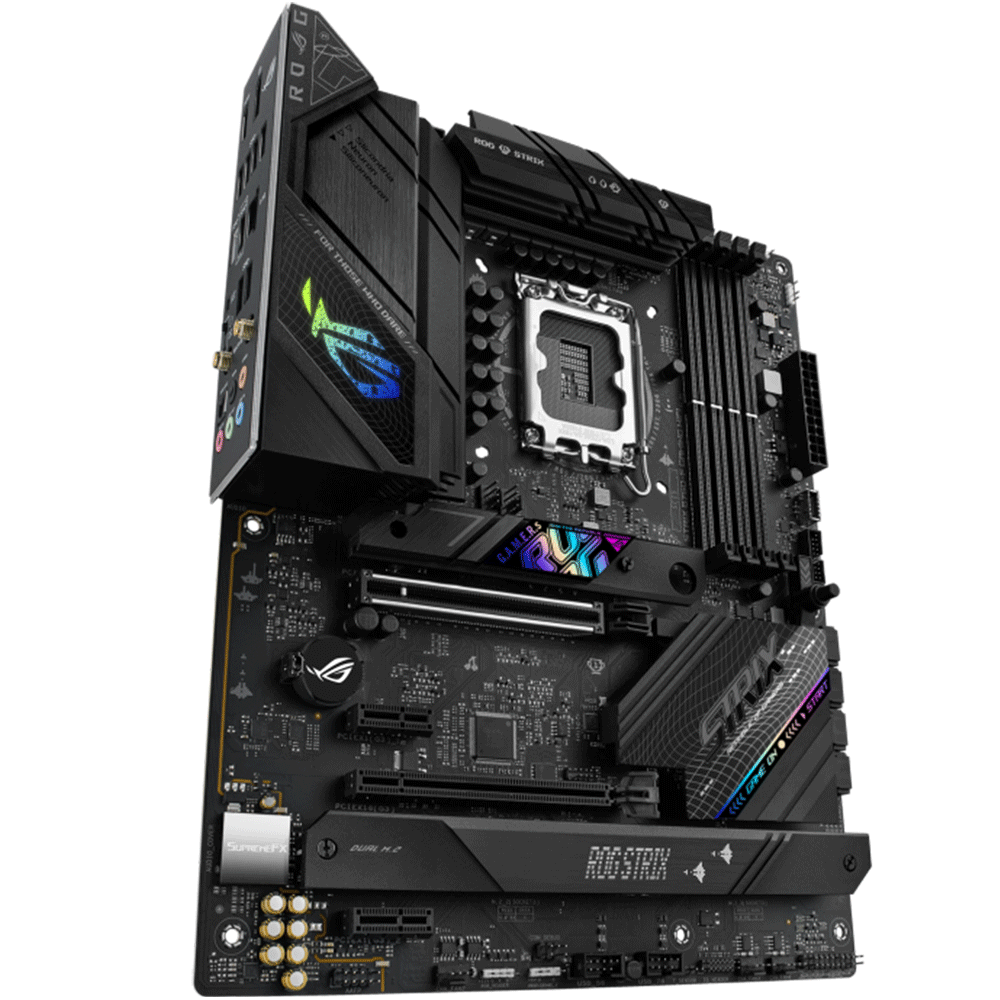

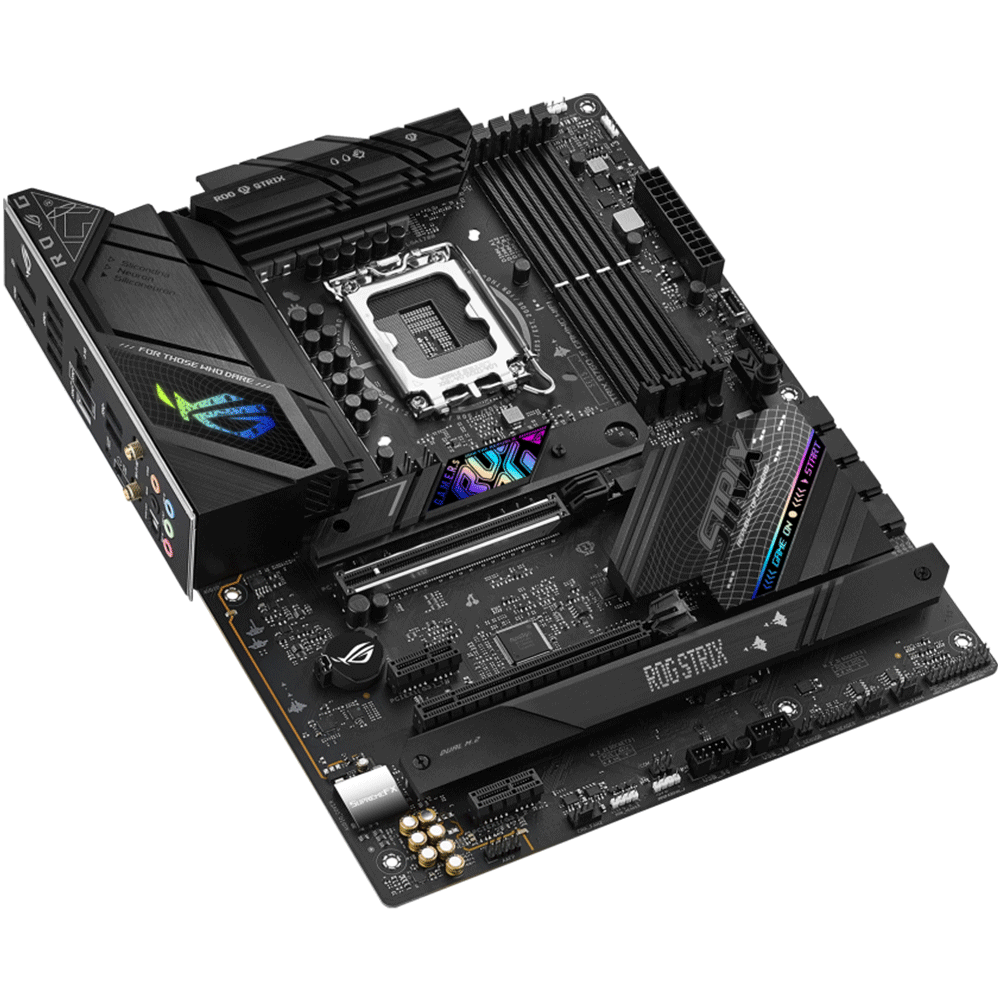

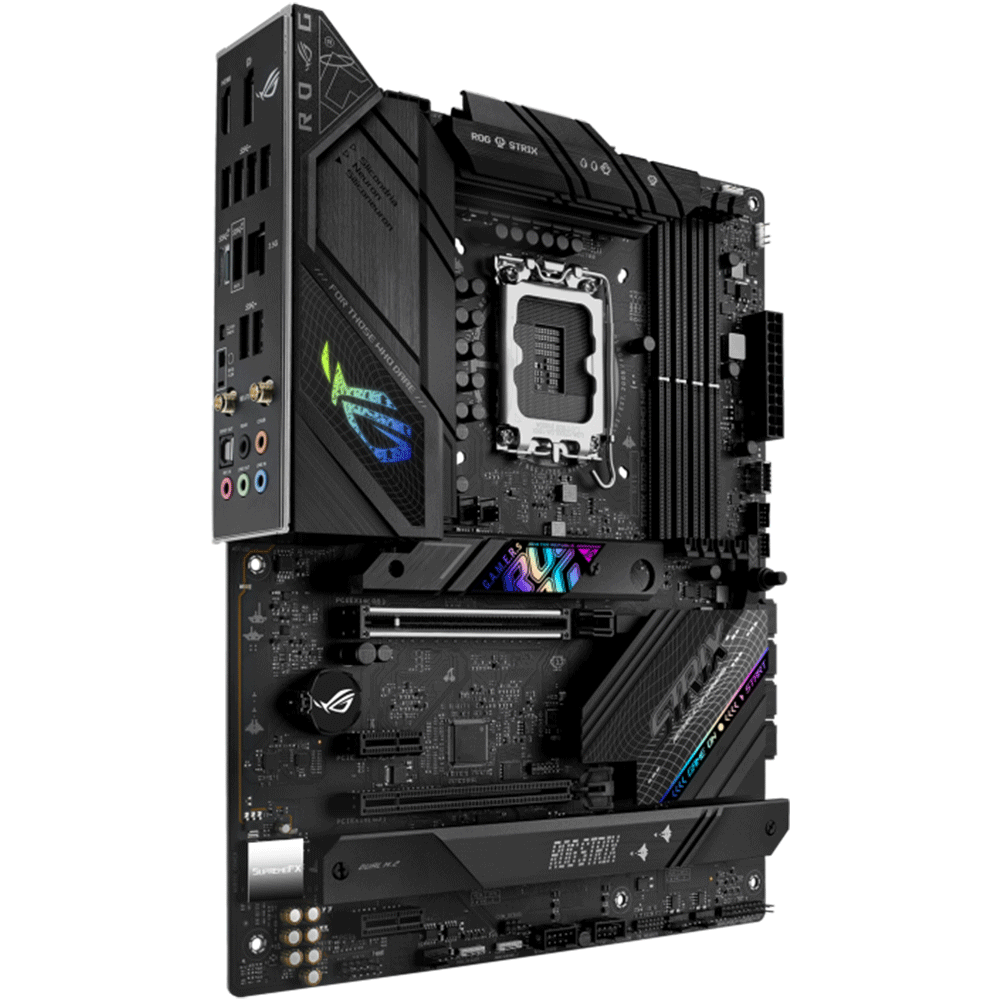

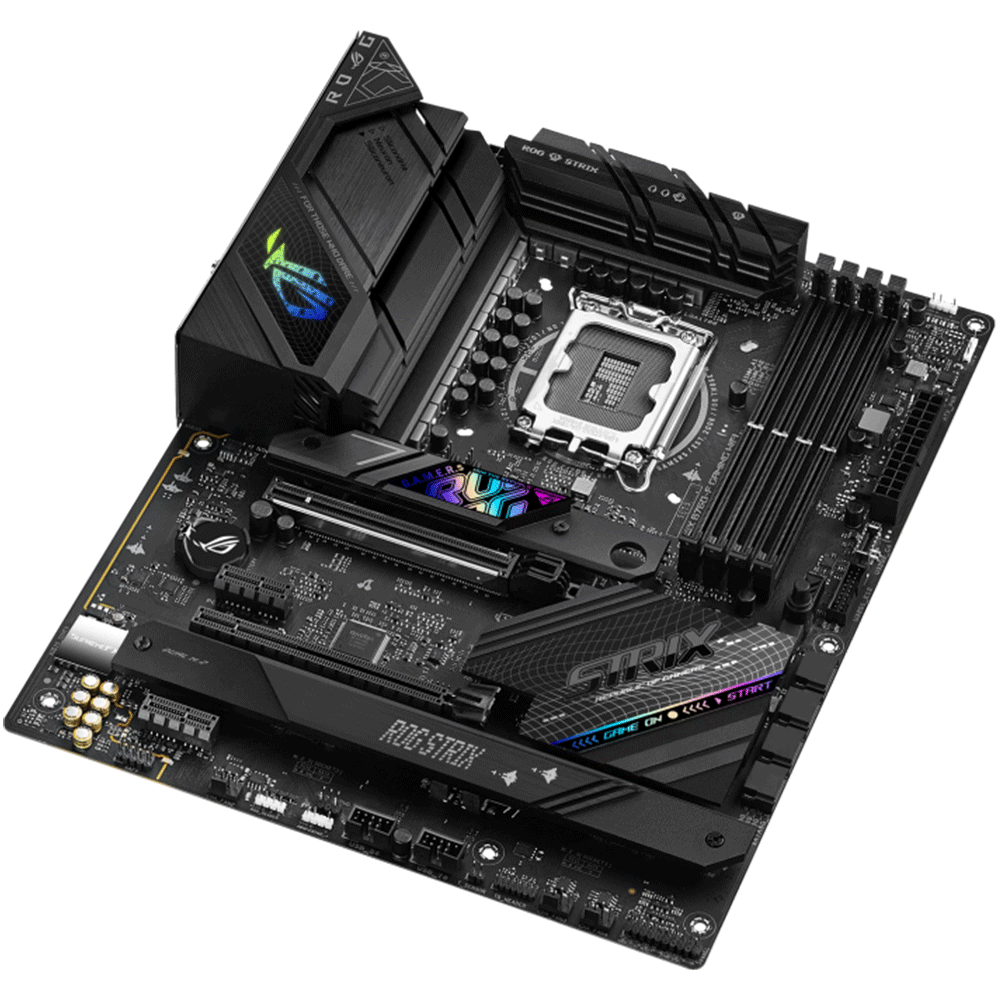

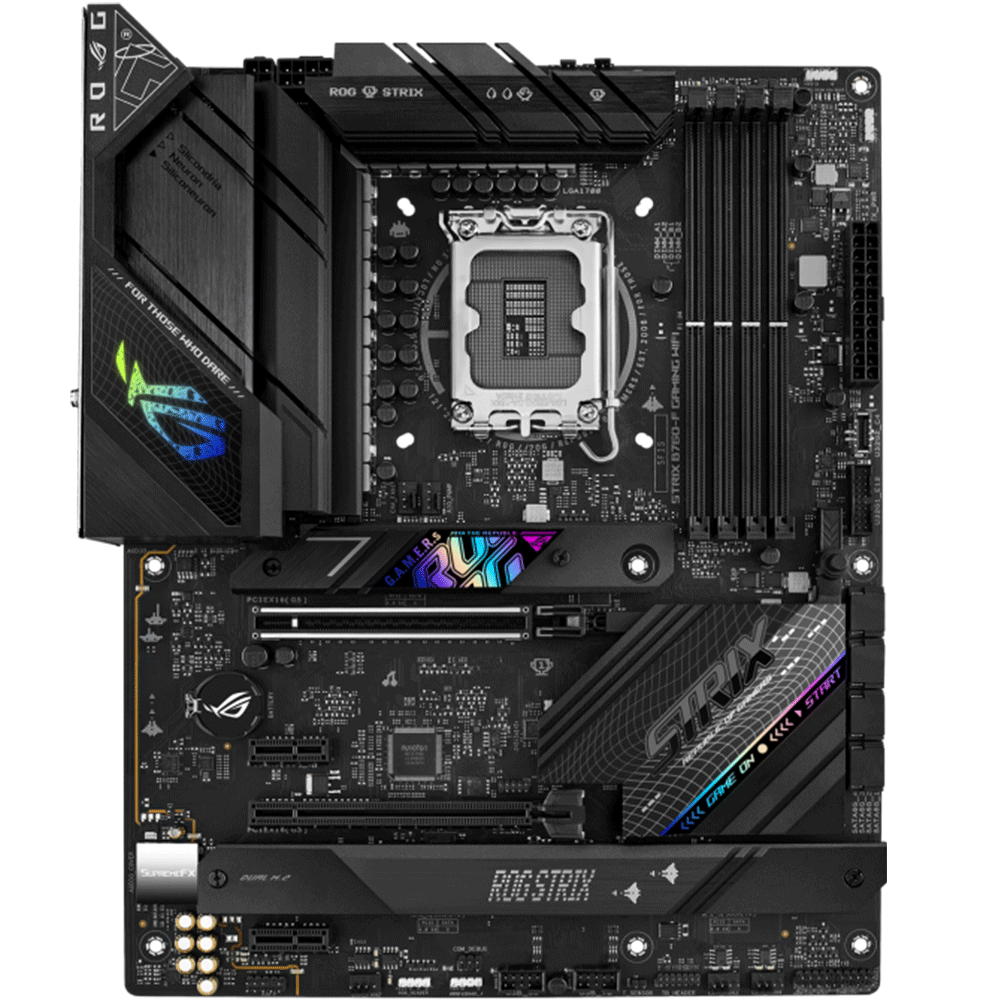

ASUS ROG STRIX B760-F GAMING WIFI LGA1700 Socket For intel CPUs Motherboard

• Leap into the future with the ROG Strix B760-F, a fantastic upgrade into 13th Gen with its dominant power solution and best-in-class DDR5 speeds. Its next-gen PCIe 5.0 slot gives overwhelming graphics card throughput for maximum FPS, and you can minimize lag via hyperfast WiFi 6E or 2.5G LAN. All these perks come alongside distinctive rainbow stripes and retro accents so you can show off your gamer pride.

CPU

• Intel Socket LGA1700 for 14th and 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors
• Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Memory

• DDR5
• 4 x DIMM, Max. 192GB, DDR5 7800(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 MHz Non-ECC
• Dual Channel Memory Architecture
• Supports Intel Extreme Memory Profile (XMP)
• OptiMem II

Expansion Slots

• 1 x PCIe 5.0 x16 slot
• 1x PCIe 3.0 x16 slot
• 2 x PCIe 3.0 x1 slots

Storage :

• 4 x SATA 6Gb/s
• 3 x M.2 PCIe 4.0 x4

Ethernet :

• 1 x Intel® 2.5Gb Ethernet
• ASUS LANGuard

Wireless & Bluetooth

• Wi-Fi 6E Supports 2.4/5/6GHz frequency band
• Bluetooth® v5.3

USB

• Rear USB (Total 8 ports)
• 1 x USB 3.2 Gen 2x2 port (USB Type-C)
• 1x USB 3.2 Gen 2 ports (Type-A)
• 6 x USB 3.2 Gen 1 ports (Type-A)
• Front USB: Total 7 ports
• 1 x USB 3.2 Gen 2 connector (support USB Type-C)
• 1 x USB 3.2 Gen 1 header support additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 header support additional 4 USB 2.0 ports

Audio

• ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

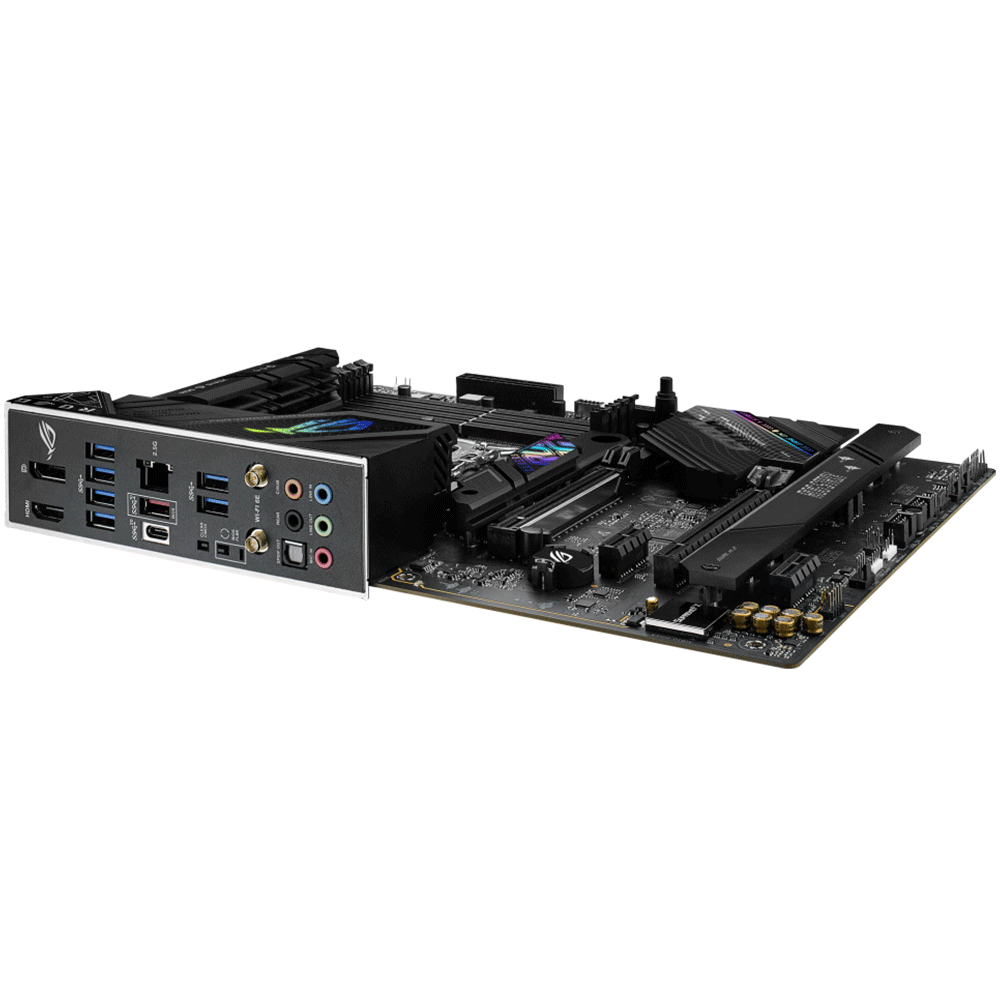

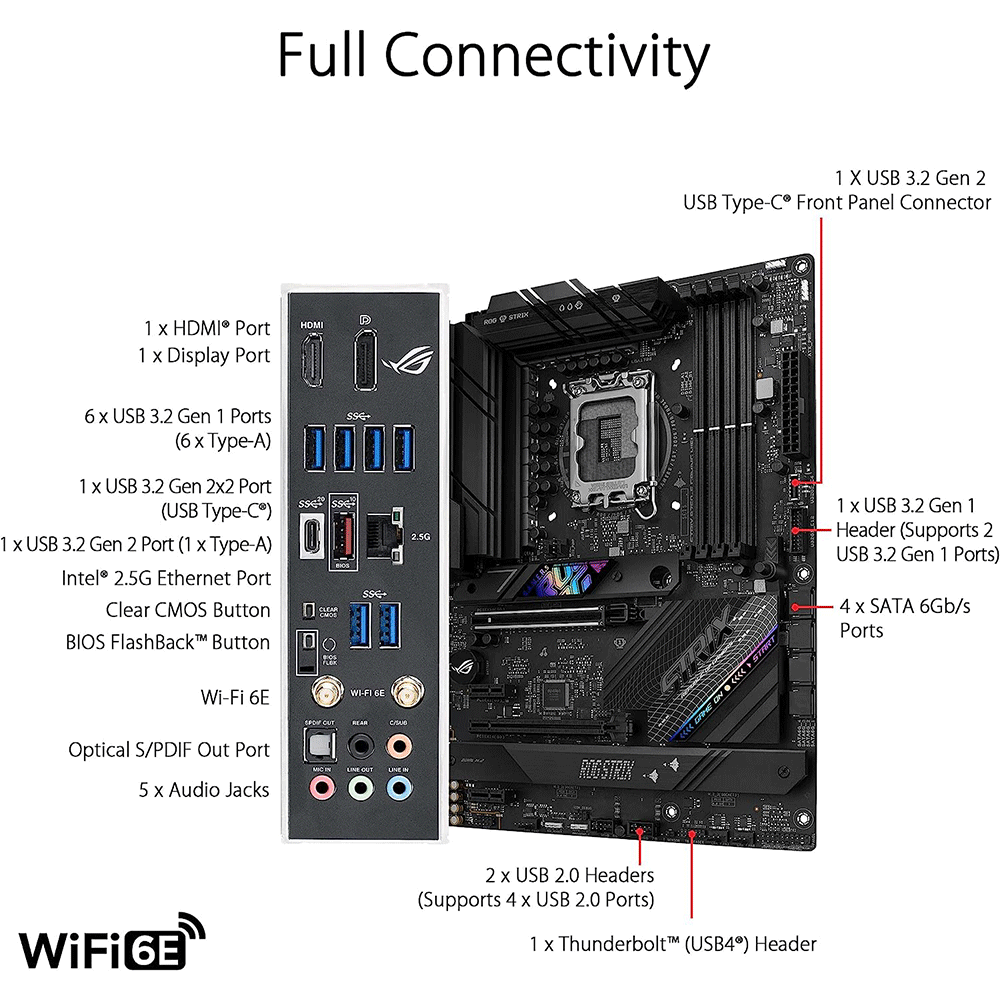

Back Panel I/O Ports

• 1 x USB 3.2 Gen 2x2 port (USB Type-C)
• 1x USB 3.2 Gen 2 ports (Type-A)
• 6 x USB 3.2 Gen 1 ports (Type-A)
• 1 x DisplayPort
• 1 x HDMI port
• 1 x Wi-Fi Module
• 1 x Intel 2.5Gb Ethernet Port
• 5 x Audio jacks
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack button
• 1 x Clear CMOS button

Accessories

• 2 x SATA 6Gb/s cables
• 1 x Thermal pad for M.2

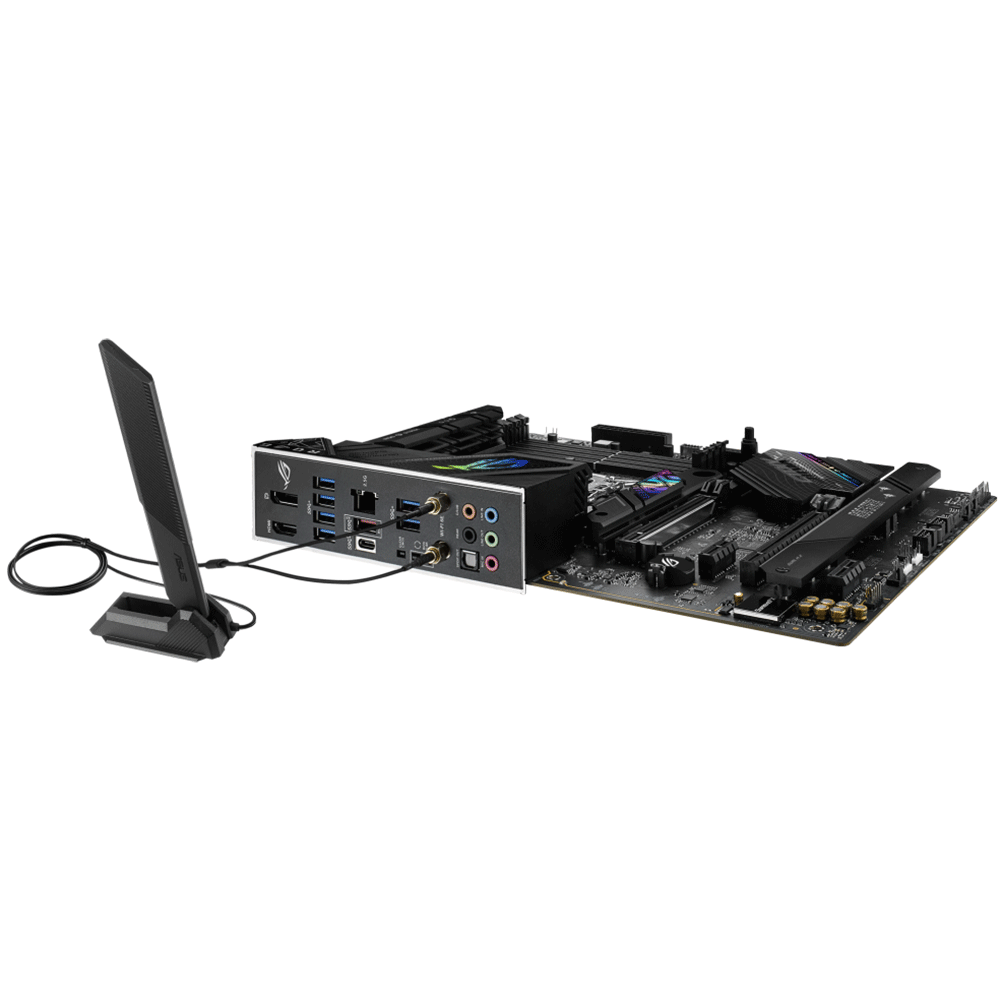

• 1 x ASUS Wi-Fi moving antennas
• 1 x Cable ties package
• 1 x M.2 Q-Latch package
• 2 x M.2 Rubber Package
• 1 x ROG key chain
• 1 x ROG Strix stickers
• 1 x ROG Strix thank you card
• 1 x User guide

Form Factor :

• ATX ( 30.5 cm x 24.4 cm )

Part Number:

• 90MB1CT0-M1EAY0
