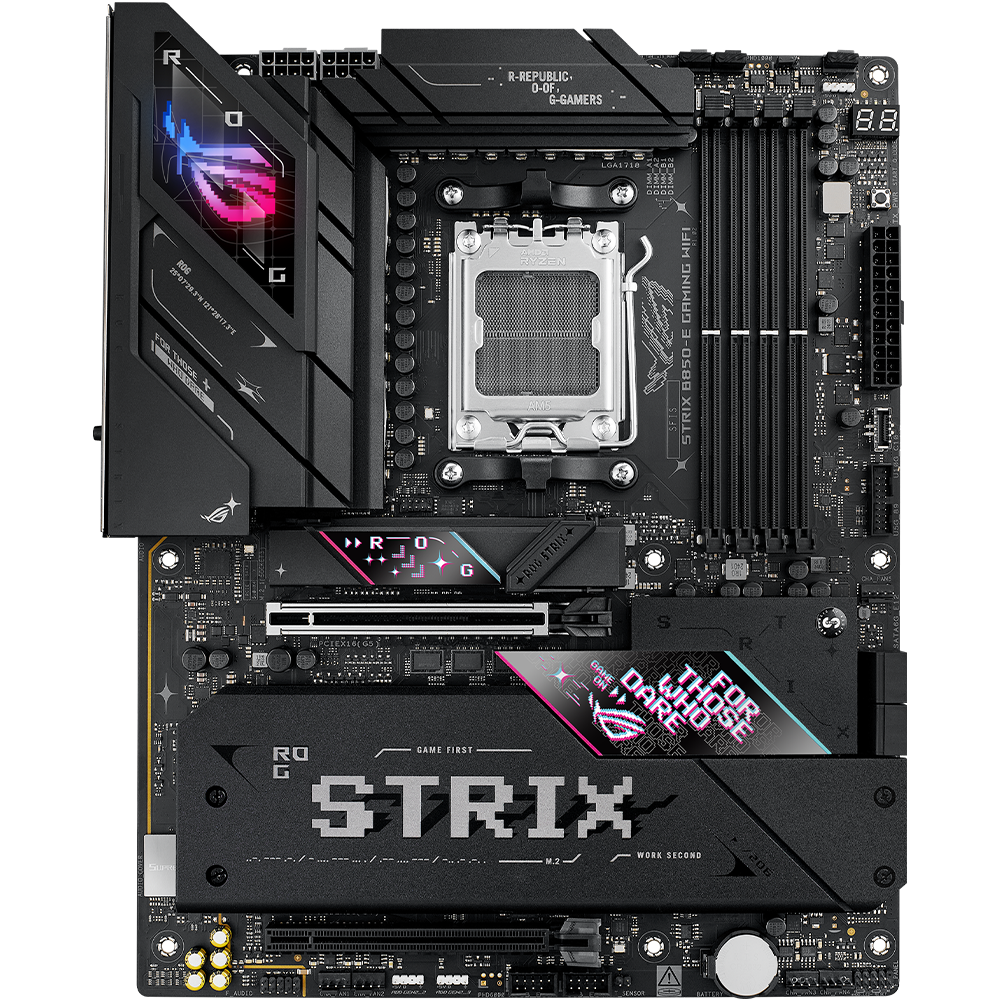

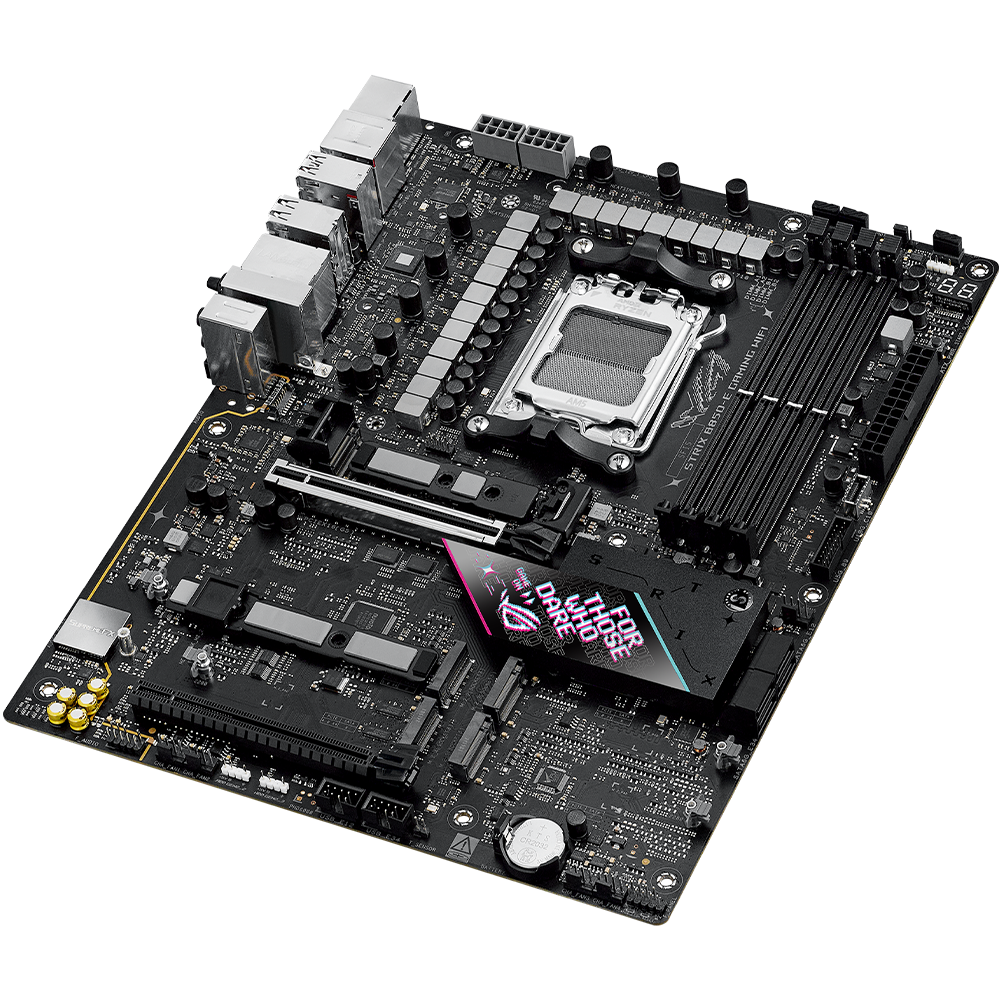

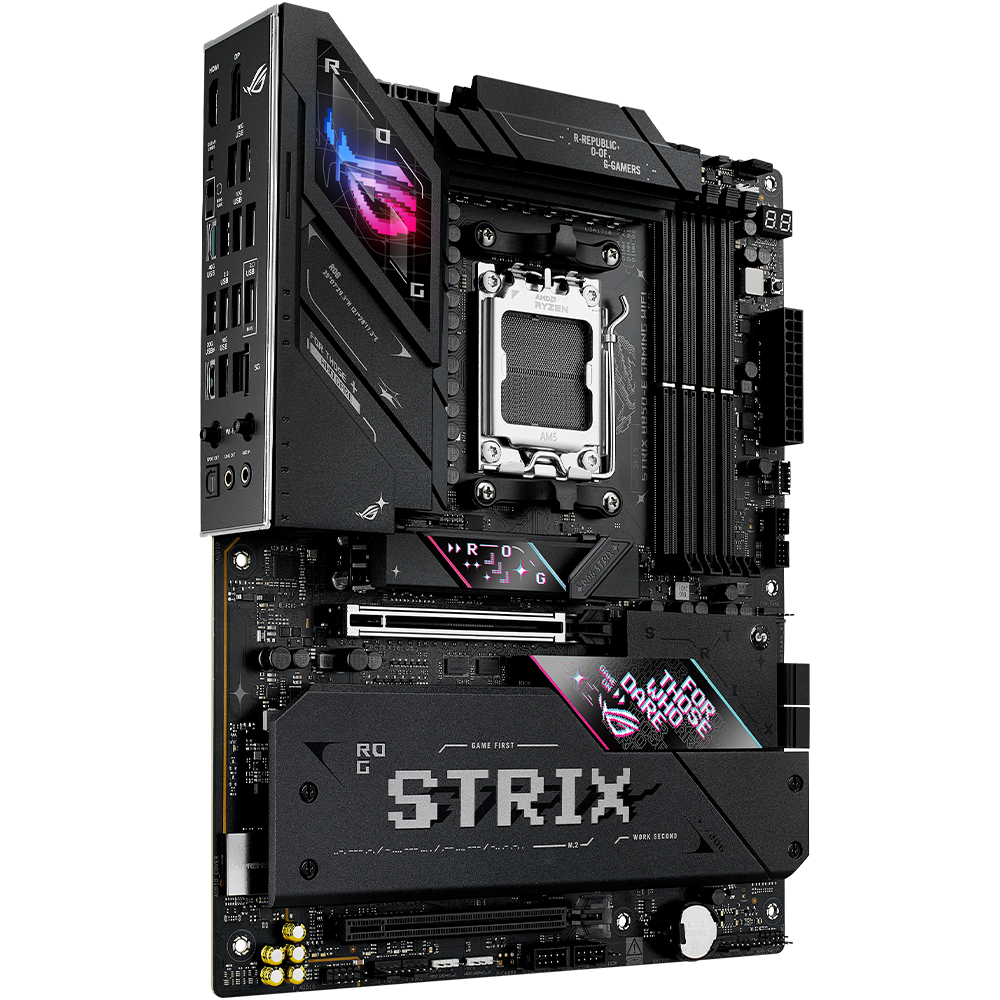

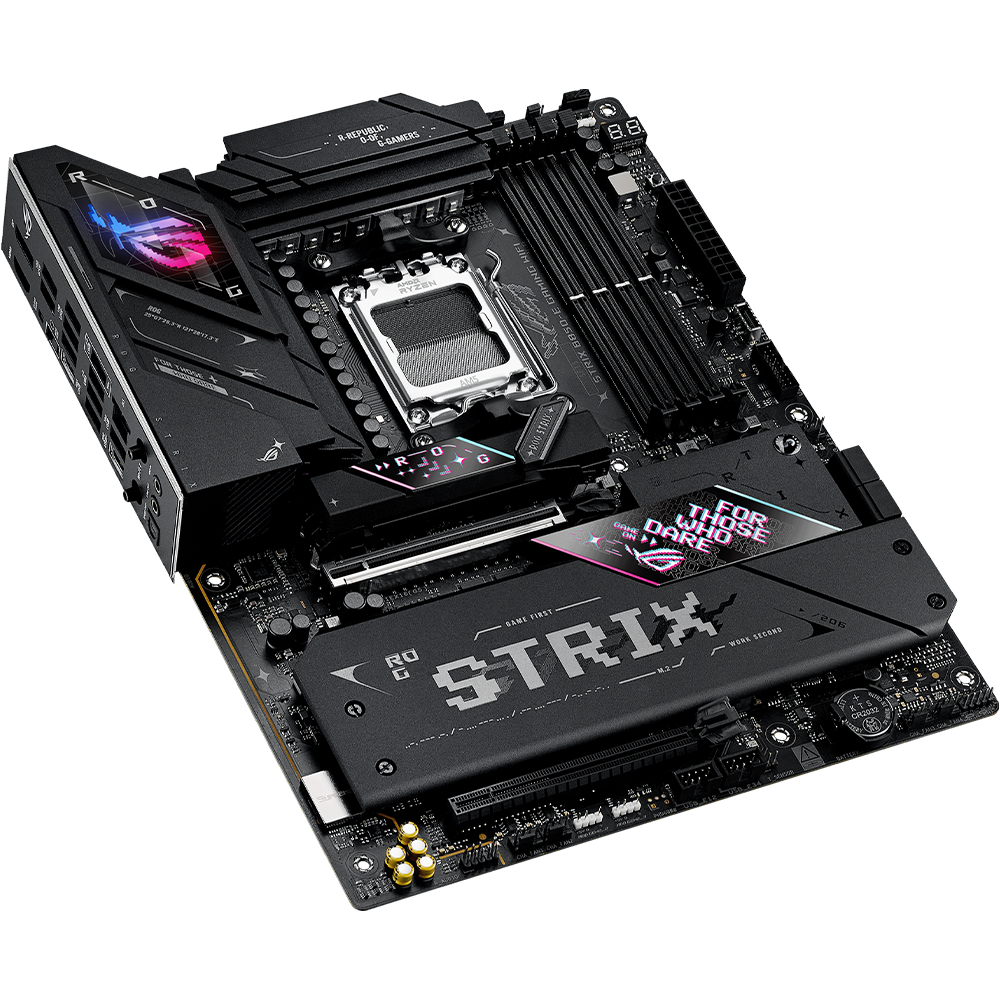

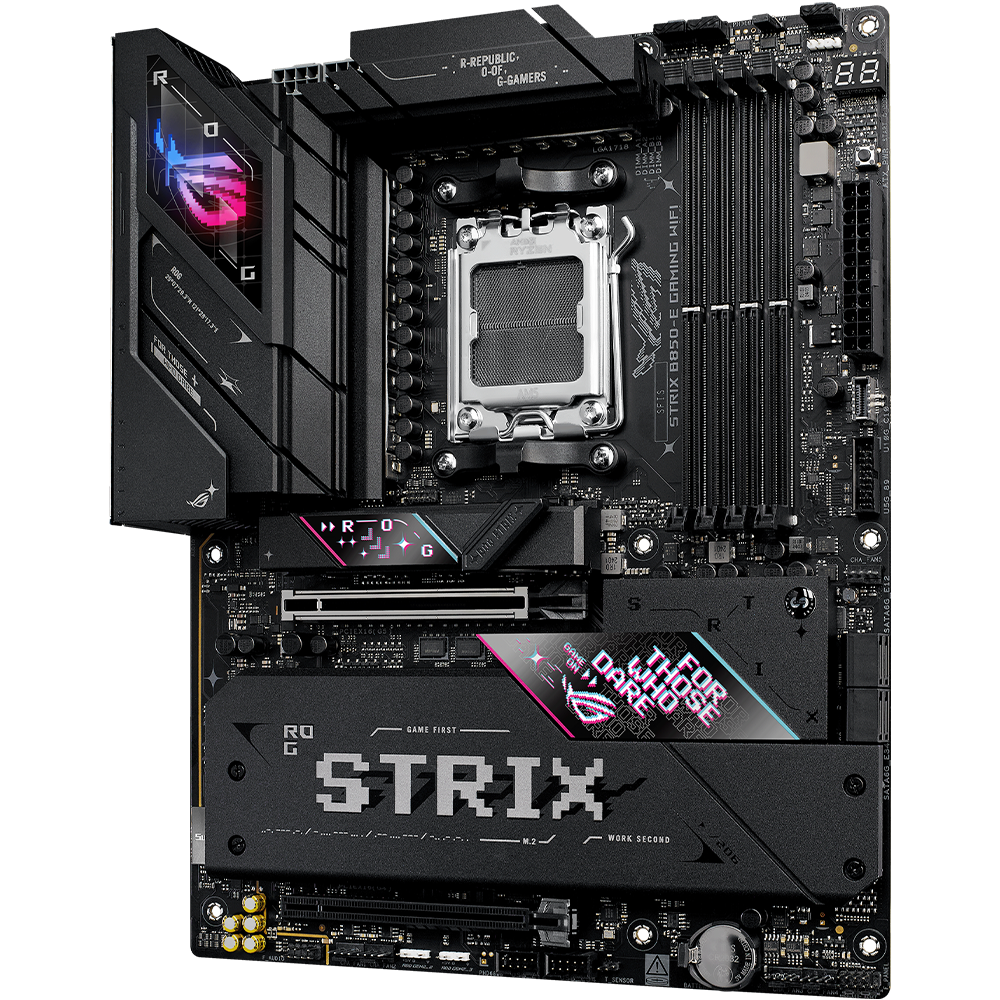

ASUS ROG STRIX B850-E GAMING WIFI, AM5 Socket For AMD CPUs Motherboard

• AMD B850-E ATX motherboard with 16+2+2 power stages, Dynamic OC Switcher, Core Flex, DDR5 slots with AEMP, WiFi 7 with ASUS WiFi Q-Antenna, five M.2 slots, PCIe 5.0 x16 SafeSlots with PCIe Slot Q-Release Slim, one USB4 port, USB 20Gbps Type-C with PD 3.0 up to 30W, ASUS AI Advisor, AI Overclocking, AI Networking II, and Aura Sync RGB lighting.

Product Features:

• Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
• AMD AM5 Socket: Ready for AMD Ryzen 9000, 8000 and 7000 series desktop processors
• Intelligent Control: ASUS-exclusive AI Advisor, AI Networking II and AEMP to simplify setup and improve performance
• ROG Strix Overclocking technologies: Dynamic OC Switcher, Core Flex, and PBO Enhancement
• Robust Power Solution: 16+2+2 power solution rated for up to 90A per stage with dual ProCool power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors
• Optimized Thermal Design: Massive heatsinks with integrated I/O cover, high-conductivity thermal pads, and connected with an L-shaped heatpipe
• Latest M.2 Support: Three onboard PCIe 5.0 M.2 slots, and two PCIe 4.0 M.2 slots, all with substantial cooling solutions
• Abundant Connectivity: One USB4 Type-C port, USB 20Gbps Type-C rear I/O port with PD 3.0 up to 30W and USB Wattage Watcher, seven additional USB 10Gbps ports, PCIe 5.0 x16 SafeSlots, HDMI port
• High-Performance Networking: On-board WiFi 7 (802.11be) with Realtek 5 Gb Ethernet
• DIY Friendly Design: PCIe Slot Q-Release Slim, M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Antenna, Q-Dashboard, Q-Code, Q-LED, Power button, BIOS FlashBack™ button, Clear CMOS button and pre-mounted I/O shield
• Immersive Audio: ROG SupremeFX ALC4080 codec with Savitech SV3H712 amplifier and Dolby Atmos
• Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, with three addressable Gen 2 headers

Product Details:

Model:

• ROG STRIX B850-E GAMING WIFI

CPU:

• AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors

Memory:

• 4 x DIMM slots, max. 192GB, DDR5
• Supports up to 8000+MT/s (OC) with Ryzen 9000 & 8000 & 7000 Series Processors ECC and Non-ECC, Un-buffered DIMM
• Dual channel memory architecture
• Supports AMD Extended Profiles for Overclocking (EXPO)
• ASUS Enhanced Memory Profile (AEMP)
• * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration

Expansion Slots:

AMD Ryzen 9000 & 7000 Series Desktop Processors:

• 1 x PCIe 5.0 x16 slot with Q-Release Slim (supports x16 or x8 modes)**

AMD Ryzen™ 8000 Series Desktop Processors:

• 1 x PCIe 5.0 x16 slot with Q-Rlease Slim (supports PCIe 4.0 x8 or x4 mode)***

AMD B850 Chipset:

• 1 x PCIe 4.0 x16 slot (supports x4 mode)****
• ** When either M.2_2 or M.2_3 is enabled, PCIEX16(G5) will run x8.
• *** Specifications vary by CPU types.
• **** M.2_4 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_4 will be disabled.

Storage:

• Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports

AMD Ryzen 9000 & 7000 Series Desktop Processors:

• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)*
• M.2_3 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)*

AMD Ryzen 8000 Series Desktop Processors:

• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280/22110 (Not supports)**
• M.2_3 slot (Key M), type 2280 (Not supports)***

AMD B850 Chipset:

• M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)***
• M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• 4 x SATA 6Gb/s ports
• * When either M.2_2 or M.2_3 slot is operating, PCIEX16_1 will run x8.
• ** M.2_2 and M.2_3 slot will be disabled while using the AMD Ryzen™ 8000 Series Desktop Processors.
• *** M.2_4 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_4 will be disabled.

Ethernet:

• 1 x Realtek 5Gb Ethernet
• ASUS LANGuard

Wireless & Bluetooth:

• Wi-Fi 7
• Bluetooth® v5.4

USB:

Rear USB (Total 12 ports):

• 1 x USB4 (40Gbps) port(USB Type-C)*
• 1 x USB 20Gbps port (supports USB Type-C with up to 30W PD/PPS Fast-charge)**
• 6 x USB 10Gbps ports (Type-A)
• 4 x USB 2.0 ports (Type-A)

Front USB (Total 7 ports):

• 1 x USB 10Gbps connector (USB Type-C)
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• * USB Type-C power delivery output: max. 5V/3A
• ** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A

Audio:

• ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

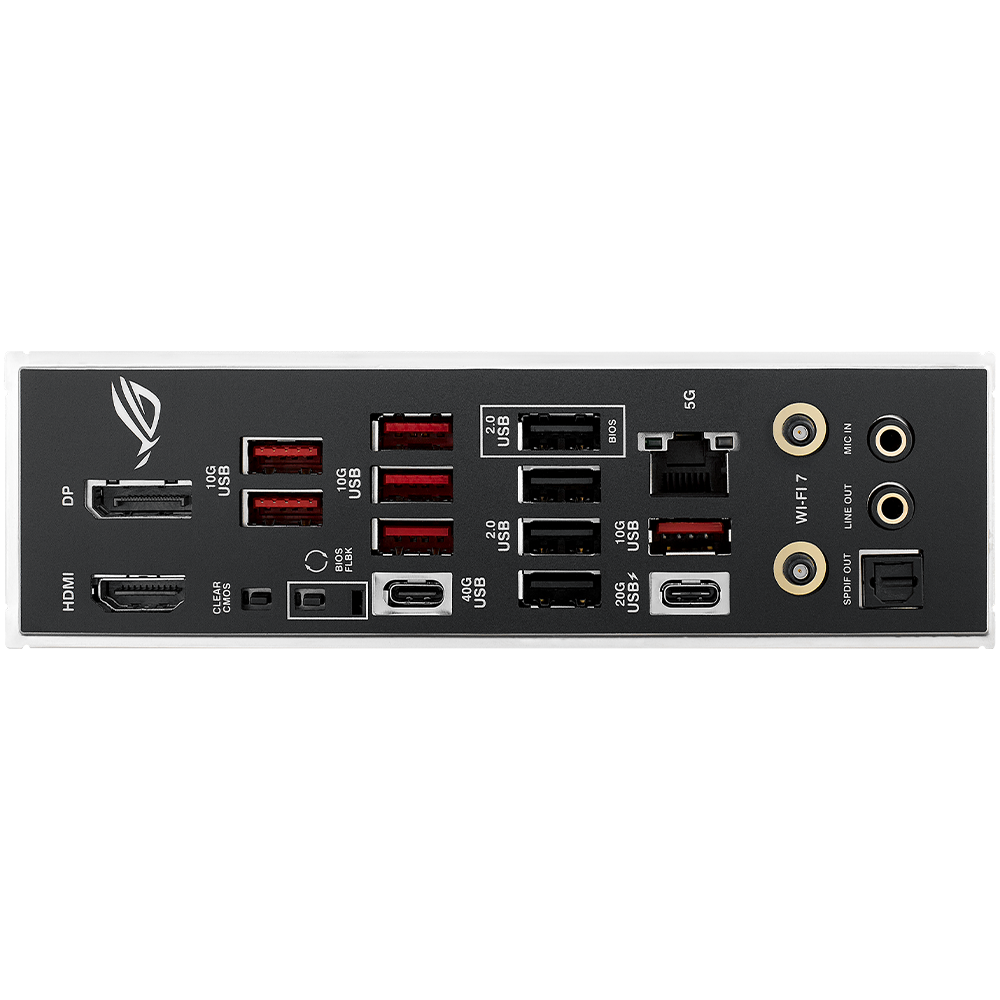

Back Panel I/O Ports:

• 1 x USB4 (40Gbps) port(USB Type-C)
• 1 x USB 20Gbps port (supports USB Type-C with up to 30W PD/PPS Fast-charge)**
• 6 x USB 10Gbps ports (Type-A)
• 4 x USB 2.0 ports (Type-A)
• 1 x DisplayPort
• 1 x HDMI port
• 1 x Wi-Fi module
• 1 x Realtek 5Gb Ethernet port
• 2 x Gold-plated audio jacks
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack button
• 1 x Clear CMOS button

Form Factor:

• ATX Form Factor
• 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Part Number:

• 90MB1J60-M0EAY0
