Asus ROG Strix Helios II E-ATX Mid Tower PC Case With 4x 140mm Fans

• ROG Strix Helios II EATX mid-tower gaming case with dual tempered glass side panels, GPU support for up to 450mm in length, aluminum frame and front panel, GPU braces and 420mm radiator support

Product Features:

Striking Looks. Cool Moves:

• ROG Strix Helios II is a premium mid-tower gaming case featuring dual tempered glass side panels, a refined aluminum frame, and a diamond grille front panel with a 3D-structured front filter. It comes pre-installed with four 140 x 28 mm performance fans, delivering optimized airflow and enhanced thermal performance for demanding gaming setups. Engineered for expandability and performance, it's ready for motherboards ranging from ITX to EATX and serious water-cooling setups as well - making it the perfect choice for a classic ROG showcase build.

Premium Design & Aesthetics:

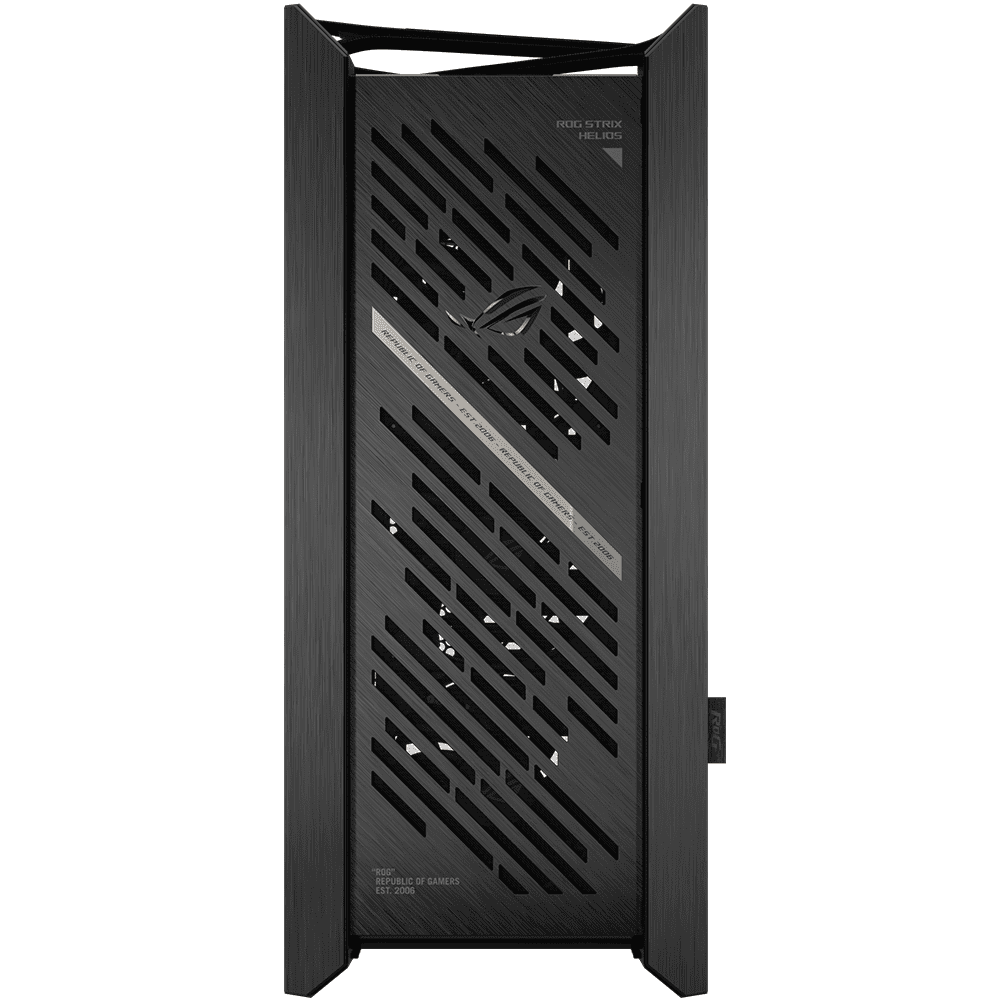

• ROG Strix Helios II is made for showcase builds with dual 4mm-thick tempered glass side panels fitted in a refined brushed-aluminum frame. The aluminum front panel, featuring a diamond grille design, is manufactured using high-precision CNC milling technology and an anodizing process. The diagonal slashes on the front are inspired by race car elegance and individuality to make the Helios II unique. With rounded edges, a streamlined shape and hidden seams, this chassis is sleeker than ever.

Four Pre-Installed Performance Fans:

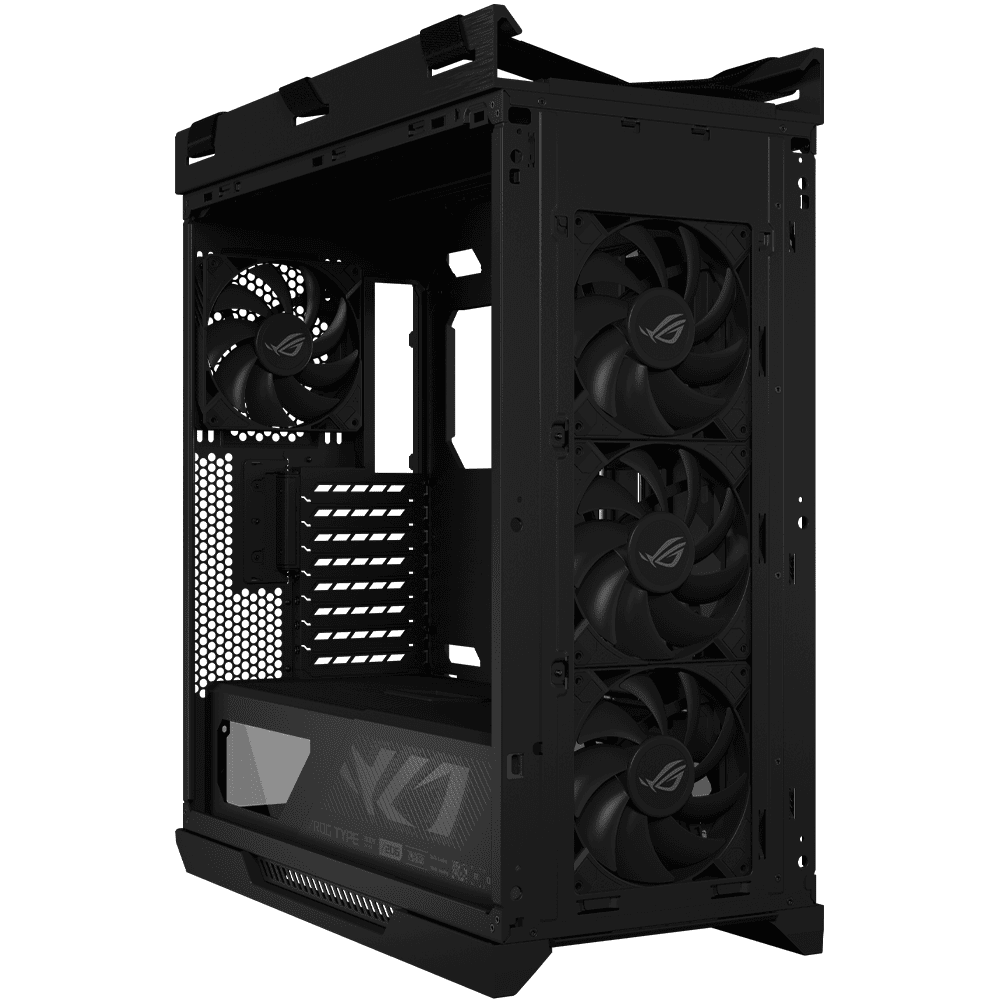

• The Helios II is designed to balance performance and acoustics: Four pre-installed 140mm fans with 28mm frames deliver strong airflow while maintaining a low 29 dB(A) noise level.

Easy Installation & Maintenance:

• ROG Strix Helios II is designed with multiple mechanisms to provide the smoothest building experience, even for DIY novices. Meanwhile, keeping your rig clean is made easy with built-in dust filters and easy access to all areas.

Tool-Free Side Panel Design:

• Pushing a button at the rear of the case releases one of the side panels for tool-less access to the interior. Its tempered glass is hinged on the bottom to swing away and rest at an angle, or you can remove the panel completely and set it aside while you tinker.

Effortless Cable Management:

• Keep your build sharp and tidy with flexible covers and a comprehensive cable management system. A cable grommet channel features velcro to let you neatly organize two sets of cables.

Front I/O Panel:

• The Helios II includes two USB 20Gbps Type-C ports with support for 60-watt fast charging where compatible.

Ergonomic Case Straps:

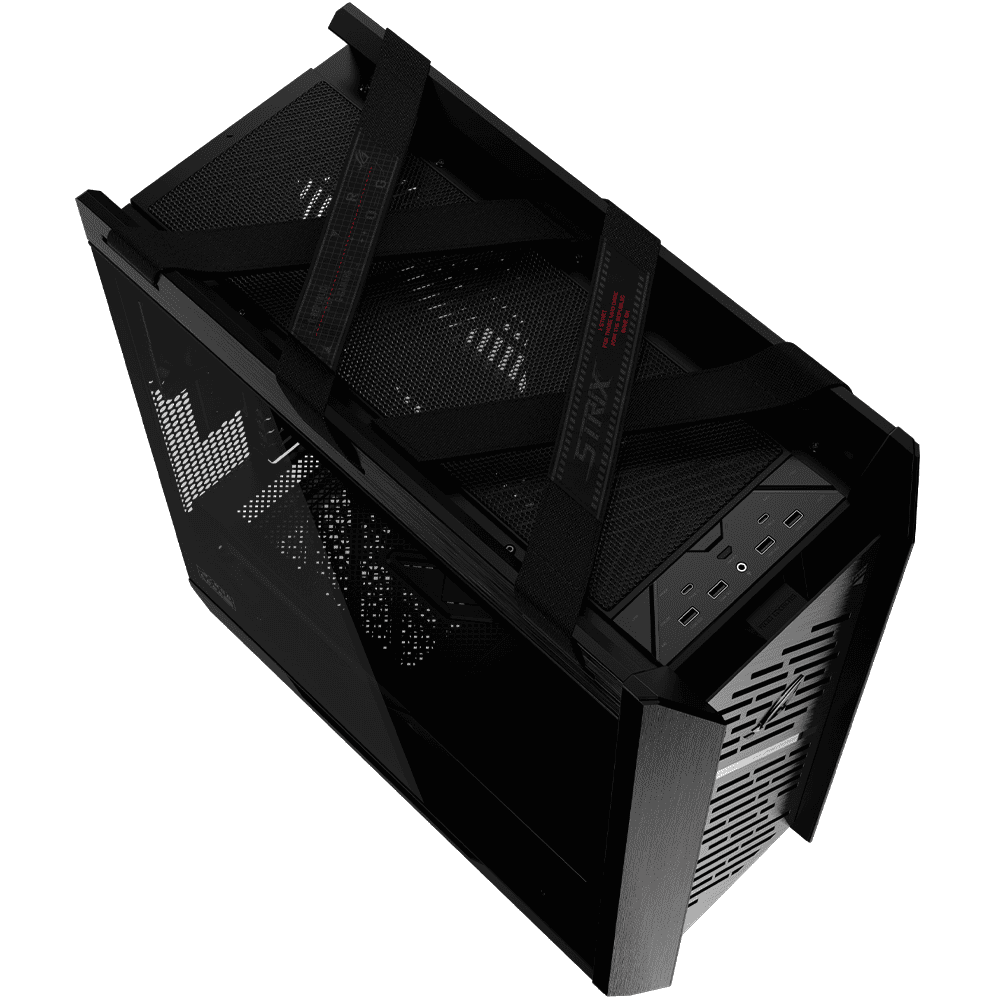

• Easily carry your prized build to LAN parties with ergonomically X shape woven fabric straps that combine style and comfort, rigorously tested to support up to 50kg for reliable transport.

Product Details:

Model:

• ROG Strix Helios II

Case Size:

• Mid Tower

Motherboard Support:

• EATX (12"x10.9")
• ATX
• Micro-ATX
• Mini-ITX

Drive Bays:

• 4 x 2.5" Bay
• 2 x 2.5"/3.5" Combo Bay

Expansion Slots:

• 8
• 2 (additional vertical)

Front I/O Port:

• 1 x headphone / Microphone
• 2 x USB 3.2 Gen 2x2 Type C
• 4 x USB 3.2Gen1

Tempered Glass:

• Front Side
• Left Side
• Right Side

Radiator Support (Front):

• 120 mm
• 140 mm
• 240 mm
• 280 mm
• 360 mm
• 420 mm

Radiator Support (Top):

• 120 mm
• 140 mm
• 240 mm
• 280 mm
• 360 mm

Radiator Support (Rear):

• 120 mm
• 140 mm

Cooling Support (Front):

• 3 x 120 mm
• 3 x 140 mm

Cooling Support (Top):

• 3 x 120 mm
• 2 x 140 mm

Cooling Support (Rear):

• 1 x 120 mm
• 1 x 140 mm

Pre-installed Fans (Front):

• 3 x 140 mm PWM

Pre-installed Fans (Rear):

• 1 x 140 mm

Maximum CPU Cooler Height:

• 190 mm

Maximum PSU Length:

• 220 mm

Removable Dust Filters:

• Front
• Top
• Bottom

Maximum Cable Management Space:

• 33 mm

Dimensions:

• 250 x 565 x 591 mm

Weight:

• 18Kg

AURA Sync:

• ARGB
