ASUS ROG STRIX X670E-A GAMING WIFI AM5 Socket For AMD CPUs Motherboard

• Suit up for the next gen with the stylish ROG Strix X670E-A Gaming WiFi. Its black PCB and white accents neatly contrast silver-colored heatsinks that emphasize premium power delivery for AMD Ryzen™ 7000 Series processors. Exclusive ROG overclocking utilities, full PCIe 5.0 capabilities, and DDR5 support are woven alongside, adding uniquely tailored performance and AM5 essentials to your gaming build. This platform delivers the power and connectivity that advanced AI PC applications demand.

CPU

• AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors

Memory

• 4 x DIMM, Max. 192GB, DDR5
• Dual Channel Memory Architecture
• Supports AMD Extended Profiles for Overclocking (EXPO™)
• OptiMem II
• * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration

Expansion Slots

• 1 x PCIe 5.0 x16 slot
• 1 x PCIe 4.0 x16 slot
• 1 x PCIe 3.0 x1 Slot

Storage :

• 4 x SATA 6Gb/s
• 2 x M.2 PCIe 5.0 x4
• 2 x M.2 PCIe 4.0 x4

Ethernet :

• 1 x Intel® 2.5Gb Ethernet
• ASUS LANGuard

Wireless & Bluetooth

• Wi-Fi 6E
• Supports 2.4/5/6GHz frequency band*
• Bluetooth v5.2
• * WiFi 6E 6GHz regulatory may vary between countries.

USB

• Rear USB (Total 12 ports)
• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
• 9 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C®)
• 1 x USB 3.2 Gen 1 port (Type-A)
• 2 x USB 2.0 ports
• Front USB (Total 7 ports)
• 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio

• ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

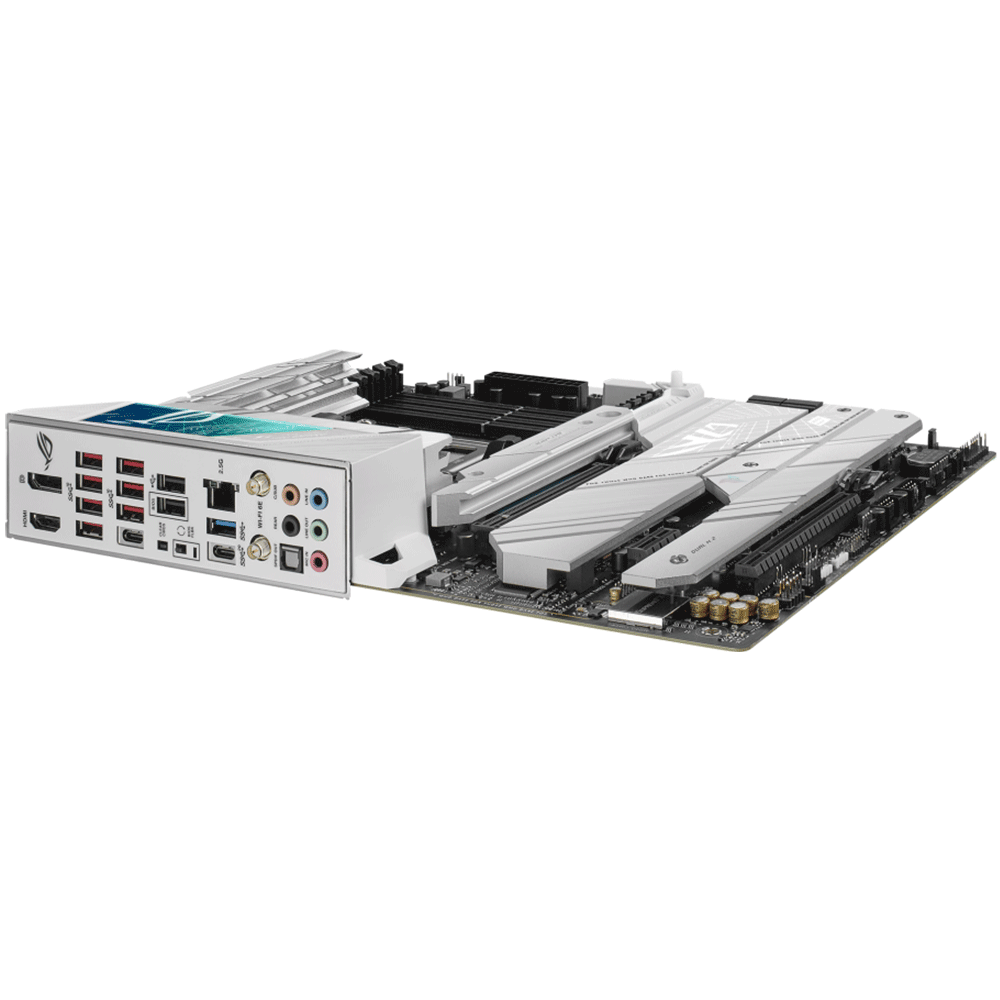

Back Panel I/O Ports

• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
• 8 x USB 3.2 Gen 2 ports (7 x Type-A, 1 x USB Type-C®)
• 1 x USB 3.2 Gen 1 port (1 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x DisplayPort
• 1 x HDMI® port
• 1 x Wi-Fi Module
• 1 x Intel® I225-V 2.5Gb Ethernet port
• 5 x Audio jacks
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack™ button
• 1 x Clear CMOS button

Accessories

• 2 x SATA 6Gb/s cables
• 1 x Thermal pad for M.2
• 1 x ASUS Wi-Fi moving antennas
• 1 x Cable ties pack
• 1 x M.2 Q-Latch packages for M.2 backplate
• 1 x M.2 Q-Latch package
• 1 x ROG key chain
• 1 x ROG Strix sticker
• 1 x ROG Strix thank you card
• 2 x Rubber Packages for M.2
• 1 x Rubber Package for M.2 backplate
• 1 x User guide

Form Factor :

• ATX ( 30.5 cm x 24.4 cm )

Part Number:

90MB1BM0-M0EAY0
