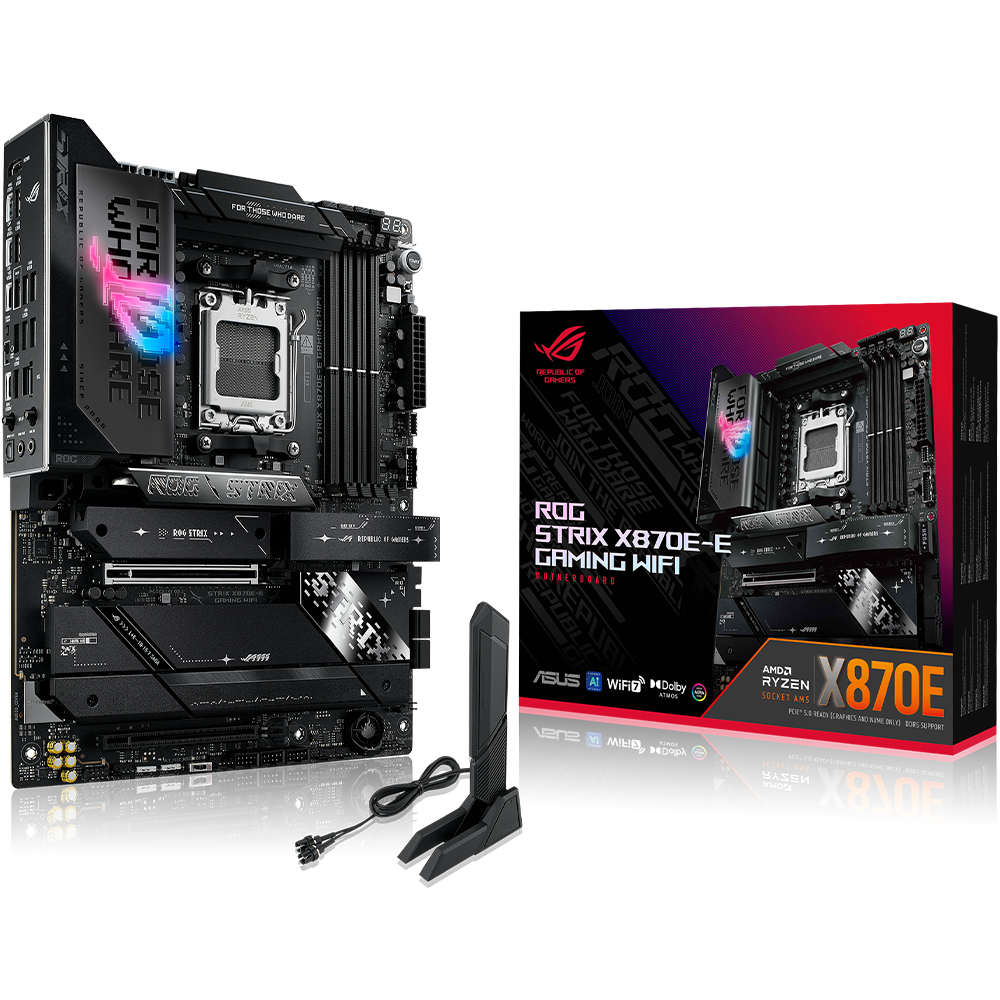

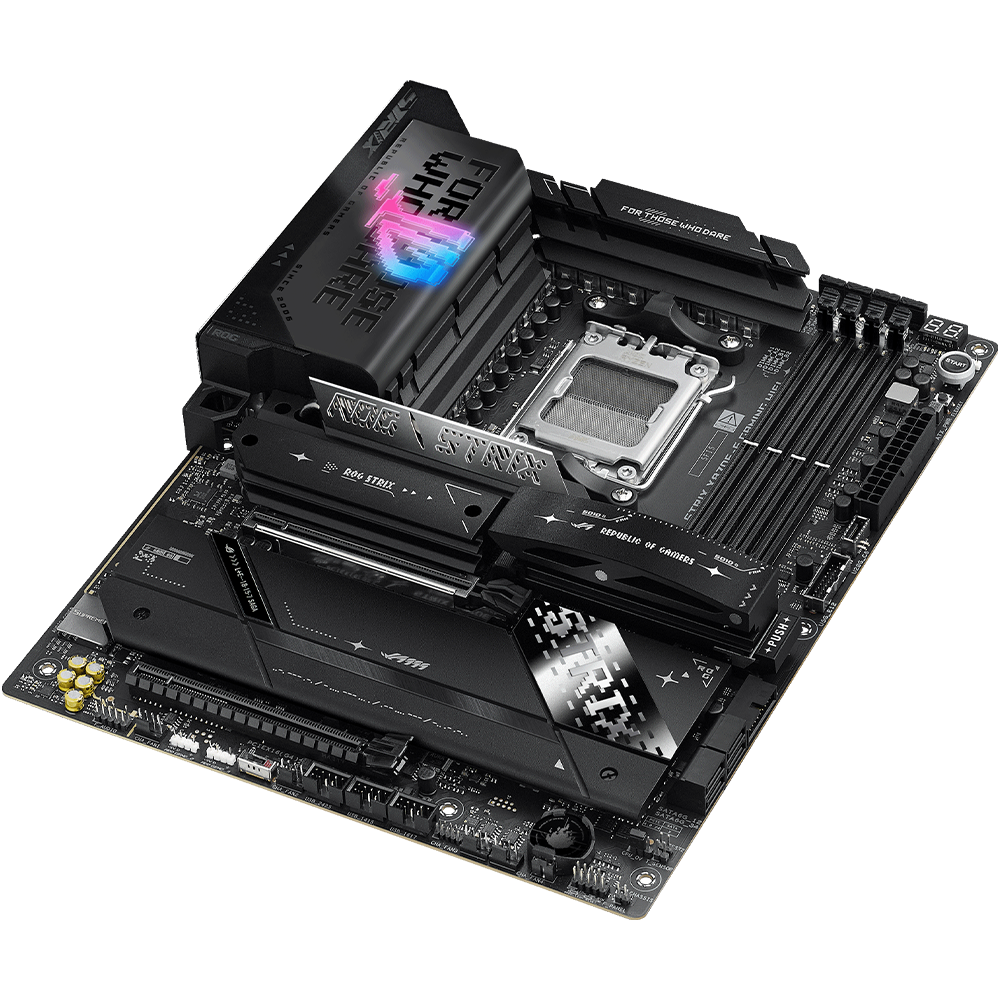

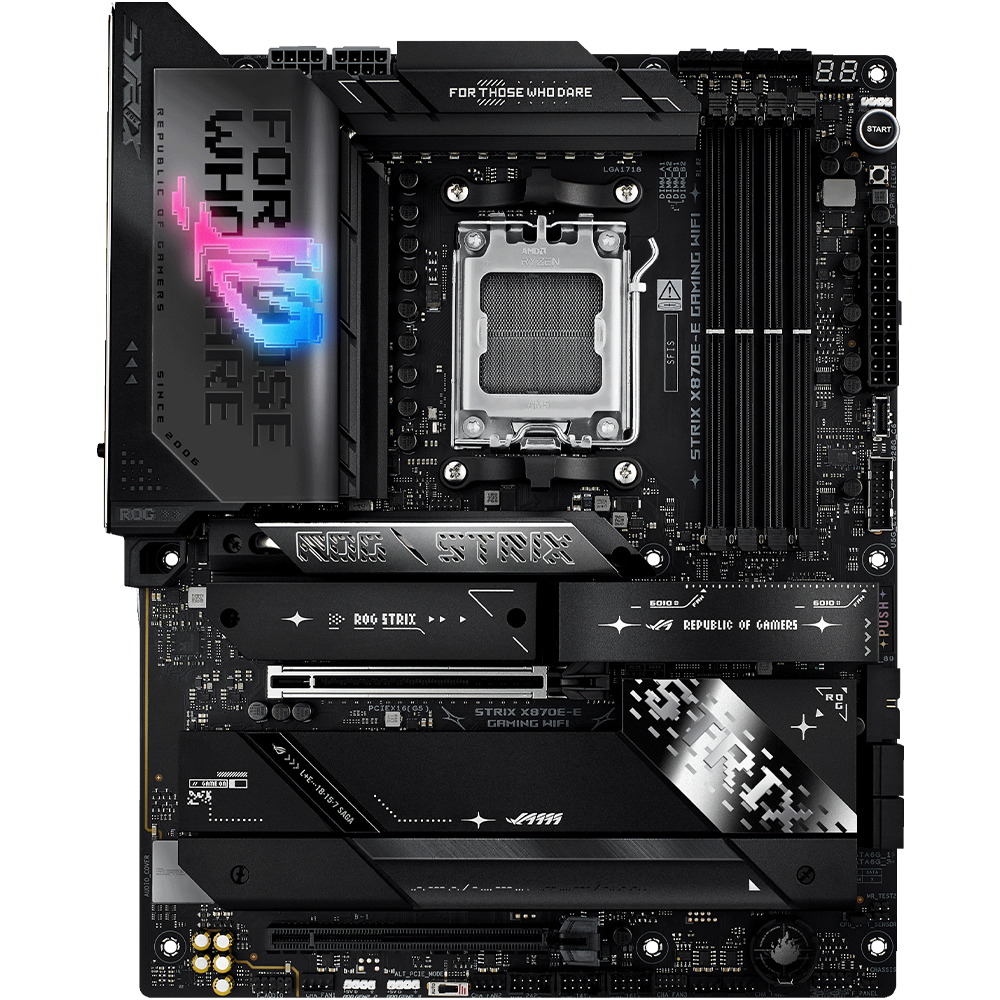

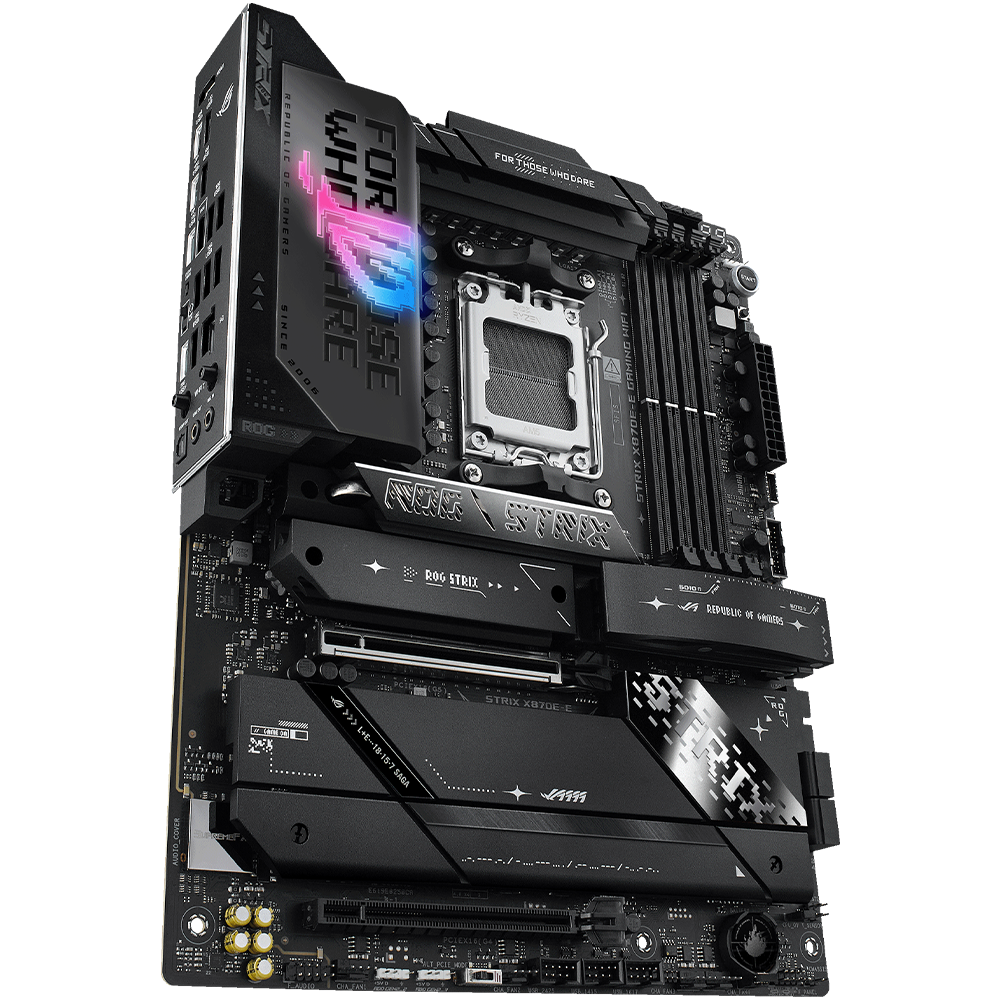

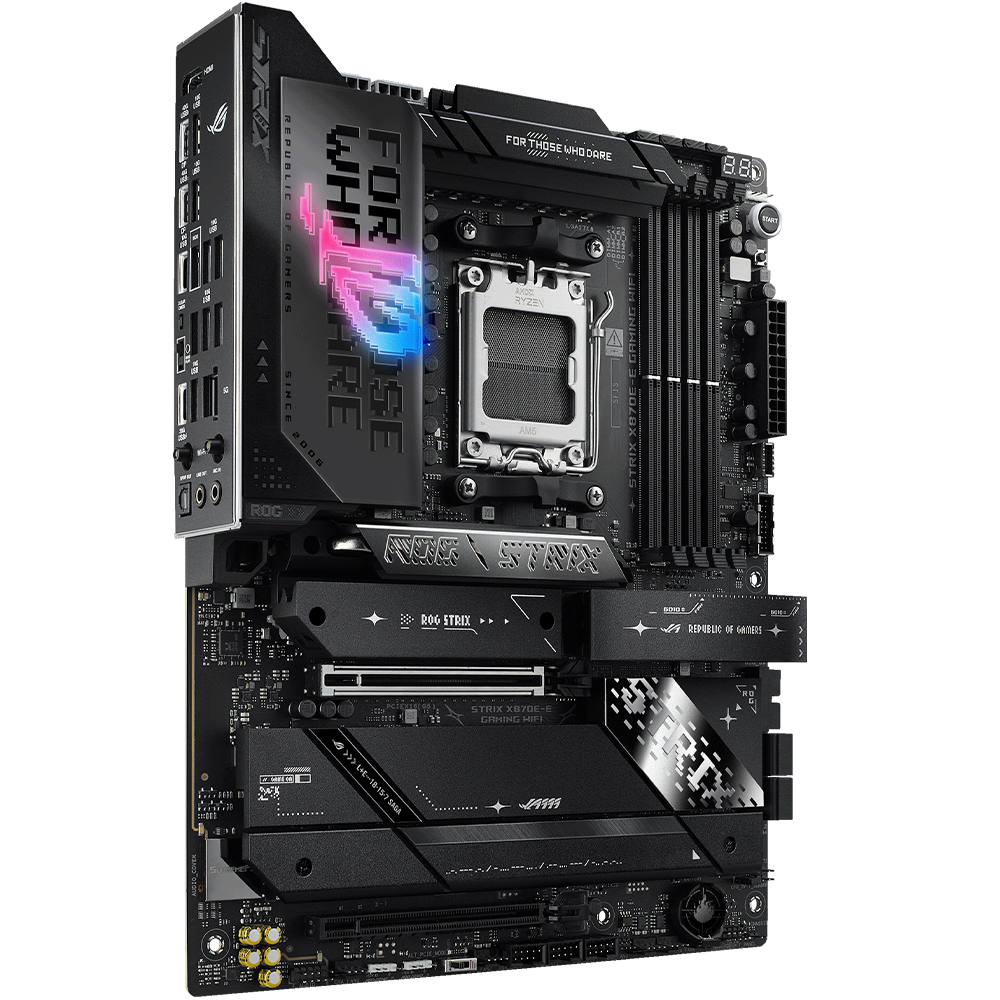

- The ROG Strix X870E-E Gaming WiFi is engineered to harness the full potential of AMD Ryzen 9000 Series processors. Featuring PCIe 5.0 support, AI Overclocking, AI Cooling II, AI Networking II, and AEMP, setup is streamlined while performance is maximized. Dual USB4® Type-C ports and WiFi 7 with Realtek 5Gb Ethernet ensure top-tier connectivity, while robust heatsinks keep M.2 drives cool under heavy loads. This motherboard not only meets the demands of gaming and professional applications but also delivers the power and connectivity essential for advanced AI PC applications.
Product Details:
CPU:
- AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Memory:
- 4 x DIMM slots, max.192GB, DDR5
- Supports up to
- 8000+MT/s(OC) with Ryzen 9000 Series Processors
- 8400+MT/s(OC) with Ryzen 8000 Series Processors
- 8000+MT/s(OC) with Ryzen 7000 Series Processors
- ECC and Non-ECC, Un-buffered Memory
- Dual channel memory architecture
- Supports AMD Extended Profiles for Overclocking (EXPO)
- NitroPath DRAM Technology
- ASUS Enhanced Memory Profile (AEMP)
Expansion Slots:
- AMD Ryzen 9000 & 7000 Series Desktop Processors: 1 x PCIe 5.0 x16 slot (supports x16 mode)
- AMD Ryzen 8000 Series Desktop Processors: 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
- AMD X870E Chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode)
Storage:
Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports:
AMD Ryzen 9000 & 7000 Series Desktop Processors:
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
- M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
AMD Ryzen 8000 Series Desktop Processors:
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- M.2_2 slot (Key M), type 2242/2260/2280 (Not supports)*
- M.2_3 slot (Key M), type 2242/2260/2280/22110 (Not supports)*
AMD X870E Chipset:
- M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
- M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
- 4 x SATA 6Gb/s ports
- *M.2_2 & M.2_3 will be disabled when using AMD Ryzen 8000 Series Desktop Processors.
Ethernet:
- 1 x Realtek 5Gb Ethernet
- ASUS LANGuard
Wireless & Bluetooth:
- Wi-Fi 7
- Supports 2.4/5/6GHz frequency band
- Bluetooth® v5.4
USB:
Rear USB (Total 13 ports):
- 2 x USB4 (40Gbps) ports (USB Type-C)
- 1 x USB 20Gbps port (USB Type-C with up to 30W PD Fast-charge)
- 10 x USB 10Gbps ports (9 x Type-A + 1 x USB Type-C)
Front USB (Total 11 ports):
- 1 x USB 20Gbps connector (supports USB Type-C)
- 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
- 3 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio:
- ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

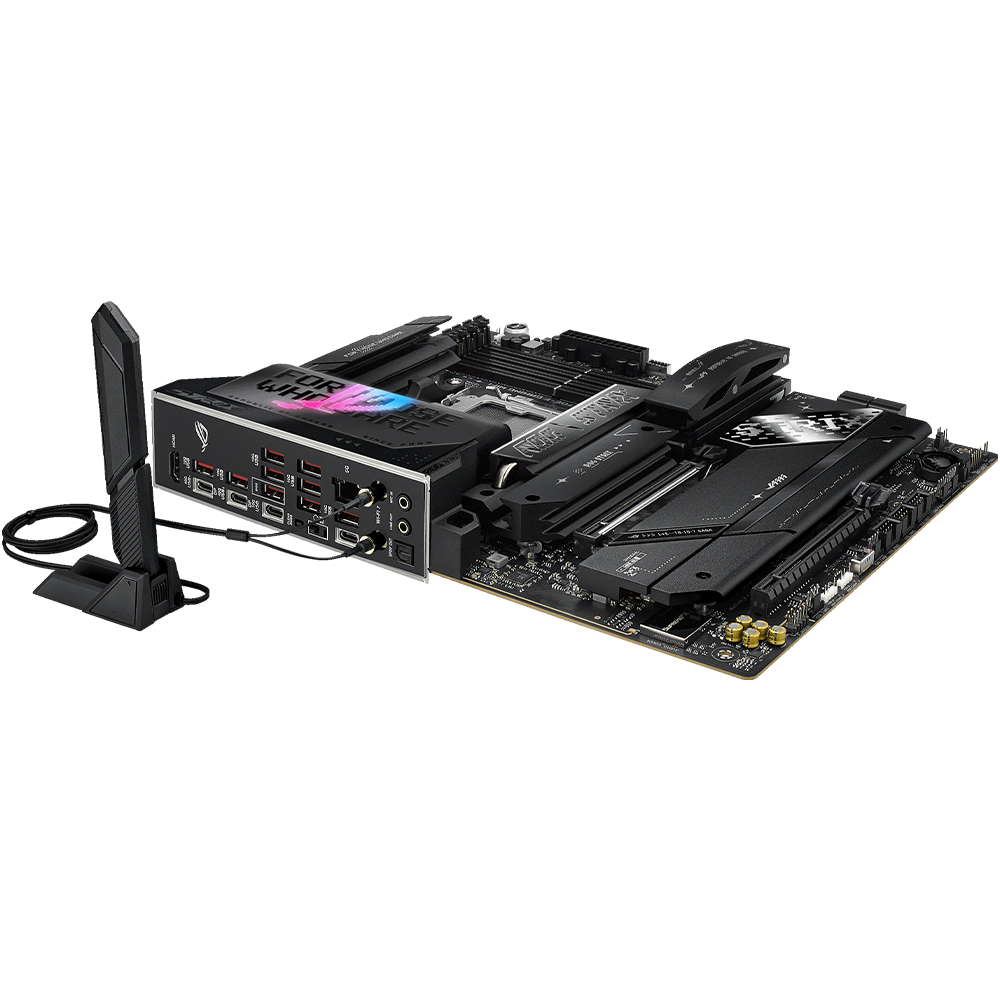

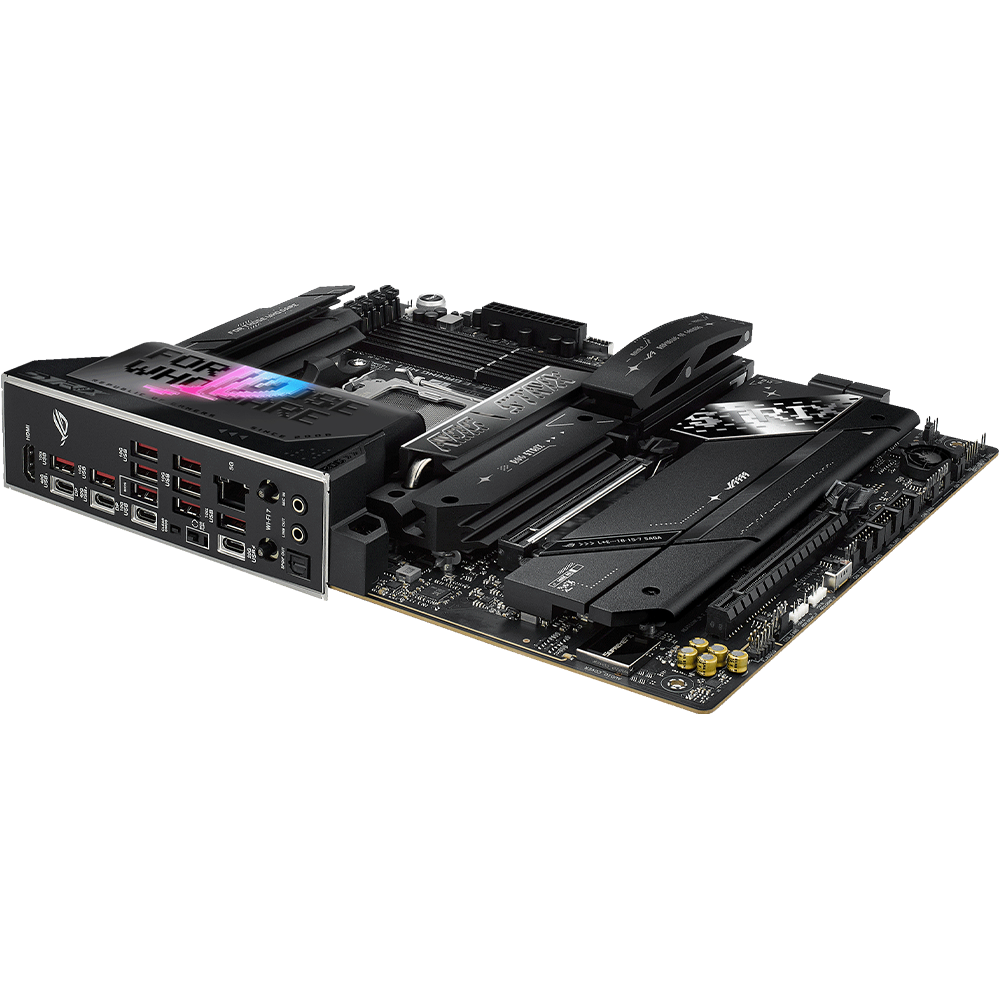

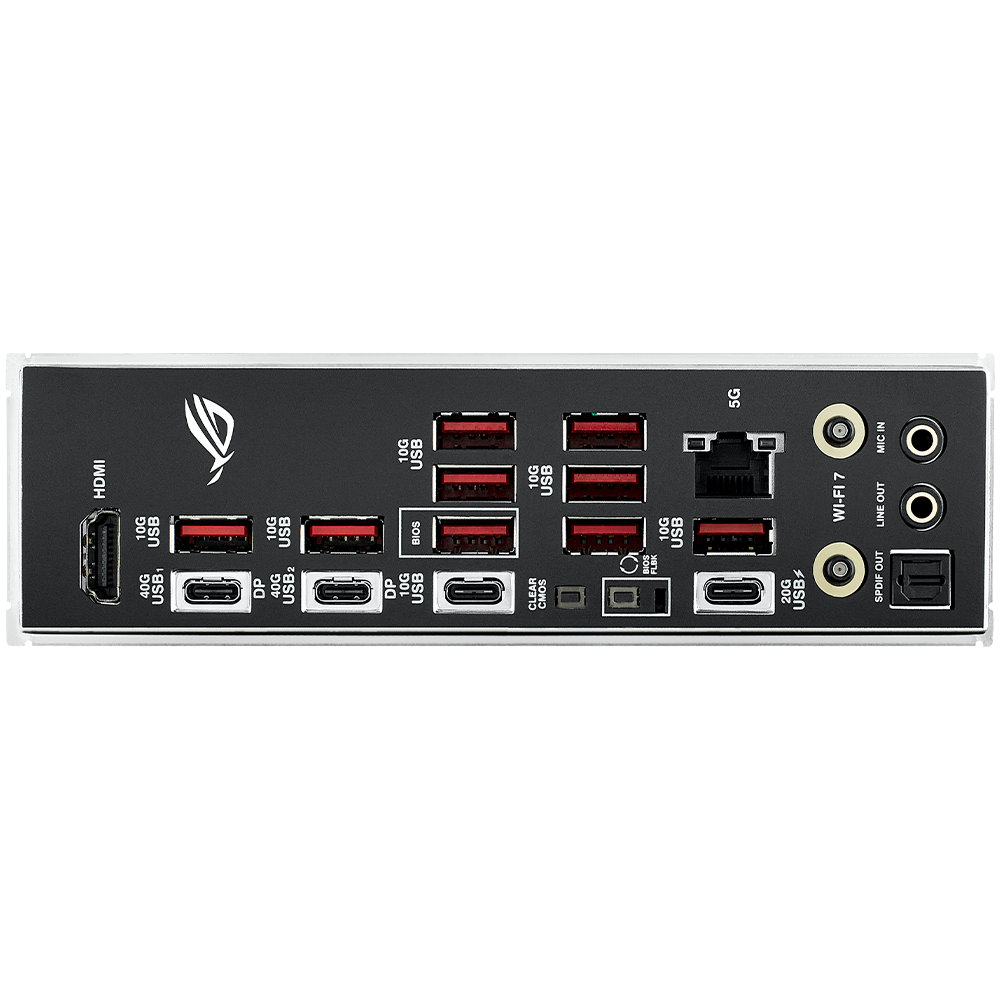

Back Panel I/O Ports:
- 2 x USB4 (40Gbps) ports (USB Type-C)
- 1 x USB 20Gbps port (USB Type-C with up to 30W PD Fast-charge)
- 10 x USB 10Gbps ports (9 x Type-A + 1 x USB Type-C)
- 1 x HDMI port
- 1 x Wi-Fi module
- 1 x Realtek 5Gb Ethernet port
- 2 x Gold-plated audio jacks
- 1 x Optical S/PDIF out port
- 1 x BIOS FlashBack button
- 1 x Clear CMOS button
Form Factor:
- ATX Form Factor
- 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Part Number:
- 90MB1IB0-M0EAY0
