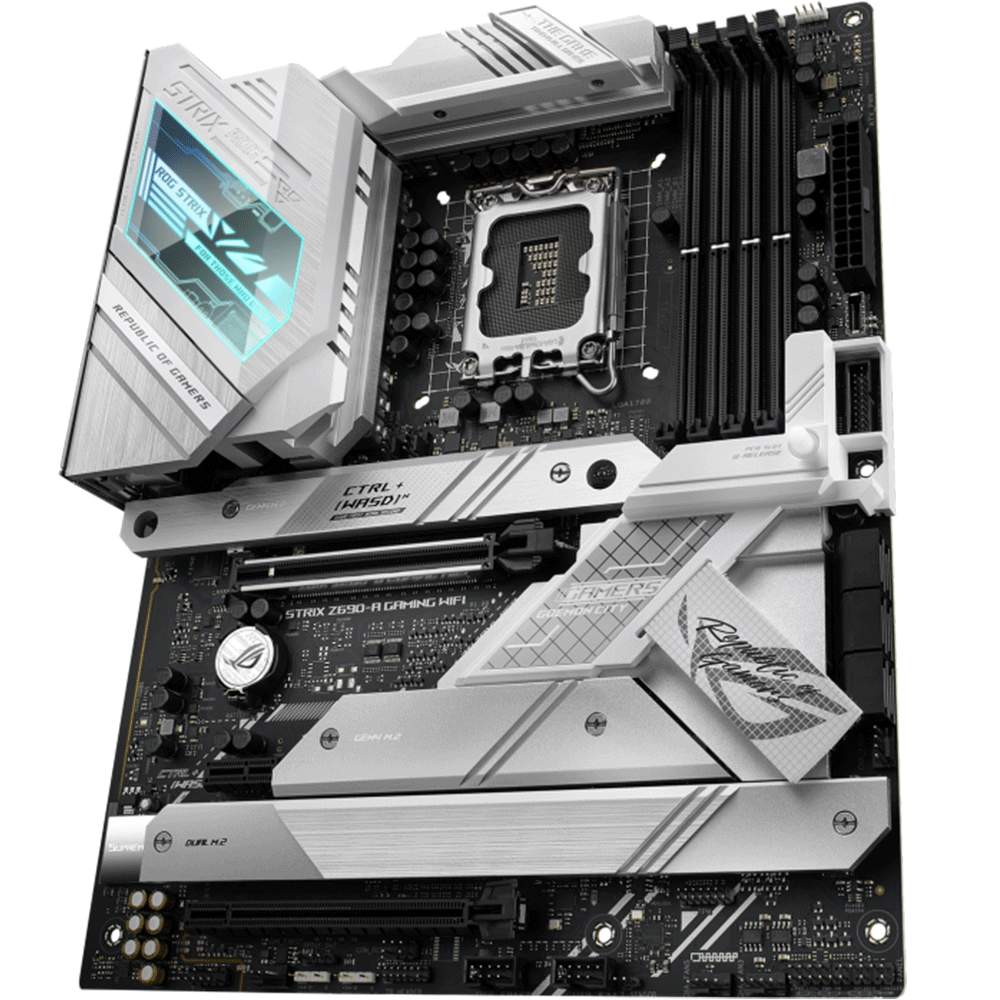

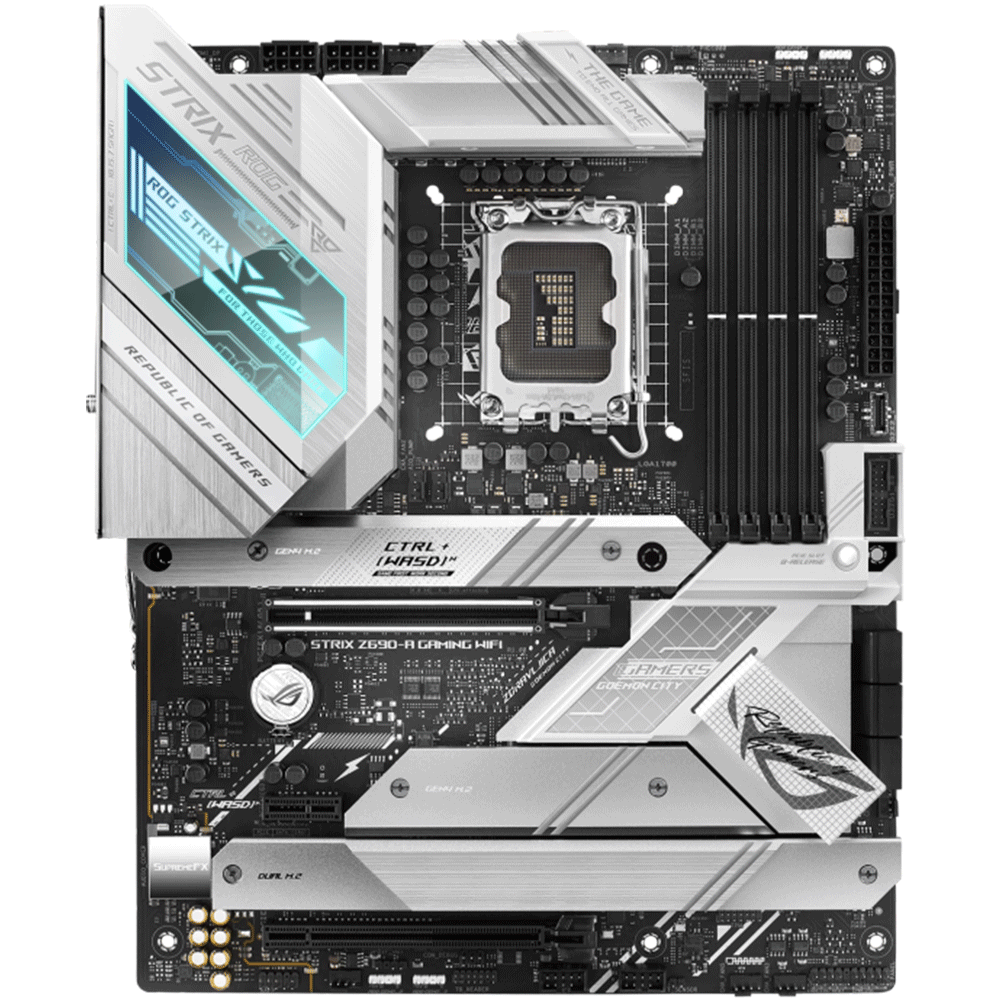

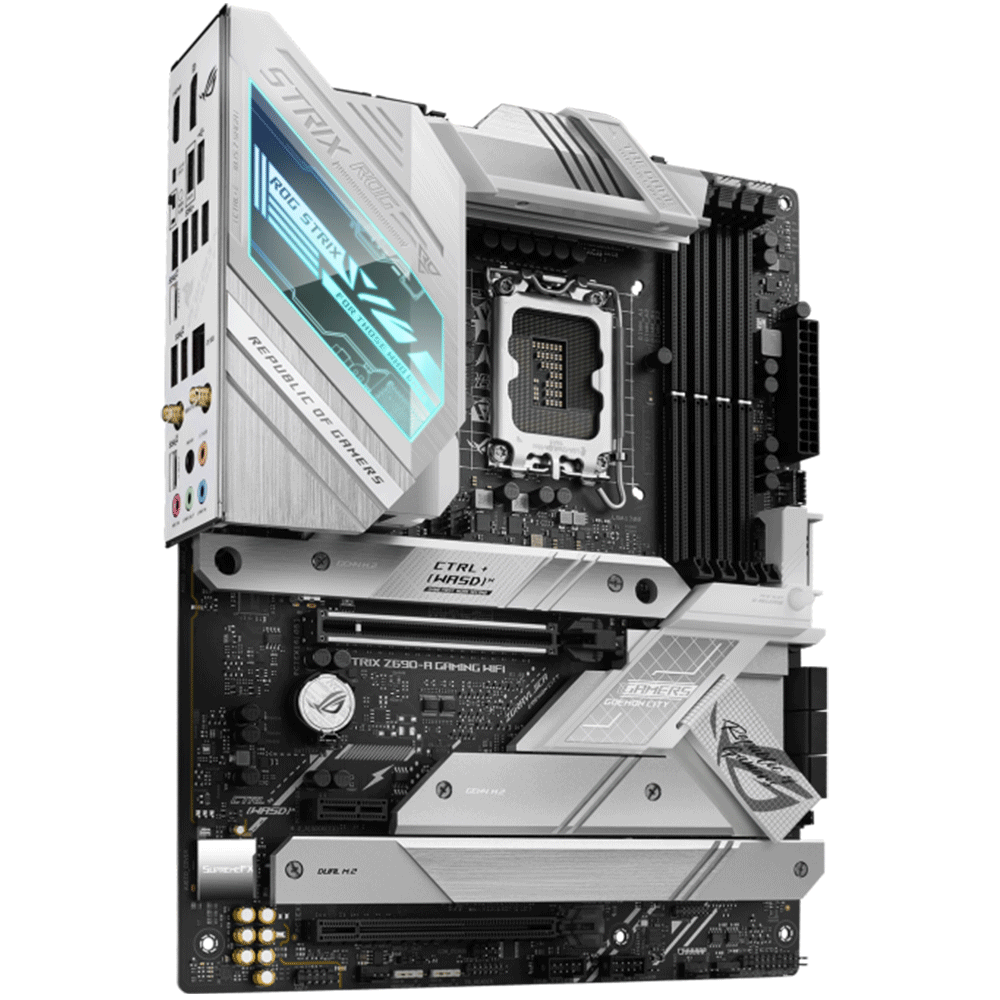

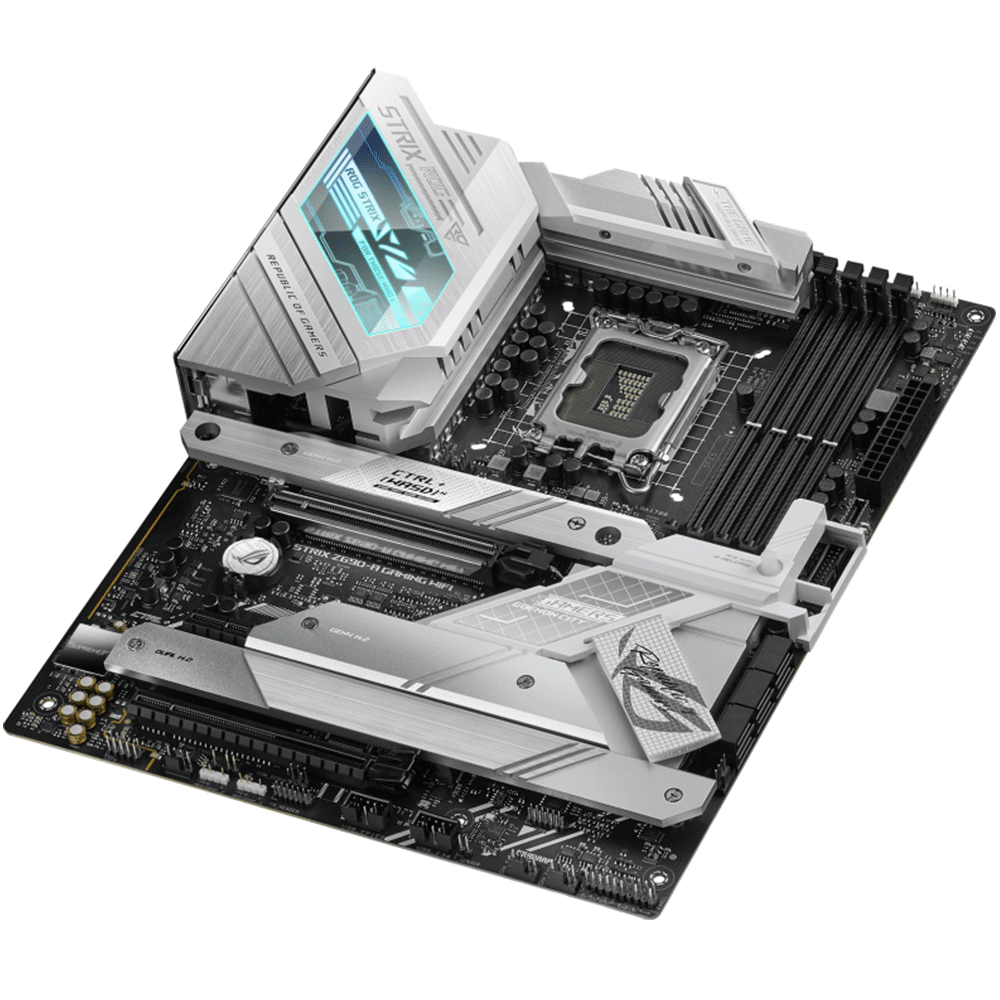

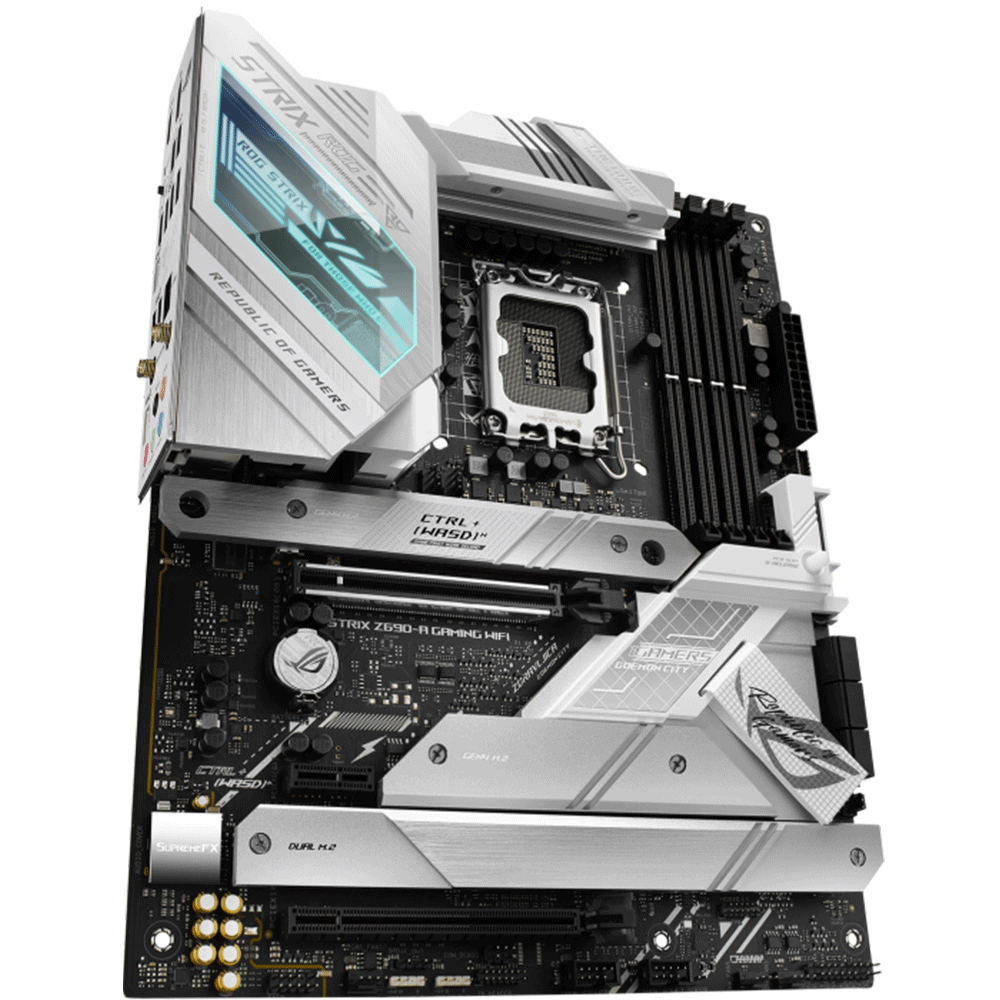

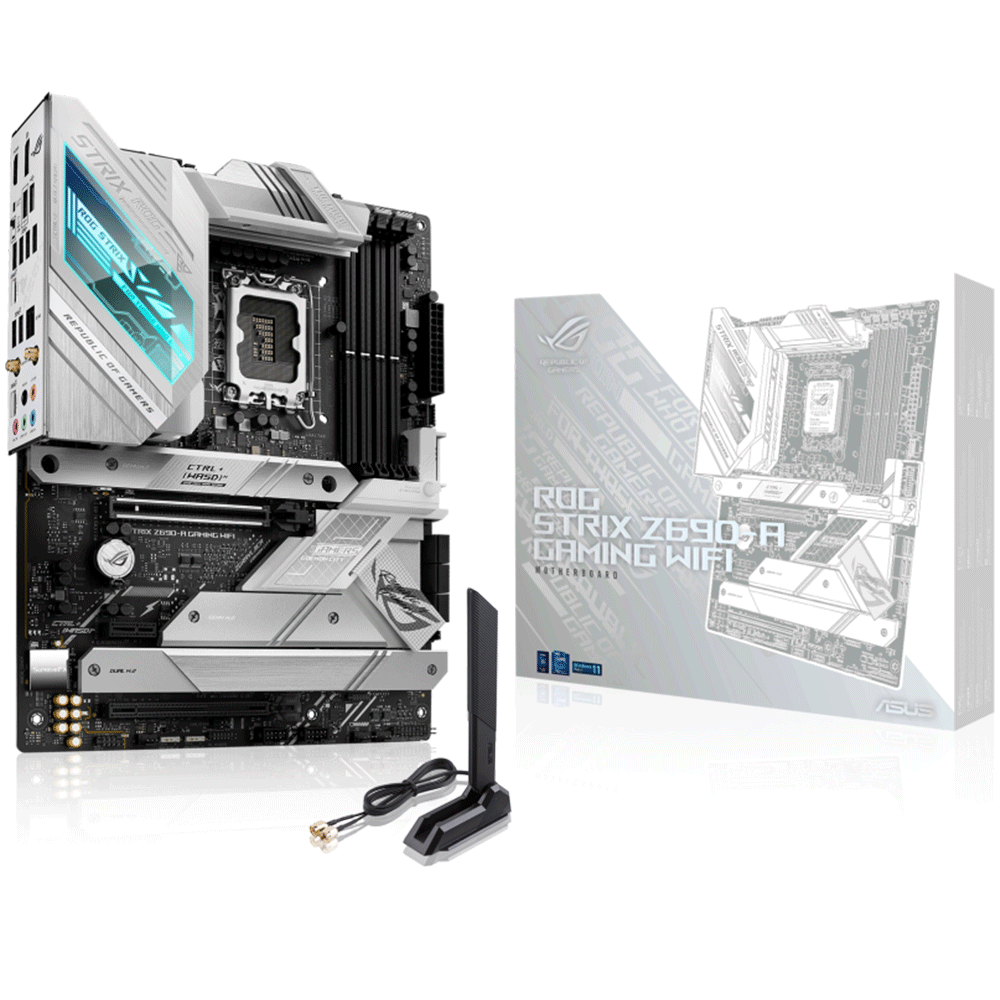

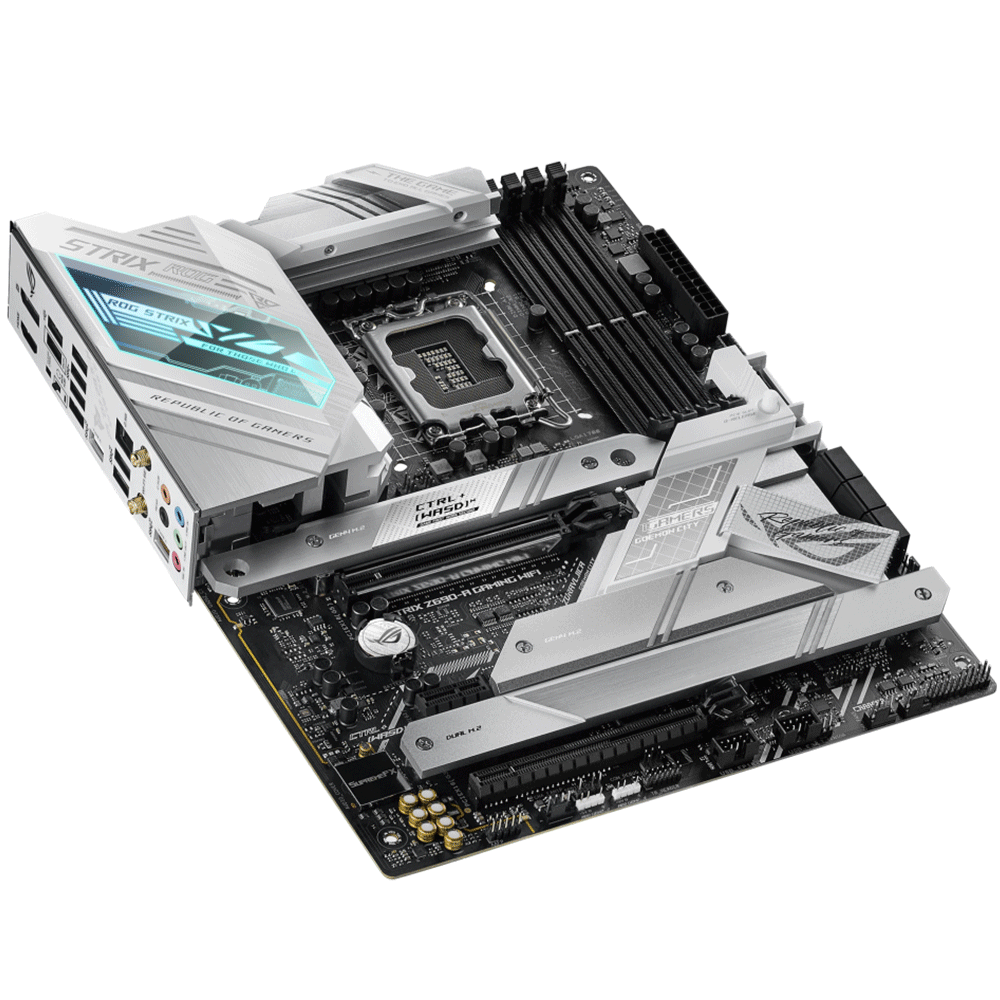

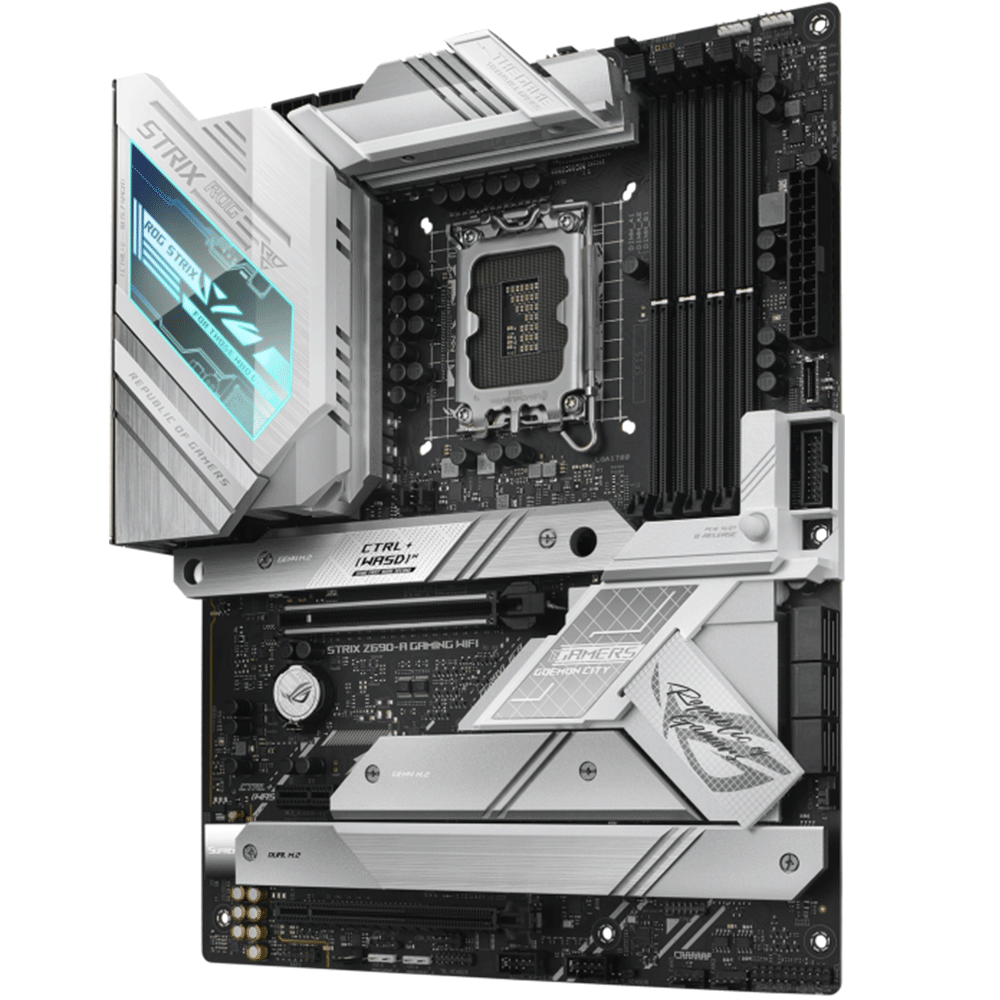

ASUS ROG STRIX Z690-A GAMING WIFI LGA1700 Socket For intel CPUs Motherboard

• Intel Z690 LGA 1700 ATX motherboard with PCIe 5.0, 16+1 DrMos, DDR5, Two-Way AI Noise Cancelation, AI Overclocking, AI Cooling, AI Networking, WiFi 6E, Intel 2.5 Gb Ethernet, four M.2 slots with heatsinks PCIe 4.0 NVMe SSD support, M.2 backplate, USB 3.2 Gen 2x2 Type-C, SATA and AURA Sync RGB lighting

CPU

• Intel Socket LGA1700 for 14th and 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors
• Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Memory

• DDR5
• 4 x DIMM, Max. 196GB, DDR5 6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC
• Dual Channel Memory Architecture
• Supports Intel Extreme Memory Profile (XMP)
• OptiMem II
• * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration

Expansion Slots

• 1 x PCIe 5.0/4.0/3.0 x16 slot
• 1 x PCIe 3.0 x16 slot
• 1 x PCIe 3.0 x1 slot

Storage :

• 6 x SATA 6Gb/s
• 4 x M.2 PCIe 4.0 x4

Ethernet :

• 1 x Intel® 2.5Gb Ethernet
• ASUS LANGuard

Wireless & Bluetooth

• Intel® Wi-Fi 6E Supports 2.4/5/6GHz frequency band*
• Bluetooth v5.2 hardware ready**
• * WiFi 6E 6GHz regulatory may vary between countries.
• ** Bluetooth v5.2 function will be ready in Windows 11 or later.

USB

• Rear USB (Total 10 ports)
• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
• 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)
• 4 x USB 3.2 Gen 1 ports (4 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• Front USB: Total 7 ports
• 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)
• 1 x USB 3.2 Gen 1 header support(s) additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio

• ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

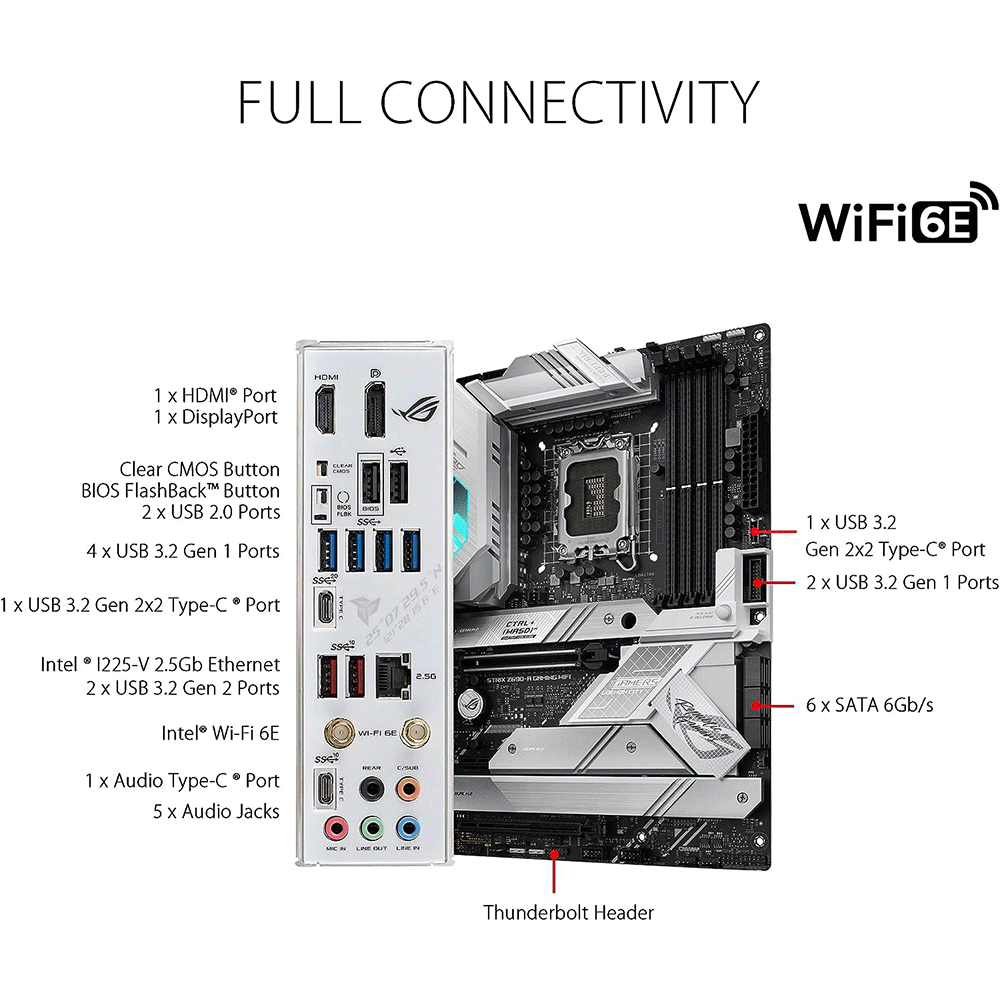

Back Panel I/O Ports

• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
• 3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C®)
• 4 x USB 3.2 Gen 1 ports (4 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x DisplayPort
• 1 x HDMI® port
• 1 x Wi-Fi Module
• 1 x Intel® 2.5Gb Ethernet port
• 5 x Audio jacks
• 1 x BIOS FlashBack™ button
• 1 x Clear CMOS button

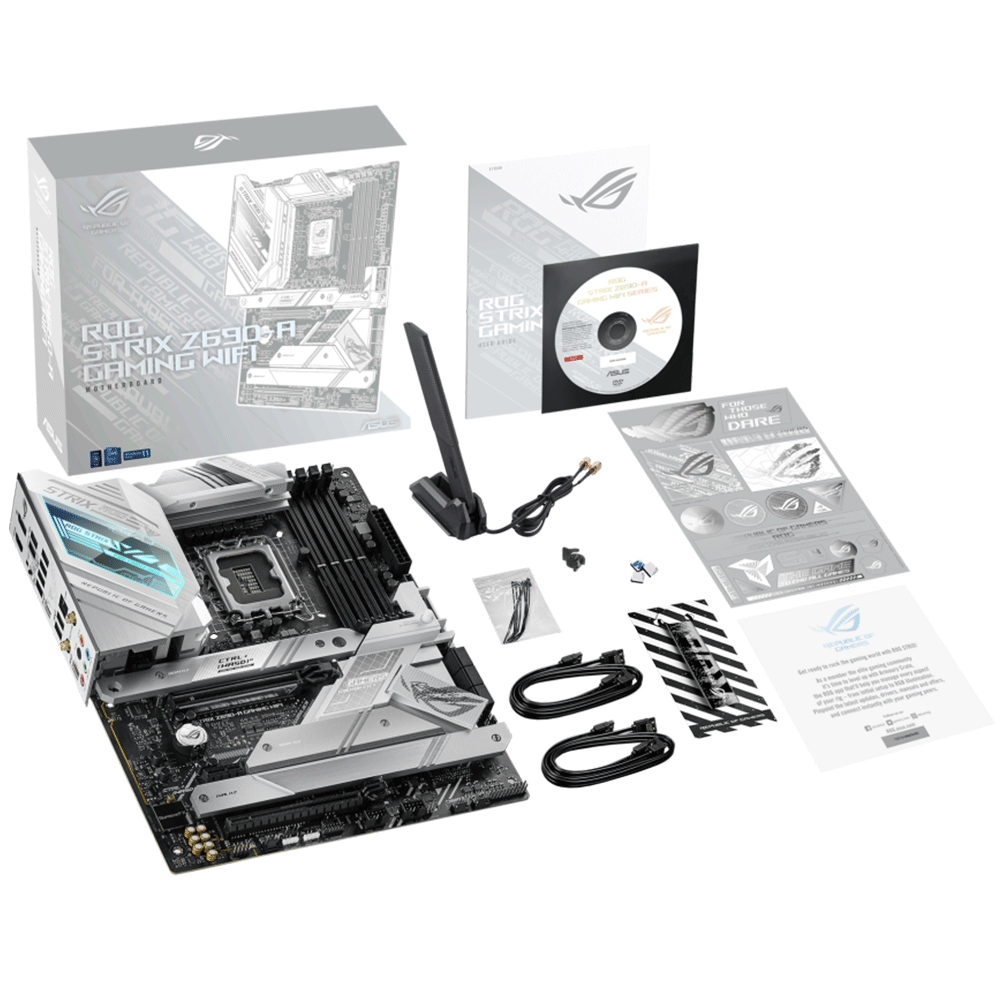

Accessories

• 4 x SATA 6Gb/s cables
• 1 x ASUS Wi-Fi moving antennas
• 1 x Cable ties pack
• 1 x M.2 Rubber Package
• 1 x M.2 Q-Latch package
• 1 x ROG key chain
• 1 x ROG Strix stickers
• 1 x ROG Strix thank you card
• 1 x Support DVD
• 1 x User guide

Form Factor :

• ATX ( 30.5 cm x 24.4 cm )

Part Number:

• 90MB1AP0-M0EAY0
