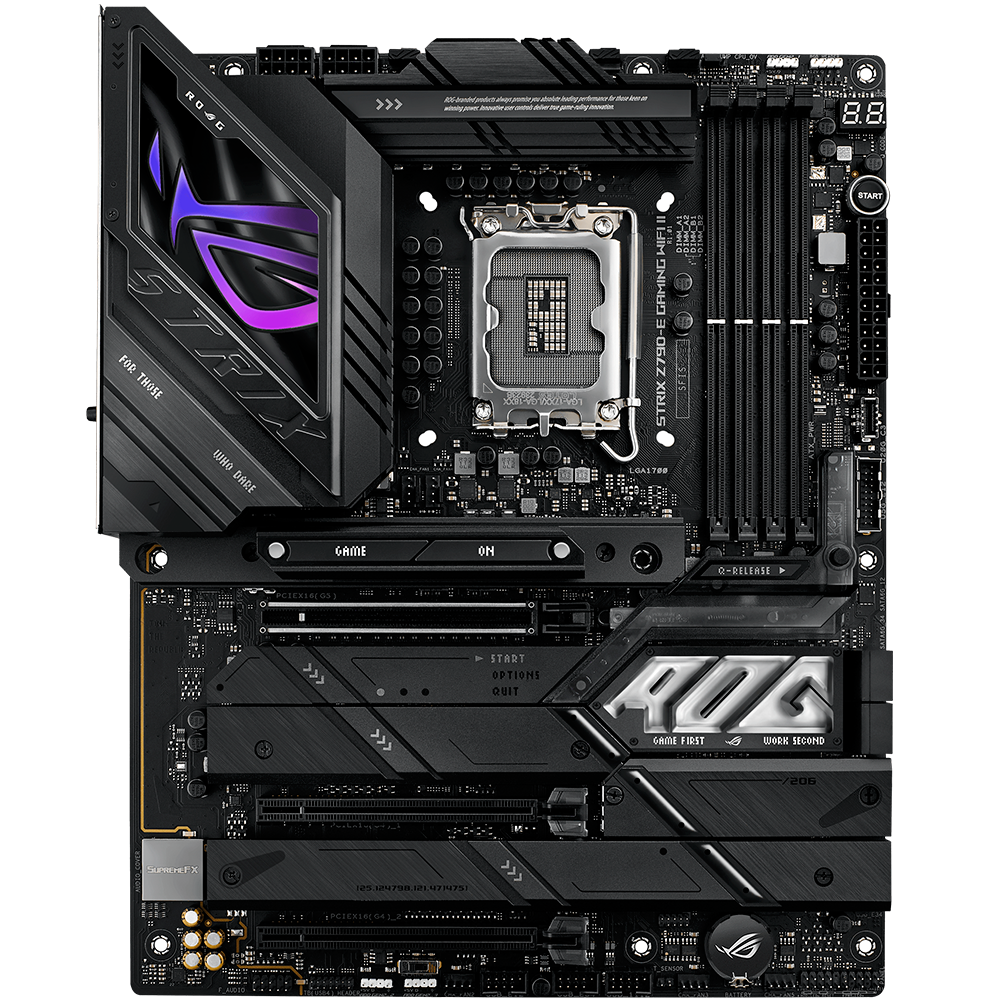

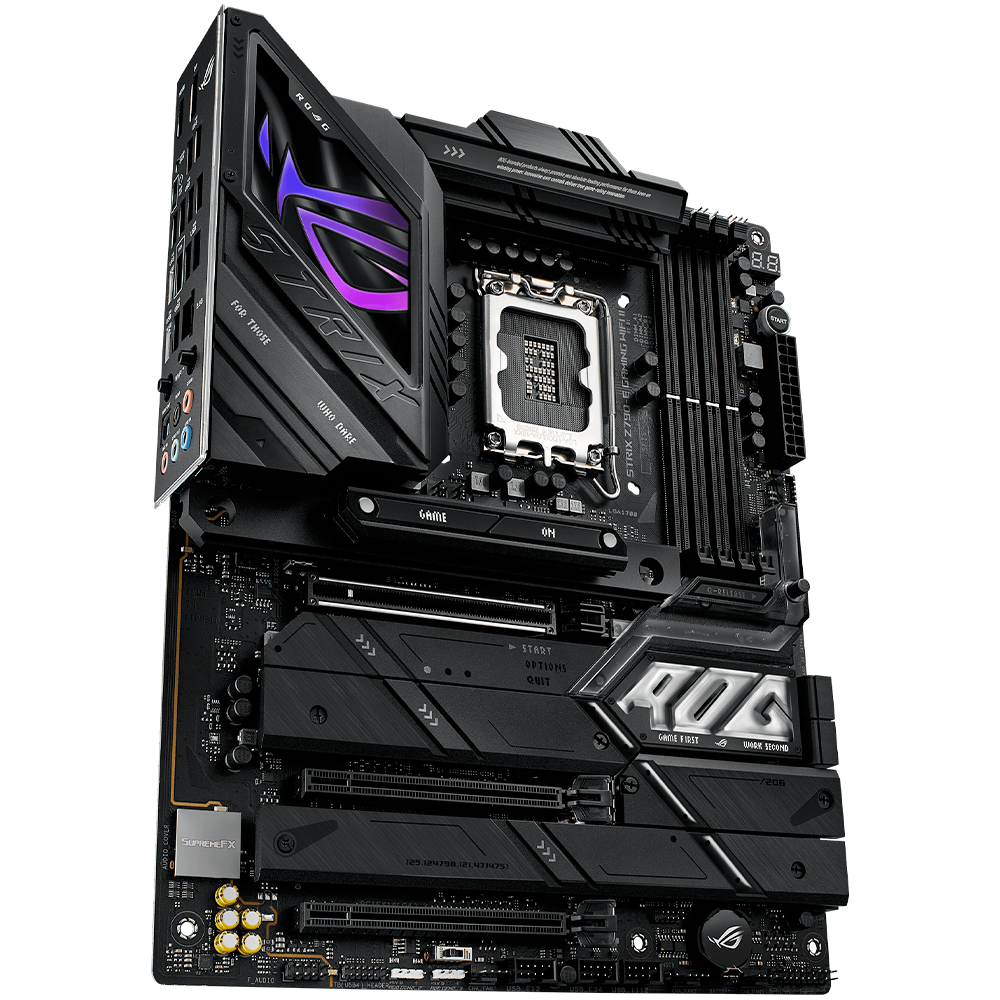

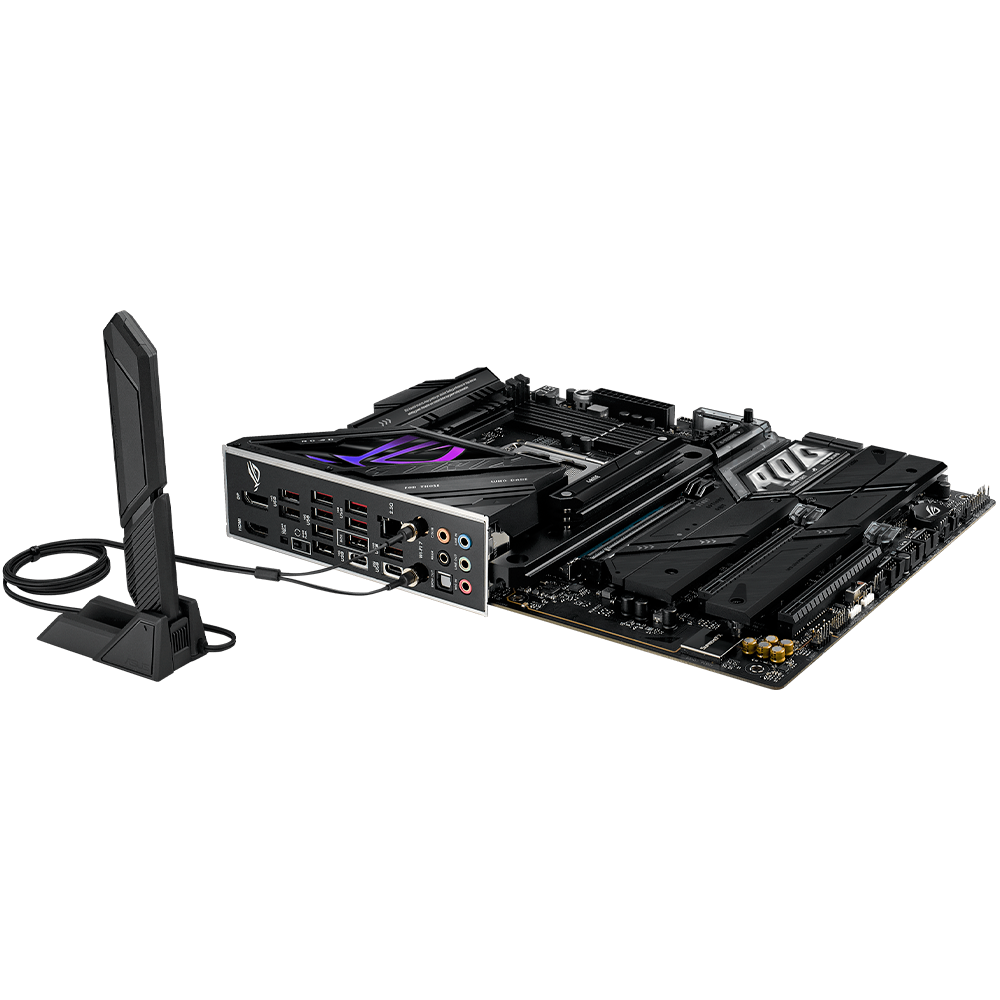

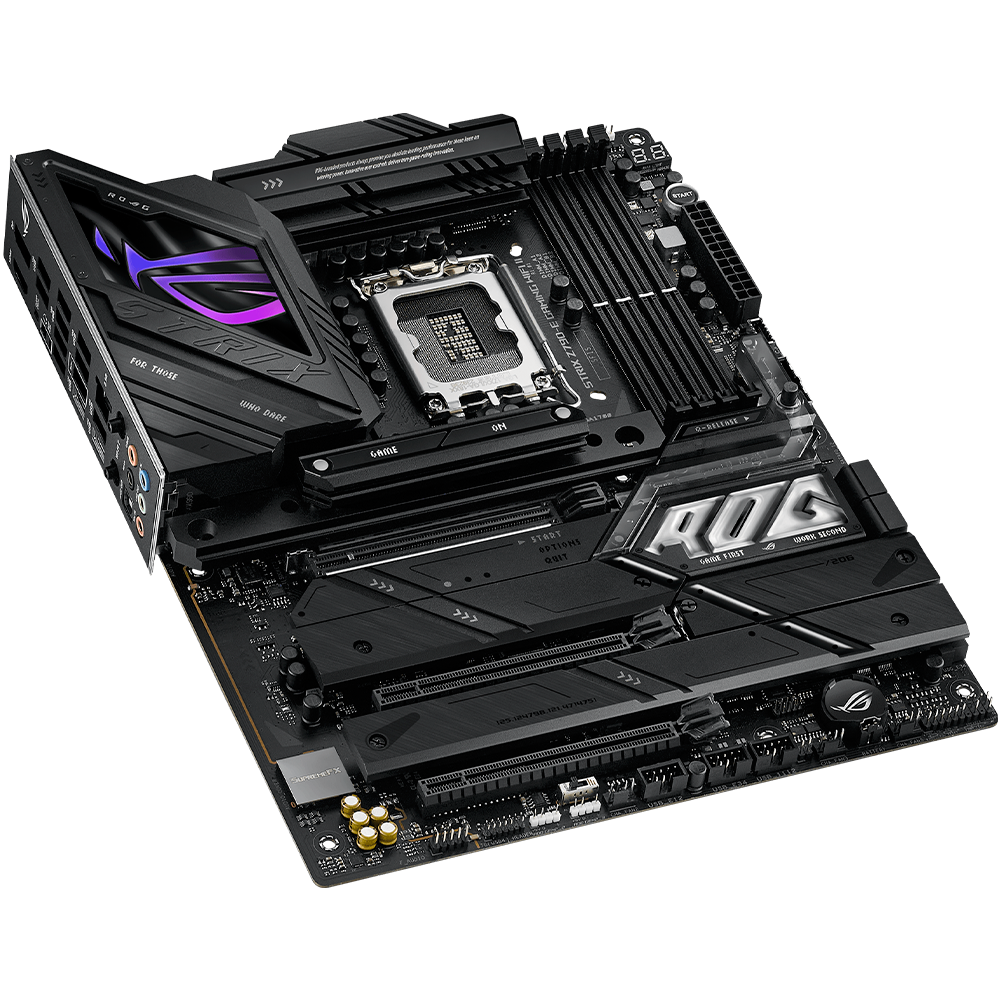

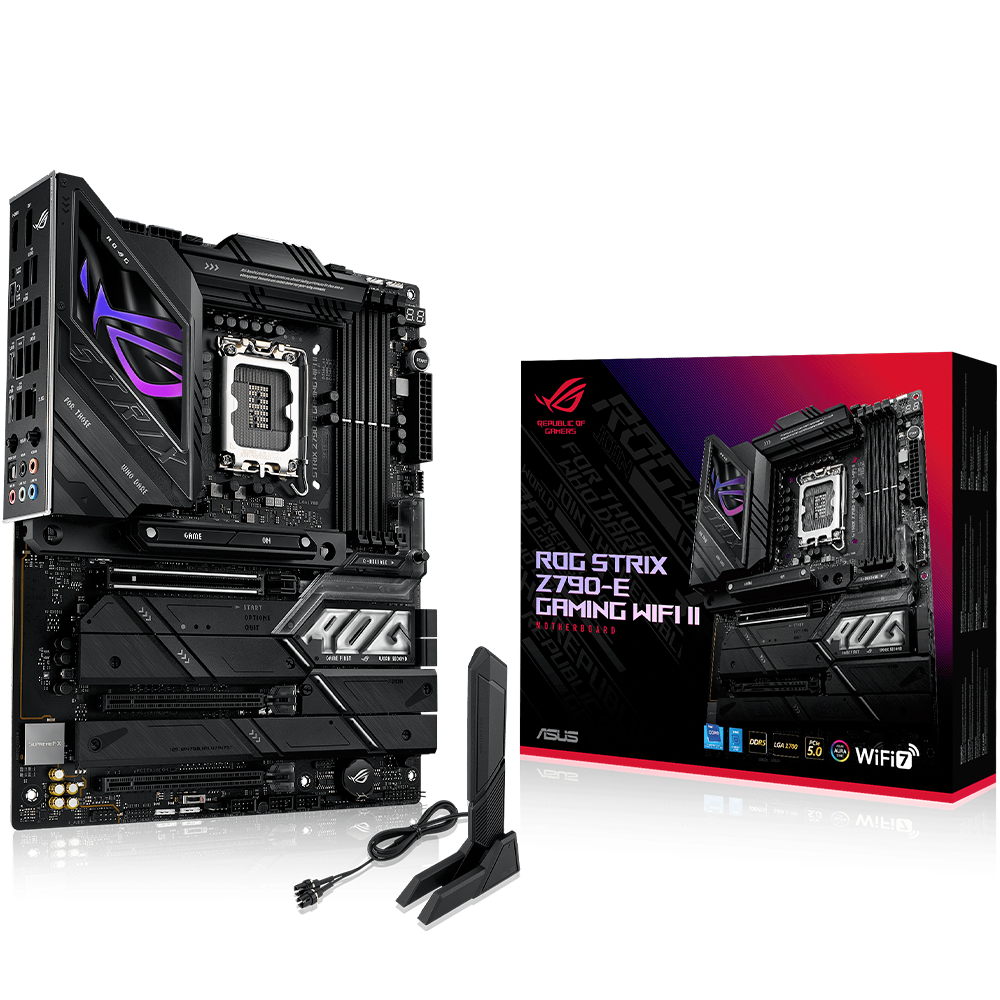

ASUS ROG STRIX Z790-E GAMING WIFI II LGA1700 Socket For intel CPUs Motherboard

• Style and substance come together like never before in the feature-packed ROG Strix Z790-E II. From its vibrant multi-layered I/O shroud to its stacks of VRM cooling, it is a conversation piece that also delivers enhanced DDR5 performance, ample PCIe 5.0 slots and the DIY-friendly Q-Design feature set that makes building and upgrading a breeze.

CPU

• Intel Socket LGA1700 for 14th and 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors
• Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Memory

• DDR5
• 4 x DIMM, Max. 192GB, DDR5
• Dual Channel Memory Architecture
• Supports Intel Extreme Memory Profile (XMP)
• OptiMem II

Expansion Slots

• 1 x PCIe 5.0 x16 slot
• 2 x PCIe 4.0 x16 slots

Storage :

• 4 x SATA 6Gb/s
• 1 x M.2 PCIe 5.0 x4
• 4 x M.2 PCIe 4.0 x4

Ethernet :

• 1 x Intel® 2.5Gb Ethernet
• ASUS LANGuard

Wireless & Bluetooth :

• Wi-Fi 7 Supports 2.4/5/6GHz frequency band
• Bluetooth v5.4

USB

• Rear USB (Total 12 ports)
• 1 x USB 20Gbps port (USB Type-C)
• 11 x USB 10Gbps ports (10 x Type-A + 1 x USB Type-C)
• Front USB (Total 11 ports)
• 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge )**
• 2 x USB 5GGps headers support 4 additional USB 5Gbps ports
• 3 x USB 2.0 headers support 6 additional USB 2.0 ports
• * USB Type-C® power delivery output: max. 5V/3A
• ** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A

Audio

• ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

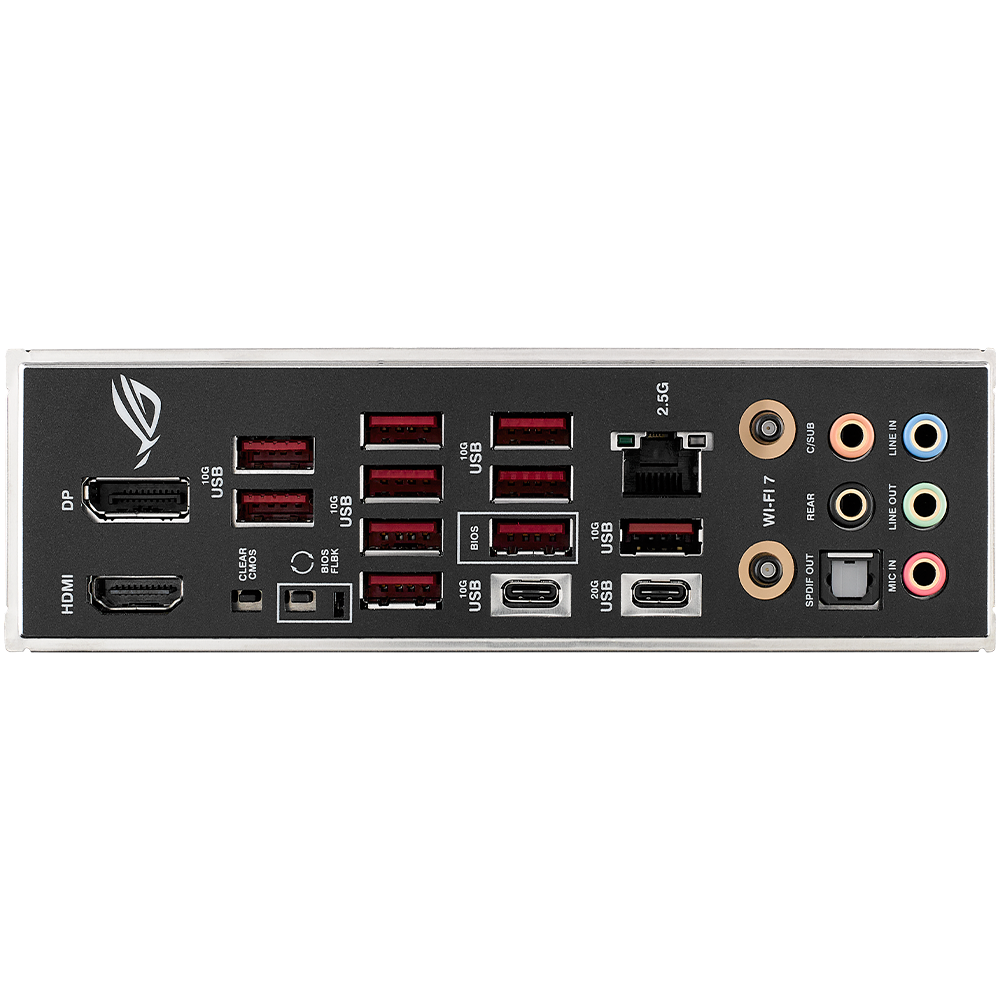

Back Panel I/O Ports

• 1 x USB 20Gbps port (USB Type-C)
• 11 x USB 10Gbps ports (10 x Type-A + 1 x USB Type-C)
• 1 x HDMI™ port
• 1 x DisplayPort
• 1 x Wi-Fi Module
• 1 x Intel® 2.5Gb Ethernet port
• 5 x Gold-plated audio jacks*
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack™ button
• 1 x Clear CMOS button

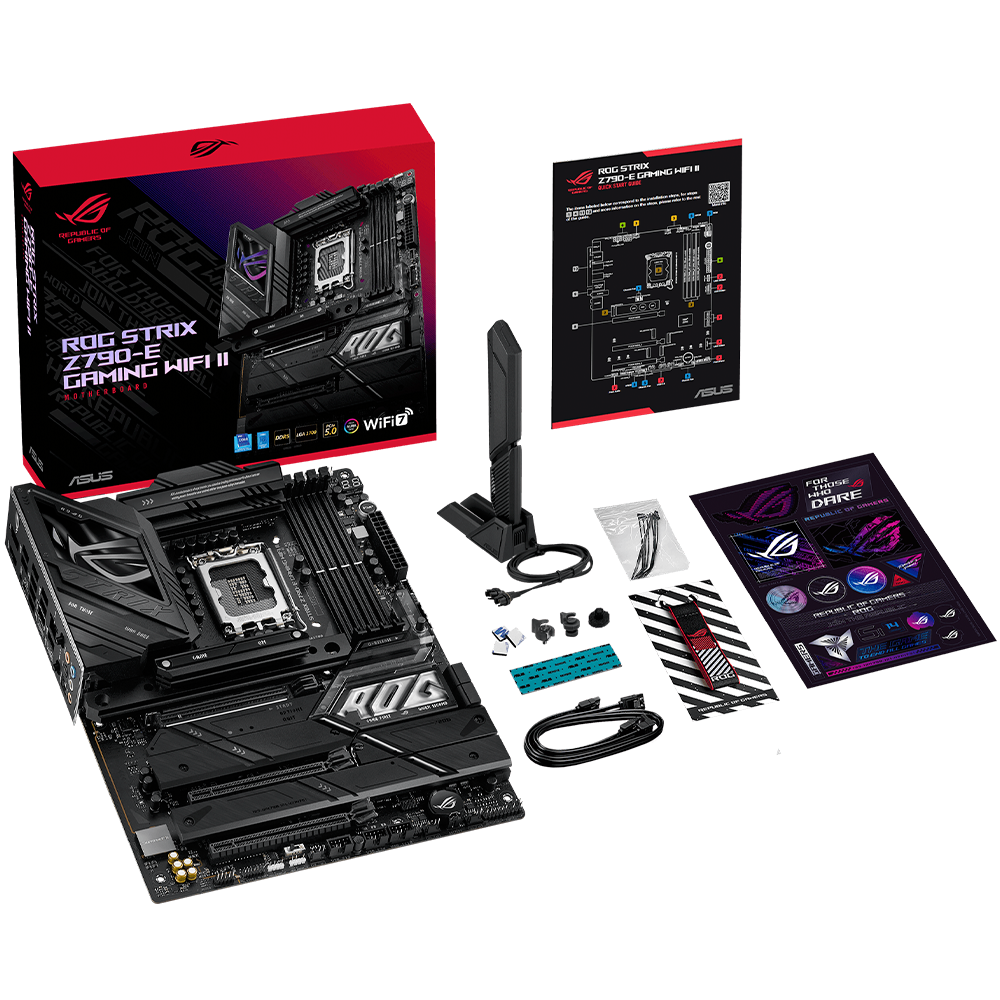

Accessories

• 2 x SATA 6Gb/s cables
• 1 x Thermal pad for M.2
• 1 x ASUS Wi-Fi Q-Antenna
• 1 x Cable ties package
• 1 x M.2 backplate Q-Latch package
• 1 x M.2 Q-Latch package
• 1 x ROG key chain
• 1 x ROG Strix stickers
• 1 x ROG Strix thank you card
• 2 x M.2 Rubber Packages
• 1 x M.2 backplate Rubber
• 1 x User guide

Form Factor :

• ATX ( 30.5 cm x 24.4 cm )

Part Number:

• 90MB1FC0-M0EAY0
