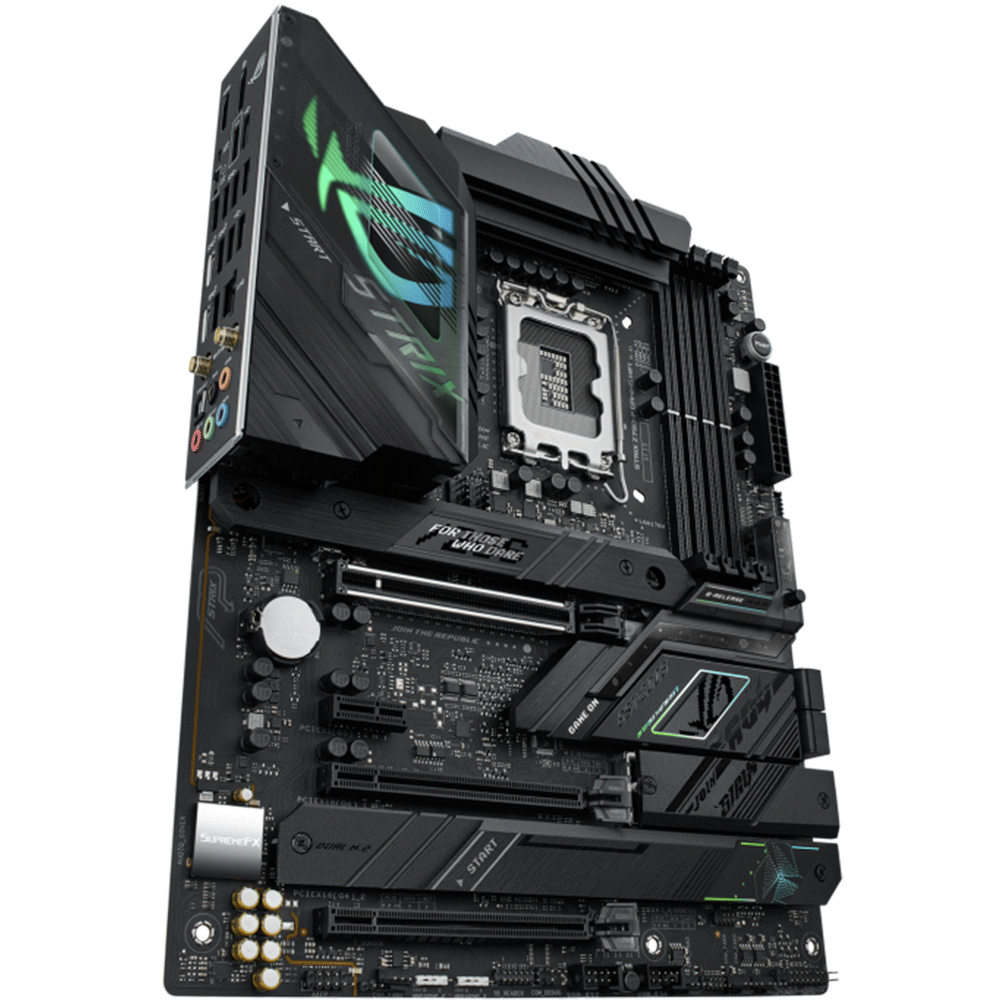

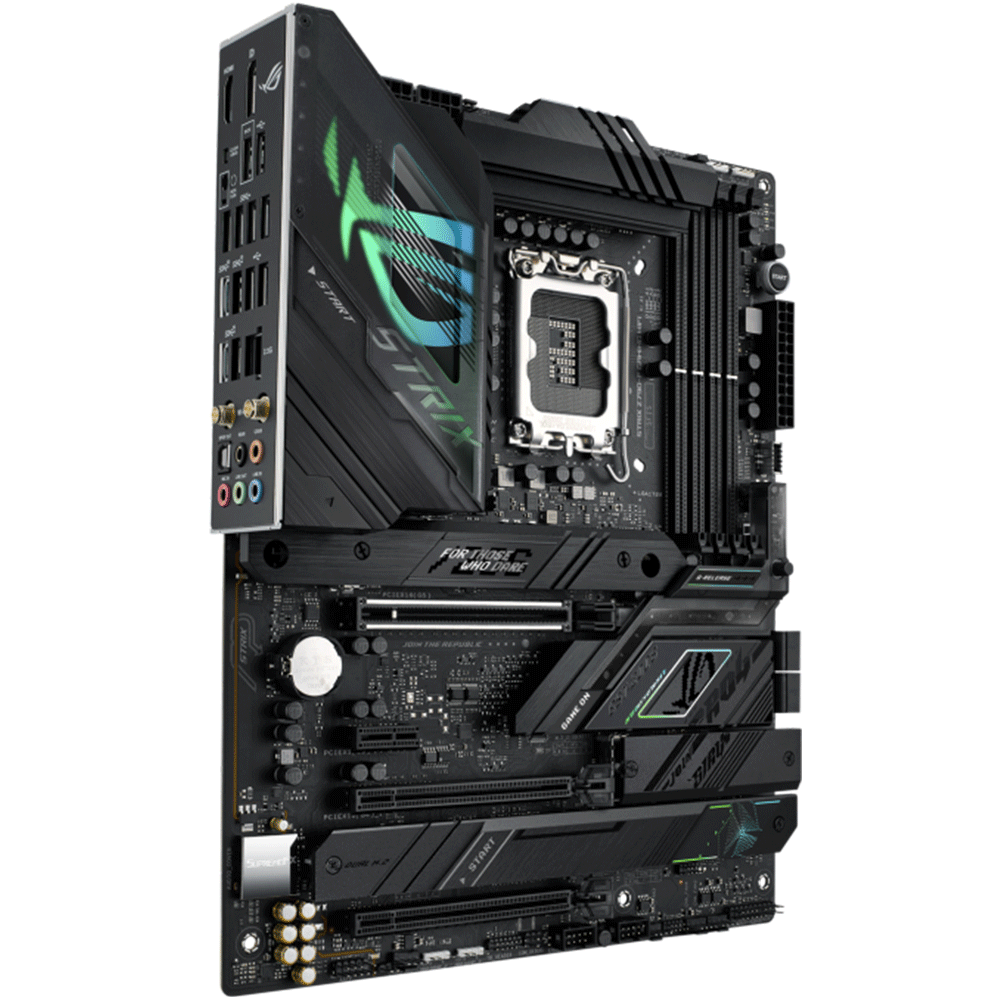

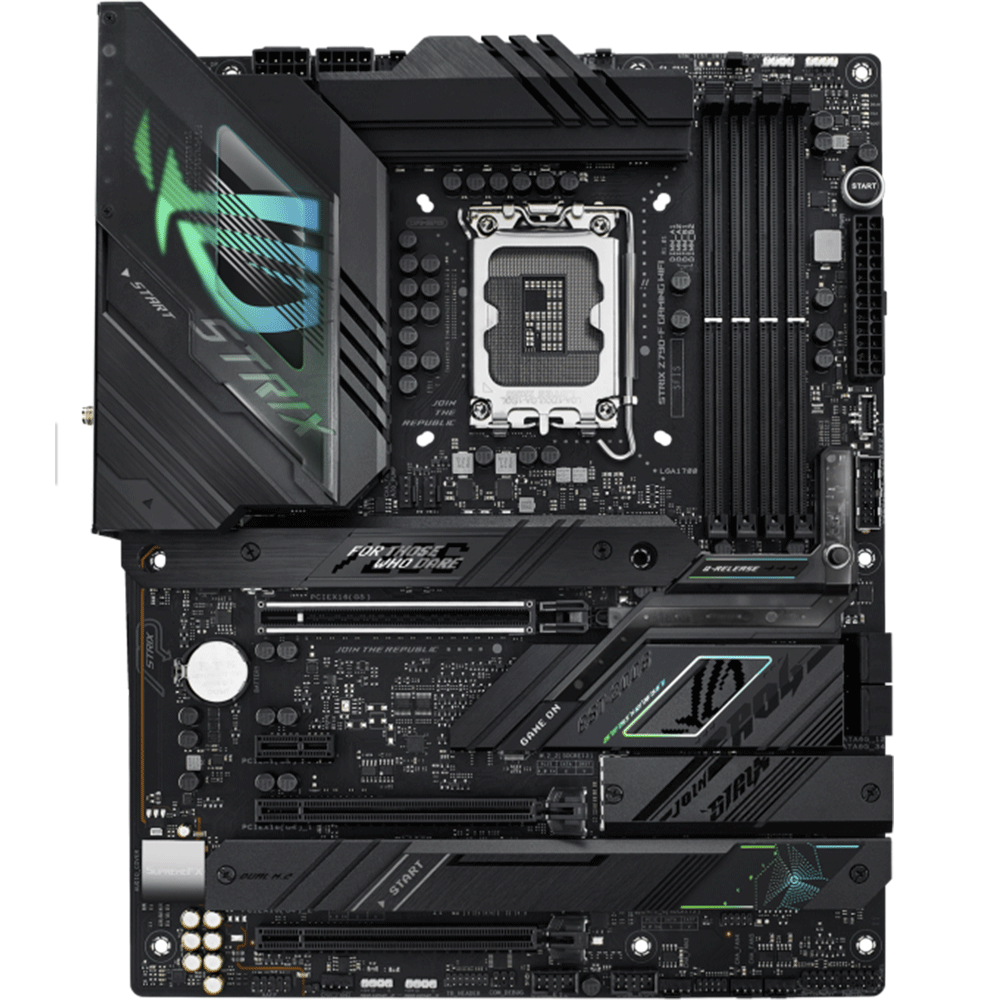

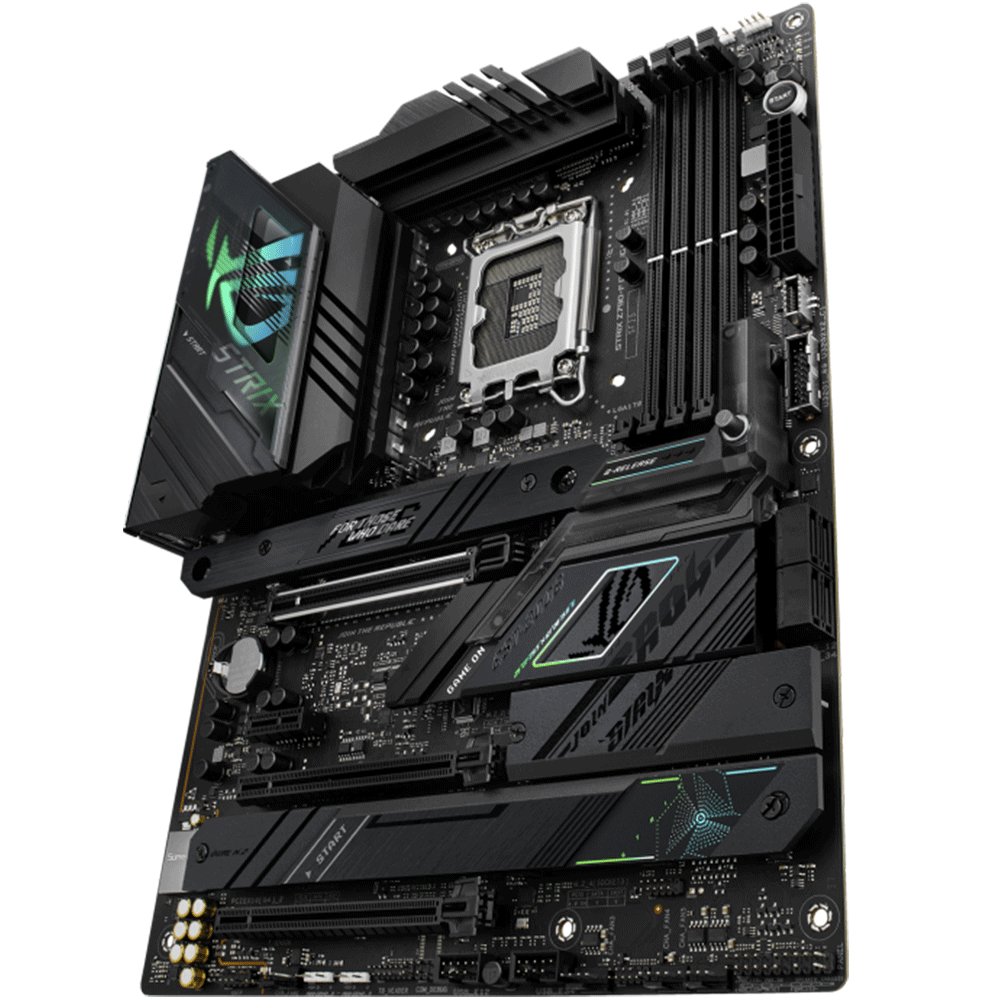

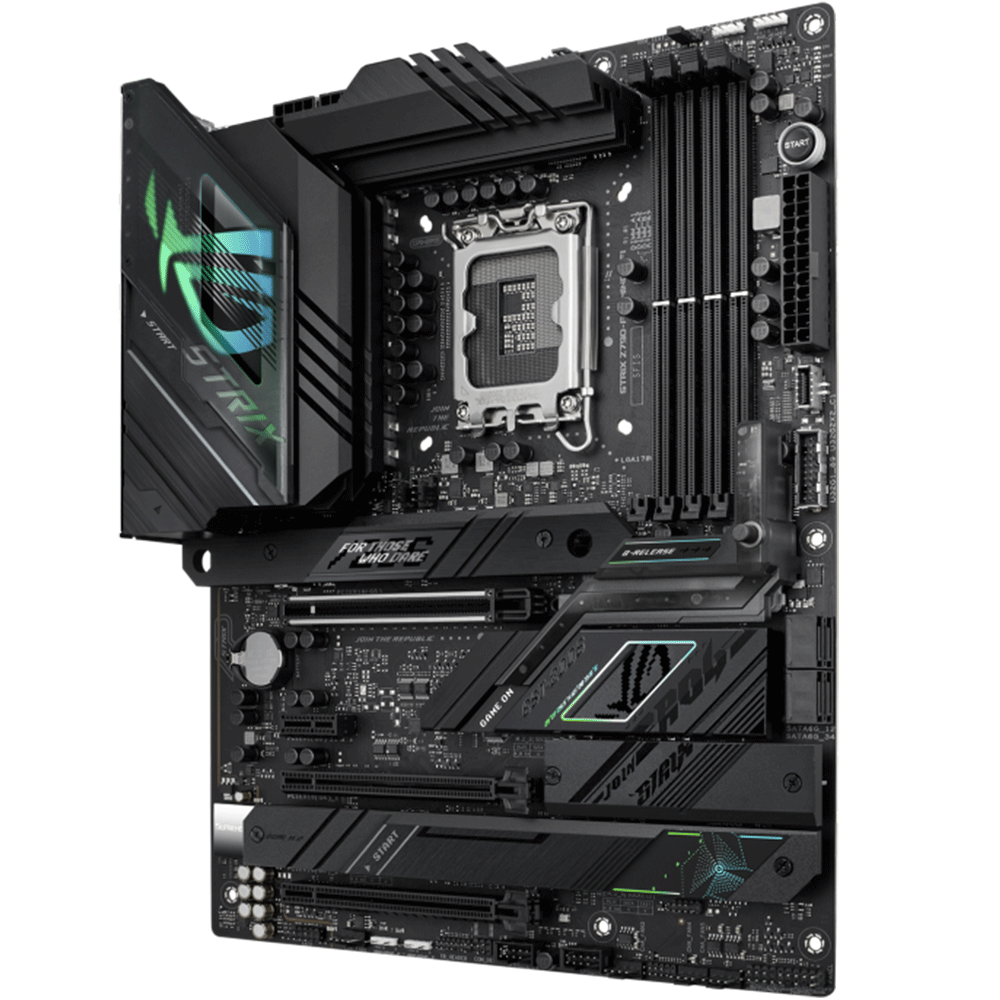

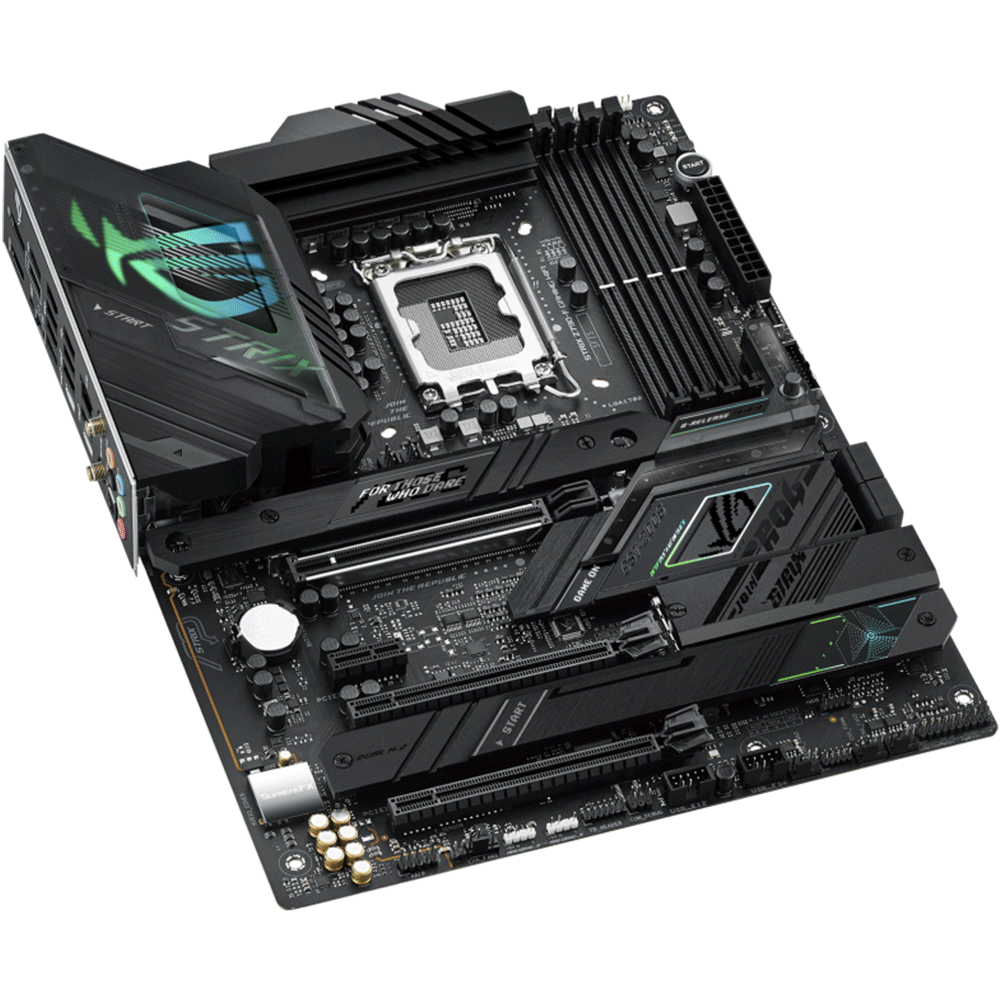

ASUS ROG STRIX Z790-F GAMING WIFI LGA1700 Socket For intel CPUs Motherboard

• Beneath its dark heatsinks and brooding aesthetic, the ROG Strix Z790-F packs a power solution and overclocking features that push Intel® 13th Gen Core processors to new heights. Flush with advanced thermal management for quieter builds, along with support for DDR5, PCIe 5.0, and WiFi 6E, this well-equipped powerhouse delivers massive bandwidth for everything.

CPU

• Intel Socket LGA1700 for 14th and 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors
• Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Memory

• DDR5
• 4 x DIMM, Max. 192GB, DDR5 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC
• Dual Channel Memory Architecture
• Supports Intel Extreme Memory Profile (XMP)
• OptiMem II
• * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration

Expansion Slots

• 1 x PCIe 5.0 x16 slot
• 2 x PCIe 4.0 x16 slots
• 1 x PCIe 3.0 x1 slot

Storage :

• 4 x SATA 6Gb/s
• 4 x M.2 PCIe 4.0 x4

Ethernet :

• 1 x Intel® 2.5Gb Ethernet
• ASUS LANGuard

Wireless & Bluetooth :

• Wi-Fi 6 Supports 2.4/5/6GHz frequency band
• Bluetooth v5.3

USB

• Rear USB (Total 12 ports)
• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
• 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)
• 4 x USB 3.2 Gen 1 ports (4 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• Front USB: Total 7 ports
• 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® with up to 30W PD Fast-charge)
• 1 x USB 3.2 Gen 1 header support additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio

• ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

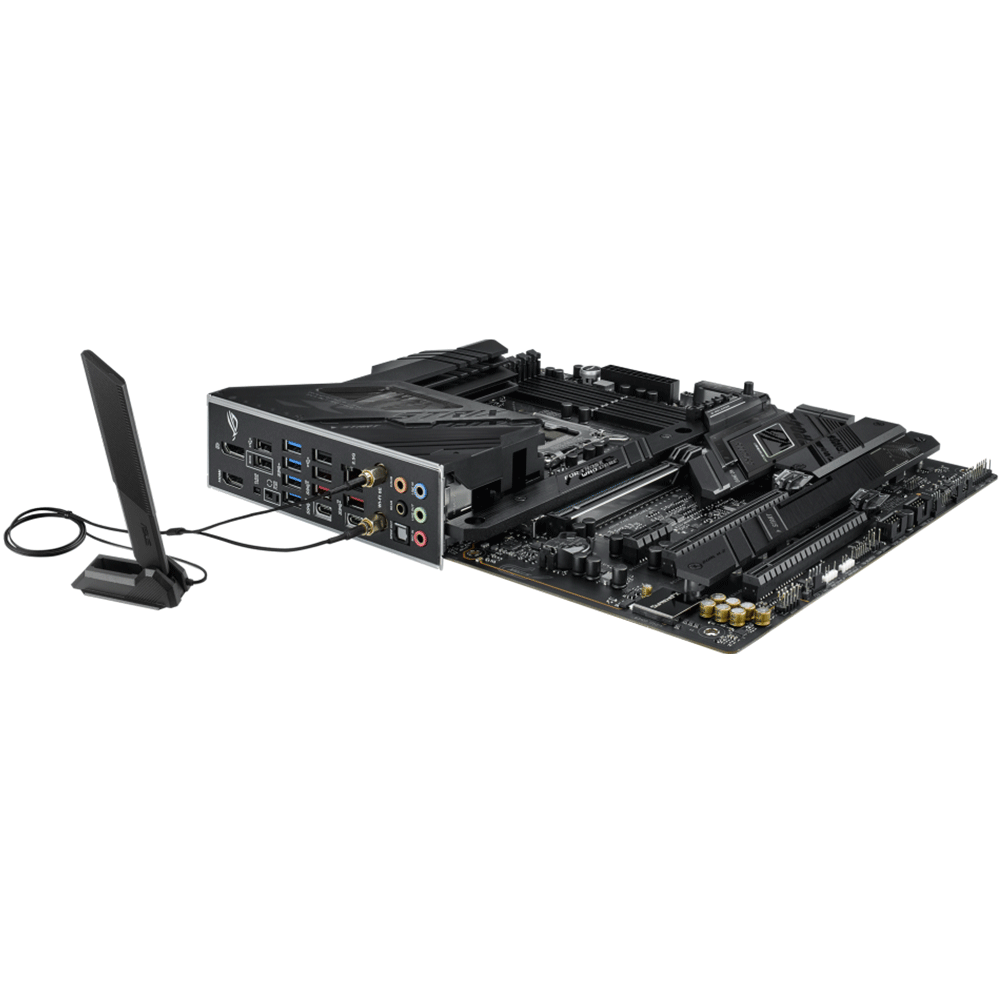

Back Panel I/O Ports

• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
• 3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C® )
• 4 x USB 3.2 Gen 1 ports (4 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x HDMI™ port
• 1 x DisplayPort
• 1 x Wi-Fi Module
• 1 x Intel® 2.5Gb Ethernet port
• 5 x Gold-plated audio jacks*
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack™ button
• 1 x Clear CMOS button
• *The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.

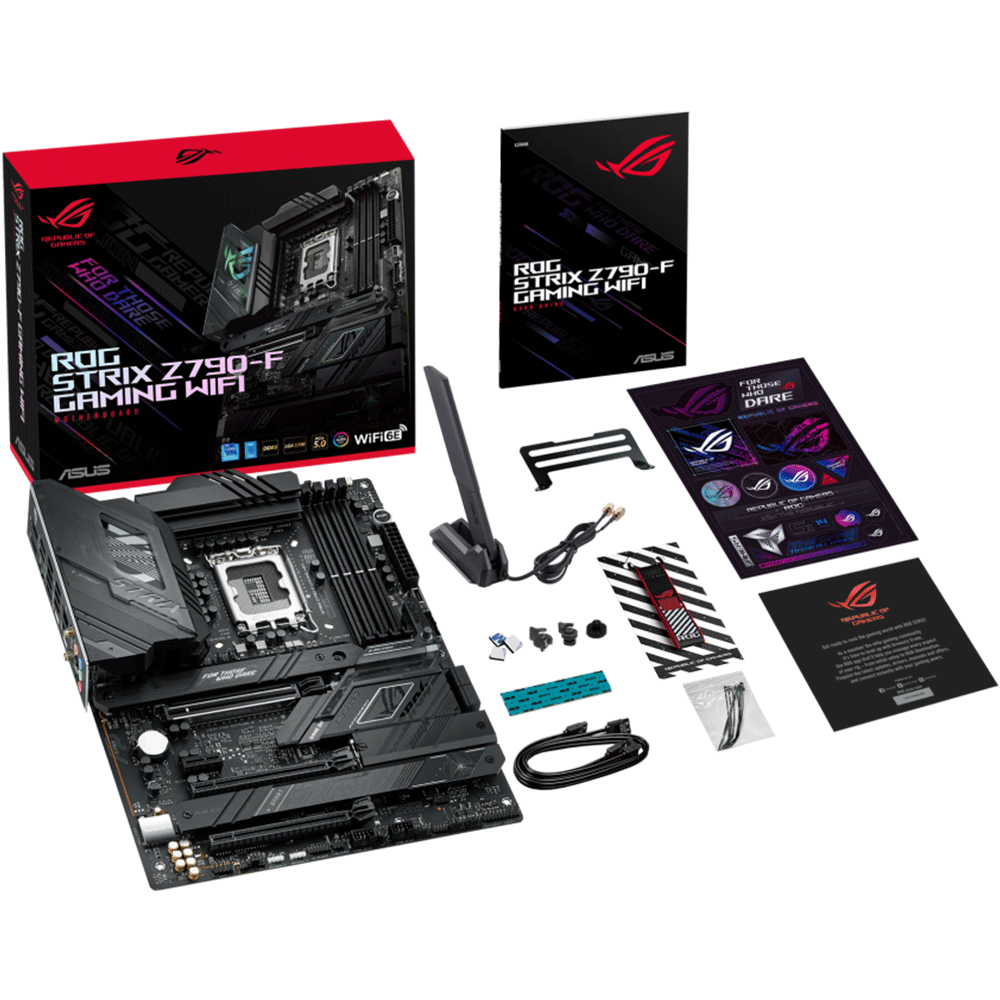

Accessories

• 2 x SATA 6Gb/s cables
• 1 x Thermal pad for M.2
• 1 x DDR5 fan holder
• 1 x ASUS Wi-Fi moving antennas
• 1 x Cable ties package
• 1 x M.2 backplate Q-Latch package
• 1 x M.2 Q-Latch package
• 1 x ROG key chain
• 1 x ROG Strix stickers
• 1 x ROG Strix thank you card
• 2 x M.2 Rubber Packages
• 1 x M.2 backplate Rubber
• 1 x User guide

Form Factor :

• ATX ( 30.5 cm x 24.4 cm )

Part Number:

• 90MB1CP0-M0EAY0
