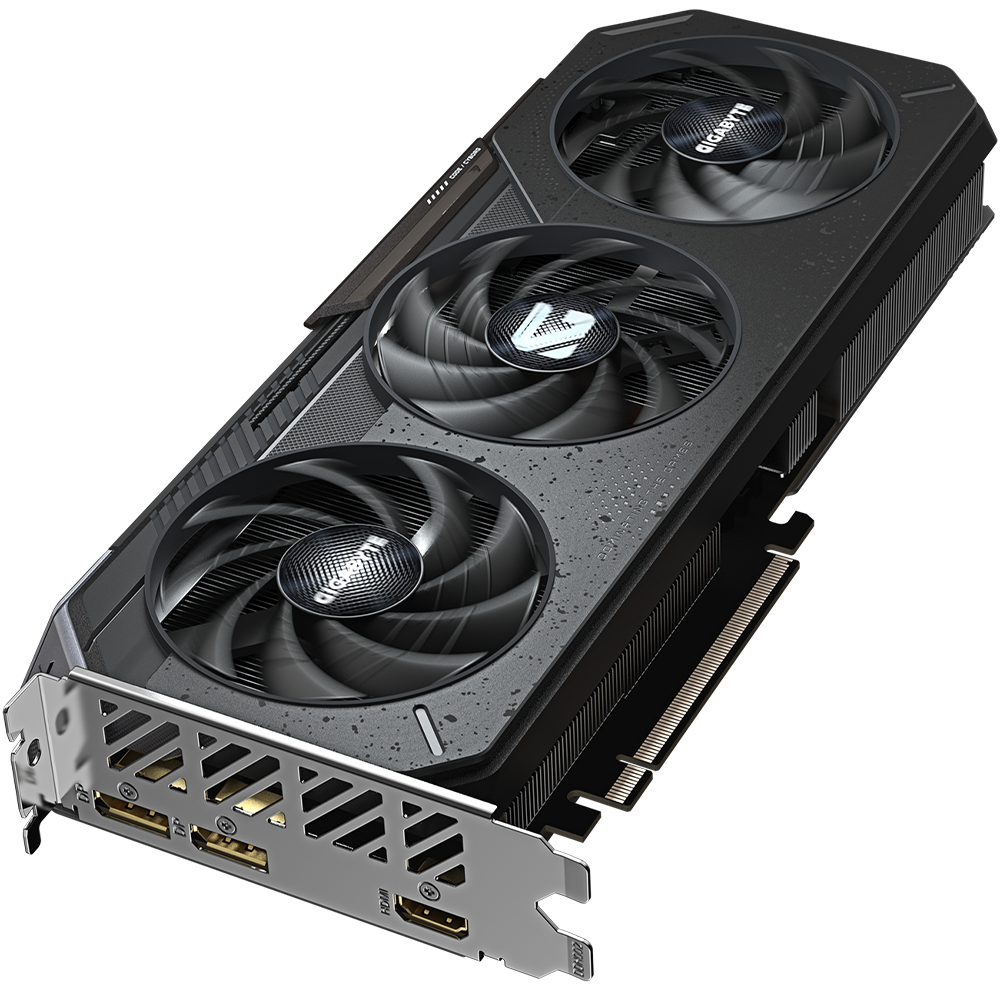

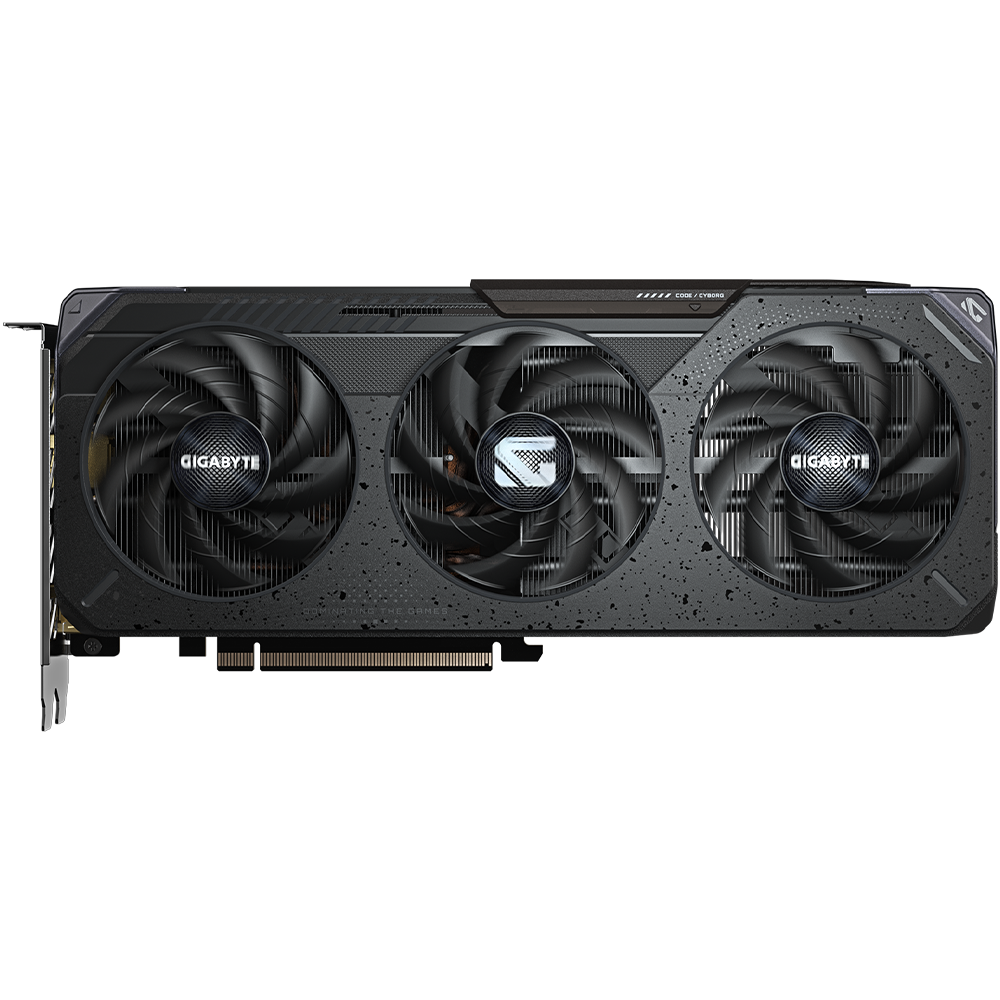

- Powered by Radeon RX 9060 XT
- Integrated with 16GB GDDR6 128bit memory interface
WINDFORCE COOLING SYSTEM:
- The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large vapor chamber, 3D active fans, and screen cooling.
HAWK FAN:
- The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle's wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics.
3D ACTIVE FAN:
- The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
GRAPHENE NANO LUBRICANT:
- Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
SERVER-GRADE THERMAL CONDUCTIVE GEL:
- To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.
COPPER PLATE & COMPOSITE COPPER HEAT PIPE:
- The copper plate directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
RGB LIGHTING:
- With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.

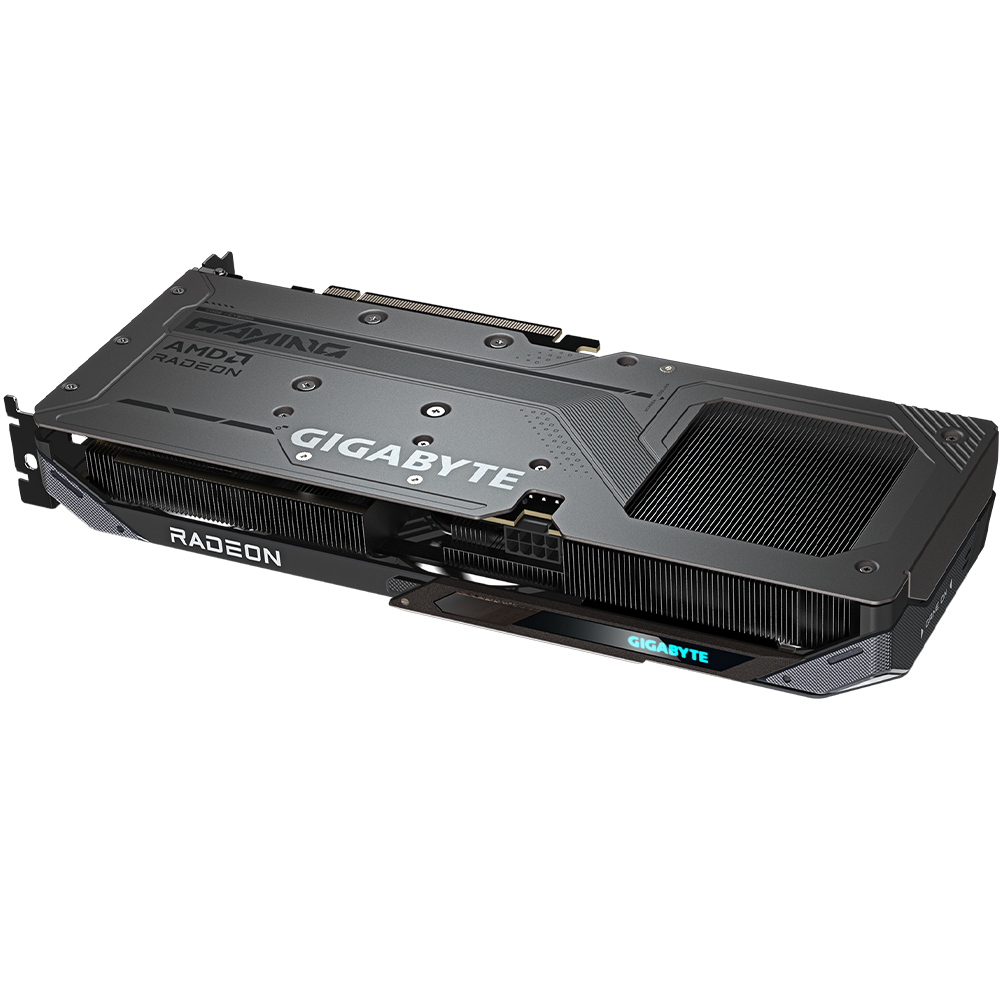

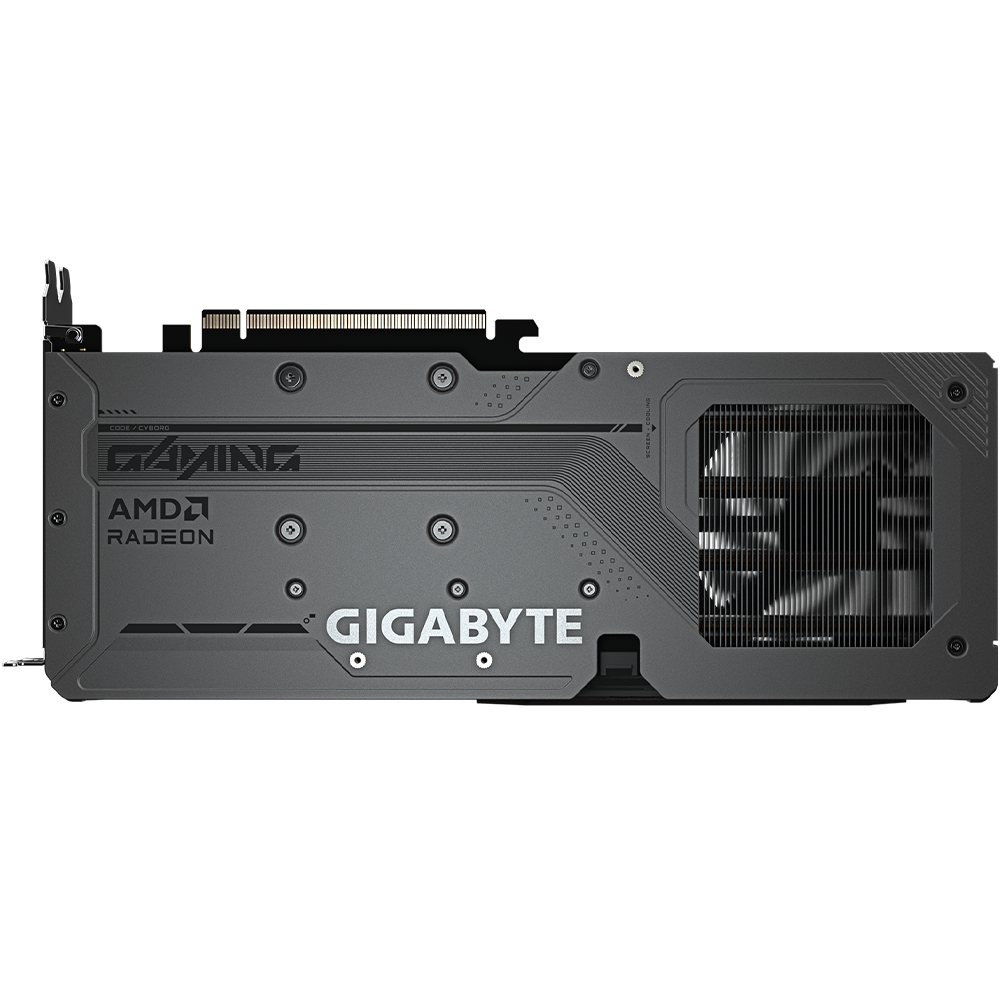

REINFORCED STRUCTURE:
- The reinforced metal backplate with a bent edge, securely fastened to the I/O bracket, provides exceptional structural integrity.
DUAL BIOS (Performance / Silent):
- The factory default setting is Performance mode, which provides users with the best performance. However, switching to Silent mode will enjoy a quieter experience.
POWER INDICATOR:
- When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.
Product Details:
Graphics Processing:
- Radeon RX 9060 XT
Core Clock:
- Boost Clock* : up to 3060 MHz (Reference card: 2970 MHz)
- Game Clock* : up to 2520 MHz (Reference card: 2400 MHz)
Stream Processors:
- 2048
Memory Clock:
- 20 Gbps
Memory Size:
- 16GB
Memory Type:
- GDDR6
Memory Bus:
- 128 bit
Multi-view:
- 4
Card size:
- L= 281 W= 118 H= 40 mm
Recommended PSU:
- 450W
Power Connectors:
- 1 × 8 pin
Output:
- 2 × DisplayPort 2.1a
- 2 × HDMI 2.1b
