ASUS TUF Gaming GeForce RTX 5060 Ti 16GB GDDR7 OC Edition Graphic Card

• AI Performance: 785 AI TOPS
• OC mode boosts clock 2692 MHz (OC mode)/ 2662 MHz (Default mode)
• Powered by the NVIDIA Blackwell architecture and DLSS 4

Axial-tech Upgrades:

• Axial-tech fans spin on dual-ball bearings and propel more air than standard fans.

Protective PCB Coating

• A protective conformal coating envelops the circuit board to help protect against short-circuits caused by moisture, dust or debris.

Dual-ball Fan Bearings:

• Dual-ball bearings offer an extensive lifespan of up to 80,000 hours, double the longevity of sleeve bearings and surpassing fluid dynamic bearings. This helps ensure long-lasting, reliable and quiet cooling.

Cooling Mastery:

• This advanced cooling design features the ASUS-exclusive MaxContact manufacturing technique and efficient Axial-tech fans, helping to ensure premium thermal performance, optimized airflow and quiet operation, all within a robust and vented metal exoskeleton.

New Directions:

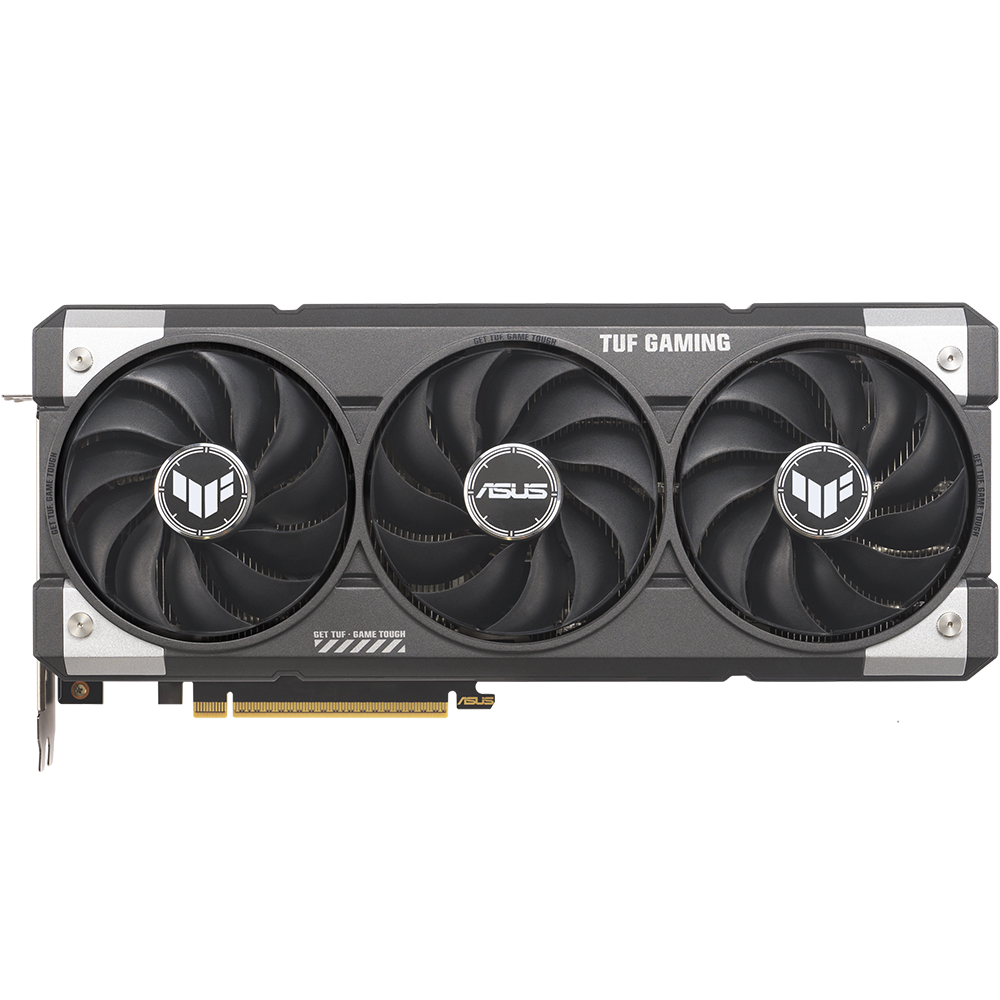

• The two outer fans spin counterclockwise to reduce turbulence and enhance air dispersion. All three fans stop when GPU temps are below 50°C, for quieter operation during light tasks. They restart above 55°C, following a speed curve that balances performance and acoustics.

3.1-slot design with massive fin array optimized for airflow from three Axial-tech fans

Vented Exoskeleton:

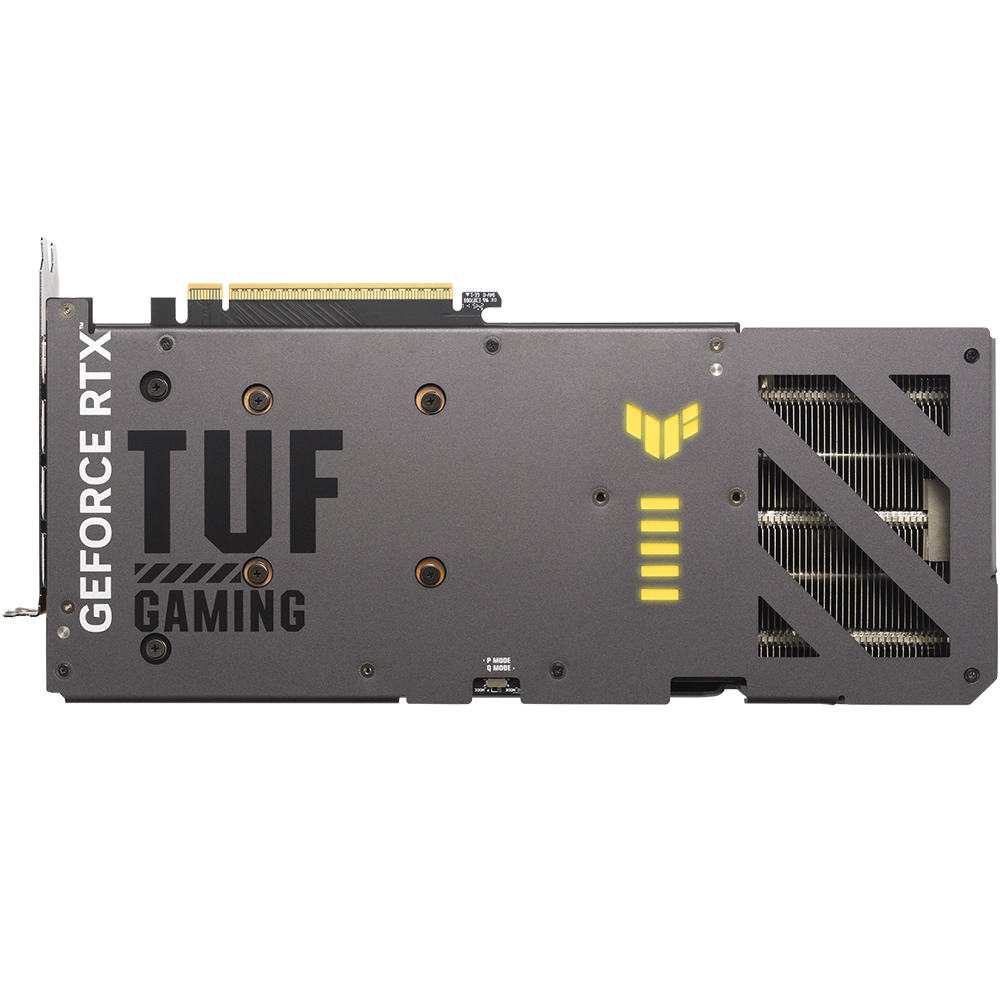

A high-quality diecast shroud and aluminum backplate help prevent PCB flex and feature large vents to further increase heat dissipation

MaxContact Design:

• MaxContact is a special ASUS manufacturing process that effectively expands the surface area of the heat spreader that sits atop the GPU by 5%, compared to traditional designs. This improves temperatures by up to 2°C, in concert with an extensive heatsink array and powerful Axial-tech fans.
• GPU Tweak III software provides intuitive performance tweaking, advanced thermal controls and system monitoring

Product Details:

Model:

• TUF-RTX5060TI-O16G-GAMING

Graphic Engine:

• NVIDIA® GeForce RTX™ 5060 Ti

AI Performance:

• 785 TOPs

Bus Standard:

• PCI Express 5.0

Video Memory:

• 16GB GDDR7

Engine Clock:

• OC mode: 2692MHz
• Default mode: 2662MHz (Boost Clock)

CUDA Core:

• 4608

Memory Speed:

• 28 Gbps

Memory Interface:

• 128-bit

Interface:

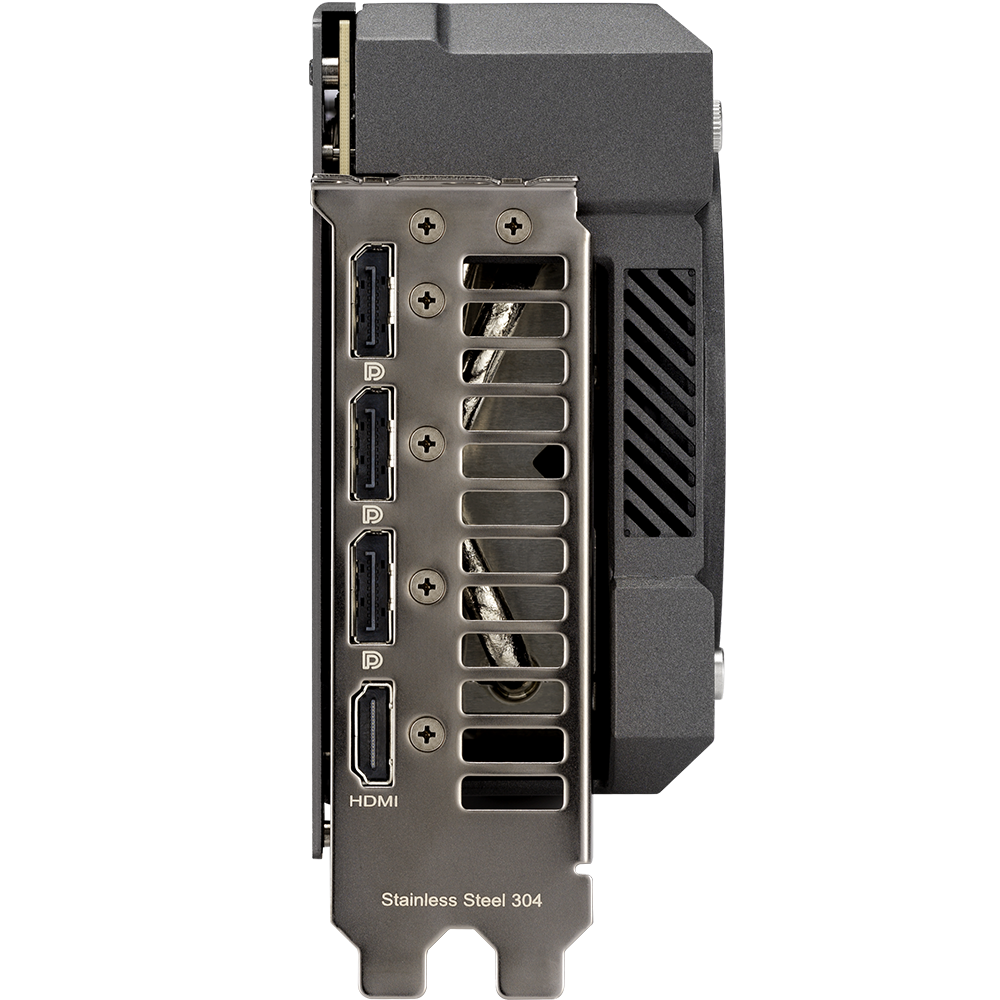

• 1 × HDMI 2.1b
• 3 × DisplayPort 2.1b
• HDCP Support (2.3)

Maximum Display Support:

• 4

Dimensions:

• 302 x 133.5 x 62mm

Recommended PSU:

• 550W

Power Connectors:

• 1 x 16-pin

Slot:

• 3.1 Slot

Part Number:

• 90YV0MG0-M0NA00
