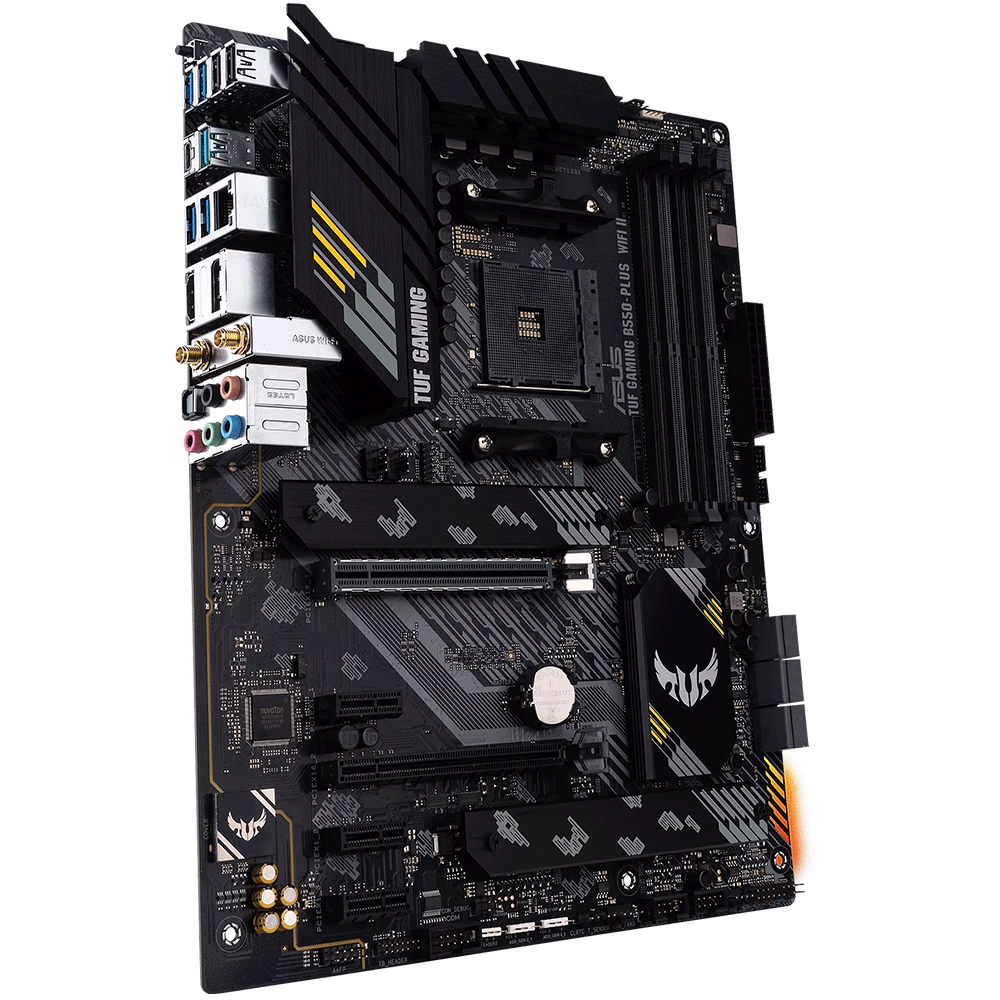

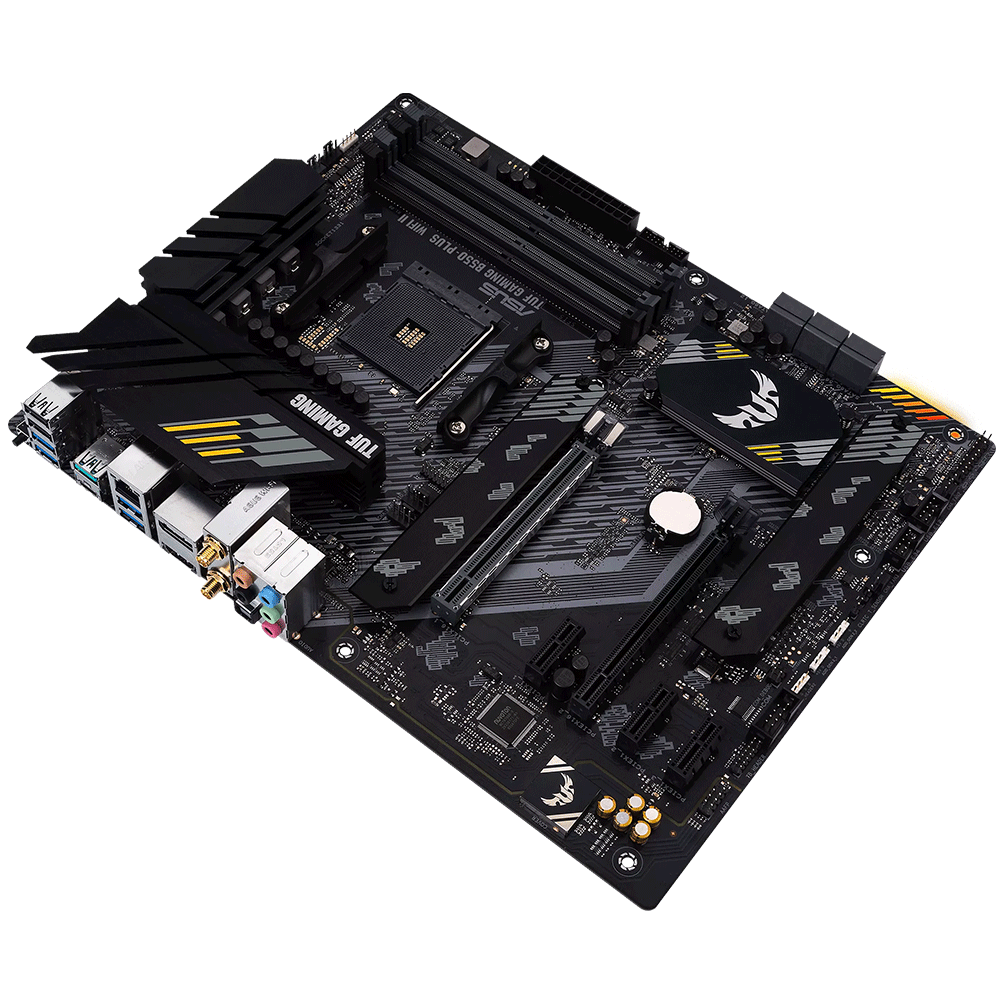

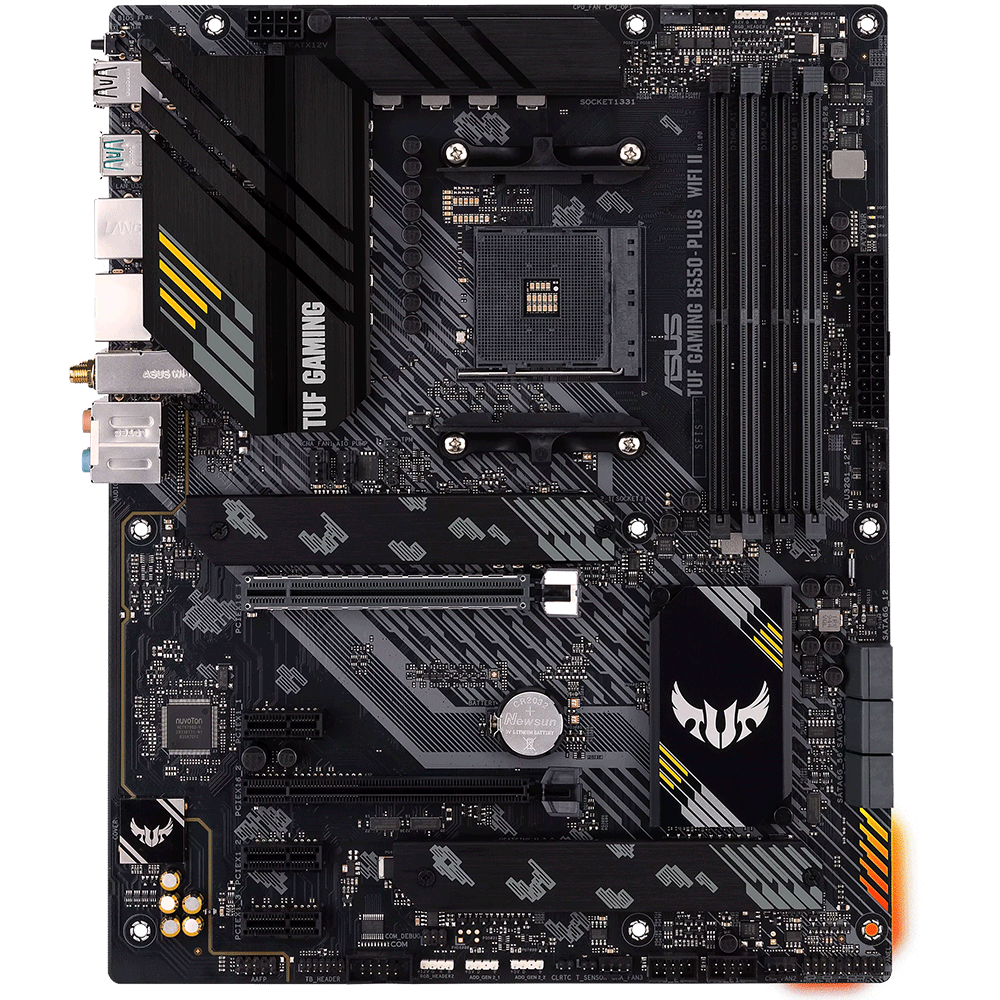

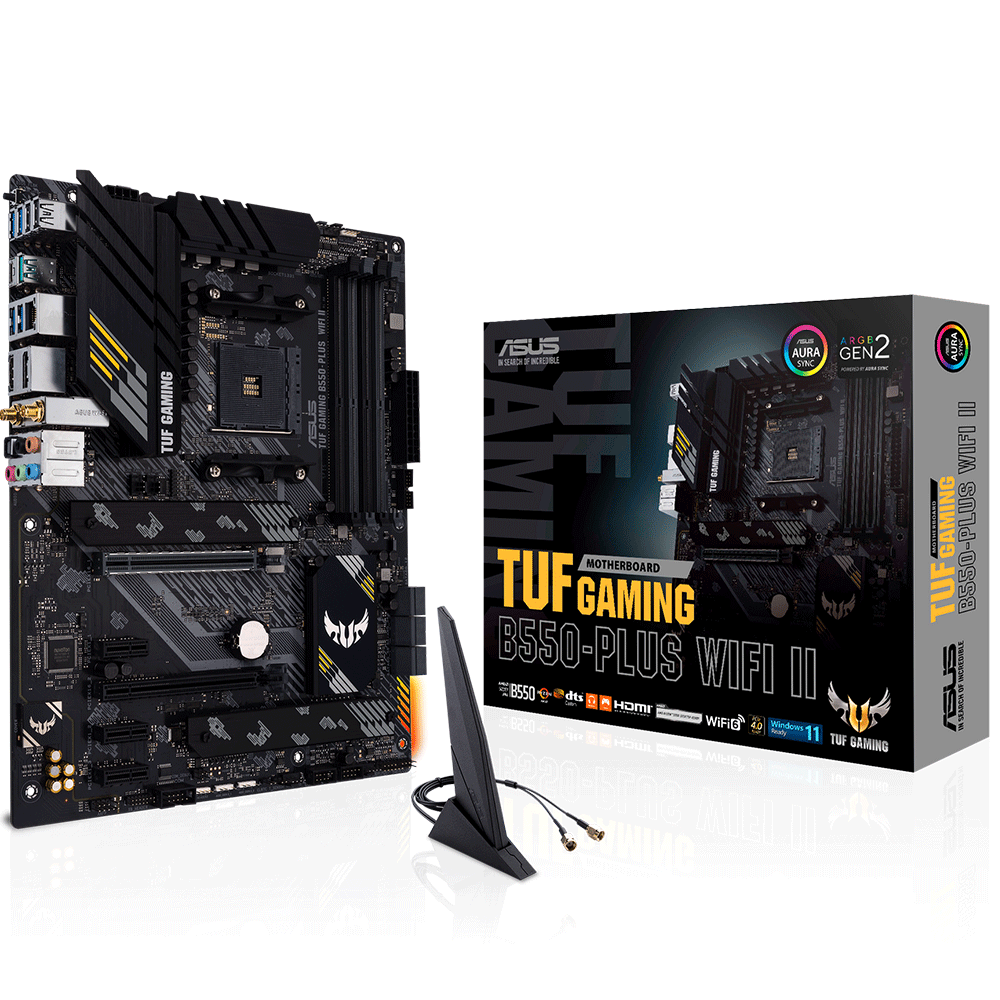

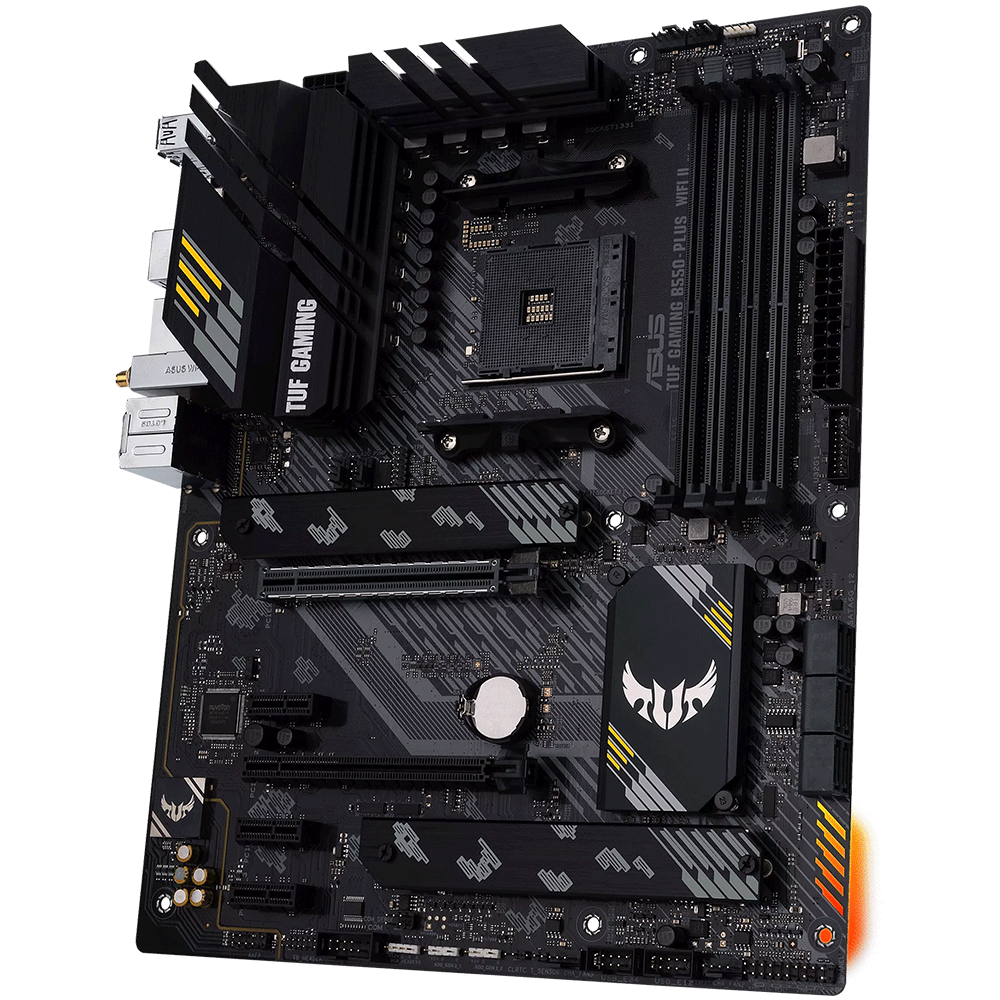

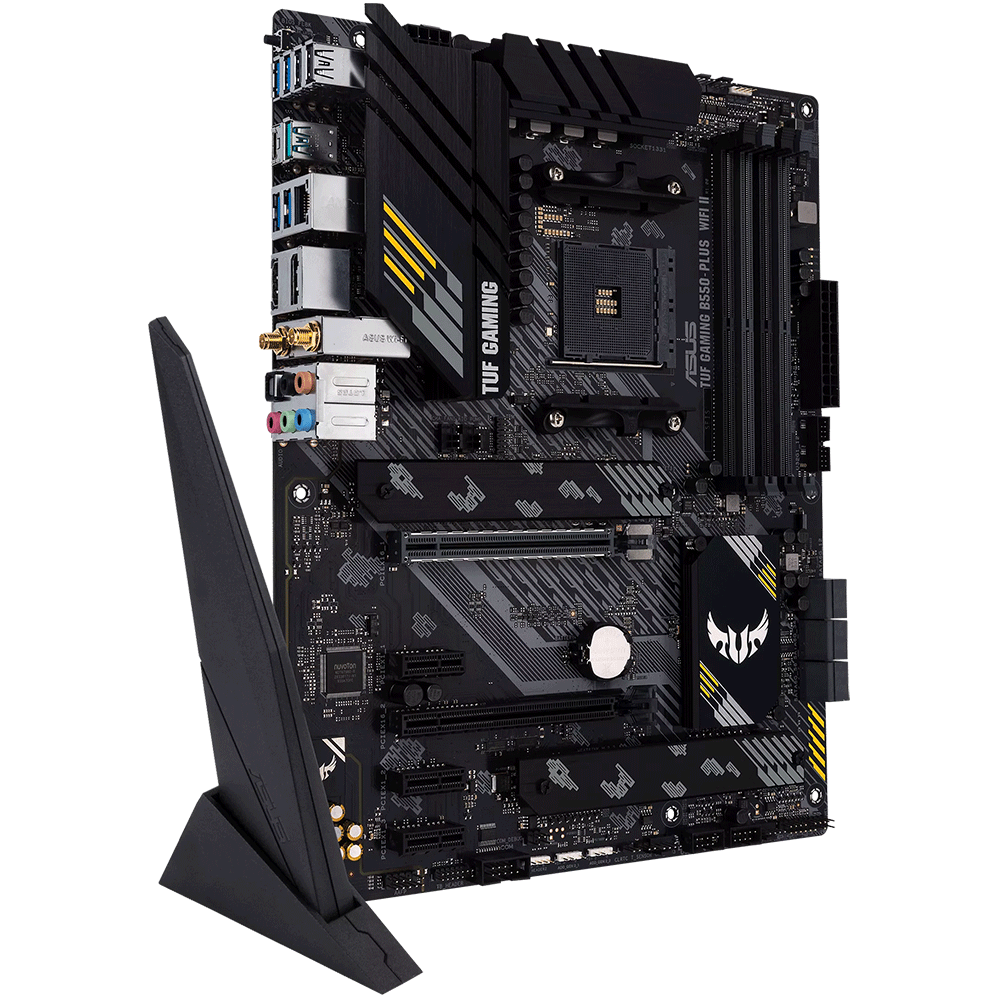

ASUS TUF GAMING B550-PLUS WIFI II DDR4 AM4 Socket For AMD CPUs Motherboard

• AMD B550 (Ryzen AM4) ATX gaming motherboard with PCIe 4.0, dual M.2, 10 DrMOS power stages, Wi-Fi 6, 2.5 Gb Ethernet, HDMI, DisplayPort, SATA 6 Gbps, USB 3.2 Gen 2 Type-A and Type-C, Thunderbolt™ 3 header, and Aura Sync RGB lighting support

CPU

• AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processor

Memory

• DDR4
• 4 x DIMM, Max. 128GB, DDR4
• Dual Channel Memory Architecture

Expansion Slots

• 1 x PCIe 4.0 x16 Slot
• 1 x PCIe 3.0 x16 Slot
• 3 x PCIe 3.0 x1 Slot

Storage :

• 6 x SATA 6Gb/s
• 1 x M.2 PCIe 4.0 x4
• 1 x M.2 PCIe 3.0 x4

Ethernet :

• Realtek RTL8125B 2.5Gb Ethernet
• TUF LANGuard

Wireless & Bluetooth :

• Wi-Fi 6 Supports 2.4/5GHz frequency band
• Bluetooth v5.2

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC

USB :

• Rear USB:Total 8 ports :
• 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®)
• 4 x USB 3.2 Gen 1 ports (4 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• Front USB:Total 6 ports :
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports

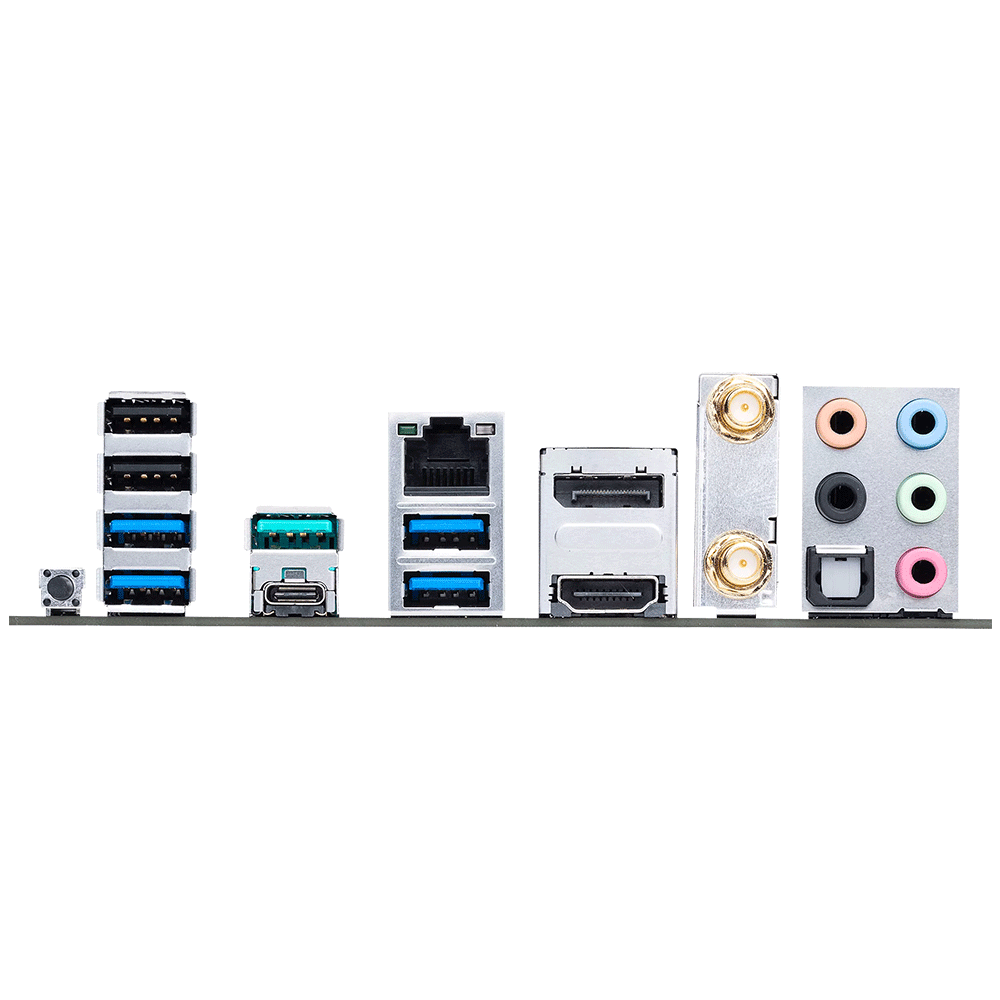

Back Panel I/O Ports

• 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®)
• 4 x USB 3.2 Gen 1 ports (4 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x DisplayPort
• 1 x HDMI™ port
• 1 x ASUS Wi-Fi Module
• 1 x Realtek 2.5Gb Ethernet port
• 5 x Audio jacks
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack™ button

Form Factor :

• ATX ( 30.5 cm x 24.4 cm )

Part Number:

• 90MB19U0-M0EAY0
