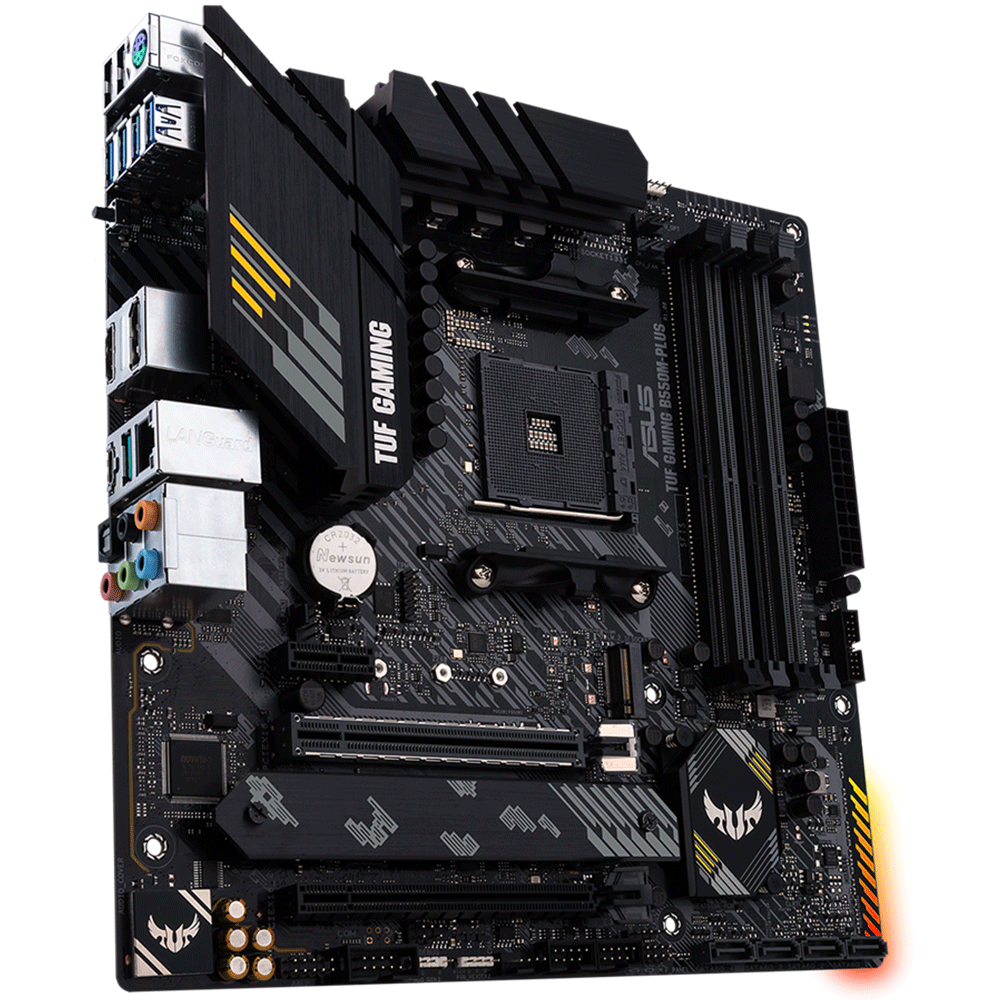

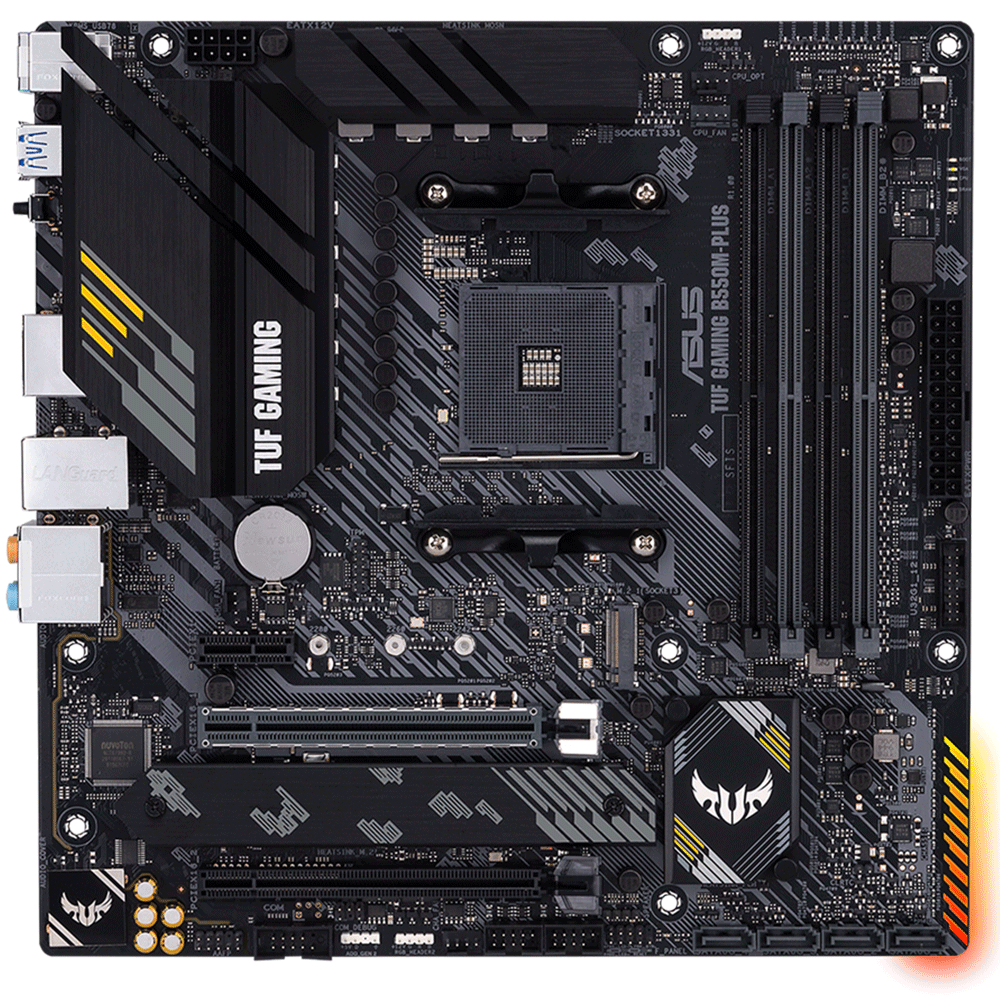

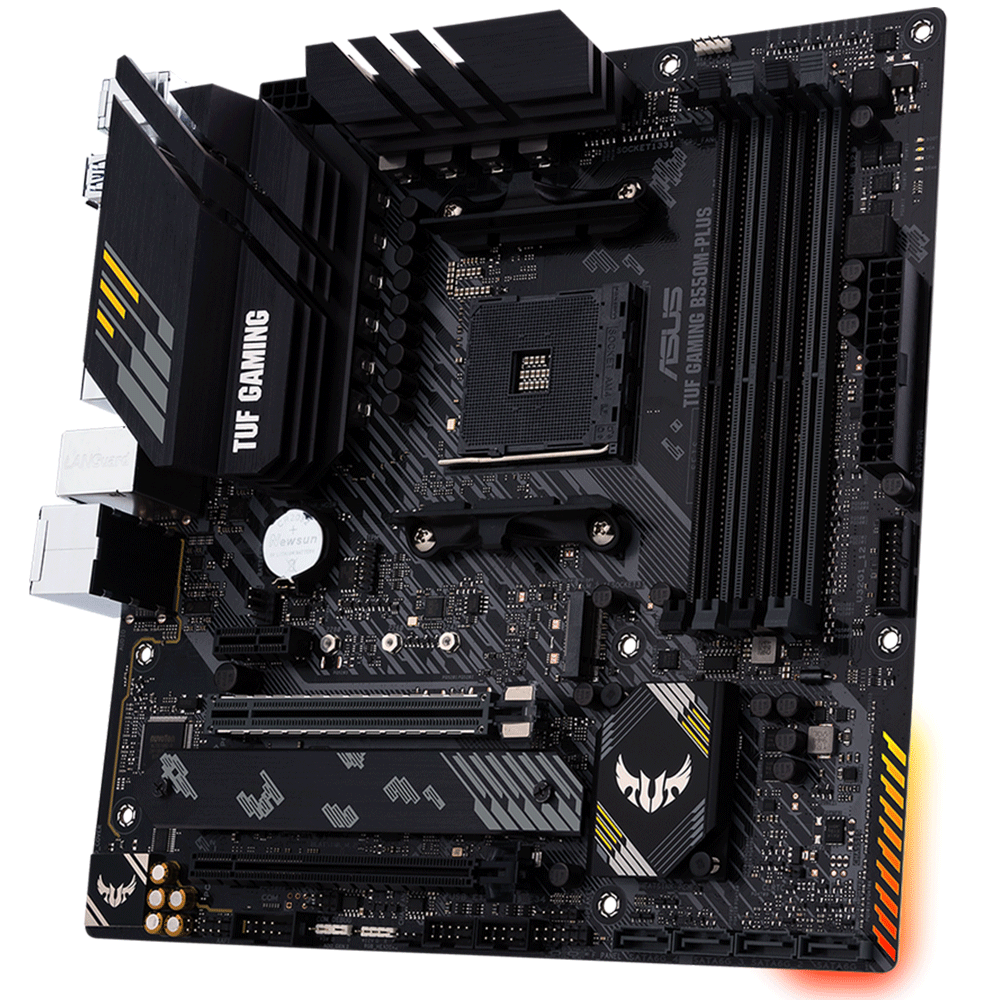

- AMD B550 (Ryzen AM4) micro ATX gaming motherboard with PCIe 4.0, dual M.2, 10 DrMOS power stages, 2.5 Gb Ethernet, HDMI, DisplayPort, SATA 6 Gbps, USB 3.2 Gen 2 Type-A and Type-C, and Aura Sync RGB lighting support
CPU
- AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Desktop Processor
Memory
- DDR4
- 4 x DIMM, Max. 128GB, DDR4
- Dual Channel Memory Architecture
Expansion Slots
- 1 x PCIe 4.0 x16 Slot
- 1 x PCIe 3.0 x16 Slot
- 1 x PCIe 3.0 x1 Slot
Storage :
- 4 x SATA 6Gb/s
- 1 x M.2 PCIe 4.0 x4
- 1 x M.2 PCIe 3.0 x4
Ethernet :
- Realtek RTL8125B 2.5Gb Ethernet
- TUF LANGuard
Audio
- Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC
USB :
- Rear USB Port ( Total 8 )
- 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®)
- 4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
- 2 x USB 2.0 port(s)(2 x Type-A)
- Front USB Port ( Total 6 )
- 2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
- 4 x USB 2.0 port(s)(4 x Type-A)

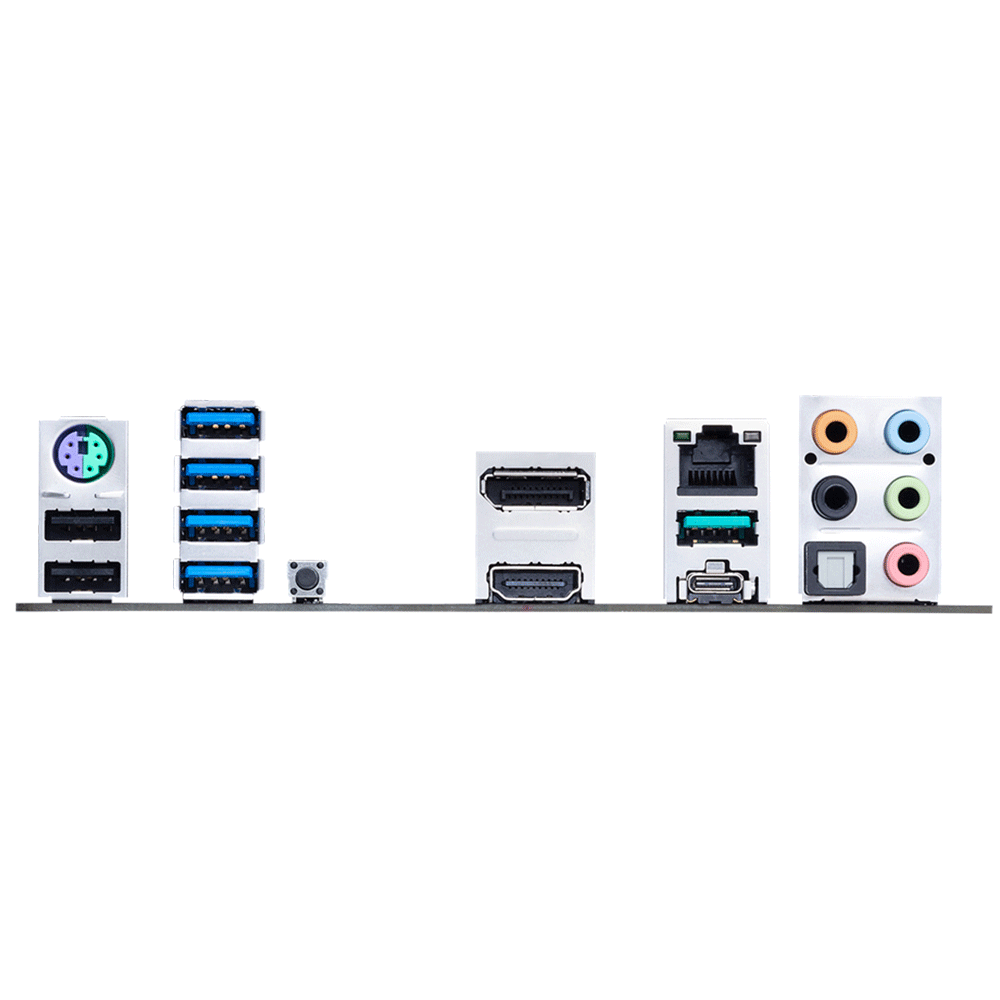

Back Panel I/O Ports
- 1 x PS/2 keyboard/mouse combo port(s)
- 1 x DisplayPort
- 1 x HDMI
- 1 x LAN (2.5G) port
- 2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C®)
- 2 x USB 2.0
- 4 x USB 3.2 Gen 1 (blue) (one port can be switched to USB BIOS FlashBack™)
- 1 x Optical S/PDIF out
- 5 x Audio jack
- 1 x BIOS FlashBack™ Button

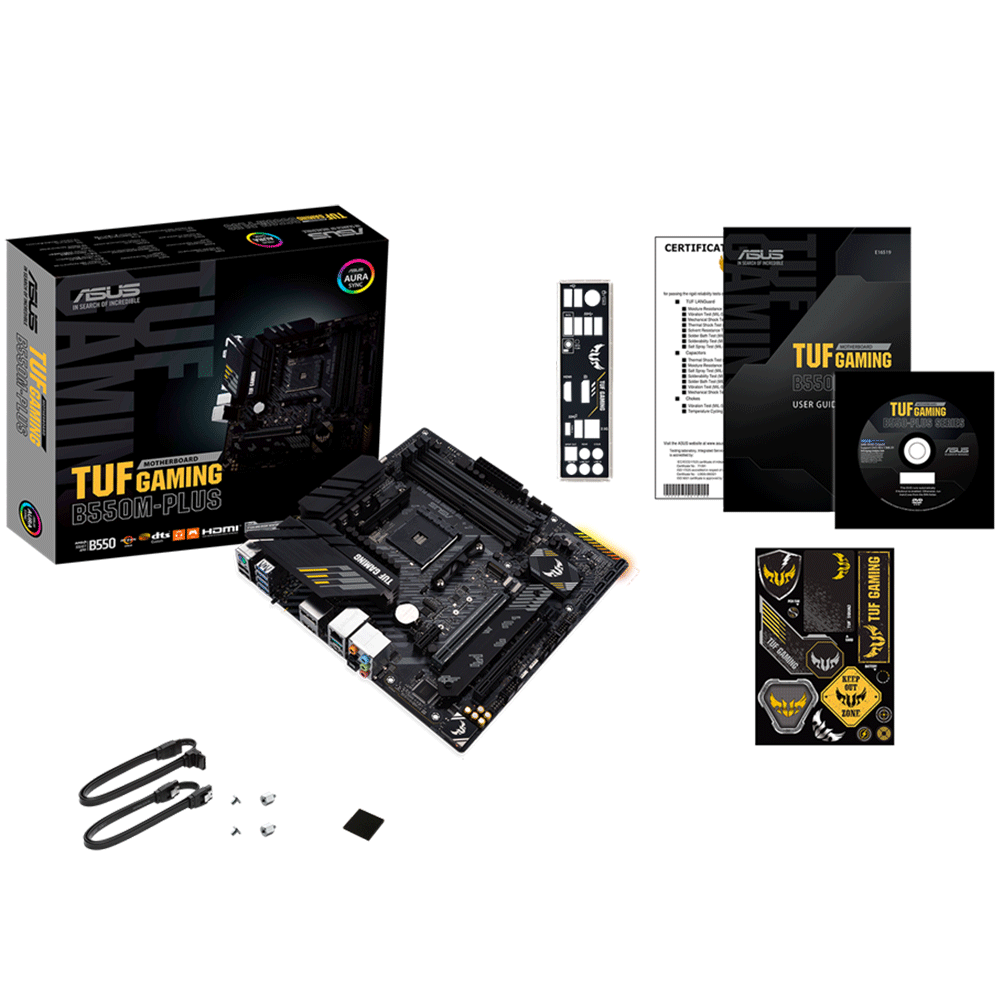

Accessories
- User´s manual
- I/O Shield
- 2 x SATA 6Gb/s cable(s)
- 1 x Supporting DVD
- 1 x TUF Gaming Sticker
- 1 x TUF Certification card(s)
- 1 x M.2 SSD screw package(s)
- 1 x M.2 Rubber Package(s)
Form Factor :
- M-ATX ( 24.4 cm x 24.4 cm )
Part Number:
- 90MB14A0-M0EAY0
