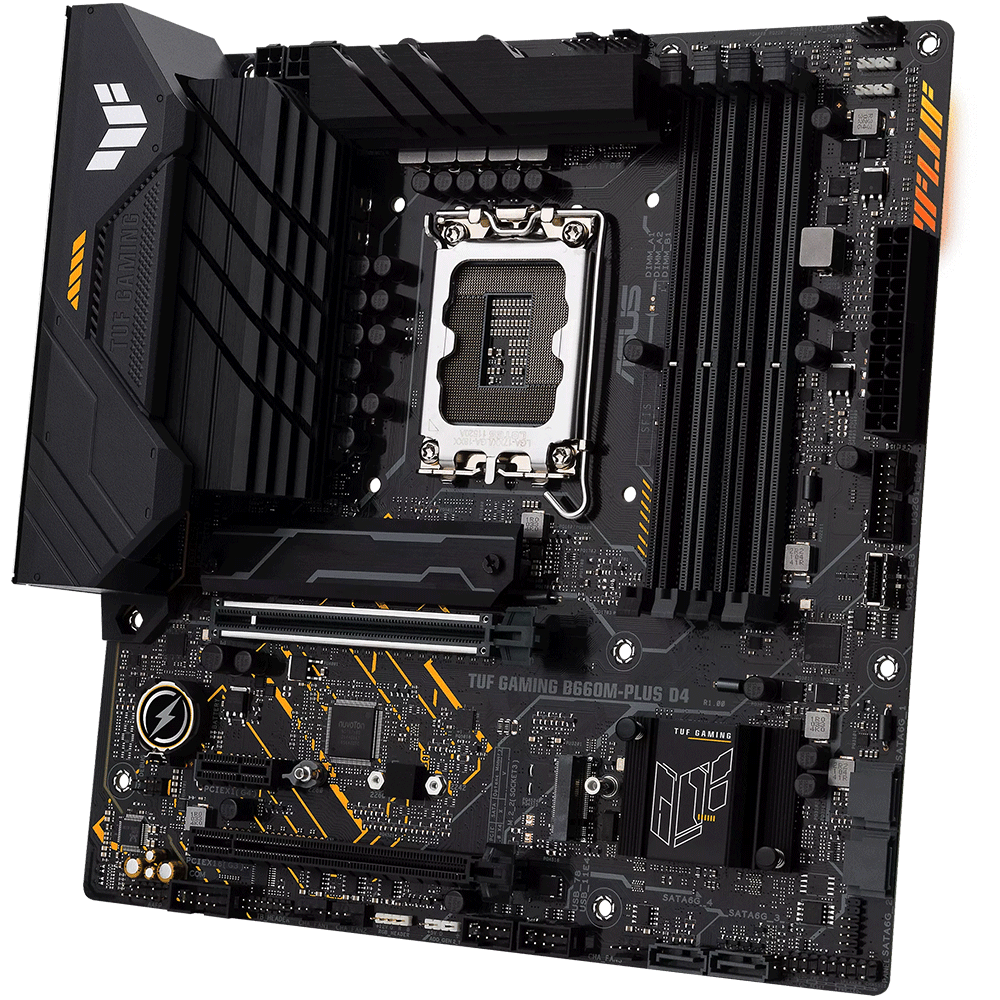

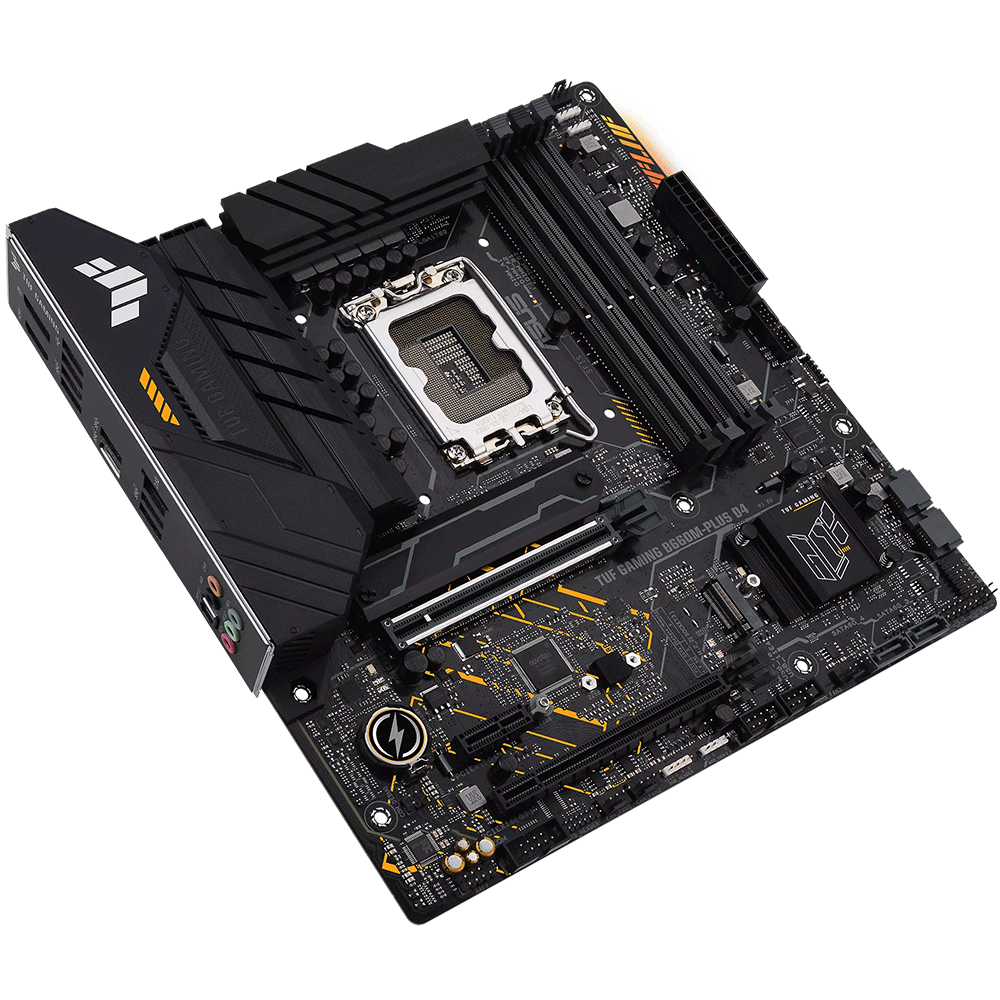

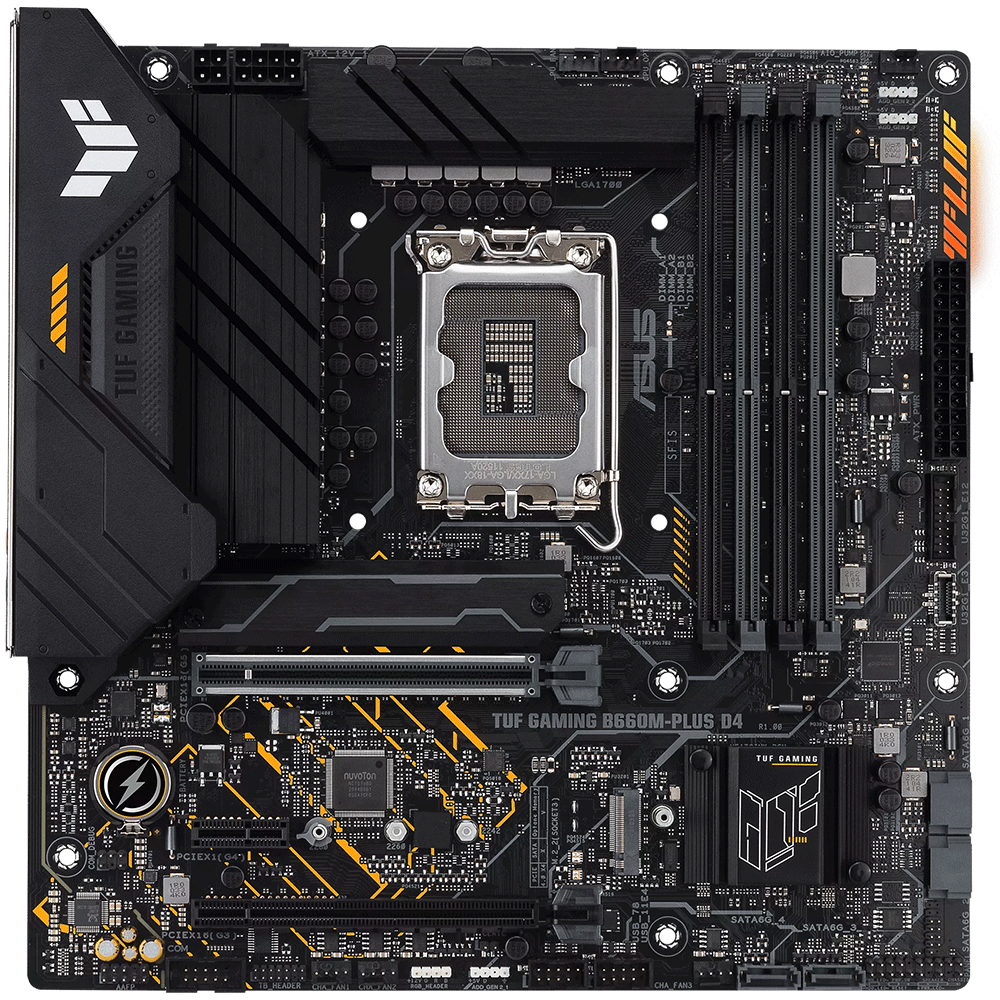

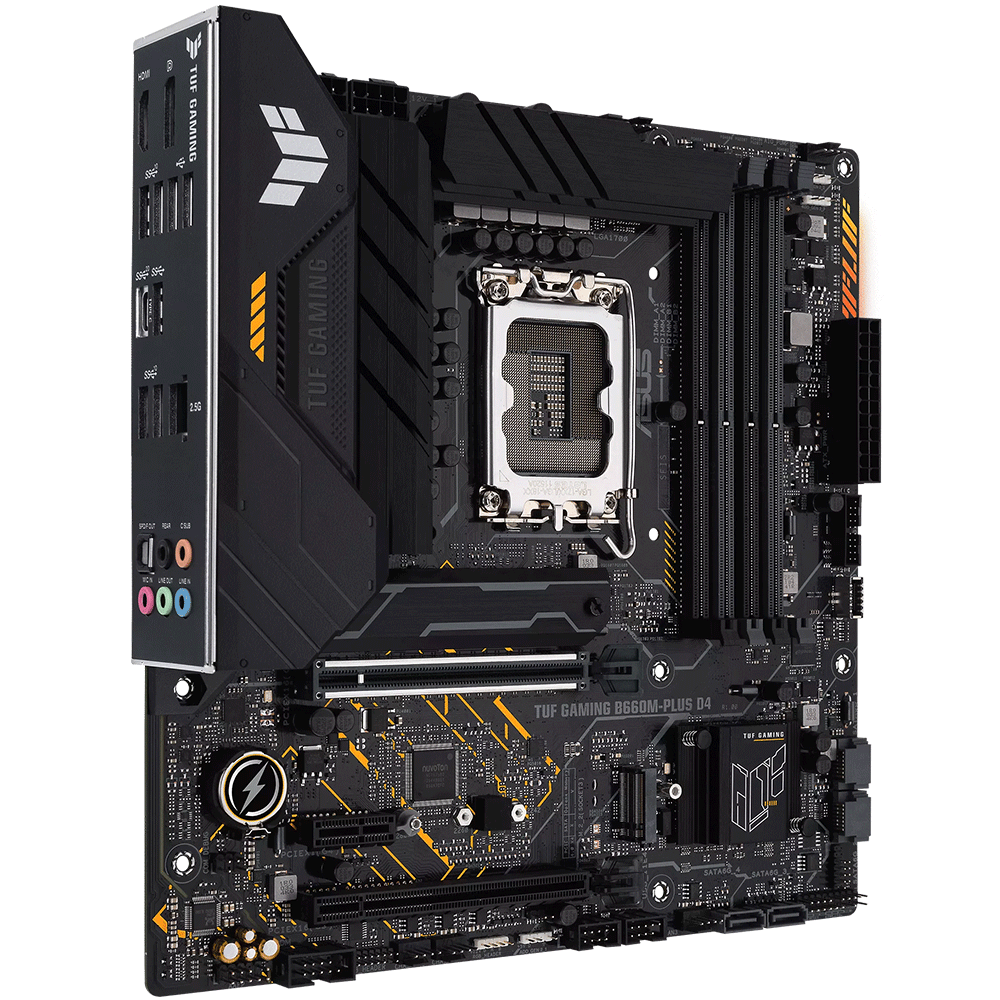

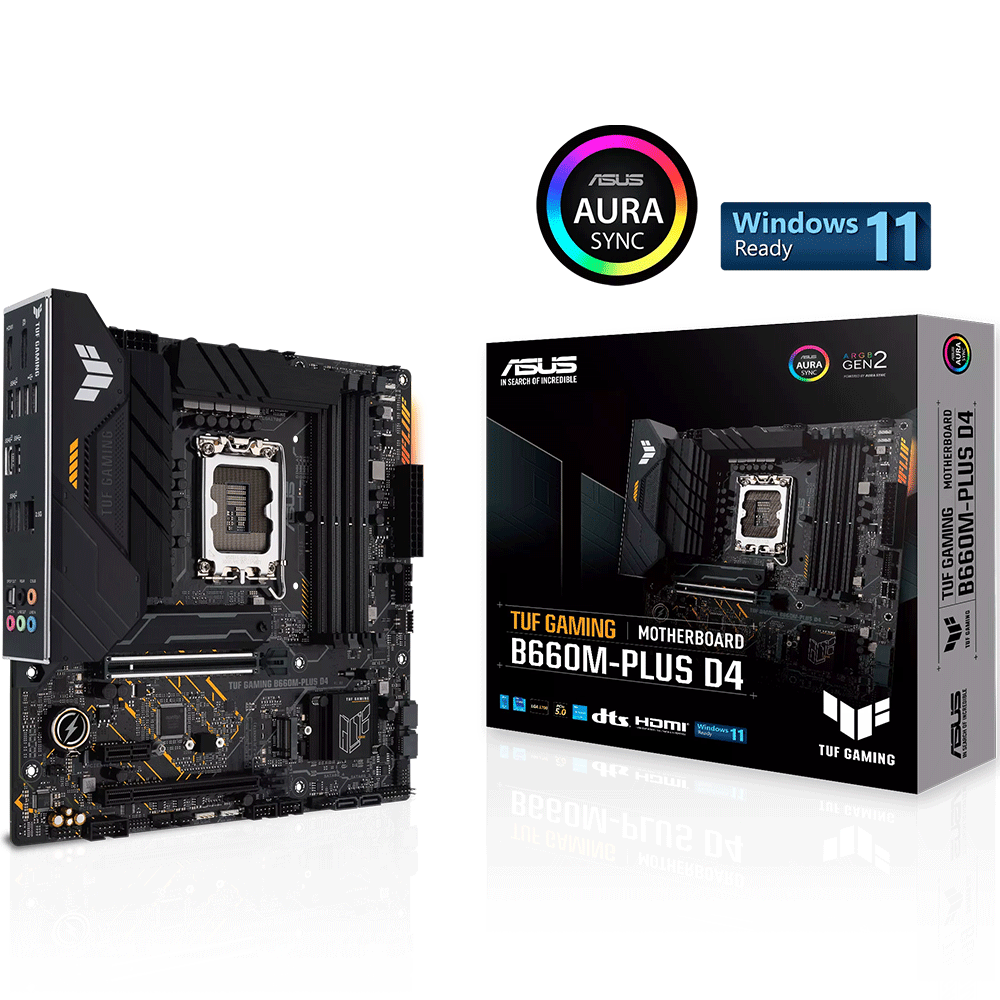

ASUS TUF GAMING B660M-PLUS D4 LGA1700 Socket For intel CPUs Motherboard

• Intel B660 LGA 1700 mATX motherboard, 10+1 DrMOS Power stages , PCIe 5.0 support, DDR4 5333 (OC), Dual PCIe 4.0 M.2 Slots with Flexible Heatsink, Realtek 2.5Gb Ethernet, Rear USB 3.2 Gen 2x2 Type-C Front USB 3.2 Gen 1 Type-C, Aura Sync, Two-way AI Noise Cancelation

CPU

• Intel Socket LGA1700 for 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors
• Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Memory

• DDR4
• 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC
• Dual Channel Memory Architecture
• Supports Intel Extreme Memory Profile (XMP)
• OptiMem II

Expansion Slots

• 1 x PCIe 4.0 x16 slot
• 1x PCIe 3.0 x16 slot
• 1 x PCIe 4.0 x1 slot

Storage :

• 4 x SATA 6Gb/s
• 2 x M.2 PCIe 4.0 x4

Ethernet :

• 1 x Realtek 2.5Gb Ethernet port
• TUF LANGuard

USB

• Rear USB (Total 8 ports)
• 1 x USB 3.2 Gen 2x2 port (USB Type-C)
• 4x USB 3.2 Gen 2 ports (Type-A)
• 1 x USB 3.2 Gen 1 ports (Type-A)
• 2 x USB 2.0 ports (Type-A)
• Front USB: Total 7 ports
• 1 x USB 3.2 Gen 2 connector (support USB Type-C)
• 1 x USB 3.2 Gen 1 header support additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 header support additional 4 USB 2.0 ports

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC

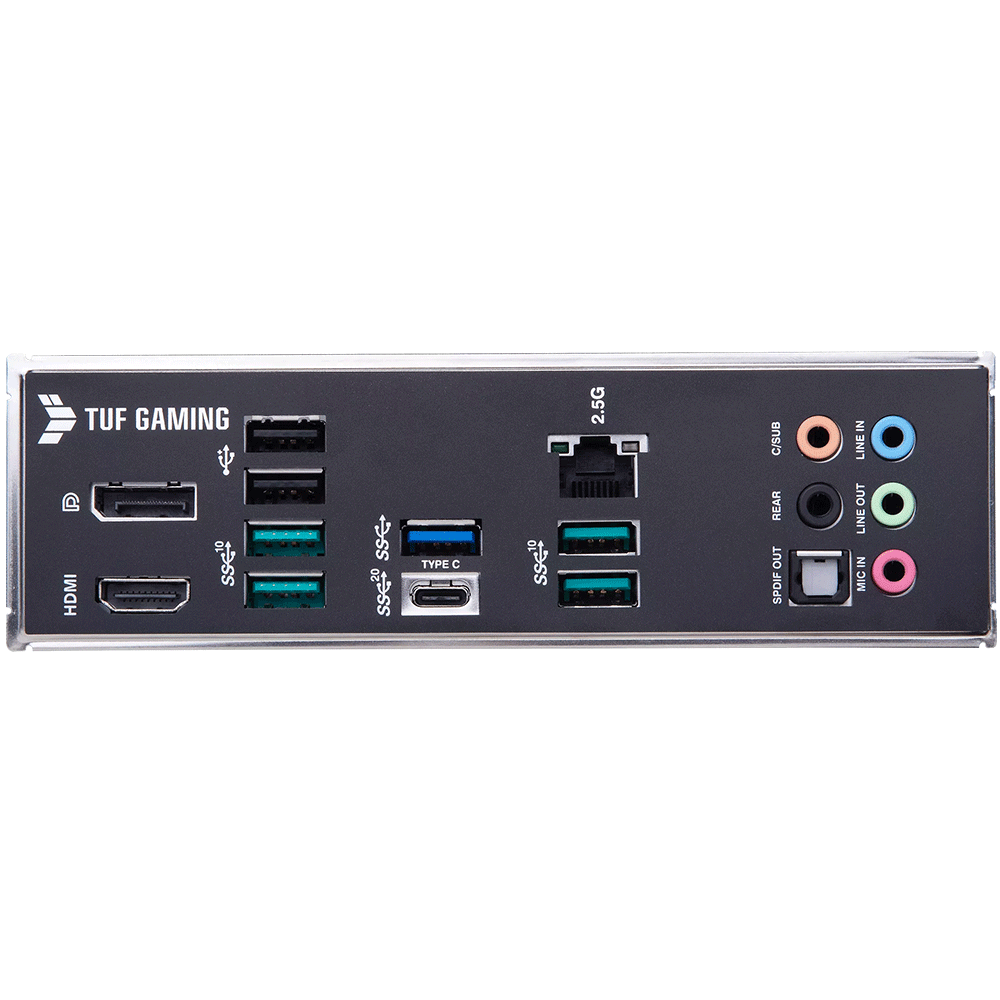

Back Panel I/O Ports

• 1 x USB 3.2 Gen 2x2 port (USB Type-C)
• 4x USB 3.2 Gen 2 ports (Type-A)
• 1 x USB 3.2 Gen 1 ports (Type-A)
• 2 x USB 2.0 ports (Type-A)
• 1 x DisplayPort
• 1 x HDMI port
• 1 x Realtek 2.5Gb Ethernet port
• 5 x Audio jacks
• 1 x Optical S/PDIF out port

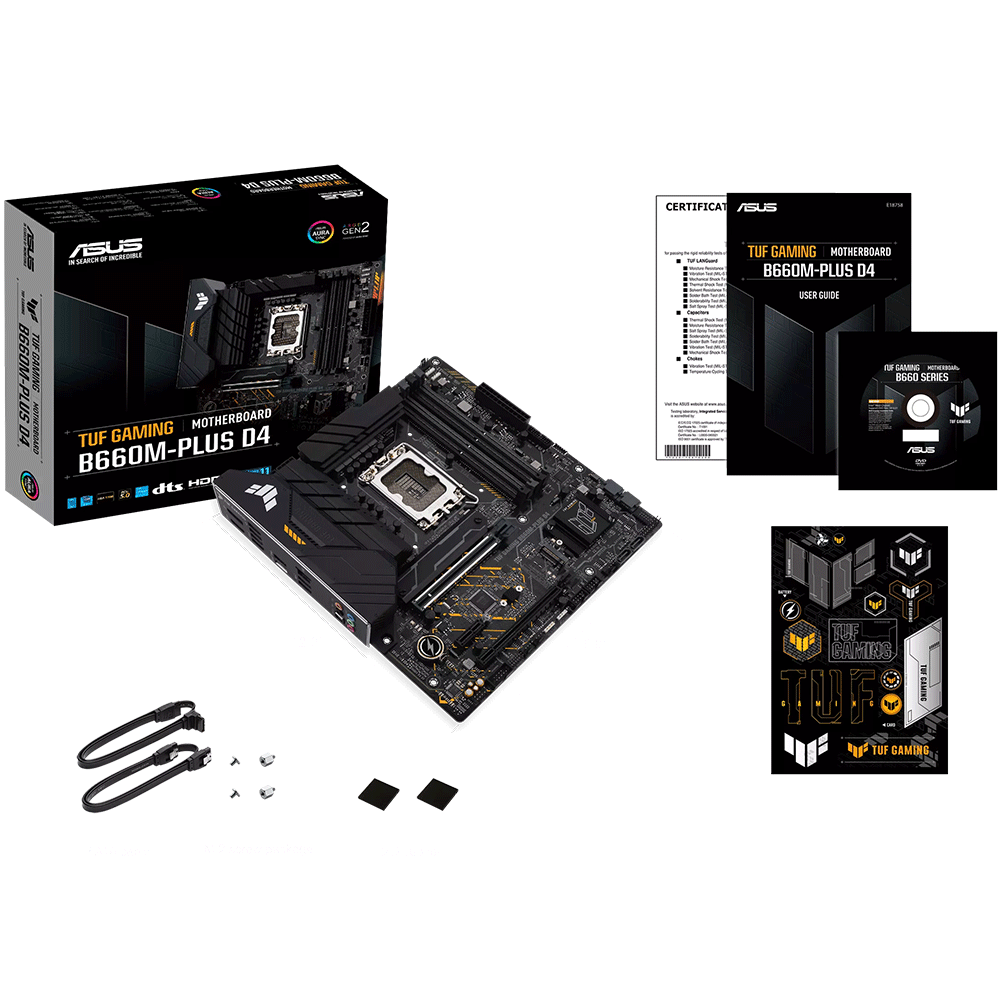

Accessories

• 2 x SATA 6Gb/s cables
• 1 x M.2 Rubber Package
• 1 x M.2 SSD screw package
• 1 x TUF Gaming sticker
• 1 x Support DVD
• 1 x TUF Certification card
• 1 x User guide

Form Factor :

• micro-ATX ( 24.4 cm x 24.4 cm )

Part Number:

• 90MB1940-M1EAY0
