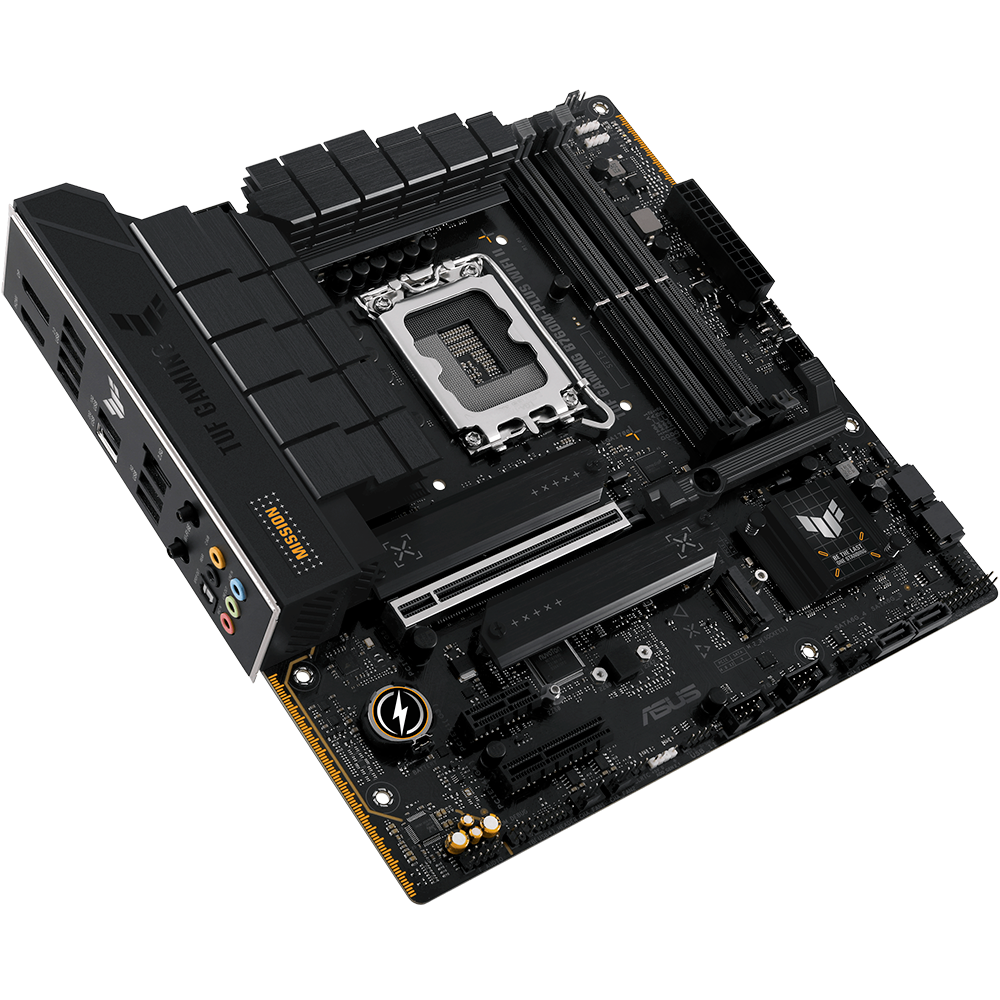

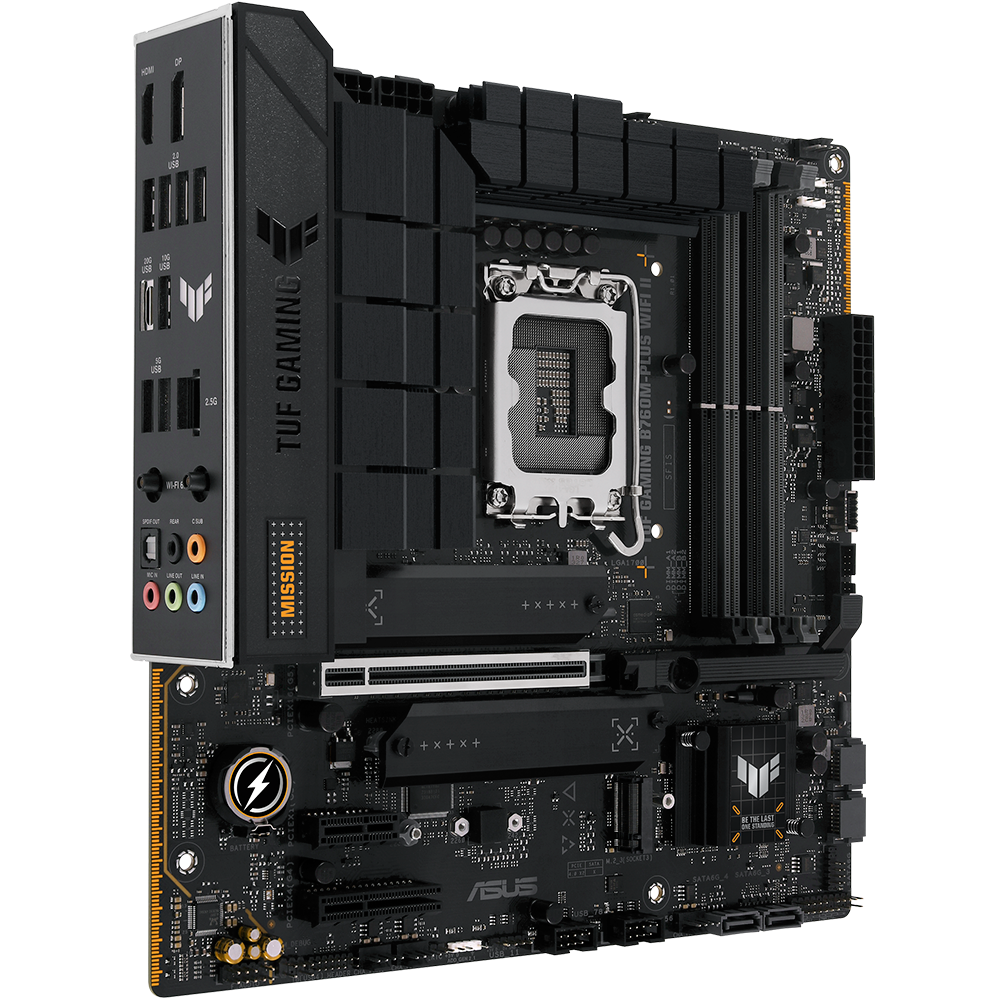

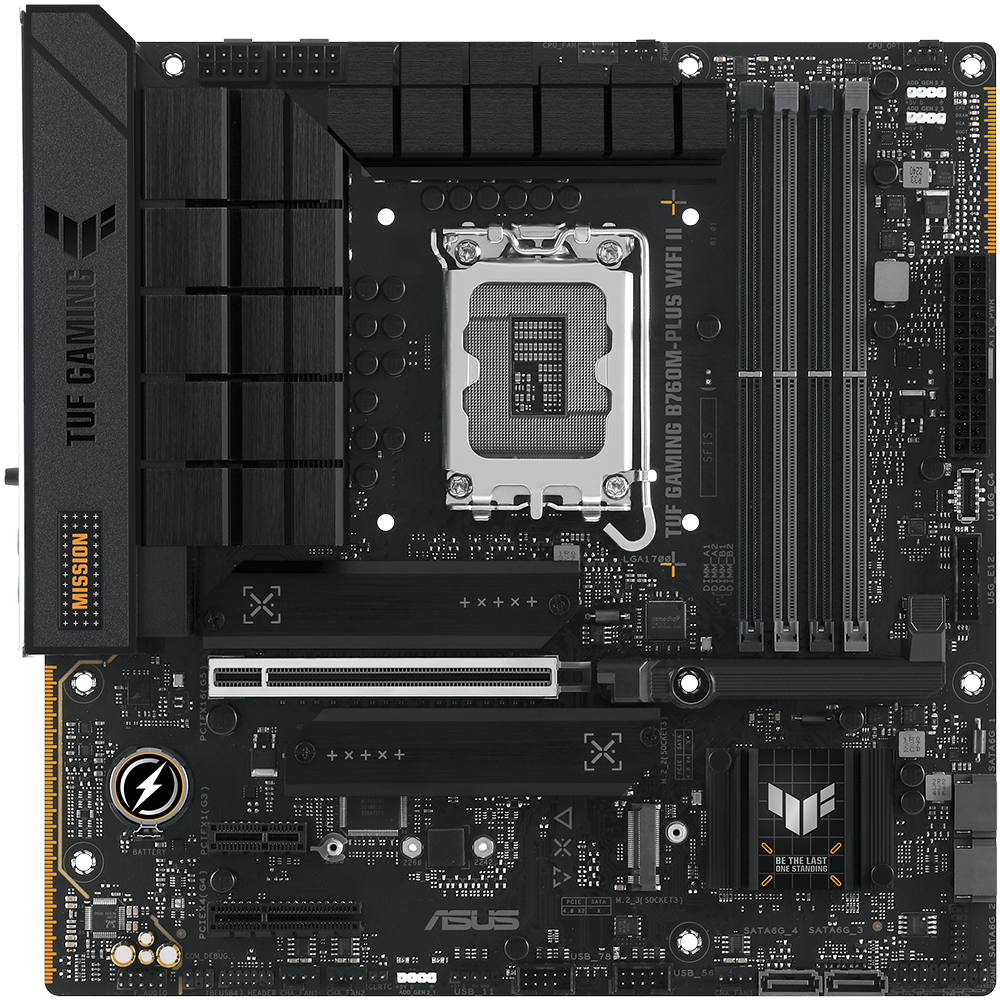

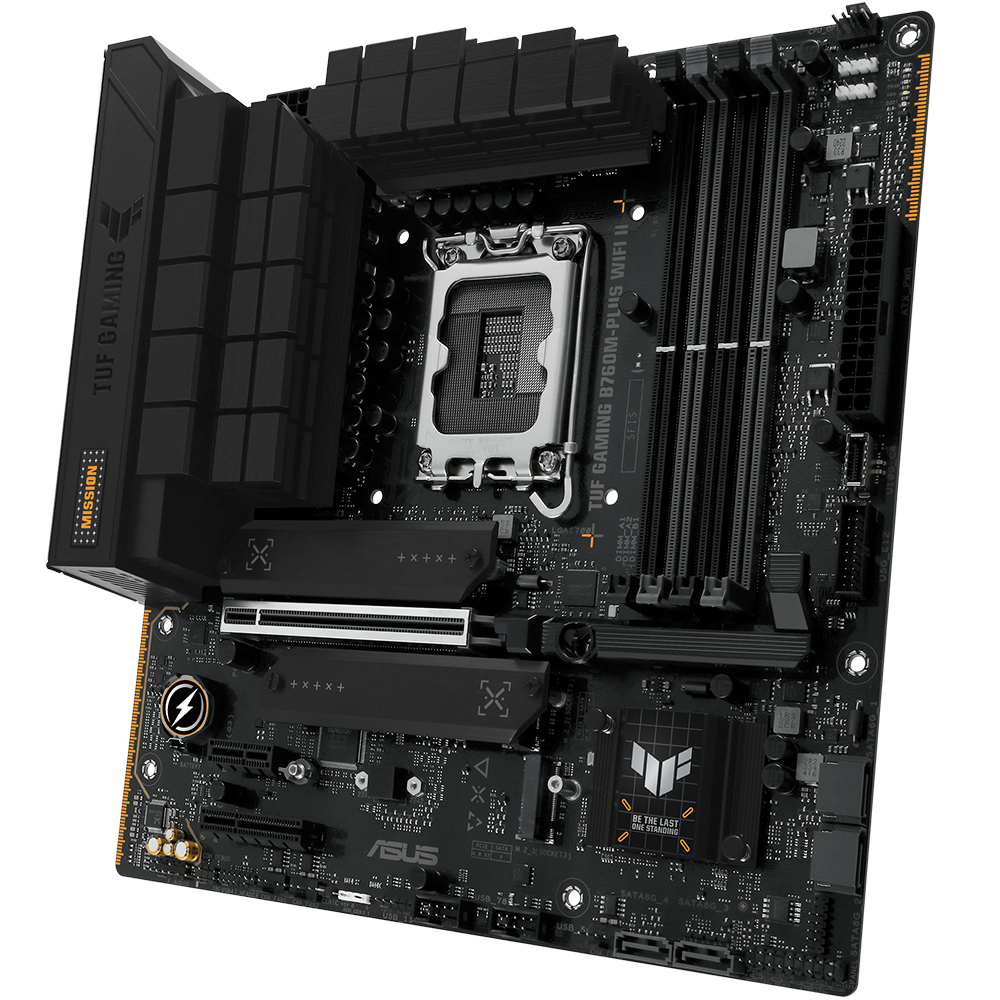

ASUS TUF GAMING B760M-PLUS WIFI II LGA1700 Socket For intel CPUs Motherboard

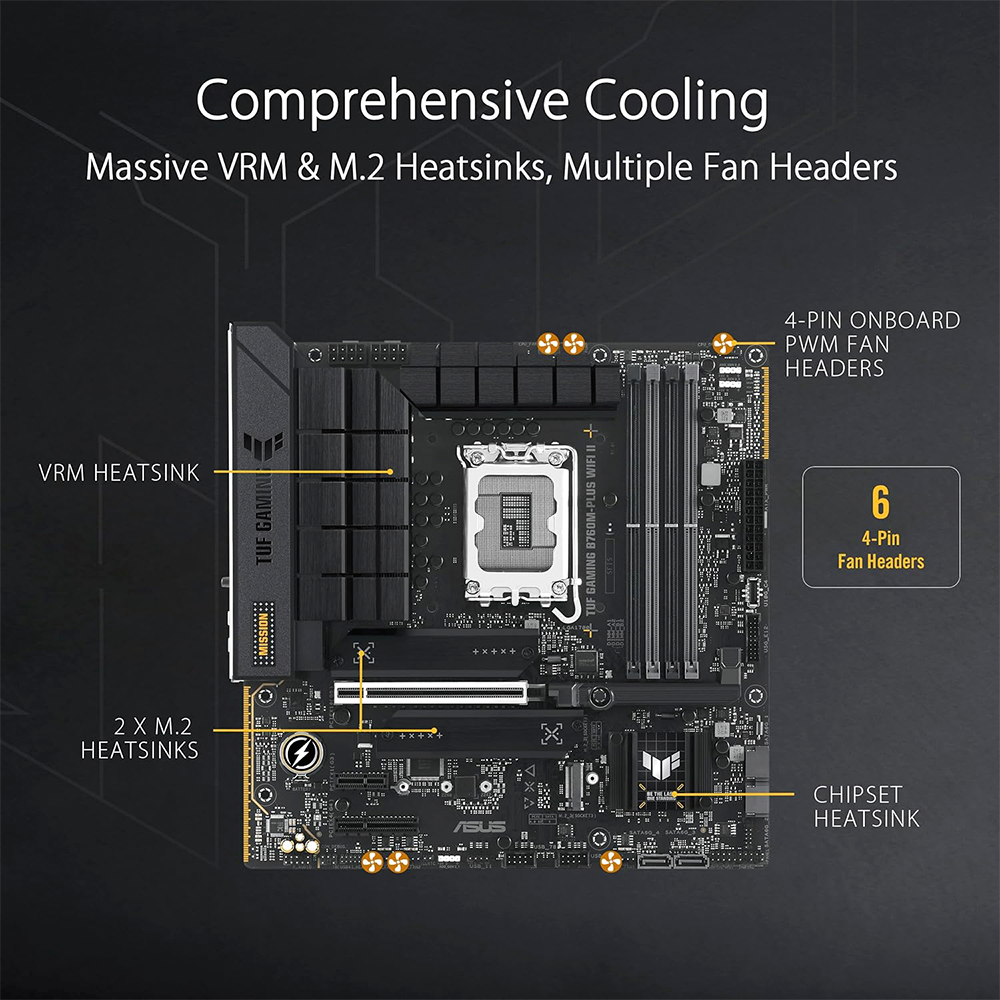

• TUF GAMING B760M-PLUS WIFI II takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates an embossed nameplate and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.

CPU

• Intel Socket LGA1700 for 14th and 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors
• Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Memory

• DDR5
• 4 x DIMM, Max. 192GB, DDR5
• Dual Channel Memory Architecture
• Supports Intel Extreme Memory Profile (XMP)
• OptiMem II

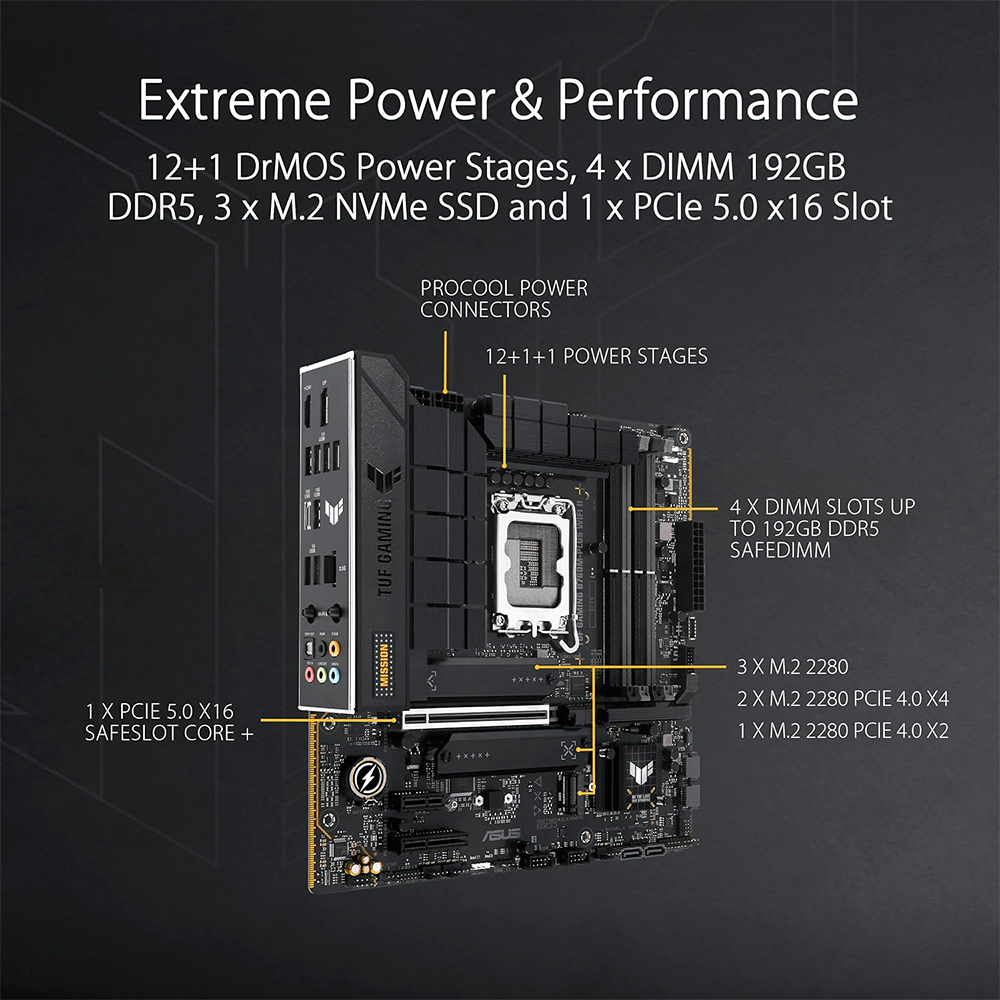

Expansion Slots

• 1 x PCIe 5.0 x16 slot
• 1 x PCIe 4.0 x16 slot
• 1x PCIe 4.0 x1 slot

Storage :

• 4 x SATA 6Gb/s
• 3 x M.2 PCIe 4.0 x4 slots

Ethernet :

• 1 x Realtek 2.5Gb Ethernet
• TUF LANGuard

Wireless & Bluetooth :

• Wi-Fi 6E Supports 2.4/5/6GHz frequency band
• Bluetooth v5.3

USB

• Rear USB (Total 8 ports)
• 1 x USB 20Gbps port (USB Type-C)
• 1 x USB 10Gbps port (Type-A)
• 2 x USB 5Gbps ports (Type-A)
• 4 x USB 2.0 ports (Type-A)
• Front USB: Total 8 ports
• 1 x USB 10Gbps connector (supports USB Type-C)
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 3 x USB 2.0 headers support 5 additional USB 2.0 ports

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC

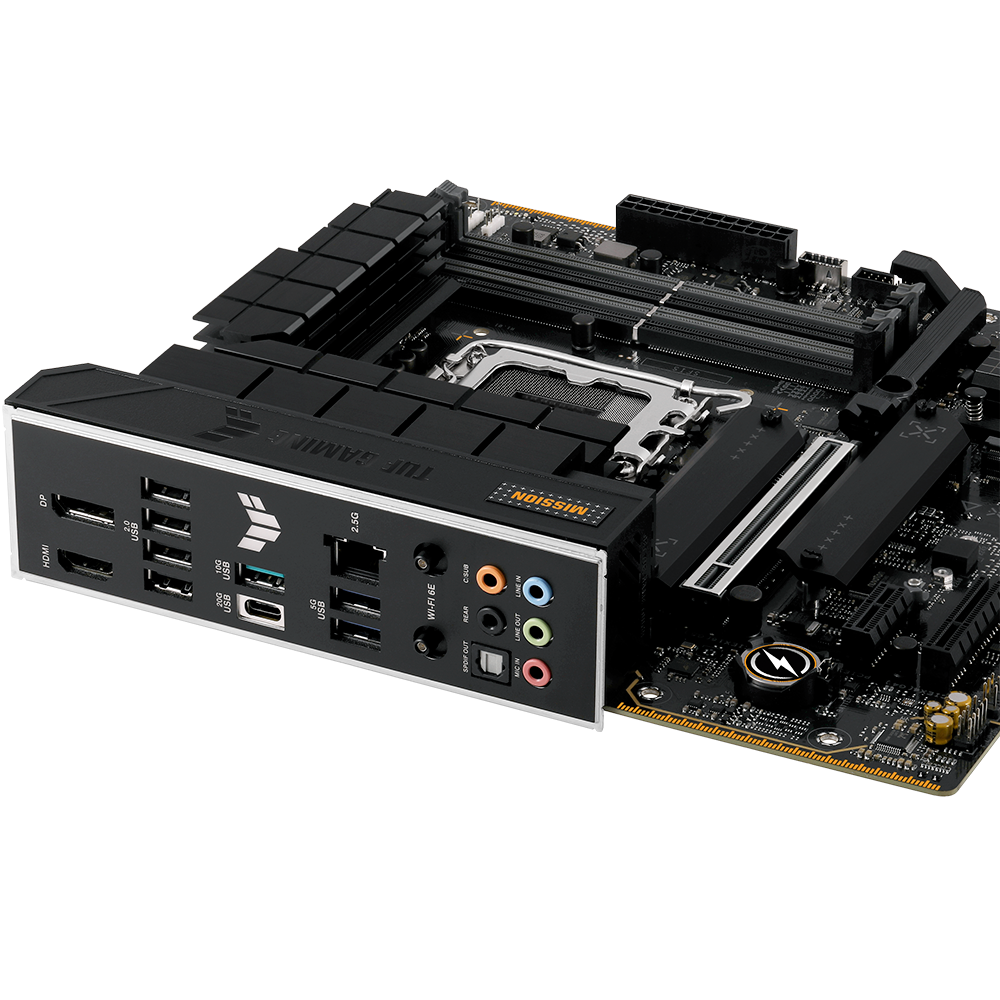

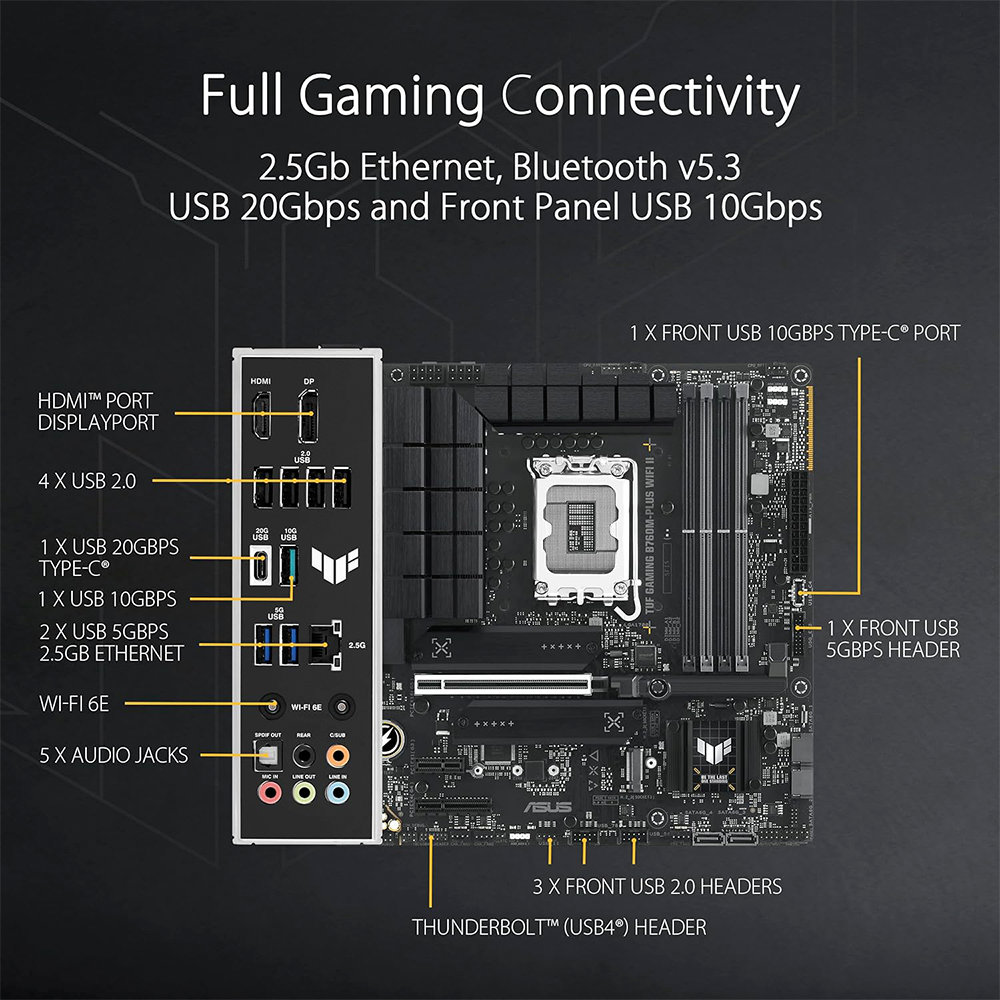

Back Panel I/O Ports

• 1 x USB 20Gbps port (USB Type-C)
• 1 x USB 10Gbps port (Type-A)
• 2 x USB 5Gbps ports (Type-A)
• 4 x USB 2.0 ports (Type-A)
• 1 x DisplayPort
• 1 x HDMI port
• 1 x Wi-Fi Module
• 1 x Realtek 2.5Gb Ethernet Port
• 5 x Audio jacks
• 1 x Optical S/PDIF out port

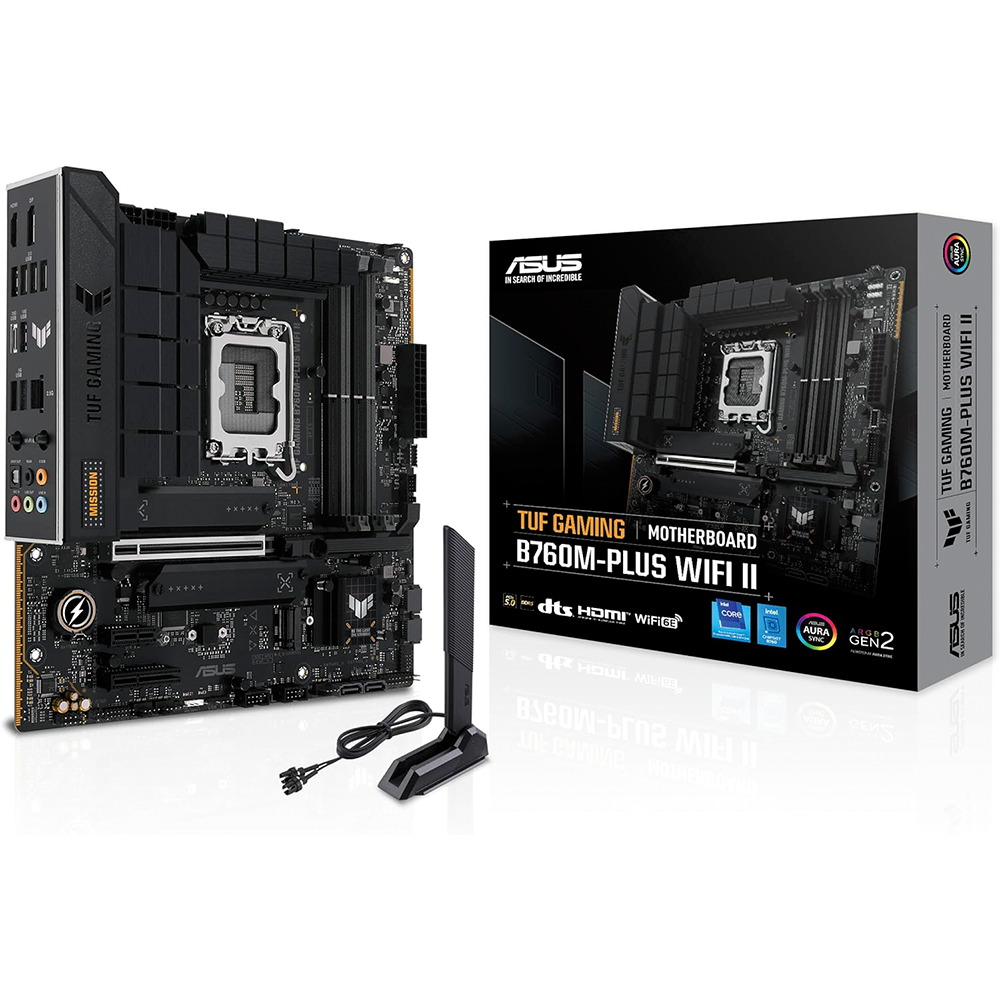

Accessories

• 2 x SATA 6Gb/s cables
• 1 x ASUS Wi-Fi Q-Antennas
• 1 x M.2 Rubber Packages
• 1 x Screw package for M.2 SSD
• 1 x TUF Gaming sticker
• 1 x TUF Certification card
• 1 x User guide

Form Factor :

• micro-ATX ( 24.4 cm x 24.4 cm )

Part Number:

• 90MB1HE0-M0EAY0
