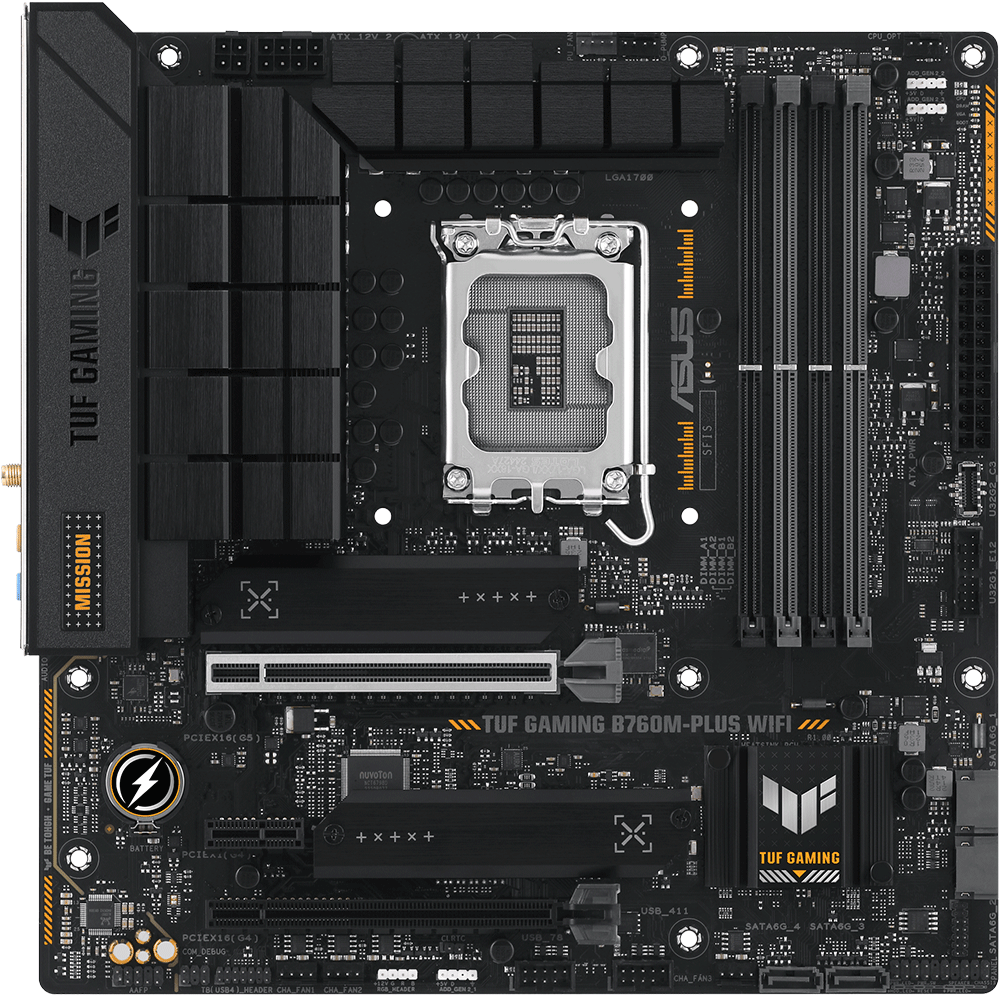

ASUS TUF GAMING B760M-PLUS WIFI LGA1700 Socket For intel CPUs Motherboard

• TUF GAMING B760M-PLUS WIFI takes all the essential elements of the latest Intel processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates an embossed nameplate and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.

CPU

• Intel Socket LGA1700 for 14th and 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors
• Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Memory

• DDR5
• 4 x DIMM, Max. 192GB, DDR5
• Dual Channel Memory Architecture
• Supports Intel Extreme Memory Profile (XMP)
• OptiMem II

Expansion Slots

• 1 x PCIe 5.0 x16 slot
• 1 x PCIe 4.0 x16 slot
• 1x PCIe 4.0 x1 slot

Storage :

• 4 x SATA 6Gb/s
• 2 x M.2 PCIe 4.0 x4 slots

Ethernet :

• 1 x Realtek 2.5Gb Ethernet
• TUF LANGuard

Wireless & Bluetooth :

• Wi-Fi 6 Supports 2.4/5GHz frequency band
• Bluetooth v5.2

USB

• Rear USB (Total 8 ports)
• 1 x USB 3.2 Gen 2x2 port (USB Type-C)
• 2 x USB 3.2 Gen 2 ports (Type-A)
• 3 x USB 3.2 Gen 1 ports (Type-A)
• 2 x USB 2.0 ports (Type-A)
• Front USB: Total 7 ports
• 1 x USB 3.2 Gen 1 connector (supports USB Type-C)
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports*

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC

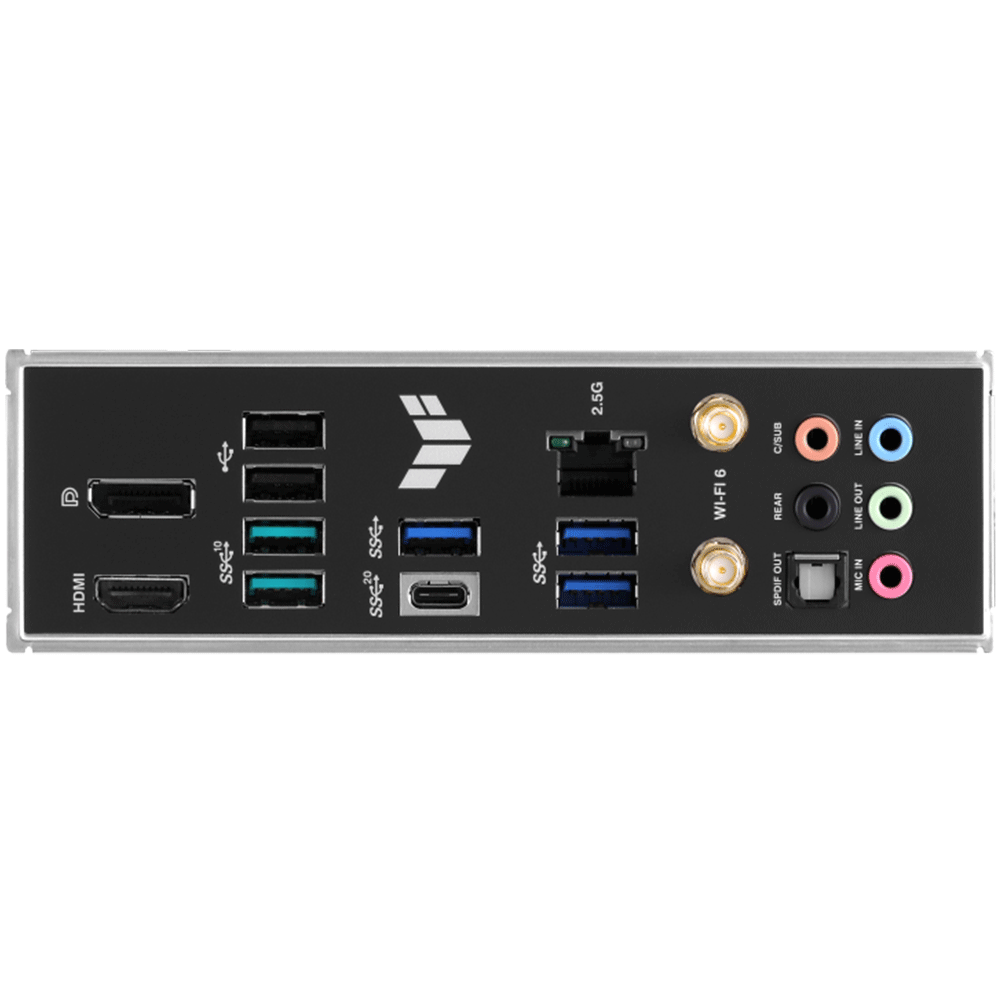

Back Panel I/O Ports

• 1 x USB 3.2 Gen 2x2 port (USB Type-C)
• 2 x USB 3.2 Gen 2 ports (Type-A)
• 3 x USB 3.2 Gen 1 ports (Type-A)
• 2 x USB 2.0 ports (Type-A)
• 1 x DisplayPort
• 1 x HDMI port
• 1 x Wi-Fi Module
• 1 x Realtek 2.5Gb Ethernet Port
• 5 x Audio jacks
• 1 x Optical S/PDIF out port

Accessories

• 2 x SATA 6Gb/s cables
• 1 x ASUS Wi-Fi moving antennas
• 1 x M.2 Rubber Packages
• 1 x Screw package for M.2 SSD
• 1 x TUF Gaming sticker
• 1 x TUF Certification card
• 1 x User guide

Form Factor :

• micro-ATX ( 24.4 cm x 24.4 cm )

Part Number:

• 90MB1ET0-M1EAY0
