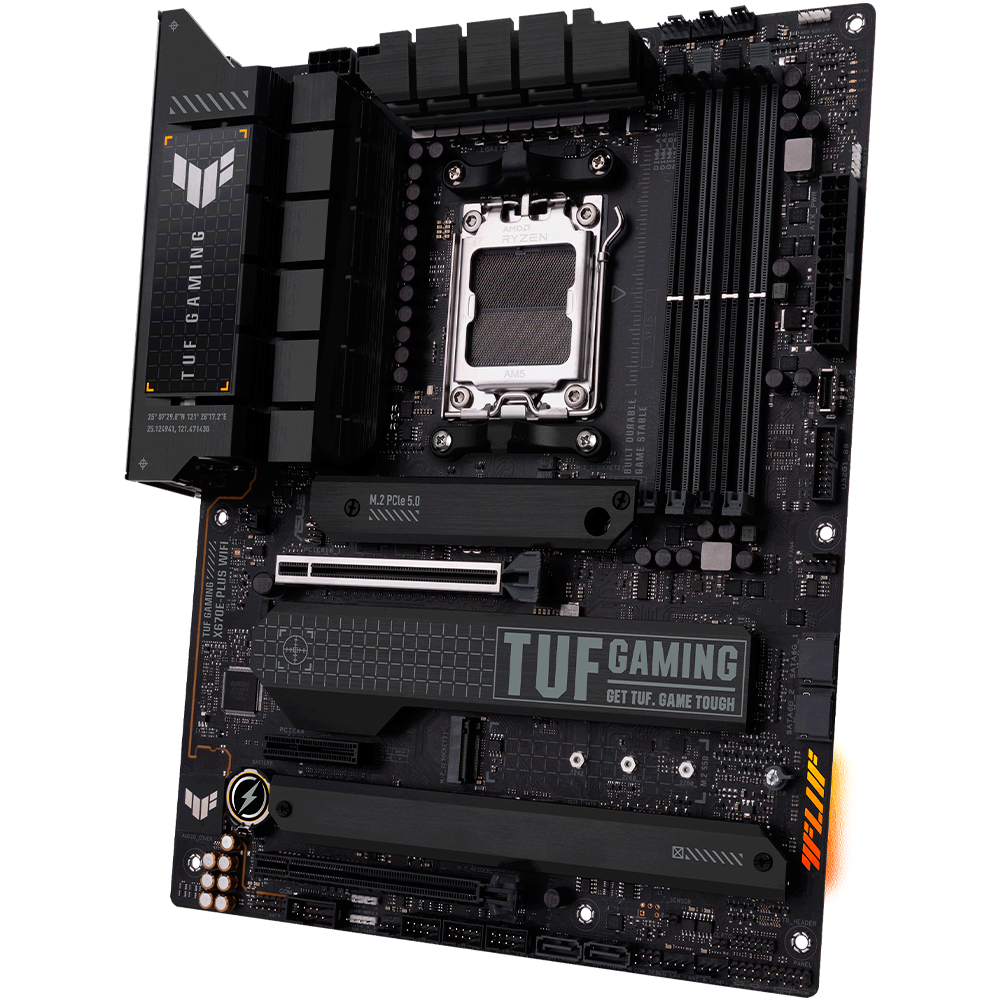

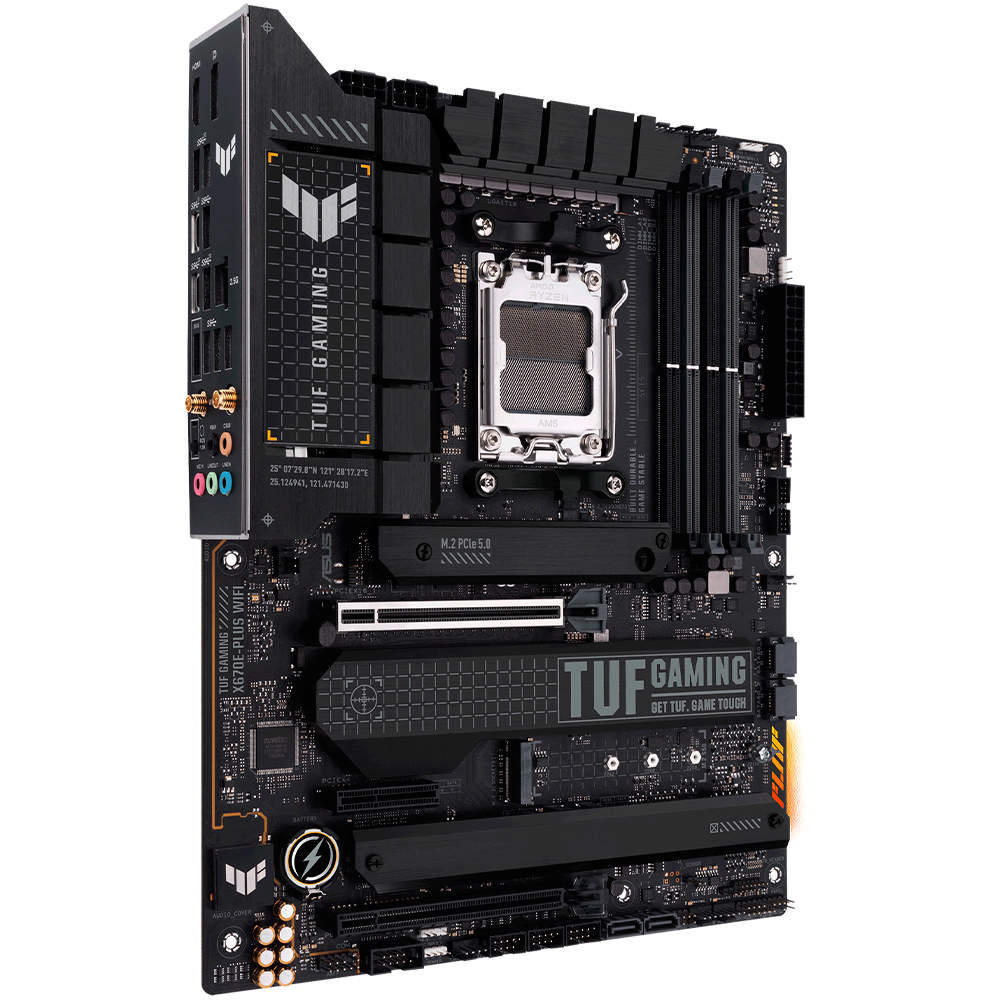

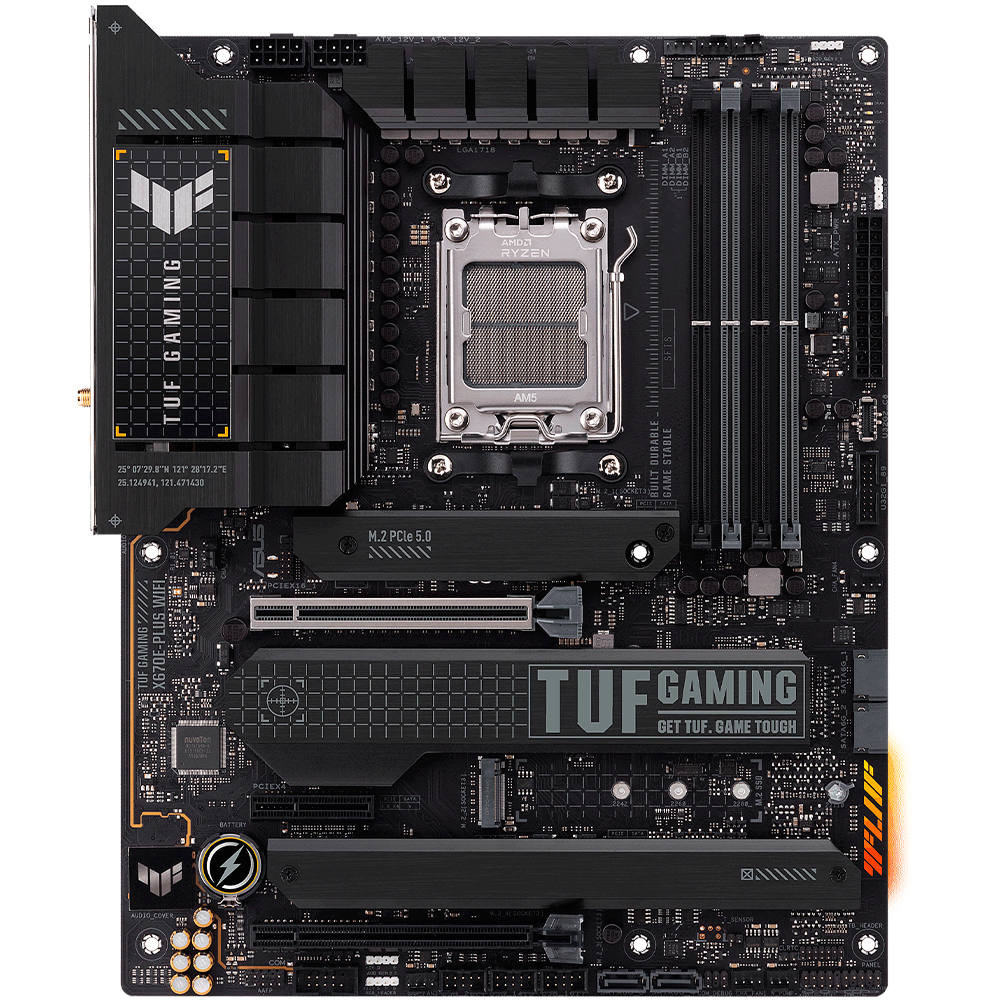

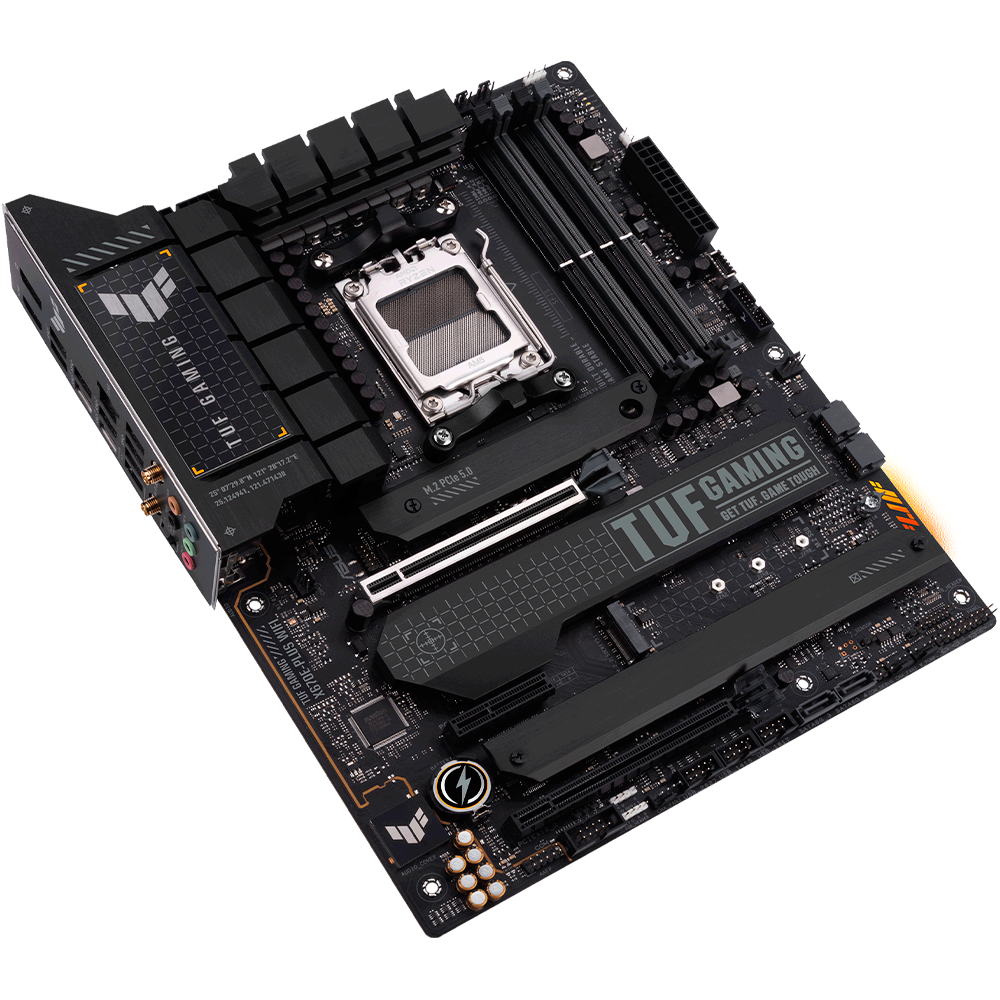

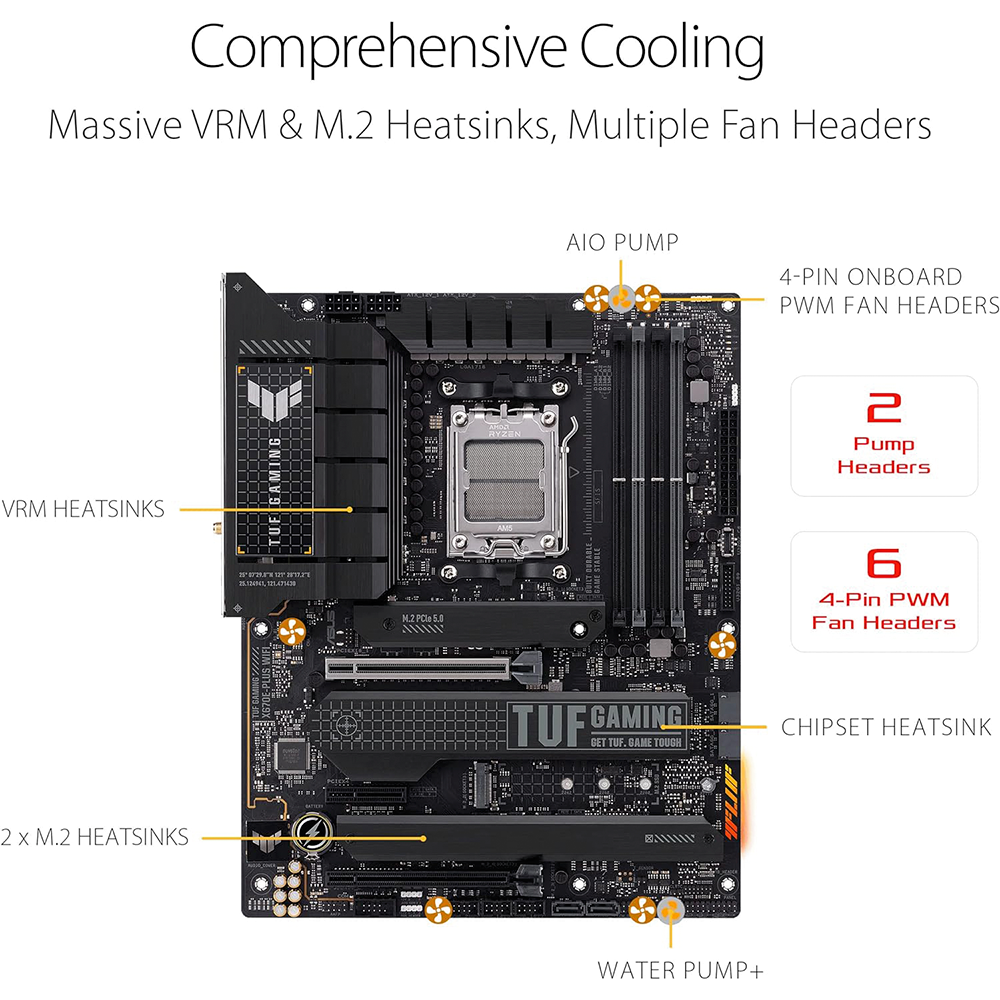

- ASUS TUF GAMING X670E-PLUS WIFI takes all the essential elements of the latest AMD Ryzen 7000-series processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.
CPU
- AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors
Memory
- 4 x DIMM, Max. 192GB, DDR5
- Dual Channel Memory Architecture
- Supports AMD Extended Profiles for Overclocking (EXPO)
- OptiMem II
- * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration

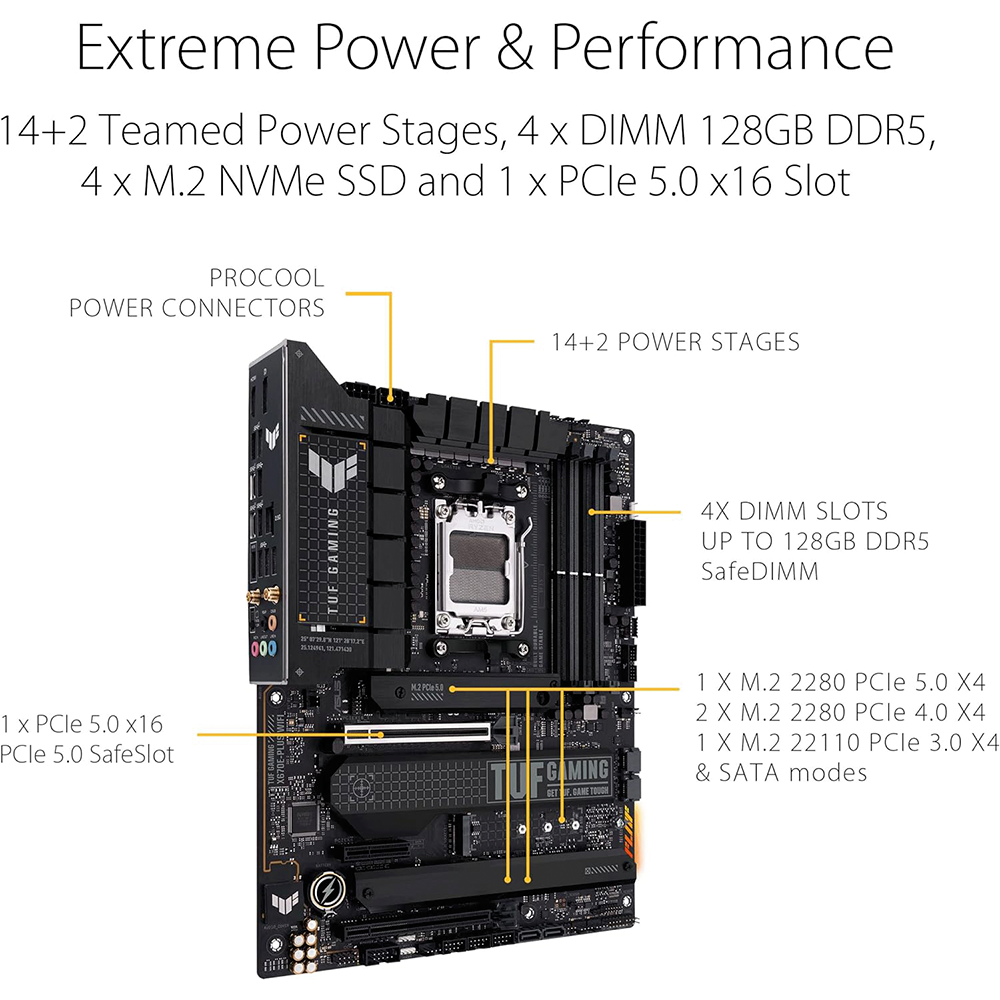

Expansion Slots
- 1 x PCIe 5.0 x16 slot
- 1 x PCIe 4.0 x16 slot
- 1 x PCIe 4.0 x4 Slot
Storage :
- 4 x SATA 6Gb/s
- 1 x M.2 PCIe 5.0 x4
- 2 x M.2 PCIe 4.0 x4
- 1 × M.2 PCIe 3.0 x4
Ethernet :
- 1 x Realtek 2.5Gb Ethernet
- TUF LANGuard
Wireless & Bluetooth :
- Wi-Fi 6E
- Supports 2.4/5/6GHz frequency band
- Bluetooth v5.2
USB
- Rear USB (Total 10 ports)
- 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
- 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C)
- 5 x USB 3.2 Gen 1 port (Type-A)
- Front USB (Total 9 ports)
- 1 x USB 3.2 Gen 2 connector (supports USB Type-C)
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 3 x USB 2.0 headers support additional 6 USB 2.0 ports

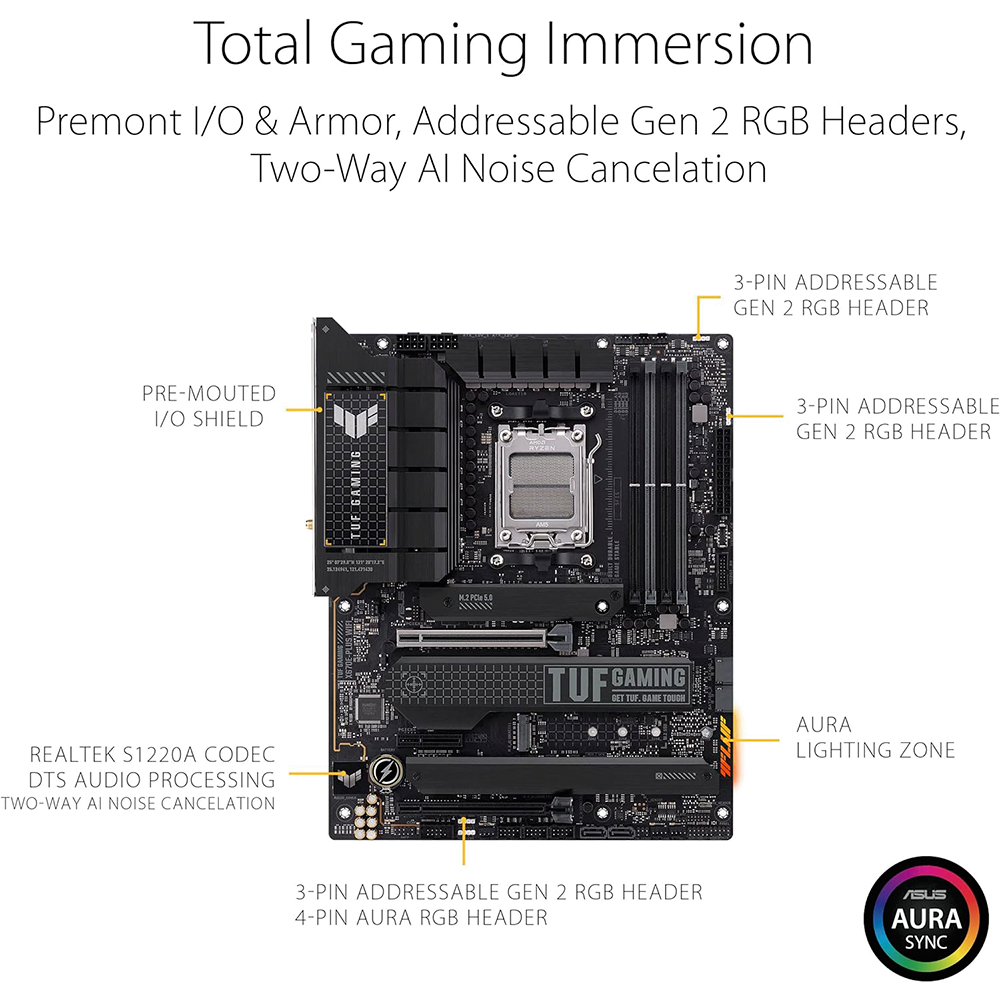

Audio
- Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC

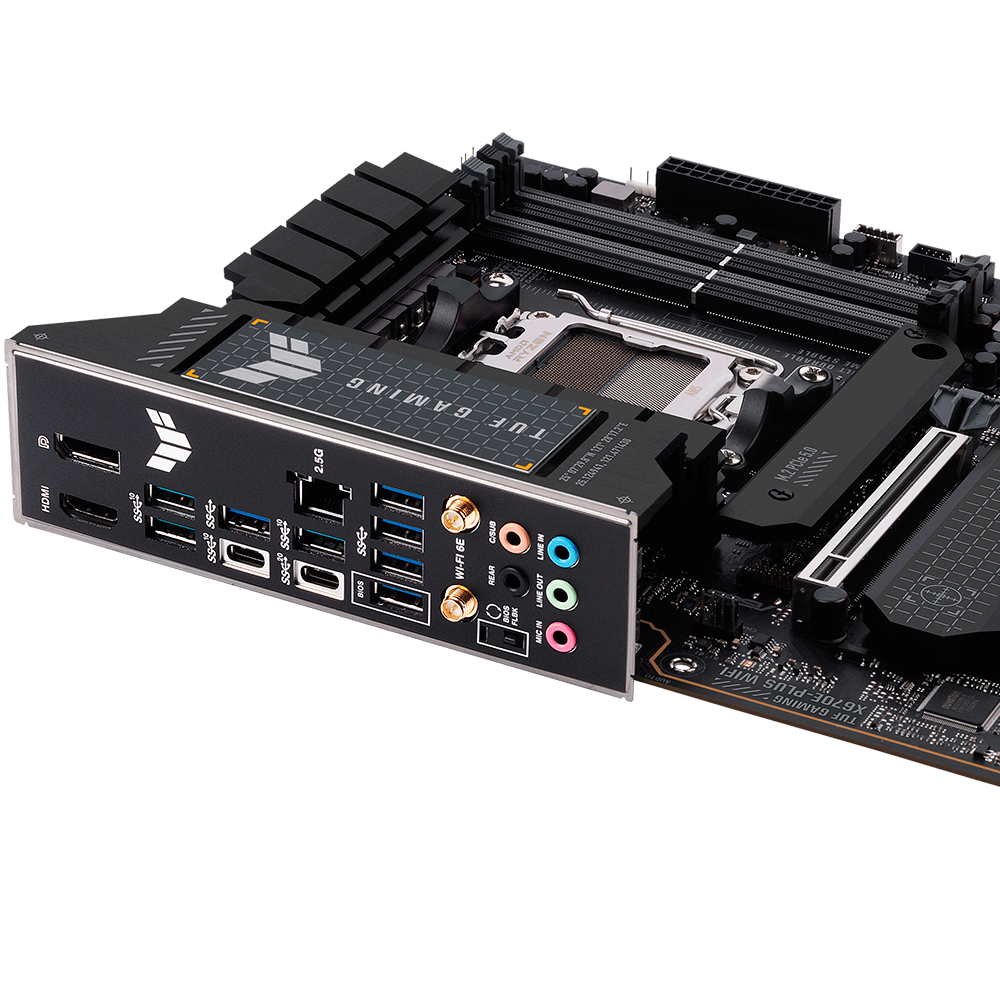

Back Panel I/O Ports
- 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
- 4 x USB 3.2 Gen 2 ports (3 x Type-A, 1 x USB Type-C)
- 5 x USB 3.2 Gen 1 ports (5 x Type-A)
- 1 x DisplayPort
- 1 x HDMI port
- 1 x Wi-Fi Module
- 1 x Realtek 2.5Gb Ethernet port
- 5 x Audio jacks
- 1 x BIOS FlashBack button

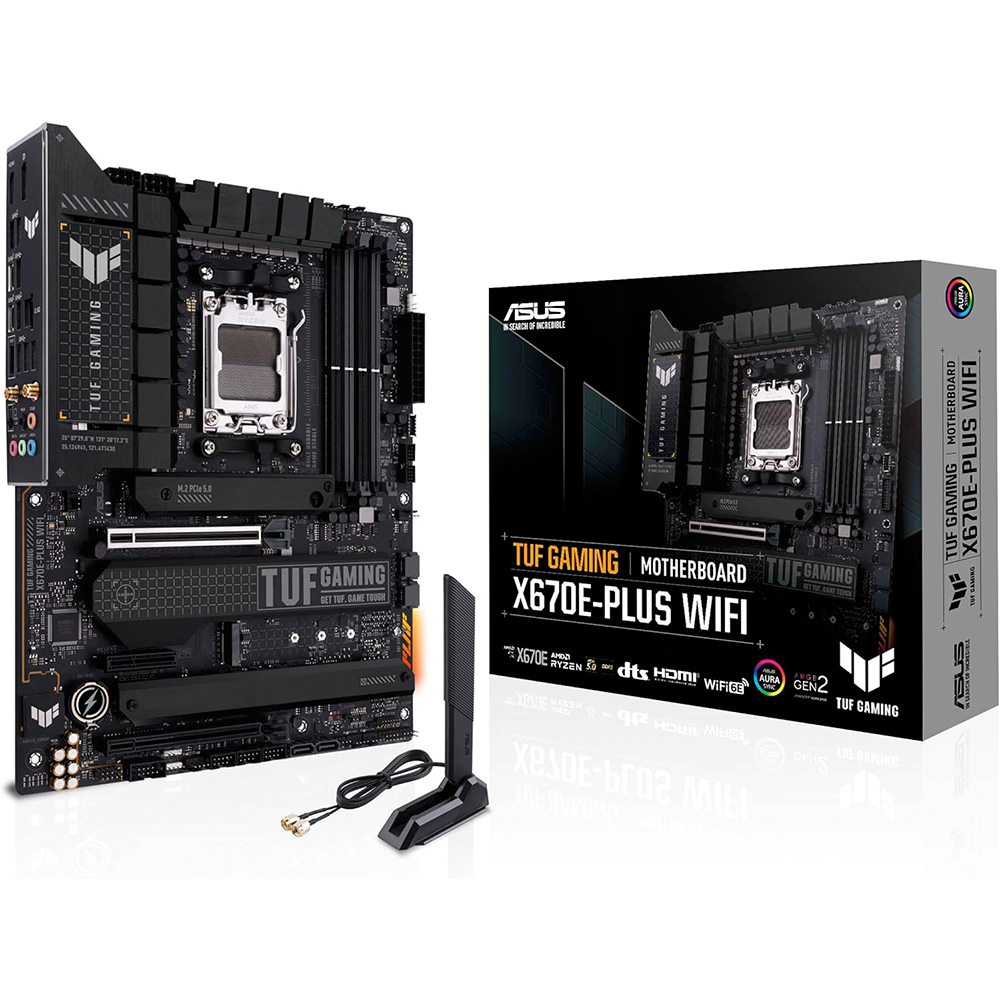

Accessories
- 2 x SATA 6Gb/s cables
- 1 x ASUS Wi-Fi moving antenna
- 2 x Rubber packages for M.2
- 2 x Screw packages for M.2 SSD
- 1 x TUF certification card
- 1 x User guide
Form Factor :
- ATX ( 30.5 cm x 24.4 cm )
Part Number:
- 90MB1BK0-M0EAY0
