The Vector V100 is built around the concept of performance visualization. Dual tempered glass panels, a dedicated display platform, and an integrated ARGB light strip work together to highlight your hardware in style. Its adaptable layout strikes the perfect balance between DIY flexibility and installation ease-offering a personalized showcase for gamers and PC enthusiasts alike.
Product Features:

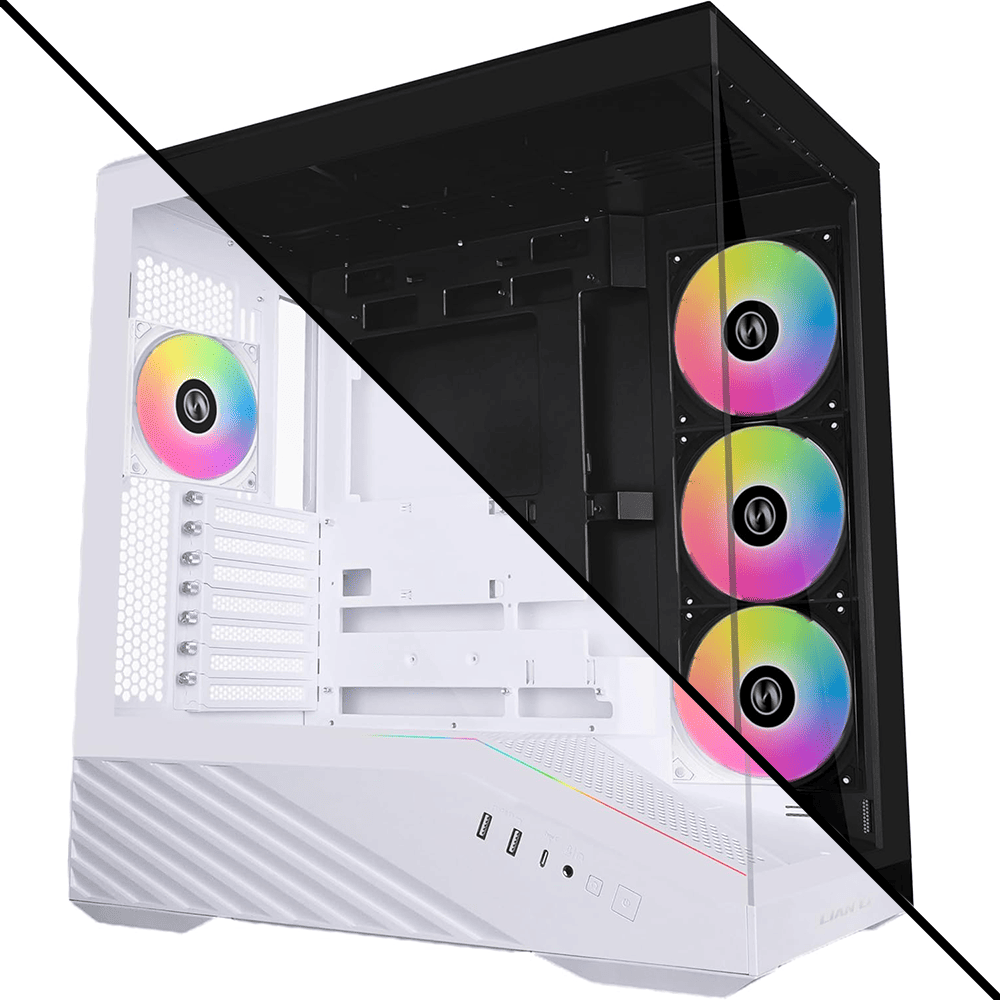

TWO COLOR OPTIONS BRILLIANT VISUALS:

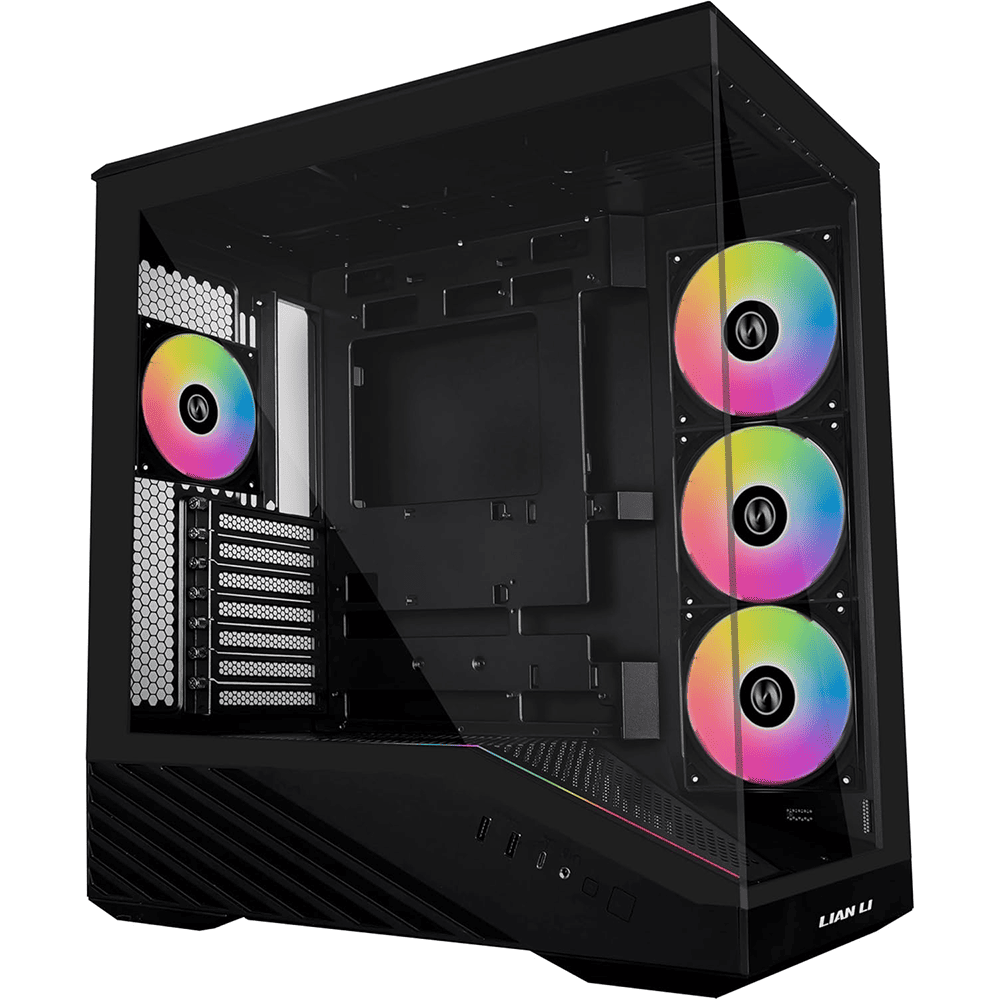

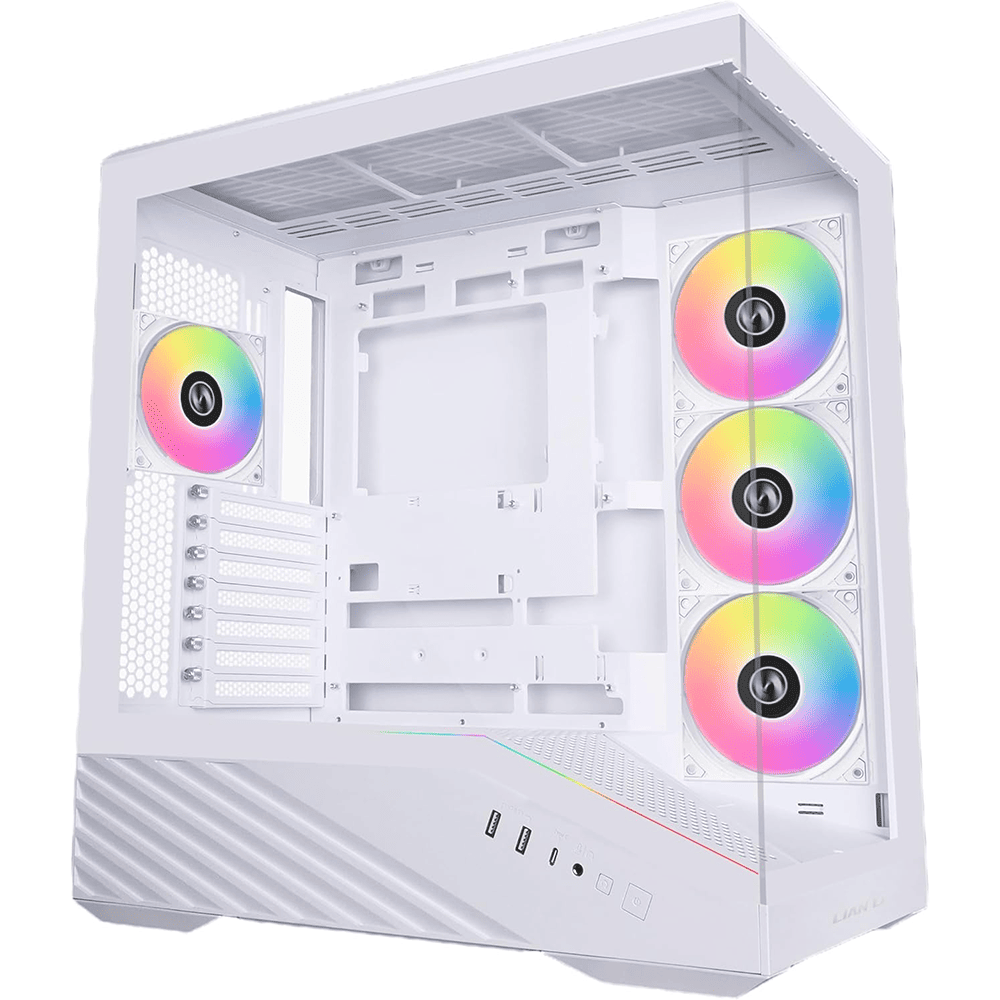

- Choose from two elegant chassis colors: classic and modern black or clean and minimalist white, perfectly matching your personal style.

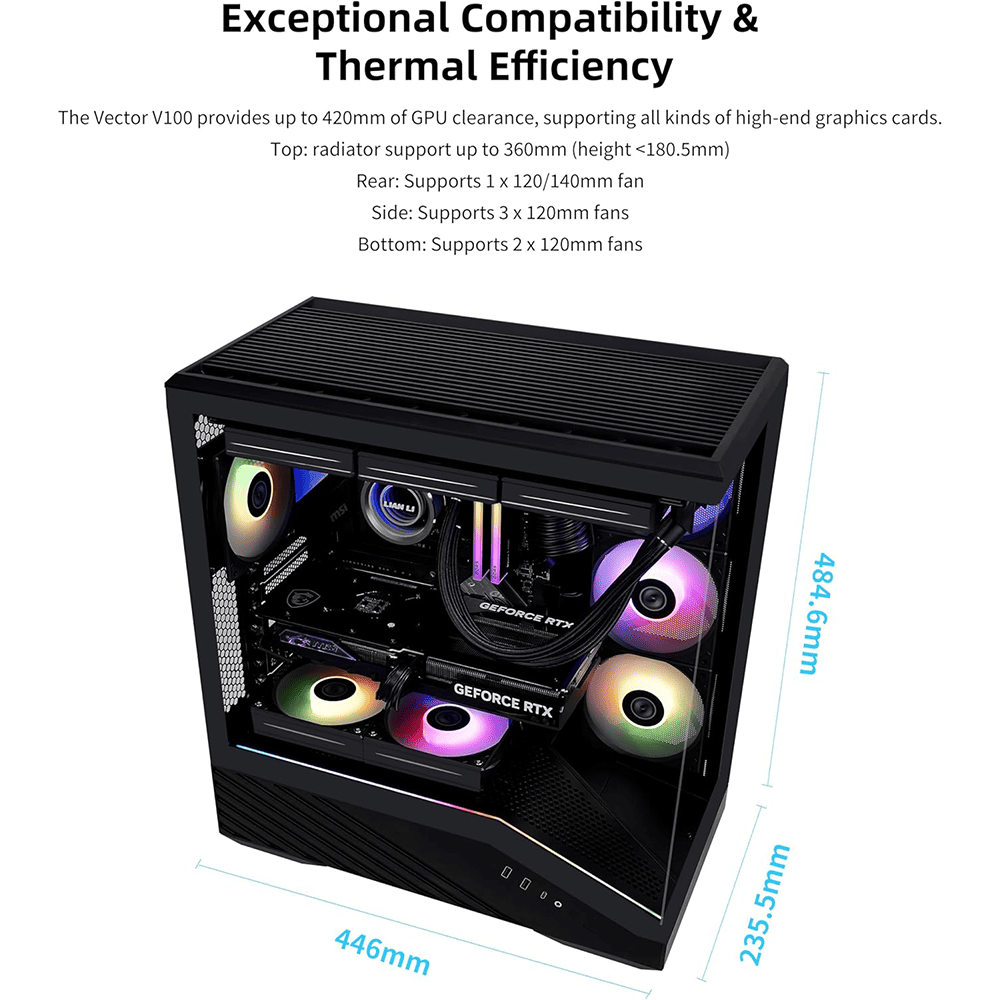

EXCEPTIONAL COMPATIBILITY & THERMAL EFFICIENCY:
- The Vector V100 provides up to 420mm of GPU clearance, supporting all kinds of high-end graphics cards.
- Top: Support up to 360mm radiator (height <180.5mm)
- Rear: Supports 1 x 120/140mm fan
- Side: Supports 3 x 120mm fans
- Bottom: Supports 2 x 120mm fans

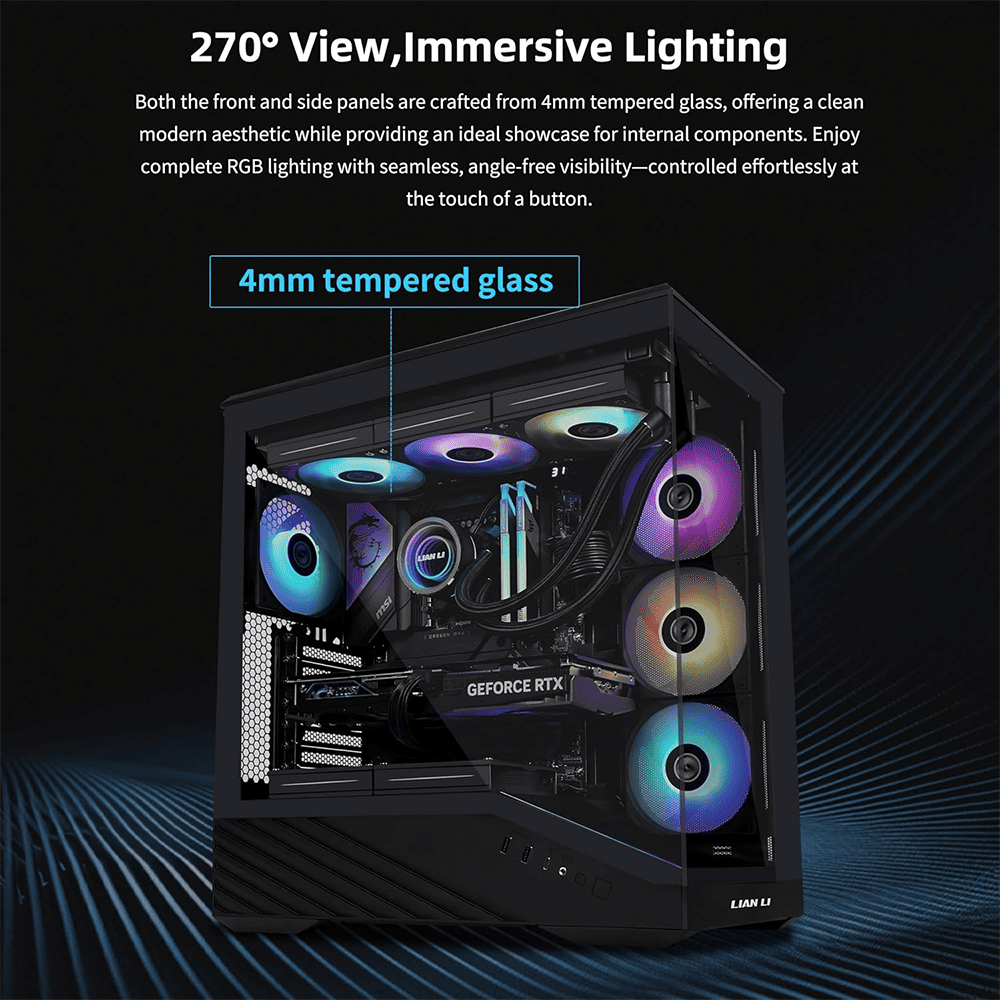

270° VIEW,IMMERSIVE LIGHTING:
- Both the front and side panels are crafted from 4mm tempered glass, offering a clean modern aesthetic while providing an ideal showcase for internal components. Enjoy complete RGB lighting with seamless, angle-free visibility, which controlled effortlessly at the touch of a button.

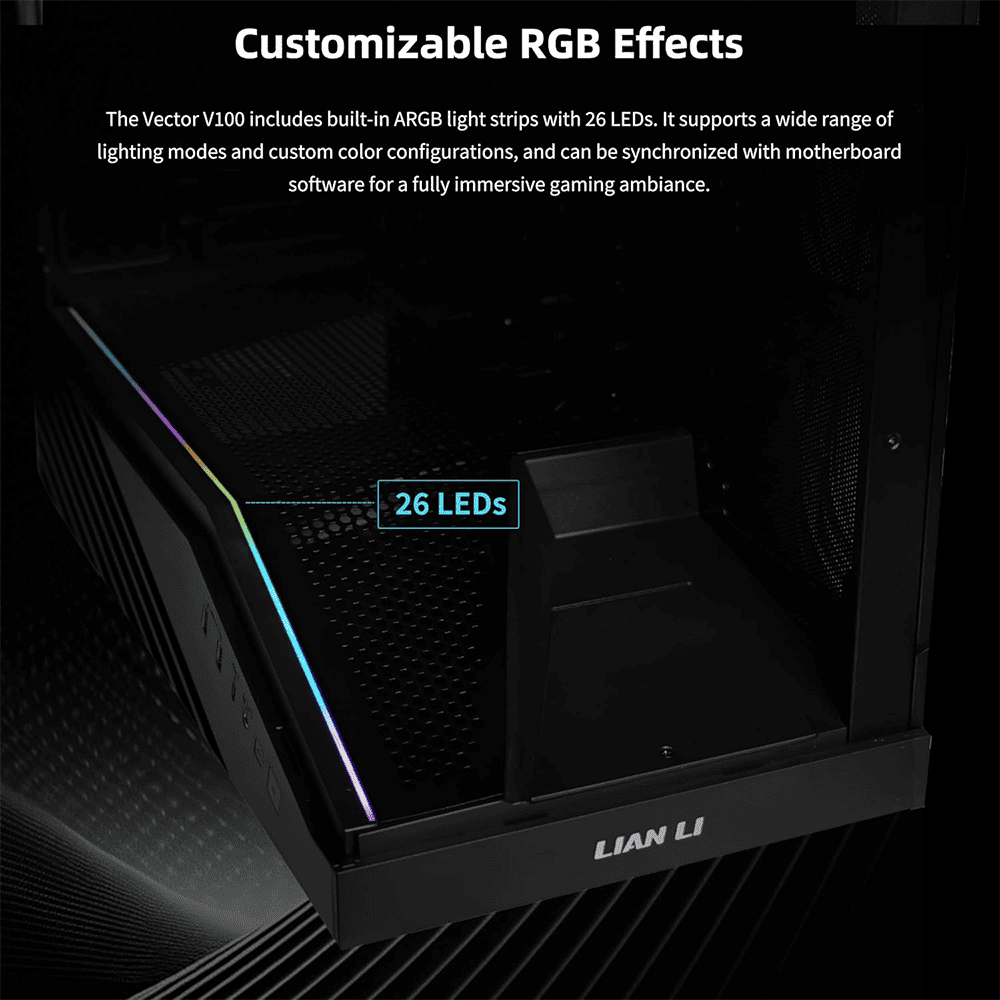

CUSTOMIZABLE RGB EFFECTS:
- The Vector V100 includes built-in ARGB light strips with 26 LEDs. It supports a wide range of lighting modes and custom color configurations, and can be synchronized with motherboard software for a fully immersive gaming ambiance.

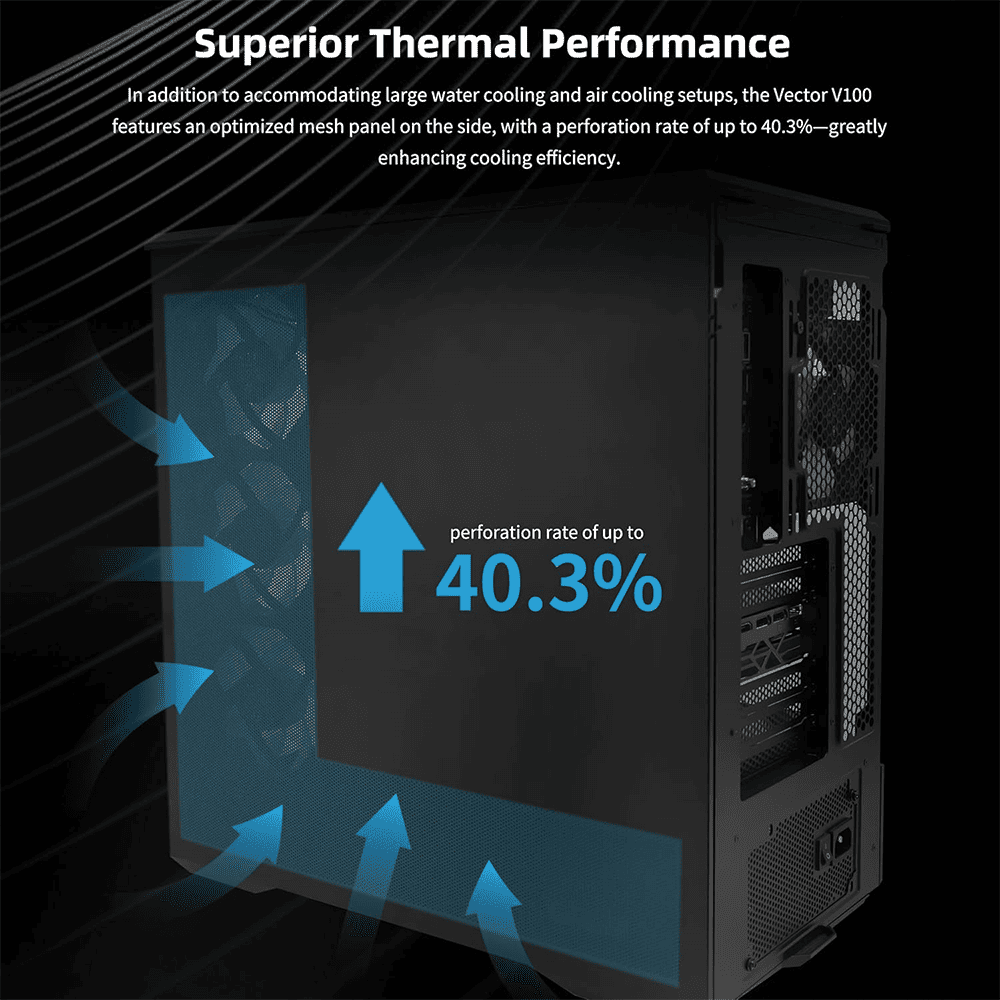

SUPERIOR THERMAL PERFORMANCE:
- In addition to accommodating large water cooling and air cooling setups, the Vector V100 features an optimized mesh panel on the side, with a perforation rate of up to 40.3%, greatly enhancing cooling efficiency.
EFFICIENT CABLE MANAGEMENT:
- With a thoughtfully designed interior layout, the Vector V100 features a meticulously planned cable management system placed at the front of the secondary chamber, balancing visual appeal with practical function.

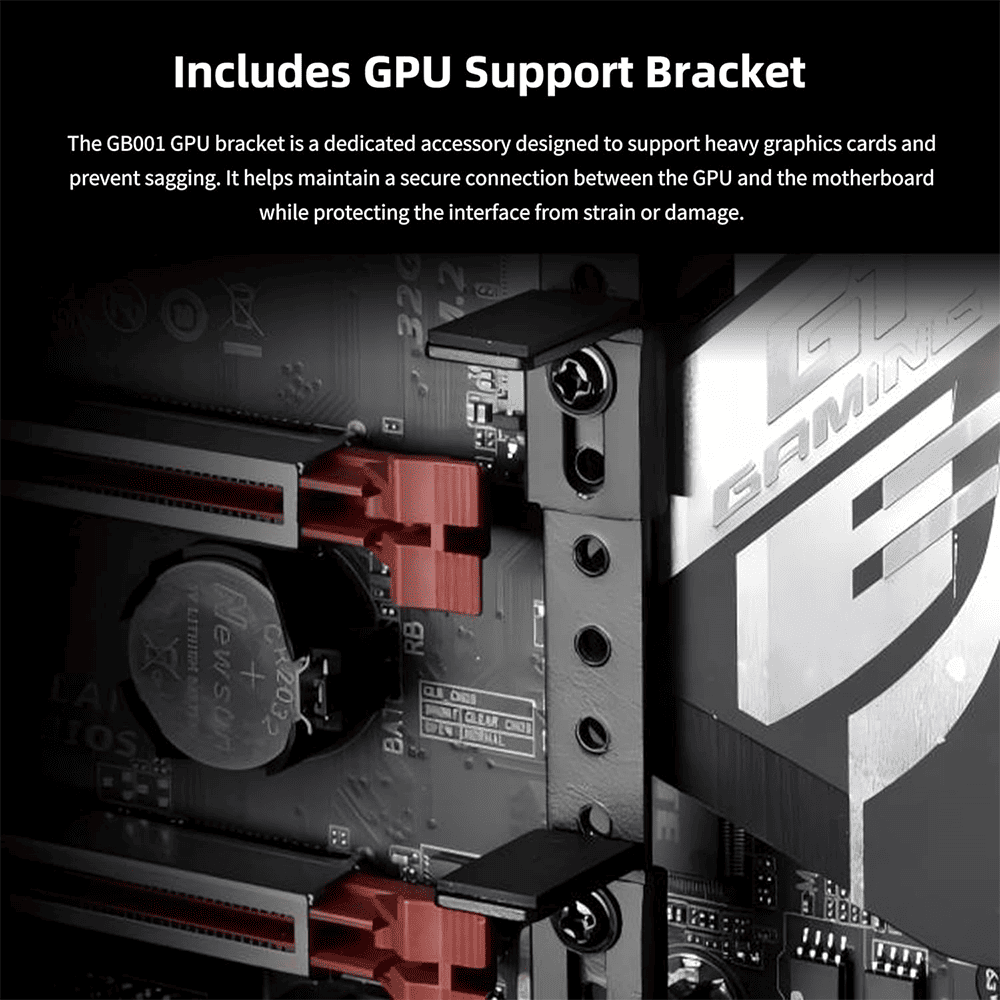

INCLUDES GPU SUPPORT BRACKET:
- The GB001 GPU bracket is a dedicated accessory designed to support heavy graphics cards and prevent sagging. It helps maintain a secure connection between the GPU and the motherboard while protecting the interface from strain or damage.
Accessible and Efficient I/O Experience:
- The Vector V100’s side I/O panel is smartly integrated into the case’s layout, providing intuitive access to buttons and ports. This design ensures seamless operation, enhancing user interaction and work efficiency.

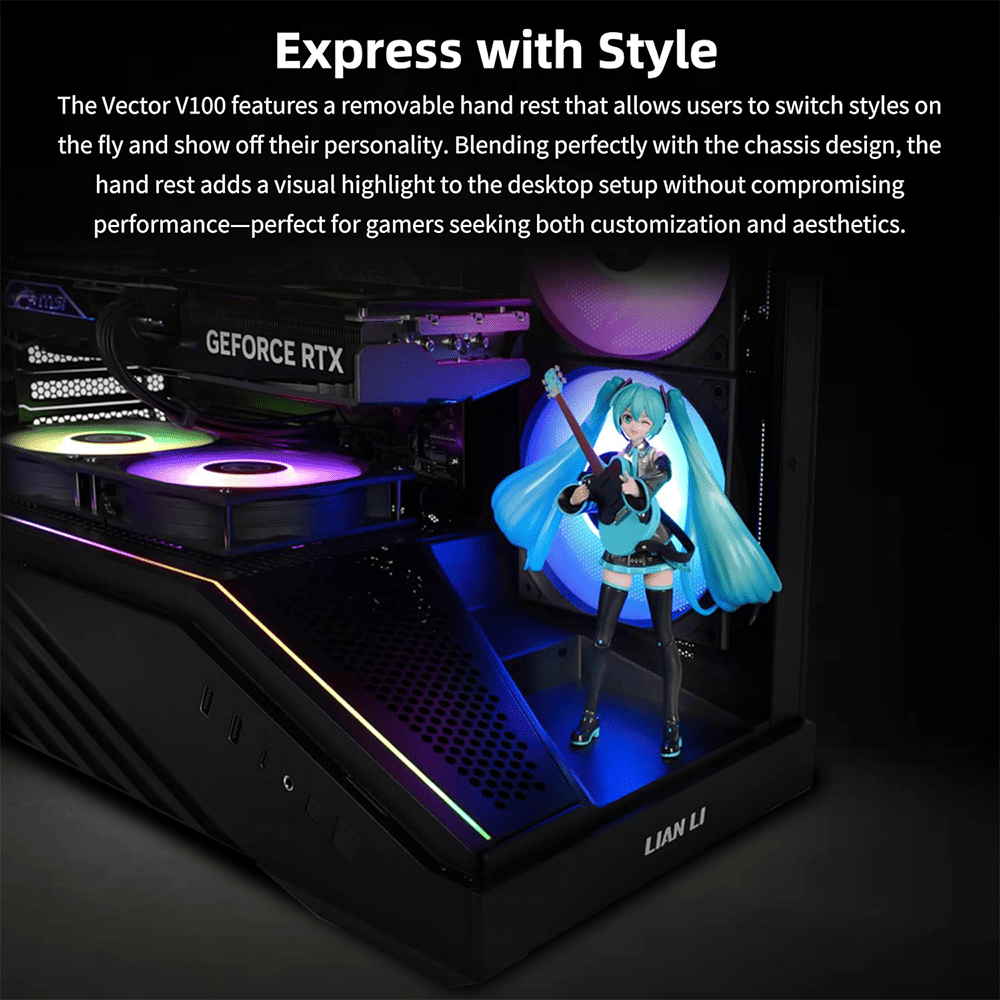

EXPRESS WITH STYLE:
- The Vector V100 features a removable hand rest that allows users to switch styles on the fly and show off their personality. Blending perfectly with the chassis design, the hand rest adds a visual highlight to the desktop setup without compromising performance for gamers seeking both customization and aesthetics.
Product Details:
PRODUCT NAME:
- Vector V100R
- MODEL NO.:
- Black: G99.V100RX.01
- White: G99.V100RW.01
TYPE:
- Mid-Tower Case
DIMENSIONS:
- 446mm (L) × 235.5mm (W) × 484.65mm (H)
MOTHERBOARD SUPPORT:
- E-ATX (Width < 246mm) / ATX / M-ATX / Mini-ITX

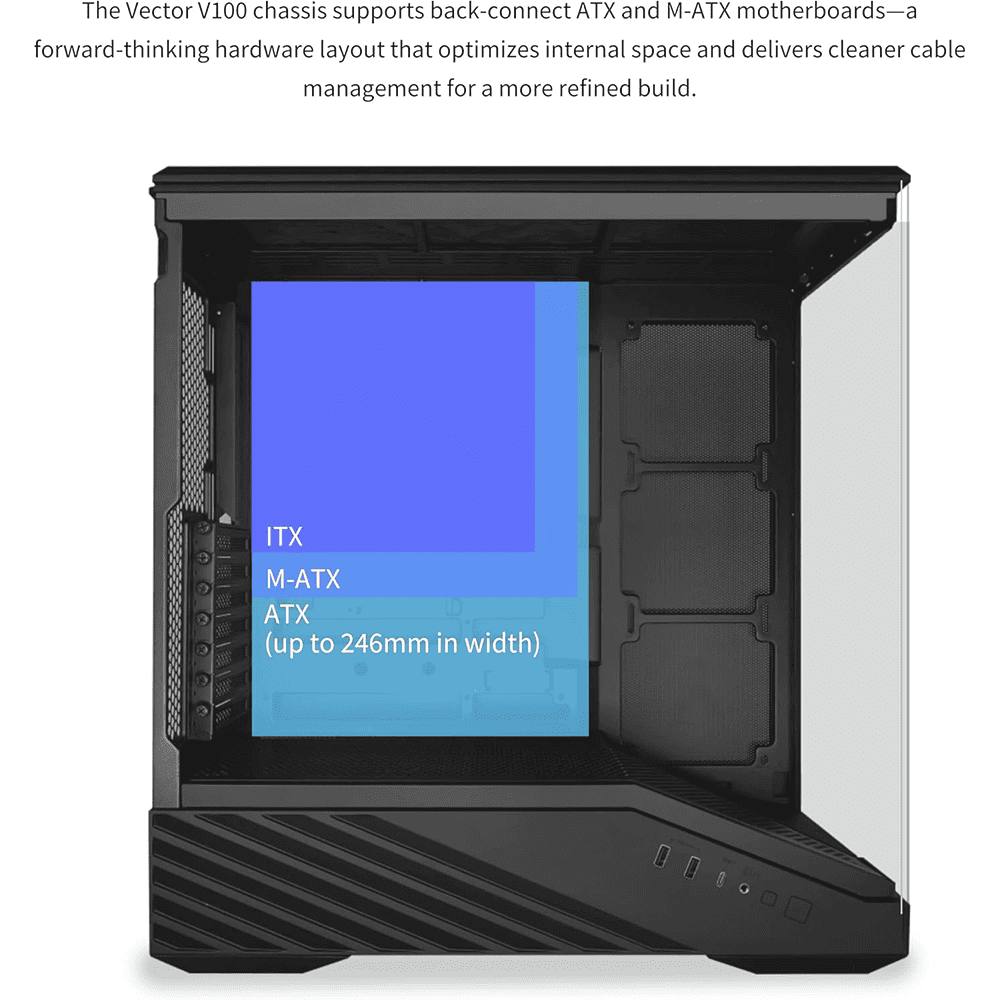

BACK CONNECT MOTHERBOARD SUPPORT:
- ATX / M-ATX
POWER SUPPLY CLEARANCE:
- ATX (Length < 220mm)

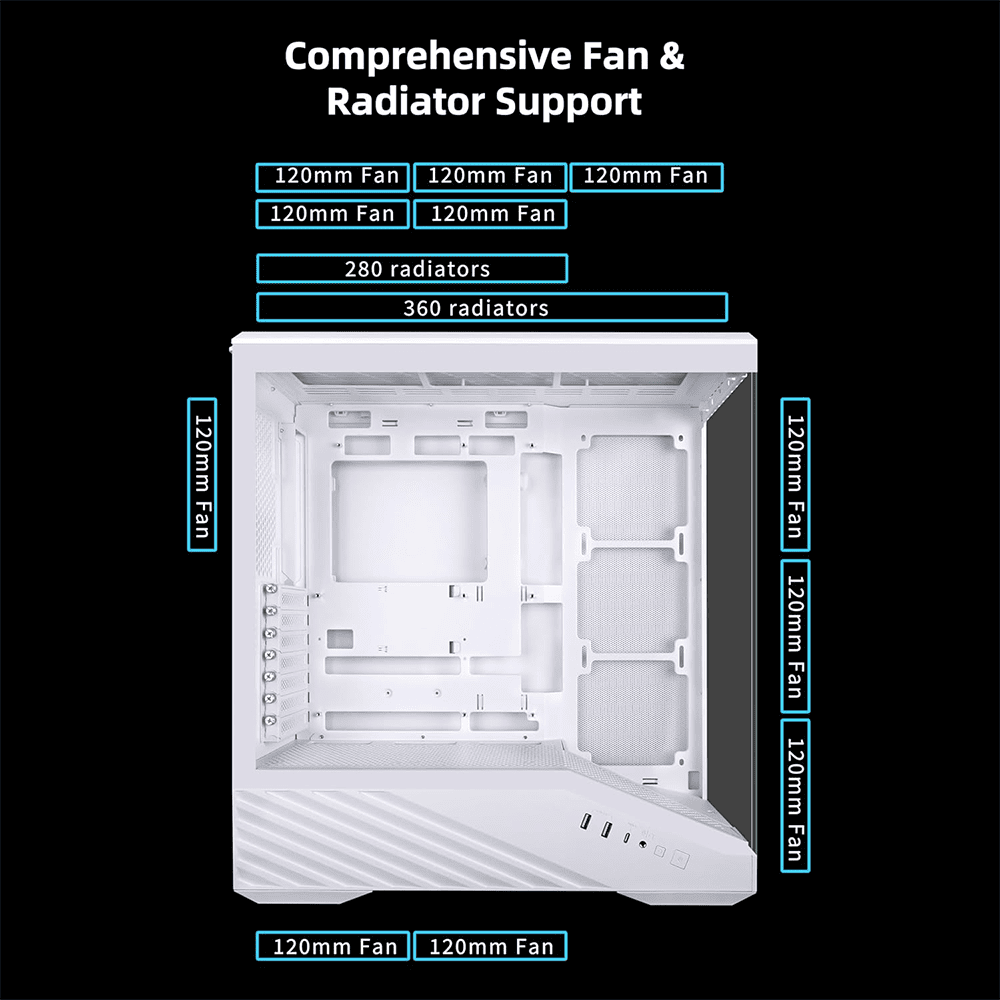

FAN SUPPORT:
- Top: 3 × 120mm or 2 × 140mm
- Side: 3 × 120mm (Pre-installed)
- Rear: 1 × 120mm (Pre-installed) or 1 × 140mm
RADIATOR SUPPORT:
- Top: Supports up to 360mm
DRIVE SUPPORT:
- Behind Tray: 1 × 2.5″ SSD
- Bottom: 1 × 3.5″ HDD
MAXIMUM GPU LENGTH:
- 420mm
MAXIMUM CPU COOLER HEIGHT:
- 178mm
PCIE EXPANSION SLOTS:
- 7
I/O PORTS:
- 2 × USB 3.0
- 1 × USB 3.1 Type-C
- 1 × Audio
- 1 × Power Button
- 1 × Reset Button
