Product Details :

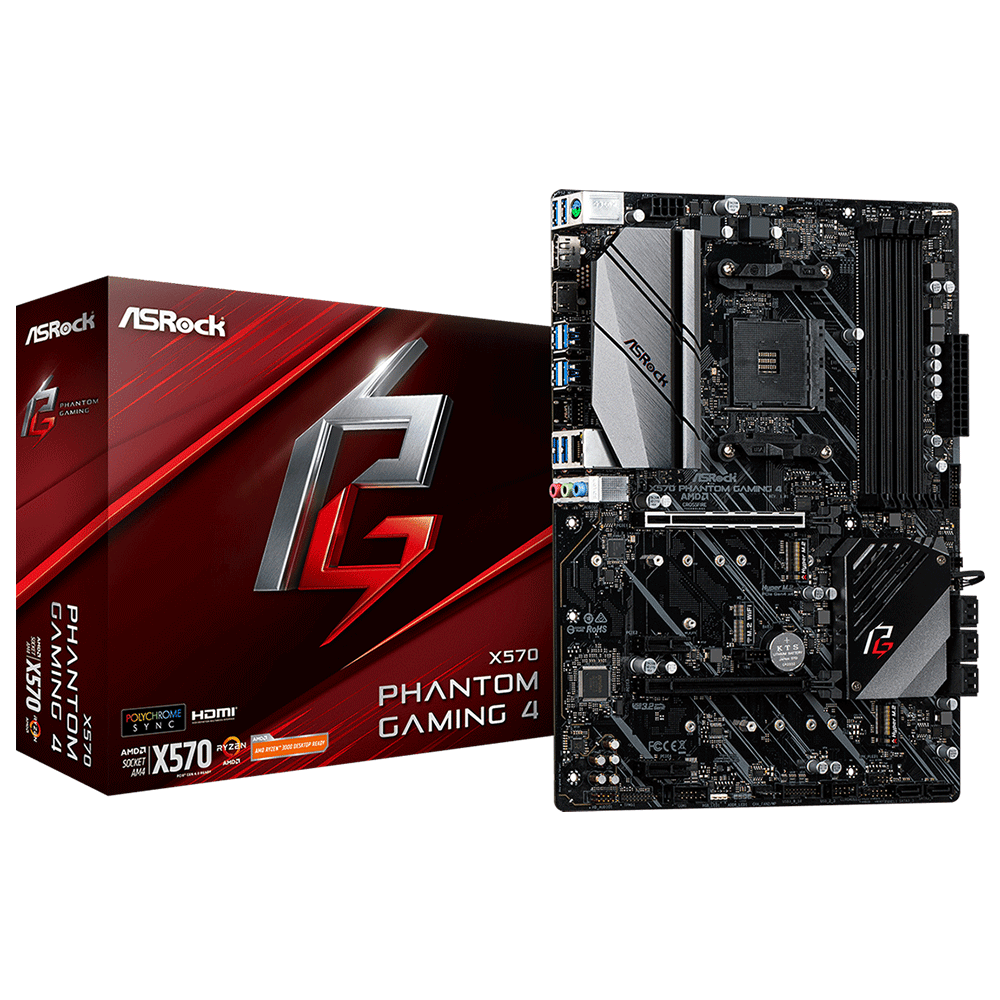

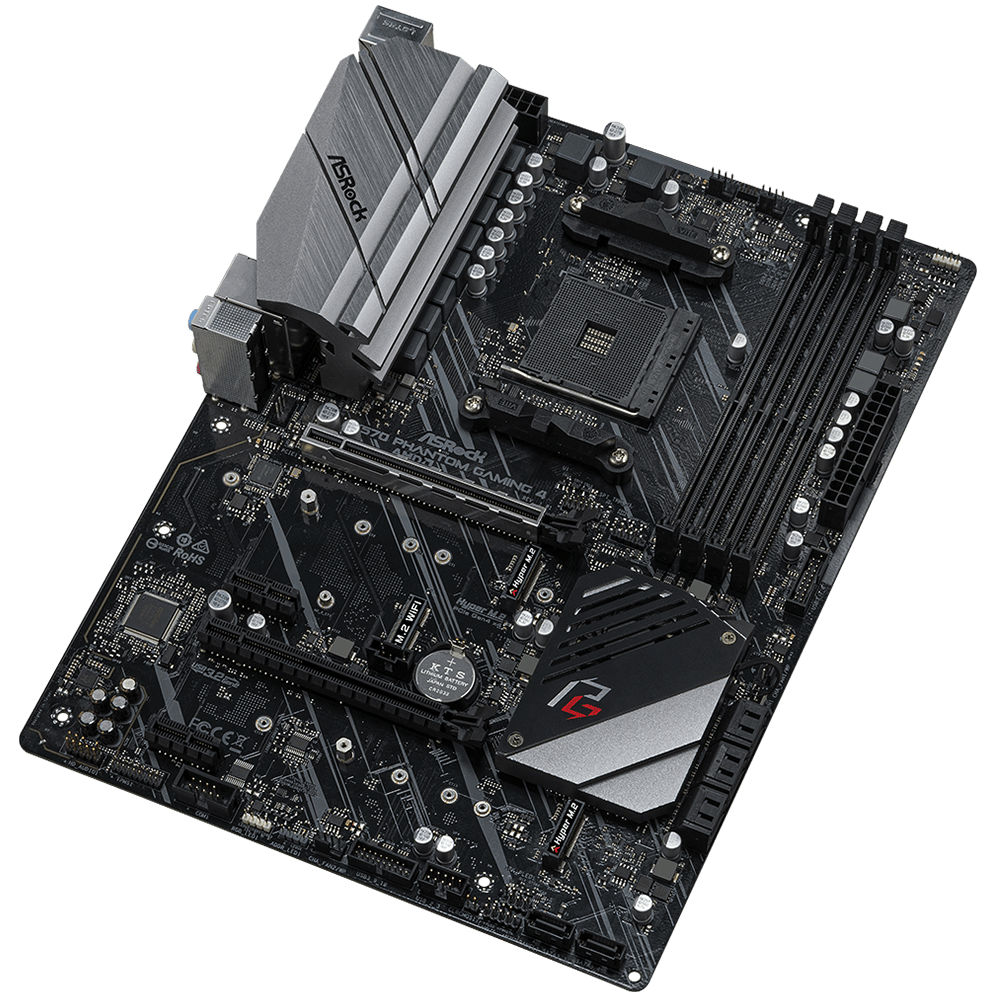

- Model : X570 Phantom Gaming 4
- CPU Socket : AM4
- CPU Type : Supports AMD Ryzen 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
- Motherboard Form Factor : ATX
- Quantity of RAM Slots : 4 slots Dual Channel DDR4 Memory Technology
- Memory Type : DDR4
- Maximum memory Capacity : 128 GB
- Support XMP
Expansion slots:
- 1x PCIe 4.0 x16 slot
- 2x PCIe 4.0 x1 slot
Storage :
- 8x SATA 3
- 2x Hyper M.2 (PCIe Gen4 x4)
Audio :
- 7.1 CH HD Audio (Realtek ALC1200 Audio Codec)
LAN :
- 1x Gigabit LAN 10/100/1000 Mb/s

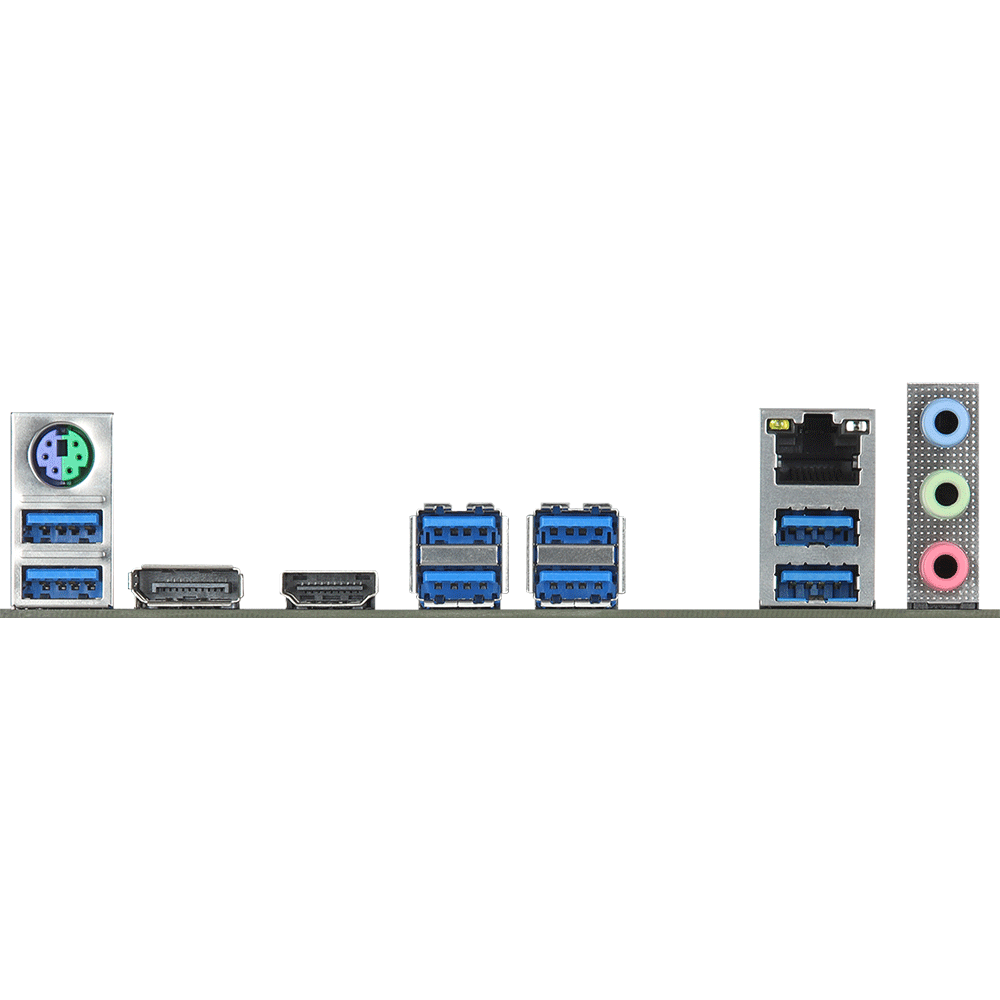

Rear Panel I/O :
- 3 x Antenna Ports (on I/O Panel Shield)
- 1 x PS/2 mouse/keyboard port
- 1 x HDMI port
- 1 x DisplayPort 1.4
- 2 x USB 3.2 Gen2 Type-A (10Gb/s)
- 6 x USB 3.2 Gen1.0 ports
- 1 x RJ-45 LAN ports with LED (ACT / LINK LED and SPEED LED)
- HD audio jacks: Line in / Front Speaker / Microphone
I/O Internal Connectors :
- 1 x USB 2.0 headers (support 2 USB 2.0 ports)
- 2 x USB 3.2 Gen1 headers (support 4 USB 3.2 Gen1 ports)
Accessories :
- 2 x SATA Data Cables
- 3 x Screws for M.2 Sockets
Part Number:
- 90-MXBAU0-A0UAYZ
