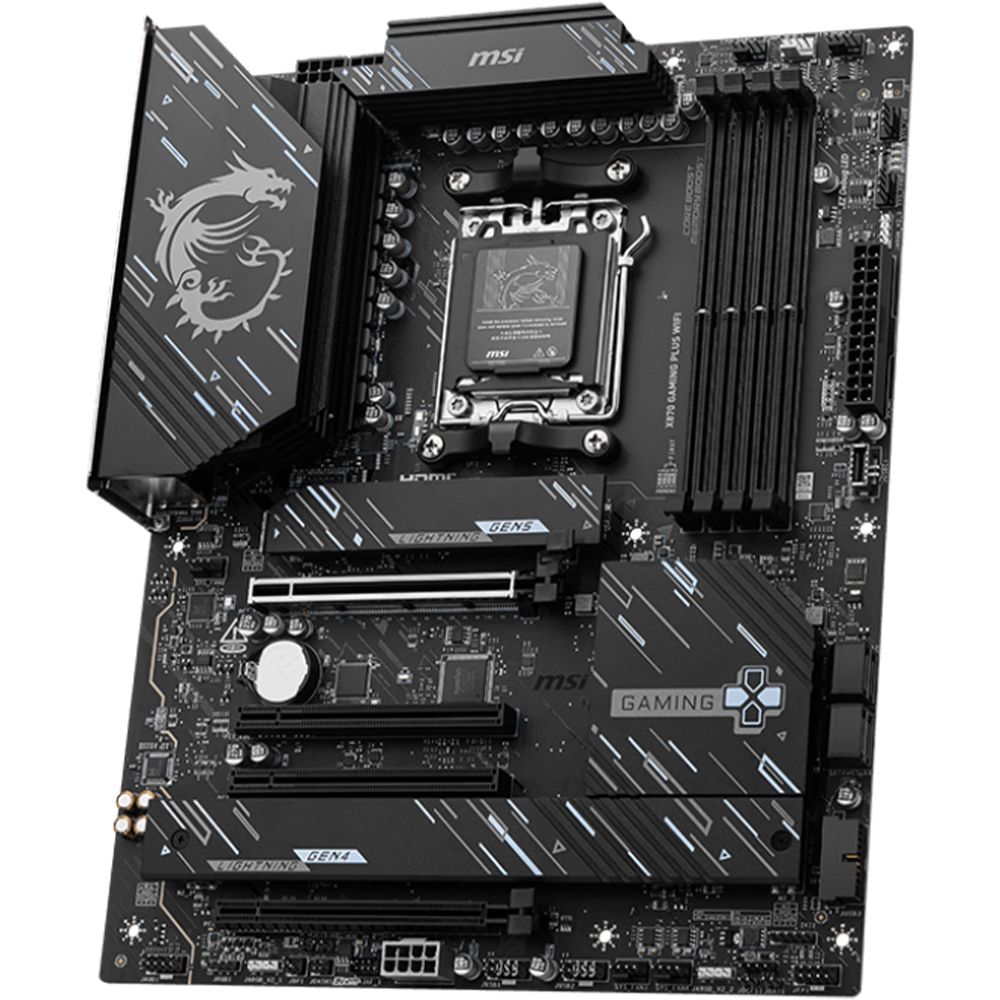

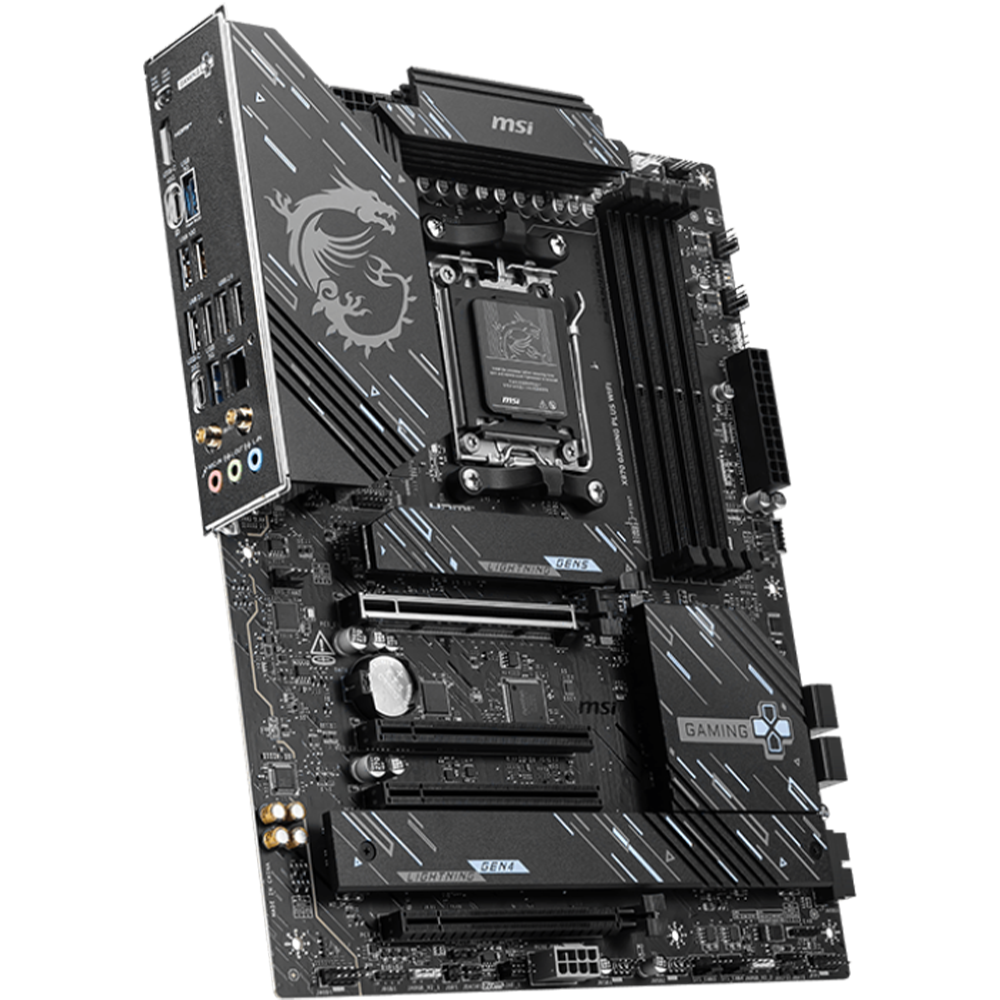

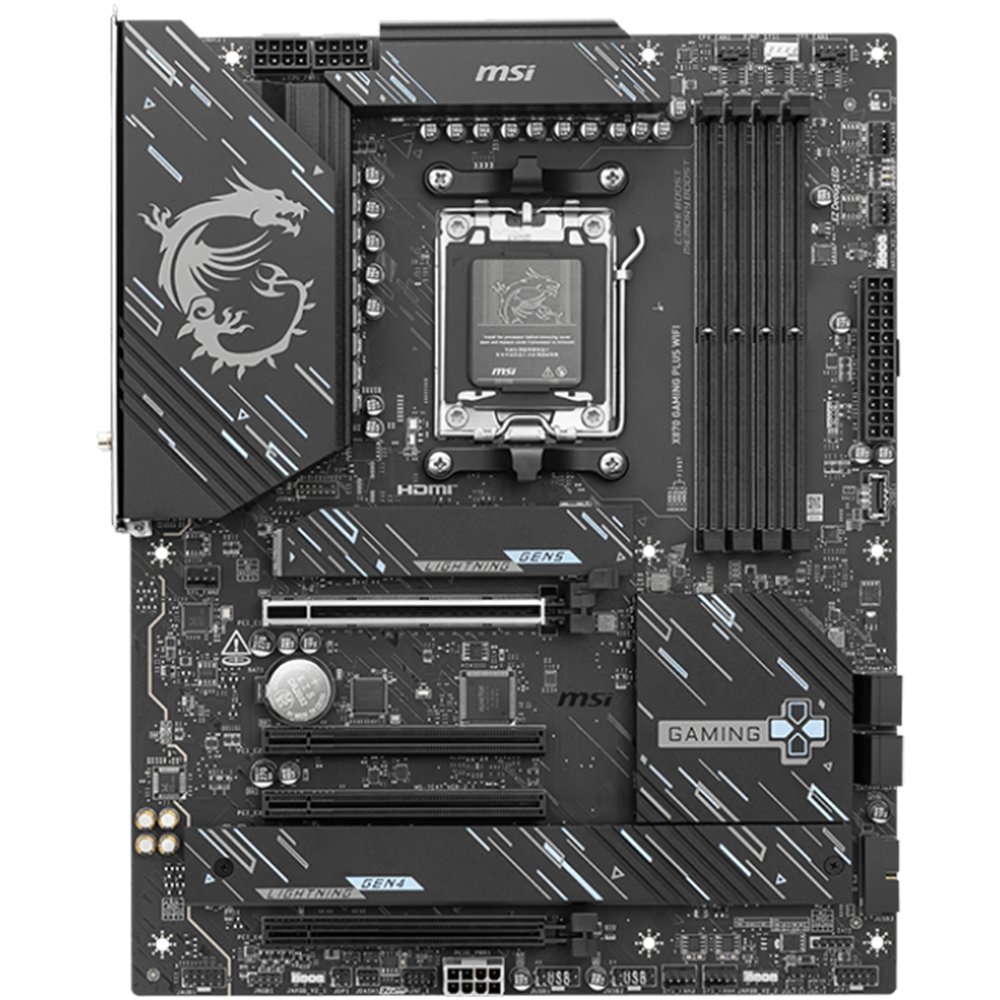

MSI X870 GAMING PLUS WIFI AM5 Socket For AMD CPUs Motherboard

• X870 GAMING PLUS WIFI is designed with durable components to provide great gaming experience. Designed with Wi-Fi 7 and 5G LAN, high-speed USB4, PCIe 5.0 solutions, Supplemental PCIe Power and exclusive EZ DIY features, it's ready for 24/7 non-stop gaming of AMD Ryzen™ 9000 series processors.

Product Features:

• Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
• Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
• Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
• Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
• EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
• Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
• Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
• Audio Boost : Reward your ears with studio-grade sound quality for the most immersive gaming experience

Product Details:

CPU:

• Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
• Socket AM5

Memory:

• 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
• Supports AMD POR Speed and JEDEC Speed
• Supports Memory Overclocking and AMD EXPOTM
• Supports Dual-Channel mode
• Supports Non-ECC, Un-buffered memory
• Supports CUDIMM, Clock Driver bypass mode only*
• * CUDIMM support and POR boot frequency may vary by CPU series

Expansion Slots:

• 4x PCI-E x16 slot
• PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
• PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
• PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
• PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)

Audio:

• Realtek® ALC897
• 7.1-Channel High Definition Audio

Storage:

• 3x M.2
• M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
• M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
• M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
• 4x SATA 6G

USB:

• 4x USB 2.0 (Rear)
• 4x USB 2.0 (Front)
• 2x USB 5Gbps Type A (Rear)
• 2x USB 5Gbps Type A (Front)
• 2x USB 10Gbps Type A (Rear)
• 1x USB 10Gbps Type C (Front)
• 1x USB 20Gbps Type C (Rear)
• 1x USB 40Gbps Type C (Rear)

LAN:

• Realtek® 8126VB 5G LAN

WIRELESS LAN & BLUETOOTH:

• Wi-Fi 7
• Supports Bluetooth® 5.4

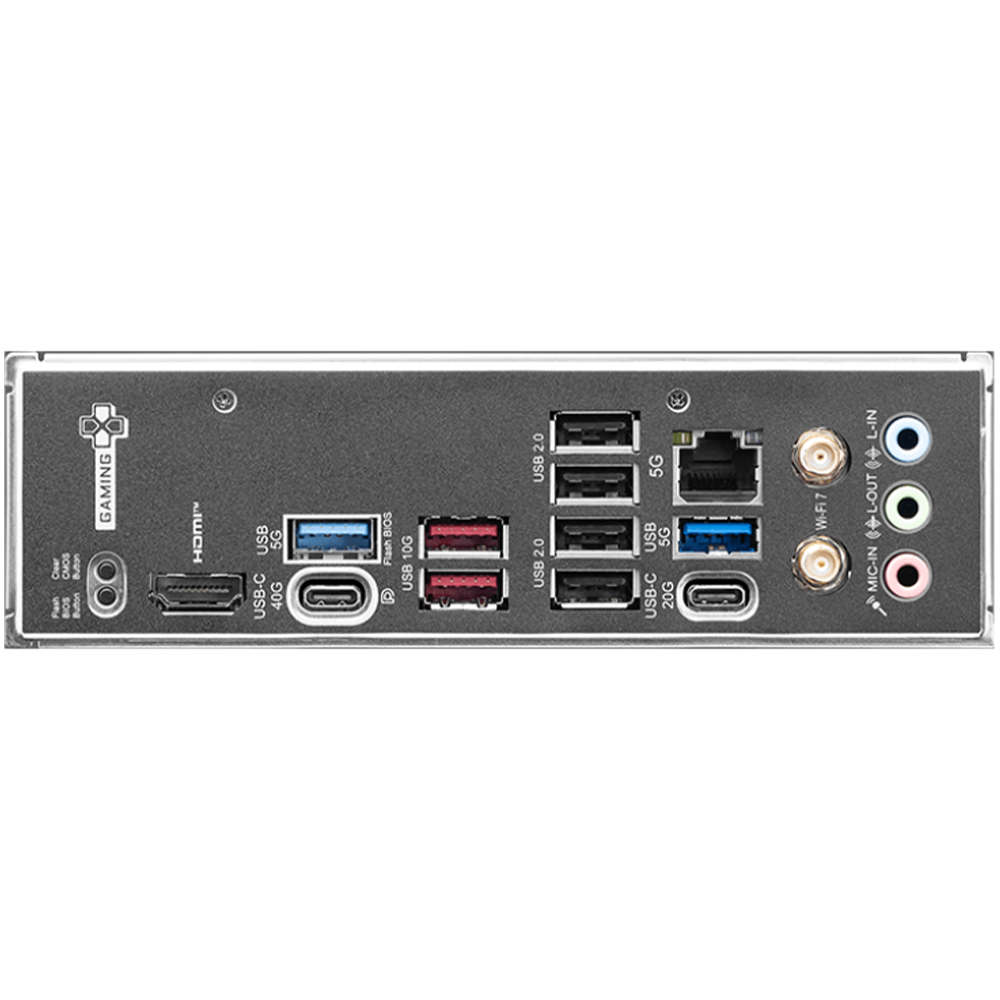

BACK PANEL PORTS:

1. Clear CMOS Button
2. USB 5Gbps Type-A
3. USB 10Gbps Type-A
4. USB 2.0
5. 5G LAN
6. Wi-Fi / Bluetooth
7. Audio connectors
8. Flash BIOS Button
9. HDMI™
10. USB 40Gbps Type-C
11. USB 2.0
12. USB 20Gbps Type-C
13. USB 5Gbps Type-A

Form Factor:

• ATX 243.84mmx304.8mm

Part Number:

• 911-7E47-005
